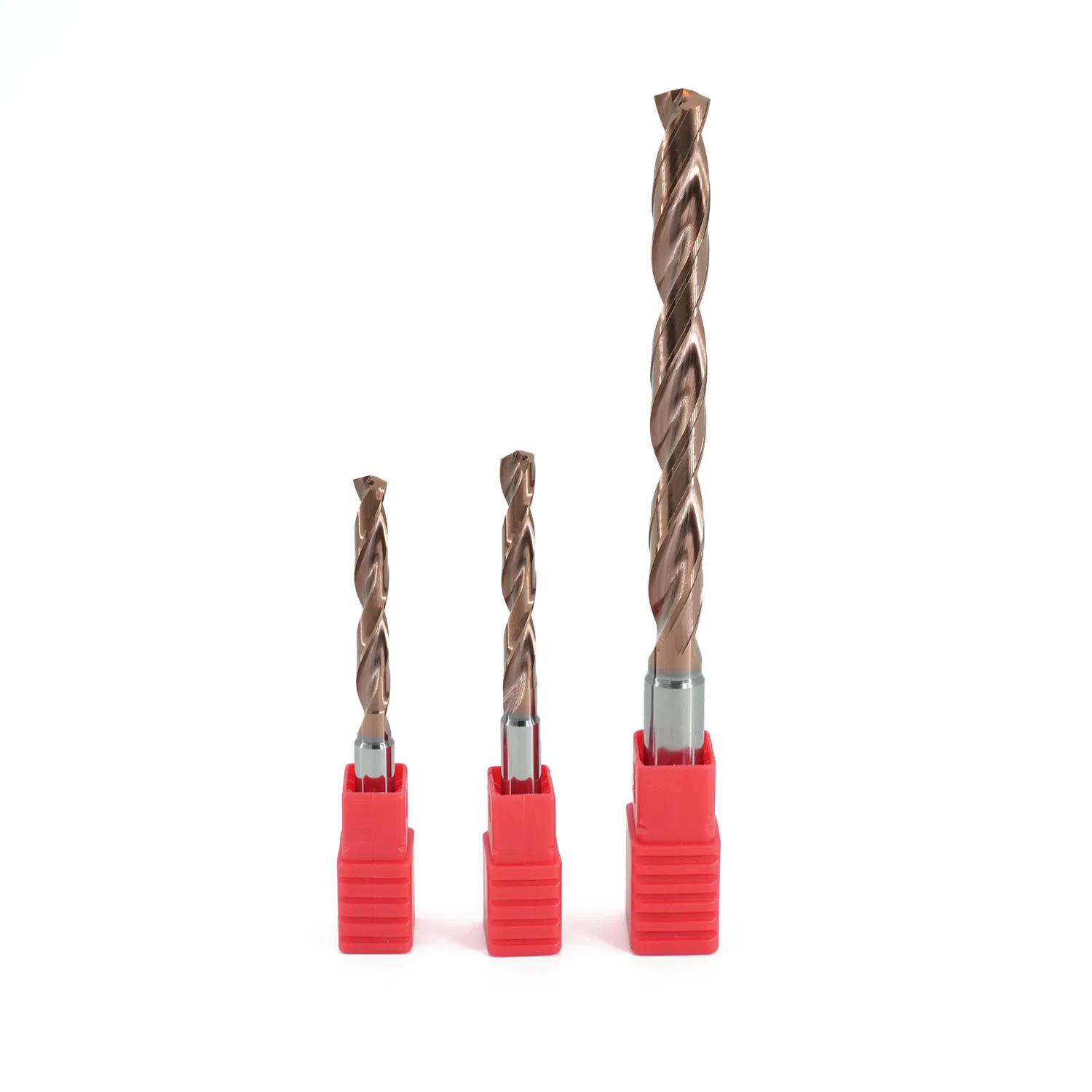

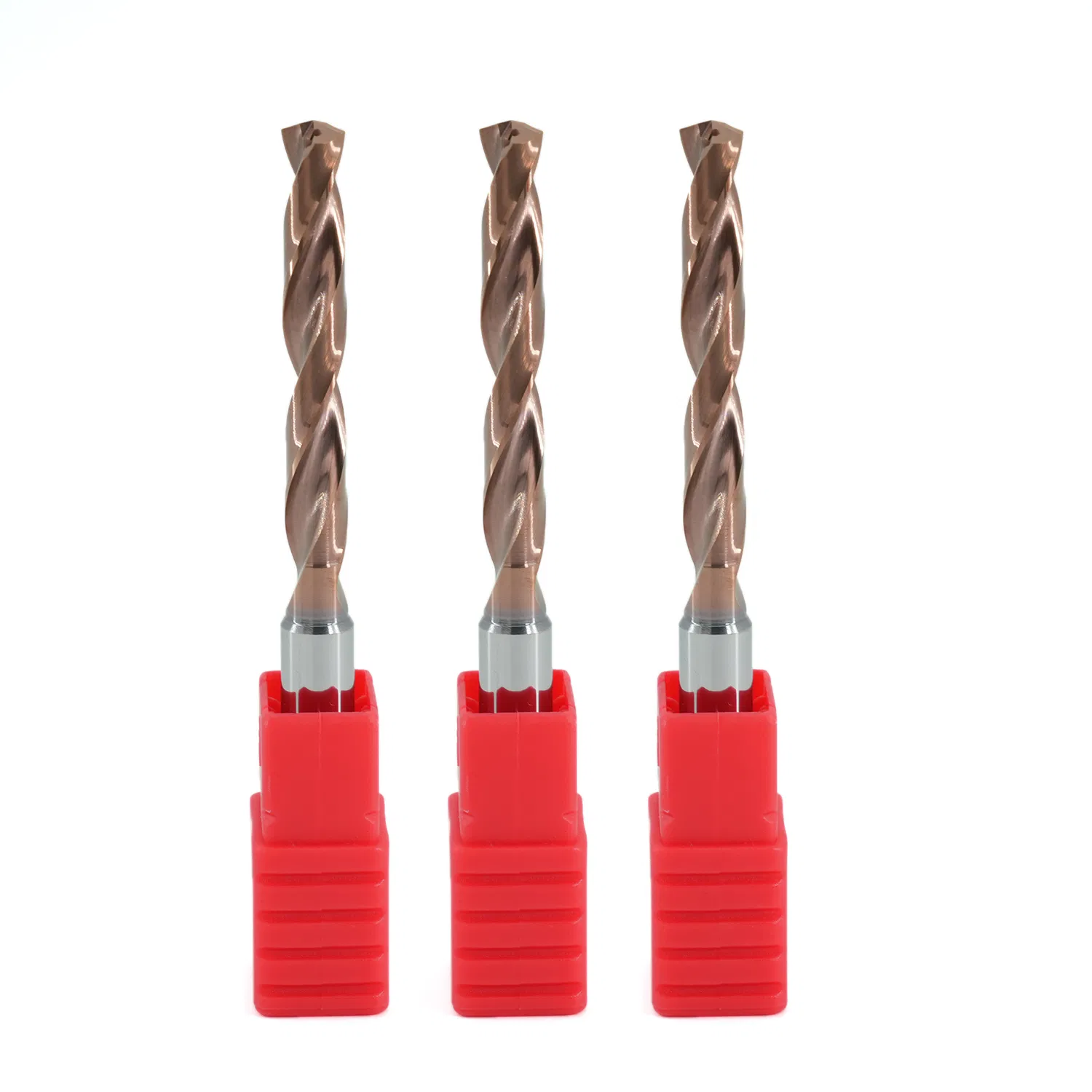

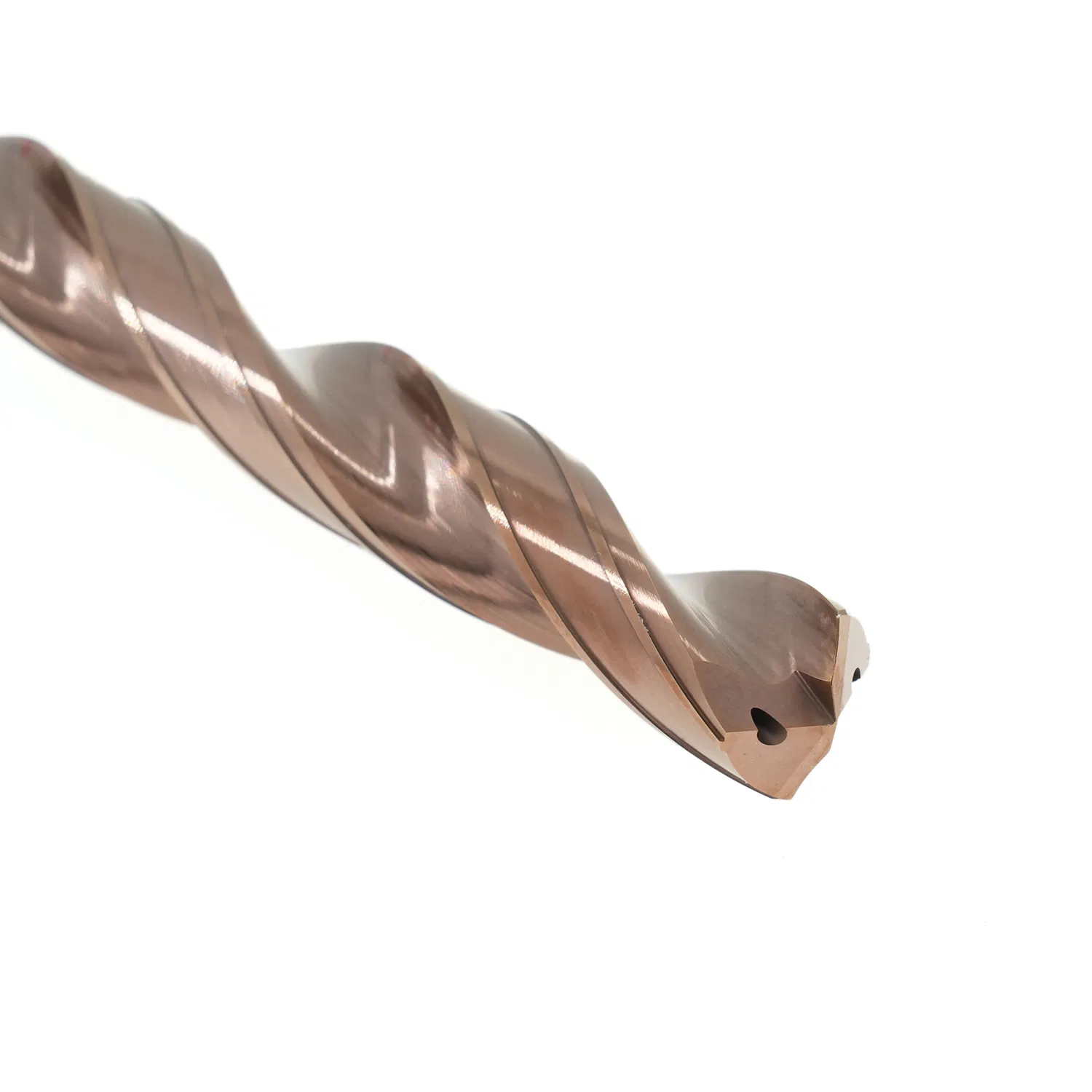

Wholesale Price CNC Tungsten Carbide Drill Bits Solid Carbide Drill Bit-D8.1-D10

Product Description

CNC Tungsten Carbide Drill Bits Solid Carbide Drill Bit CNC Tungsten Carbide Drill Bits Solid Carbide Drill Bit CNC Tungsten Carbide Drill Bits Solid Carbide Drill Bit
Product Description
Tungsten Carbide Internal Coolant Twist Drill Bits
Customized support OEM, ODM
Place of Origin China
Product Name Internal Coolant Twist Drill Bits
Material Solid Carbide/Tungsten Steel
HRC HRC45/55/65
Shipment UPS/Fedex/DHL/TNT/EMS/Sea/Air
Flute 1-7 flute
Type Twist Drill Bit
Finish Other
Material Tungsten Carbide
Overall length 40mm-100mm
Shank Dia 1mm-14mm
Size Blade length 12-107mm, overall length 34-160mm
Can be coated? As required
Coating Black Oxide/Tin-coated/Bright/Black & Gold/Black & White/Sandblast & Polished/Rainbow/AlCrSin(bronze)/OEM
Specification Standard or non-standard, made to order according to your requirement
Work Material For Stainless steel, alloy steel, die steel, 45# steel and other high hardness materials below 65 degree
Applications

To drill holes in various alloyed, unalloyed steel, rough metal, stainless steel, inox, iron, cast iron, etc.

  • Fully ground drill bit 5% Cobalt HSS with 135 degrees split point and flute type N.
  • Diameter tolerance h8 standard.
  • The cobalt content makes the bit harder and heightens temperature resistance, for work with hard metals such as stainless steel.
  • To drill holes in unalloyed and alloyed steels (up to 1200/mm²), stainless steel, cast iron.
  • The basic choice for industrial applications and the drilling of materials difficult to machine.
Product Show

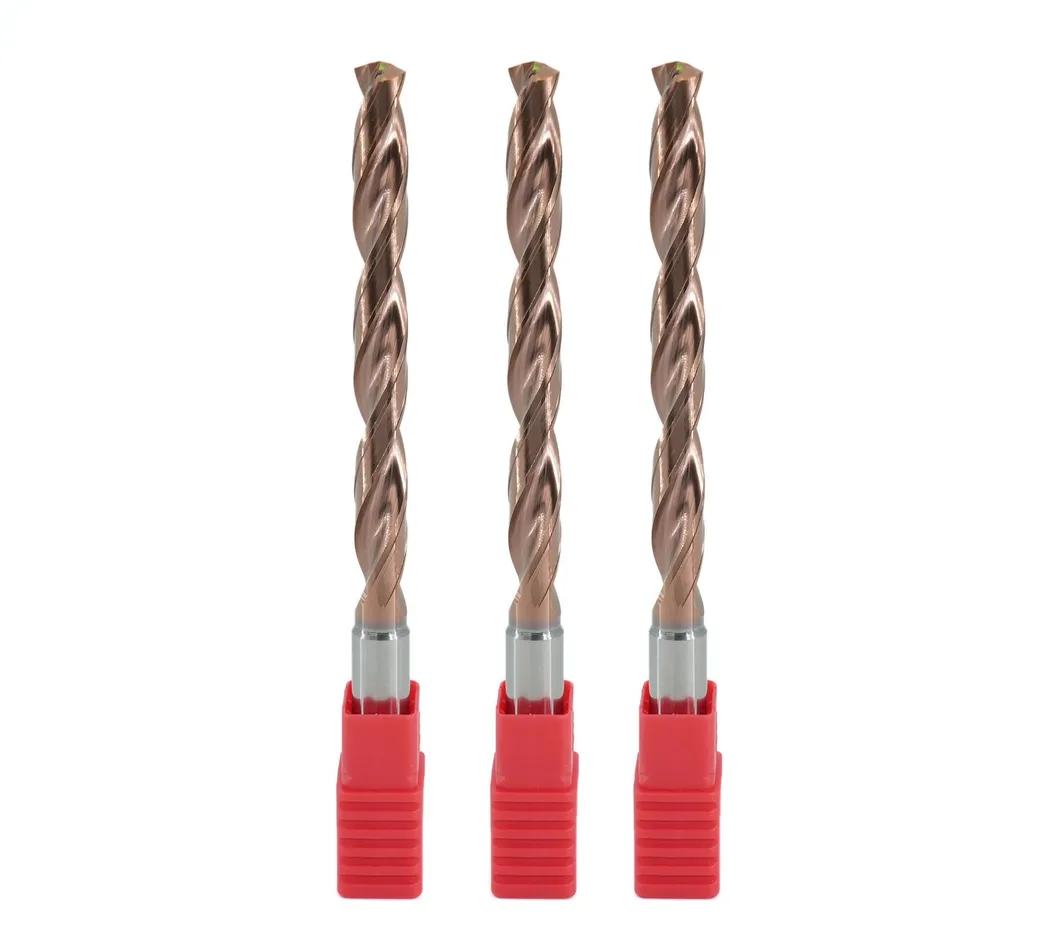

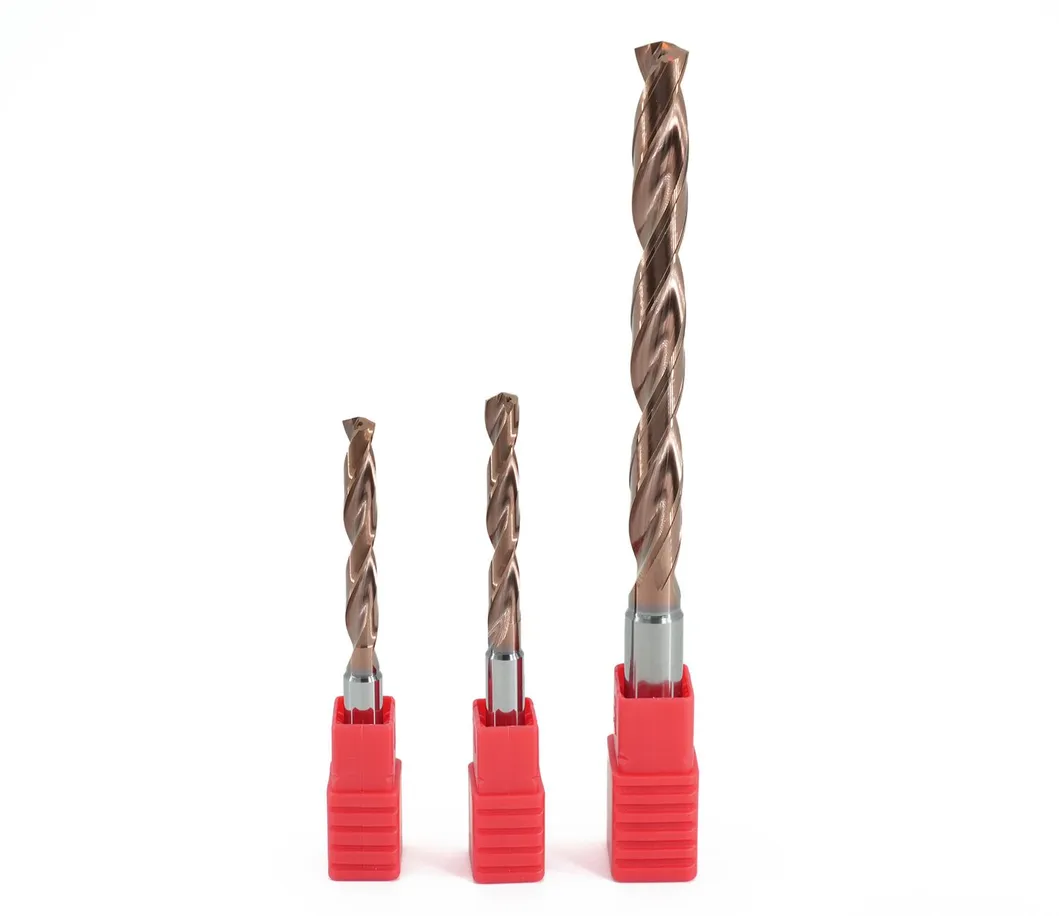

Product Showcase 1 Product Showcase 2

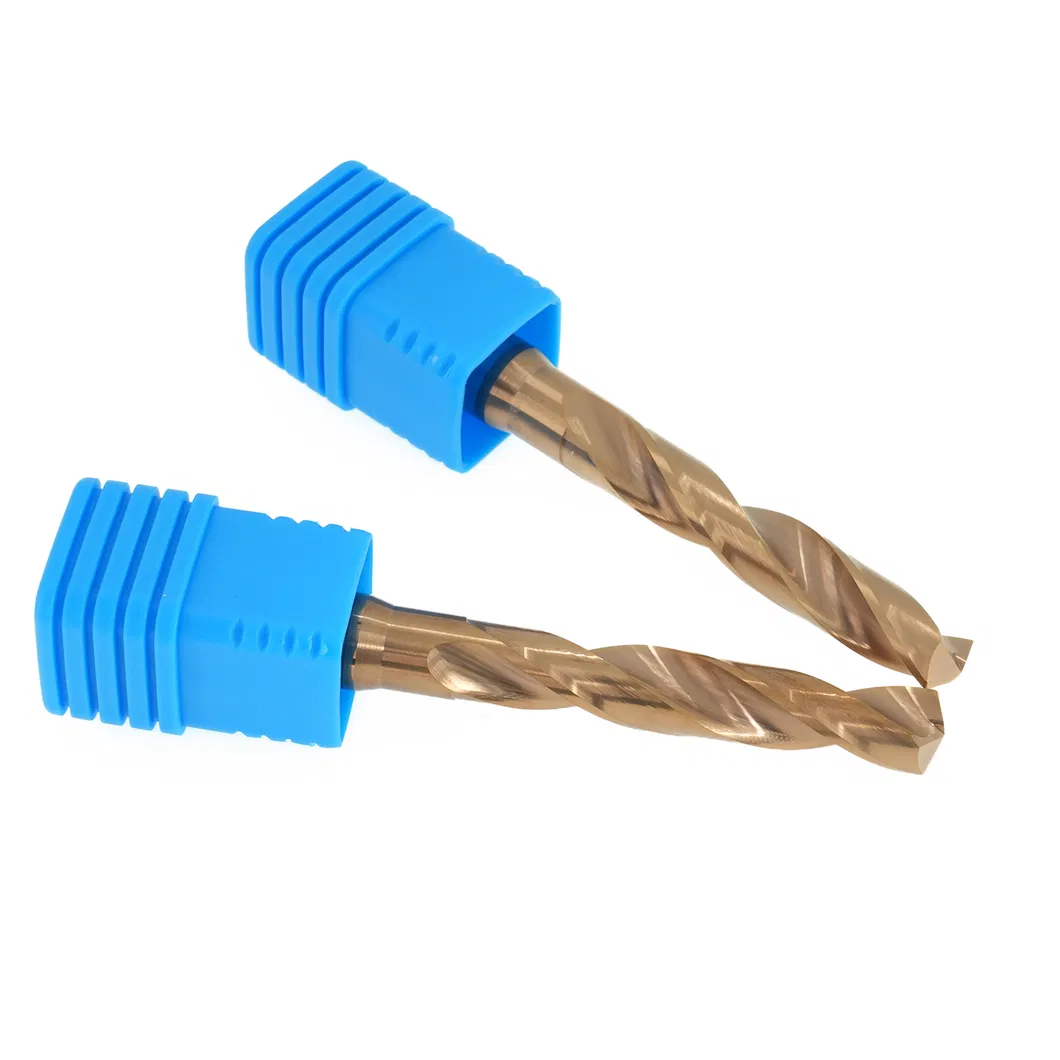

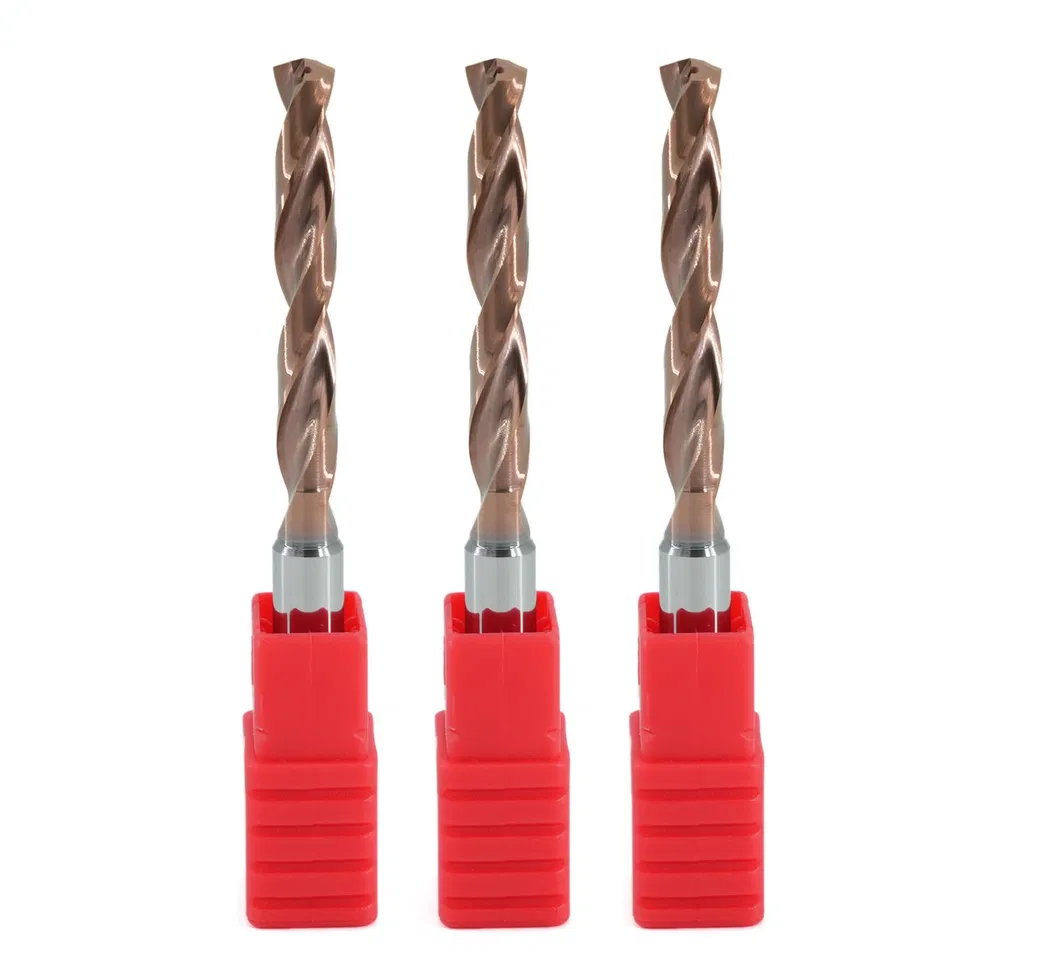

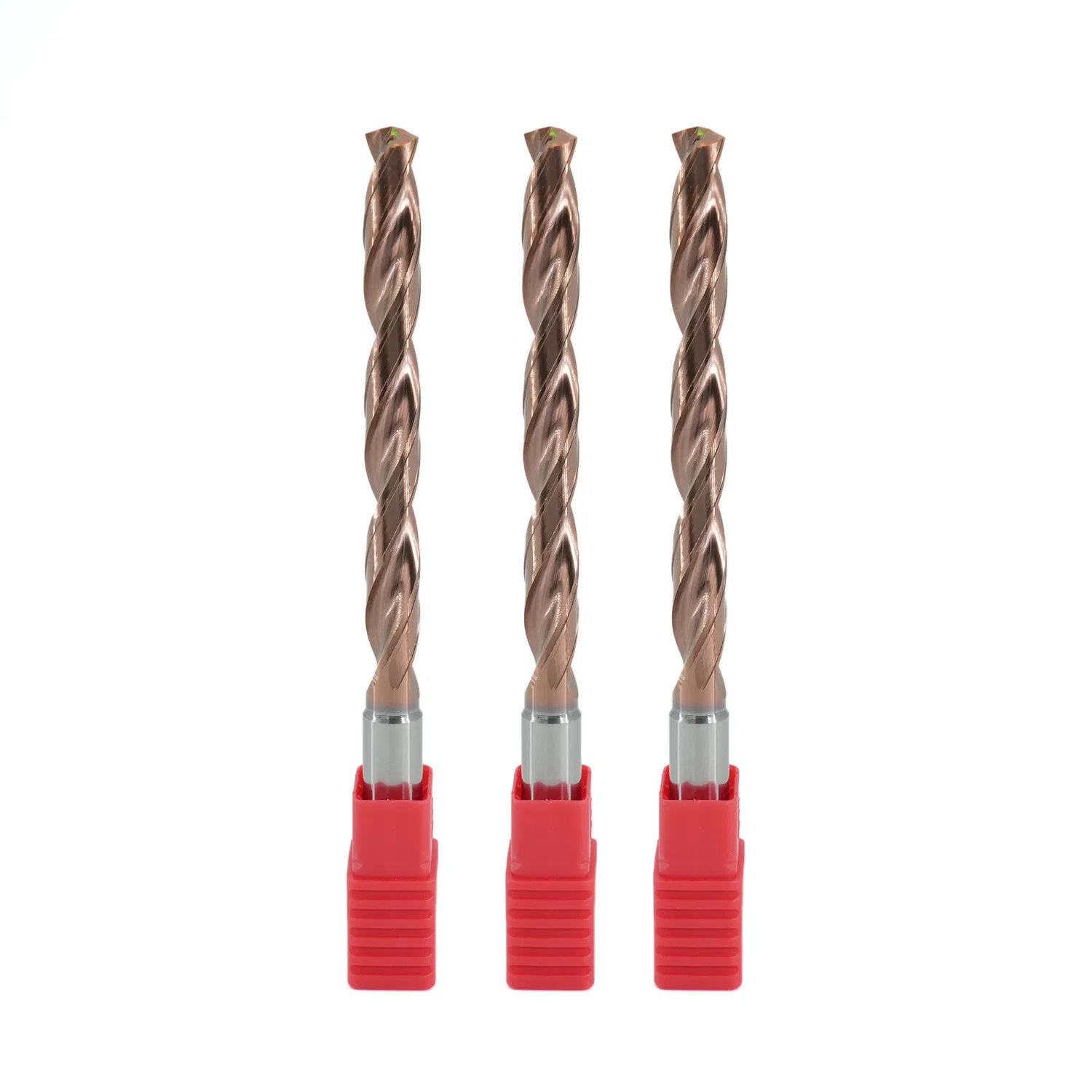

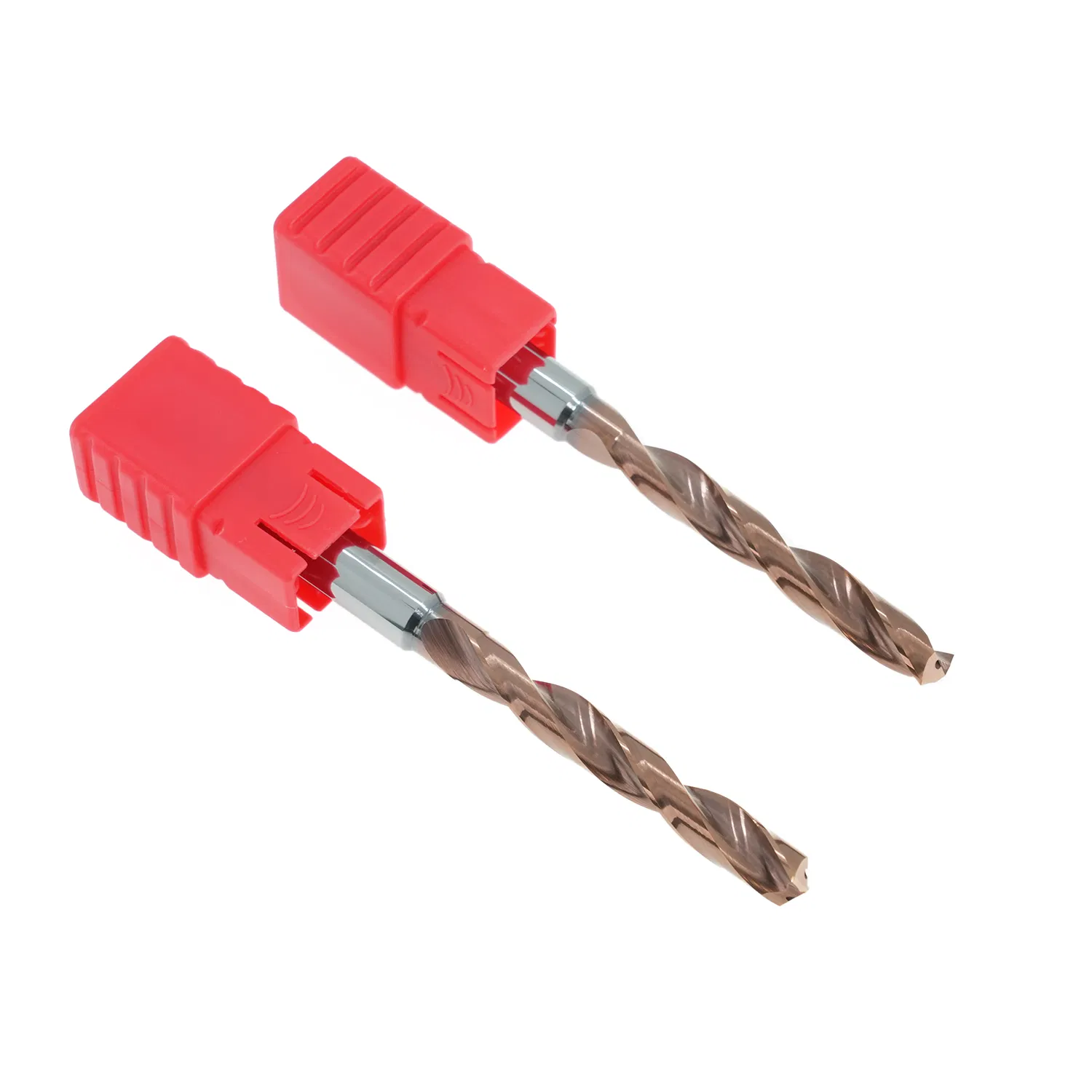

Product Details 1 Product Details 2

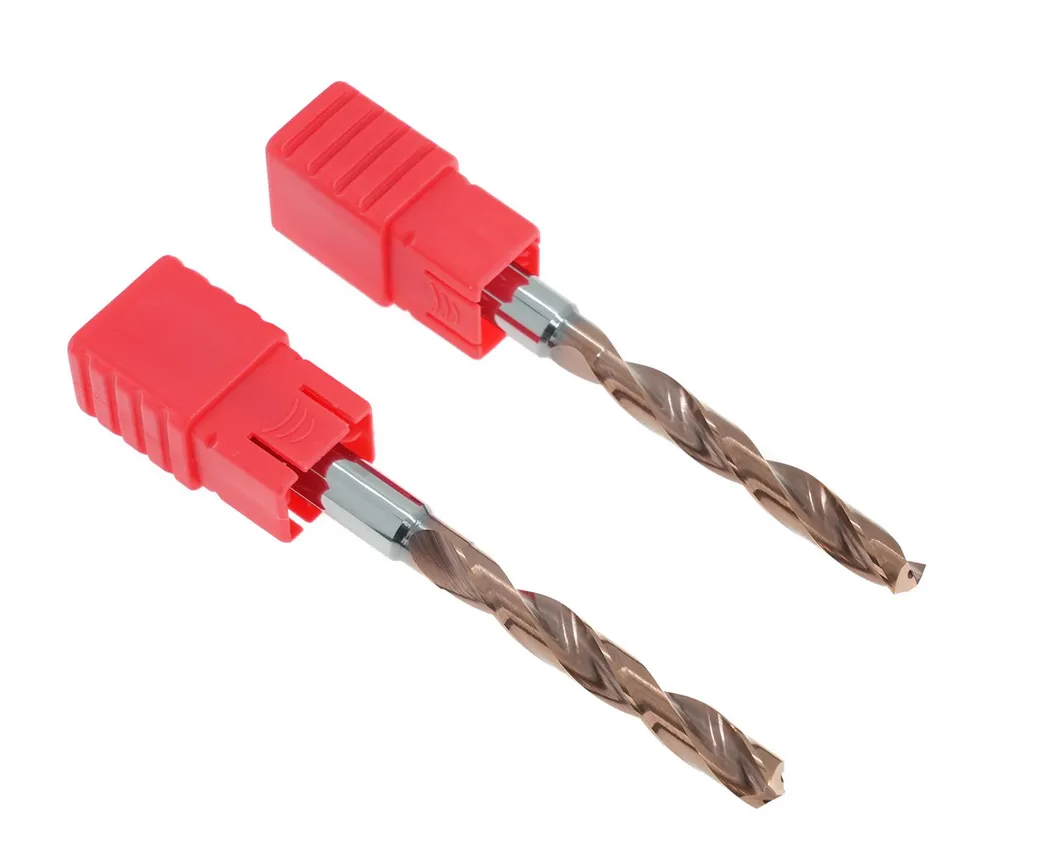

Product Details 3 Product Details 4
Product Specification

The following Specification for your reference, We also provide the OEM or ODM service.

Order No Cutting Dia (mm) Flute Length (mm) Shank Dia (mm) Overall Length (A.O.L)
HJ3*16*4D*50L 3 16 4 50
HJ3.5*20*5D*50L 3.5 20 5 50
HJ4*22*6D*50L 4 22 6 50
HJ4.5*24*7D*70L 4.5 24 7 70
HJ5*26*8D*70L 5 26 8 70
HJ5.5*28*9D*70L 5.5 28 9 70
HJ6*28*10D*70L 6 28 10 70
HJ6.5*30*11D*75L 6.5 30 11 75
HJ7*30*12D*75L 7 30 12 75
HJ7.5*30*14D*75L 7.5 30 13 75
HJ8*30*14D*75L 8 30 14 75
HJ8.5*35*15D*90L 8.5 35 15 90
HJ9*40*16D*90L 9 40 16 90
HJ9.5*40*17D*90L 9.5 40 17 90
HJ10*40*18D*90L 10 40 18 90
HJ11*40*19D*100L 11 40 19 100
HJ13*45*20D*100L 13 45 20 100
Specification Reference 1 Specification Reference 2
Specification Details
Packaging & Shipping
  • Package and shipping details: Laser brand on the cutter's shank, 1 pc in a plastic tube, 10pcs a group. We cooperate with DHL, Fedex, UPS, TNT, EMS and other express services as requested.
  • Delivery Time: For samples, we dispatch your tools in 2-7 workdays. For formal orders, we deliver tools to you in 7-30 workdays, depending on your order quantity.
  • Payment Term: T/T, Western Union, MoneyGram, L/C.
Packaging Box and Process

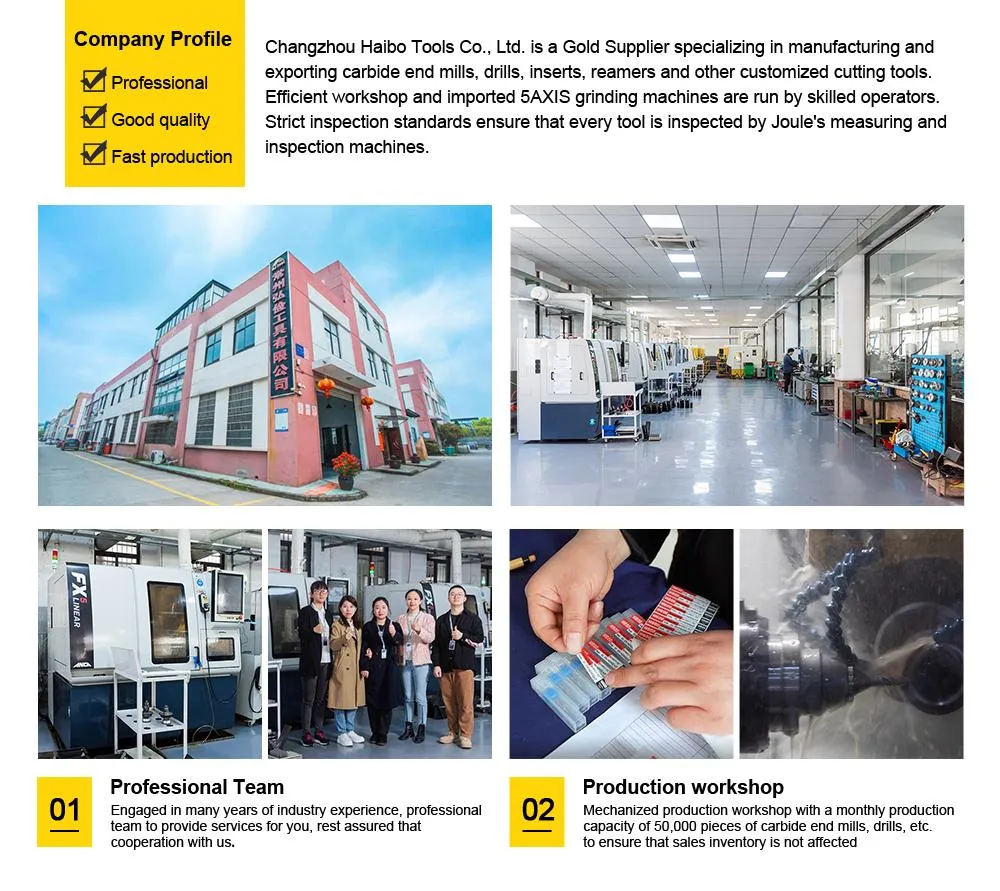

Company Profile
Factory Workshop

We are a high-tech enterprise with vitality, potential, and comprehensive strength. We specialize in producing and exporting Carbide End Mills, Drills, Inserts, Reamers, and other customized cutting tools. The efficient workshop and imported 5-axis grinding machines are run by skillful operators. Strict inspection standards ensure each cutter is inspected by a Zoller Measuring and Inspecting Machine. Currently, our monthly output reaches up to 50,000pcs of carbide end mills and drills, with more than 20,000 cutters in stock to meet urgent requirements. Ample raw materials are kept in stock to maintain price stability.

Exhibition Events
Exhibition Booth 1
Exhibition Event Photo 2 Exhibition Event Photo 3
Frequently Asked Questions
What materials are these twist drill bits suitable for?
They are specifically designed to drill high-hardness materials below 65 HRC, including stainless steel, alloy steel, die steel, cast iron, and inox.
What is the advantage of the internal coolant design?
Internal coolant channels deliver lubrication and cooling directly to the cutting edge. This reduces heat, improves chip evacuation, and significantly extends tool life during high-speed operations.
Do you offer OEM or ODM customization services?
Yes, we provide full support for OEM and ODM requests. Custom sizing, specialized coatings, and flute modifications can be produced according to your technical drawings.
What coatings are available for the drill bits?
We offer various industrial coatings such as AlCrSiN (bronze), Tin-coated, Black Oxide, and multi-layer finishes tailored to your processing needs.
What is your typical delivery time for orders?
Samples are usually dispatched within 2-7 workdays. For bulk or formal orders, delivery takes about 7-30 workdays, depending on the quantity.
How do you ensure the quality of each drill bit?
We implement strict quality control standards. Every single drill bit is measured and inspected using advanced Zoller Measuring and Inspecting Machines.
