Engineered for extreme wear resistance, minimized heat generation, and optimized surface finishes across stone, dental zirconia, composite materials, and non-ferrous metals.
How CVD diamond technology, interface adhesion engineering, and substrate processing revolutionize machining parameters.
In modern machining paradigms, the requirement for tool resilience has pushed traditional tungsten carbide (WC-Co) tools to their physical limits. Superhard composite structures, abrasive carbon-fiber-reinforced polymers (CFRP), quartz-reinforced materials, and advanced biocompatible ceramics like zirconia exert high thermal and abrasive stress on cutting edges. Diamond coatings—specifically processed via Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) / Diamond-Like Carbon (DLC)—have surfaced as the definitive industrial answer, bridging the gap between natural diamond hardness and substrate toughness.
Critical Industrial Challenge (Cobalt Leaching & Adhesion Energy): One of the key hurdles in coating tungsten carbide tools with high-purity crystalline diamond is the presence of Cobalt (Co) as a binder. Cobalt catalyzes the formation of sp2 carbon (graphite) instead of the desired sp3 diamond allotrope under high-temperature CVD conditions. Professional manufacturers mitigate this by implementing a rigorous chemical pre-treatment (such as Murakami's reagent and acid etching) to selectively deplete surface cobalt down to depths of 2–3 microns, ensuring superior adhesion energy and preventing micro-delamination during heavy continuous impact cutting.
Additionally, the crystalline orientation (microcrystalline vs. nanocrystalline) of the diamond deposition dictates the performance. Microcrystalline diamond (MCD) coatings provide supreme abrasive wear resistance but present a rougher surface profile. Nanocrystalline diamond (NCD) coatings feature ultra-smooth morphology, perfect for high-speed machining of optical polymers and dental implants where surface roughness (Ra) tolerances are extremely narrow.
Dongguan Carto Tool Co., Ltd. is a professional manufacturer specializing in industrial cutting tools, CNC machining tools, milling systems, turning solutions, and precision metal cutting technologies. The company is dedicated to providing high-performance tooling solutions for modern manufacturing industries, including automotive, aerospace, mold processing, machinery production, and general metal fabrication.
Since its establishment, Carto Tool has developed from a small-scale cutting tool workshop into a specialized industrial tooling supplier with integrated R&D, production, and quality control capabilities. In its early stage, the company focused on basic turning and milling tool production for local machining workshops. With the rapid growth of China’s manufacturing sector, Carto Tool expanded its technology base and began developing more advanced CNC-compatible cutting systems to meet higher precision and efficiency requirements.
During its development phase, the company invested in carbide material research, coating technology improvements, and CNC tool geometry optimization. It introduced modern production lines and precision grinding equipment to ensure stable performance and long tool life. At the same time, Carto Tool strengthened its testing systems to improve cutting accuracy, wear resistance, and thermal stability across different machining environments.
Today, Dongguan Carto Tool Co., Ltd. serves global industrial clients with a wide range of cutting tool solutions designed for high-speed, high-precision, and heavy-duty applications. The company continues to focus on innovation in CNC machining efficiency, metal cutting performance, and cost optimization for manufacturers. With a commitment to quality and engineering excellence, Carto Tool aims to become a trusted international supplier in the industrial cutting tools industry, supporting smarter and more efficient global manufacturing systems.
Deep cluster-based manufacturing ecosystems of Dongguan guarantee raw material stability, swift prototyping, and logistics efficiency.
Located in Dongguan's manufacturing cluster, Carto Tool benefits from direct sourcing of high-purity micro-grain tungsten carbide powder and rods. Access to premium domestic and imported raw materials minimizes upstream supply fluctuations.
Unlike typical manufacturing operations that outsource coating processes, Carto Tool integrates high-capacity CVD and PVD vacuum coating lines internally. This yields immediate quality feedback, custom coating thickness capability, and reduced lead times.
Equipped with high-precision CNC tool grinding centers, custom geometries can be programmed, simulated, ground, coated, and inspected within a short cycle. This is critical for global industrial partners seeking customized configurations.
How our diamond-coated solutions perform across demanding environments around the globe.
Aerospace manufacturers rely on Carbon Fiber Reinforced Polymers (CFRP) due to their high strength-to-weight ratio. Standard carbide cutters experience extreme abrasive wear within meters. Carto Tool's diamond-coated end mills maintain sharp cutting edges, avoiding fiber pull-out, delamination, and structural degradation.
Modern engines make extensive use of high-silicon aluminum alloys (e.g., A390). Silicon particles are highly abrasive, wearing out steel tools quickly. Diamond-coated inserts provide the hardness needed to mill complex engine heads and blocks efficiently, sustaining tight dimensional tolerances.
In digital dentistry, pre-sintered zirconia blocks are milled into crowns and bridges. Dental CAD/CAM units utilize miniature ball-nose and flat-end mills. Our specialized diamond-coated burrs, compatible with VHF, Roland, and Amann Girrbach machines, prevent micro-chipping on delicate margins.
Printed circuit boards (PCBs) contain abrasive glass fiber matrices (FR4) and copper layers. Micro-routing and drilling require tools that resist abrasive wear to prevent smear and copper burrs. Carto Tool's CVD micro-tools ensure clean cuts and consistent hole quality over long run times.

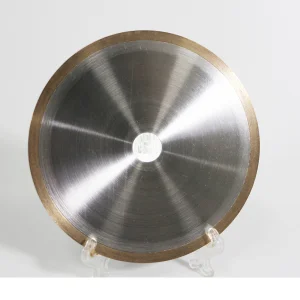

For modern architecture and interior fabrication, working with materials like Dekton, sintered stone, and granite requires heavy-duty tools. Our Ti-coated and CrN-coated diamond blades and wire saws offer clean cuts, helping prevent surface fracturing on premium slabs.
High-hardness graphite electrodes used in electrical discharge machining (EDM) are abrasive. Carto Tool's CVD diamond-coated end mills allow high-speed milling of complex graphite geometries without the dimensional drift caused by rapid tool wear.
The technological path toward smart coatings, ultra-thick crystal layers, and next-generation substrate bonding.
As composite engineering advances, tool designs must adapt. Carto Tool’s technical division is working along three strategic technology paths to improve precision cutting performance:
Traditional single-layer diamond coatings can transmit cracks directly from the surface to the substrate. We are developing gradient multilayers that alternate between microcrystalline and nanocrystalline diamond. This configuration helps absorb stress and redirect cracks, improving structural reliability.
To achieve clean cutting dynamics, the tool edge geometry must be carefully controlled. Using 3D laser-ablation post-deposition, we can remove irregular diamond crystals from the primary relief surface, yielding a sharp, uniform cutting edge with low micro-roughness.
For cutting stickier materials like copper and aluminum, we are refining high-energy physical vapor deposition (HiPIMS) to apply thin, hard, hydrogen-free Diamond-Like Carbon (ta-C) coatings. This reduces material adhesion and friction during high-speed machining.
Ensuring seamless international supply chain integration, regulatory compliance, and localized application engineering support.
As an exporter supplying global industries, Carto Tool prioritizes alignment with local technical and regulatory requirements. Our products comply with RoHS and REACH standards, ensuring safe workplace integration in regulated markets like the European Union and North America.
To simplify importing and customs processes, Carto Tool provides comprehensive compliance documentation, including certificates of origin, material composition data, and standard customs classification codes (HS Codes). We also coordinate closely with our distribution partners to provide technical support and application guidelines for specific CNC machinery, helping customers optimize tool life and feed rates.
Direct, data-driven answers to common engineering questions about diamond-coated tool application and maintenance.
Engineered for durability, high-speed performance, and precise tolerances across demanding industrial applications.
A look inside Dongguan Carto Tool Co., Ltd.'s processing facility, testing laboratories, and inventory management systems.
