27mm Ejector Drilling System with Afford Price

Customization:	Available
Customized:	Customized
Length:	Stub-length

Send Inquiry

Product Description

Overview Product Description Detailed Photos Product Parameters FAQ

Overview

Model NO.

27mm

Type

Core Drill Bit

Material

Solid Carbide

Usage

Metal Drilling

BTA

Ejector BTA Drill Head

Inner Hole Diameter

27mm

Insert Method

Replaceable

Color

White or Black

Guide Pad

Indexable

Transport Package

International Express

Specification

size

Production Capacity

10000

Product Description

27mm Ejector Drilling System with Afford Price

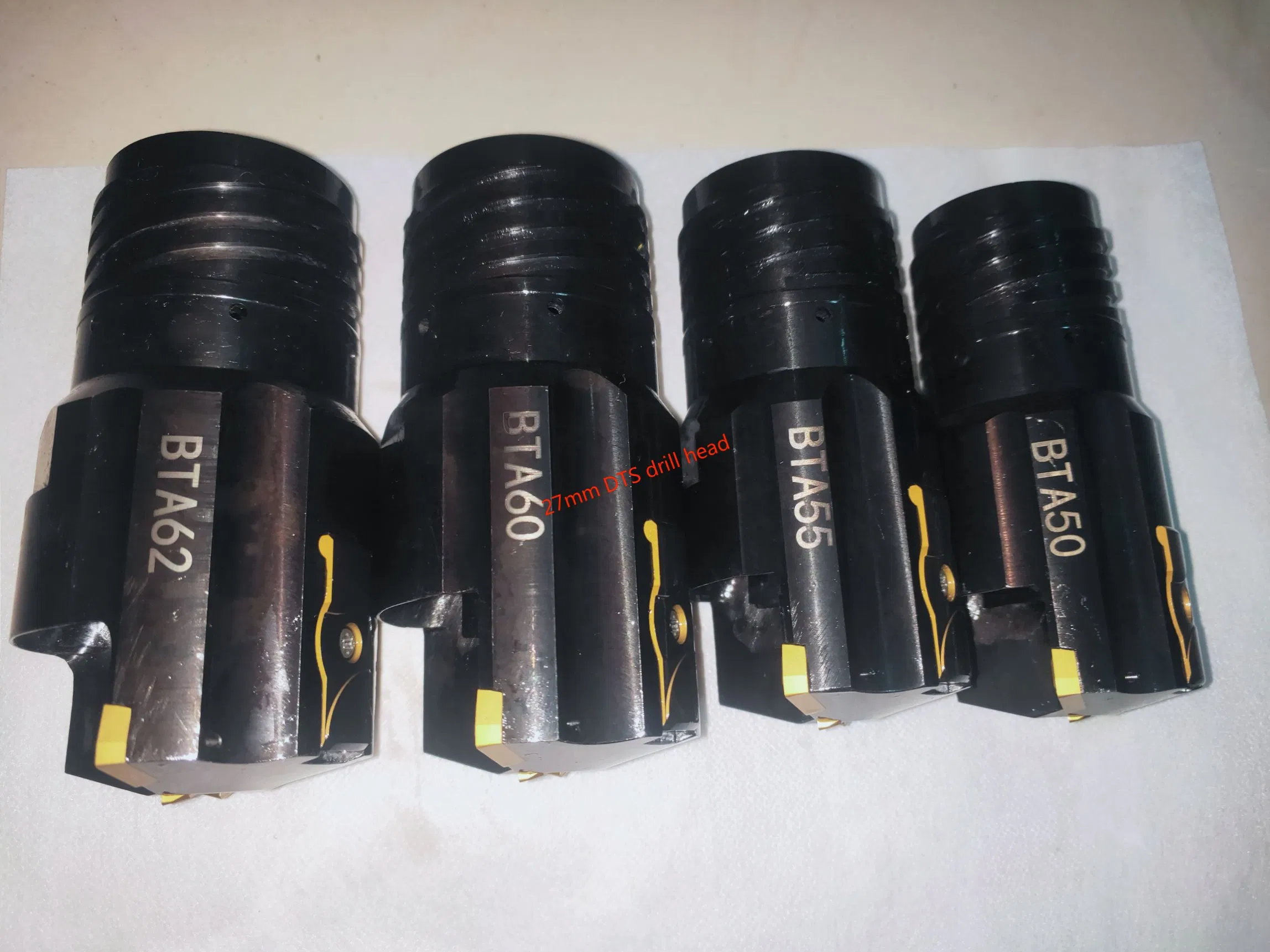

DTS BTA Deep Hole Drilling Head - BTA DRILL HEAD

Feature: Short lead time, high quality, cutting tool body is Aviation pre-hardening material!

Production Characteristics

It's our manufactured S type BTA deep hole drilling head.
It adopts high quality alloy steel material, with super coating inserts.
Carbide guide pads, high efficiency, easy install and low cost.
Widely machining for different materials.

Detailed Photos

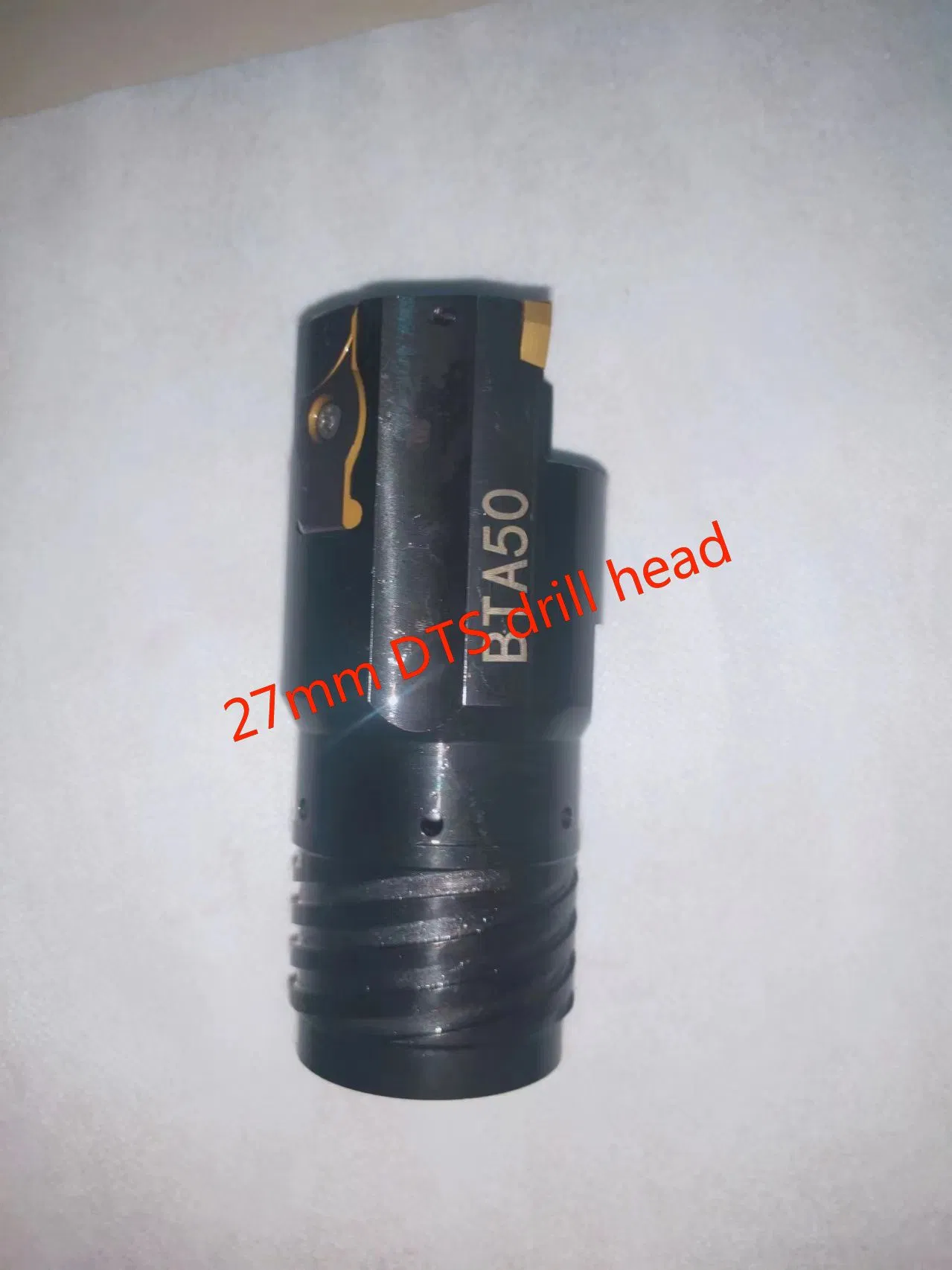

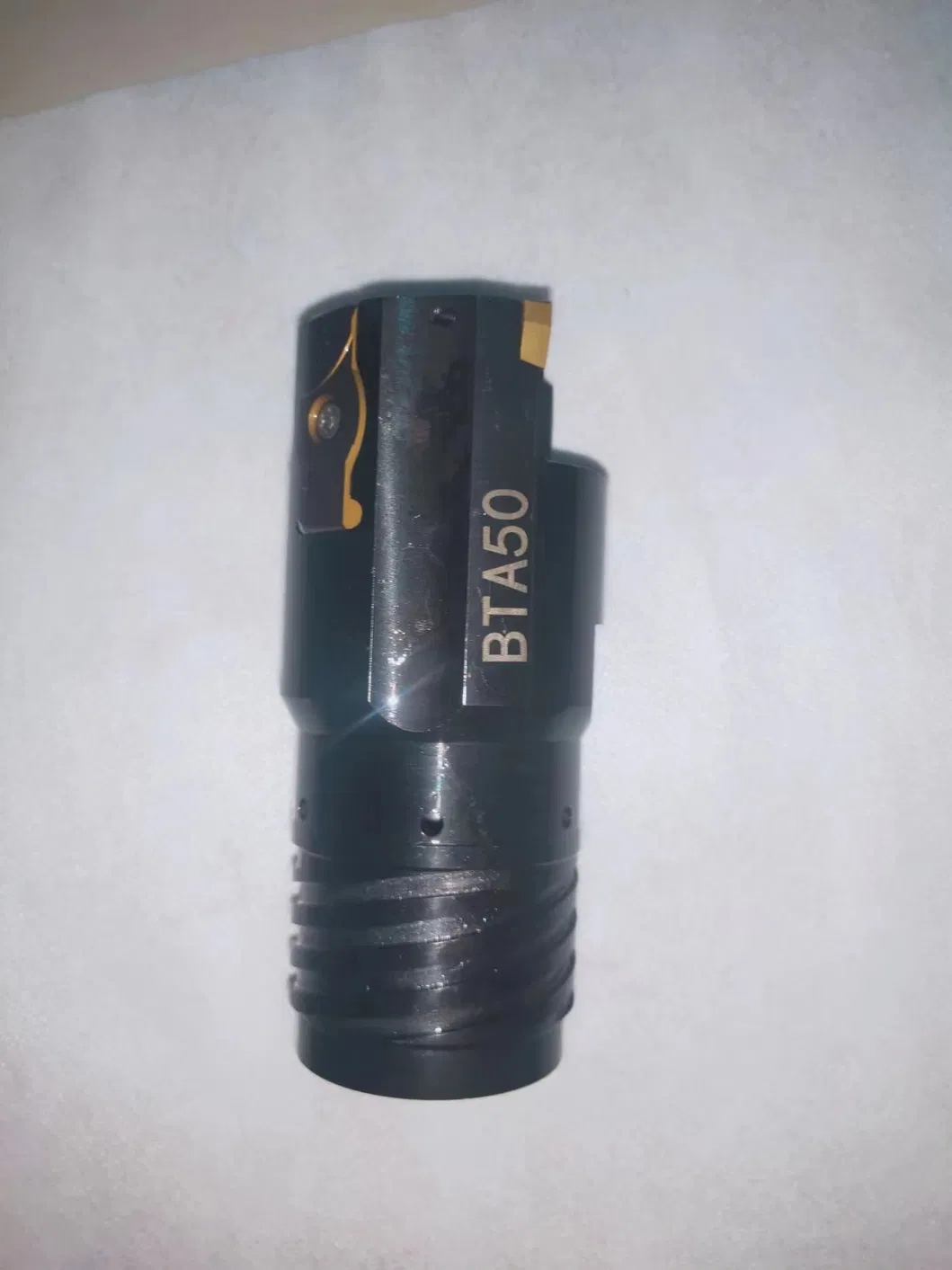

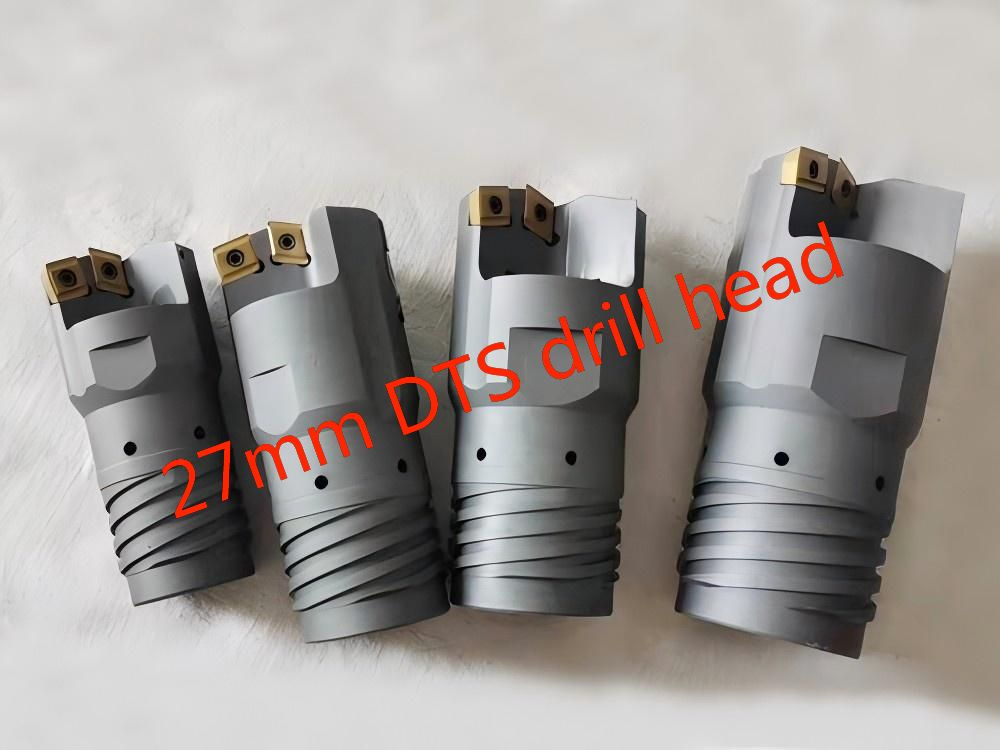

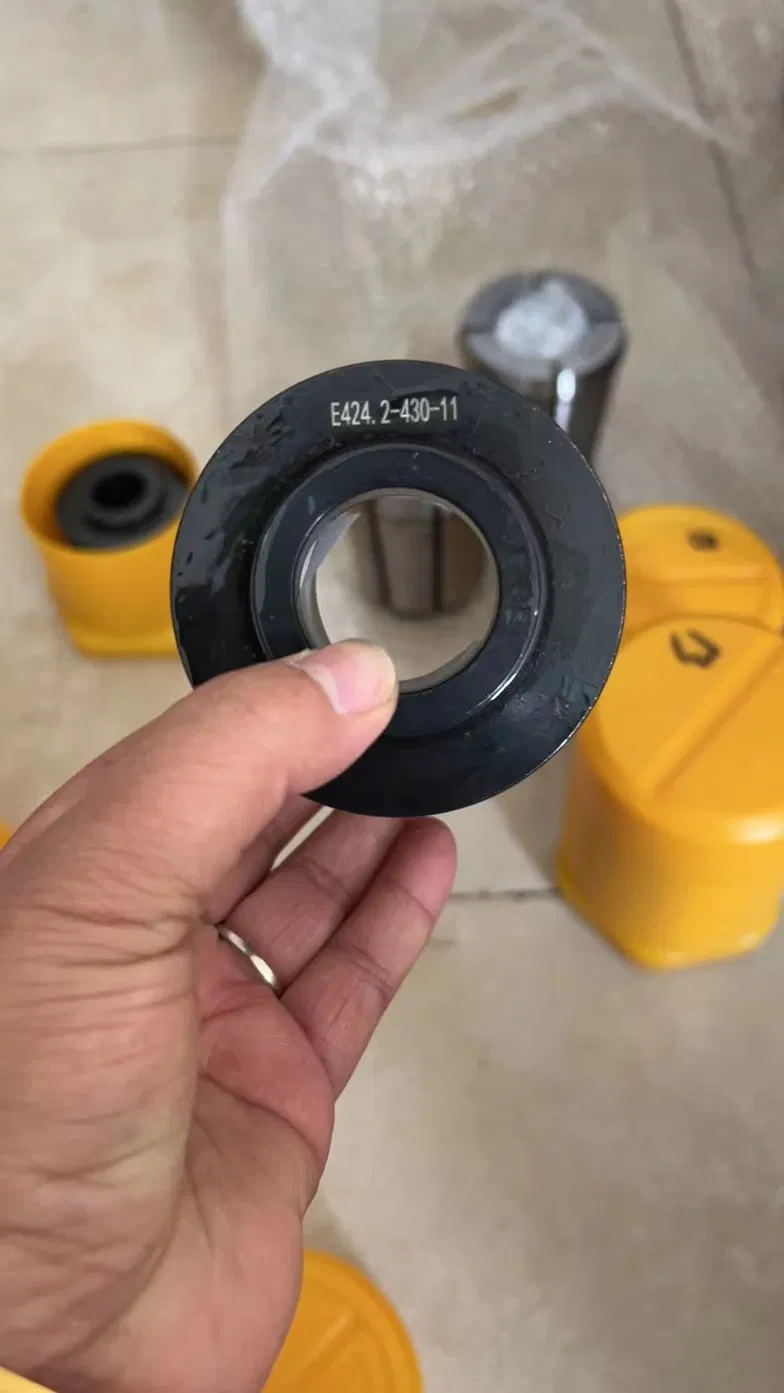

DRILL HEAD

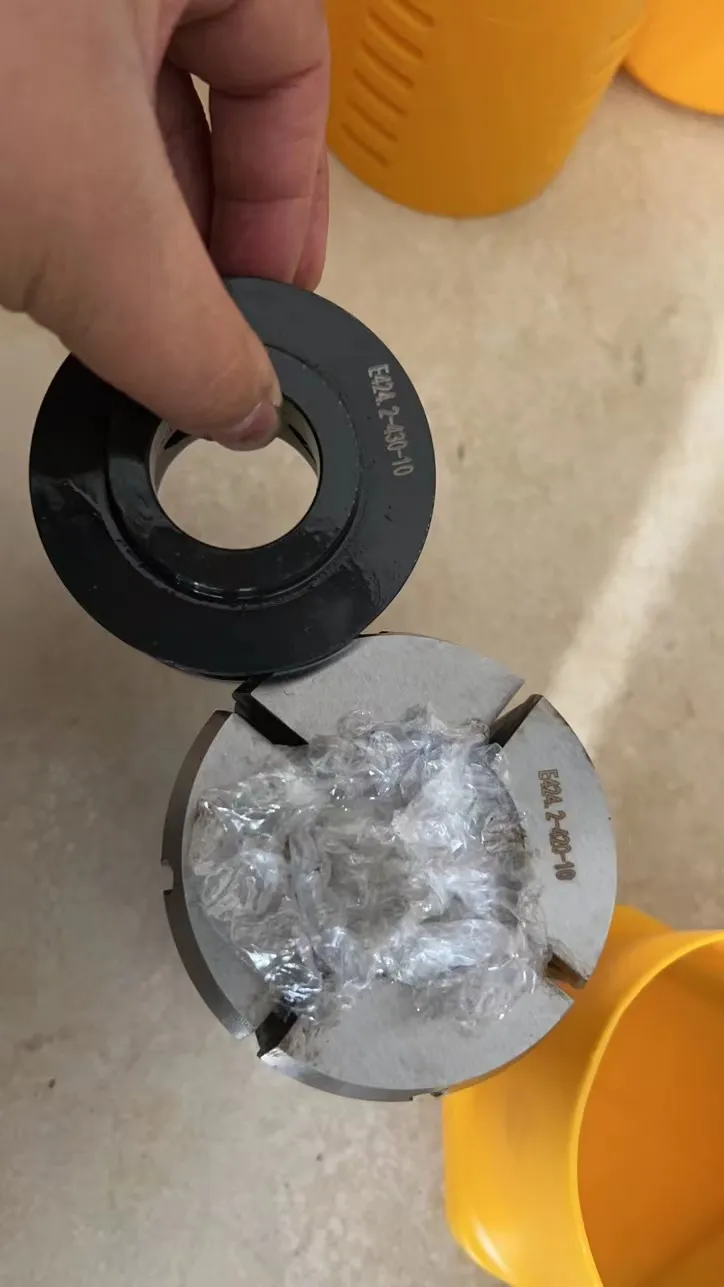

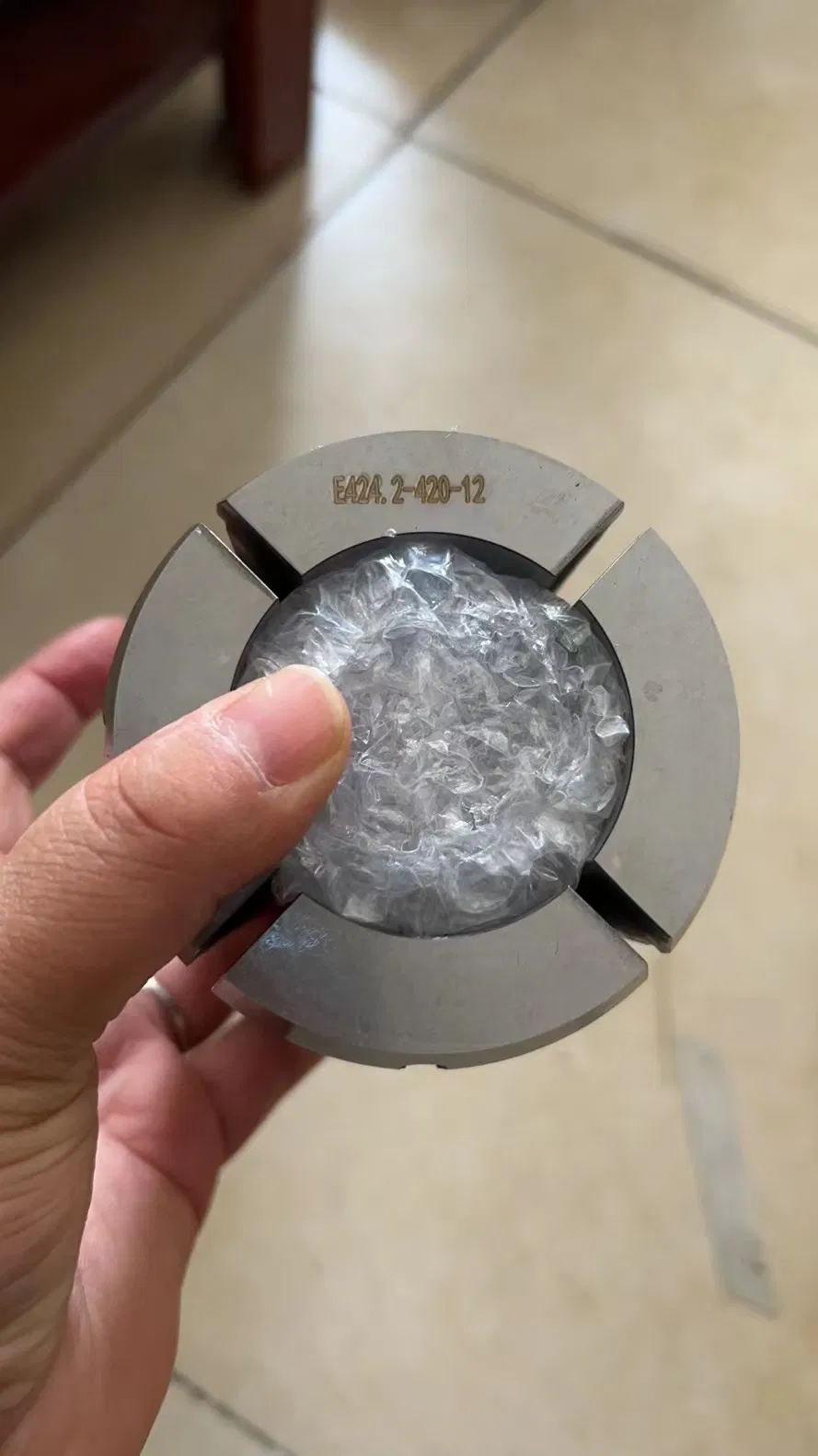

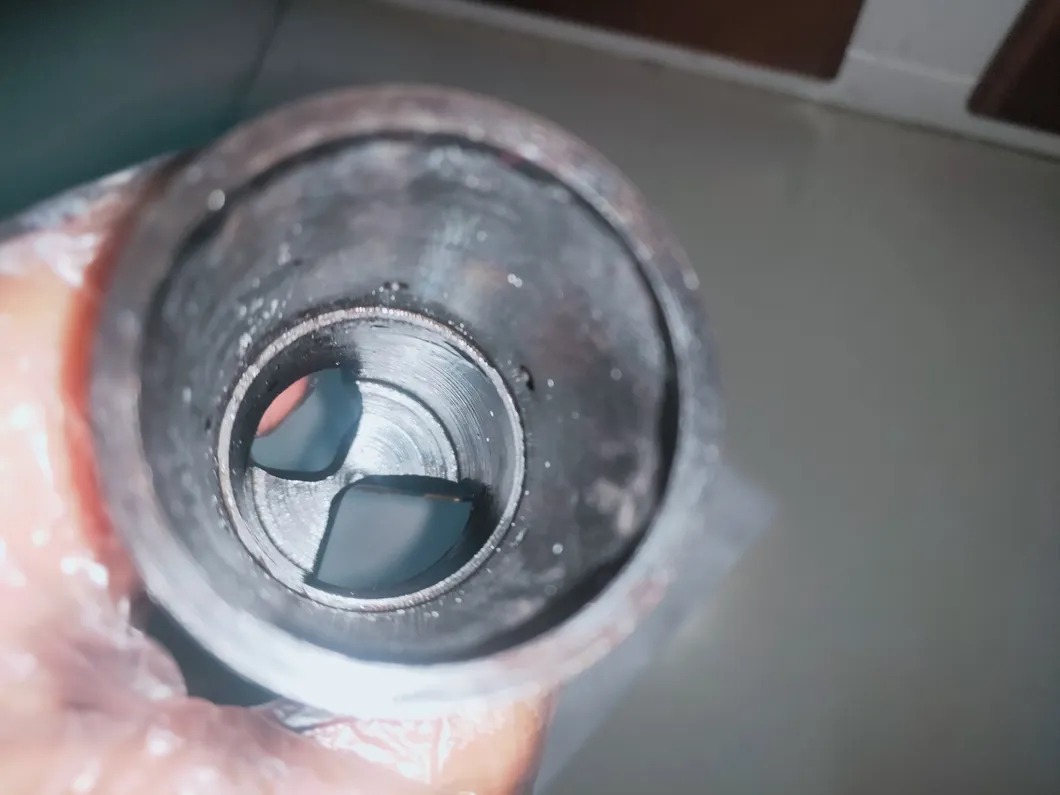

27mm Ejector Drilling System - Detailed View

Drill bar & Solid carbide guide pad & Inserts

Drill Bar

Solid Carbide Guide Pad

Inserts

Product Parameters

Example 25-65mm parameter list

Drilling head diameter	Central inserts	Qty	Intermediate inserts	Qty	Peripheral inserts	Qty	Guide pad	Qty
25~28.7	800-050308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
28.71~31.00	800-06T308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
31.01~33.30	800-06T308M-C-G	1	800-060308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
33.31~36.20	800-08T308M-C-G	1	800-06T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
36.21~39.6	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
39.61~43	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
43.01~47.00	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
47.01-51.7	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
51.71-56.2	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
56.21-59	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2
60-65	800-12T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2

27mm Ejector Drilling Parameters Diagram

Frequently Asked Questions

What are the primary characteristics of the DTS BTA Deep Hole Drilling Head?

The drilling head features an ejector system design and double-tube system setup. It utilizes high-quality alloy steel for the body, integrated with super-coated inserts and indexable carbide guide pads, offering high drilling efficiency and low maintenance costs.

What type of material is used in the body of the BTA drill head?

The body of our deep hole cutting tool is manufactured from Aviation pre-hardening material, which ensures excellent strength, dimensional stability, and prolonged tool lifetime.

Is the guide pad indexable?

Yes. The guide pads are indexable solid carbide components, designed for easy installation, high durability, and lower overall tooling cost per unit.

What workpiece materials can be processed with this drilling system?

The system is designed for metal drilling and is highly versatile, making it widely applicable for machining different types of metallic materials in heavy manufacturing and machining centers.
