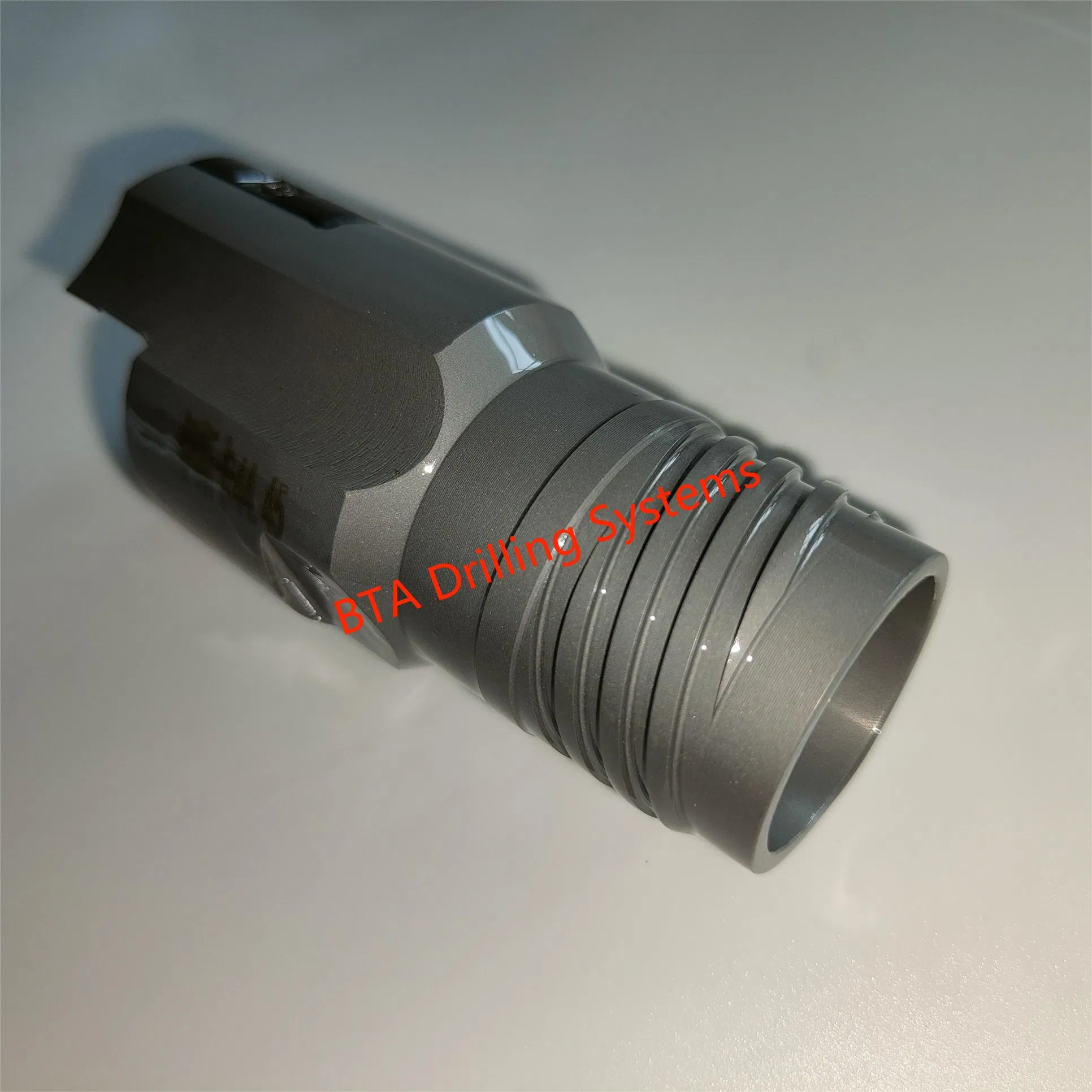

BTA Drilling Systems for Deep Hole

Customization:	Available
Customized:	Customized
Length:	Stub-length

Send Inquiry

Product Description

Overview Product Description Detailed Photos Product Parameters FAQs

Basic Info.

Model NO.

Customized

Type

Core Drill Bit

Material

Solid Carbide

Usage

Metal Drilling

BTA

BTA Drill Head

Inner Hole Diameter

Customized

Insert Method

Replaceable

Color

White or Black

Transport Package

International Express

Specification

size

Production Capacity

10000

Product Description

Customized BTA Drilling Tool with Indexable Insert and Guide Pad STS BTA Deep Hole Drilling Head - BTA DRILL HEAD

Key Feature

Short lead time, high quality, cutting tool body is Aviation pre-hardening material!

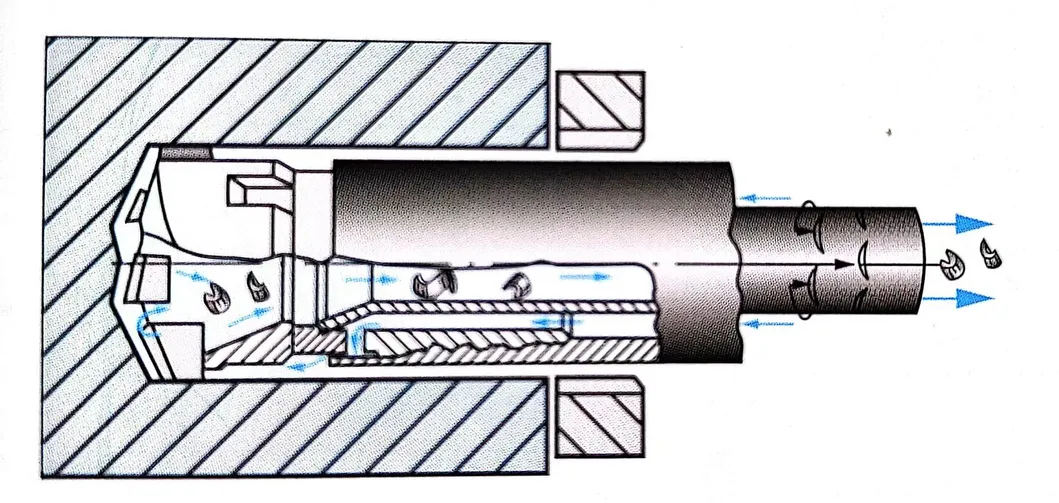

Production Characteristics - Single Pipe BTA DRILL HEAD

It's our manufactured S type BTA deep hole drilling head.
It adopts high quality alloy steel material, with super coating inserts.
Carbide guide pads, high efficiency, easy install and low cost.
Widely machining for different materials.

Detailed Photos

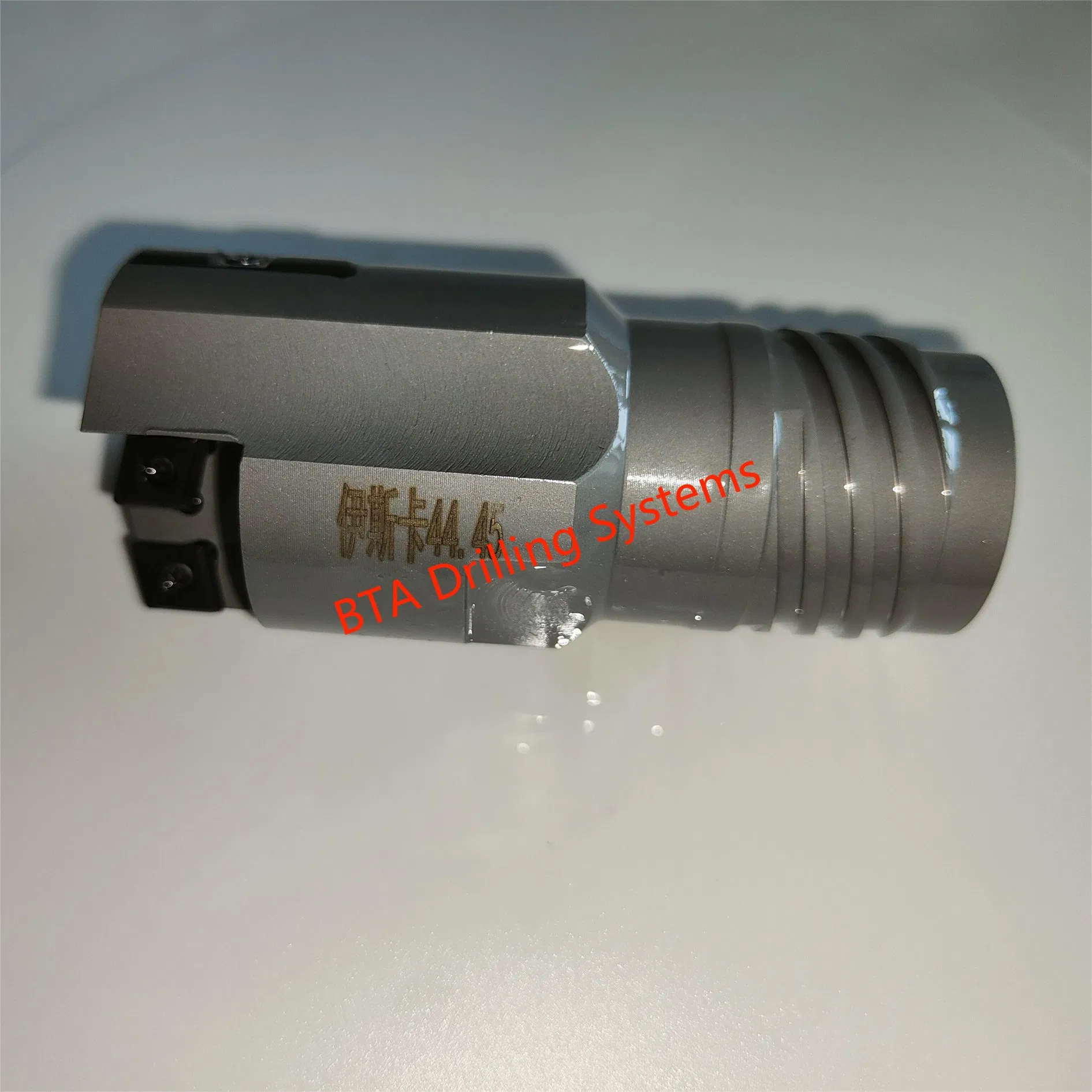

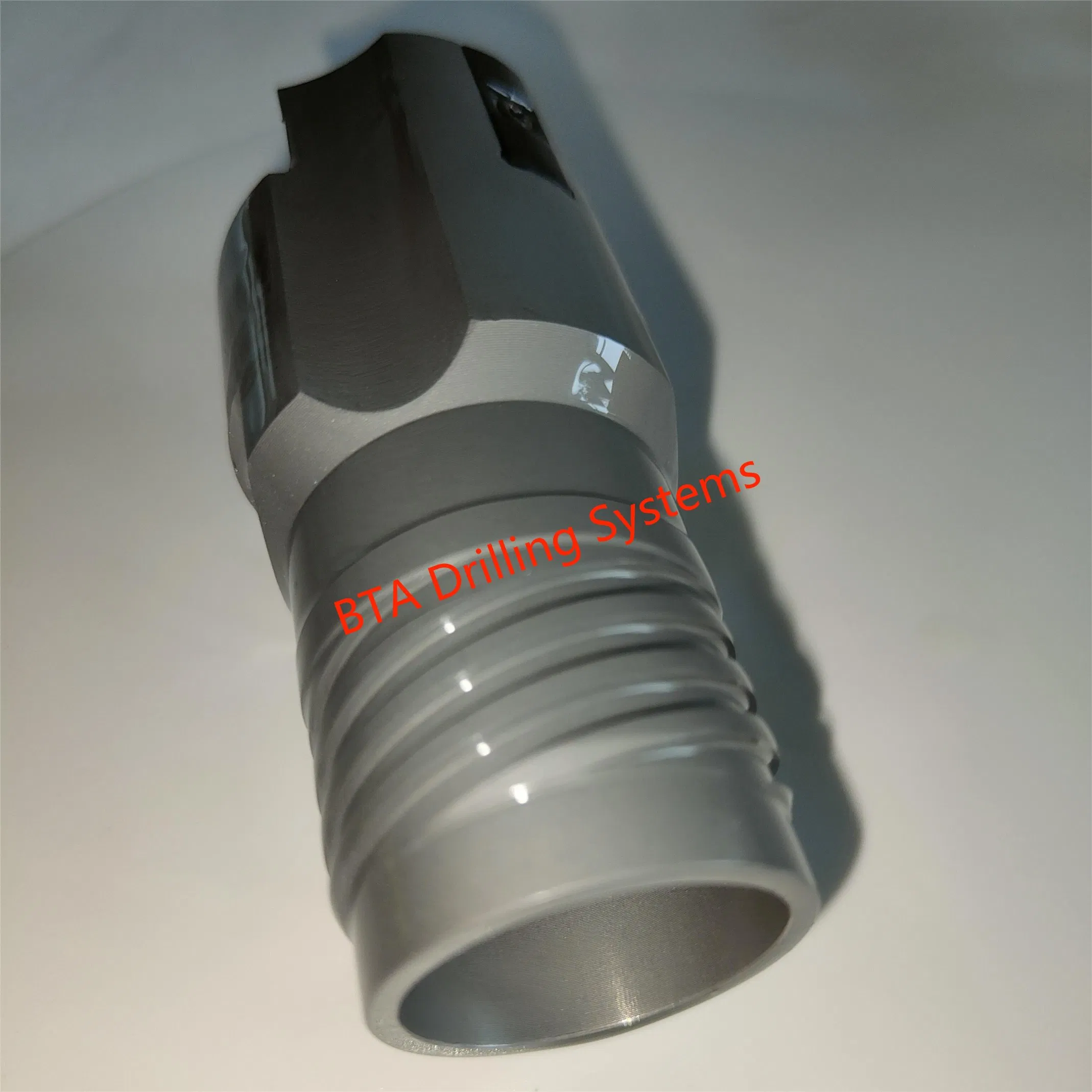

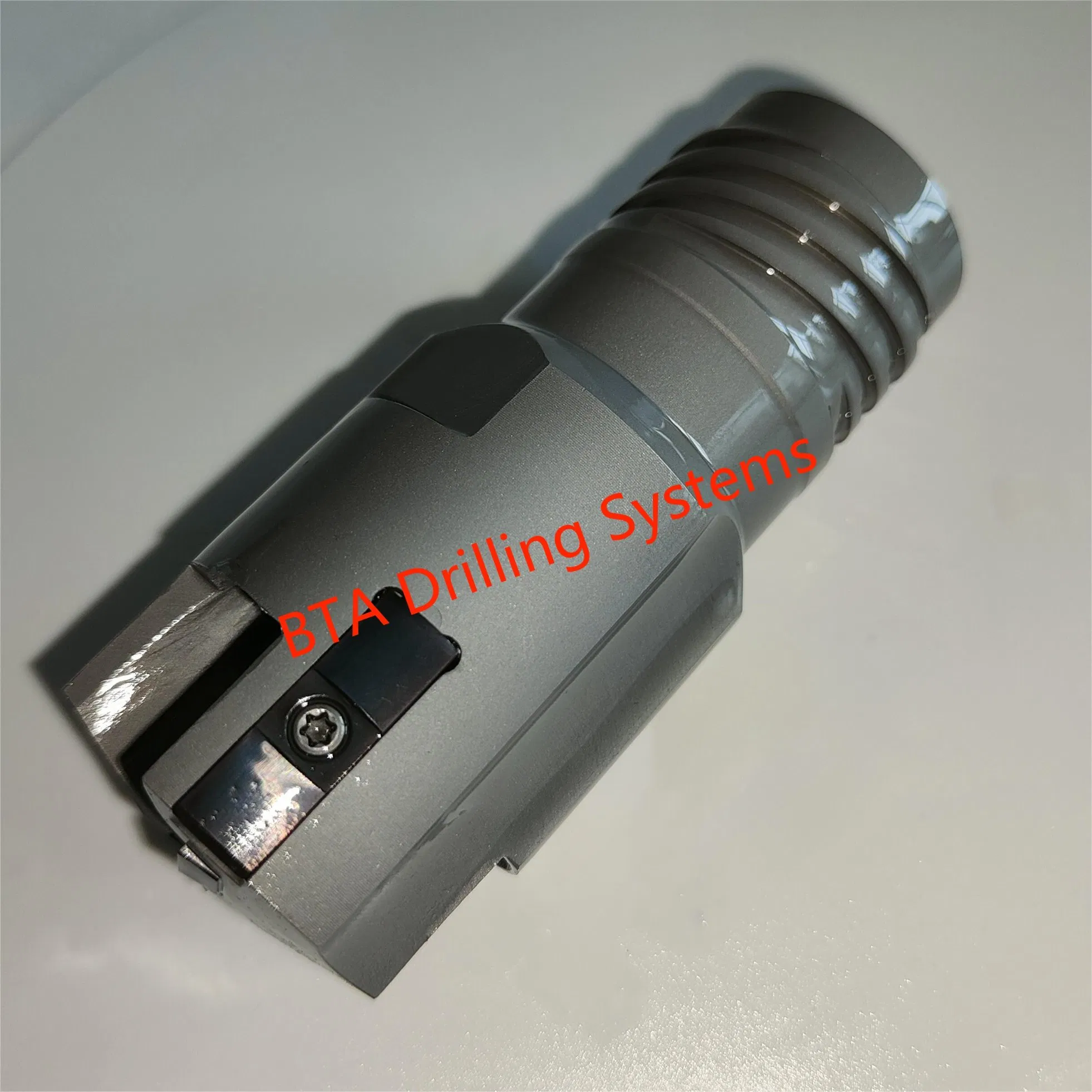

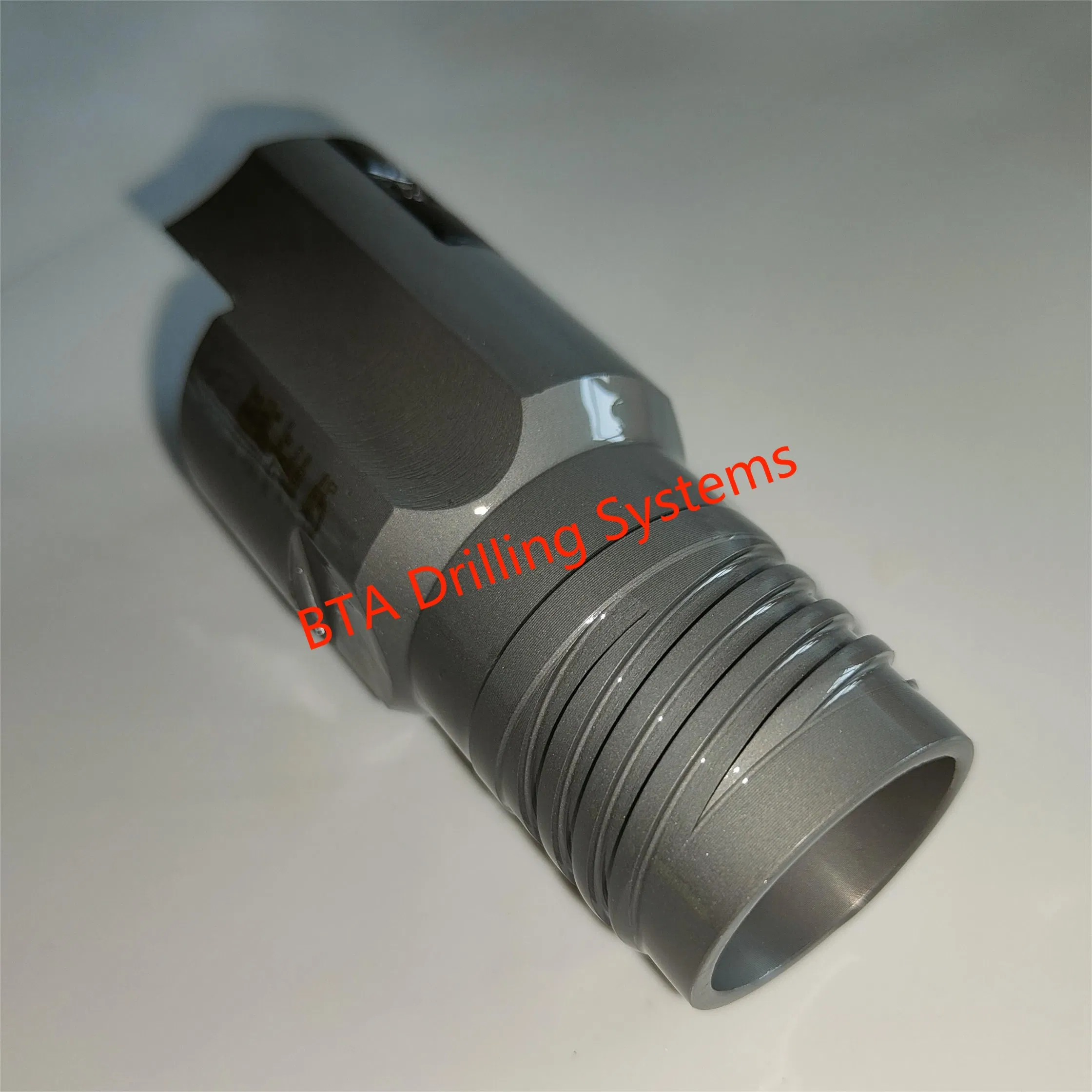

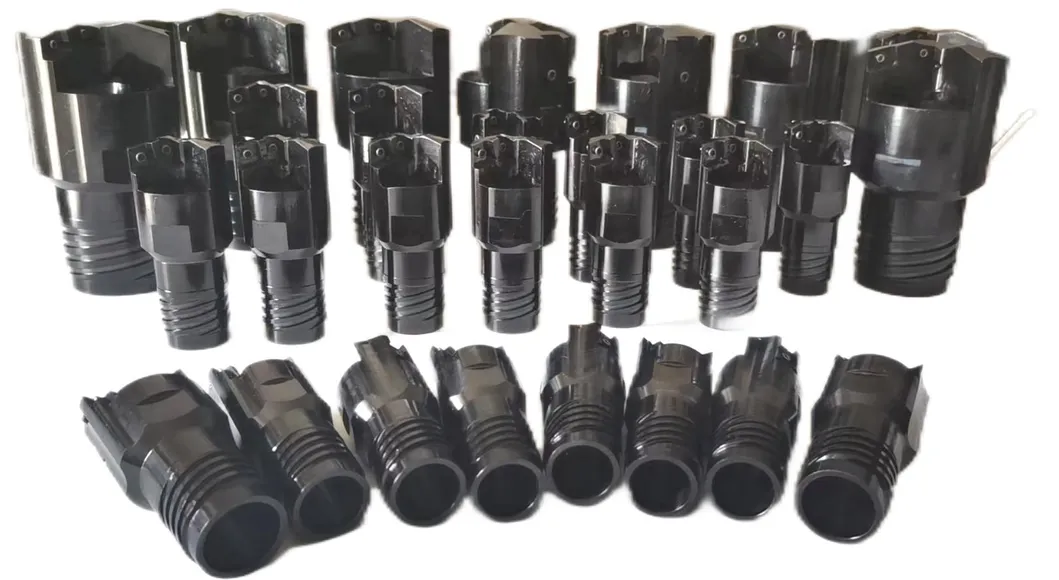

DRILL HEAD DISPLAY

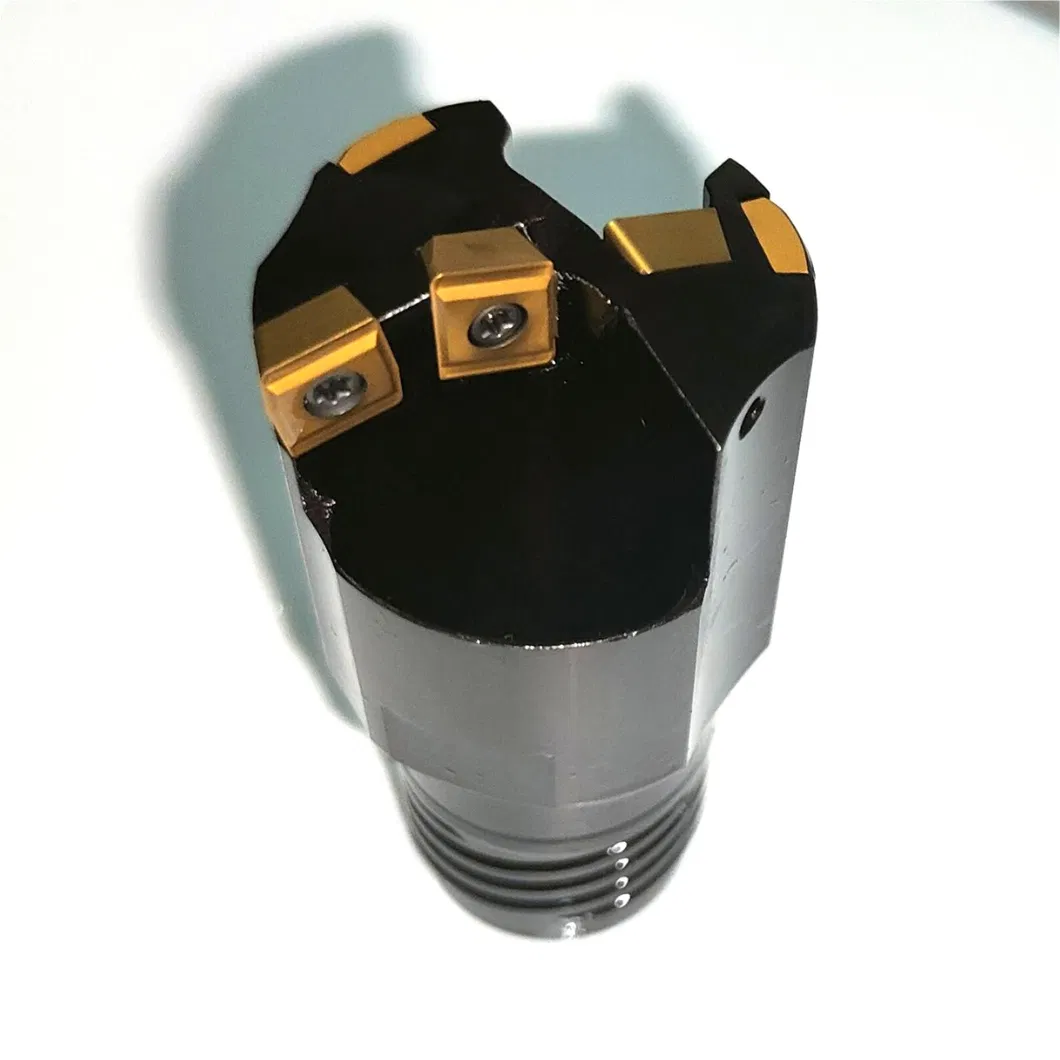

BTA Drill Head - Angle View 1

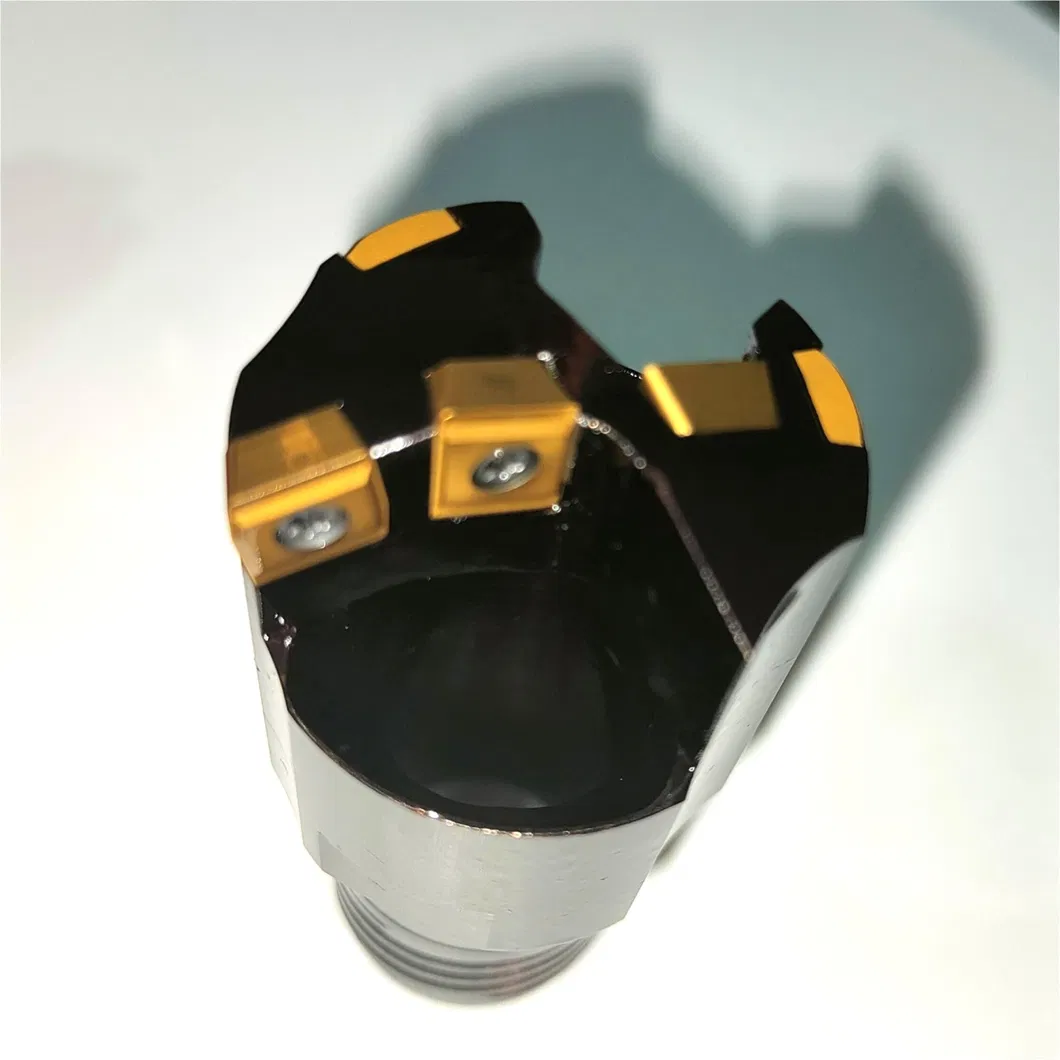

BTA Drill Head - Angle View 2

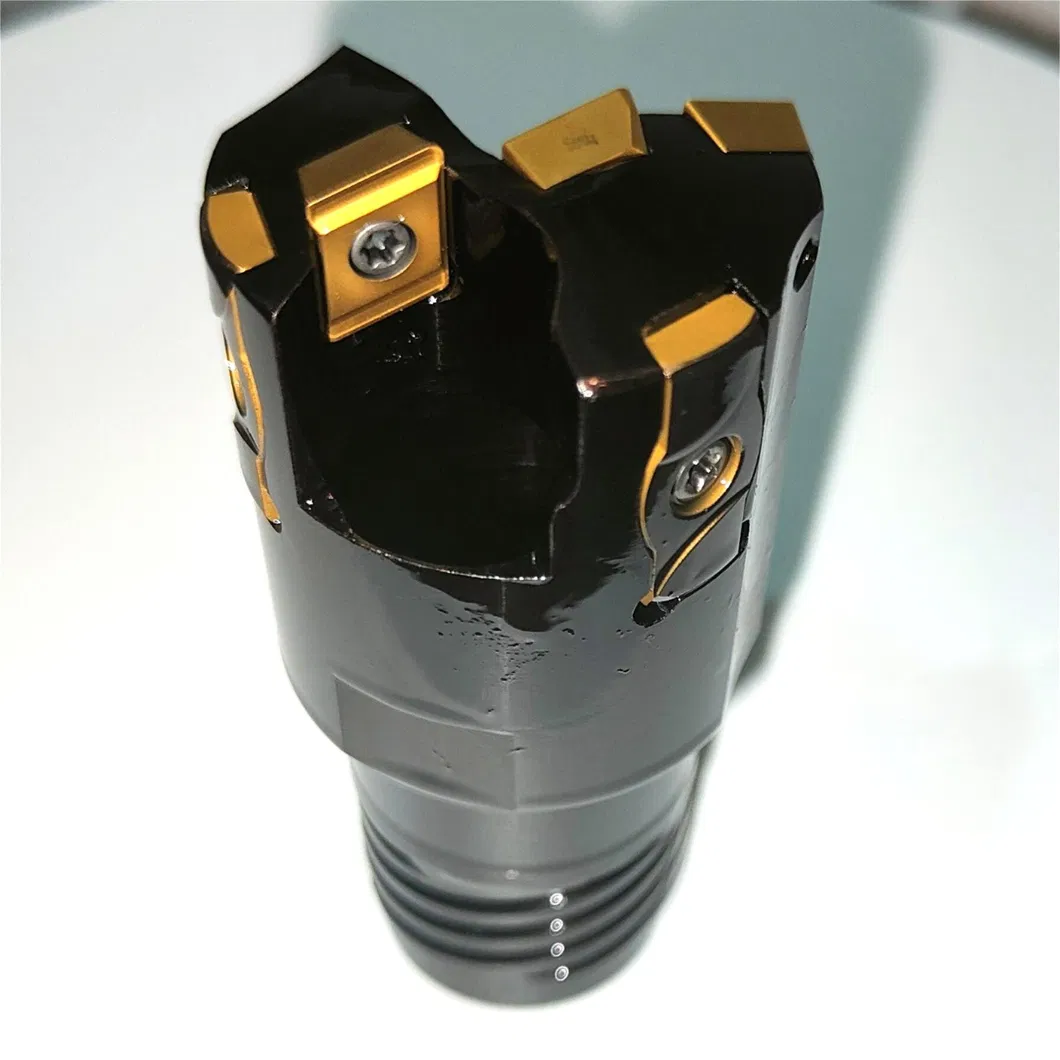

BTA Drill Head - Front View

Drill Bar

Solid Carbide Guide Pad

Inserts

Product Parameters

Example 25-65mm Parameters List

Drilling Head Diameter	Central Inserts	Qty	Intermiddle Insets	Qty	Peripheral Inserts	Qty	Guide Pad	Qty
25~28.7	800-050308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
28.71~31.00	800-06T308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
31.01~33.30	800-06T308M-C-G	1	800-060308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
33.31~36.20	800-08T308M-C-G	1	800-06T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
36.21~39.6	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
39.61~43	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
43.01~47.00	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
47.01-51.7	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
51.71-56.2	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
56.21-59	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2
60-65	800-12T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2

Frequently Asked Questions

What body material is used for the BTA drilling head?

The cutting tool body is constructed from aviation pre-hardening material and high-quality alloy steel to ensure maximum durability, rigidity, and resistance to deformation during deep hole drilling.

Are the inserts and guide pads replaceable?

Yes, the design utilizes indexable, replaceable inserts and solid carbide guide pads. This makes tool maintenance easy, fast, and highly cost-effective, as you only need to replace the worn wear-parts.

Can I request customized dimensions for the drill head?

Absolutely. Both the model specifications and the inner hole diameters can be customized to match your specific machinery configurations and processing demands.

What are the primary applications of this BTA drill head?

It is engineered primarily for high-efficiency deep hole metal drilling. It is compatible with a wide range of materials and is optimized for stable machining processes.

What is the typical shipping packaging for international orders?

Standard orders are securely packaged for international express transit, ensuring that the precision BTA heads and carbide parts reach your facility undamaged.
