34mm Deep Hole Drilling Tools Ejector System
DTS BTA Deep Hole Drilling Head - BTA DRILL HEAD

Feature: Short lead time, high quality, cutting tool body is Aviation pre-hardening material!

Production Characteristics

Double tube BTA DRILL HEAD
Ejector system & ejector drills
BTA & ejector drills integration
Two pipe deep hole ejector drill design
Double tube system mechanism
Ejector and BTA drill bits compatible

Key Advantages

Manufactured S type BTA deep hole drilling head design.
Adopts high quality alloy steel material with super coating inserts.
Solid carbide guide pads provide high efficiency, easy installation, and low cost.
Widely applicable for machining different workpiece materials.

Detailed Photos

DTS BTA Deep Hole Drilling Head Gallery

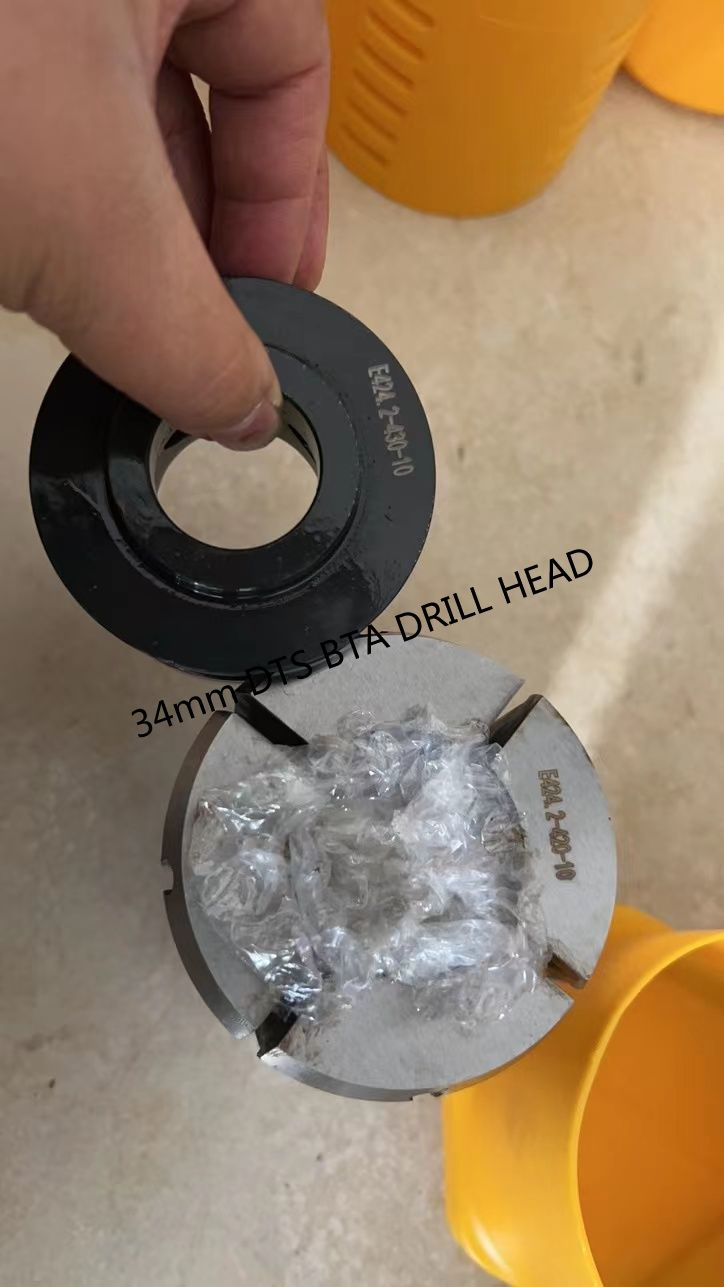

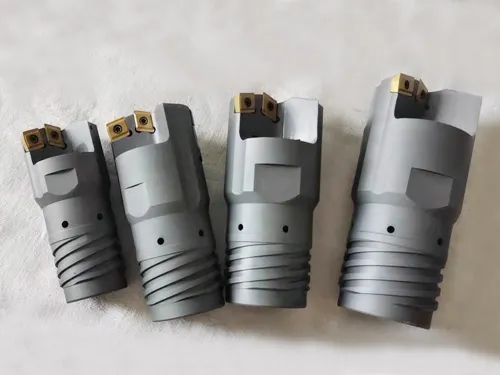

34mm Deep Hole Drilling Tools Ejector System - Drill Head Close Up

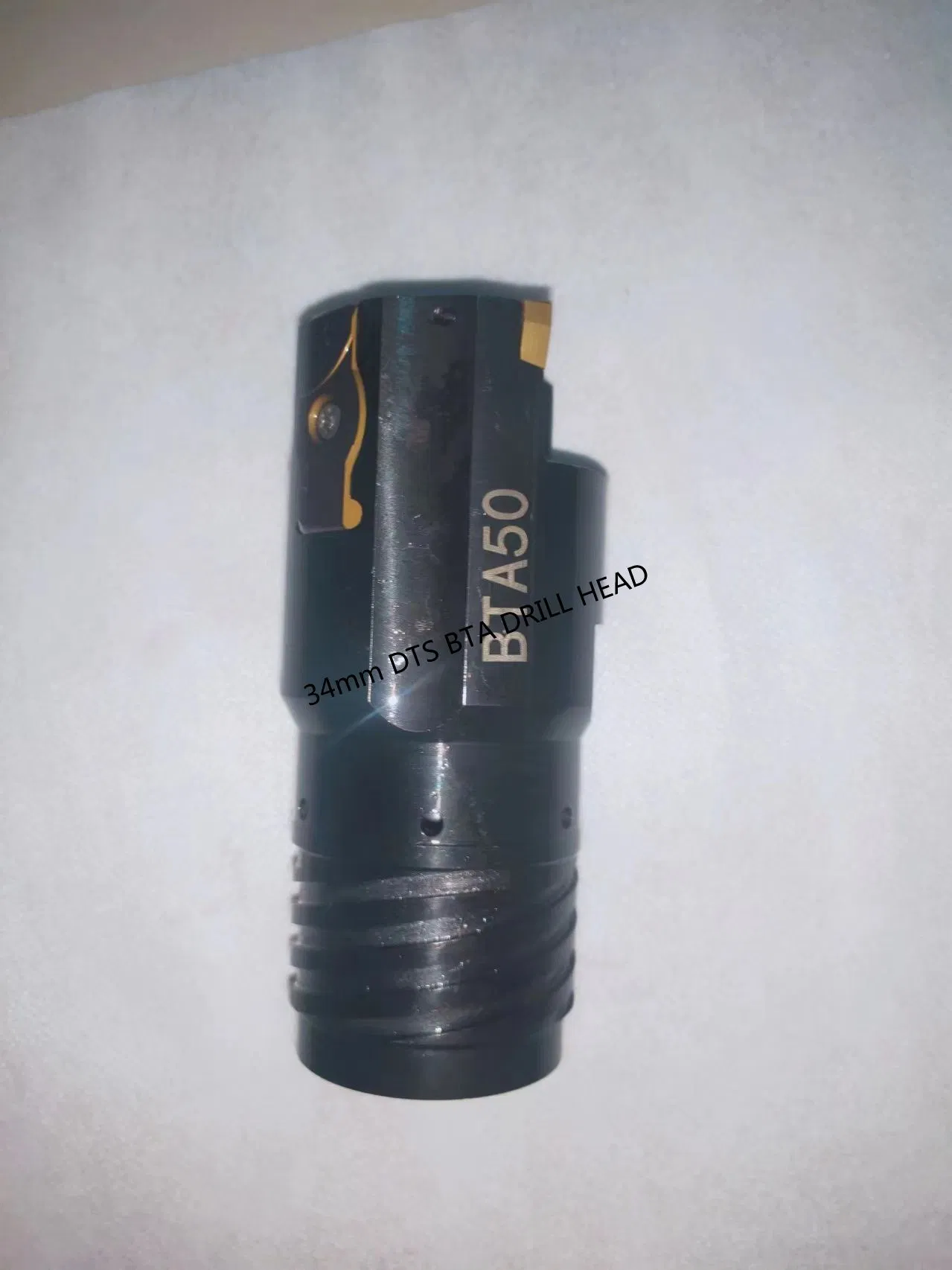

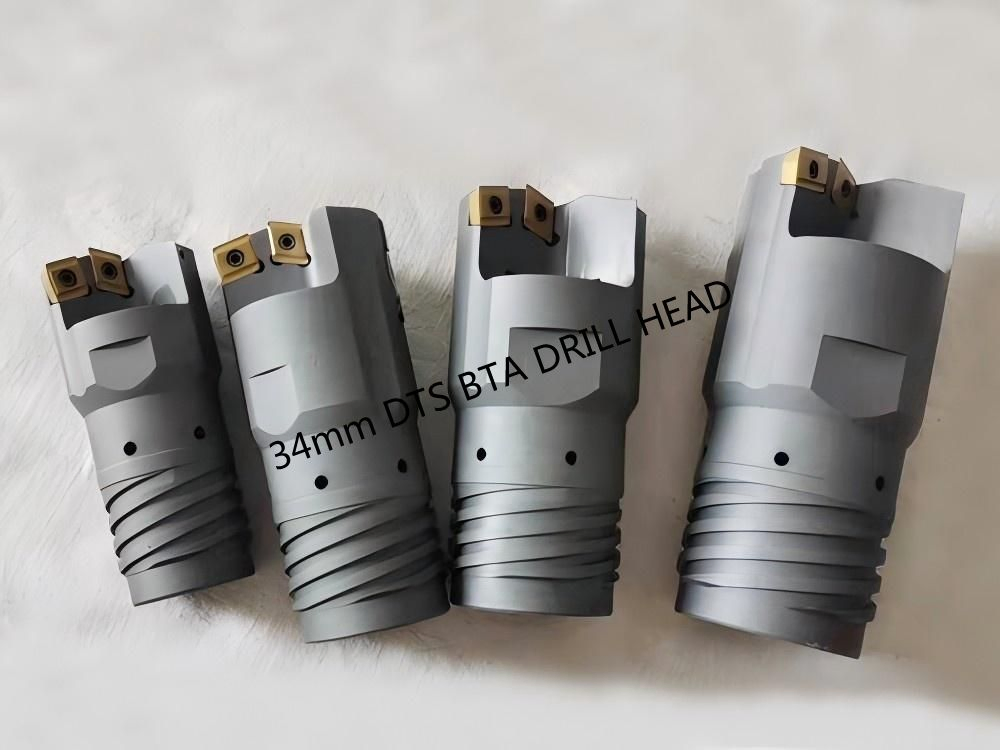

34mm Deep Hole Drilling Tools Ejector System - Main View

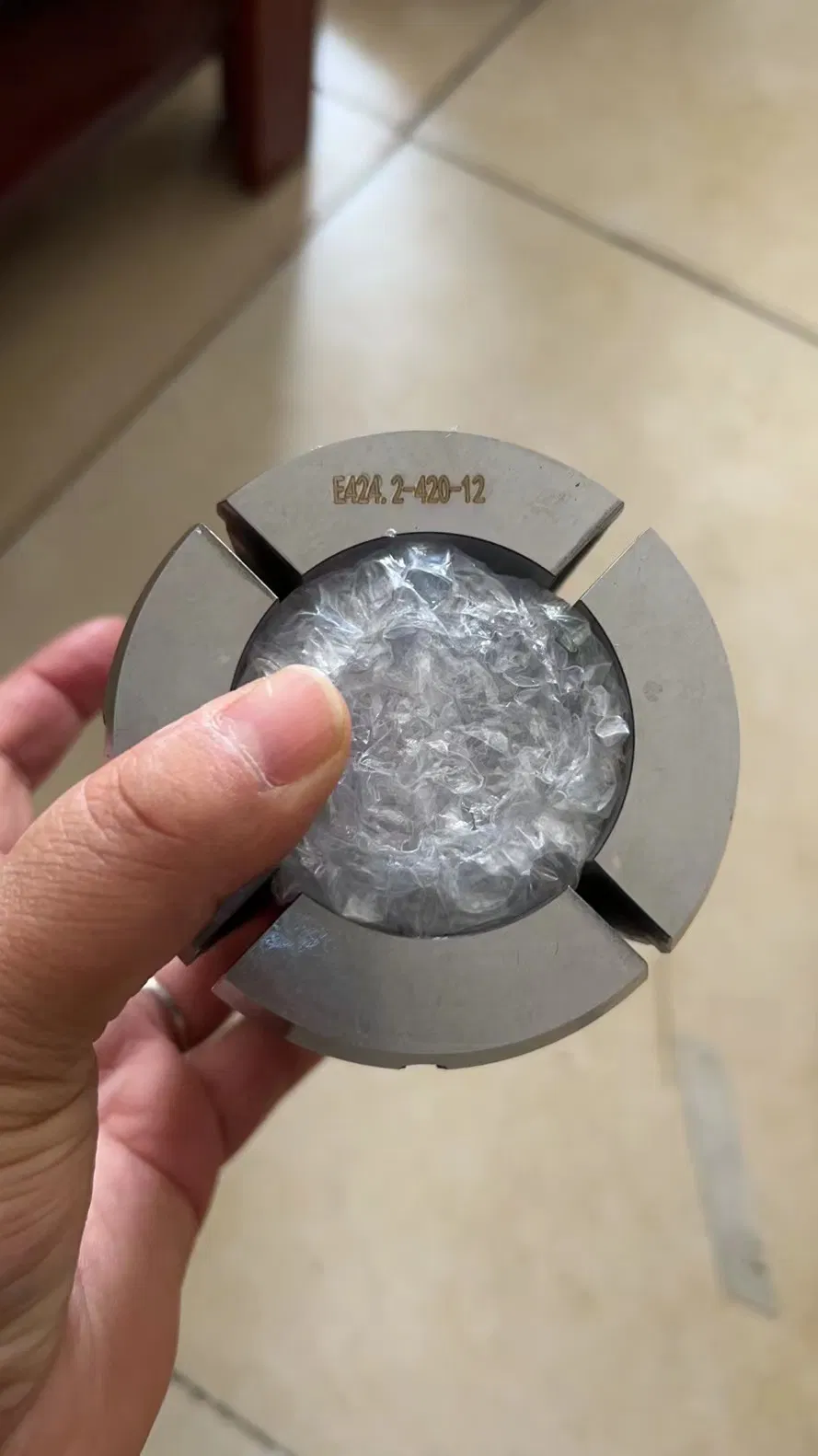

34mm Deep Hole Drilling Tools Ejector System - Side View

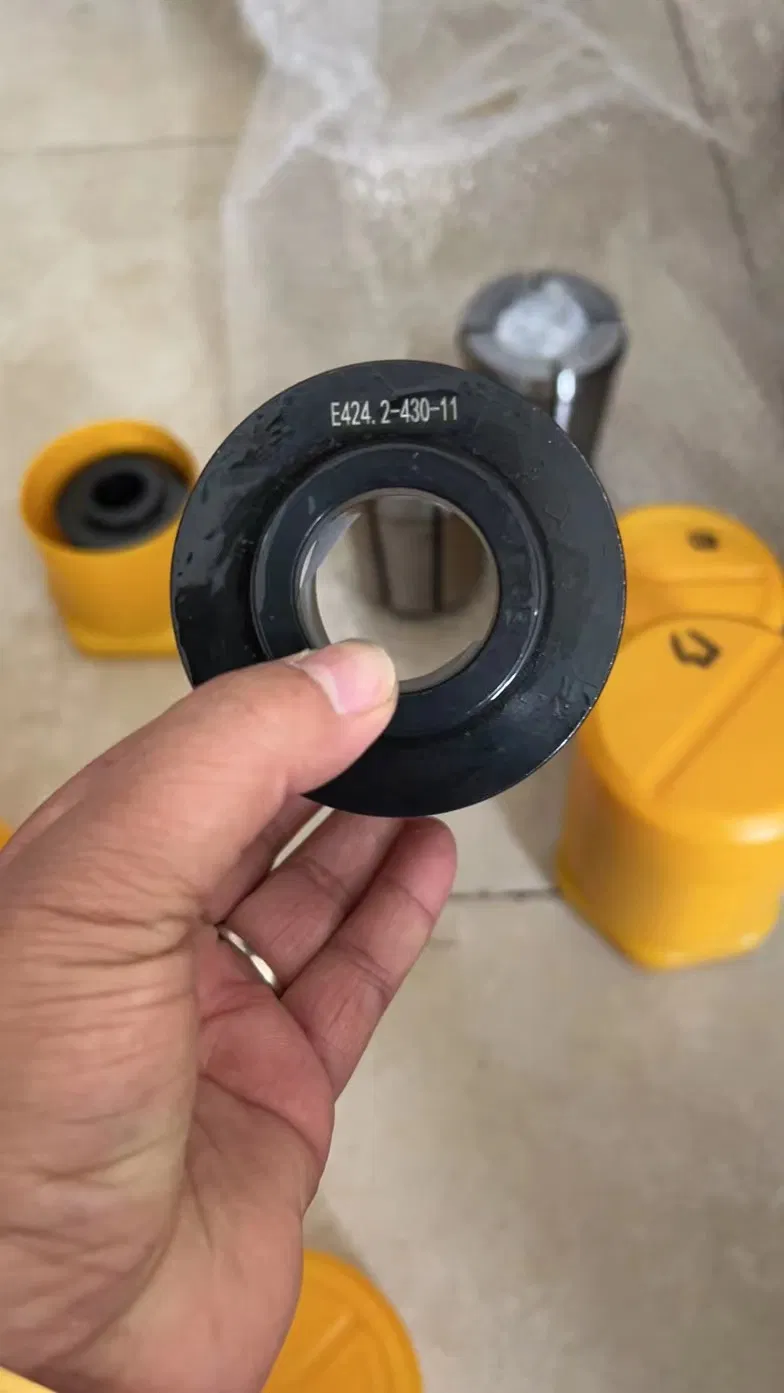

34mm Deep Hole Drilling Tools Ejector System - Structure Details

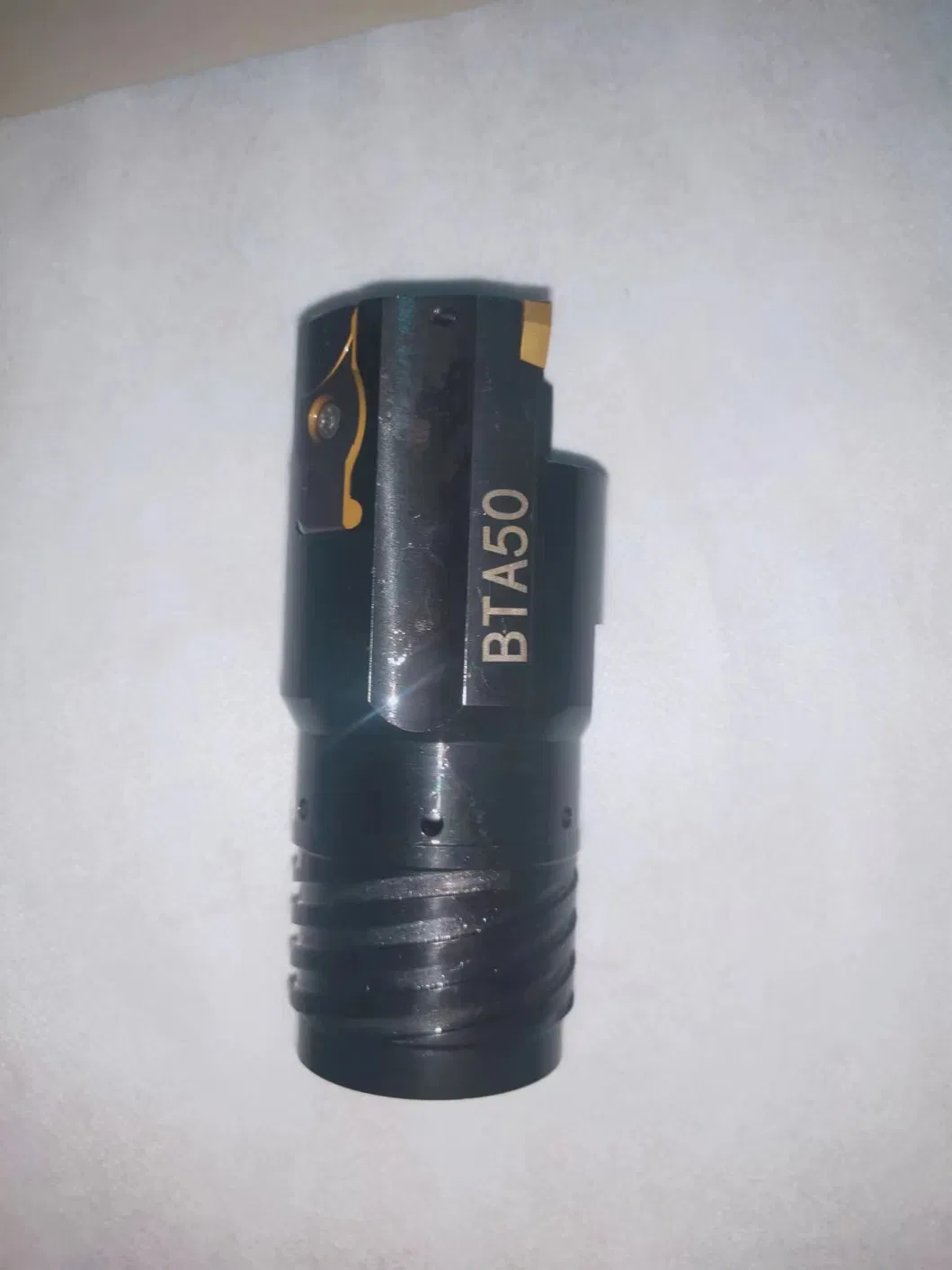

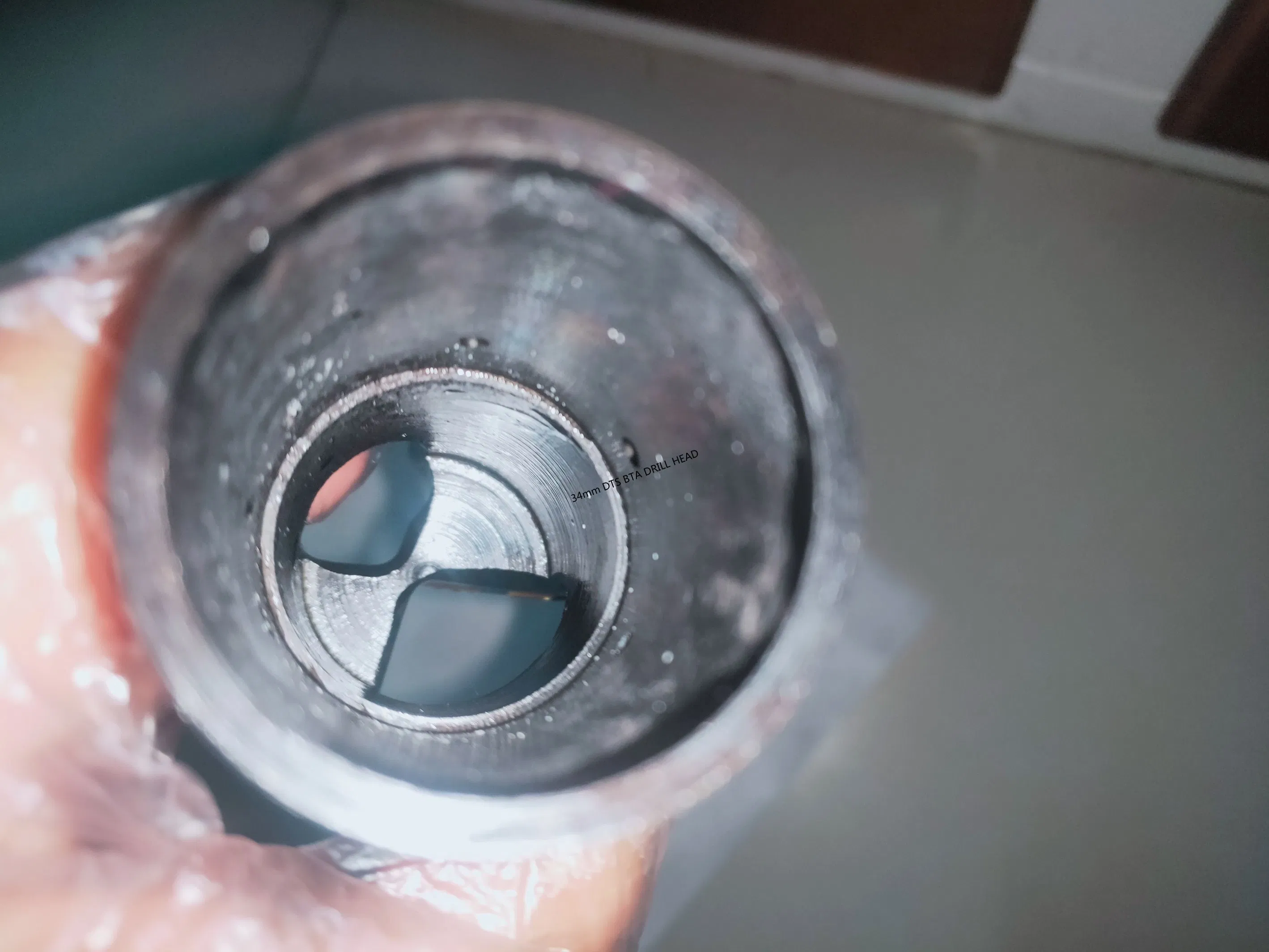

34mm Deep Hole Drilling Tools Ejector System - Rear Connection

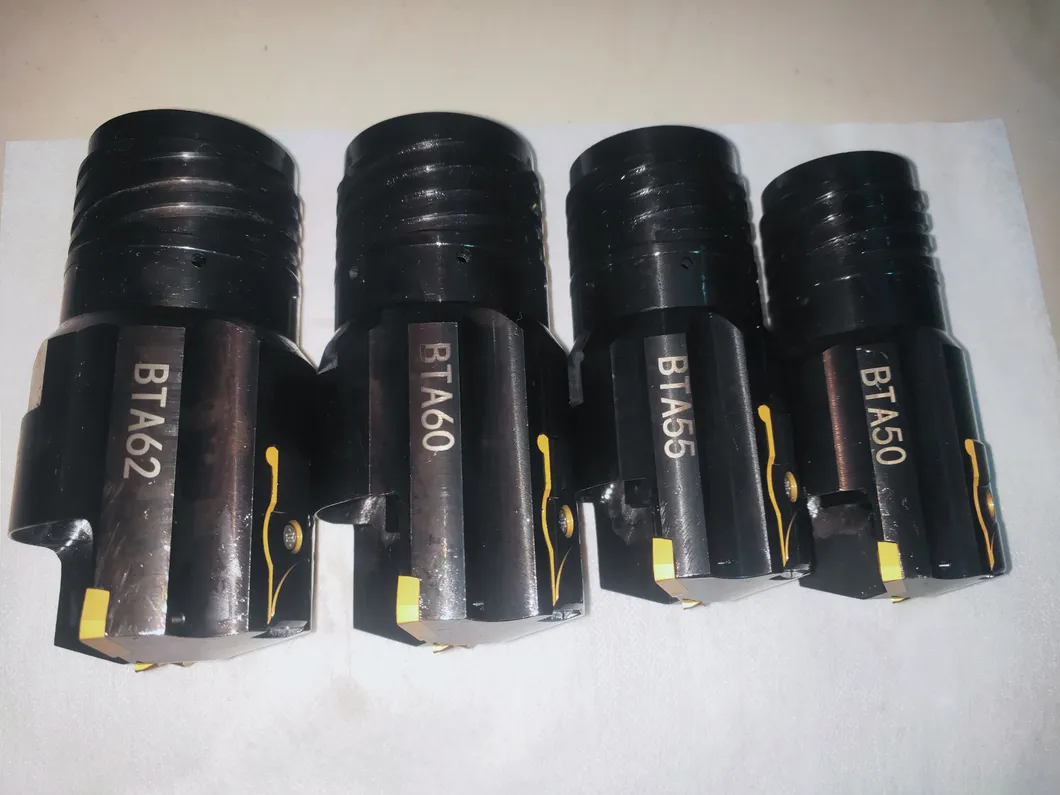

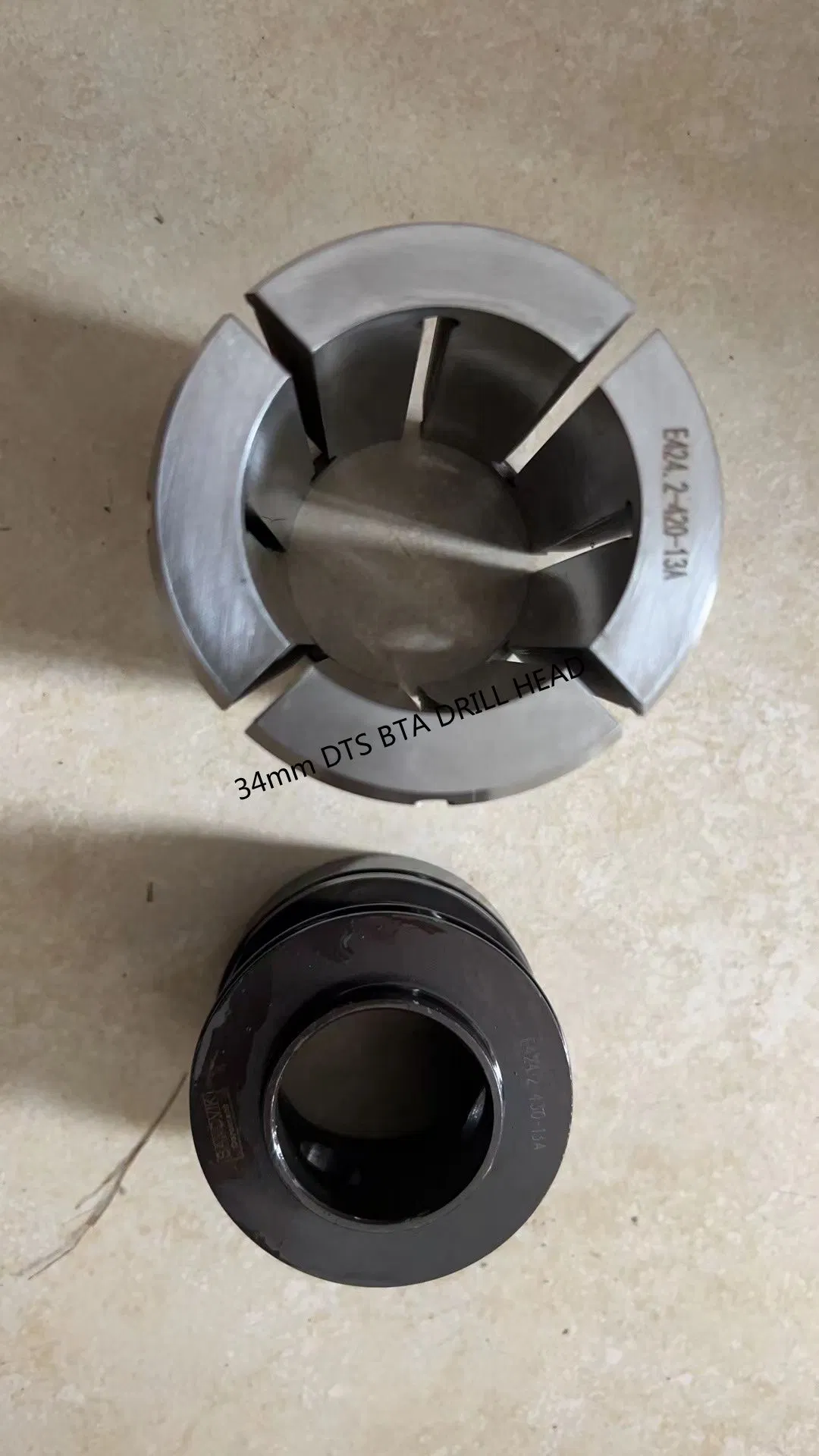

34mm Deep Hole Drilling Tools Ejector System - Core Structure

System Accessories & Components

Drill Bar Connection

Solid Carbide Guide Pad

Cutting Inserts

Product Parameters

Example 25-65mm Specification Reference List

Drilling Head Diameter (mm)	Central Inserts	Qty	Intermediate Inserts	Qty	Peripheral Inserts	Qty	Guide Pad	Qty
25~28.7	800-050308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
28.71~31.00	800-06T308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
31.01~33.30	800-06T308M-C-G	1	800-060308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
33.31~36.20	800-08T308M-C-G	1	800-06T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
36.21~39.6	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
39.61~43	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
43.01~47.00	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
47.01-51.7	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
51.71-56.2	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
56.21-59	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2
60-65	800-12T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2

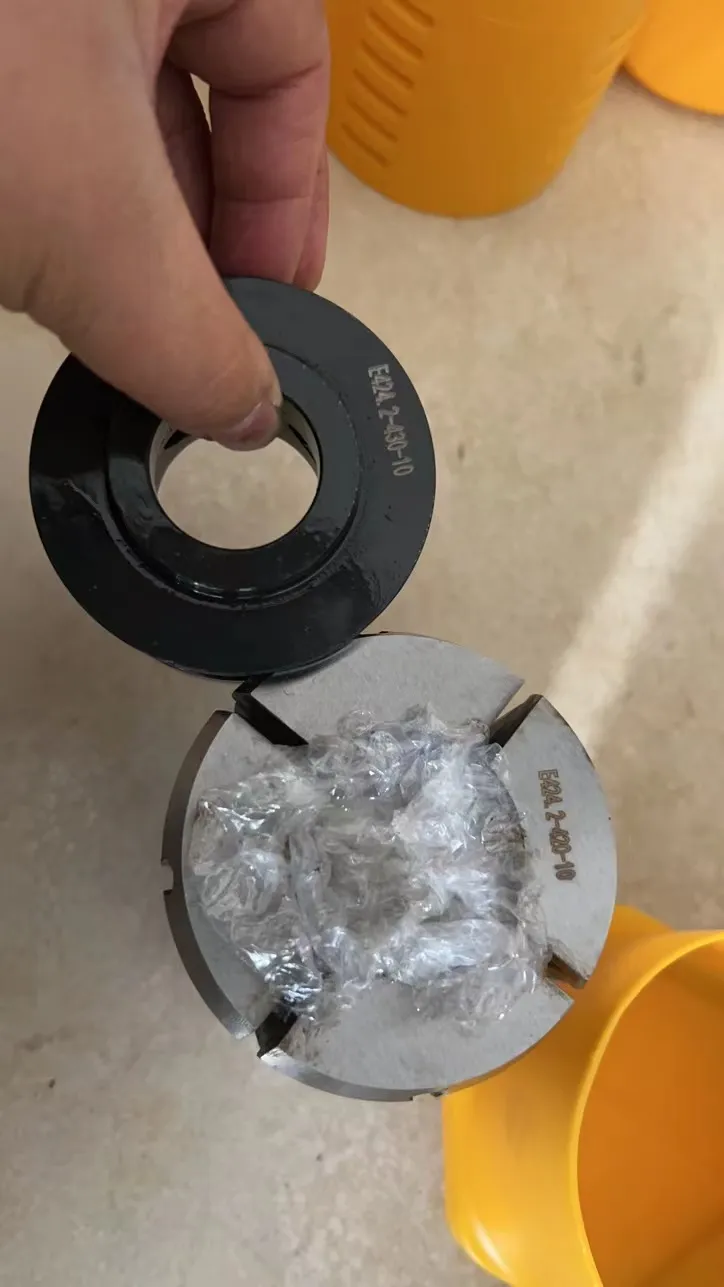

34mm Deep Hole Drilling Tools Parameter Details

Frequently Asked Questions (FAQ)

What materials are used to construct the BTA drilling head body?

The drilling head body is made from high-quality alloy steel, specifically Aviation pre-hardening material, which ensures optimal durability, stability, and tool life during deep hole operations.

How does the ejector (double tube) drilling system work?

The ejector system uses a double-tube setup. High-pressure coolant is pumped between the inner and outer tubes to the drilling head. Part of the coolant goes through the ejector nozzle directly back into the inner tube, creating a vacuum that pulls chips and coolant up through the inner tube for clean evacuation.

What is the advantage of using carbide guide pads?

Solid carbide guide pads provide excellent support and stabilization within the drilled bore. They burnish the hole wall to achieve a high-precision finish, low roughness, and superior roundness during machining.

Can this BTA drill head handle different workpiece materials?

Yes, with the appropriate grade of indexable inserts and proper setup parameters, the DTS BTA drilling system is designed for widely versatile machining across a broad range of metal materials.

What diameters are supported by this specific system?

The typical configuration covers diameter classes from 25mm up to 65mm. Tooling inserts and configurations can be customized within these index categories to match the target hole size exactly.
