Product Description

📋 Basic Specifications

Model NO.

J48STD

Customization

Available / Customized

Material

High-Grade Steel

Application

Metal Cutting Machine, Processing Machinery, Deep Hole Drilling

Surface Treatment

Heat Treatment

Machining Purpose

Deep Hole Drilling

Transport Package

Single Unit in Plastic Box

Specification

J-d48

Origin

Sichuan, China

HS Code

82075090

Production Capacity

500 PCS/Month

⚙️ Product Description

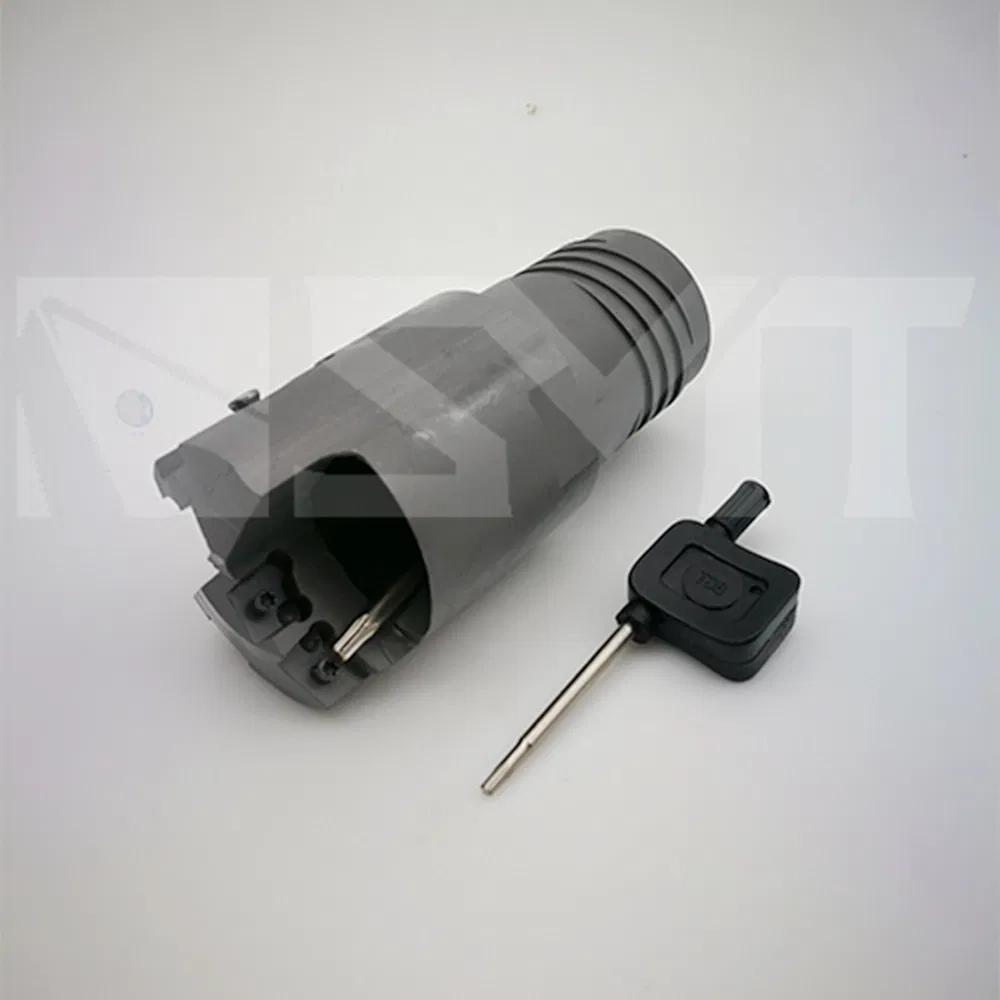

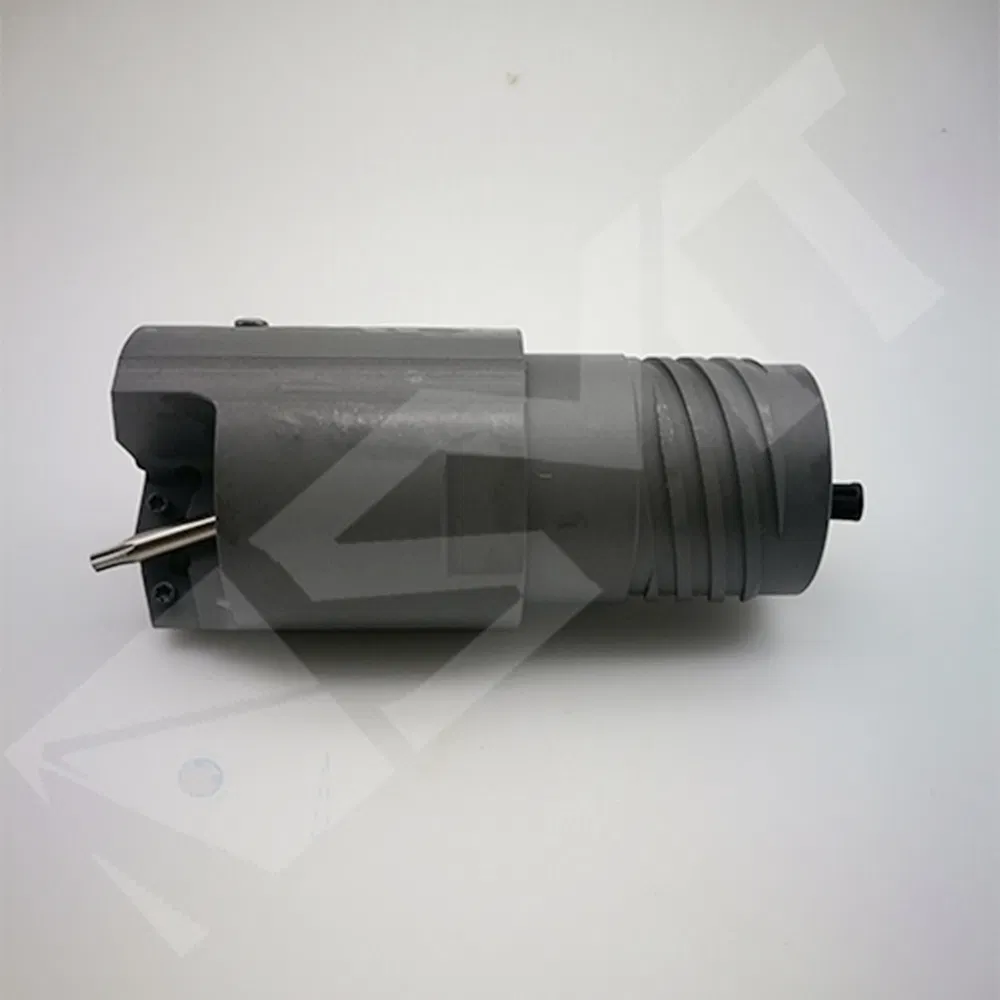

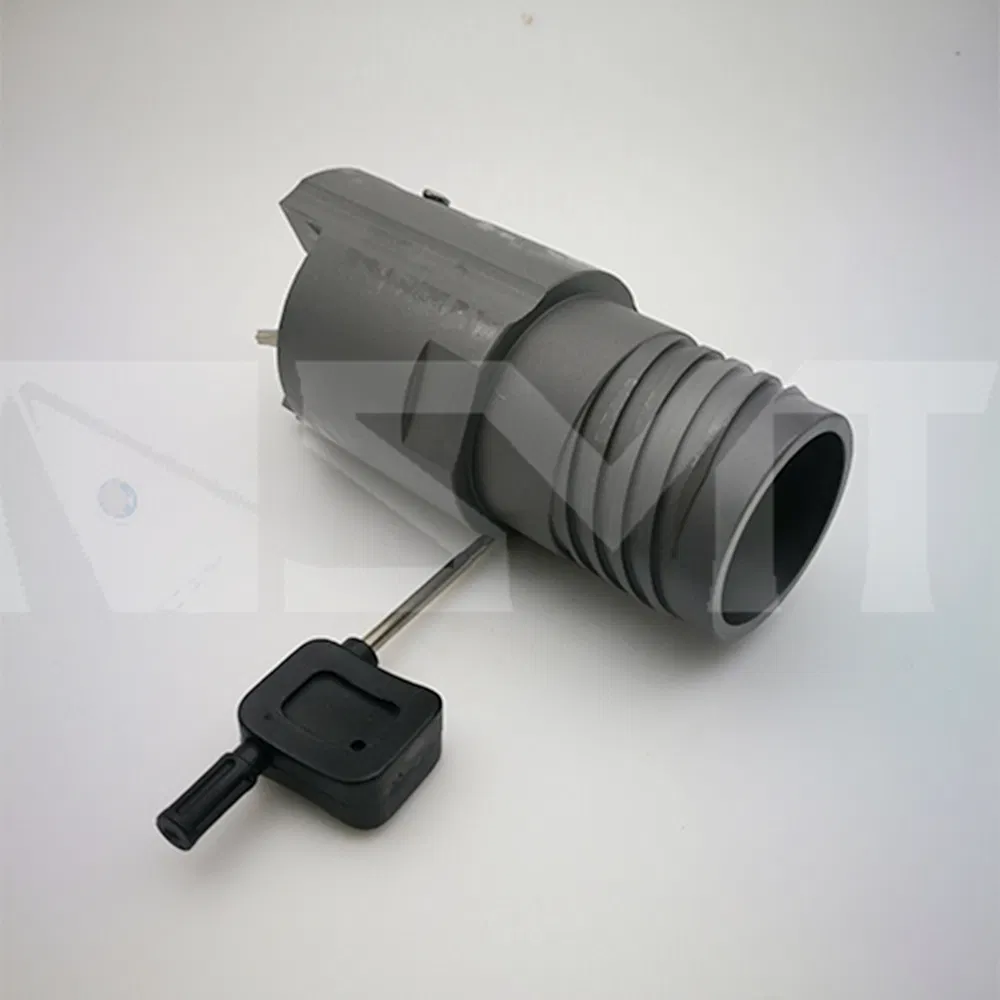

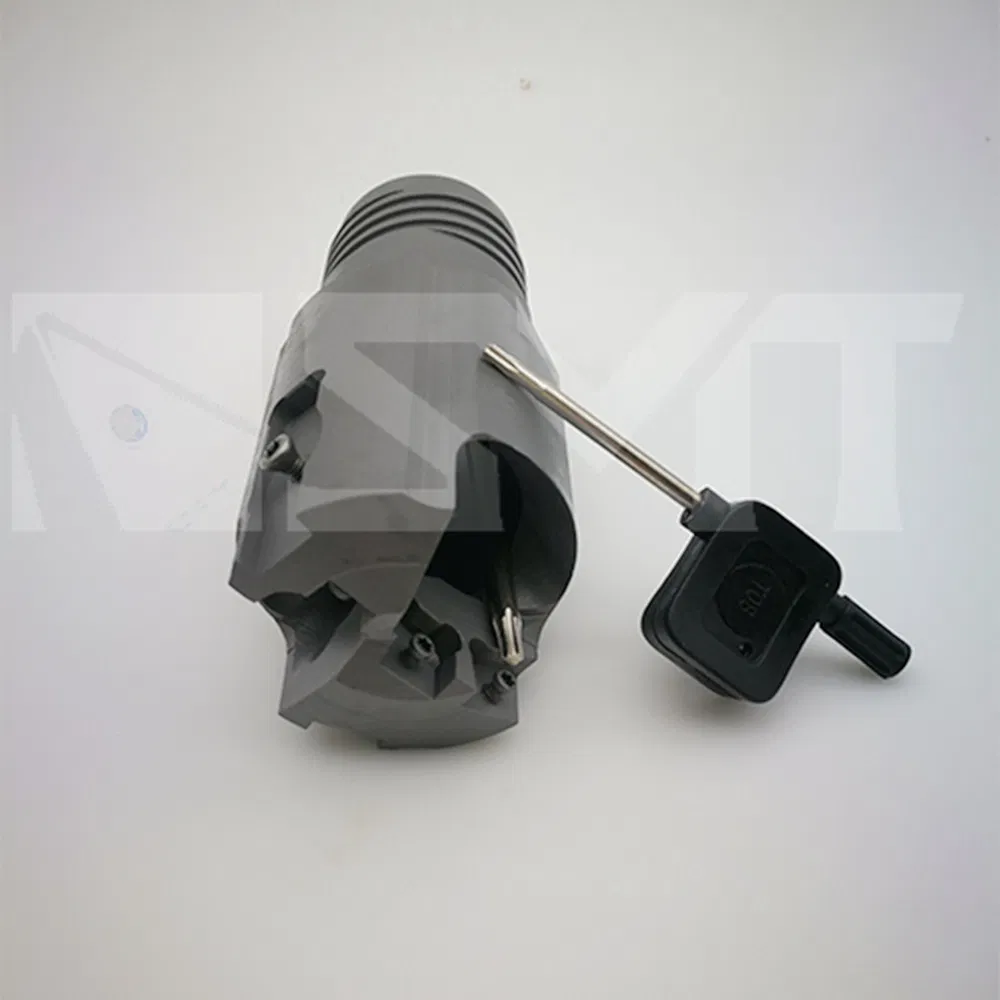

Indexable Deep Hole Drills - STS Drill Head (J-Series)

Model: J-Φ48 (Drilling Diameter: 48mm)

This high-performance J-series indexable deep hole drill features a drilling diameter of 48mm, complete with robust inserts and guide pads. To ensure maximum compatibility with different machining tasks, the inserts are available in three distinct grades to match your specific application requirements. Additionally, the guide pads are offered in either solid carbide coated or uncoated versions based on your operational choice.

The complete J-series indexable deep hole drill line accommodates a versatile drilling range from Φ25.00mm to Φ64.50mm.

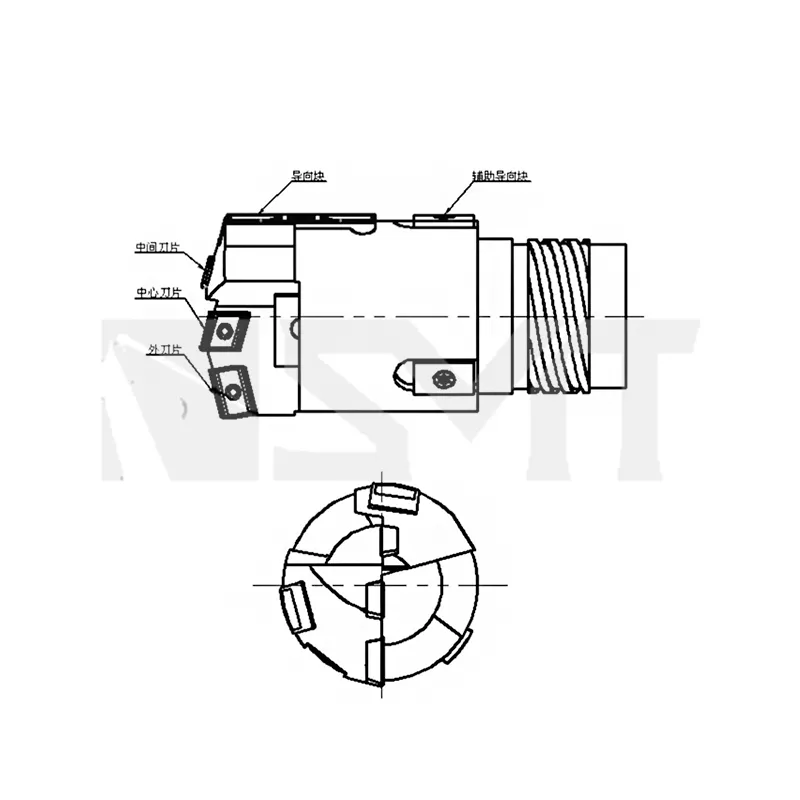

Description	Specification	Qty Required
Drill Head	JΦ48	1
Peripheral Insert	P11T0308-G	1
Intermediate Insert	I08T308-G	1
Central Insert	C10T308-G	1
Guide Pad	DQ1030	2

We specialize in a comprehensive range of indexable BTA drills, ejector drills, and gun drills. A complete selection of high-quality carbide inserts, cartridges, guide pads, and structural accessories is readily available to optimize your deep hole drilling operations.

Our manufacturing capacity covers versatile drill head solutions ranging from D25 to D300 equipped with multi-type inserts, alongside specialized D14 to D32 drill heads designed with a single solid carbide insert to meet refined manufacturing parameters.

❓ Frequently Asked Questions (FAQ)

Q What is the specific drilling diameter range for the J-series Indexable Deep Hole Drills?

The J-series indexable deep hole drills support a comprehensive drilling diameter range spanning from Φ25.00mm to Φ64.50mm. The standard model presented here is the JΦ48, which has a drilling diameter of 48mm.

Q Are the inserts and guide pads customizable for different applications?

Yes. The indexable inserts are available in three different grades to optimize performance according to your work materials. Additionally, guide pads are offered in either solid carbide coated or uncoated configurations.

Q What components are required for a complete setup of the JΦ48 drill head?

A standard setup requires 1 Drill Head (JΦ48), 1 Peripheral Insert (P11T0308-G), 1 Intermediate Insert (I08T308-G), 1 Central Insert (C10T308-G), and 2 Guide Pads (DQ1030).

Q What materials are these deep hole drilling components made of?

The main body of the deep hole drills is constructed from high-strength treated steel, and the tooling parts feature high-quality solid carbide to endure heavy machining loads and maximize tooling life.

Q How are the drill heads packaged and shipped to prevent damage?

Each individual indexable deep hole drill head is securely packed inside a single plastic box to protect the precision machined edges, threads, and seating positions during storage and transit.
