Product Description

Basic Info.

Model NO.

JK34.5

Customized

Material

Steel

Application

Metal Cutting Machine, Metal Processing Machinery Parts, Deep Hole Drilling Machine

Surface Treatment

Heat Treatment

Machining Purpose

Deep Hole Drilling

Transport Package

One in Single Plastic Box

Specification

JK-d34.5

HS Code

82075090

Production Capacity

500PCS/Month

Product Description

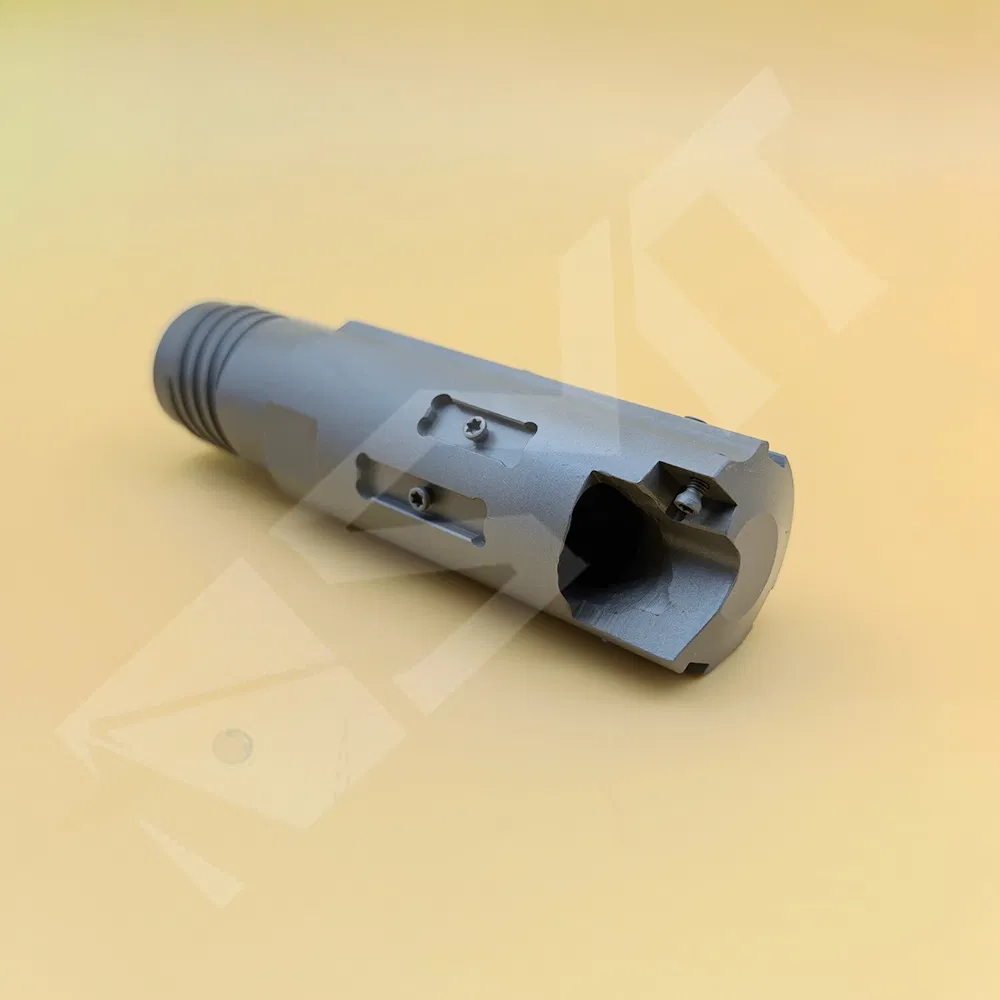

Indexable Deep Hole Drills - STS Counterbore Drill Head (JK Series)

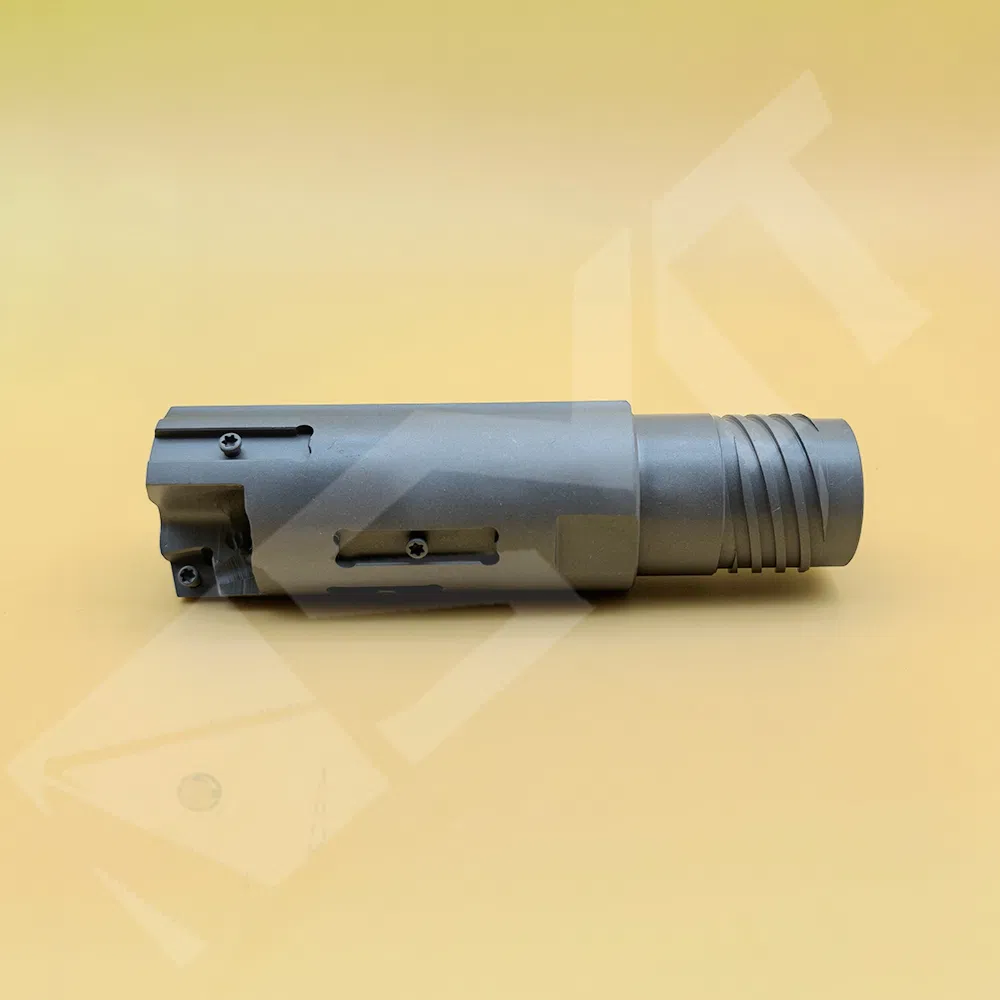

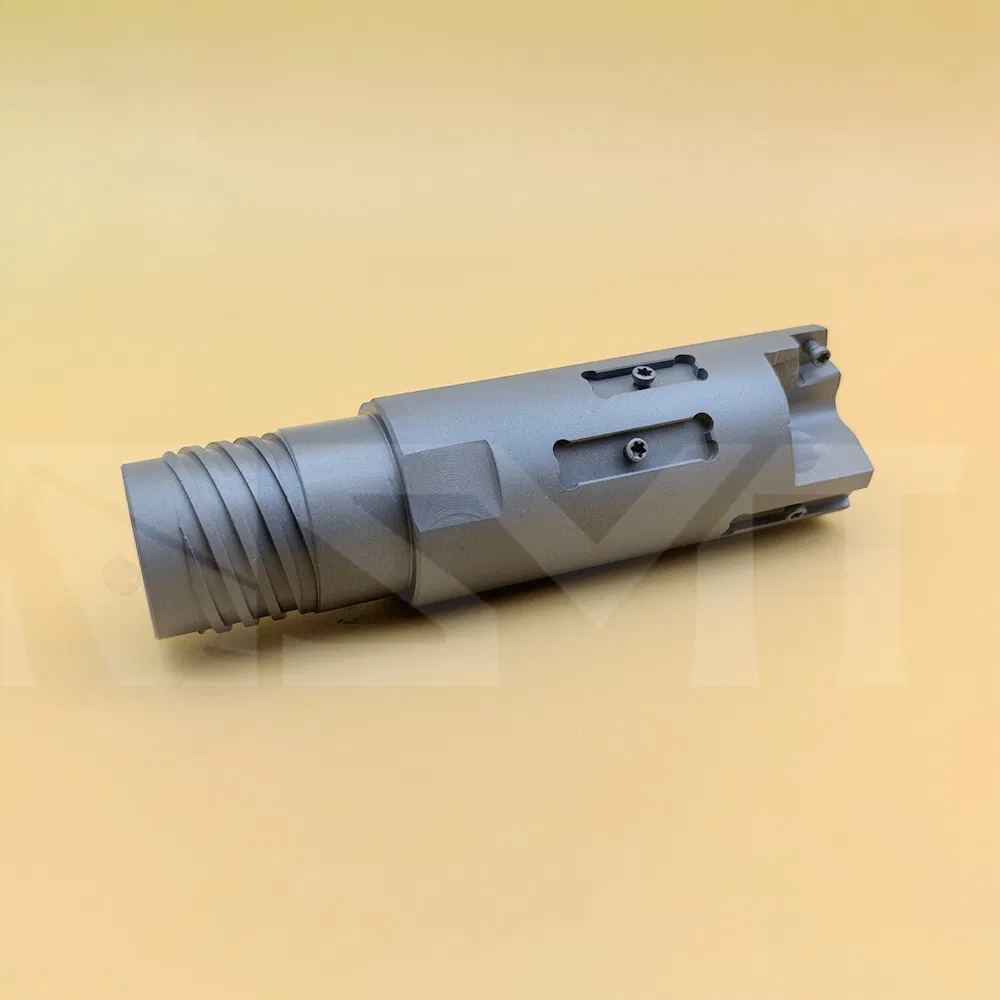

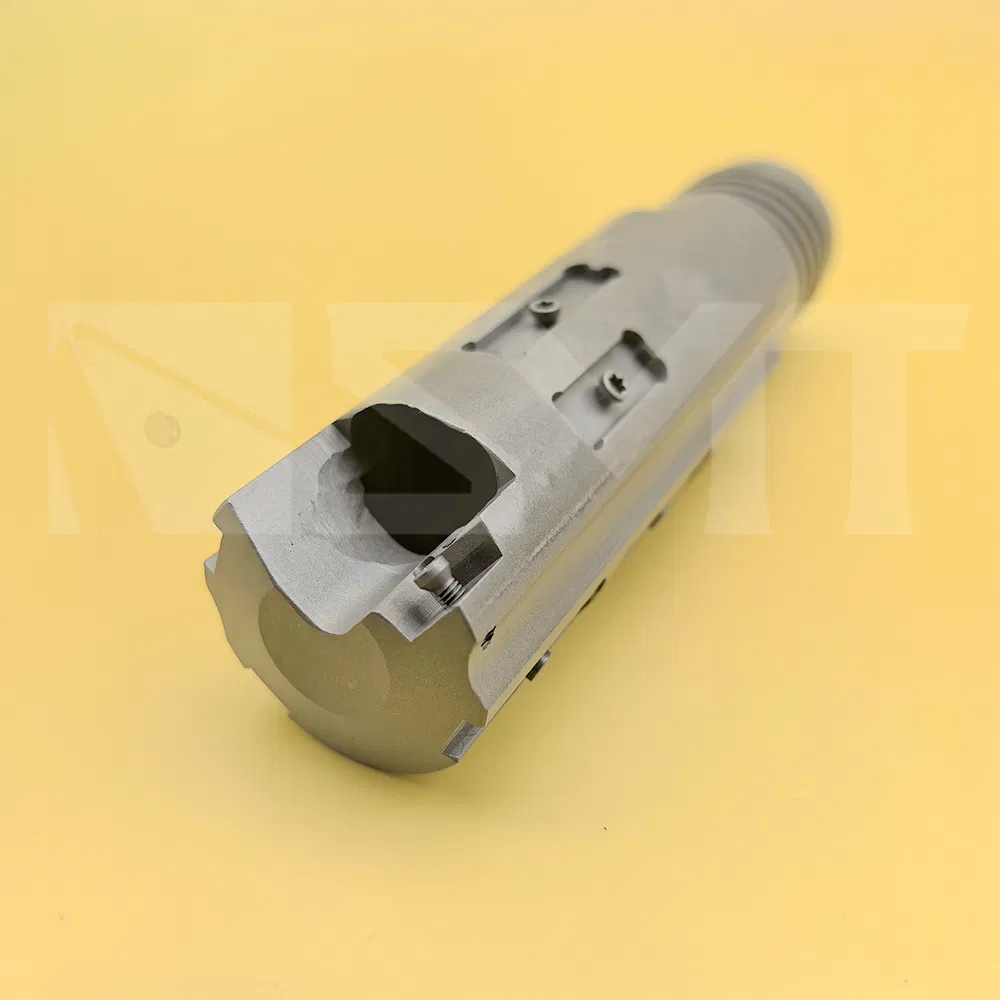

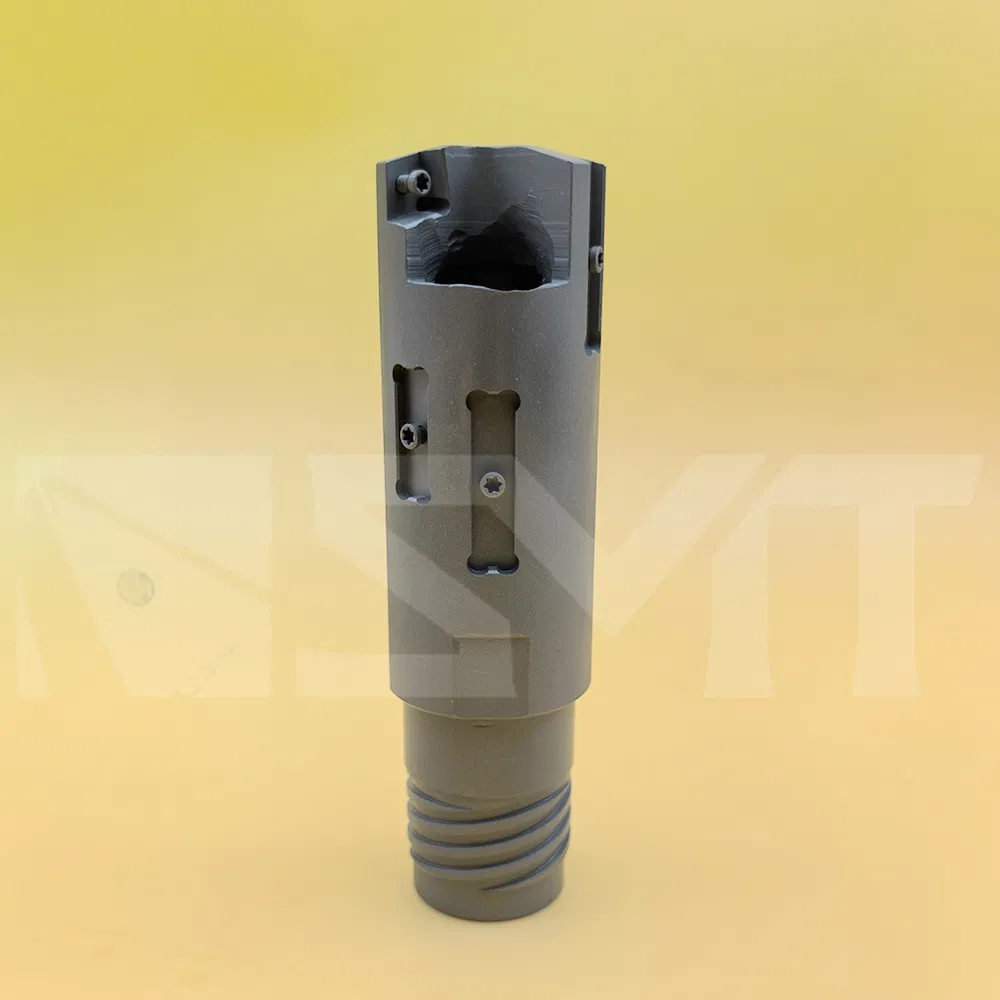

JK Φ34.5 - Drilling Dia. 34.5mm with inserts and guide pads. Inserts are available in three grades to suit your applications. Guide pads are available in solid carbide coated or uncoated, and bakelites for your choice.

JK-series Indexable Deep Hole Drills, drilling Diameter ΦJK25.-180.00, with and without cartridges.

Description		Qty Req.
Drill Head	JKΦ34.5	1

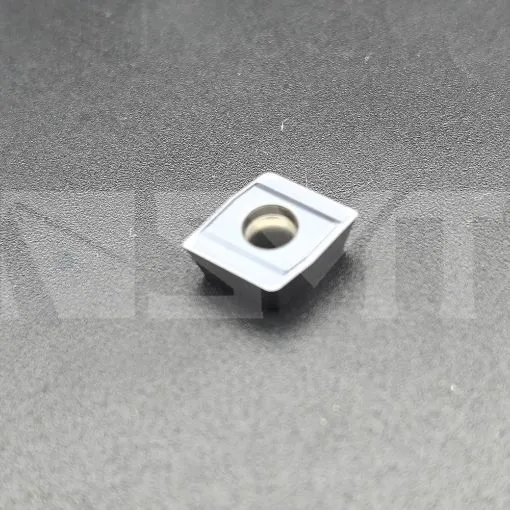

Peripheral Insert	P08T0308-G	1

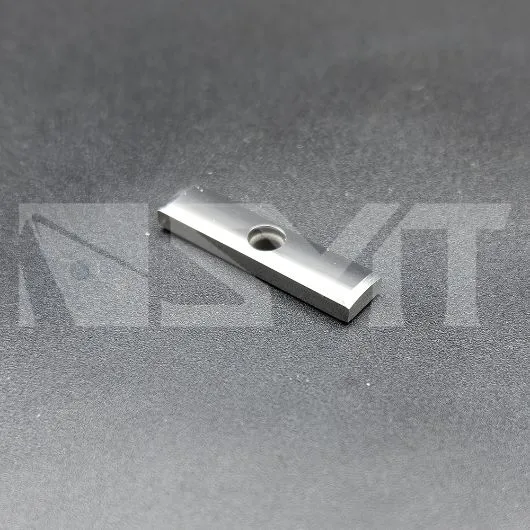

Guide Pad	DQ0625	2

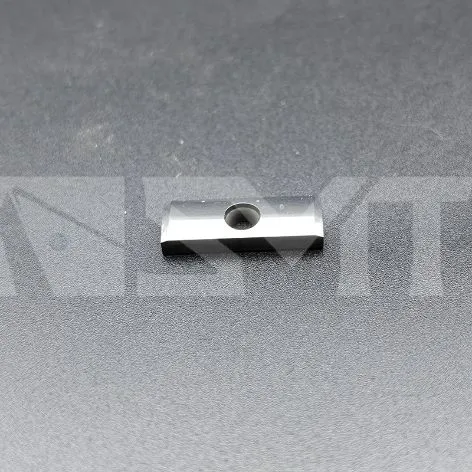

Sub-Guide Pad	FDQ0618	1

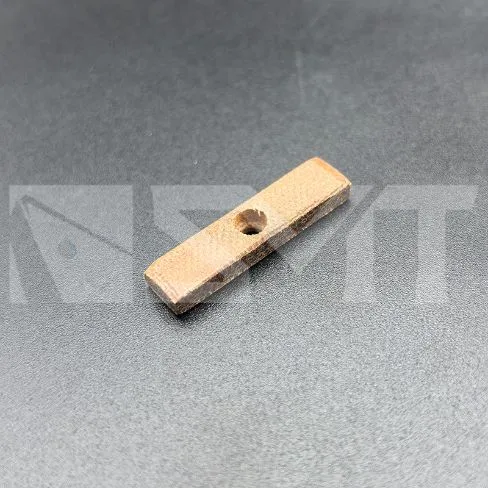

Guide Pad (Bakelite)	DQ0625JM	1

Specializing in indexable BTA drills, indexable ejector drills and indexable gun drills, along with Carbide inserts, cartridges, guide pads and other accessories for deep hole drills available for your applications.

Different series of drill heads are available for deep hole drilling. Drill diameter from D25-D300 with different types of inserts, and also D14-D32 drill head with a single carbide insert.

Frequently Asked Questions

What is the drilling diameter of the JK34.5 drill head?

The drilling diameter of the JK34.5 model is 34.5mm, designed specifically for indexable deep hole counterboring.

What materials and surface treatments are used for the drill head?

The drill head is constructed from durable Steel and undergoes a professional Heat Treatment process to enhance wear resistance and longevity.

Are there different options available for the guide pads?

Yes, guide pads are available in solid carbide (either coated or uncoated) as well as bakelite options to suit various deep hole drilling needs.

What is the drilling diameter range for the JK-series?

The JK-series indexable deep hole drills cover a drilling diameter range from ΦJK25 to Φ180.00, and are available with or without cartridges.

What is the monthly production capacity for this model?

The production capacity for the JK34.5 indexable deep hole drill head is 500 pieces per month.

What other deep hole drilling accessories are available?

In addition to drill heads, there are indexable BTA drills, ejector drills, gun drills, carbide inserts, cartridges, and guide pads designed for deep hole processes.
