Basic Info.
ApplicationMetal
Process UsageMetal-Cutting CNC Machine Tools
Movement MethodContour Control
Control MethodOpen-Loop Control
Numerical ControlCNC/MNC
Processing Precision+-0.02mm
Performance ClassificationHigh-End CNC Machine Tools
CertificationISO 9001
ConditionNew
Hardness89.5~92.7hra
PerformanceHigh Anti Vibration
TechnologyAdvanced
AdvantageOver 20 Years Experiences
Material100% Raw Material
Transport PackageStandard or Customized
SpecificationISO9001
HS Code8207909000
Production Capacity5000kg/Mon
Product Description

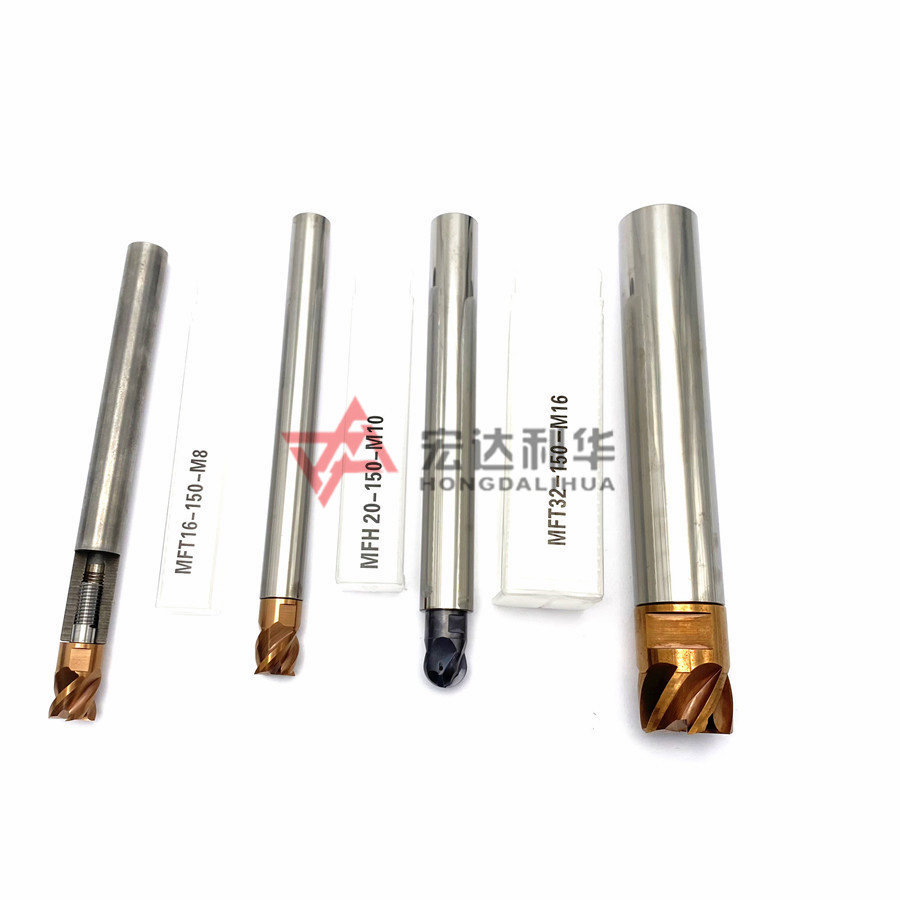

Solid Carbide Boring Bar for Milling Machine

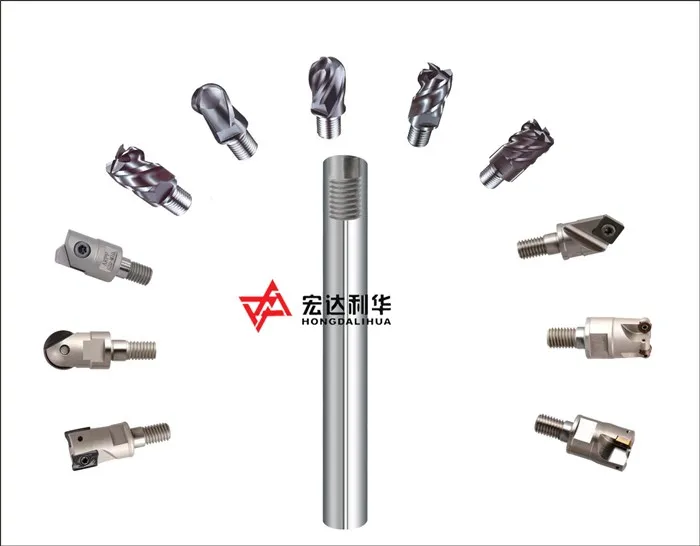

💡 One Shank For All
⚡
1. High Rigidity
Improve surface finish and perpendicularity. Made of pure tungsten carbide material, excellent rigidity, good shock absorption, no distortion as lateral stiffness too large.
🎯
2. High Precision
Improve dimensional precision. To extend the processing depth, enhance the accuracy of processing & to achieve long, ultra-deep, ultra-high precision machining possibilities.
⚙️
3. High Efficiency

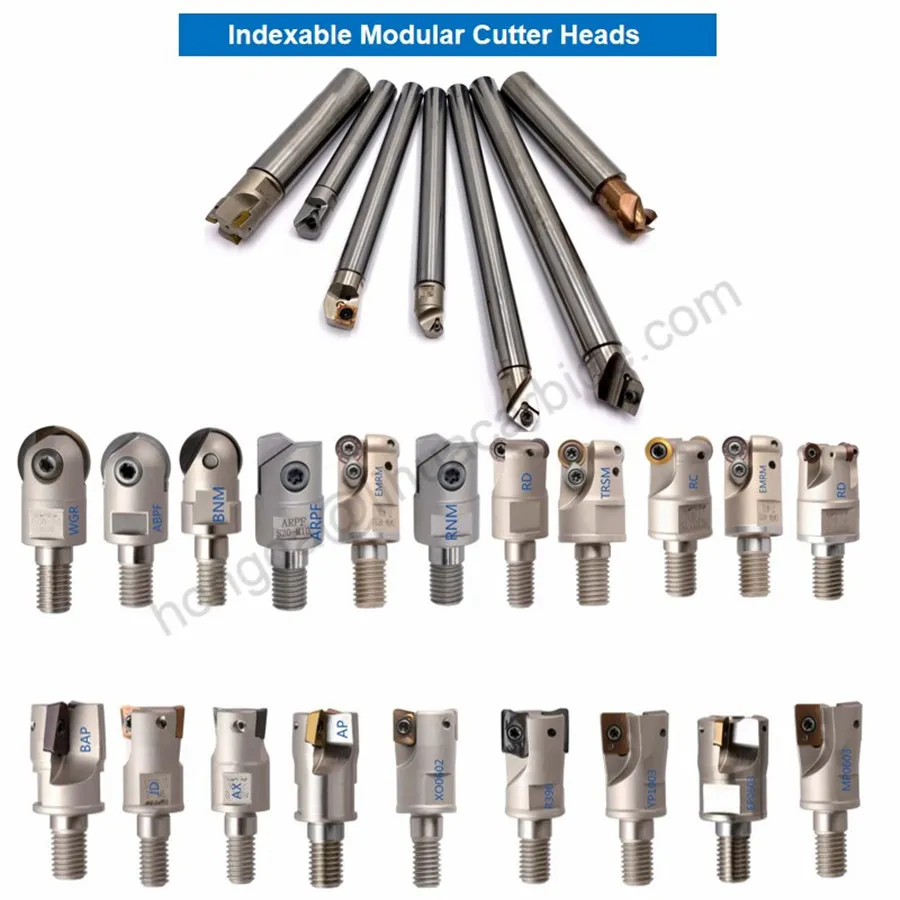

No welding fracture concerns, emphasizing the variability of the replaceable tool head, a carbide bar can reach dozens of combinations, widely used in Rough & precision processing industrial.
💰
4. Reduce Cost

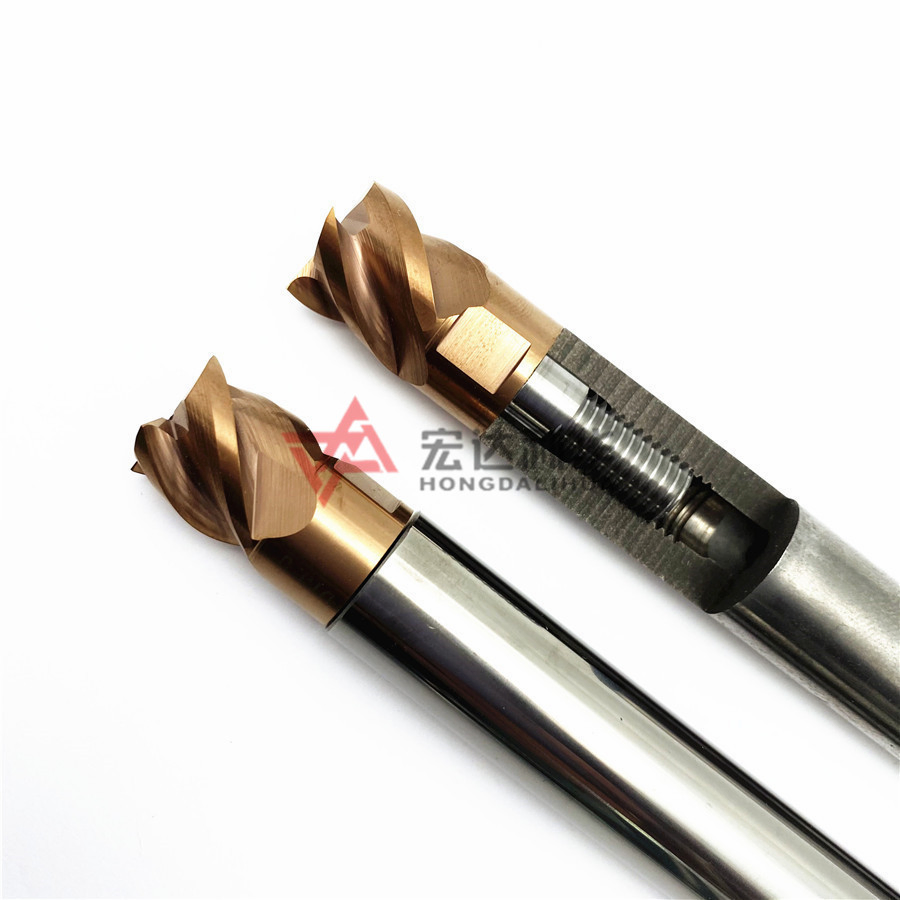

Extending the tool life. The Holder can be exchangeable even if the cutter is damaged and Easy and convenient to replace. The tip and the Holder are screwed and run in reverse direction to the spindle.

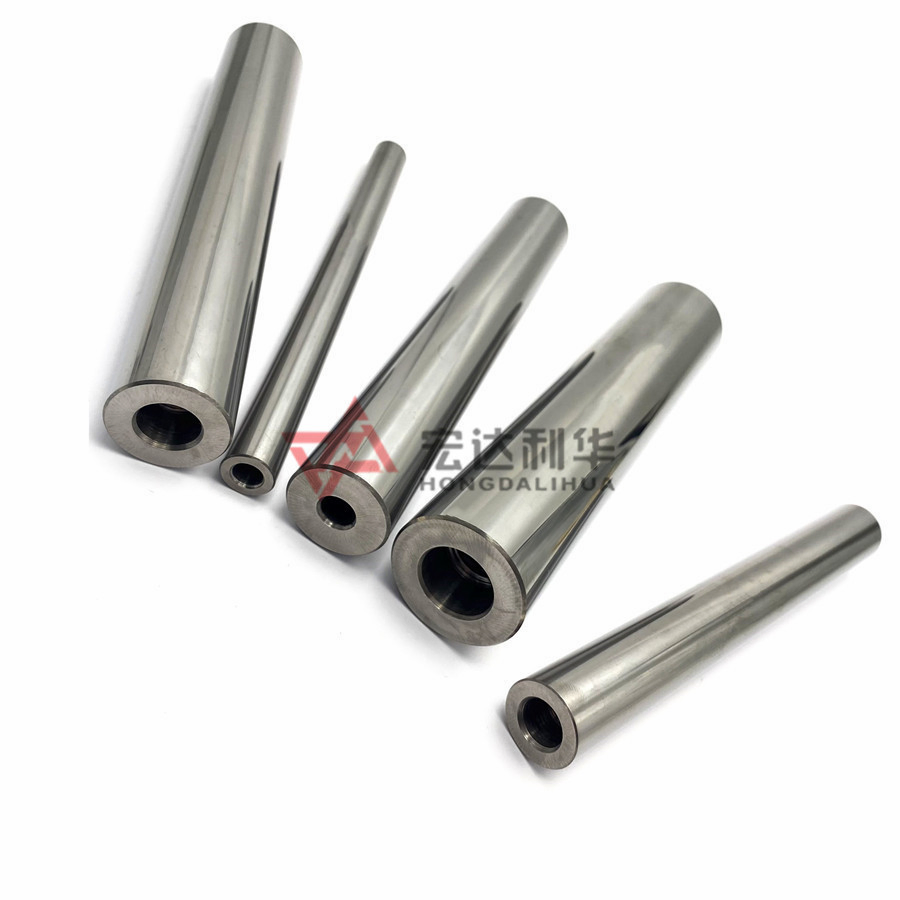

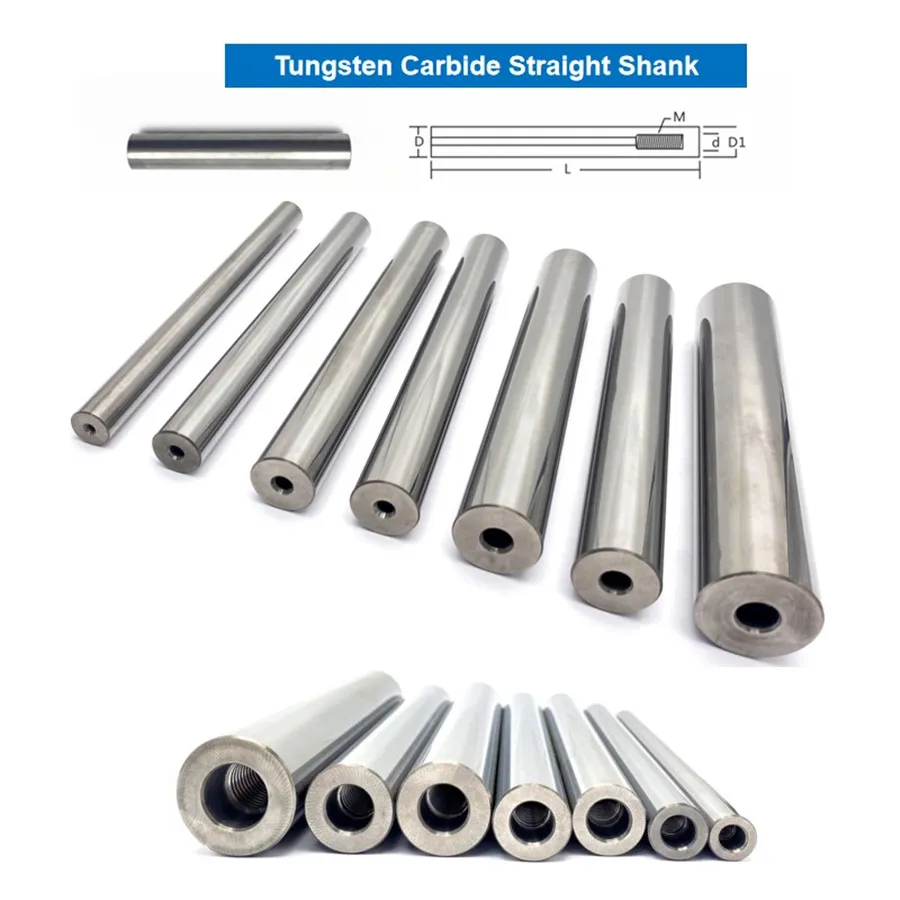

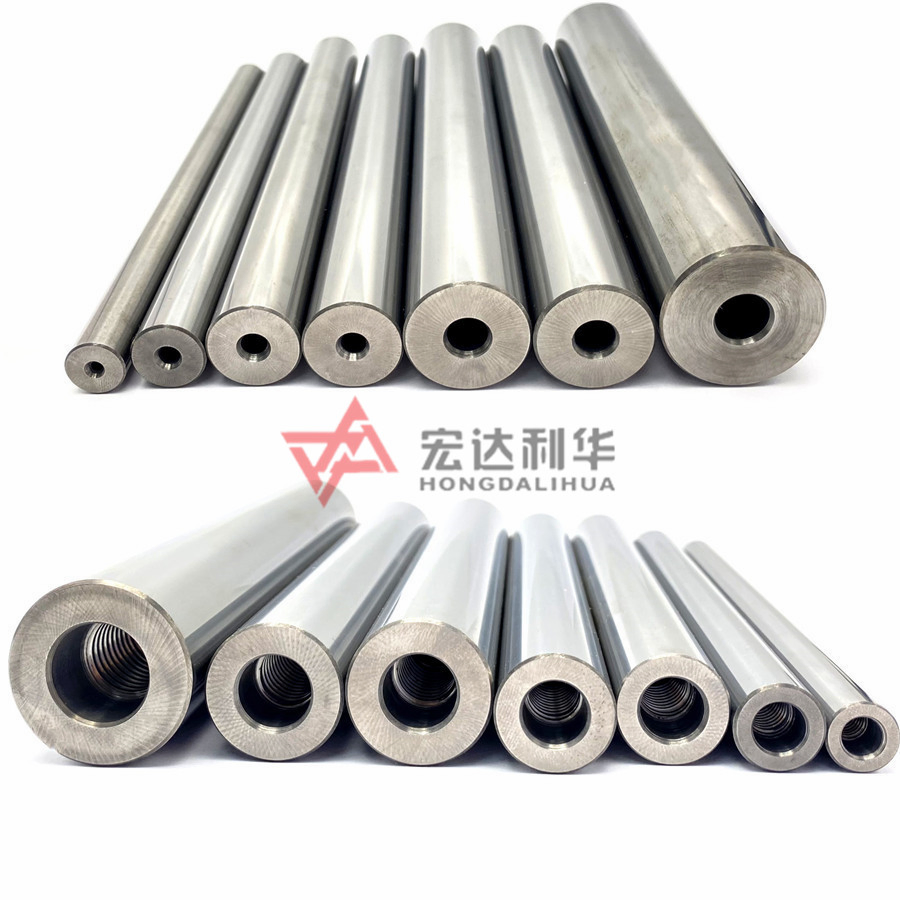

🛠️ Carbide Screwed Boring Bar
| Spec |
D (mm) |
L (mm) |
D1 (mm) |
M |
| MFH-08-100-M4 | 8 | 100 | 8 | M4 |
| MFH-10-100-M5/M6 | 10 | 100 | 10 | M5/M6 |
| MFH-10-150-M5/M6 | 10 | 150 | 10 | M5/M6 |
| MFH-12-100-M6 | 12 | 100 | 12 | M6 |
| MFH-12-150-M6 | 12 | 150 | 12 | M6 |
| MFH-15-100-M8 | 15 | 100 | 15 | M8 |
| MFH-15-150-M8 | 15 | 150 | 15 | M8 |
| MFH-15-200-M8 | 15 | 200 | 15 | M8 |
| MFH-15.6-150-M8 | 15.6 | 150 | 15.6 | M8 |
| MFH-15.6-200-M8 | 15.6 | 200 | 15.6 | M8 |
| MFH-15.6-250-M8 | 15.6 | 250 | 15.6 | M8 |
| MFH-16-100-M8 | 16 | 100 | 16 | M8 |
| MFH-16-150-M8 | 16 | 150 | 16 | M8 |
| MFH-16-200-M8 | 16 | 200 | 16 | M8 |
| MFH-16-250-M8 | 16 | 250 | 16 | M8 |
| MFH-16-300-M8 | 16 | 300 | 16 | M8 |
| MFH-19-150-M10 | 19 | 150 | 19 | M10 |
| MFH-19-200-M10 | 19 | 200 | 19 | M10 |
| MFH-19-250-M10 | 19 | 250 | 19 | M10 |
| MFH-20-100-M10 | 20 | 100 | 20 | M10 |
| MFH-20-150-M10 | 20 | 150 | 20 | M10 |
| MFH-20-200-M10 | 20 | 200 | 20 | M10 |
| MFH-20-250-M10 | 20 | 250 | 20 | M10 |
| MFH-20-300-M10 | 20 | 300 | 20 | M10 |
| MFH-24-150-M12 | 24 | 150 | 24 | M12 |
| MFH-24-200-M12 | 24 | 200 | 24 | M12 |
| MFH-24-250-M12 | 24 | 250 | 24 | M12 |
| MFH-24-300-M12 | 24 | 300 | 24 | M12 |
| MFH-25-150-M12 | 25 | 150 | 25 | M12 |
| MFH-25-200-M12 | 25 | 200 | 25 | M12 |
| MFH-25-250-M12 | 25 | 250 | 25 | M12 |
| MFH-25-300-M12 | 25 | 300 | 25 | M12 |
| MFH-30-150-M16 | 30 | 150 | 30 | M16 |
| MFH-30-200-M16 | 30 | 200 | 30 | M16 |
| MFH-30-300-M16 | 30 | 300 | 30 | M16 |
| MFH-30-350-M16 | 30 | 350 | 30 | M16 |
| MFH-30-400-M16 | 30 | 400 | 30 | M16 |
| MFH-32-150-M16 | 32 | 150 | 32 | M16 |
| MFH-32-200-M16 | 32 | 200 | 32 | M16 |
| MFH-32-250-M16 | 32 | 250 | 32 | M16 |
| MFH-32-300-M16 | 32 | 300 | 32 | M16 |
| MFH-32-350-M16 | 32 | 350 | 32 | M16 |
| MFH-32-400-M16 | 32 | 400 | 32 | M16 |
| MFH-40-300-M16/M20 | 40 | 300 | 40 | M16/M20 |
| MFH-40-350-M16/M20 | 40 | 350 | 40 | M16/M20 |
| MFH-40-400-M16/M20 | 40 | 400 | 40 | M16/M20 |
| MFH-42-200-M16/M20 | 42 | 200 | 42 | M16/M20 |
| MFH-42-250-M16/M20 | 42 | 250 | 42 | M16/M20 |
| MFH-42-300-M16/M20 | 42 | 300 | 42 | M16/M20 |
| MFH-42-350-M16/M20 | 42 | 350 | 42 | M16/M20 |
| MFH-42-400-M16/M20 | 42 | 400 | 42 | M16/M20 |
| MFH-42-450-M16/M20 | 42 | 450 | 42 | M16/M20 |
| MFH-42-500-M16/M20 | 42 | 500 | 42 | M16/M20 |

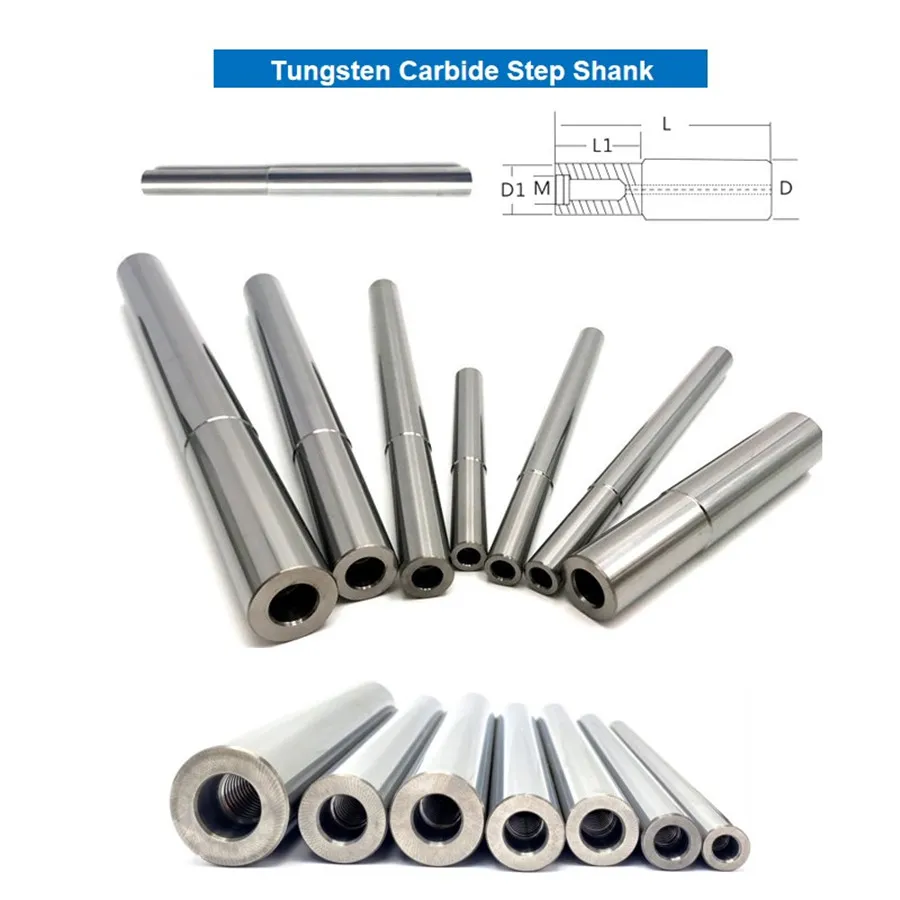

| Spec |
D |
D1 |
L |
L1 |
M |
| MFT10-50-150-M6 | 10 | 9.5 | 150 | 50 | M6 |
| MFT12-50-150-M6 | 12 | 11.5 | 150 | 50 | M6 |
| MFT16-50-150-M8 | 16 | 15.5 | 150 | 50 | M8 |
| MFT16-50-200-M8 | 16 | 15.5 | 200 | 50 | M8 |
| MFT16-70-250-M8 | 16 | 15.5 | 250 | 70 | M8 |
| MFT16-85-120-M8 | 16 | 15.6 | 120 | 85 | M8 |
| MFT16-95-150-M8 | 16 | 15.6 | 150 | 95 | M8 |
| MFT16-145-200-M8 | 16 | 15.6 | 200 | 145 | M8 |
| MFT20-40-100-M10 | 20 | 19.6 | 100 | 40 | M10 |
| MFT20-90-150-M10 | 20 | 19.6 | 150 | 90 | M10 |
| MFT20-140-200-M10 | 20 | 19.6 | 200 | 140 | M10 |
| MFT25-40-100-M12 | 25 | 24.6 | 100 | 40 | M12 |
| MFT25-85-150-M12 | 25 | 24.6 | 150 | 85 | M12 |
| MFT25-135-200-M12 | 25 | 24.6 | 200 | 135 | M12 |
| MFT32-70-200-M16 | 32 | 31 | 200 | 70 | M16 |
| MFT32-130-300-M16 | 32 | 31 | 300 | 130 | M16 |
| MFT32-150-350-M16 | 32 | 31 | 350 | 150 | M16 |
| Spec |
D |
D1 |
L |
L1 |
M |
Taper |
| MFV12/9.5-100/35-M6 | 12 | 9.5 | 100 | 35 | M6 | 1°30′ |
| MFV12/9.5-150/70-M6 | 12 | 9.5 | 150 | 70 | M6 | 1°45′ |
| MFV16/11.2-150/70-M6 | 16 | 11.5 | 150 | 70 | M6 | 1°45′ |
| MFV20/14.5-100/40-M8 | 20 | 14.5 | 100 | 40 | M8 | 3°30′ |
| MFV20/14.5-150/77-M8 | 20 | 14.5 | 150 | 77 | M8 | 1°45′ |
| MFV16/15.5-200/150-M8 | 16 | 15.5 | 200 | 150 | M8 | 0° 43′ |
| MFV20/18.5-100/40-M10 | 20 | 18.5 | 100 | 40 | M10 | 0° 43′ |
| MFV25/18.5-150/70-M10 | 25 | 18.5 | 150 | 70 | M10 | 1° 43′ |
| MFV20/18.5-150/90-M10 | 20 | 18.5 | 150 | 90 | M10 | 0°19′ |
| MFV20/18.5-200/140-M10 | 20 | 18.5 | 200 | 140 | M10 | 0°12′ |
| MFV32/23.5-200/120-M12 | 32 | 23.5 | 200 | 120 | M12 | 1° 45′ |
| MFV32/29-250/170-M16 | 32 | 29 | 250 | 140 | M16 | 0° 28′ |
| MFV32/29-300/200-M16 | 32 | 29 | 300 | 40 | M16 | 0° 28′ |

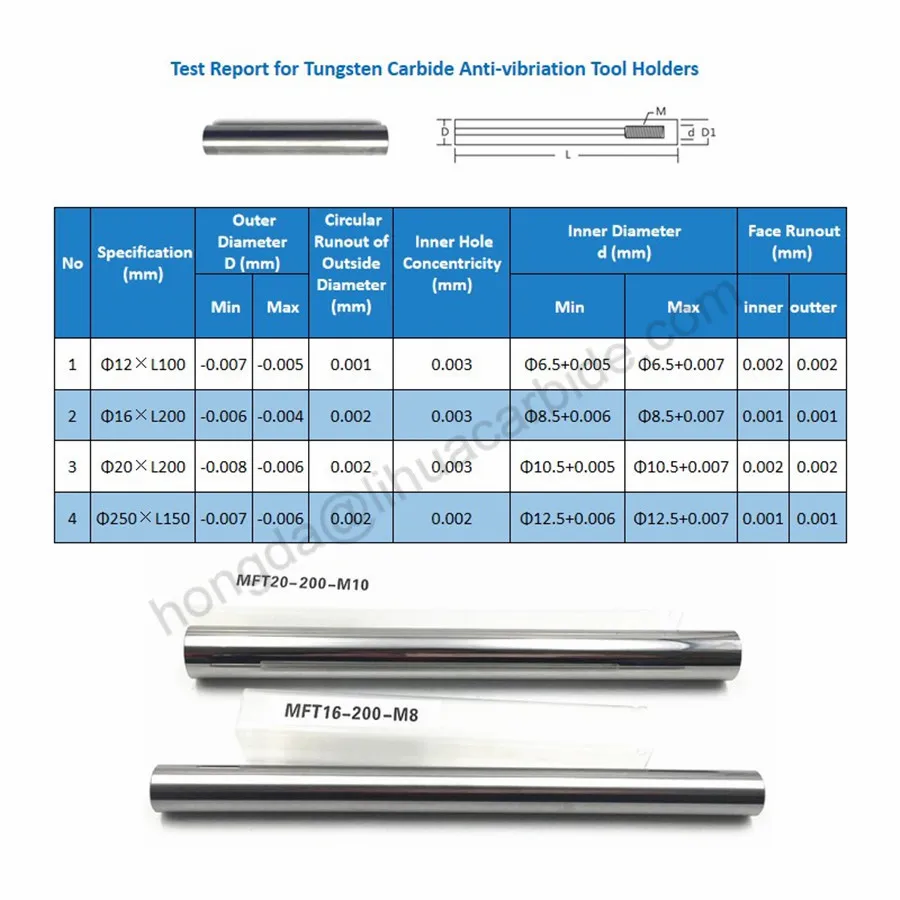

📊 Test Report For Standard Carbide Tool Holder
🔗 Related Tools
Milling Head
Burr
End Mill
📦 Packing Details
Standard Packing: In common, we first use inner boxes, then securely package them into outer boxes, or follow custom client packing specifications.
Frequently Asked Questions (FAQ)
What materials are these boring bars made of?
They are manufactured using 100% raw tungsten carbide material, ensuring exceptional rigidity, wear resistance, and long tool life.
How does the "One Shank For All" system reduce costs?
The modular structure features a replaceable tool head. If a cutter is damaged, you only need to exchange the tip while keeping the original carbide bar, allowing for dozens of combinations and significantly lower operational expenses.
What processing precision can be achieved with this tool holder?
Our solid carbide boring bars are designed for high-end CNC applications, reaching a processing precision of +-0.02mm for ultra-high-precision machining operations.
Does the boring bar prevent vibrations during deep-hole processing?
Yes, the pure tungsten carbide construction provides excellent lateral stiffness and high anti-vibration properties, significantly improving surface finishes and perpendicularity even during deep-hole machining.
Are customized dimensions or packaging options available?
Yes, both customized tool specifications (such as taper, length, and diameter adjustments) and custom packaging configurations can be provided based on specific client requirements.
What standards are your production processes certified under?
Our manufacturing processes are fully certified under the ISO 9001 quality management system, ensuring strict quality control from raw materials to final packaging.
