31mm Two Pipe Deep Hole Ejector Drill

31mm Two Pipe Deep Hole Ejector Drill
DTS BTA Deep Hole Drilling Head - BTA DRILL HEAD

💡 Feature: Short lead time, high quality, cutting tool body is Aviation pre-hardening material!

Production Specifications

Double tube BTA DRILL HEAD
Ejector system drills
BTA & ejector drills
Two pipe deep hole ejector drill
Double tube system
Ejector and BTA drill bits

Key Advantages

S type BTA deep hole drilling head.
High quality alloy steel material with super coating inserts.
Carbide guide pads for high efficiency, easy installation, and low cost.
Widely applicable for machining various types of materials.

📷 Detailed Photos - DRILL HEAD

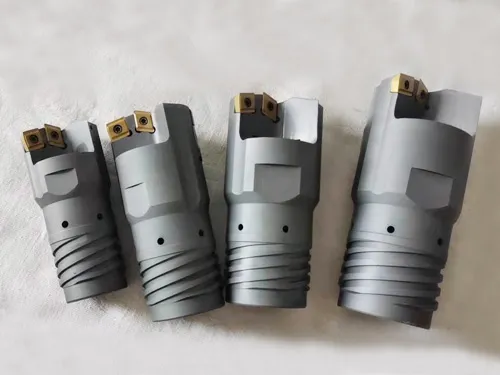

31mm Two Pipe Deep Hole Ejector Drill Component

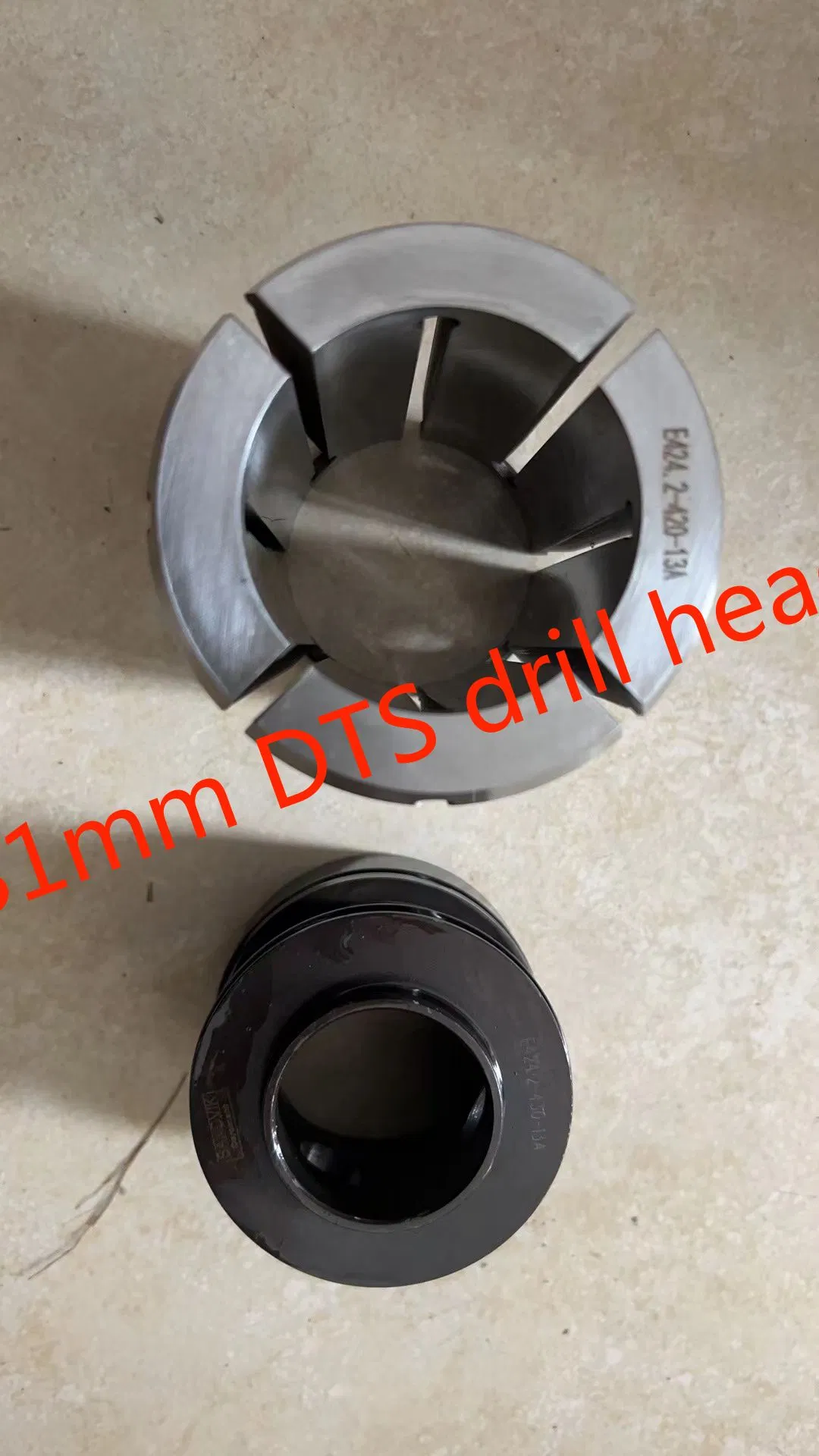

31mm Two Pipe Deep Hole Ejector Drill View

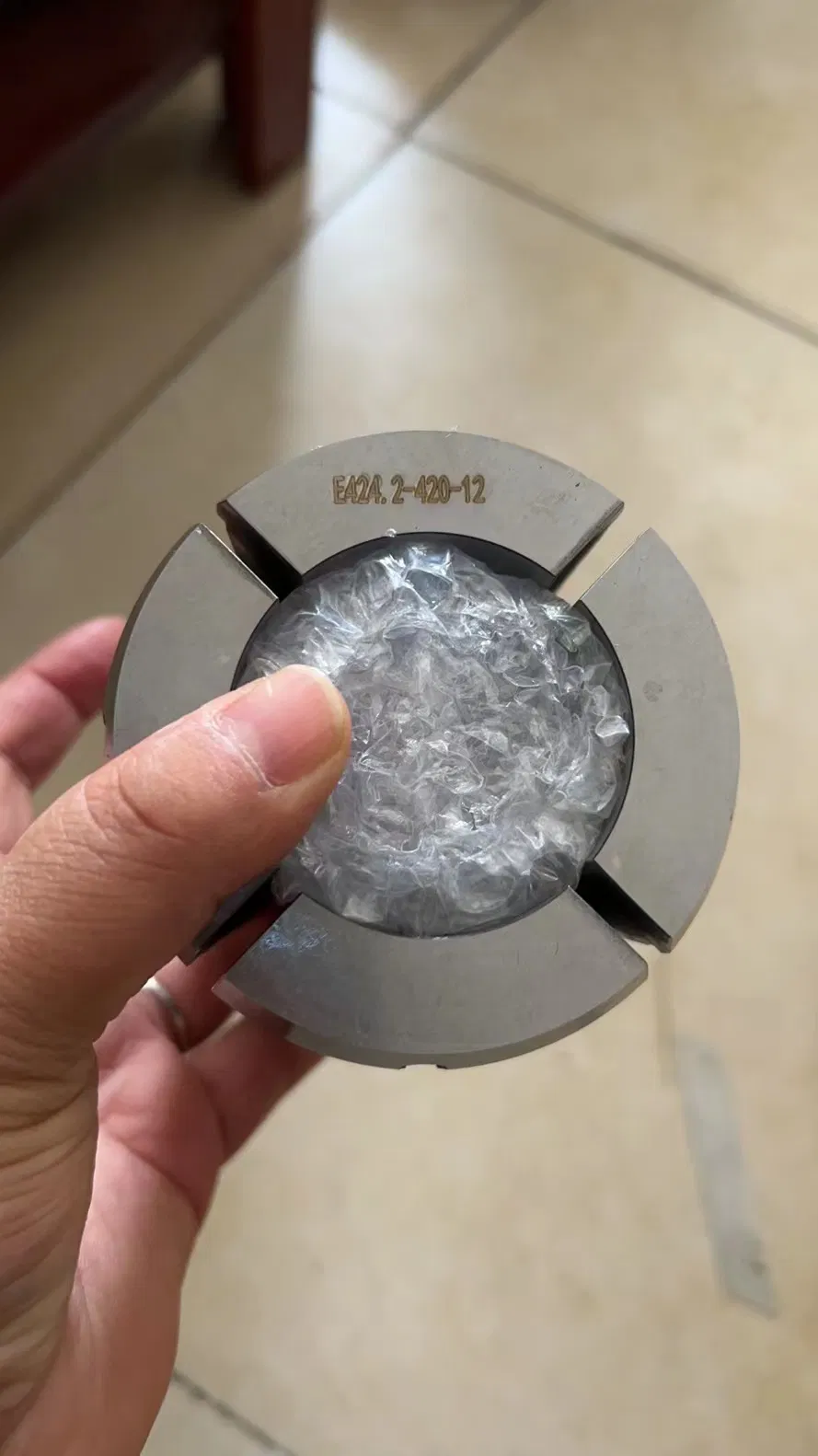

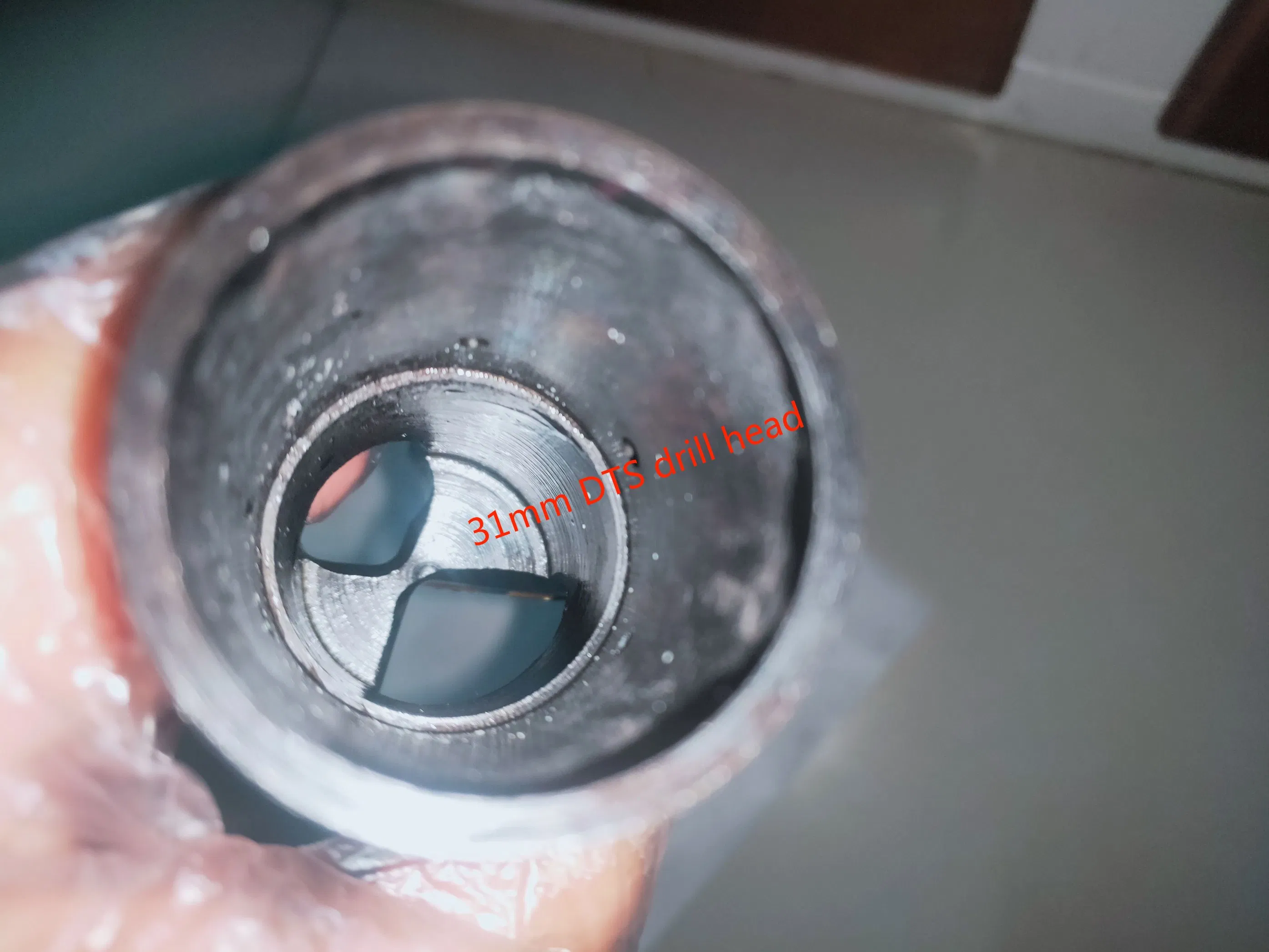

31mm Two Pipe Deep Hole Ejector Drill Setup

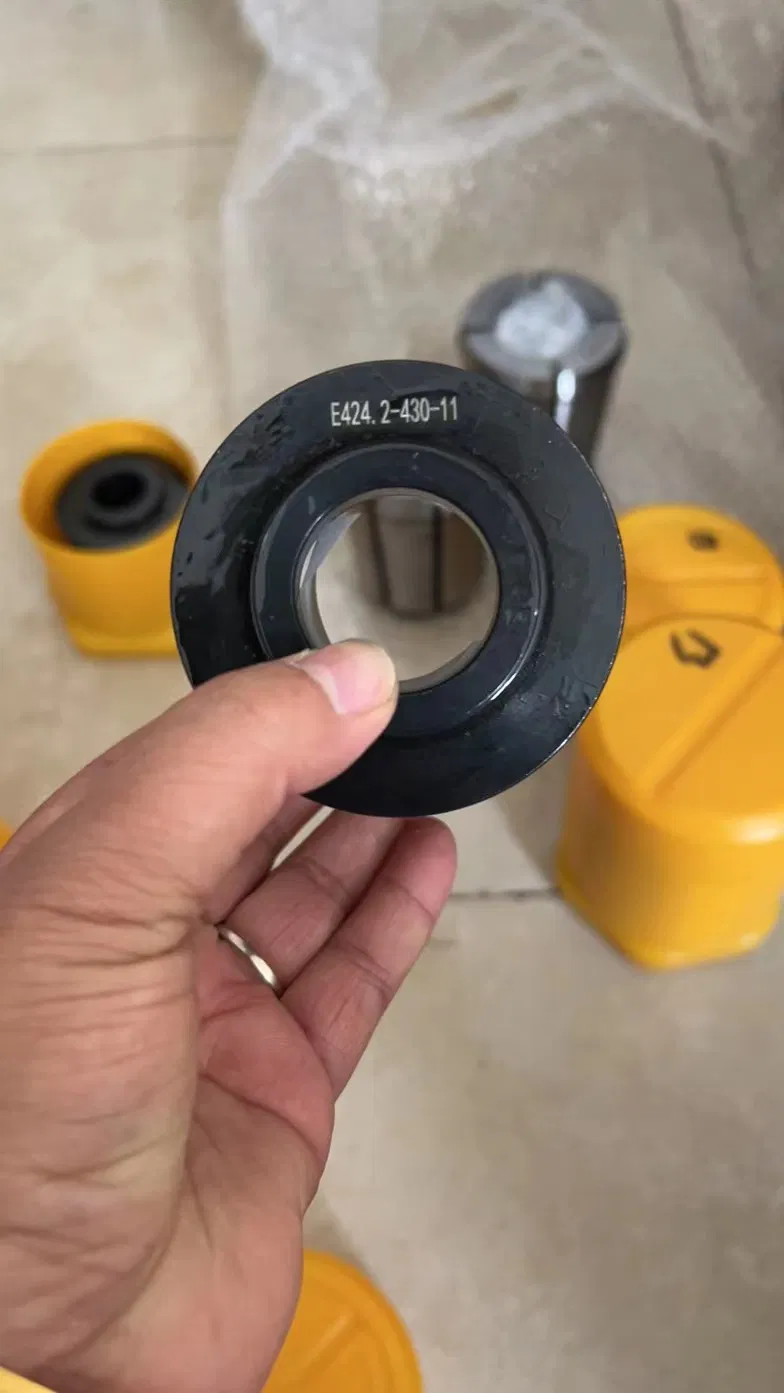

31mm Two Pipe Deep Hole Ejector Drill Head Details

31mm Two Pipe Deep Hole Ejector Drill Assembly

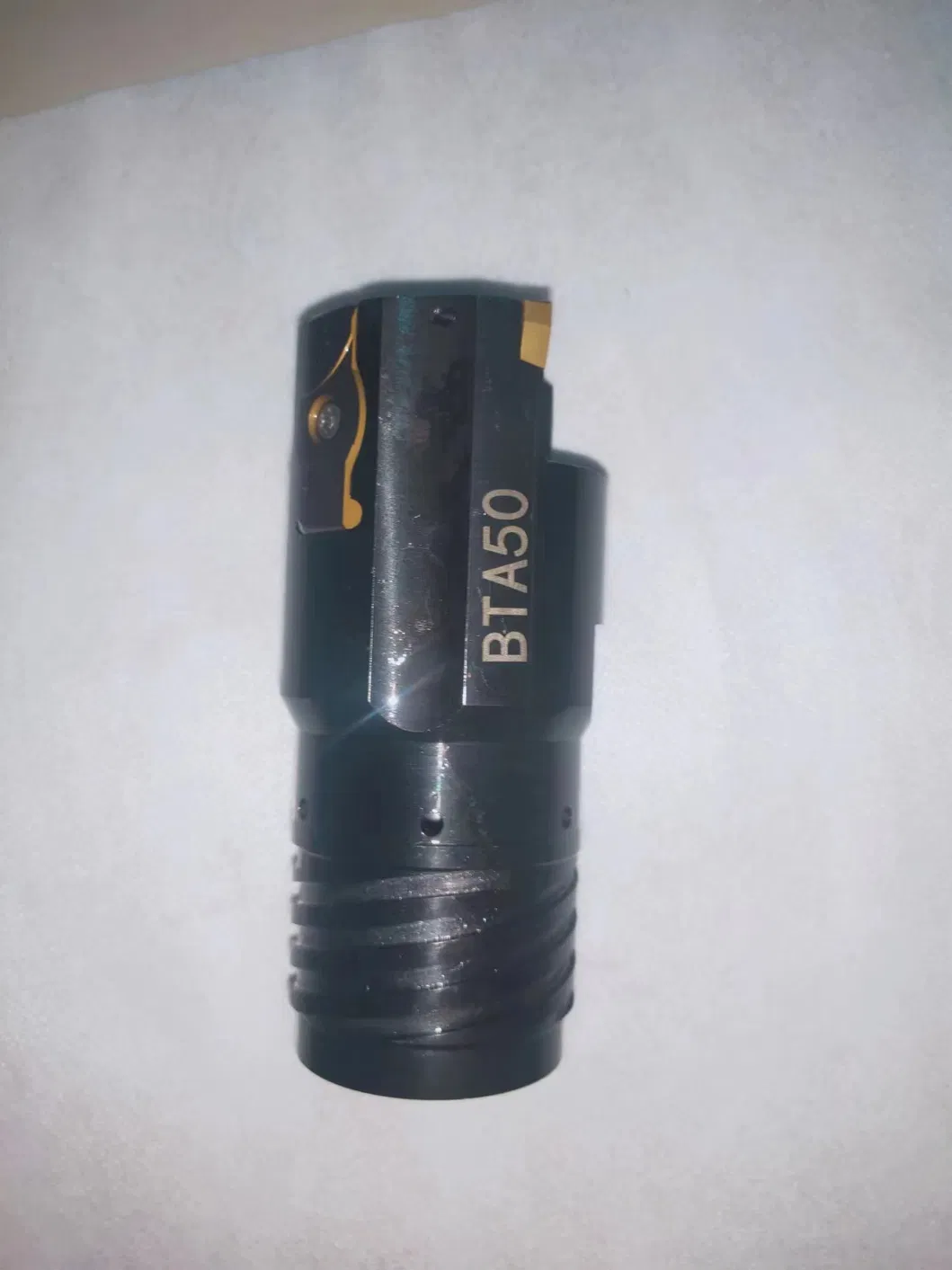

31mm Two Pipe Deep Hole Ejector Drill Overview

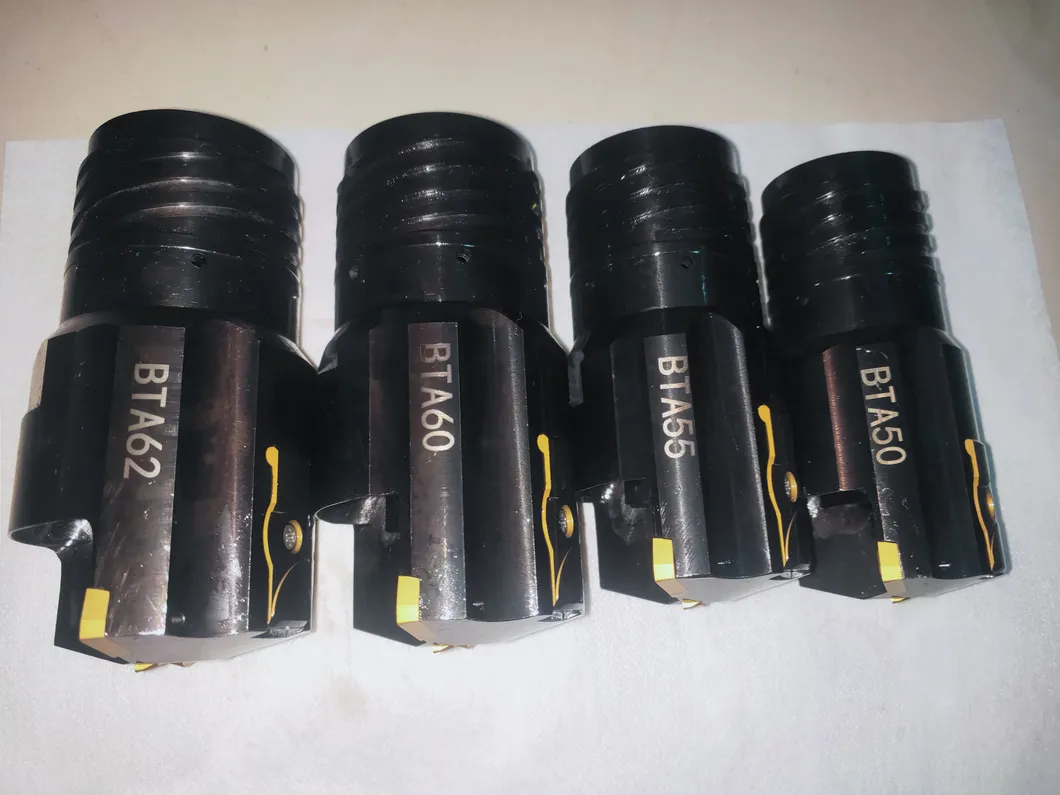

31mm Two Pipe Deep Hole Ejector Drill Structure

Drill Bar

Solid Carbide Guide Pad

Inserts

📊 Product Parameters (Example 25-65mm list)

Drilling Head Diameter	Central Inserts	Qty	Intermediate Inserts	Qty	Peripheral Inserts	Qty	Guide Pad	Qty
25~28.7	800-050308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
28.71~31.00	800-06T308M-C-G	1	800-050308M-I-G/L	1	800-060308H-P-G/L	1	800-06A	2
31.01~33.30	800-06T308M-C-G	1	800-060308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
33.31~36.20	800-08T308M-C-G	1	800-06T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
36.21~39.6	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-08T308H-P-G/L	1	800-07A	2
39.61~43	800-08T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
43.01~47.00	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-09T308H-P-G/L	1	800-08A	2
47.01-51.7	800-10T308M-C-G	1	800-08T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
51.71-56.2	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-10A	2
56.21-59	800-10T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2
60-65	800-12T308M-C-G	1	800-12T308M-I-G/L	1	800-11T308H-P-G/L	1	800-12A	2

❓ Frequently Asked Questions (FAQ)

1. What are the main features of the 31mm Two Pipe Deep Hole Ejector Drill?

This drill head features a robust structure made of Aviation pre-hardened material. It offers high efficiency, low operational costs, a short lead time, and easy installation with high-quality alloy steel body design.

2. How does the double-tube ejector system work compared to single-tube systems?

The double-tube (two pipe) ejector system delivers coolant via the space between the outer and inner tubes. Chips and coolant are then suctioned back out through the inner tube, preventing chip clogging and providing cleaner drilling processing.

3. What kind of inserts and guide pads are compatible with this BTA drill head?

It utilizes super-coated carbide inserts (including central, intermediate, and peripheral types) and solid carbide guide pads designed to enhance drilling accuracy and prolong tool lifespan.

4. Can this ejector drill be used for machining hard or specialty alloys?

Yes. Thanks to the aviation pre-hardened tool body and super-coated carbide inserts, this drill head is widely designed for machining different tough workpieces and materials efficiently.

5. What sizes are available for the DTS BTA drilling head range?

The product parameters catalog lists dimensions ranging from 25mm to 65mm. Standard configurations for central, intermediate, and peripheral inserts correspond directly to the specific size brackets required.
