Hmc Series Horizontal CNC Machining Center 1 Unit Taiwan Syntec System

After-sales Service:	Troubleshooting & Tech Support
Warranty:	1 Year
Application:	Metal

Basic Specifications

Model NO. NC-115/1000

Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Movement Method Point to Point Control

Control Method Semi-Closed Loop Control

Numerical Control CNC/MNC

Processing Precision 0.01~0.02(mm)

Performance High-End CNC Machine Tools

Certification CE, ISO 9001

Condition New

Noq 1

Delivery Time 30 Days

Motor System Taiwan Syntec Control System

Applications Automotive, Aerospace, and Manufacturing

Origin China

Production Capacity 1000-2000

Packaging & Delivery

Specification Size 3580× 2150× 1950mm

Package Size 3580.00cm * 2150.00cm * 1950.00cm

Package Gross Weight 6600.000kg

Transport Package Shipping in Wooden Cases

Product Description

Horizontal CNC Turning and Milling Machine

The core of the Horizontal CNC turning and milling machine is its integrated turning and milling capabilities within a horizontal layout, enabling "single-clamping, multi-step machining" of complex parts.

I. Core Product Features

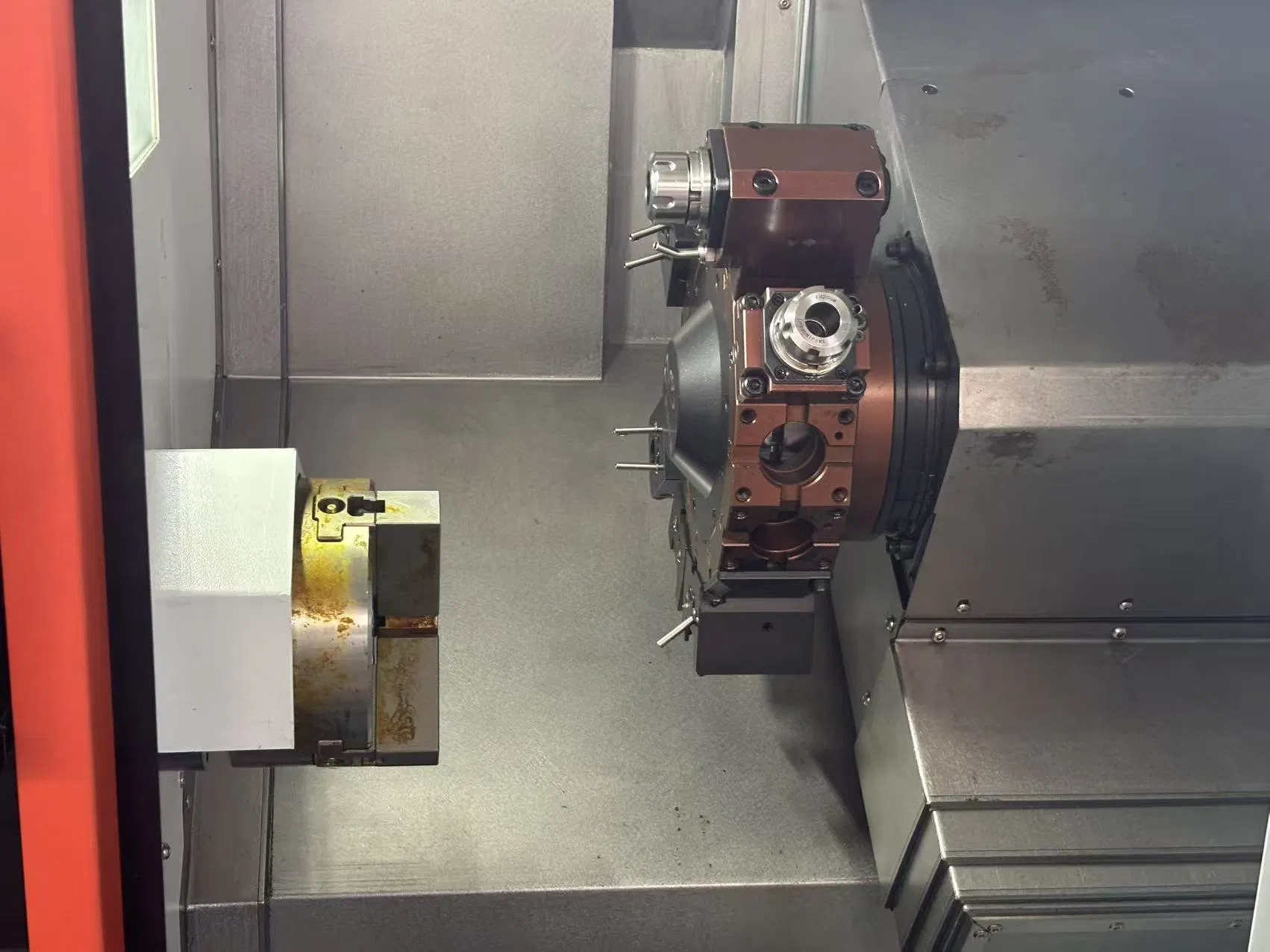

Layout and Structure: These machines utilize a horizontal bed with a horizontal spindle. They are typically equipped with a turret (for turning) and a driven toolholder (for milling). Some high-end models include a Y-axis function.
High Functional Integration: They offer both turning (external, internal, facing, and threading) and milling (drilling, tapping, face milling, and slot milling), eliminating the need for multiple machines to transfer workpieces.
High Precision: Controlled by a CNC system (such as FANUC or Siemens), combined with high-precision spindles and guideways, they reduce the accumulation of errors caused by multiple clamping cycles.
Strong Automation Adaptability: Easily integrates with automatic feeders and robotic loading and unloading systems to meet the needs of unmanned mass production.

II. Main Functions

Turning: Performs rotary cutting of parts, including external turning, internal boring, facing, taper machining, and thread turning (metric, imperial, module, and pitch).
Milling: Driven by a live toolholder, the tool performs drilling, tapping, milling flat surfaces, milling grooves (such as keyways and arc slots), and milling polygons (such as hexagonal and square).
Auxiliary Functions: Select models support C-axis (spindle indexing) and Y-axis (tool radial movement), enabling machining of complex features such as eccentric holes and curved surfaces. An automatic chip removal device maintains a clean machining environment.

Hmc Series Horizontal CNC Machining Center View 1

Hmc Series Horizontal CNC Machining Center View 2

Hmc Series Horizontal CNC Machining Center View 3

III. Typical Applications

This machine is primarily used for machining rotary parts requiring multiple, complex machining steps and is widely used in the following industries:

Automotive Manufacturing: Machining engine crankshafts, camshafts, transmission gear shafts, and brake system parts.
Engineering Machinery: Processing of hydraulic valve spools, cylinder piston rods, and connectors.
Aerospace: Processing of small precision shaft parts, sensor housings, and fasteners (such as bolts with milled slots).
General Machinery: Processing of pump and valve parts, motor shafts, bearing rings, etc.

IV. Core Advantages

Improved Processing Precision: Reduces the number of workpiece clampings between different machines, fundamentally reducing positioning errors and ensuring the positional accuracy of all part features (such as coaxiality and perpendicularity).
Improved Production Efficiency: Eliminates manual workpiece transfer and re-clamping, shortening processing cycles. A single machine can complete multiple processes, reducing equipment footprint.
Reduced Labor Costs: Reduces reliance on operators, making it particularly suitable for automated production lines, enabling 24/7 continuous processing.
Expanded Processing Scope: Compared to single CNC lathes or milling machines, this machine can handle more complex part structures without the need for disassembly processes, making it suitable for mass production of highly complex parts.

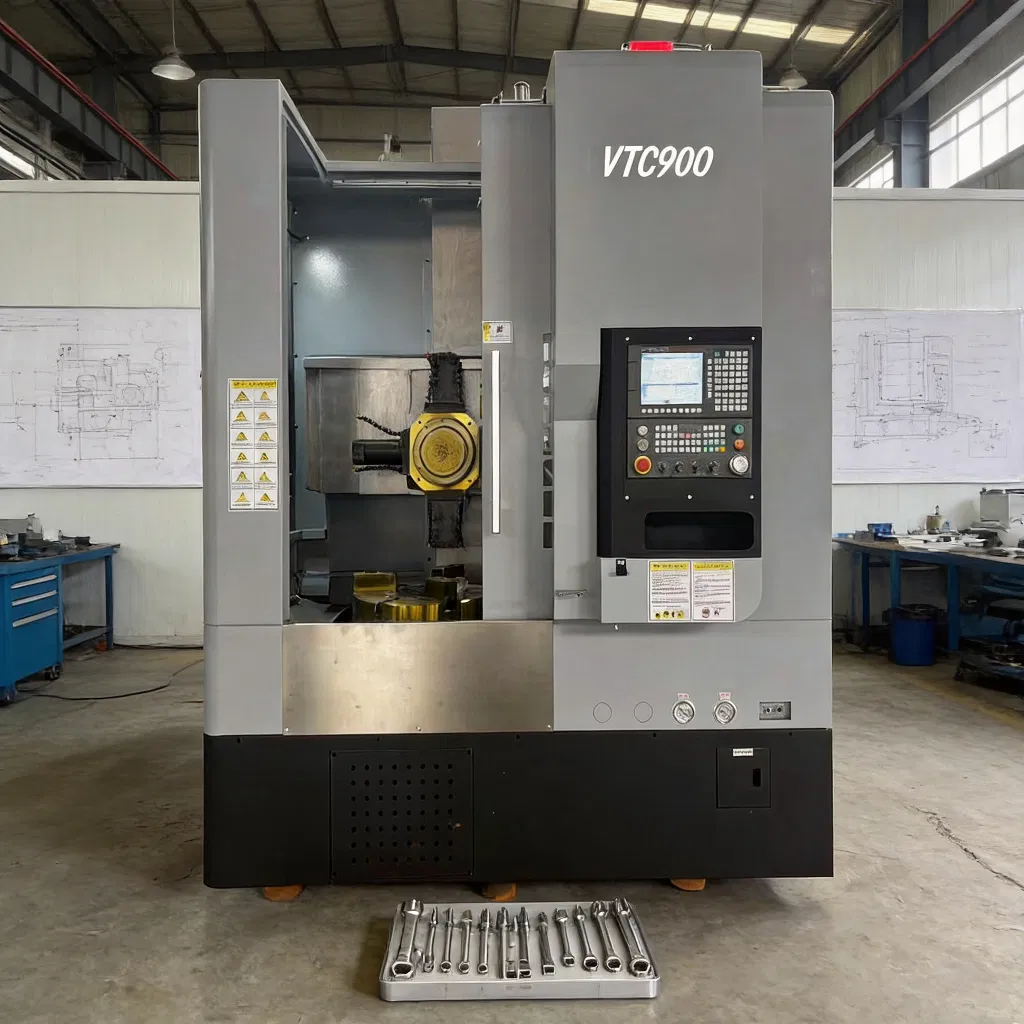

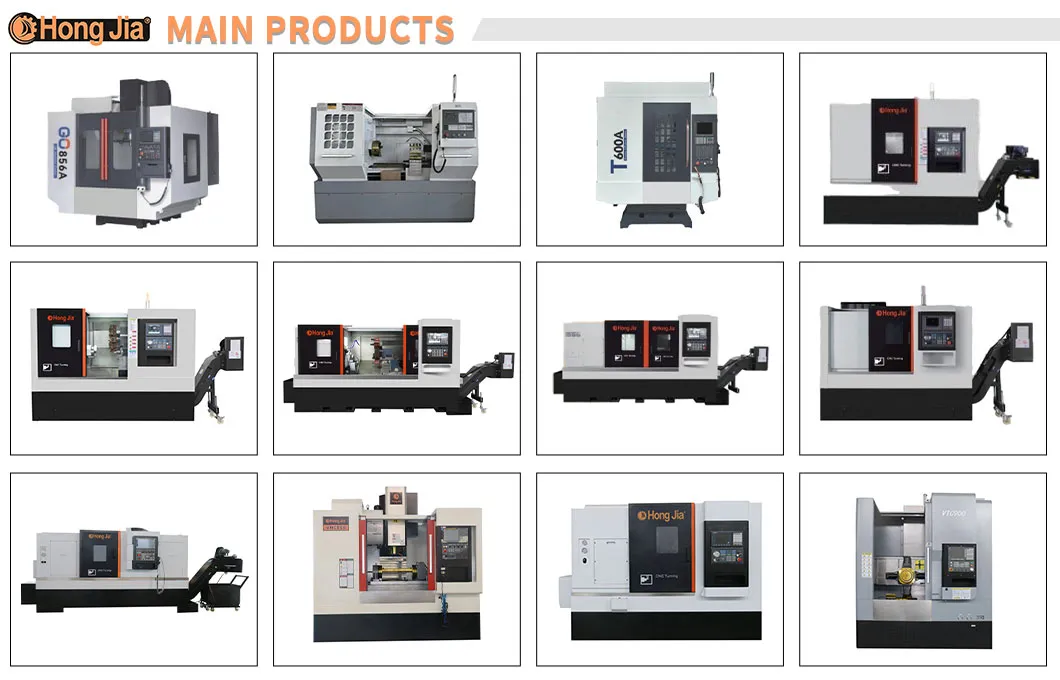

Main Product Showcase

Certifications

Exhibitions & Our Customers

Packaging & Shipping Details

Frequently Asked Questions

How can I choose the most suitable machine?

Please share your detailed technical requirements and specifications, and we will help you select the optimal model. Alternatively, you can send us the workpiece drawings, and our engineering team will recommend the most suitable machine configuration.

What types of machines are available in this product range?

The product line specializes in a wide range of metal processing equipment, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, and highly integrated Turning and Milling Composite processing equipment.

What is the standard delivery timeline for a machine order?

The standard delivery time is generally 30 days from order confirmation, depending on the specifications, customized configurations, and current production schedules.

Which quality standards and certifications do these machines comply with?

All CNC machines are strictly manufactured in compliance with international quality standards, holding official CE and ISO 9001 certifications to ensure consistent performance and safety.

How are the machines protected during international transport?

The machines are securely packed and shipped in professional, heavy-duty wooden cases designed for maritime and land transport, preventing damage and oxidation from moisture during transit.

Can these horizontal CNC machines be integrated into automated production lines?

Yes, these machines feature strong automation adaptability and are engineered to seamlessly interface with automatic bar feeders, robotic arms, and automatic loading/unloading systems for unmanned production lines.
