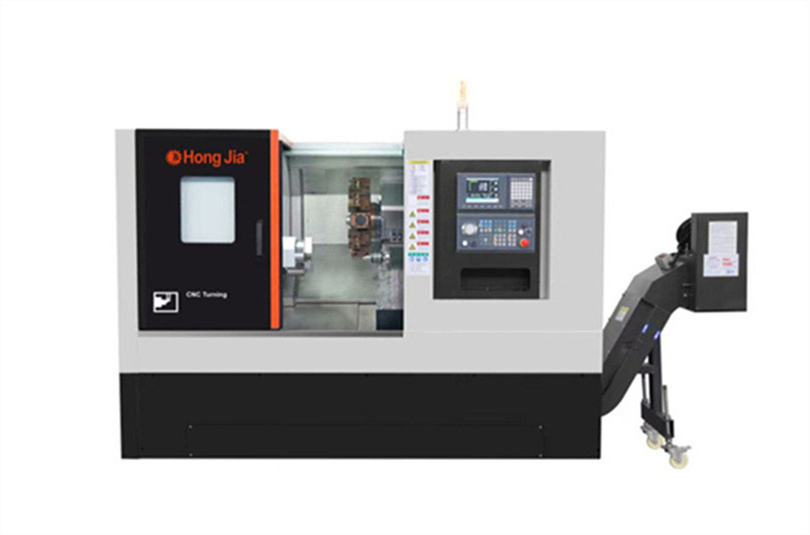

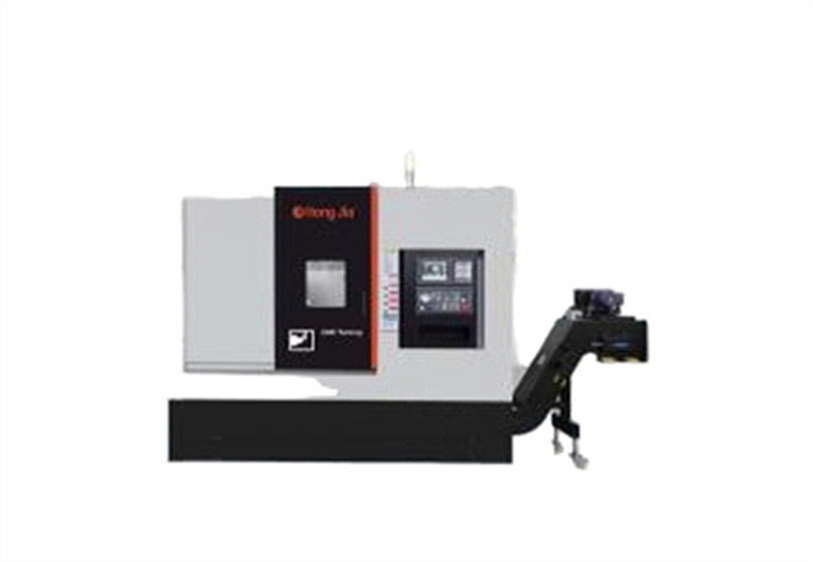

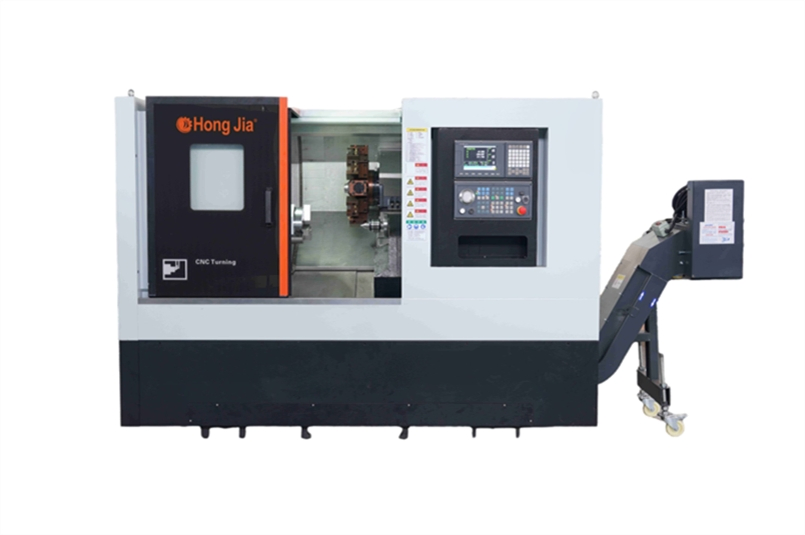

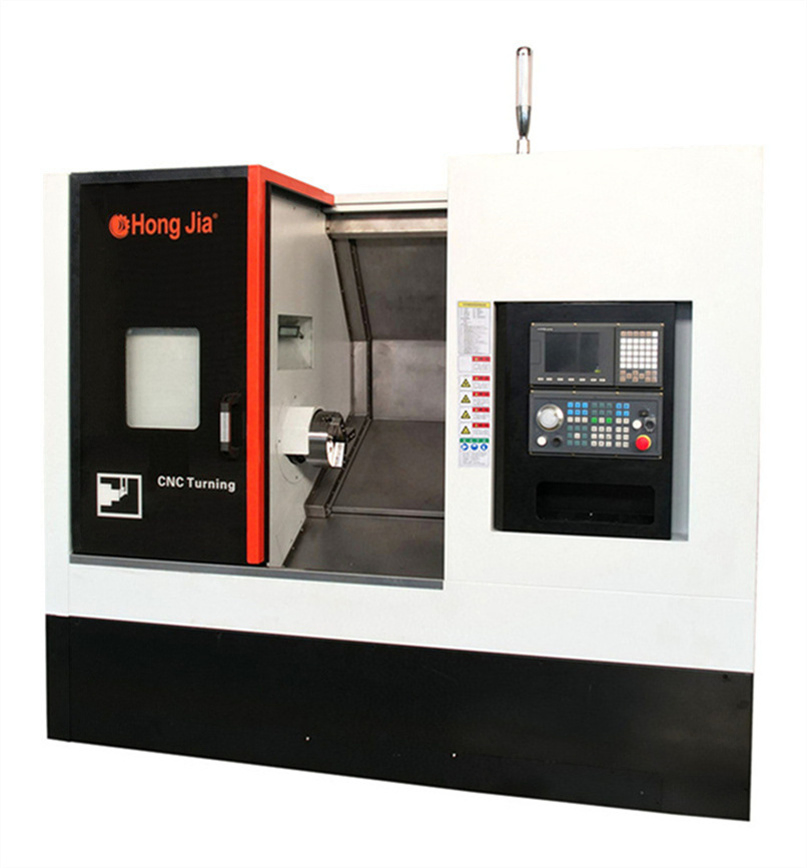

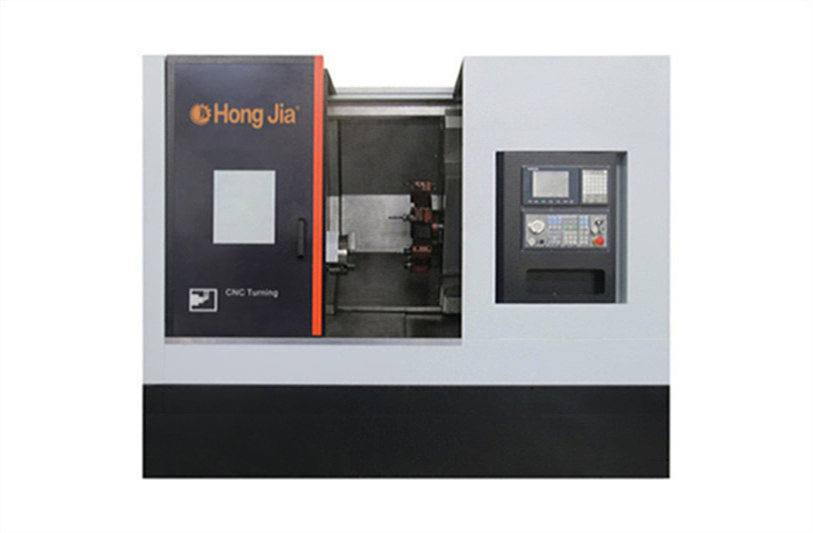

The NC-115/1000 CNC lathe is an engineering marvel, showcasing the cutting-edge Japanese FANUC0i-TF control system for unparalleled precision. Expertly crafted to adhere to ISO standards for turning machining centers, this lathe is synonymous with superior static accuracy, optimal dimensions, and unrivaled cutting efficiency. Its robust inclined bed structure ensures long-lasting durability, while the reverse finite element analysis in its structural and casting designs elevates performance to new heights. Perfectly suited for a broad spectrum of applications, this tool stands as a steadfast ally for professionals in the CNC machining industry, promising reliable and top-notch results.
The NC-115/1000 impresses with its advanced chuck-type spindle, designed to integrate seamlessly with the ANSIA2-11 nose model. Equipped with a substantial 18.0" (380mm) three-jaw power chuck and its standard soft jaws configuration, it ensures superior grip and stability. This sophisticated spindle features a non-contact magnetic induction encoder, empowering it to perform with precision-driven functions such as rigid tapping, 1-degree indexing, and precise spindle positioning. These features collectively contribute to its unmatched operational versatility and dependability.
Featuring an ultra-thin hydraulic clamping mechanism, this machine tool is ingeniously designed to accommodate a three-jaw power chuck or chuck adapter for secure workpiece handling. Its space-efficient design, achieved through the use of ultra-thin rotary cylinders, minimizes the machine's footprint. A strategically placed hydraulic rotary cylinder pressure gauge on the left of the front end allows easy monitoring of the chuck's current force. Powered by a brushless servo motor, the turret rotation is both precise and reliable, with a three-piece end gear disk ensuring secure locking. Swift in operation, the tool turret changes adjacent positions in a mere 0.18 seconds, with the farthest repositioning taking just 1.0 second, while delivering repeat positioning accuracy of within 2.5 arcseconds.
| Item | Sub-Item | Specification |
|---|---|---|
| Spindle Specifications | Spindle Nose Type | ANSI A2-11 |
| Spindle Bore Diameter | 130mm | |
| Three-jaw Chuck Holding Capability | 18 inch / 380mm | |
| Spindle Center Height | 1050mm | |
| Spindle Center to Front Door Distance | 410mm | |
| Drawbar Actuation | Hydraulic | |
| Control System & Power | Spindle Motor Power | 22kW (continuous) / 27.5kW (15-min duty) |
| Base Spindle Speed | 1000rpm | |
| Max Spindle Speed | 1500rpm | |
| Spindle Torque Output | 285Nm/15min | |
| X-axis Servo Motor Power | 2.4kw | |
| Z-axis Servo Motor Power | 2.4kw | |
| Machining Capacity | Max Swing Over Bed | 750mm |
| Max Workpiece Length | 1050mm | |
| Max Workpiece Diameter | 500mm | |
| Max Bar Capacity Through Spindle | 120mm | |
| X/Z Axis Movement | X-axis Travel | 350mm (with SD-160/8025 Turret) |
| Z-axis Travel | 1060mm | |
| Rapid Traverse Speed (X/Z) | 20m/min | |
| Turret Specifications | Drive Type | Servo Motor |
| Number of Tools | 12 | |
| Square Tool Holder Size | 25×25mm | |
| Round Tool Holder Size | 50mm | |
| Tool-to-Tool Indexing Time | 0.18 seconds | |
| Tailstock (Optional) | Tailstock Travel | 700mm |
| Max Supported Workpiece Length | 960mm | |
| Min Supported Workpiece Length | 200mm | |
| Chip Management | Coolant Tank Capacity | 125L |
| Coolant Pressure | 1.2BAR | |
| Dimensions & Weight | With Right-Side Chip Conveyor | 3580×2150× 1950mm (excl. conveyor) 4800X2150X1950mm (incl. conveyor) |
| Weight | 6600kg | |
| Optional Configurations | Spindle Chuck | Diameter of the through hole |
| Extendable Material Receiver (Max Workpiece Dia) | 52mm | |
| Extendable Material Receiver (Max Workpiece Length) | 110mm | |
| Swing Arm Material Receiver (Max Workpiece Dia) | 52mm | |
| Swing Arm Material Receiver (Max Workpiece Length) | 150mm | |
| Chip Removal (Chain Type) | Suitable for long/curled chips | |
| Chip Removal (Scraper Type) | Ideal for fine/discontinuous chips | |
| Tool Measurement Device | Fully automatic or manual operation | |
| Bar Feeder Options | 1250mm / 3200mm | |
| High-Pressure Through-Tool Coolant | 200L tank / 20BAR pressure |
Please provide us with your production specifications and parameters, and we will assist you in selecting the best model. Alternatively, you can send us your product technical drawings, and we will recommend the most appropriate machine configuration according to your manufacturing requirements.
We offer a comprehensive range of CNC machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, and specialized multi-tasking turning-milling composite processing equipment.
The machine is built with an ANSI A2-11 spindle nose, a large 130mm spindle bore diameter, and is equipped standard with a high-rigidity 18-inch (380mm) three-jaw power chuck for optimal clamping stability.
This CNC machine supports industry-standard premium control networks. It can be outfitted with the Japanese FANUC 0i-TF/Plus Control System or the Taiwan Syntec Control System, ensuring highly stable semi-closed loop control.
The equipment is safely packaged in robust seaworthy wooden cases to prevent moisture and physical damage. The typical production and delivery lead time is approximately 30 days from confirmation.
The tool turret holds up to 12 tools and is driven by a brushless servo motor with a 3-piece end gear disk lock. It delivers incredibly fast adjacent tool change times of just 0.18 seconds, and tool indexing positioning precision within 2.5 arcseconds.
