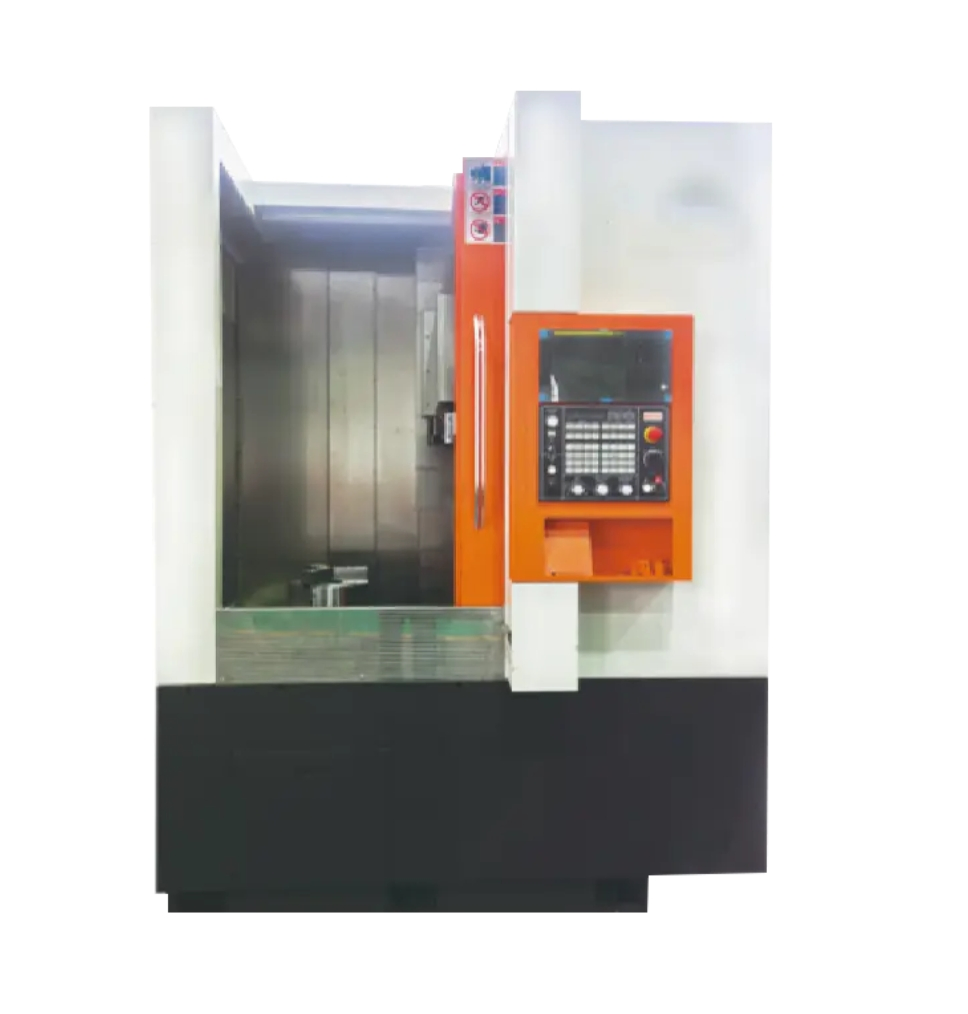

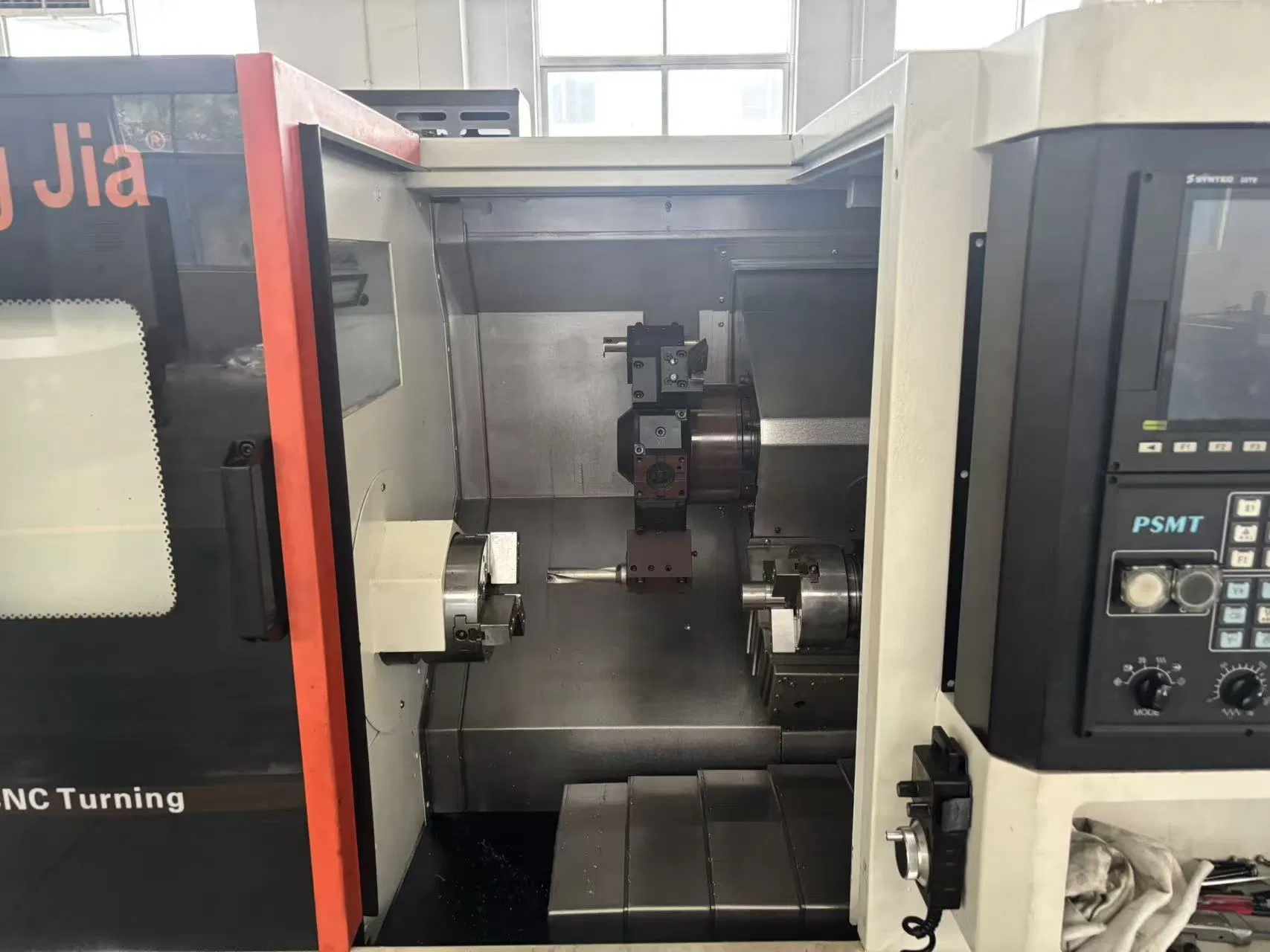

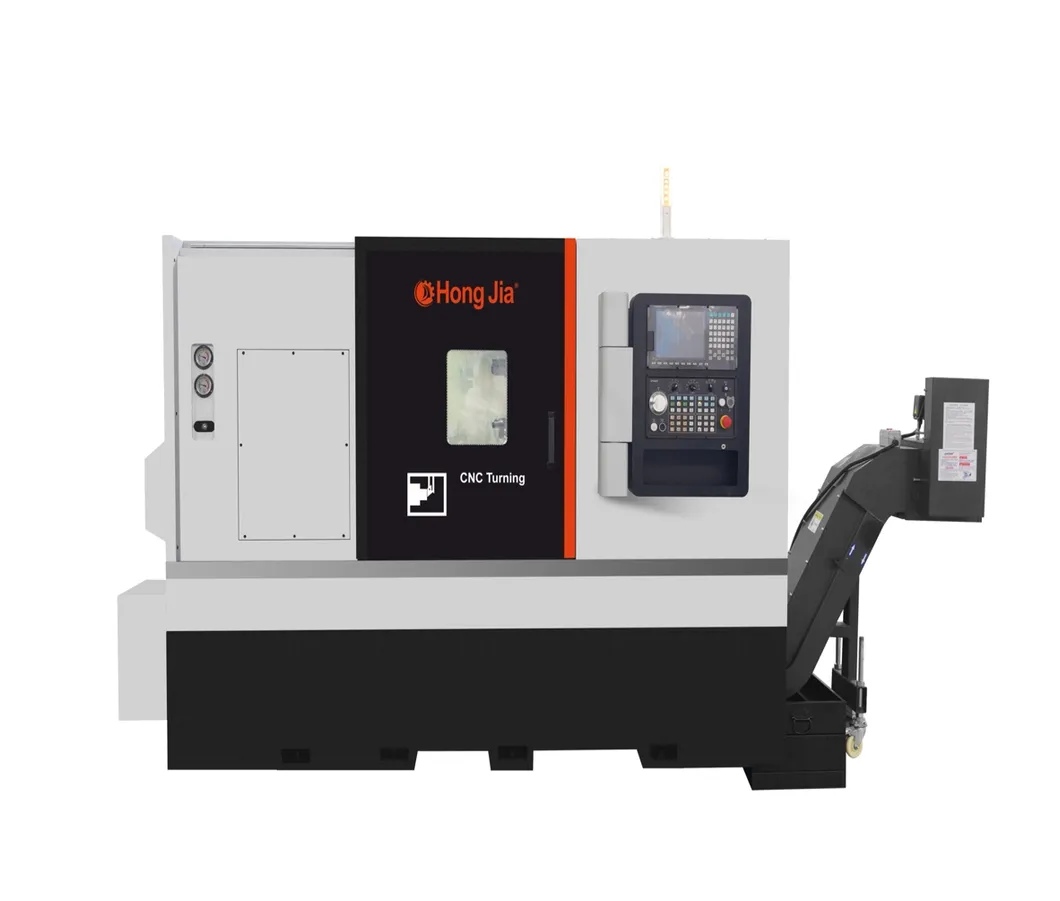

Introducing the NC108X-Y CNC Turning Center, a masterpiece of sophisticated engineering crafted for excellence in the metalworking industry. This state-of-the-art machine tool boasts a robust structure, enabling precision in every cut, making it indispensable for industrial applications requiring meticulous accuracy and efficient throughput. With cutting-edge European and American technologies, this lathe excels in executing intricate tasks such as turning threads, arcs, cones, and internal/external curved surfaces of rotary bodies with unsurpassed precision.

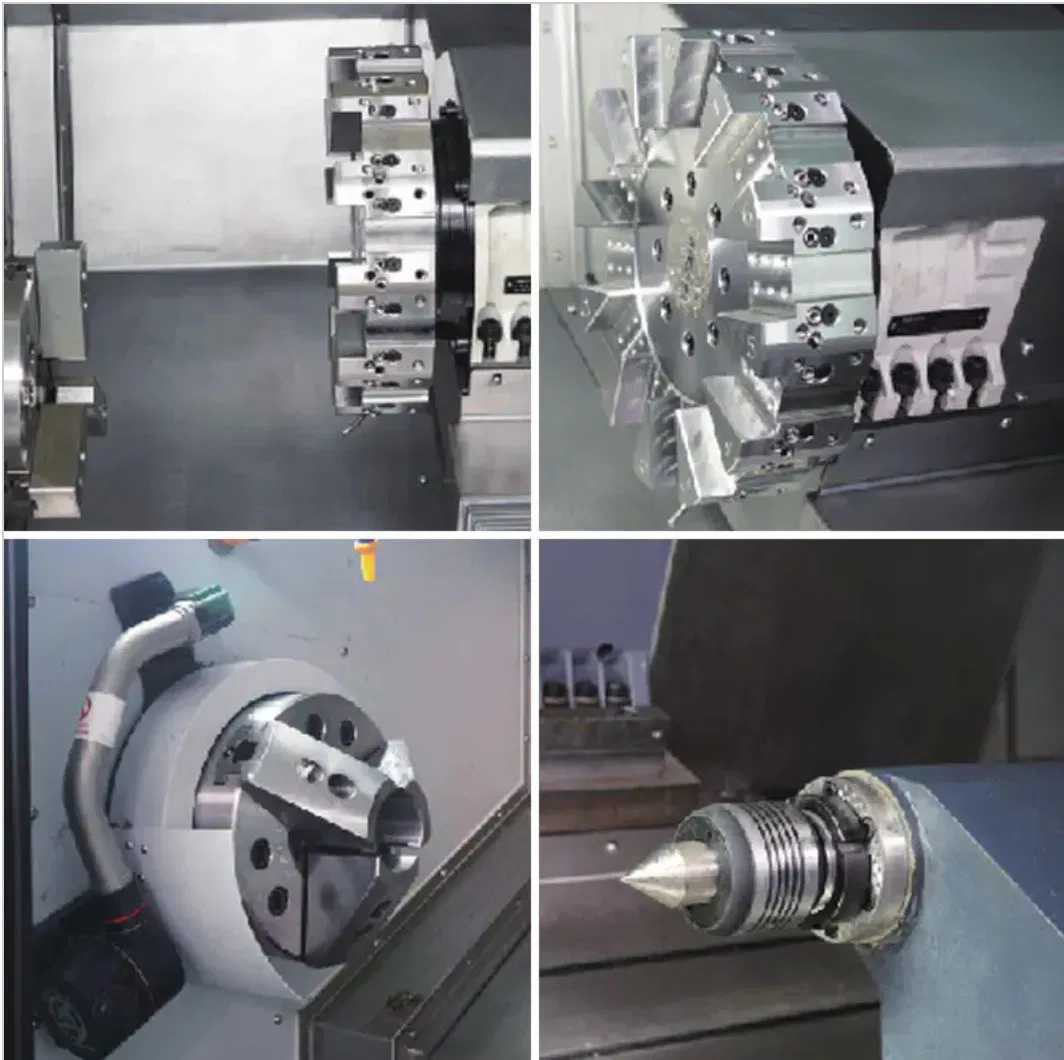

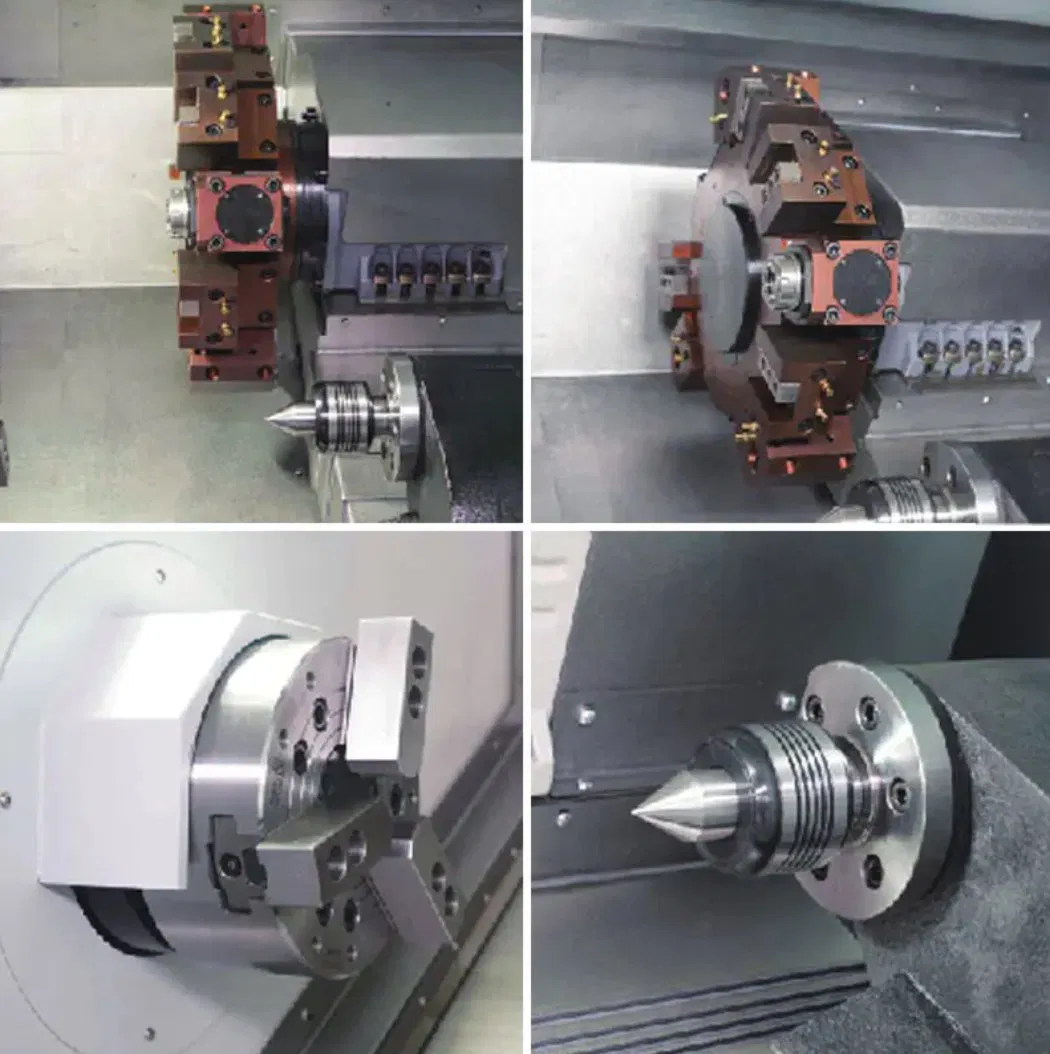

Crafted for unmatched excellence, the NC108X-Y showcases a meticulous design aligning the stiffness of critical components like the spindle, bed, and tailstock. This symphony of engineering amplifies the machine's rigidity, ensuring unwavering stability during even the most demanding heavy-duty operations. Elevating precision to unprecedented levels, it achieves an outer diameter machining accuracy of IT6 to IT7. Its versatility excels in high-efficiency, large-volume, and high-precision machining, ideally suited for industries such as locomotives, aerospace, and defense, where uncompromising excellence is paramount.
Boasting an intelligent, integrated mechanical, electrical, and hydraulic architecture, this machine's compact and organized layout ensures ease of maintenance and servicing. Its core strengths-efficiency, precision, and rigidity-are fortified with components from esteemed domestic and global suppliers, ensuring unrivaled reliability. The visually captivating, fully enclosed protective housing, adorned in an ergonomic black-and-white palette, elevates operator comfort and usability to an art form. Whether your machining needs involve shafts or disc-type parts, the NC108X-Y CNC turning center assures impressive efficiency and mass production with unparalleled precision.
| No. | Item | Unit | Specification |
|---|---|---|---|
| 1 | Maximum turning diameter on the bed | mm | Φ650 |
| 2 | Maximum machining diameter (disc type) | mm | Φ300 |
| 3 | Maximum machining diameter (shaft type) | mm | Φ350 |
| 4 | Maximum turning diameter on a skateboard | mm | Φ280 |
| 5 | Distance between two centers | mm | 500 |
| 6 | Maximum working length | mm | 420 |
| 7 | Maximum tie rod through hole diameter | mm | Φ52 |
| 8 | Spindle nose form | - | A2-6 |
| 9 | Spindle through hole diameter | mm | Φ66 |
| 10 | Taper of spindle inner hole | - | MT-6 |
| 11 | Three chuck holding capability | - | 8" |
| 12 | Pull rod action form | - | Hydraulic pressure |
| 13 | Maximum spindle speed | r/min | 4000 |
| 14 | Main motor power | KW | 11/15 |
| 15 | X-axis travel | mm | 225 |
| 16 | Z-axis travel | mm | 490 |
| 17 | X/Z axis fast moving speed | m/min | 25 |
| 18 | Positioning accuracy (X/Z) | mm | 0.008/0.010 |
| 19 | Repeated positioning accuracy (X/Z) | mm | 0.006/0.008 |
| 20 | Tool number | - | 12/15 |
| 21 | Driving form | - | Servo |
| 22 | Height of center | mm | 170 |
| 23 | Tool change time (T-T) | seconds | 0.2 |
| 24 | Boring tool holder specifications | mm | 32 |
| 25 | Square tool holder specifications | mm | 25 |

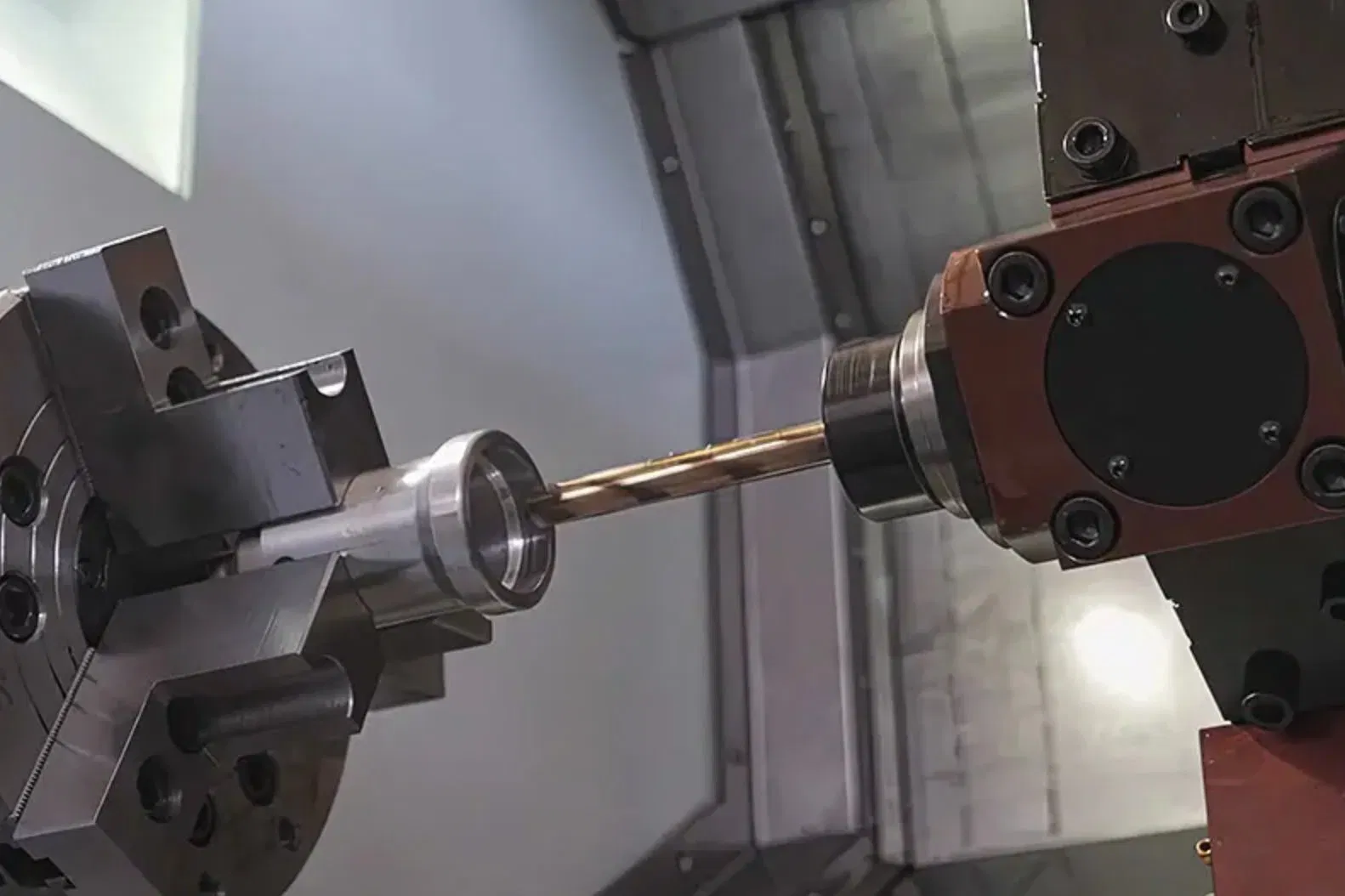

| 26 | Power head speed | r.p/min | 4000 |
| 27 | Power head motor power | KW | 3.6 |
| 28 | Power head torque | N.m | 15 |
| 29 | Power head type | BMT | 55 |
| 30 | Y-axis travel | mm | 100 |
| 31 | Y-axis motor torque | N.m | 8.4 |
| 32 | Y-axis screw | - | Ball 3206 |
| 33 | Y-axis guide form | - | Rectangular hard rail |
| 34 | Taper of tailstock sleeve | - | MT-5 |
| 35 | Maximum/minimum holding workpiece length | mm | 500/60 |
| 36 | Safety shield | - | Completely closed |
| 37 | Numerical control system | - | SYNTEC 22TA / FANUC 0i-TF / GSK988TA |
| 38 | Overall dimensions of the machine (L×W×H) | mm | 2420×1700×2050 (Excl. chip remover) |
| 39 | Machine weight | kg | 4400 |
Specializing in CNC metal-cutting equipment, the enterprise stands as a beacon of innovation. As a high-tech enterprise, it seamlessly integrates R&D, production, and sales into a cohesive force that is transforming the CNC technology landscape. From its inception, the company has championed technological innovation, perfectly aligning with market dynamics. Leveraging robust technical acumen and rich industry expertise, it delivers efficient, stable, and reliable CNC systems alongside bespoke solutions to a global clientele.
