Basic Info.
Model NO.3DSF11-12CNC
ApplicationBrass
Process UsageMetal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement MethodBus Motion
Control MethodClosed-Loop Control
Numerical ControlCNC
Processing Precision0.01~0.02(mm)
Performance ClassificationHigh-End CNC Machine Tools
CertificationGS, CE
ConditionNew
AccuracyHigh Precision
SpindlesCustomized According to Work Piece
StationsMultiple Stations Customized
CapacityMass Production
Transport PackageSea Worthy Packaging
Specification3.5× 2.4× 2.98meter
OriginChina
HS Code8457300000
Packaging & Delivery
Package Size400.00cm * 250.00cm * 250.00cm
Package Gross Weight8000.000kg
Product Description
Parameters:
| Machine name |
Multiple Stations Transfer Machine for 3-8 Ways Manifolds |
| Application |
metal machining |
| Structural style |
Vertical |
| Station & Spindle |
Station and spindle - Customized according to the specific work piece machining requirements |
| Processing Precision |
0.01~0.02(mm) |
| Equipment size & weight |
Size is depends on the specific products. Weight: 7-8 Tons (For reference only) |
| Cycle time |
Based on specific work pieces |
| Control system |
CNC |
| Driving unit motor |
Servo motor |
| Certification |
GS, CE, ISO |

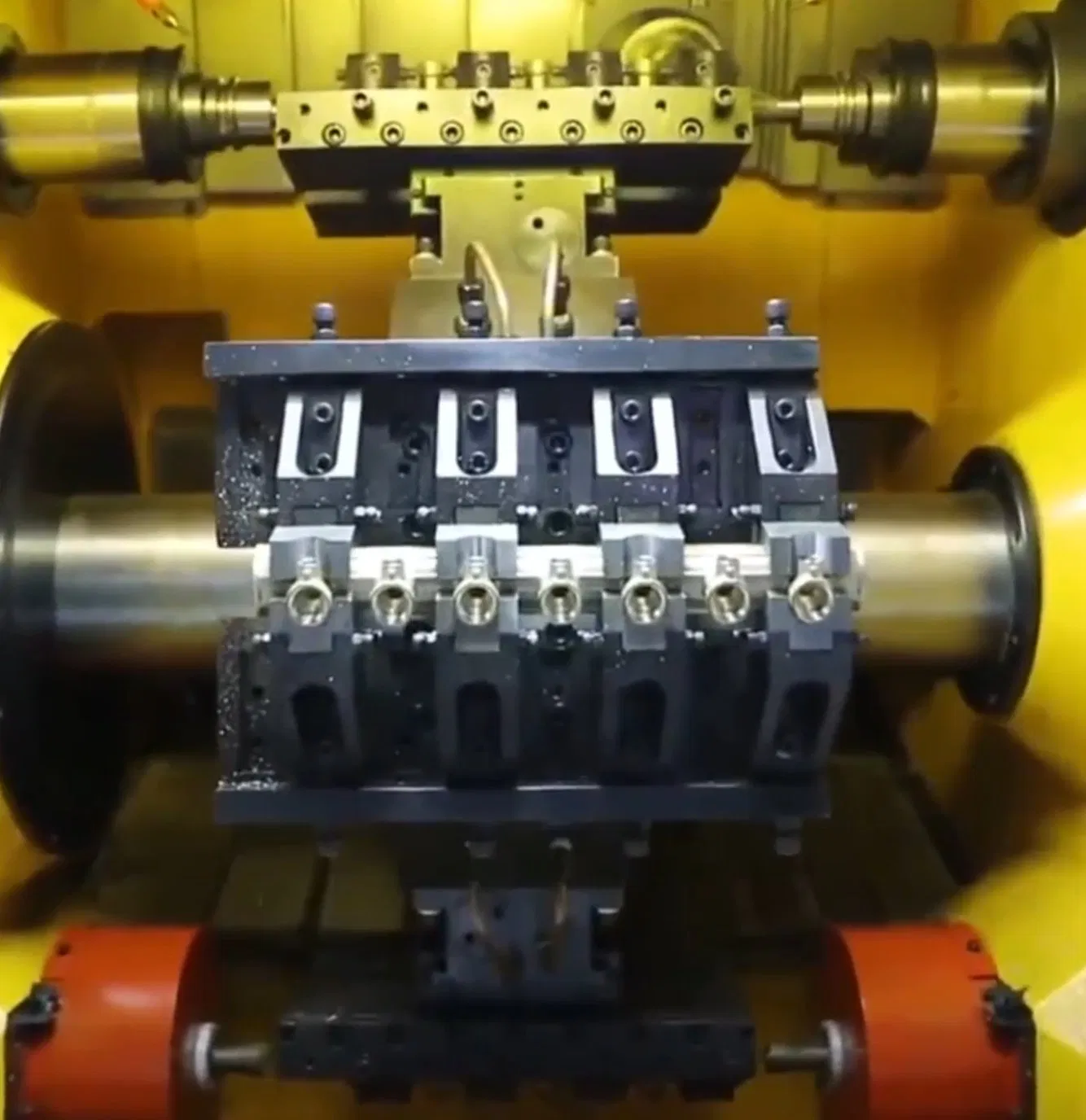

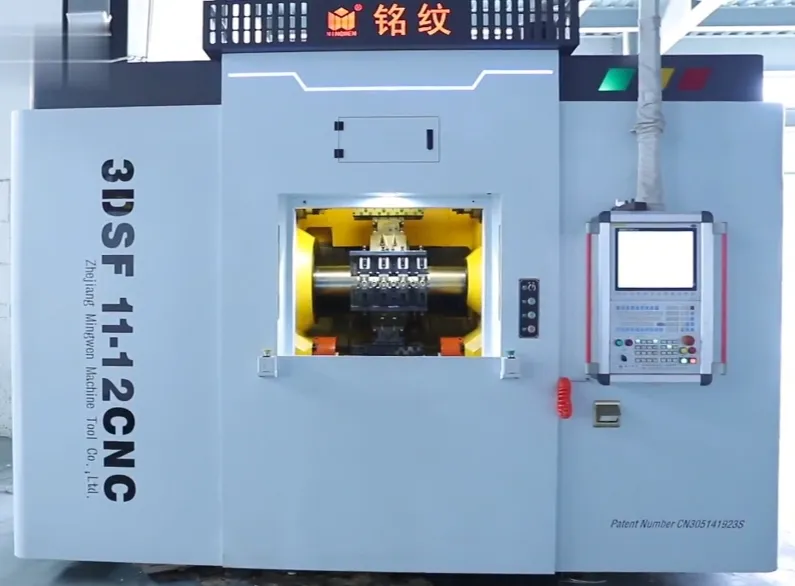

Multi-stations, multi-spindles rotary transfer machine
(Customized according to specific work pieces)

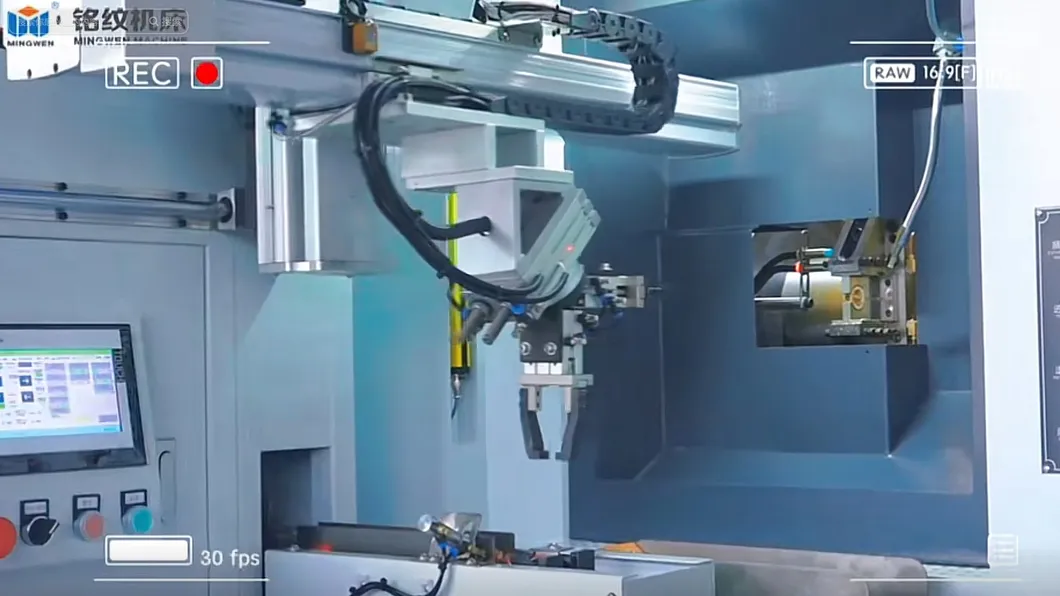

Work piece loading/unloading
(Automatic or Manual - Customized according to specific work piece)

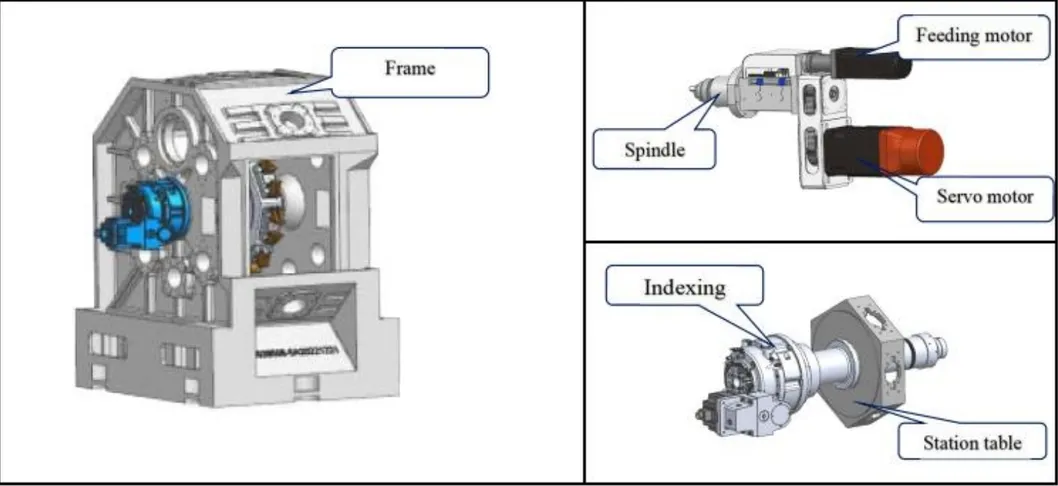

Main configuration (For reference only)

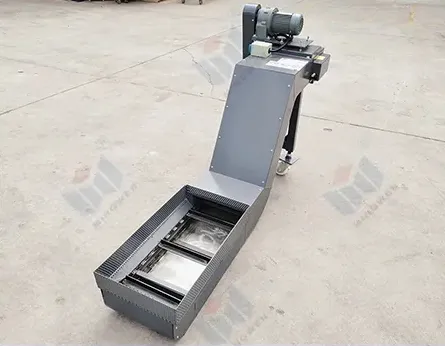

Chips removal machine
Working Process
Overview of the function and operation of a rotary transfer machine for angle valve processing:

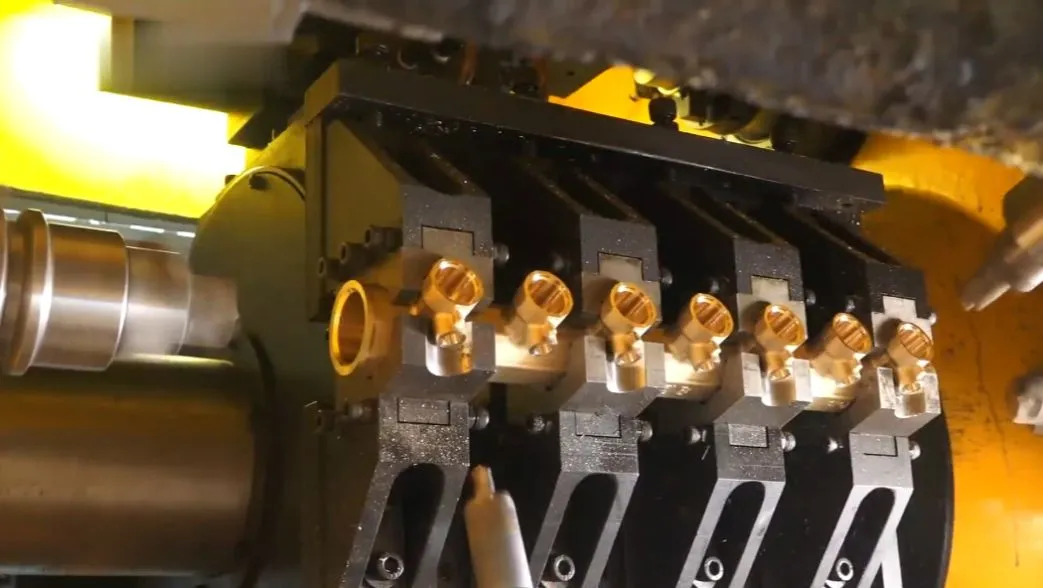

Workpiece loading:

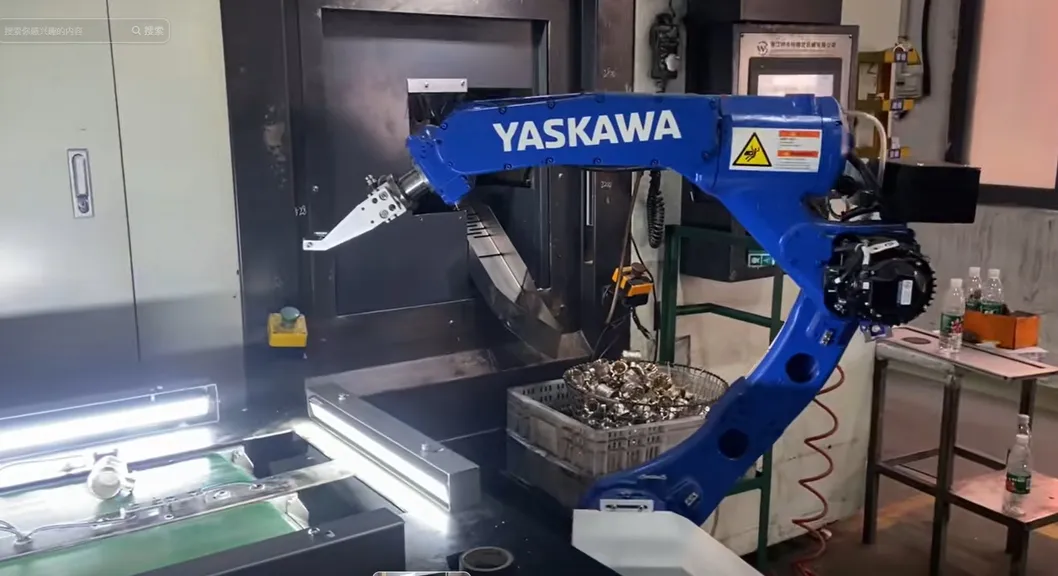

Manual, manipulator, robot (Optional according to work pieces processing requirements).

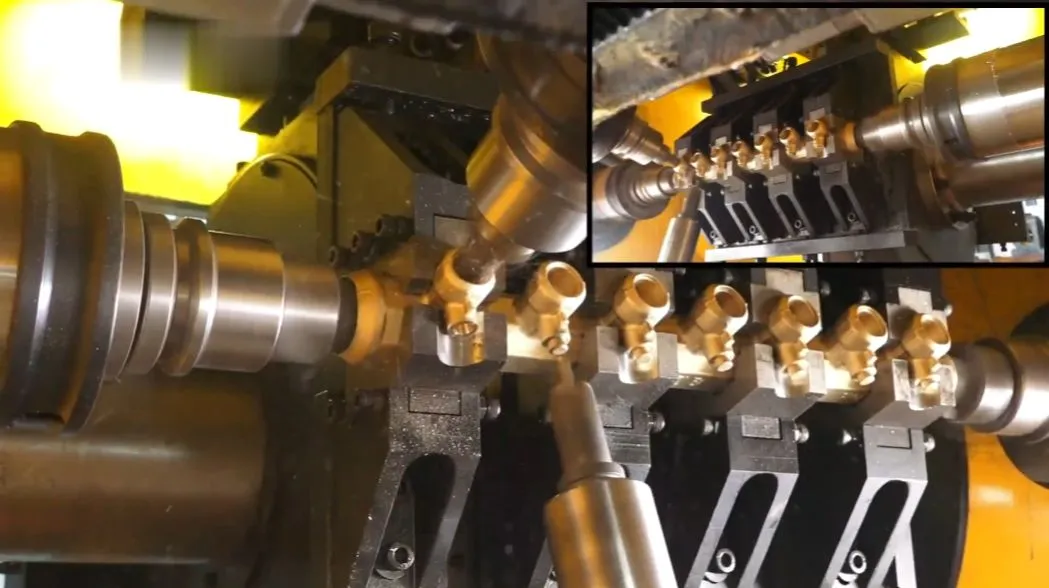

Indexing and workpiece positioning:
The indexing mechanism of the machine rotates the rotary table, moving the workpiece to different machining stations arranged vertically around the axis. Each station is equipped with the necessary tools, fixtures, and equipment for specific operations.

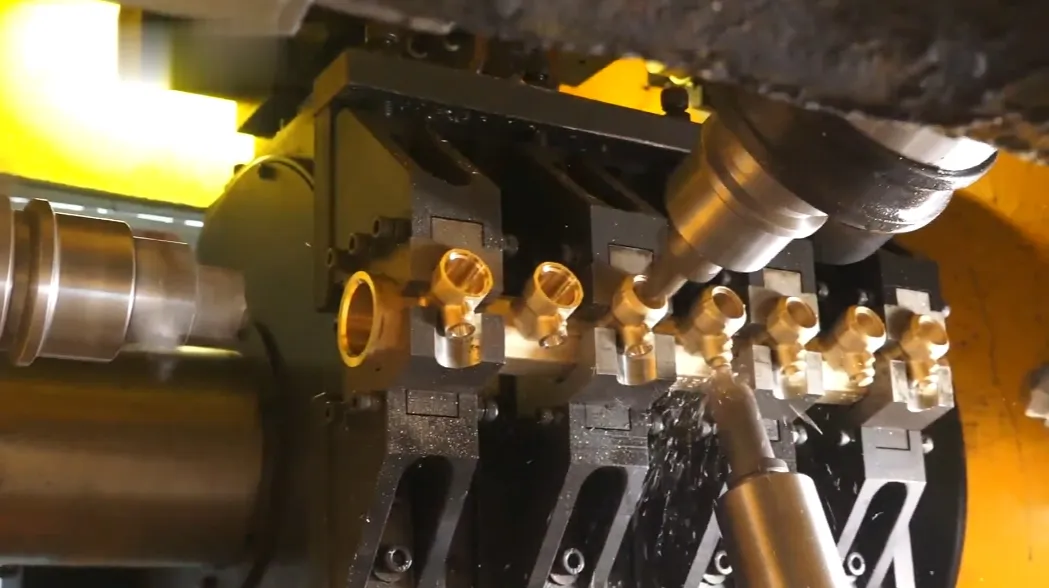

Machining operations:

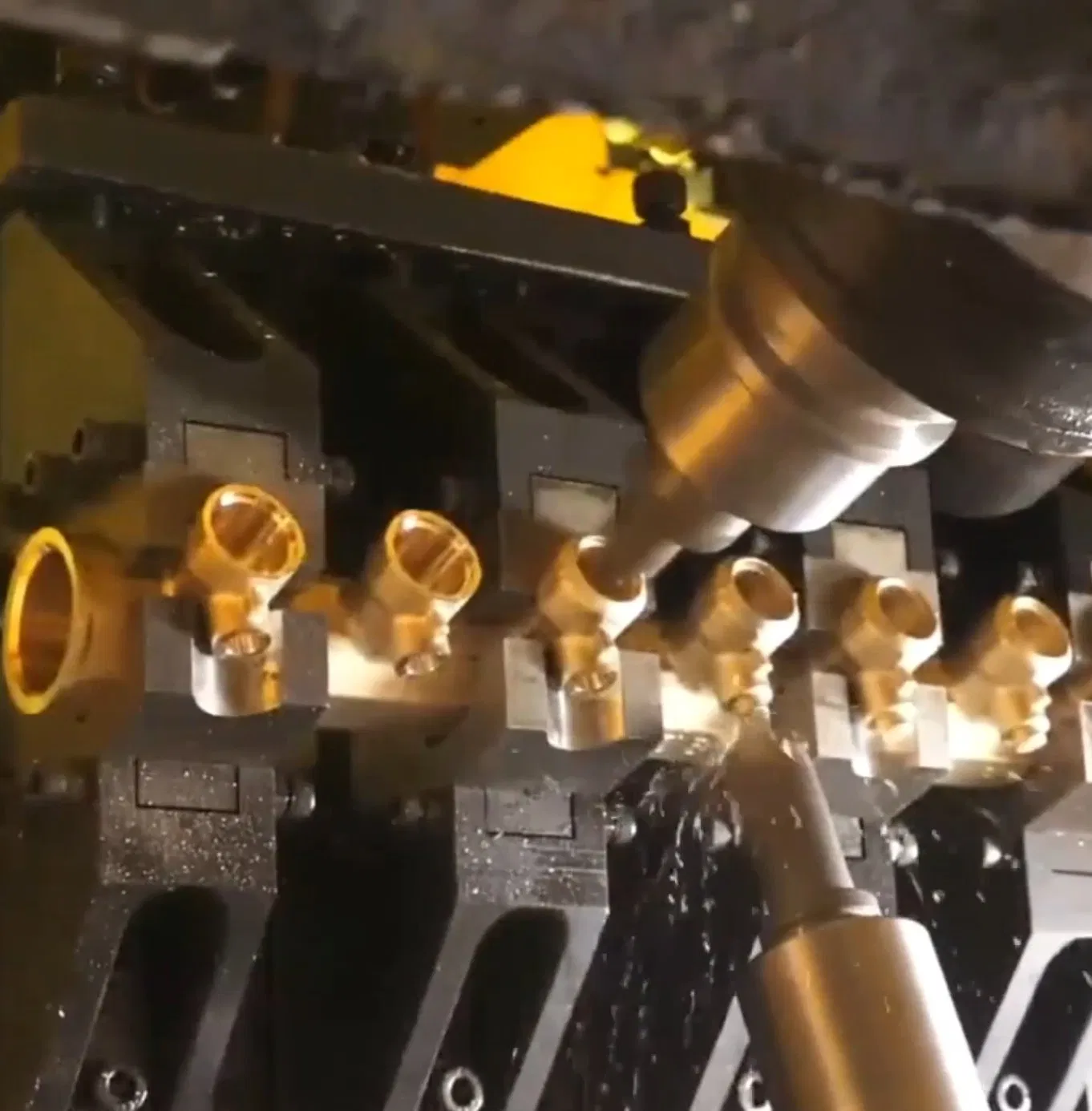

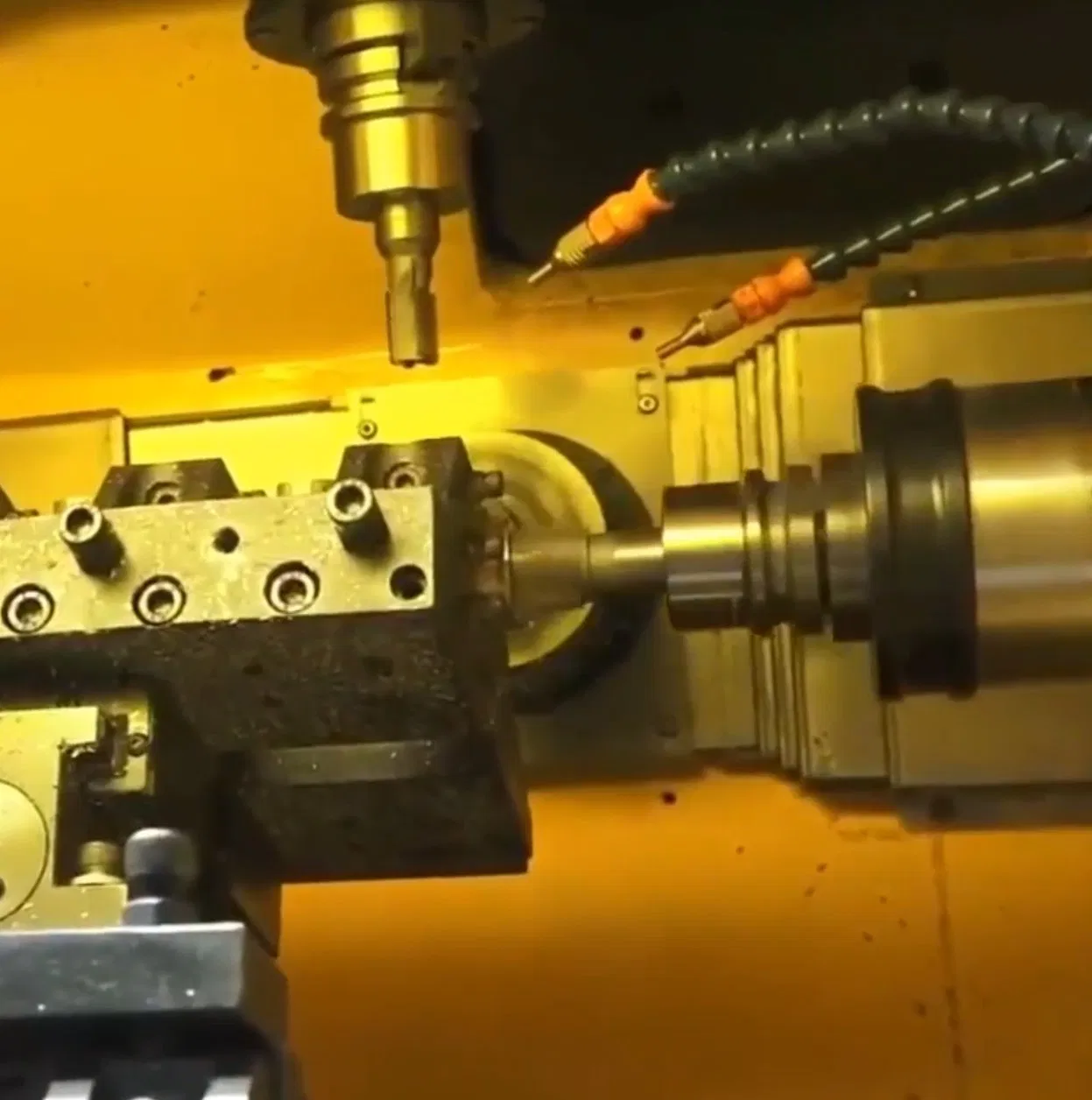

As the workpiece is indexed to each station, various machining operations are performed. These operations can include drilling, milling, tapping, reaming, boring, grinding, turning, honing, or other processes required for the specific part being manufactured.
Chip management:
Similar to other types of machining centers, rotary transfer machines for angle valve processing incorporate chip management systems to remove chips or swarf generated during machining. Chip conveyors, chip collection trays, or other methods are employed to maintain a clean and efficient working environment, inspections, gauging, or automated measurement systems integrated into the machine.
Workpiece unloading:
Once all the required operations are completed, the finished workpiece is unloaded from the machine. The indexing mechanism returns the rotary table or drum to the initial loading position, and the cycle can be repeated with a new workpiece.
Capabilities & Services
OEM/ODM
The design team offers specialized solutions adapted to different types of OEM & ODM customer needs. Backed by more than 10 years of experience in OEM/ODM services, solutions include particular product function development, specialized packaging design, and custom sample development.
R&D Division
Facilities include specialized software and machinery research and development departments. Supported by a robust engineering team, custom machine configurations can be developed featuring unique software applications tailored to specific requests.

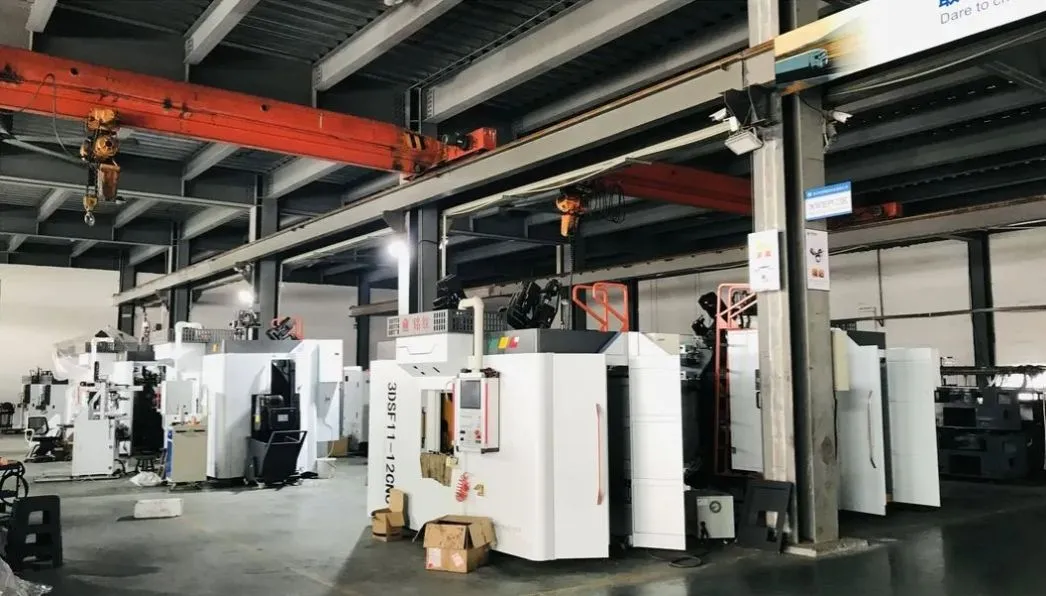

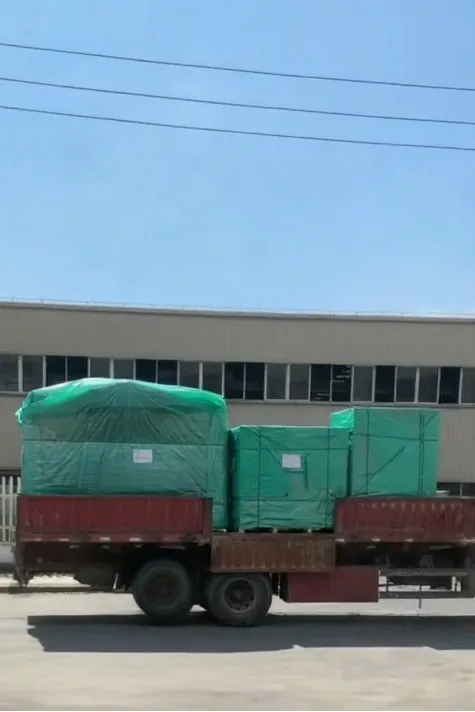

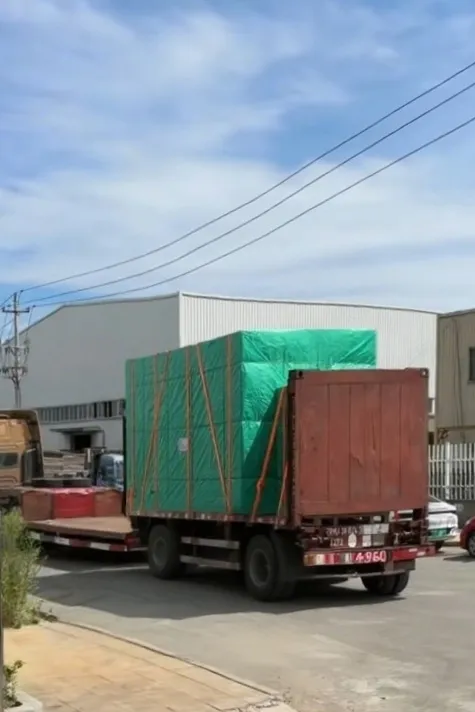

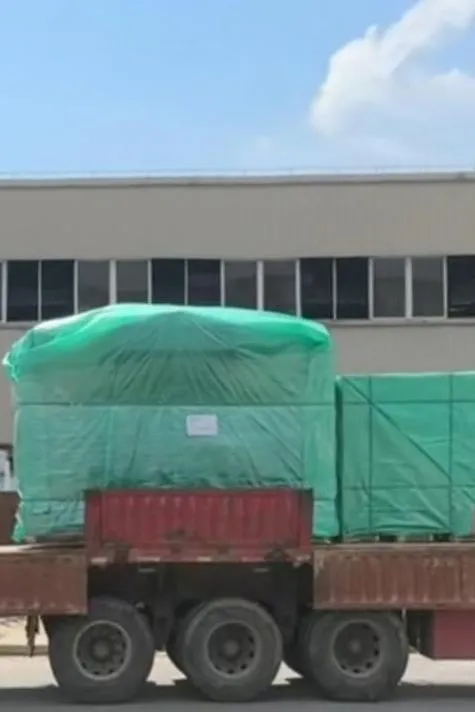

Machine Production and Transportation
Certifications

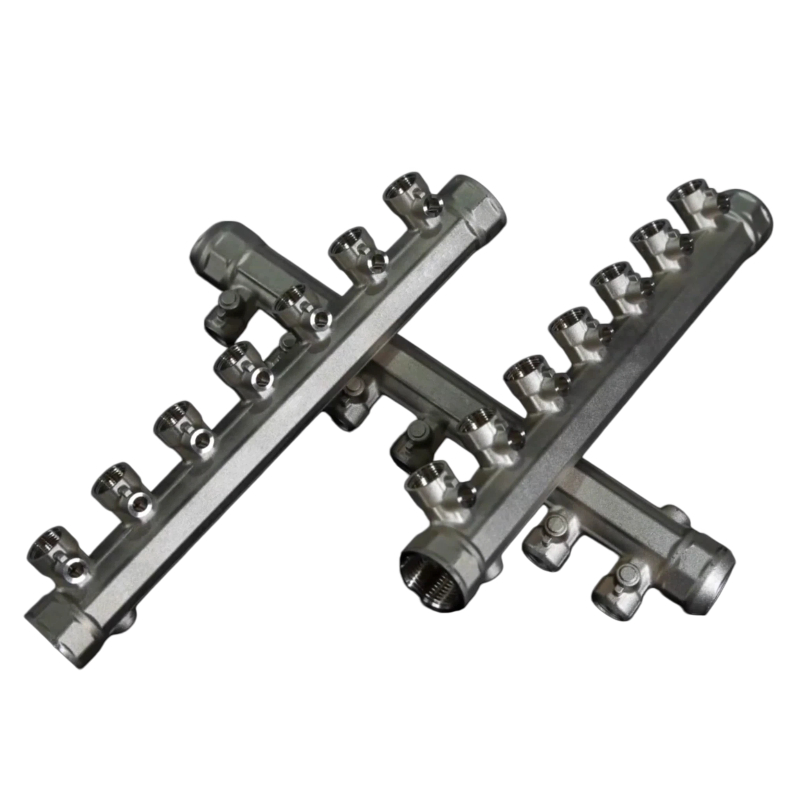

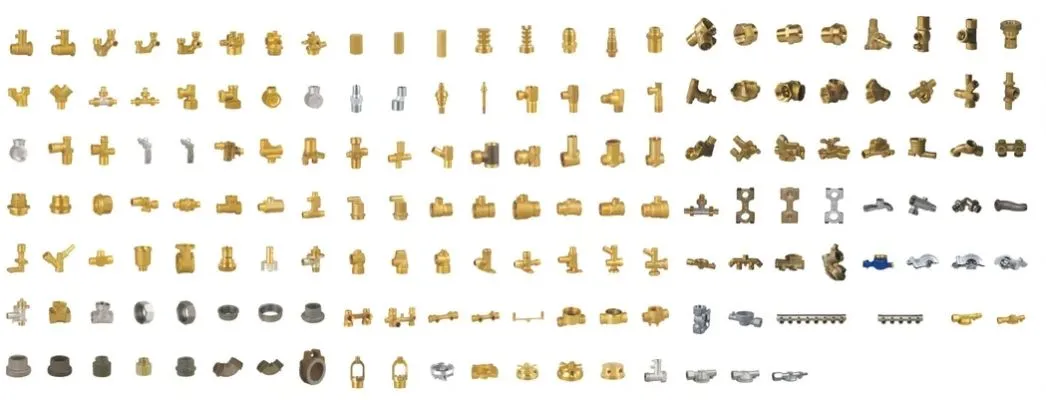

Work pieces the rotary transfer machine can process (Examples):
Frequently Asked Questions (FAQ)
1. What materials is this rotary transfer machine designed to process?
The machine is optimized for metal-cutting operations, particularly for processing brass and other non-ferrous metal components such as 3-8 way manifolds and angle valves.
2. What level of precision can this CNC machine achieve?
This high-end CNC machine tool provides high-precision processing capabilities, achieving a machining tolerance precision of 0.01 to 0.02 mm.
3. Can the stations and spindles be customized for specific parts?
Yes. Spindles, stations, fixtures, and indexing configurations are fully customized according to the geometry and machining requirements of your specific workpiece.
4. What options are available for workpiece loading and unloading?
Workpiece loading and unloading can be configured as manual, manipulator, or fully automated robot arms, depending entirely on your mass production line requirements.
5. Which standards and certifications does this equipment comply with?
The equipment complies with international quality and safety benchmarks, holding official GS, CE, and ISO certifications.
6. What is the typical control and driving mechanism used in the machine?
The system utilizes bus motion control method with closed-loop CNC management and is driven by reliable, high-performance servo motors.
