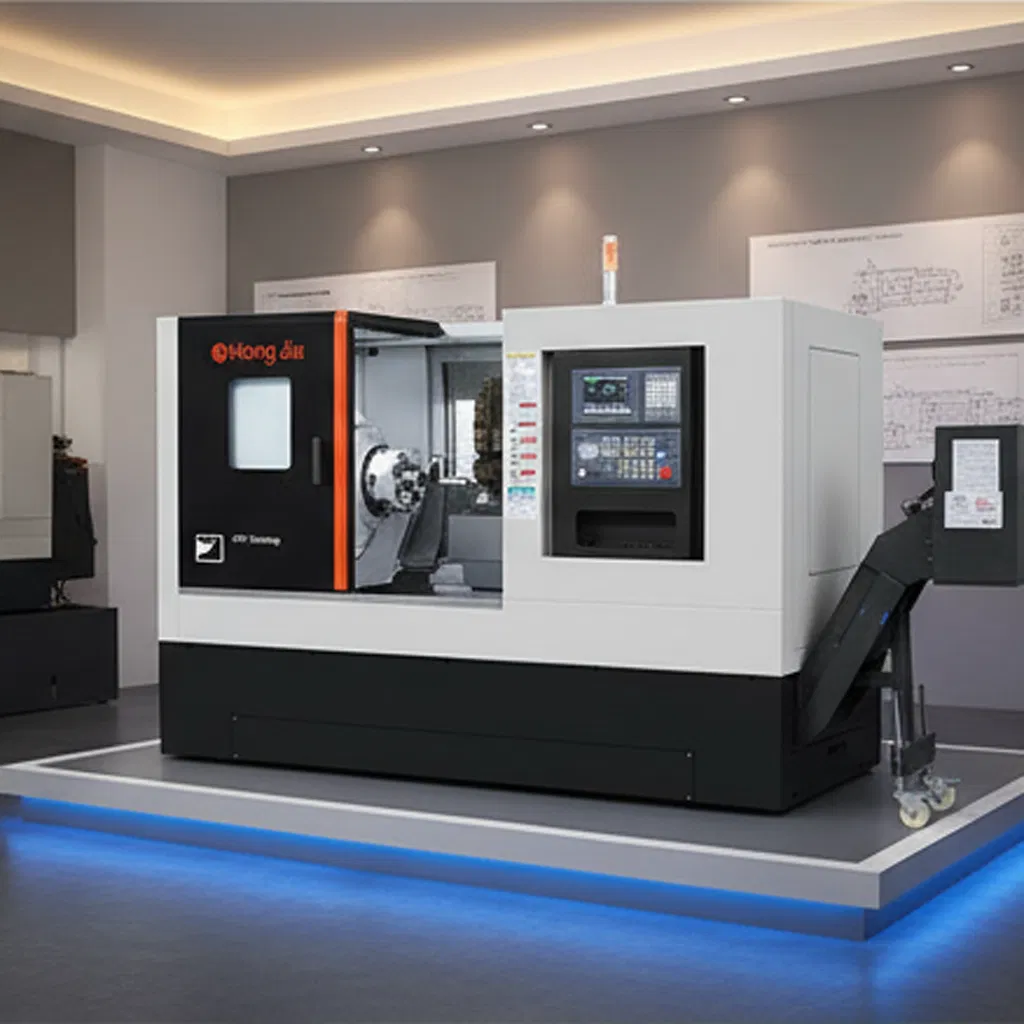

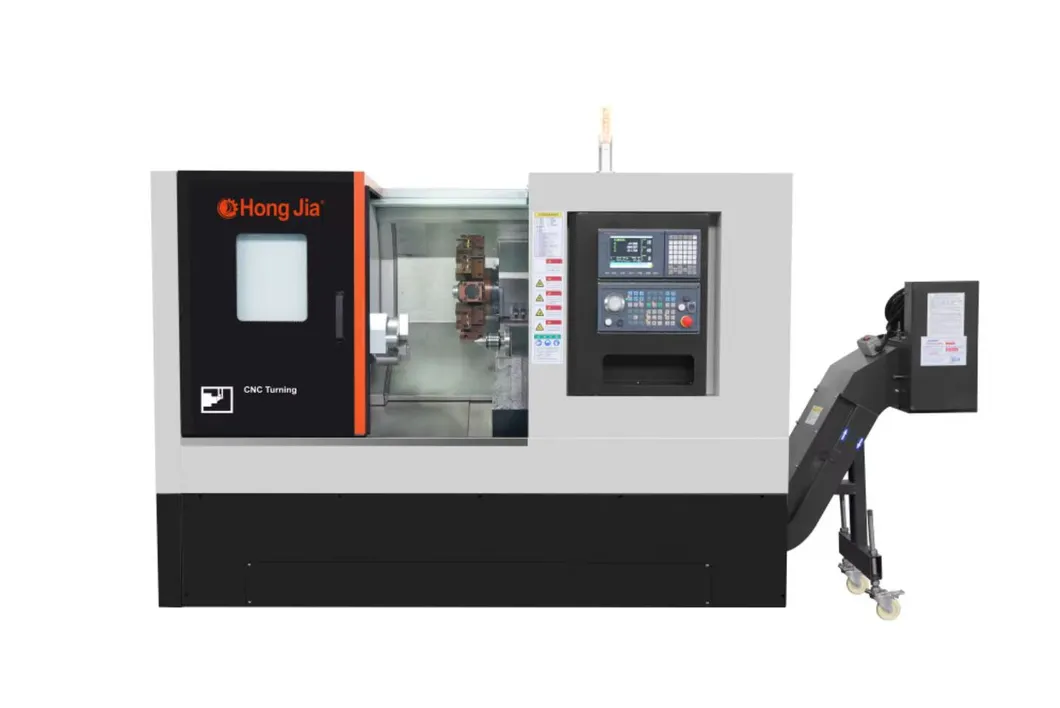

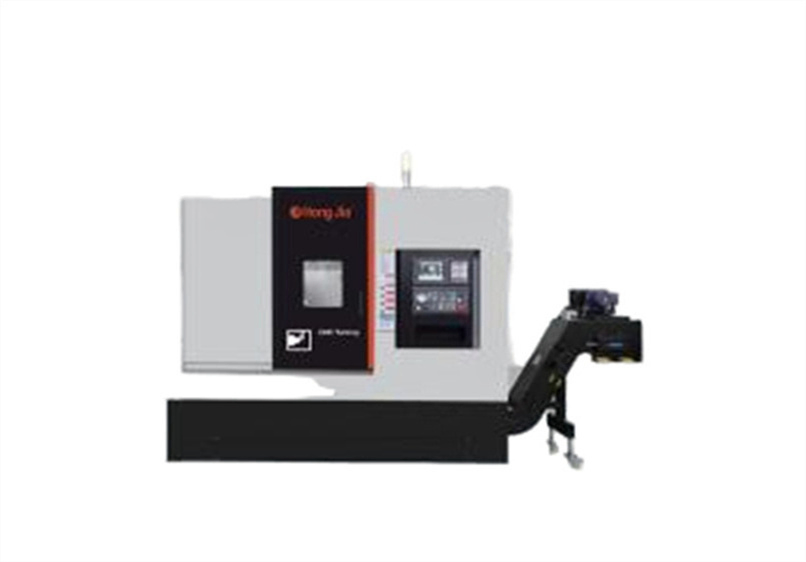

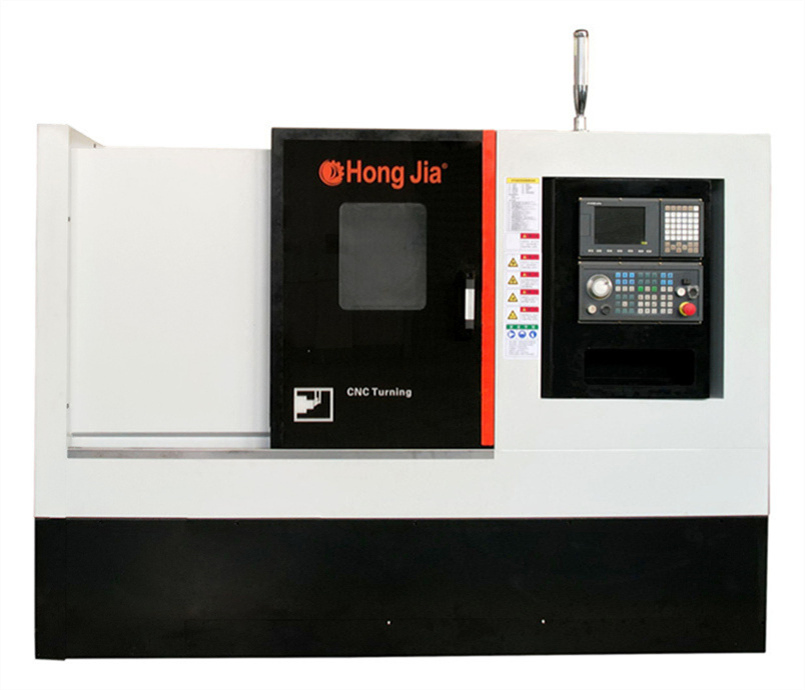

Introducing the exceptional NC-108D CNC machine tool. This innovative machine is a versatile powerhouse, designed to perform turning, drilling, and boring operations with unparalleled precision and dependability.
The NC-108D CNC machine tool boasts an advanced capability to lathe, drill, and bore, featuring a robust basic structure engineered for heavy cutting. This ensures outstanding cutting ability and stable processing accuracy, which translates to superior production efficiency. Experience exceptional cutting performance and unmatched machining accuracy that significantly enhances productivity. The machine is equipped with a user-friendly pull-out coolant tank for effortless chip cleaning, featuring a generous standard capacity of 125L. Ideal for a diverse array of machining applications, the NC-108D is indispensable for any workshop aiming to elevate efficiency and precision.
This machine is outfitted with the state-of-the-art SYTEC/22TA drive motor and spindle drive, including a standard, built-in high-speed precision motorized spindle. These features guarantee a superior level of performance and reliability. The NC-108D is furnished with high-precision linear guideways and ball screws sourced from Taiwan or Japan, ensuring top-tier precision. Additionally, it includes a detachable coolant tank and an integrated chip conveyor. Equipped with a hydraulic 3-jaw chuck and a built-in high-speed precision spindle unit, it's designed to deliver exceptional performance in any setting. Engineered for versatility, this CNC machine tool is crafted to satisfy the rigorous demands of contemporary manufacturing processes, making it ideal for a myriad of applications.
The NC-108D-Y stands out as the perfect choice for extensive applications, delivering high-quality results with its cutting-edge functions and steadfast performance. Whether you're a professional mechanic or require it for product manufacturing, this machine tool is guaranteed to meet your demands and surpass your expectations. Elevate your workshop with the NC-108D-Y CNC machine today and discover a new realm of precision and efficiency.
| Number | Item | Unit | Specification |
|---|---|---|---|
| 1 | Maximum turning diameter on the bed | mm | Φ560 |
| 2 | Maximum machining diameter(disc type) | mm | Twelve station tower / Eight station cutter tower |
| 3 | Maximum machining diameter(shaft type) | mm | Φ280 |
| 4 | Maximum turning diameter on a skateboard | mm | Φ280 |
| 5 | Distance between two centers | mm | 500 |
| 6 | Maximum working length | mm | 500 |
| 7 | Maximum tie rod through hole diameter | mm | Φ52 |
| 8 | Spindle nose form | - | A2-6 |
| 9 | Spindle through hole diameter | mm | Φ66 |
| 10 | Taper of spindle inner hole | - | MT-6 |
| 11 | Three chuck holding capability | - | 8" |
| 12 | Pull rod action form | - | Hydraulic pressure |
| 13 | Maximum spindle speed | r/min | 4000 |
| 14 | Main motor power | KW | 11/15 |
| 15 | X-axis travel | mm | 225 |
| 16 | Z-axis travel | mm | 490 |
| 17 | X/Z axis fast moving speed | m/min | 25 |
| 18 | Positioning accuracy(X/Z) | mm | 0.008/0.010 |
| 19 | Repeated positioning accuracy(X/Z) | mm | 0.006/0.008 |
| 20 | Tool number | - | 12 |
| 21 | Driving form | - | servo |
| 22 | Height of center | mm | 80 |
| 23 | Tool change time(T-T) | seconds | 0.2 |
| 24 | Boring tool holder specifications | mm | 32 |
| 25 | Square tool holder specifications | mm | 25 |
| 26 | Power head speed | - | 4000 |
| 27 | Power head motor power | - | 3.6 |
| 28 | Power head torque | - | 15 |
| 29 | Power head type | - | 55 |
| 30 | Taper of tailstock sleeve | - | MT-5 |
| 31 | Maximum/minimum holding workpiece length | mm | 500/60 |
| 32 | Safety shield | - | Completely closed |
| 33 | Numerical control system | - | SYTEC 7TA/FANUC 0i-TF/GSK988TA |
| 34 | Overall dimensions of the machine (L×W×H) | mm | 2500×1700×1790mm (Chip removal machine not included) |
| 35 | Machine weight | kg | 4200 |

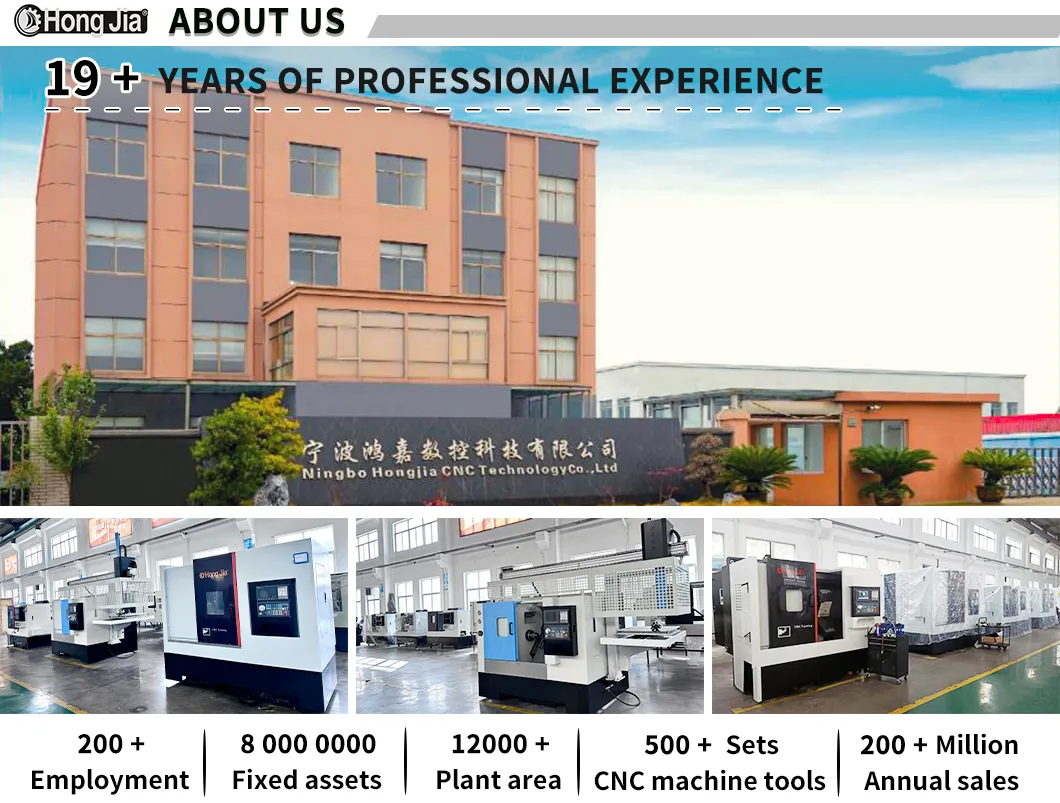

Our manufacturing facility is a pioneering high-tech enterprise renowned for its excellence in the R&D, production, and sales of CNC metal-cutting equipment. We exemplify ingenuity, seamlessly integrating research, manufacturing, sales, and service in the CNC technology domain. Since our inception, our team has maintained a steadfast commitment to technological innovation, aligning with market dynamics, and leveraging formidable technical acumen and rich industry experience to furnish global clients with efficient, stable, and reliable CNC equipment and bespoke solutions.
