2025 Automated Glass Processing System for Enhanced Productivity

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

ApplicationGlass

Process UsageMetal-Cutting CNC, Non-Conventional CNC, Metal-Forming CNC

Movement MethodLinear Control

Control MethodSemi-Closed Loop Control

Numerical ControlCNC/MNC

Processing Precision0.01mm, 0.05-0.1(mm)

PerformanceHigh-End CNC Machine Tools

CertificationCE, ISO 9001

ConditionNew

StructureHorizontal

Control SystemPLC

TypeGlass Process Center

Glass Washing TypeWaterjet

Glass Edging TypeDrilling, Milling, Edging & Polishing

Grinding Head Number2

DrawingCAD Drawing

Heads Number2

Max.Motion Range2700*1650mm

Power13kw

Glass Thickness3-25mm

Speed0-20m/Min

Volt.380V/50Hz (As Request)

Min Process Size75X15mm

CertificateCE

Transport PackageStandard Export Package

Specification2300*3300*2200MM

OriginChina

HS Code8464901900

Production Capacity50 Sets Per Month

Packaging & Delivery

Package Size220.00cm * 200.00cm * 150.00cm

Package Gross Weight200.000kg

Product Description

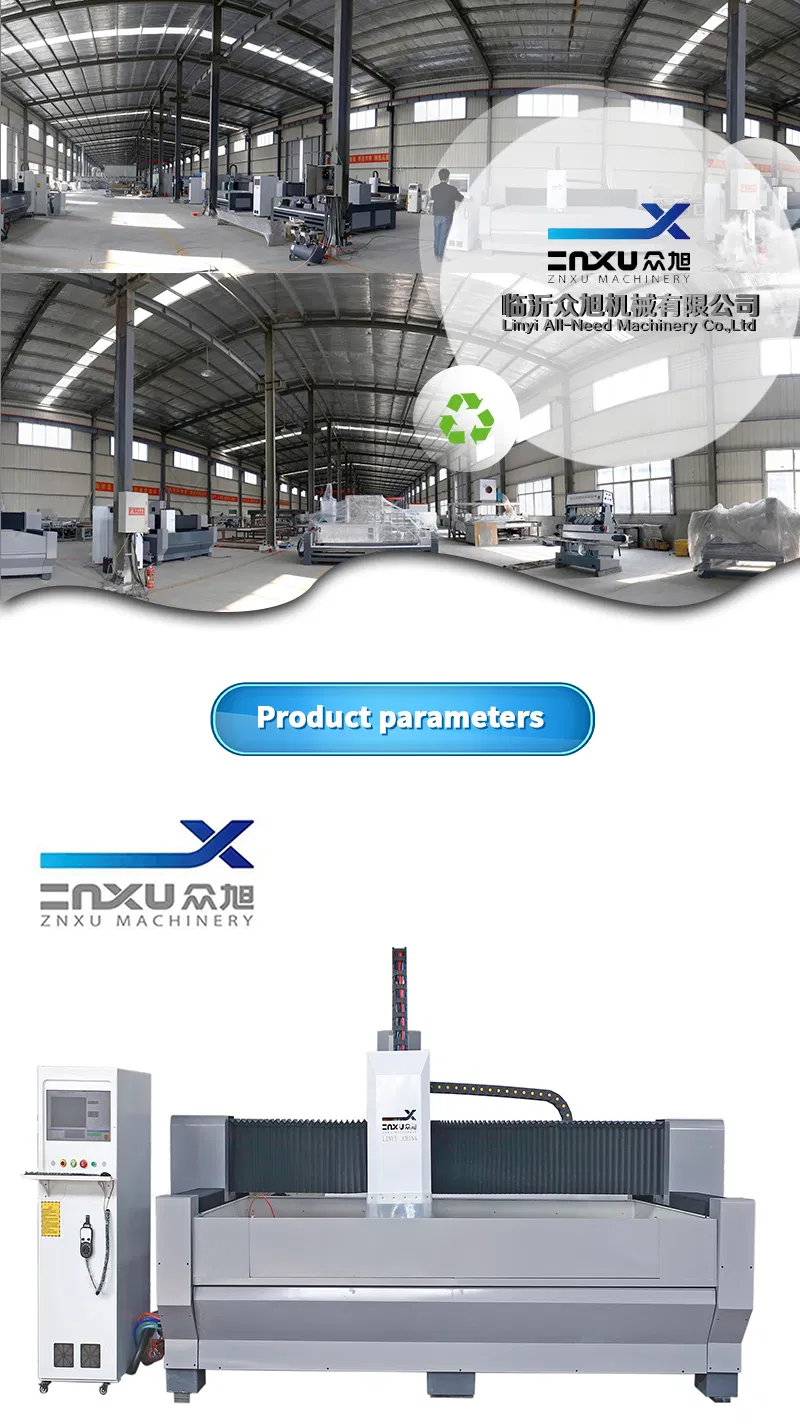

Automated Glass Processing System for Enhanced Productivity

Description	Unit	Parameter
Model No.	1	ZXX - C3018
Colum	Set	Heavy iron
Control System	set	LEETRO
Axis Details	PC	Cutter change : by hand
		Diam: 125
		coller: cool water
		RPM: 24000
		POWER: 7.5KW
Drive	set	YMPC
Invertor	kw	BEST : 11KW
Max glass size put	mm	3000*1800mm (Length unlimited with extra table)
Max Grinding Size	mm	*25001450mm**
Max router (milling) size	mm	*27001650mm**
Z-axis space height-open	mm	380
motor	set	CHINT
Internal structure	set	Half cover/ waterproof design
Work table load weight	KG	120
Positioning accuracy	mm	0.01
Repeated positioning accuracy	MM	0.01
Max speed (empty)	M/MIN	15
Max process speed	M/MIN	3M/MIN
Stroke protection	PC	Omron, Japan
GEAR	PC	GERMAN DMJ-1.5M High precision
Guide Screw bearing	PC	HIWIN
Guide Screw bearing	PC	Model: Z axis with diagonal contact
Lubrication system	set	Origin : TAIRUN
Lubrication system	set	Lubrication automatically
Cooling type	set	Water pump
Main axis cooling	set	Automatic thermostat cooler
Main electric	set	CHINT / SCHNEIDER
Volt./Frequency	KW	AC/380v/10KW/50HZ (As requested)
Machine Size	mm	*225040002200mm*
weight	KG	2200
power	KW.H	11.1

Service & Support Features

Provide on-site installation and after-sales services (technical support and customized setup available).
The machine is delivered as one fully assembled unit. Operation manual and video materials are included for plug-and-play ease.
Comprehensive factory-based training sessions covering installation and machine operation with complimentary local accommodation.
One year standard warranty period accompanied by lifelong professional maintenance support. Main parts (excluding consumables) replaced free of charge during the warranty.
24/7 technical support available to assist with operations and troubleshooting.

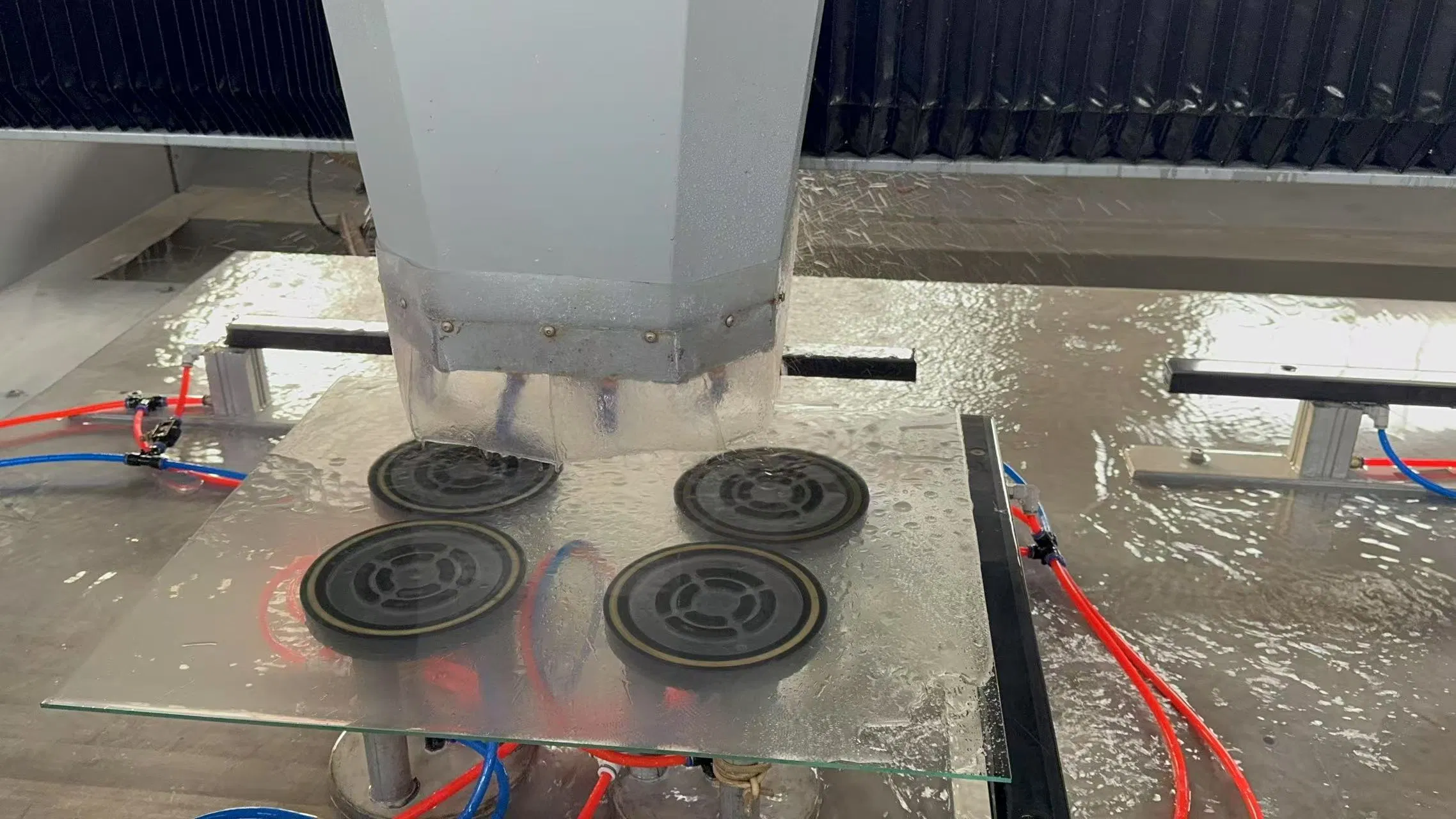

Automated Glass Processing Application Showcase

Frequently Asked Questions

What is the processing precision of this machine?

The glass processing center features high precision engineering, achieving a positioning accuracy and repeated positioning accuracy of 0.01mm.

What thickness of glass can be processed by this system?

The system is capable of processing glass thicknesses ranging from 3mm up to 25mm, making it highly versatile for various applications.

Is assembly required upon delivery of the machine?

No assembly is required. The machine is shipped as one integrated, fully assembled system. You can begin operations quickly using the included instruction manual and CD guide.

What are the maximum processing dimensions available?

The maximum grinding size is 2500*1450mm, and the maximum router (milling) size is 2700*1650mm. An additional table can be added to accommodate longer glass pieces.

Does the machine feature automatic lubrication and cooling?

Yes, the machine utilizes a TAIRUN automatic lubrication system and a water pump with an automatic thermostat cooler for the main axis to ensure optimal heat regulation.

What is the warranty policy for this equipment?

We provide a one-year warranty along with lifelong maintenance. During the warranty period, any non-consumable main parts that experience failures will be replaced free of charge.
