Ultimate 2025 Glass Drilling System for Precision and Versatility

1 / 5

Ultimate 2025 Glass Drilling System for Precision and Versatility

Customization:	Available
Certification:	CE, ISO
Cutting Method:	Diamond Wheel Cutting, Laser Cutting, Oil Cutter Cutting

Send Inquiry

Product Description

Basic Info.

Maximum Cutting Thickness 25 mm

Power Supply 380V, 50Hz, 3phase

Safety Features Emergency Stop Button, Overload Protection, Safety Sensor

Product Small CNC Water Jet Cutting Machine

Function Drilling, Cutting, Milling

Models Different Models as Per Customer Size

Thickness 3-25mm

Drawing Dxf Files

Control System CNC, Servo

Spindel Number 2

Power 7.3kw

Weight 1800

OEM Offered

Drill Bits 8PCS

Transport Package Standard Export Package

Specification 4000*2200*2200mm

Origin China

HS Code 8464901900

Production Capacity 20sets/Month

Packaging & Delivery

Package Size 220.00cm * 320.00cm * 180.00cm

Package Gross Weight 200.000kg

Product Description

LUBAN LATHE: CNC GLASS MILLING MACHINE AND GLASS DRILLING MACHINE

Machine Introduce:

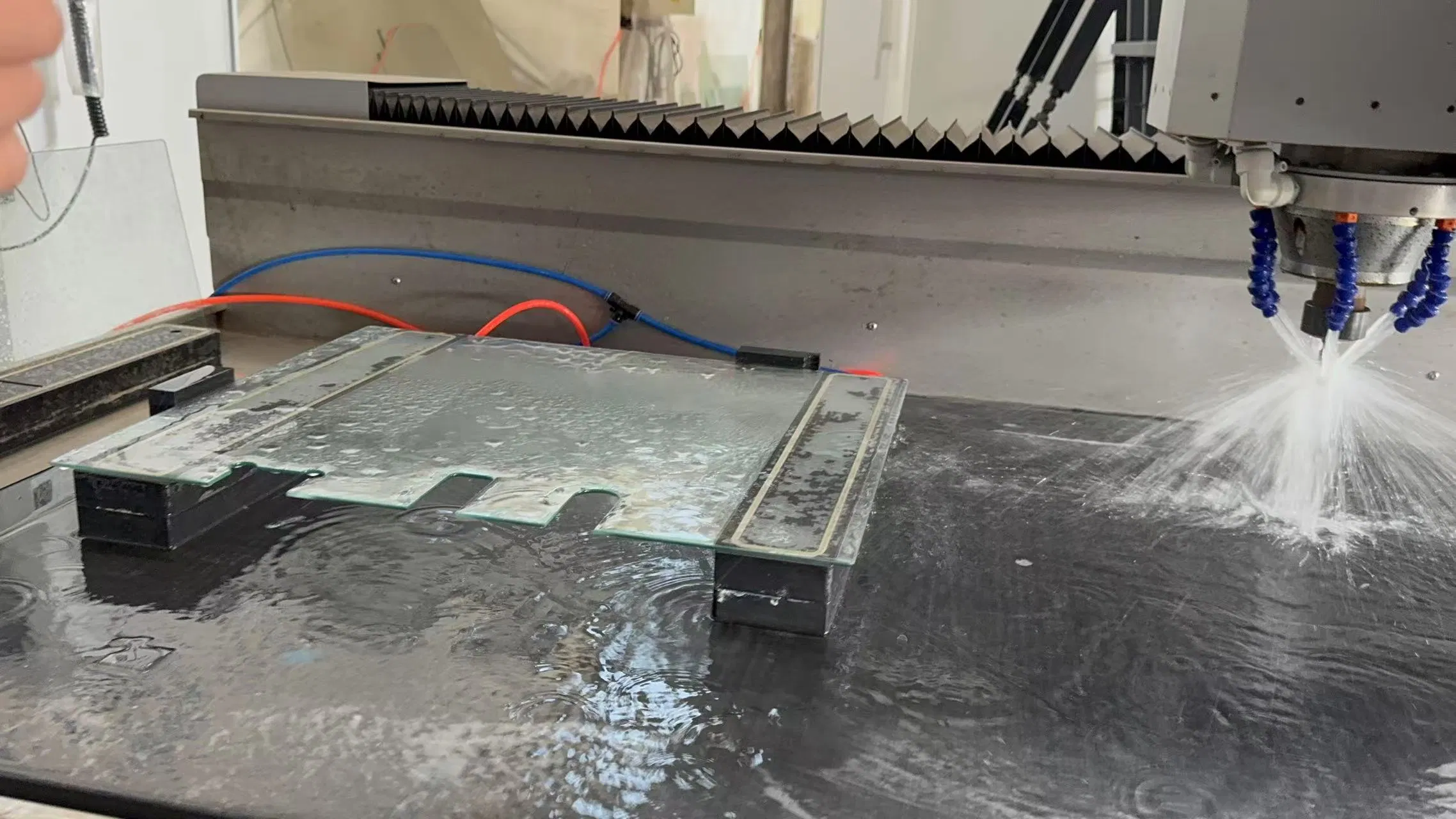

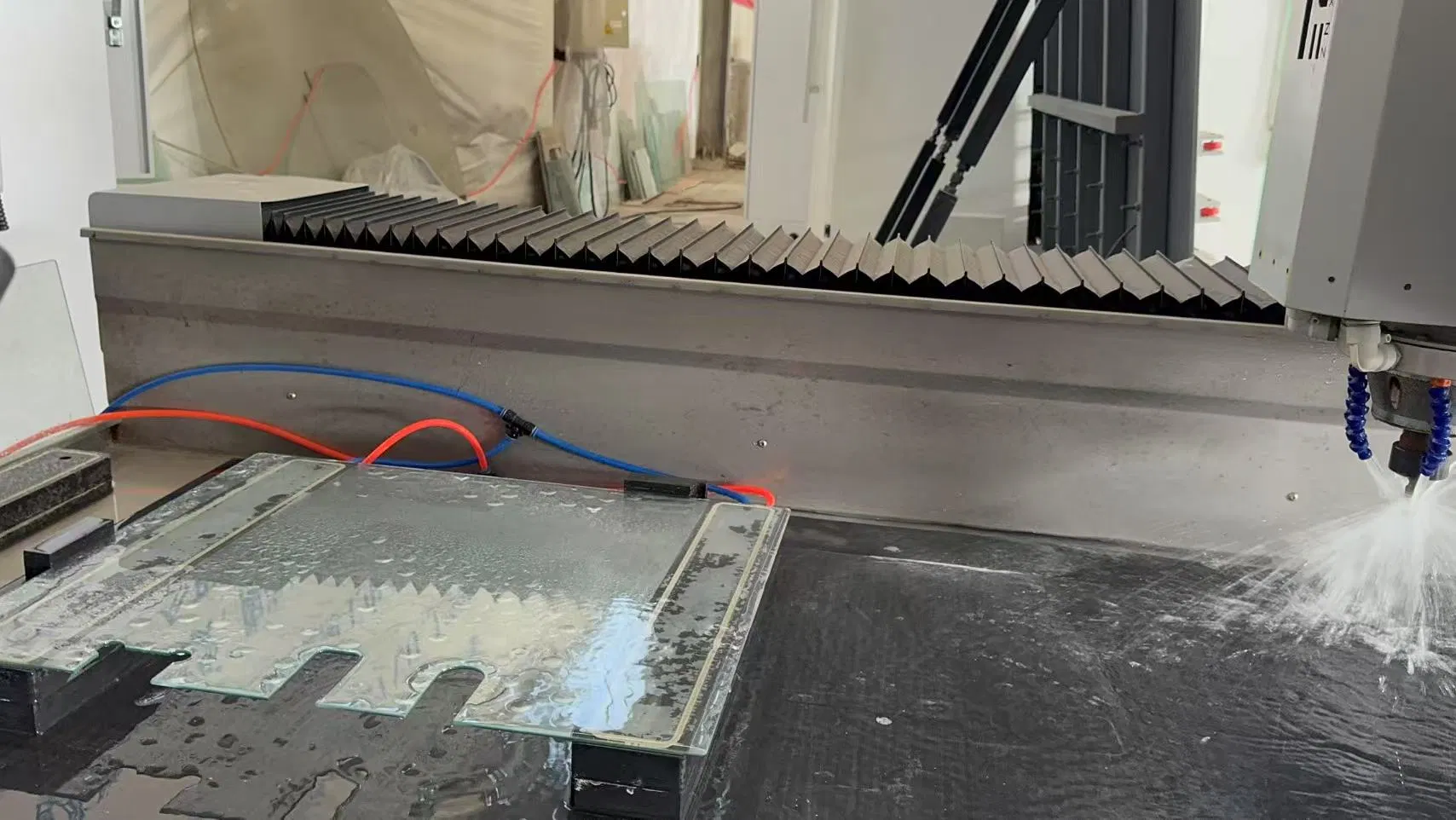

This machine is a glass processing equipment newly developed that integrates two mechanical structures of glass drilling machine and glass milling machine.

Feature:

Self-developed 8-axis control system, perfect and smooth control of glass drilling and glass milling functions;

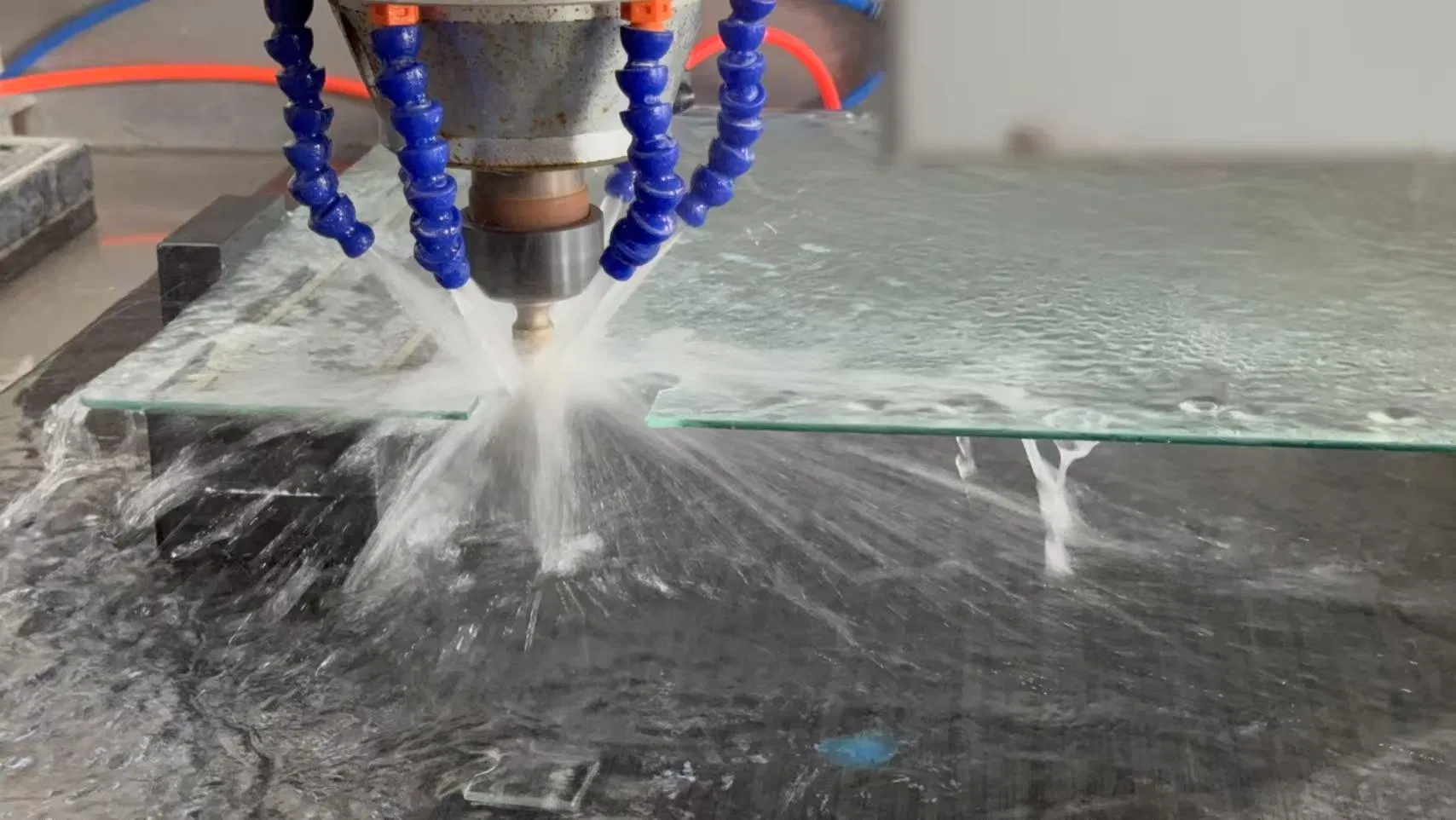

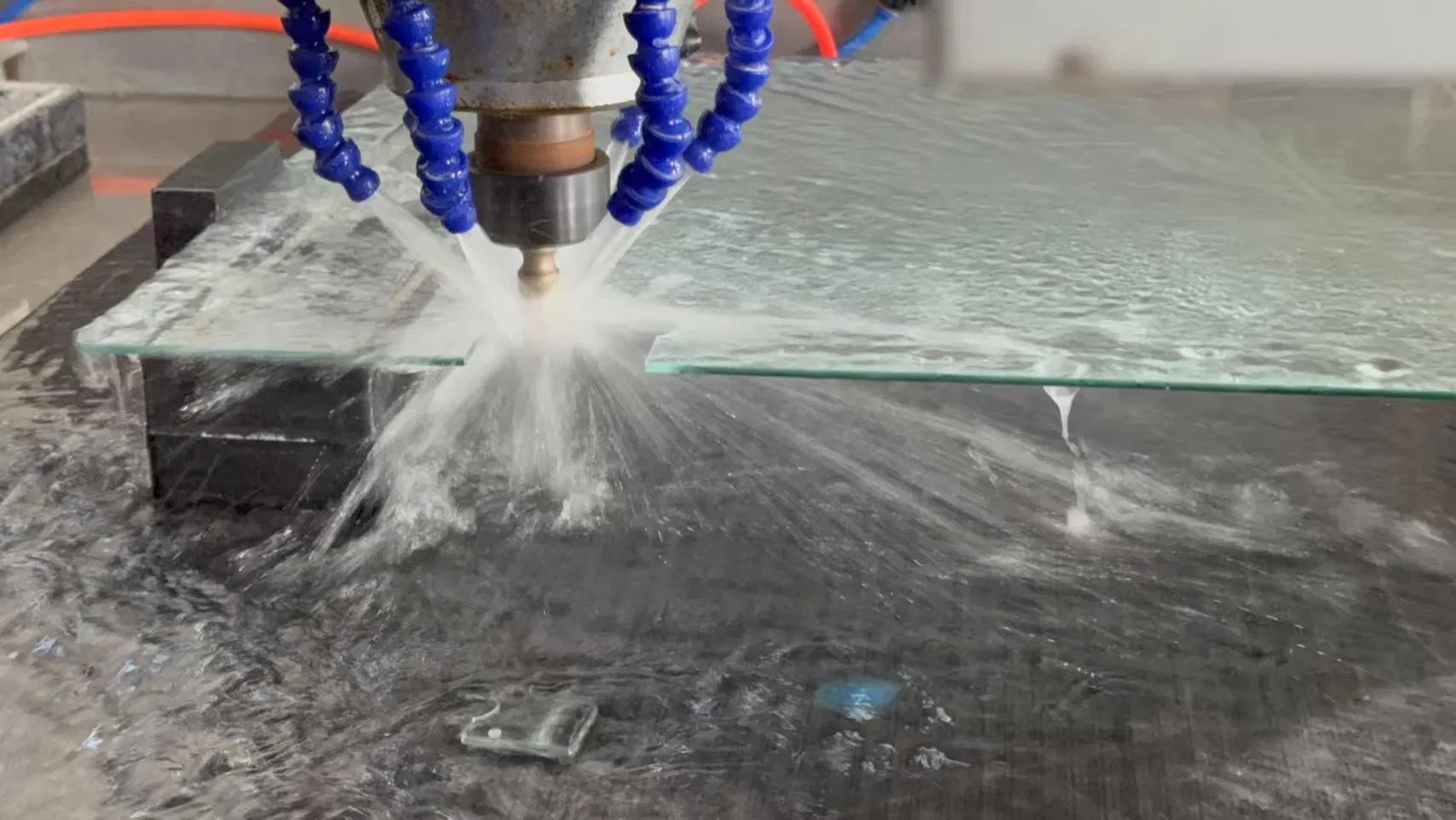

This machine adopts gantry type up and down drilling, CNC drilling, enlarging DRILL, and milling. The editing path is simple. Drilling, enlarging, and milling are integrated to output the path. You can change the editing path, take from gallery, and receive external DXF. DGW file, the system comes with drawing software, and the humanized design makes the operation easier;

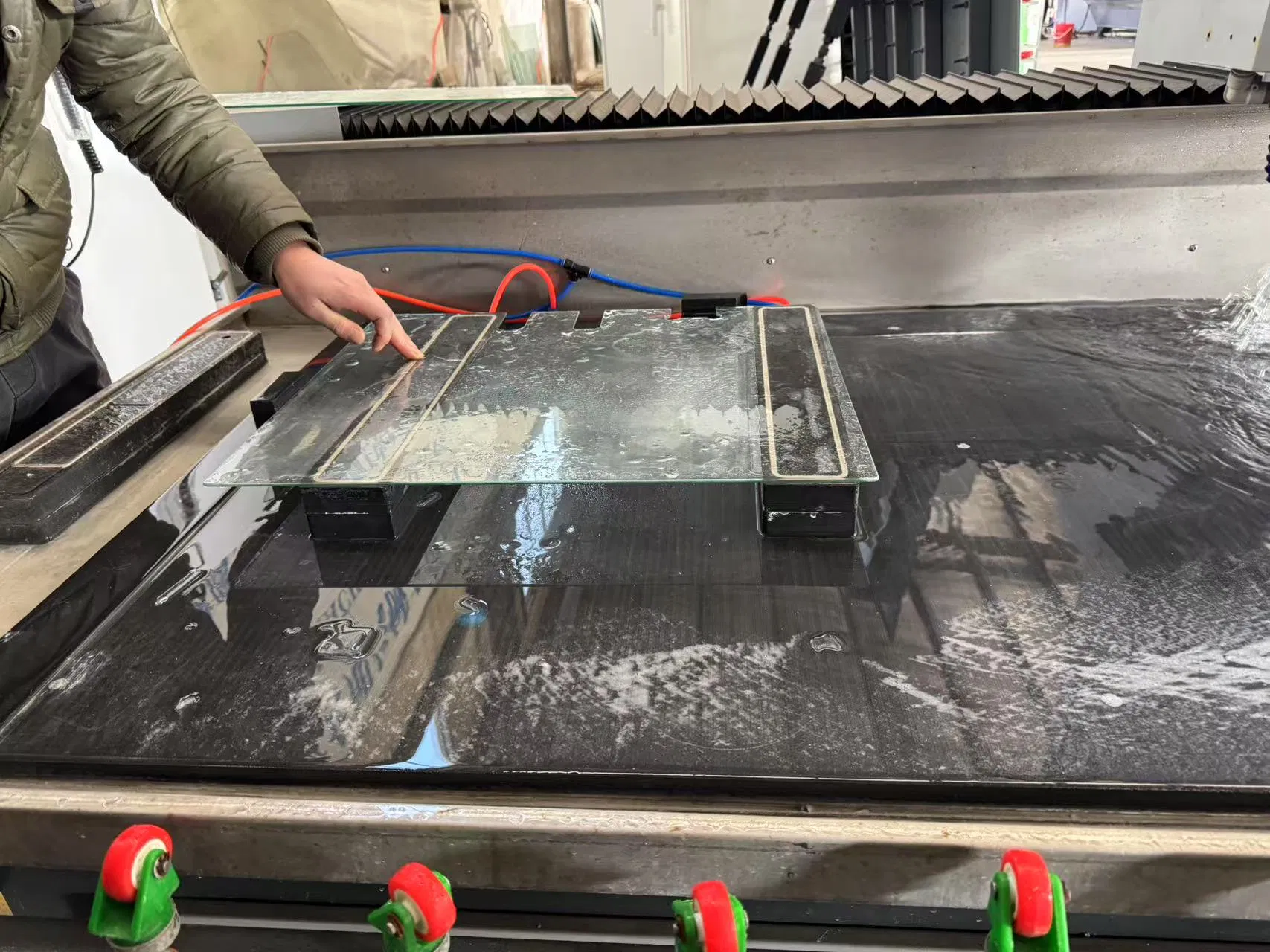

Pneumatic support, the principle of proximity priority, the least empty stroke, saving processing time;
General-purpose consumables are used for drilling, which greatly reduces the processing cost of drilling;
The milling part adopts T-shaped mechanical frame, which is ingenious and compact in structure and flexible in operation; the transmission structure adopts cylinder pressurized support transmission structure, which runs stably and accurately, and does not go wrong;
This machine involves a number of patents, and is suitable for deep processing of glass with various processing techniques such as drilling, milling, milling, and milling various shapes on the glass surface;
The machine is reserved for mechanical expansion and PLC expansion control, which is convenient for additional coordinated actions. It can be used as a stand-alone machine, and can also be connected to various equipment such as loading tables, robots, and glass washing machines to realize in-line production.

Function:

With integrative function drilling cutting milling and grinding, once time finished, no need to change the cutter, which effectively avoids glass scratches and dimensional errors caused by repeated positioning.

Application:

Sink hole in the glass countertop of the cabinet, stove hole, pipe hole
Shower door clamp, hinge hole, handle hole
Cabinet door invisible handle hole
Electric panel holes making
Aquarium stealthy cover, fish tank making

Main Technical Parameter

Model	Machi. Measurement	Max Size of Glass
ZXLB-ZX1200	400022002200mm	1200*2200mm
ZXLB-ZX1500	660026002200mm	1500*2500mm
ZXLB-ZX2000	660031002200mm	2000*2500mm

Installation & Service Terms:

Provide on-site installation and after-sales. (All the freight cost as well as hotel, food caused by this come to the buyer's part, besides, technicians should be paid USD100/ day/people.)
The machine is sent as one whole part, no separated. We will send the operation manual and CD together with the machine. Customer can learn how to use via the manual.
We warmly welcome you or your representative to learn how to install and use the machine in our factory. Moreover, the training cost as well as the accommodation is for free.
One year warranty period, life-long maintenance. The machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
24 hours technical support by email or skype or whatsapp, or wechat.

Frequently Asked Questions

What operations can this machine perform?

This is an integrative machine that handles drilling, cutting, milling, and grinding in one continuous process, removing the need to change tools manually or reposition the work material.

What types of drawing file formats does the system support?

The system features self-developed 8-axis control and supports external DXF and DGW file formats. It also includes built-in drawing software to make manual path editing simple.

What is the range of glass thickness this machine can process?

The machine handles glass thicknesses ranging from 3 mm up to 25 mm, making it suitable for a wide variety of industrial and design processing needs.

Does this machine require complex installation upon delivery?

No, the machine is shipped fully assembled as one complete unit. An operation manual and visual guide CD are included to ensure users can learn the controls efficiently.

What safety mechanisms are built into this equipment?

It features comprehensive safety measures including an easily accessible Emergency Stop Button, Overload Protection systems, and safety sensors to protect both the operator and the machinery.

What is the warranty policy and technical support coverage?

We offer a one-year warranty with life-long maintenance. Main parts (excluding wear-and-tear consumables) are replaced free of charge during the warranty, backed by 24-hour remote technical support.
