Precision Horizontal Boring Milling Machine and Vertical Lathe System

Customization:	Available
After-sales Service:	Good After-Service
Warranty:	1 Year

Basic Info

Model NO.VTL250

ApplicationMetal

Process UsageMetal-Cutting CNC Machine Tools

Movement MethodCNC

Control MethodCNC Control

Numerical ControlCNC/MNC

Processing Precision0.01~0.02(mm)

Performance ClassificationHigh-End CNC Machine Tools

CertificationCE, ISO 9001

ConditionNew

Processing AccuracyIt6

Work Table Speed Change BlockStepless with Two Blocks

Cutting Feeding Speed0.1-1000mm/Rev

StationDota 4/Atc 12

VoltageAC380V

Voltage Wave Range-10~+10

Frequency50Hz

CNC Device ModelSiemens 828d

Specification7900*5300*7265mm

OriginChina

HS Code8458911090

Production Capacity10

Product Description

Precision Horizontal Boring Milling Machine and Vertical Lathe System

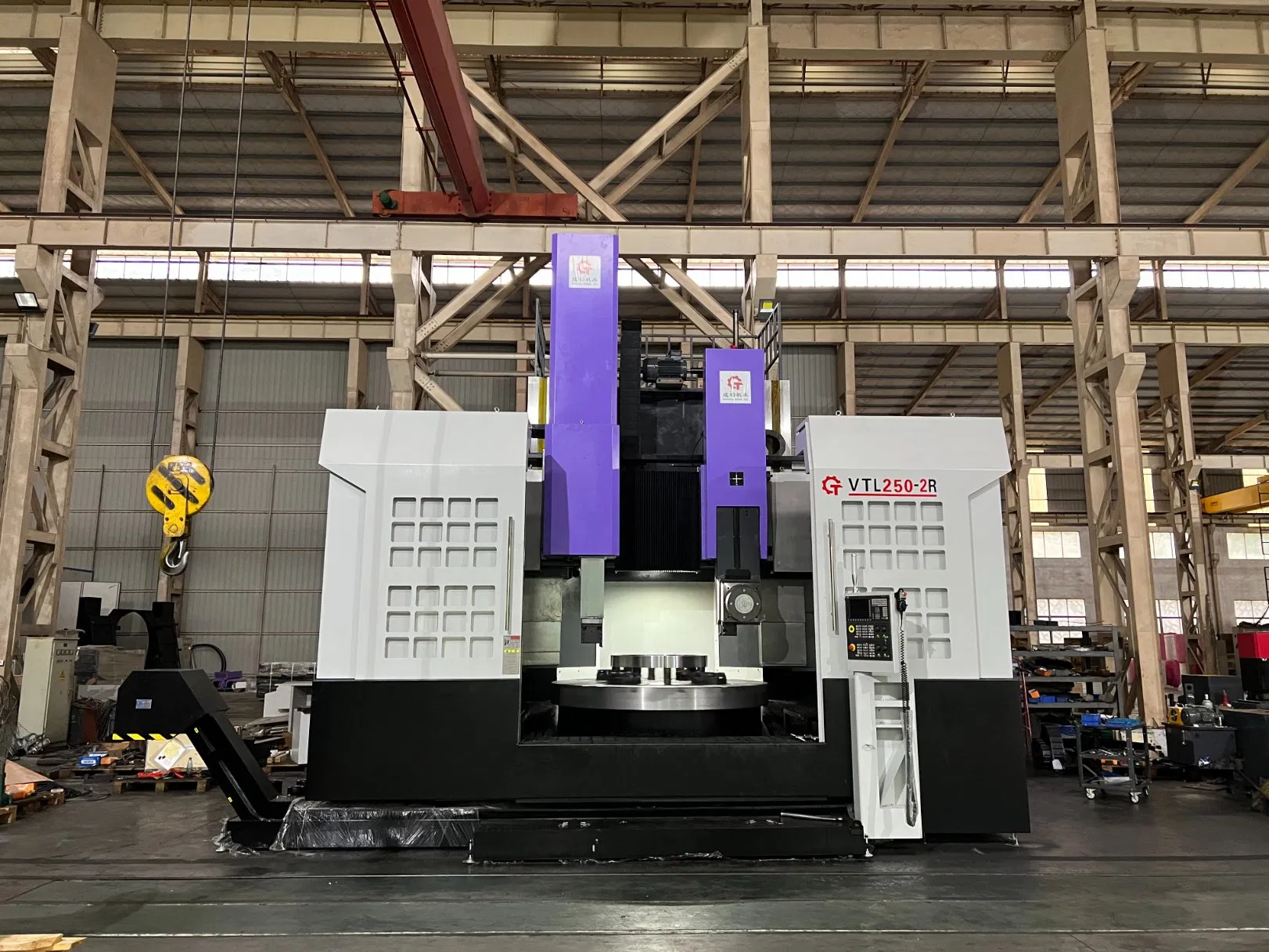

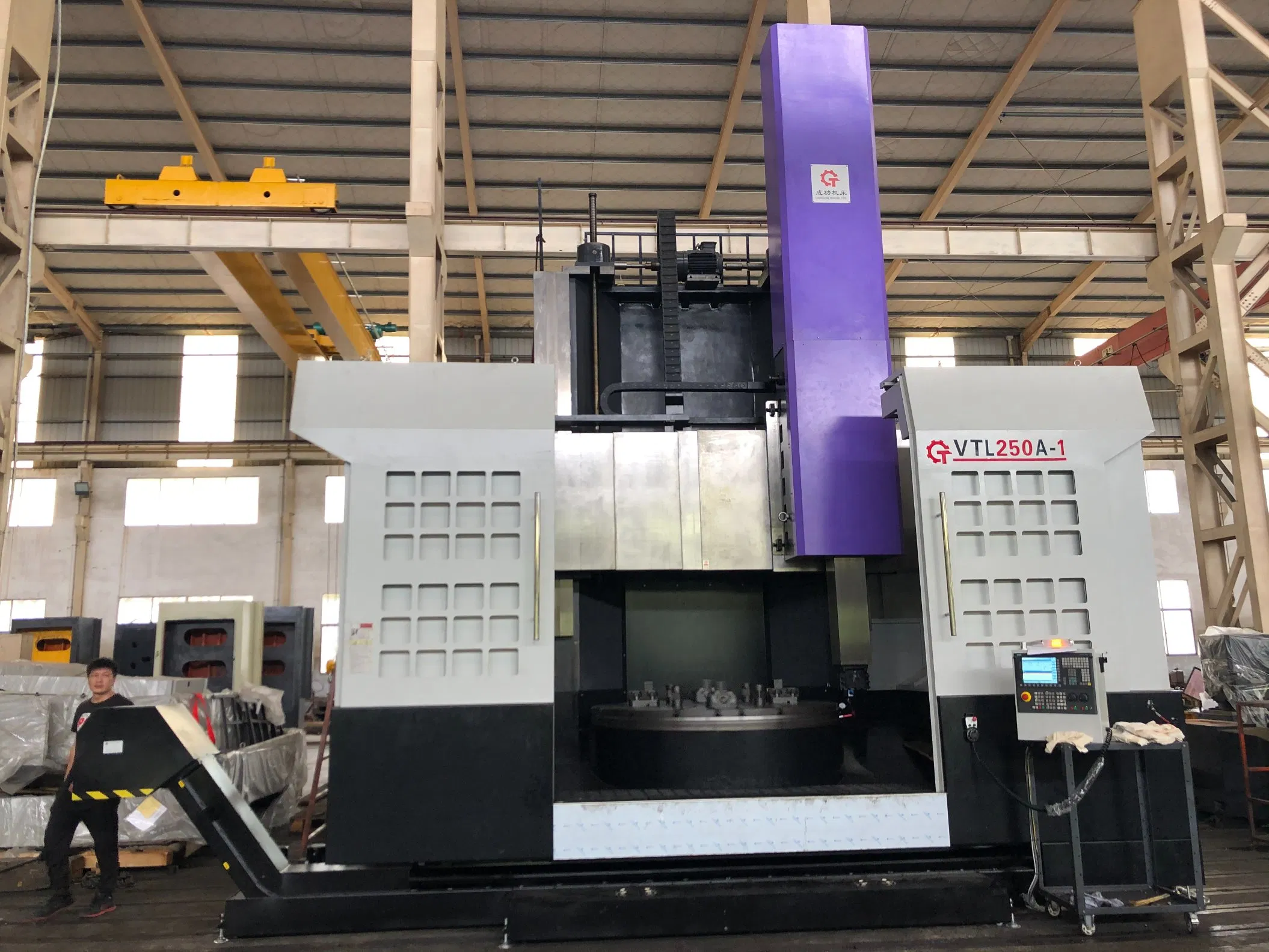

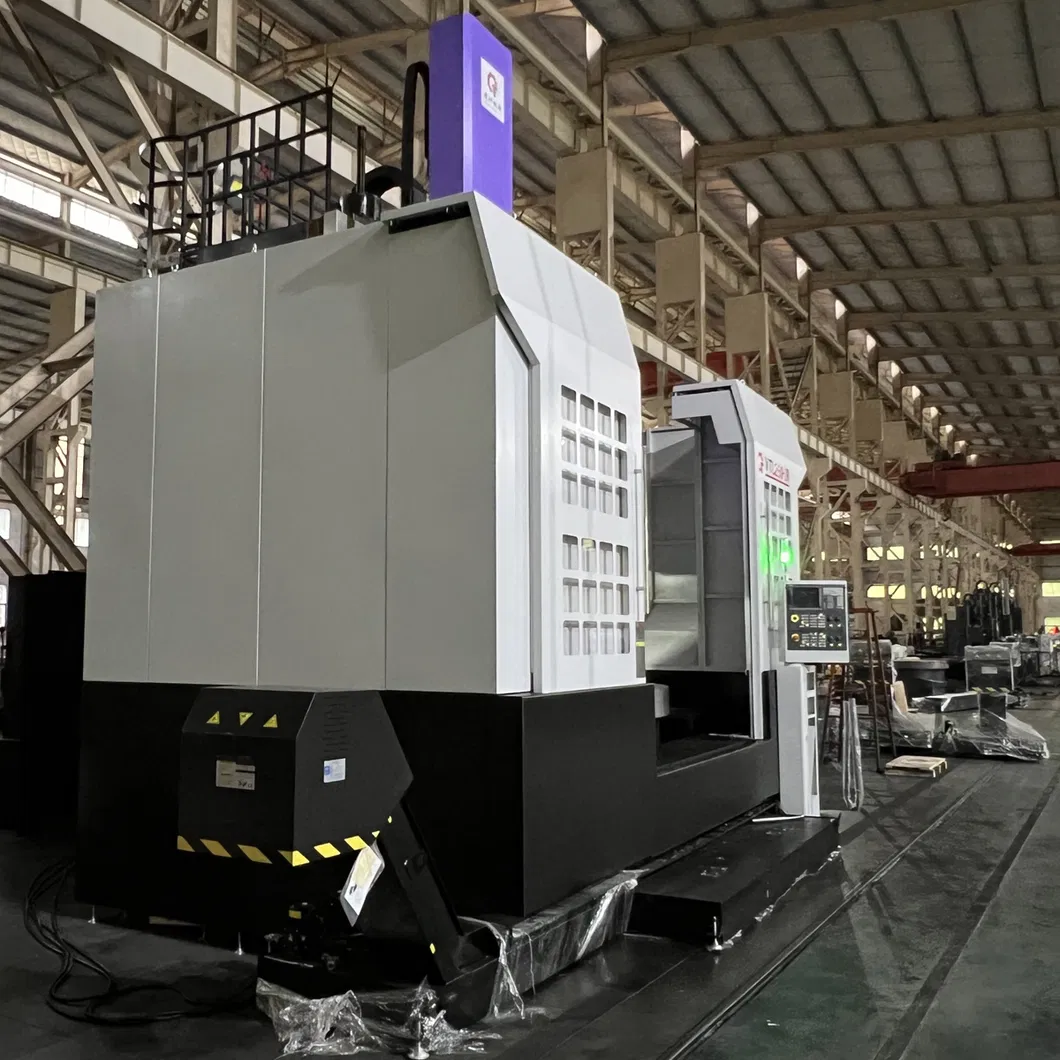

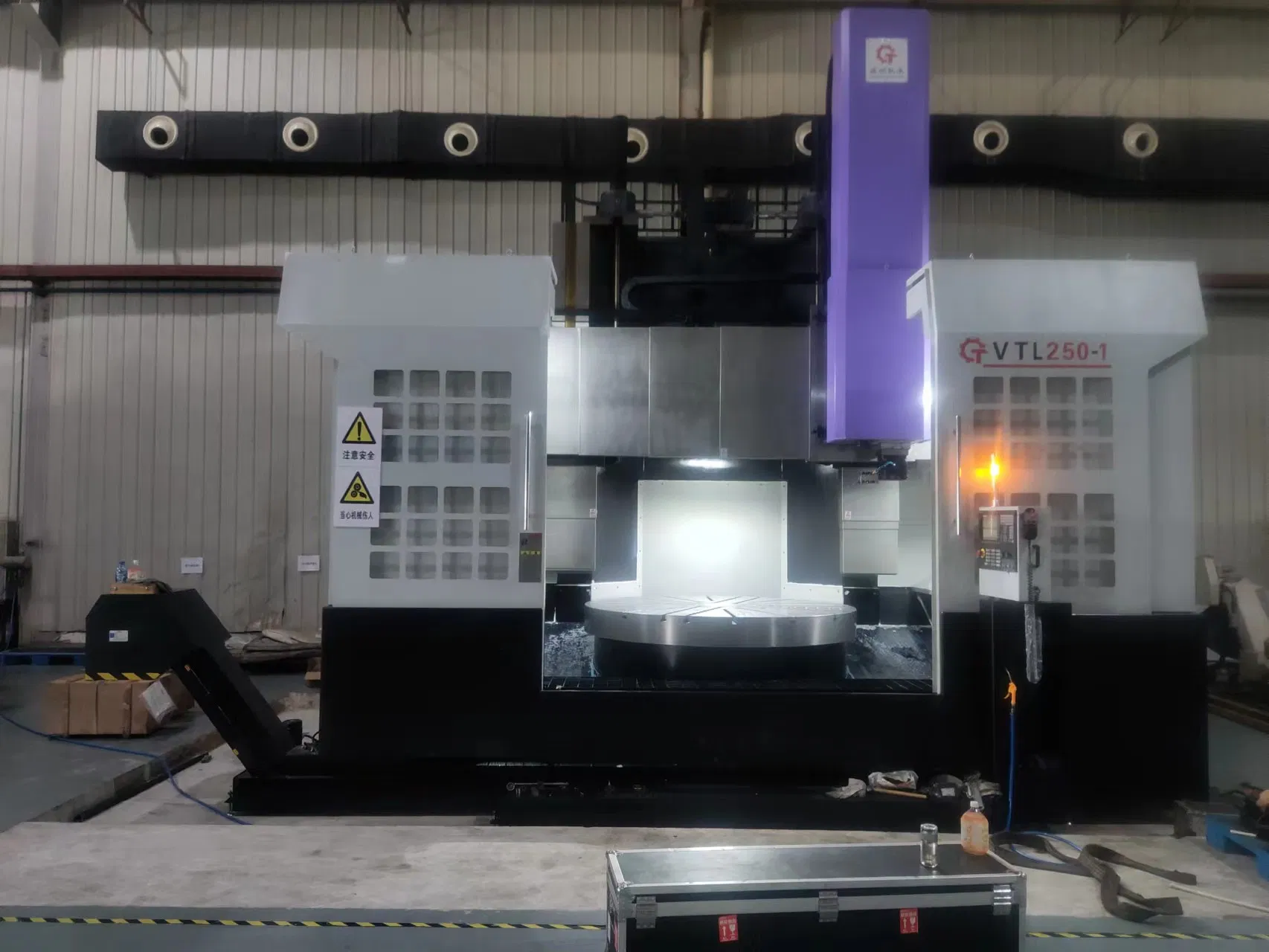

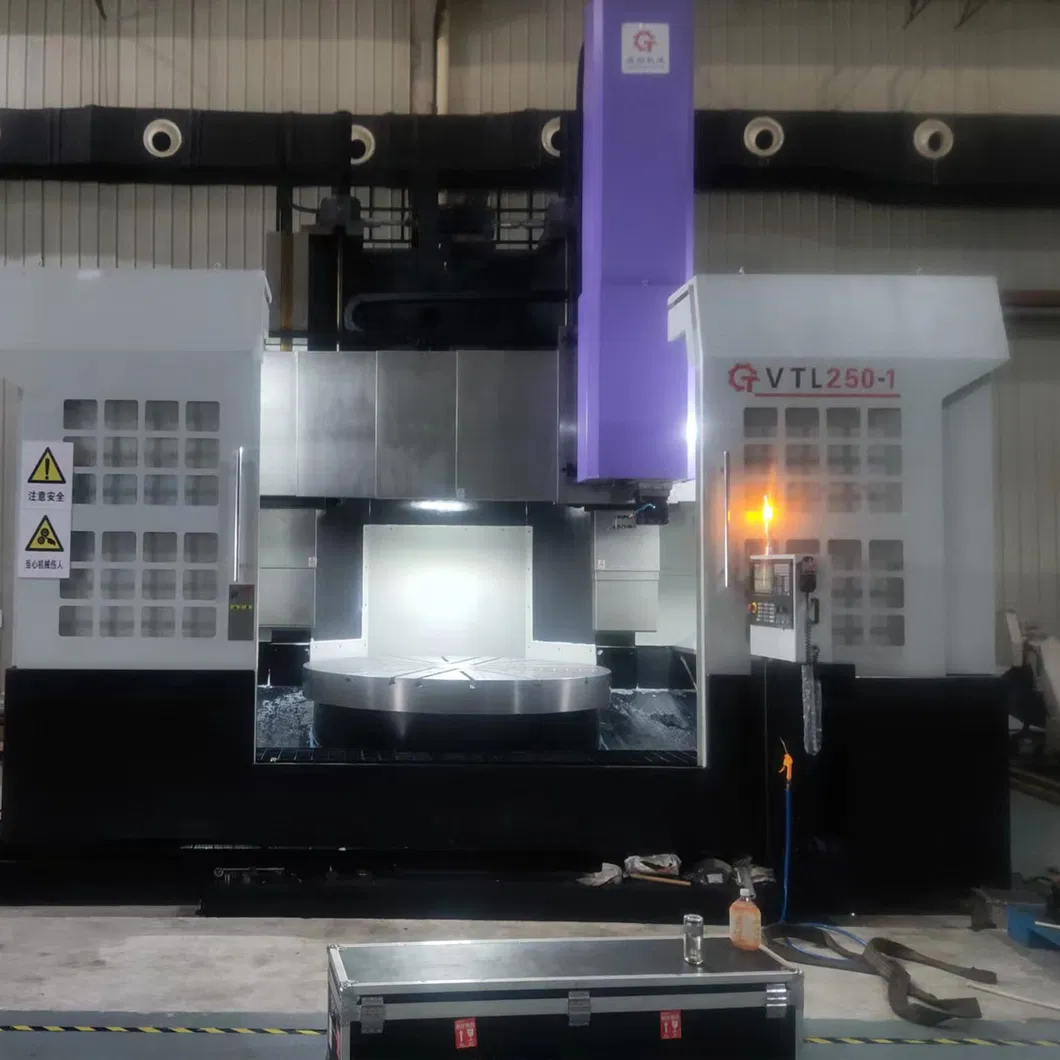

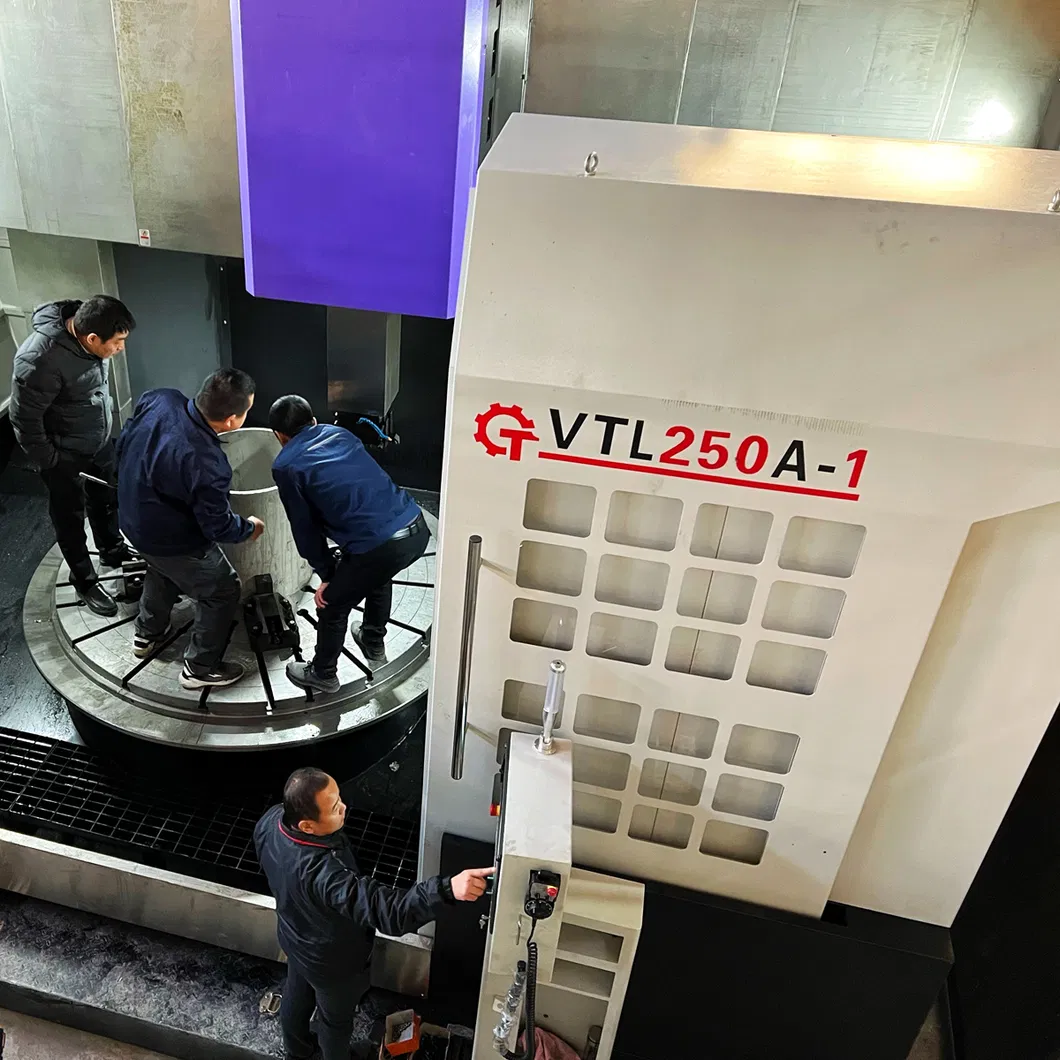

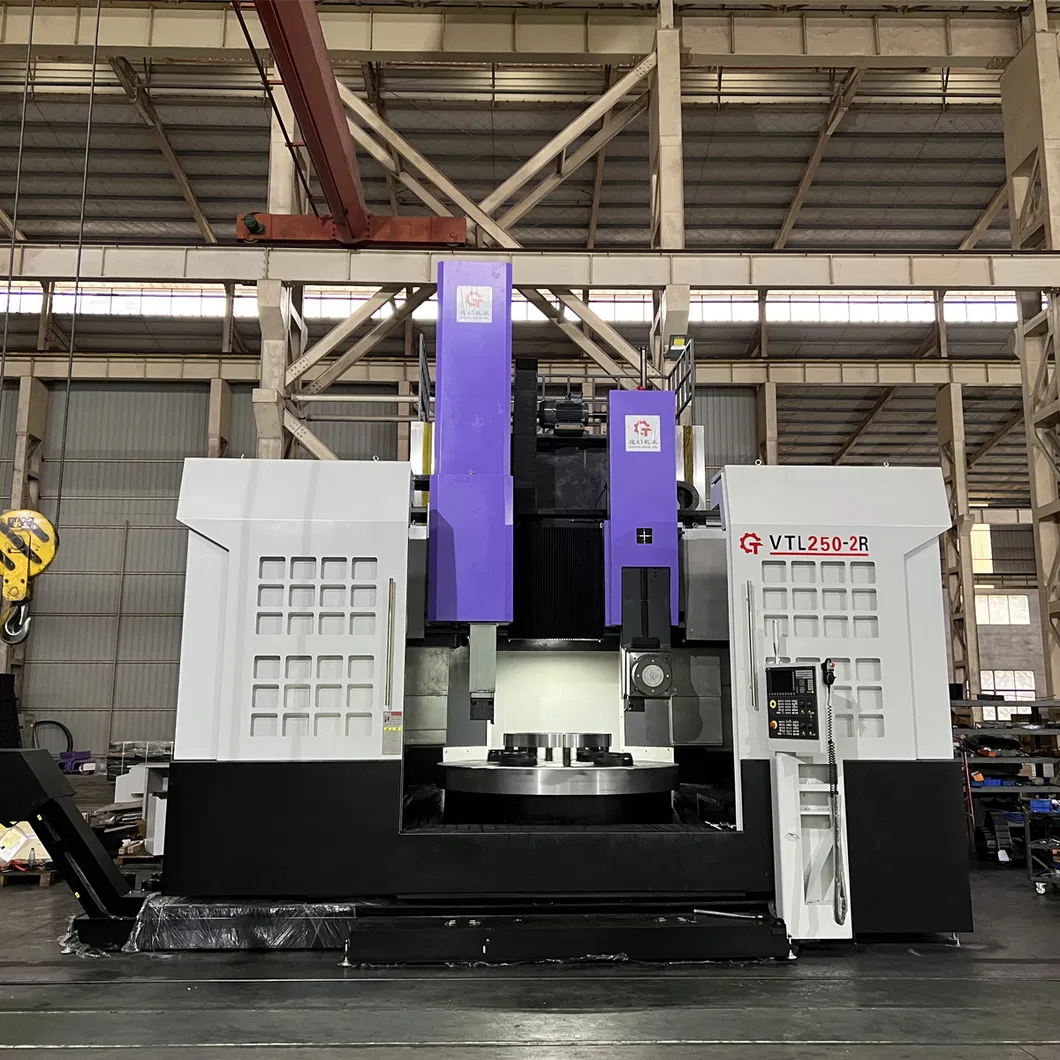

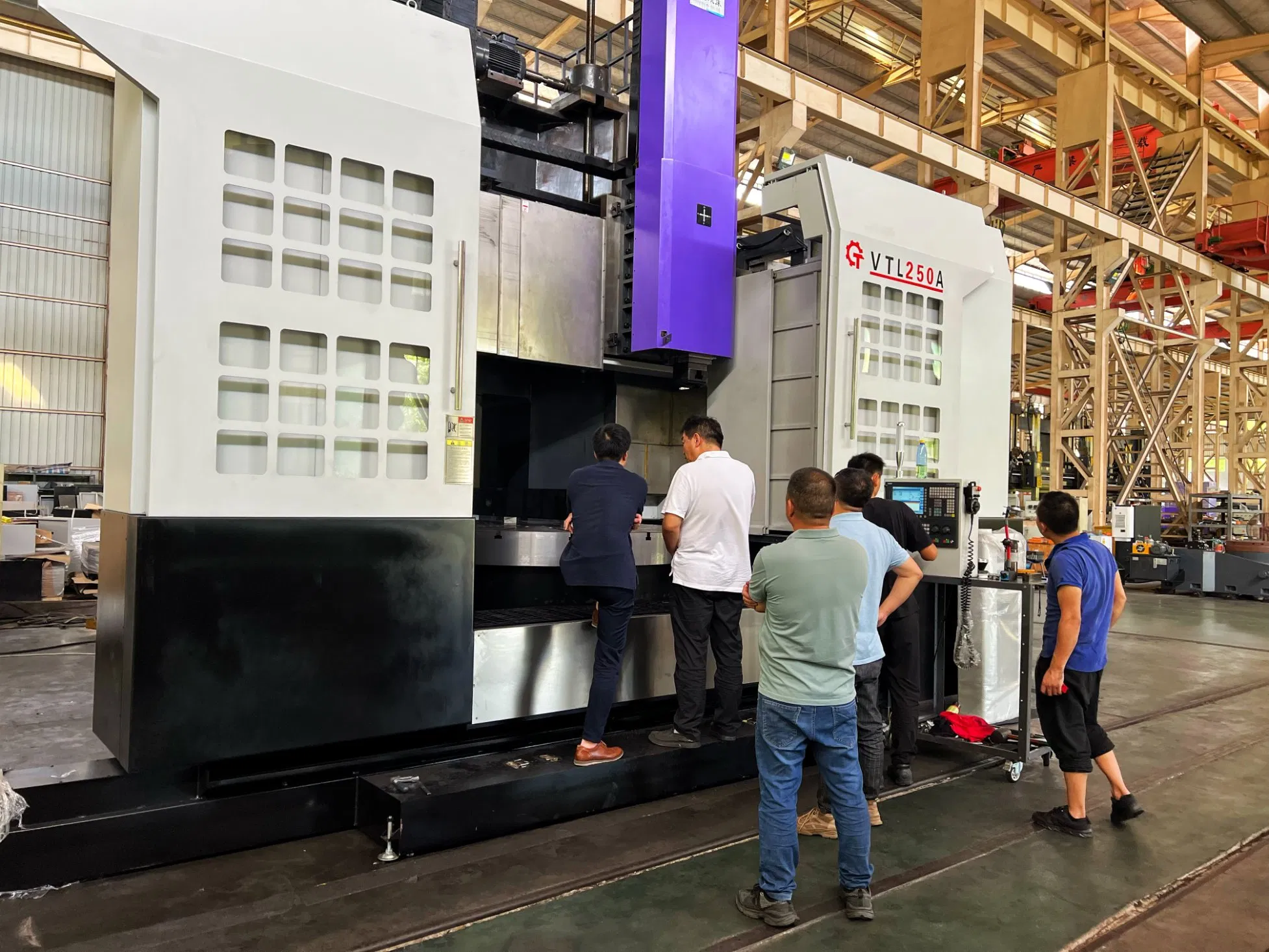

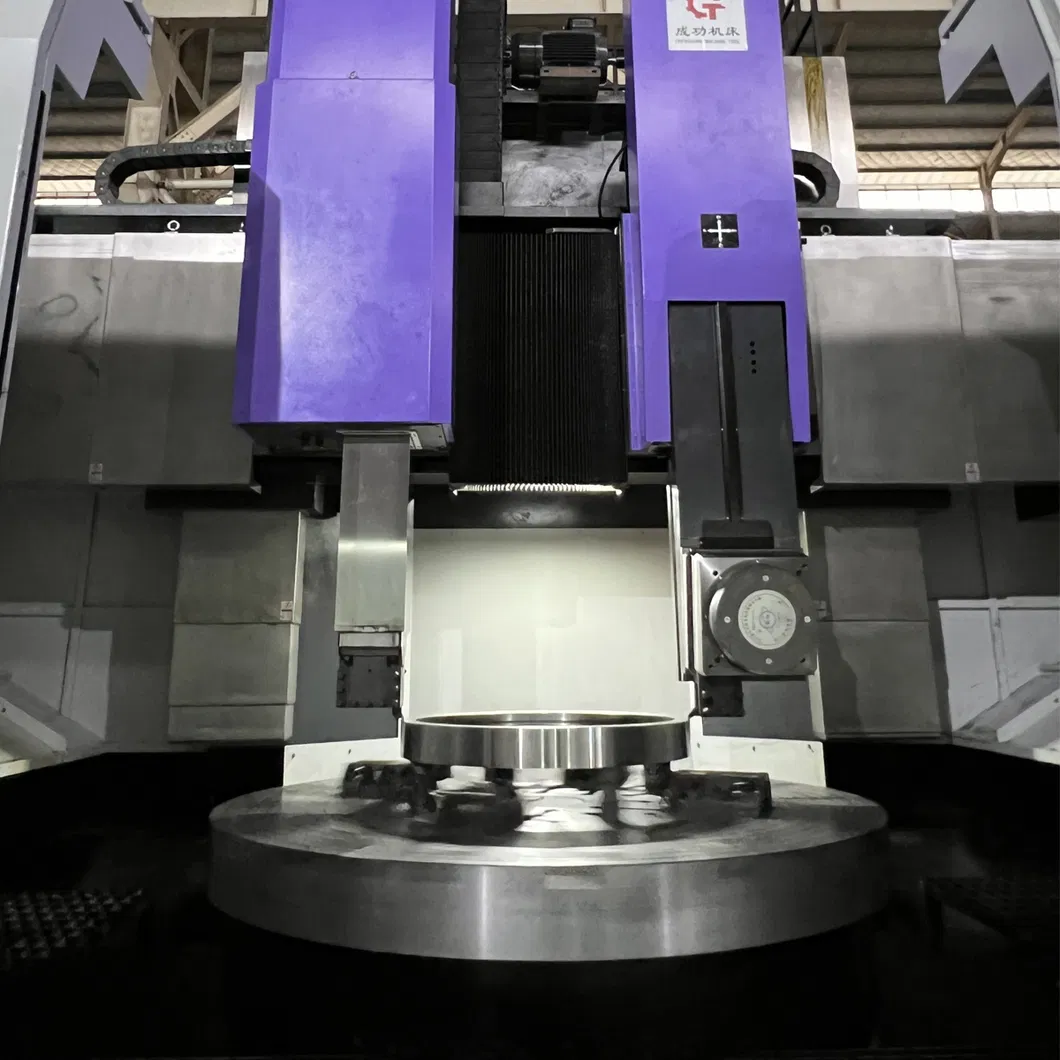

The VTL CNC Vertical Lathe Machine is our pioneering design that caters to the ever-evolving market demands, addressing critical processing challenges. This innovative moving beam, single-column CNC vertical lathe boasts a fresh structural design, groundbreaking technology research, and meticulous machine debugging. Our machine integrates premier components from renowned brands, both domestic and international, including the CNC control system, primary electric parts, main bearings, ball screws, and key hydraulic components, ensuring unmatched performance.

Incorporating advanced technology and precision engineering, we employ reliable imported fittings and superior processing and testing methodologies. This results in machines with exemplary machining accuracy, incredible rigidity, and robust reliability. Our designs feature intuitive layouts, effortless operation, and high degrees of automation.

The machine harmoniously accommodates organic tooling devices, enabling automated tool changes and streamlined automated processing. This enhances machining quality while significantly reducing operational costs. Ideally suited for sectors like power generation, shipbuilding, metallurgy, and mining, this machine excels in processing large-scale components with unparalleled efficiency.

Specification		Unit	VTL125/125A	VTL160/160A	VTL200/200A	VTL250/250A
Processing Capacity	Work table diameter	mm	1100	1400	1800	2200
	Max. swing diameter	mm	1350	1700	2100	2600
	Max. turning diameter	mm	1250	1600	2000	2500
	Max. height of workpiece	mm	1200/1000	1400/1200	1400/1200	1800/1600
	Max. weight of workpiece	kg	4000	8000	10000	16000
	Max. torque of worktable	N.m	12500	16500	24500	35000
Accuracy	Processing accuracy	-	IT6	IT6	IT6	IT6
	XZ position accuracy	mm	0.018/0.02	0.02/0.02	0.02/0.02	0.02/0.02
	XZ repeat position accuracy	mm	0.008/0.01	0.008/0.01	0.008/0.01	0.01/0.01
Main Gear Box	Spindle speed range	r/min	1-350	1-300	1-250	1-200
Main Gear Box	Work table speed change	-	stepless with two blocks
Main Motor Output	30mins rated	kW	26	37	45	55
Main Motor Output	Continuous rated	kW	22	30	37	45
Ram	Ram section size	mm	T-shaped 200×200	T-shaped 220×220	T-shaped 220×220	T-shaped 240×240
	X axis travel	mm	-200~+700/875	-200~+950/1050	-200~+1150/1315	-200~+1250/1650
	Z axis travel	mm	800/900	800/900	800/900	1000/1400
Feeding	Cutting feeding speed	mm/rev	0.1-1000	0.1-1000	0.1-1000	0.1-1000
Feeding	Fast feeding speed	mm/min	8000	6000	6000	6000
Beam lifting gear distance		mm	3×200	4x200	4x200	4×250
Tool Changer	Station	-	Dota 4/ATC 12	Dota 4/ATC 12	Dota 4/ATC 12	Dota 4/ATC 12
Tool Changer	Tuning tool bar size	mm	32x32	32x32	32x32	40×40
Total Power	Voltage	V	Ac380	Ac380	Ac380	Ac380
	Voltage wave range	-	-10~+10	-10~+10	-10~+10	-10~+10
	Frequency	Hz	50	50	50	50
	Total power	kW	50	68	75	95
System	CNC device model	-	SIEMENS 828D	SIEMENS 828D	SIEMENS 828D	SIEMENS 828D
Machine weight		kg	17000/19080	23500/28220	32450/37280	49000/57400
Overall dimensions (LxWxH)		mm	5500×3250×5300	6100X3830×5450	6950X4800×6050	7900×5300×7265

Main Product

Company Profile

Founded in 1995, our leading heavy machinery manufacturing enterprise steadfastly adheres to its principles of 'people-oriented, quality and quantity assurance, and integrity management'. Upholding the philosophy of 'advancing with the times and continuous innovation', our manufacturing facilities are located in a historic city revered for its rich cultural heritage and historical maritime trade importance.

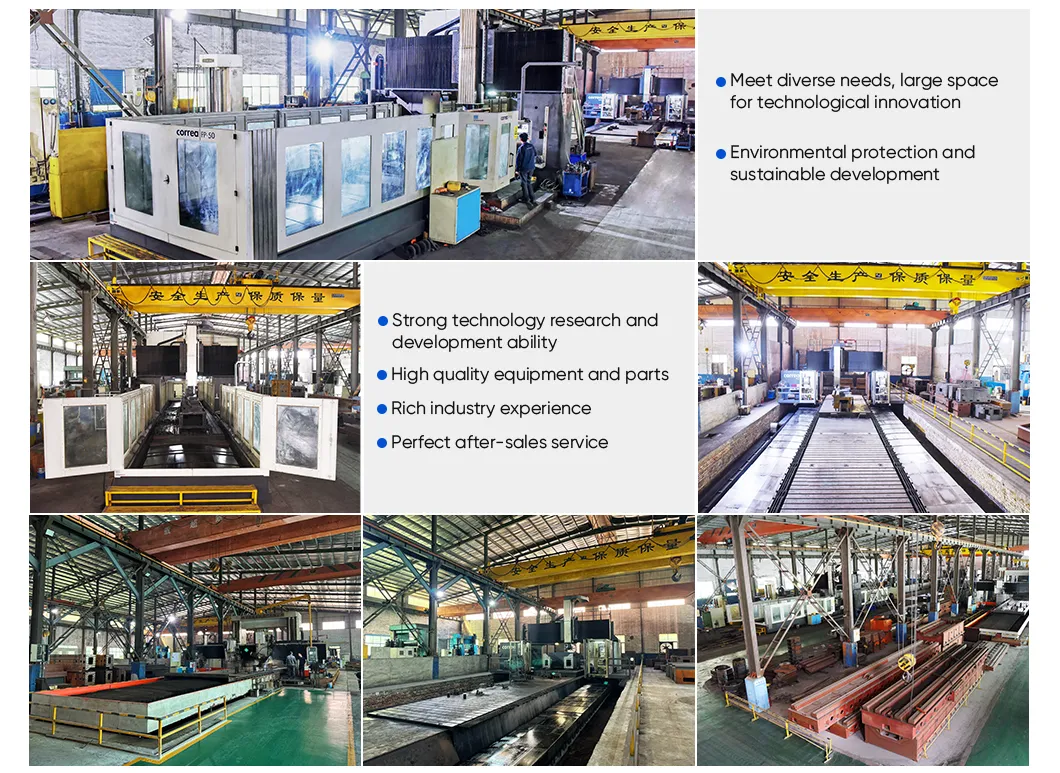

Enterprise scale: Our expansive industrial park spans 250 acres, boasting an annual casting production exceeding 30,000 tons. We specialize in processing large-scale nodular and grey cast iron, weighing up to 50 tons in a single piece. Equipped with an array of heavy machinery, including Spanish CNC gantry milling machines, large gear hobbing machines, and imported gantry CNC guideway grinders, our facility is a hub of advanced manufacturing. Cutting-edge detection methods, such as CMM and Laser Interferometers, empower us to create high-end machine tools.
