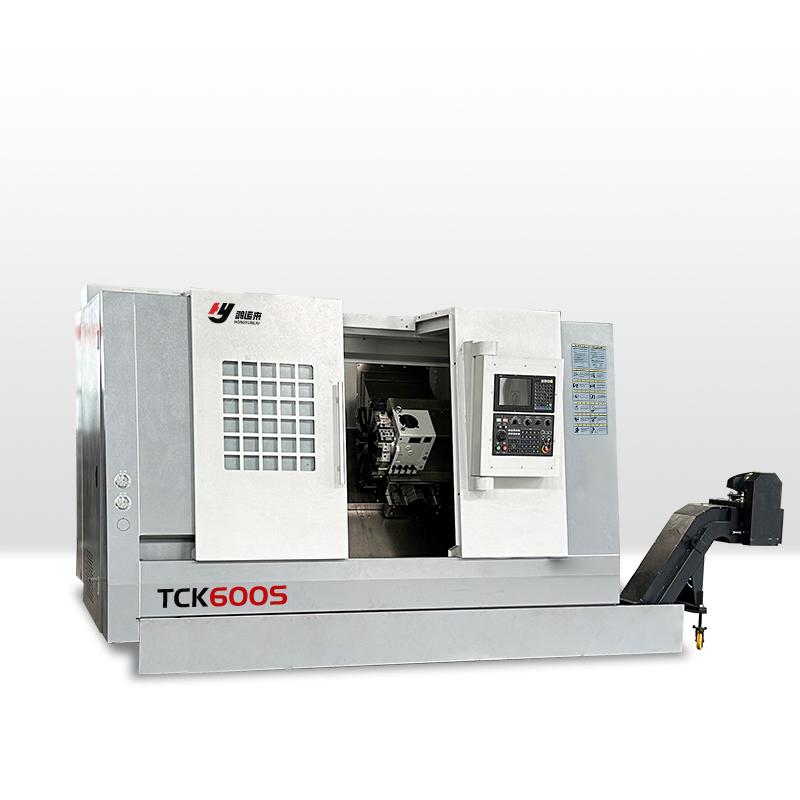

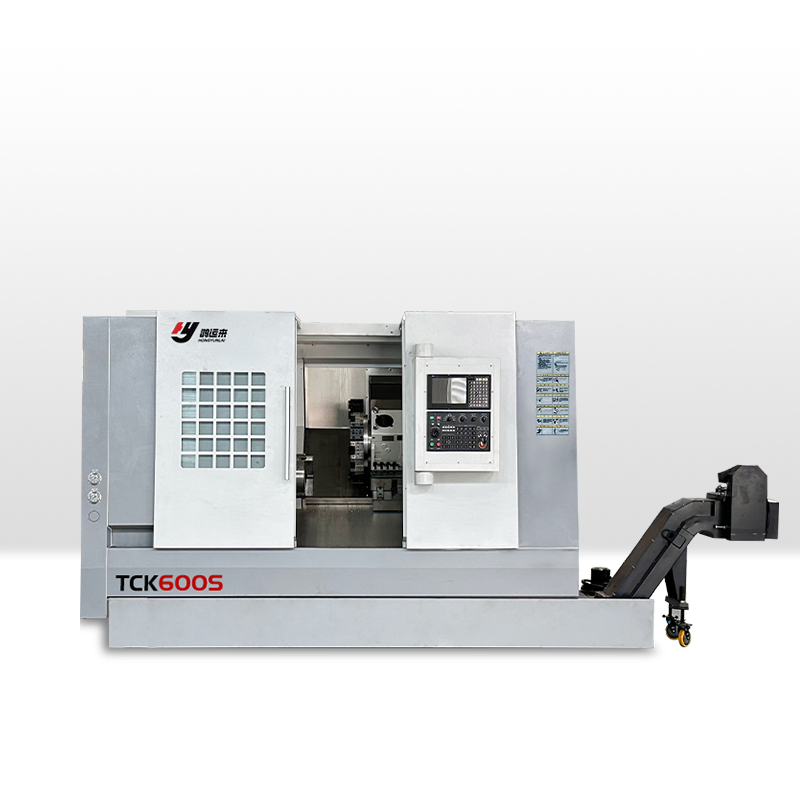

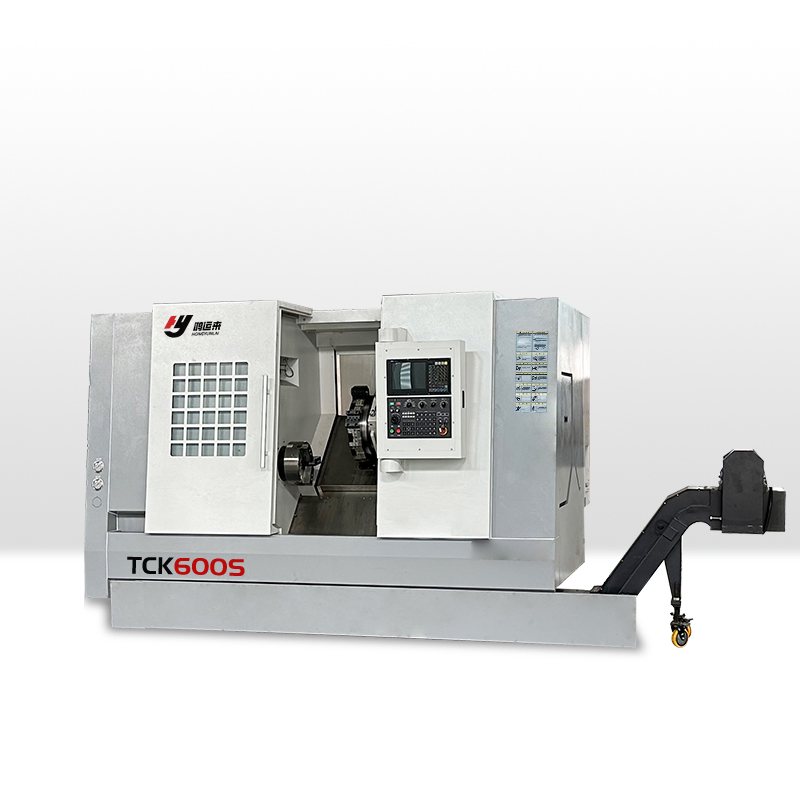

Tck600s CNC Turning Lathe Industrial Disc Machining System

1 / 5

Tck600s CNC Turning Lathe Industrial Disc Machining System

Send Inquiry

Product Description

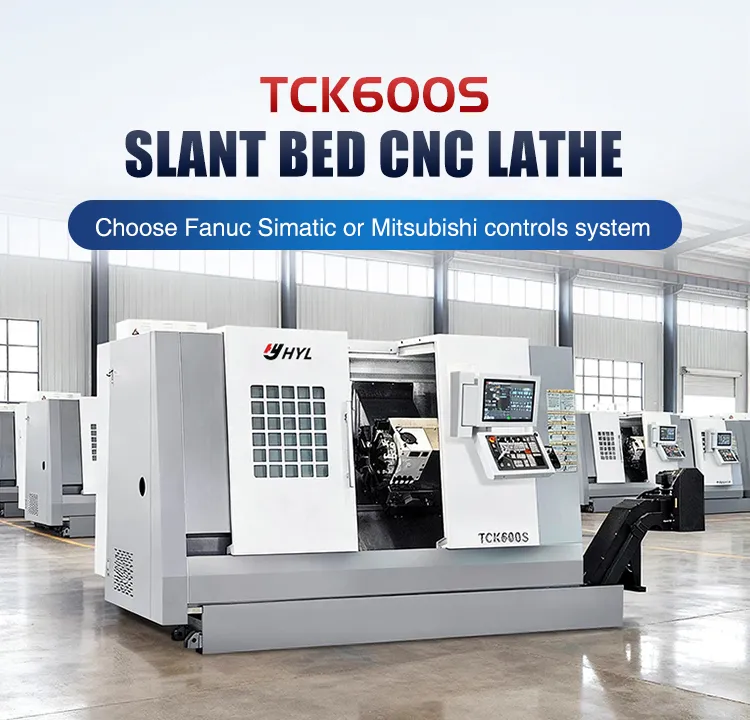

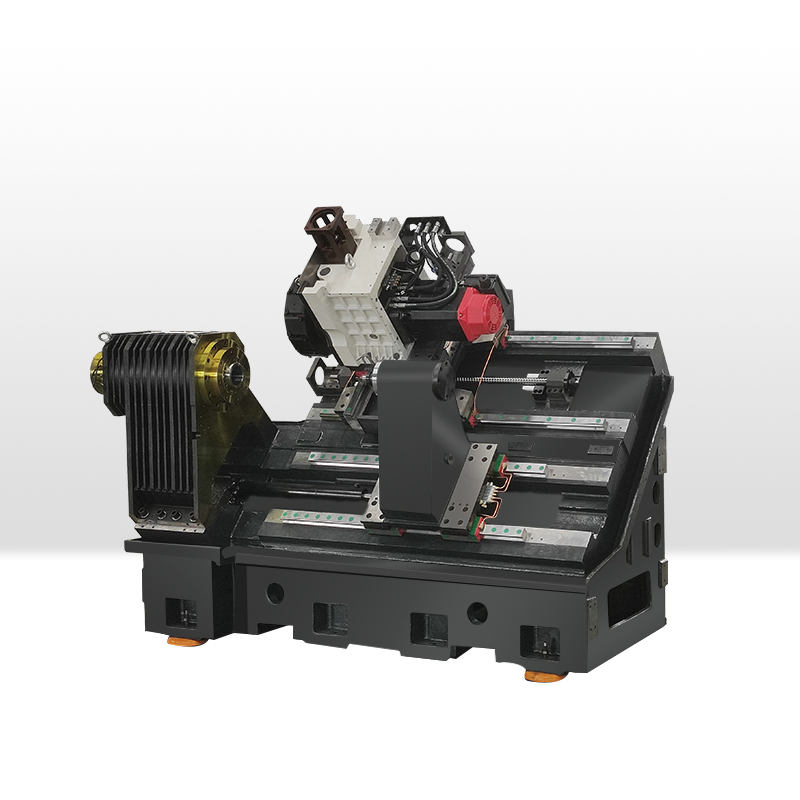

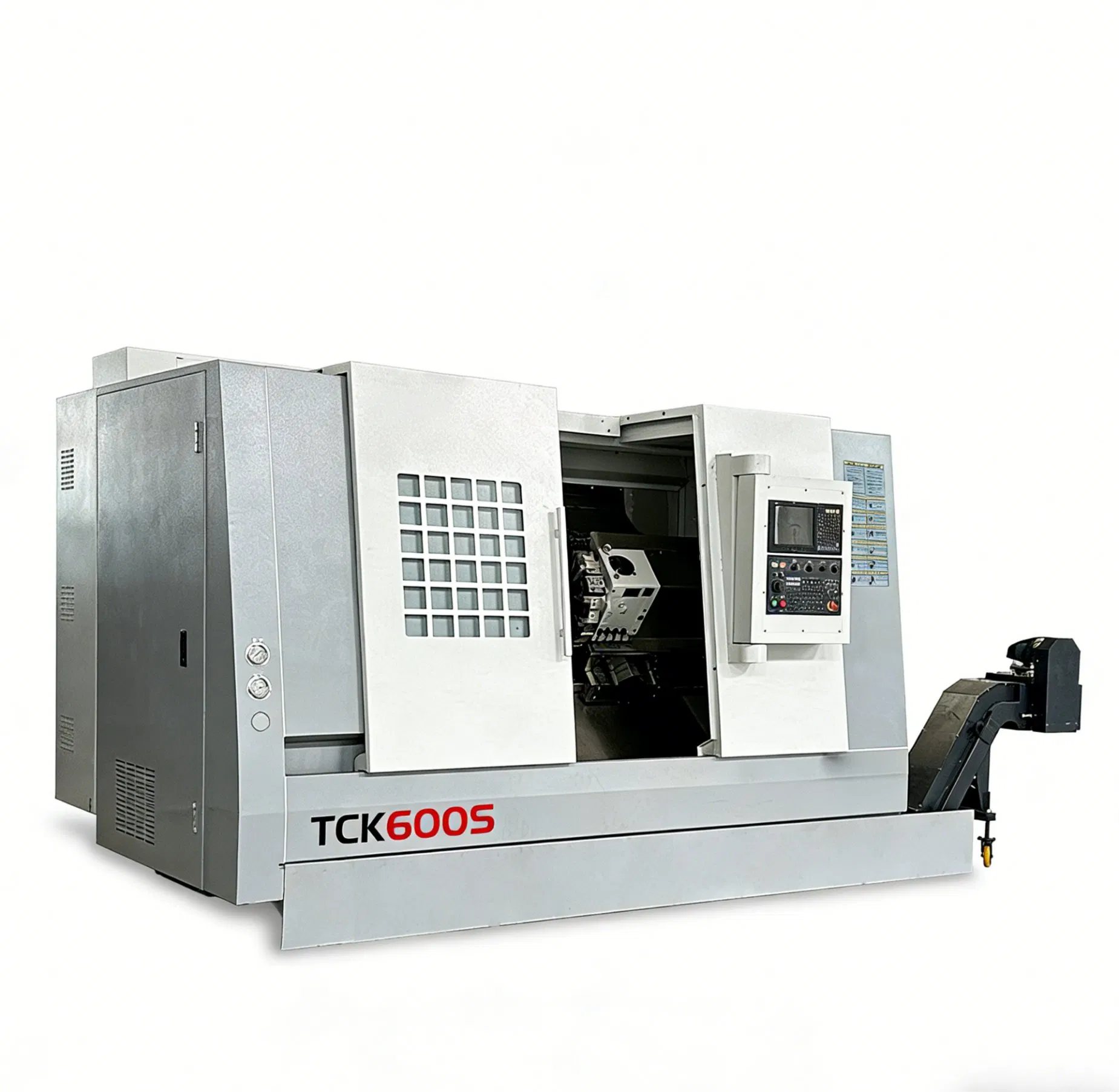

TCK600S Heavy Duty Disc Parts Inclined Bed CNC Lathe

Product Description

Product Parameters

project			unit	Specification	Remark
Maximum rotation diameter on the bed			mm	600
Maximum cutting length			mm	500
Maximum cutting diameter			mm	550	12 stations (diameter of the opposite side of the cutter head is 450, the center height of the turret is 125)
Standard cutting diameter			mm	430
Maximum turning diameter on the slide			mm	380

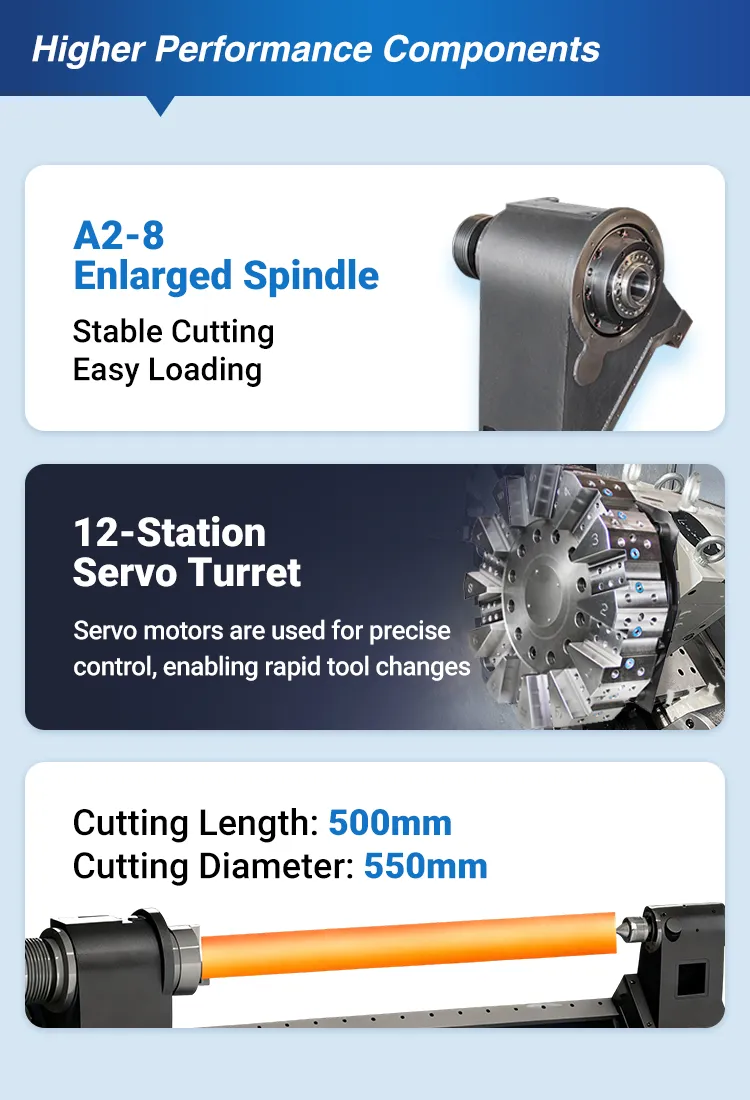

Spindle end type and code				A2-8	Spindle unit
Spindle hole diameter			mm	80
Maximum passing bar diameter			mm	70
Single spindle	Spindle speed range/spindle maximum output torque		r/min/Nm	50~3500/215
Headstock	Spindle speed range/spindle maximum output torque		r/min/Nm	50~3500/215
Main motor output power	30 minutes/continuous		kW	18.5/15
Main motor output power	30 minutes/continuous		kW	18.5/15
Standard chuck	Chuck diameter		inch	10²
X-axis travel			mm	300
Z-axis travel			mm	550
Standard tool holder				Horizontal 12-station servo
Tool size	External circular knife		mm	32×32
	Boring bar diameter		mm	Ф50
	End tool holder		mm	32×32
Can I choose the knife nearby?				Can
Machine gross weight		Total weight	kg	4300
weight capacity	Disk Parts		kg	350 (including chuck and other machine tool accessories)
	Shaft parts		kg	820 (including chuck and other machine tool accessories)
Machine tool dimensions (length × width × height)			mm	2790×1900×1850

FAQ

1. How can I choose the most suitable machines?

Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.

2. What are the main products available?

We specialized in all kinds of machines, such as CNC Lathe Machine, Vertical Machining Center, Lathe Machines and so on.

3. What is your trade terms?

FOB, CFR and CIF all acceptable.

4. What's the Payment Terms?

T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.

5. What's the MOQ?

1 set. (Only some low cost machines will be more than 1 set)

6. What about your warranty and after-sale service?

Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free. We usually offer technical support online by WeChat or WhatsApp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.
