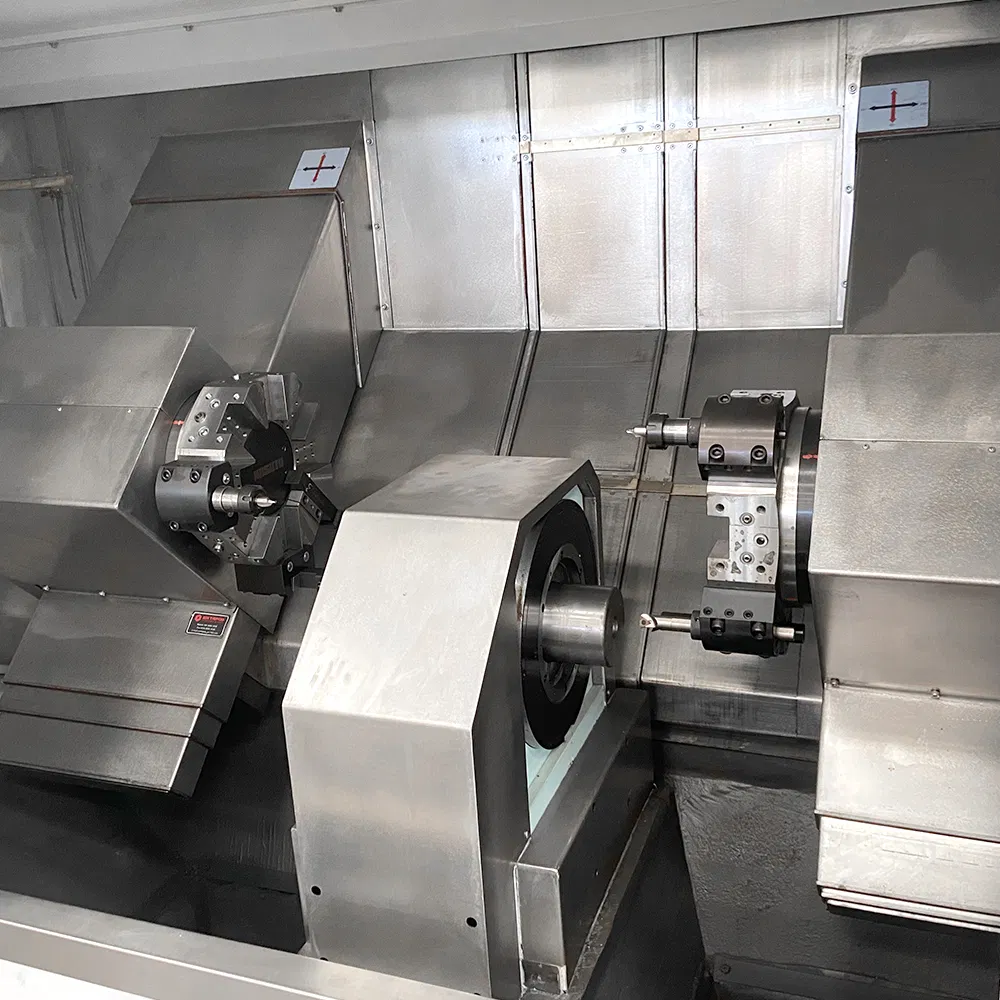

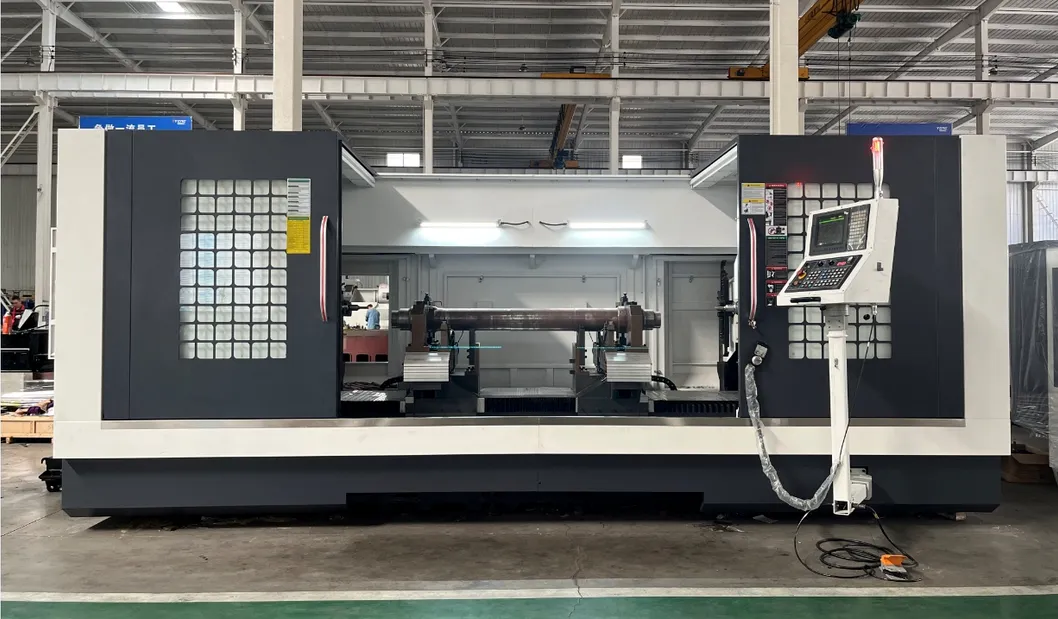

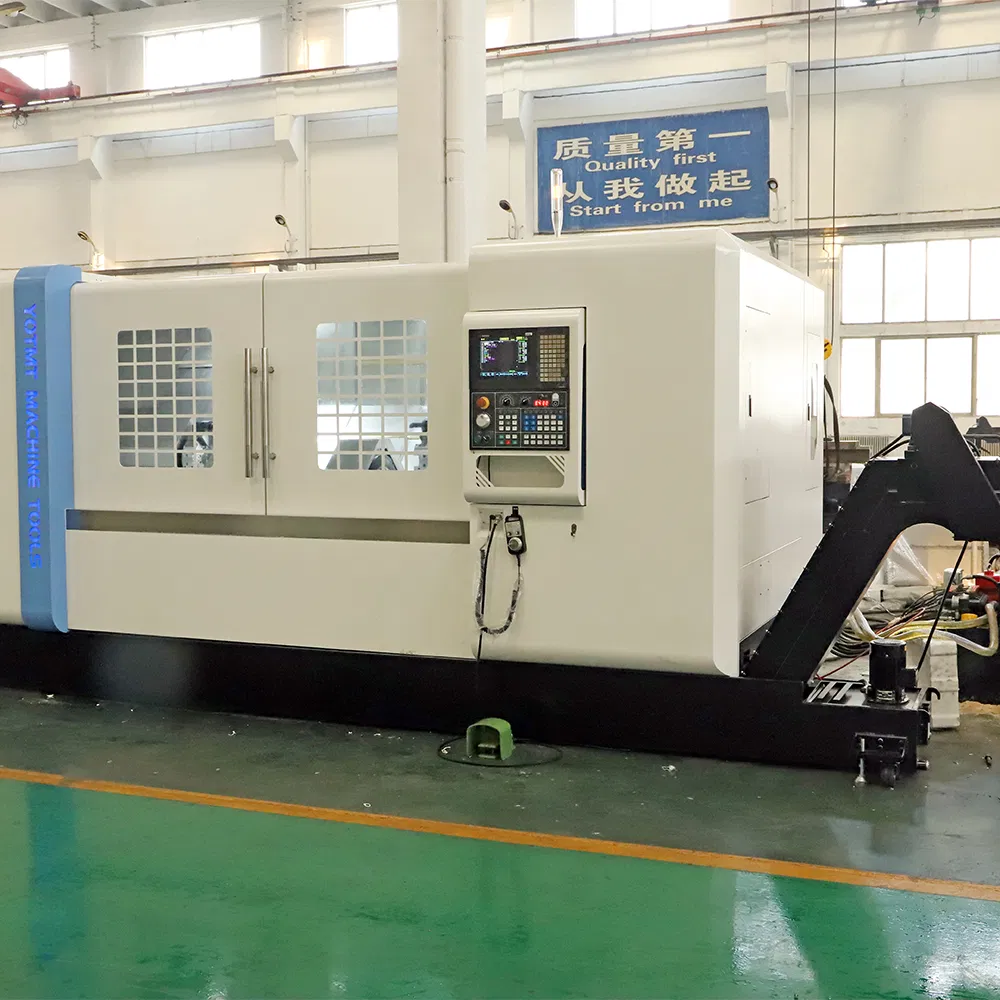

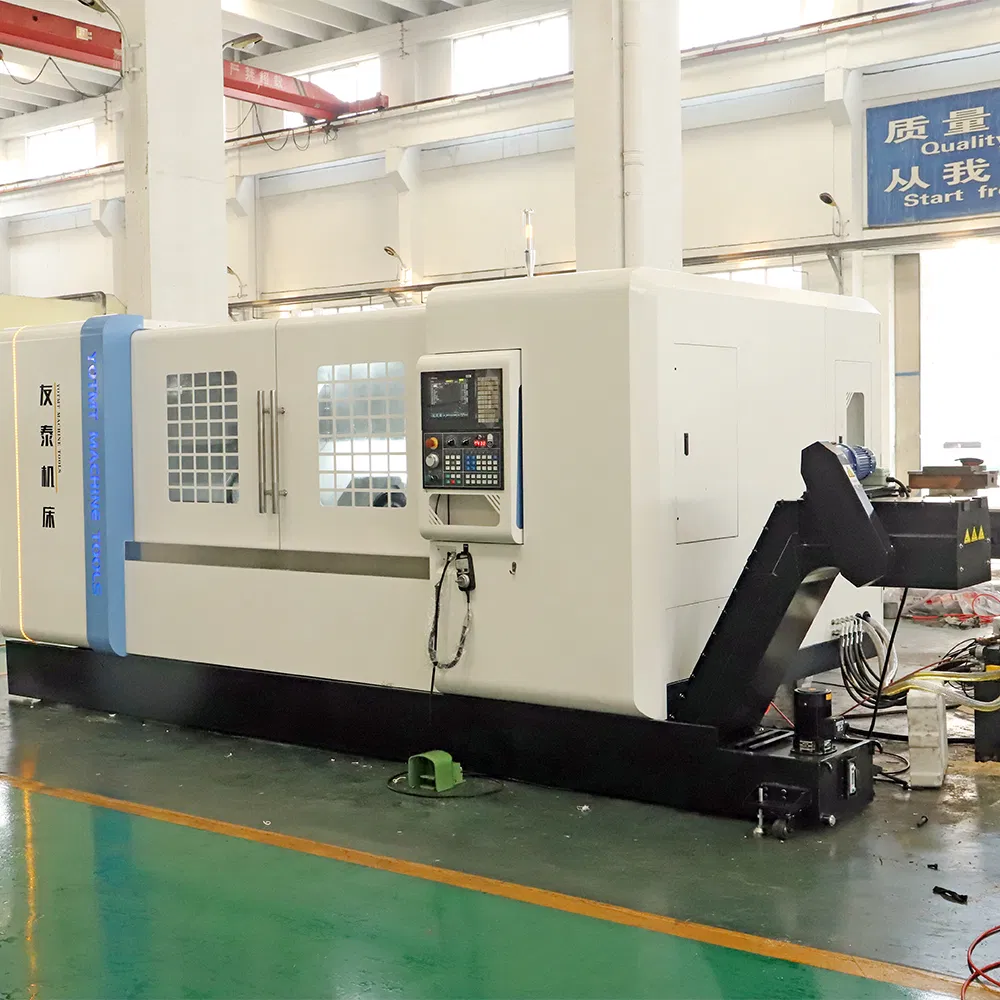

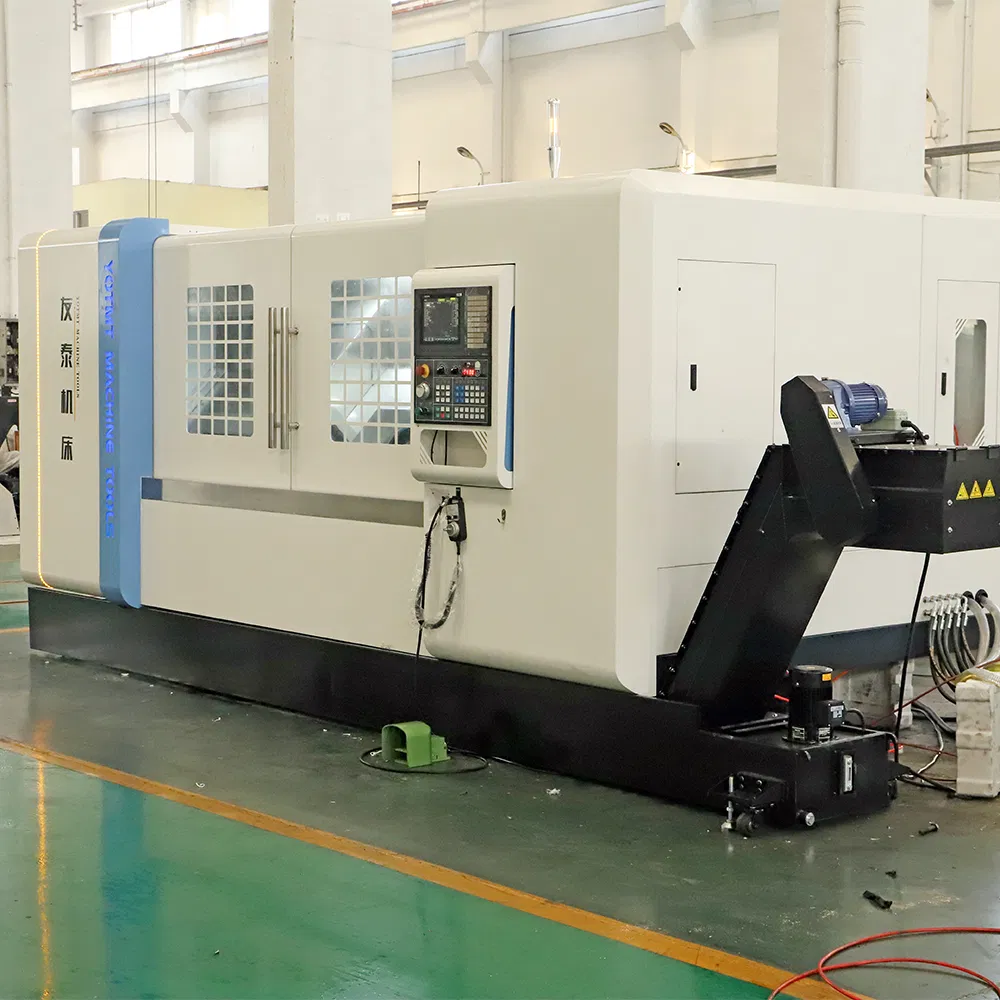

Experience the precision and efficiency of our Double Side Turning CNC Lathe Machine, a marvel of modern engineering designed to elevate your manufacturing capabilities. This state-of-the-art machine is primarily crafted for the meticulous turning of shaft workpieces, utilizing its innovative double-sided operation to ensure superior accuracy and productivity. Enhance your machining versatility with our optional Y-Axis Milling Power Head Turret, offering an expanded range of operations to meet diverse production needs.
| Machining Details | ||
|---|---|---|
| Model | Workpiece Length (mm) | X/Z Workpiece Stroke (mm) |
| XSC500 | 500 | 300/250X2 |
| XSC700 | 700 | 300/350X2 |
| XSC800 | 800 | 300/400X2 |
| XSC1000 | 1000 | 250/400X2 |
| XSC2000 | 2000 | 350/900X2 |
| XSC3000 | 3000 | 400/1400X2 |
| Machine Details | ||
|---|---|---|
| Parameter | Unit | XSC800 Specification |
| Machine Type | - | 45° slant bed |
| Spindle Type | - | Single spindle + center holder |
| Tool Holder Type | - | Electric / servo |
| Tool Holder Station | - | 4 / 8 / 12 station |
| MAX. Workpiece Length | mm | 800 |
| MAX. Workpiece Diameter | mm | 72 / 120 / 160 / 200 |
| X Axis Stroke Distance | mm | 300 |
| Z Axis Stroke Distance | mm | 400*2 |
| X/Z Axis Fast Move | mm/min | 45 |
| Processing Coaxiality | mm | 24 |
| Spindle Power | kw | 5 |
| Spindle Speed | mm/min | 2000 / 1000 / 500 |
| DETAIL PRESENTATION
Our advanced engineering independently innovates upper and lower silos, seamlessly integrating functions such as automatic axial positioning, precise workpiece in-place detection, user-friendly automated interfaces, and intelligent automatic counting for enhanced productivity.

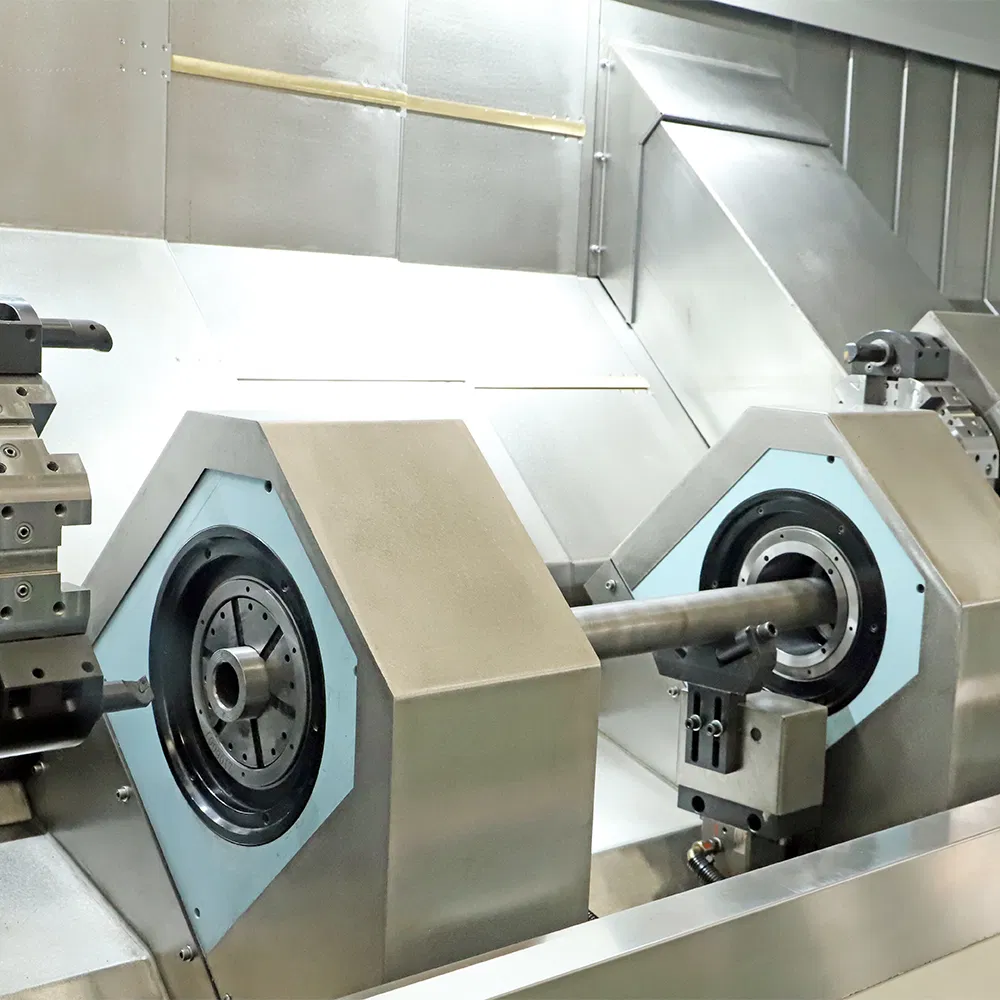

Engineered with an imported P4 grade spindle, our design offers exceptional stability, unmatched rigidity, and precision. The hydraulic clamping system ensures a powerful and secure grip for superior performance.

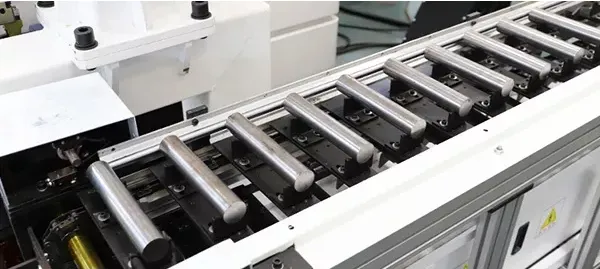

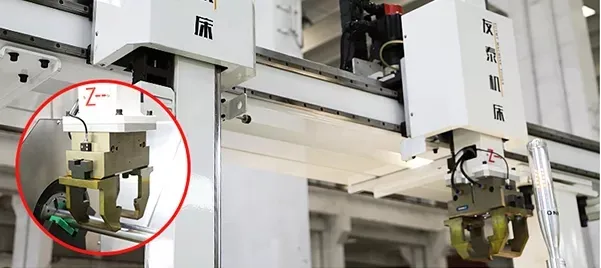

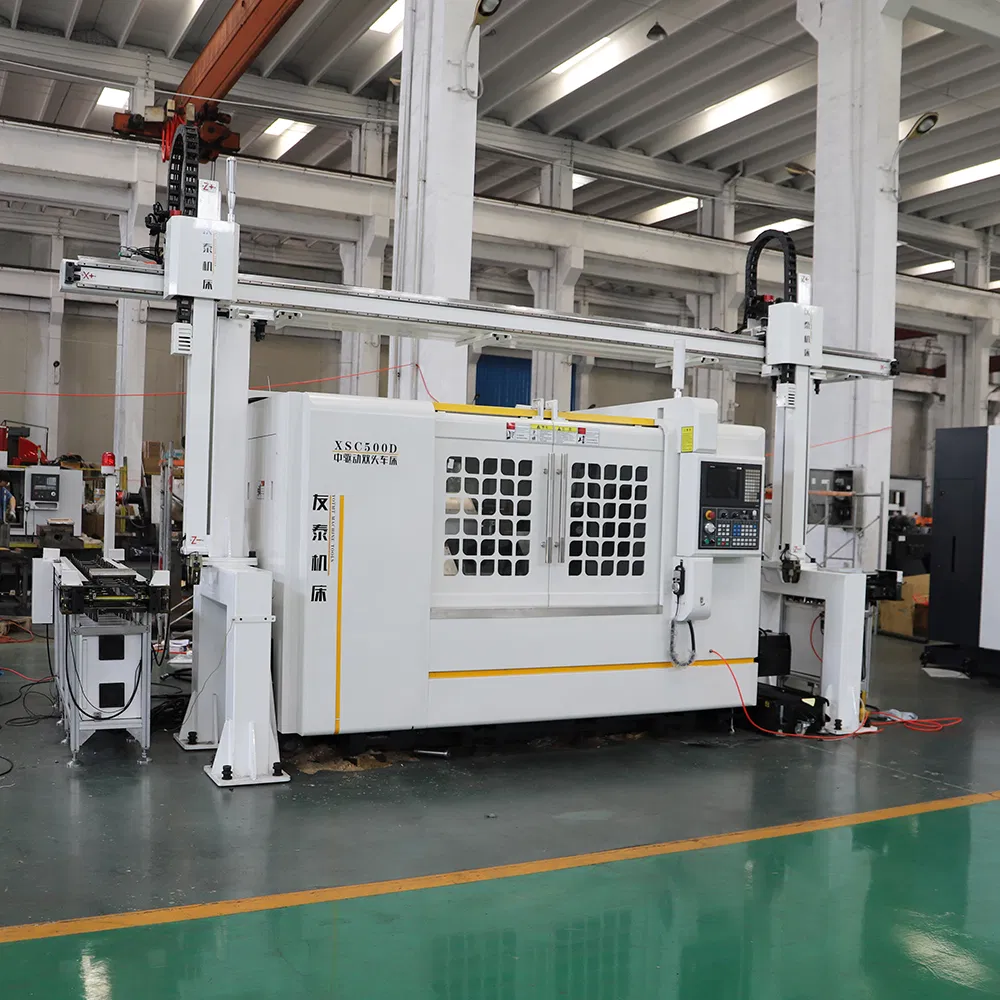

Designed to seamlessly integrate with roller conveyors and sophisticated automated robot operations, this system significantly boosts work efficiency, streamlining your production line.

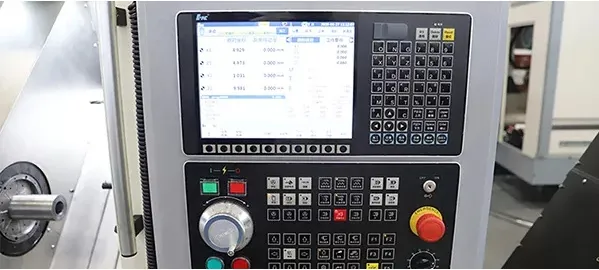

Featuring a dual-channel bus absolute value servo system, our CNC solution eliminates the need for resetting upon activation, allowing immediate operation and adaptability as per your needs.

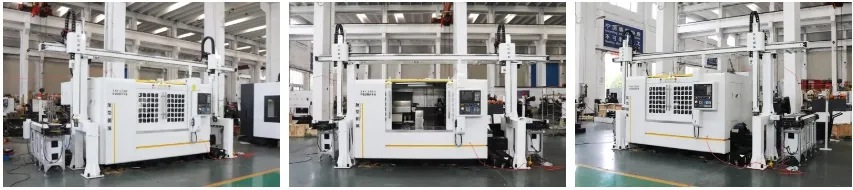

| PRODUCT SHOOTING

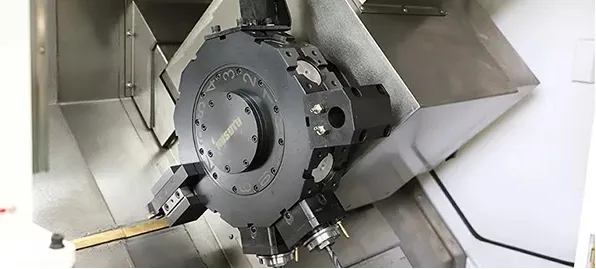

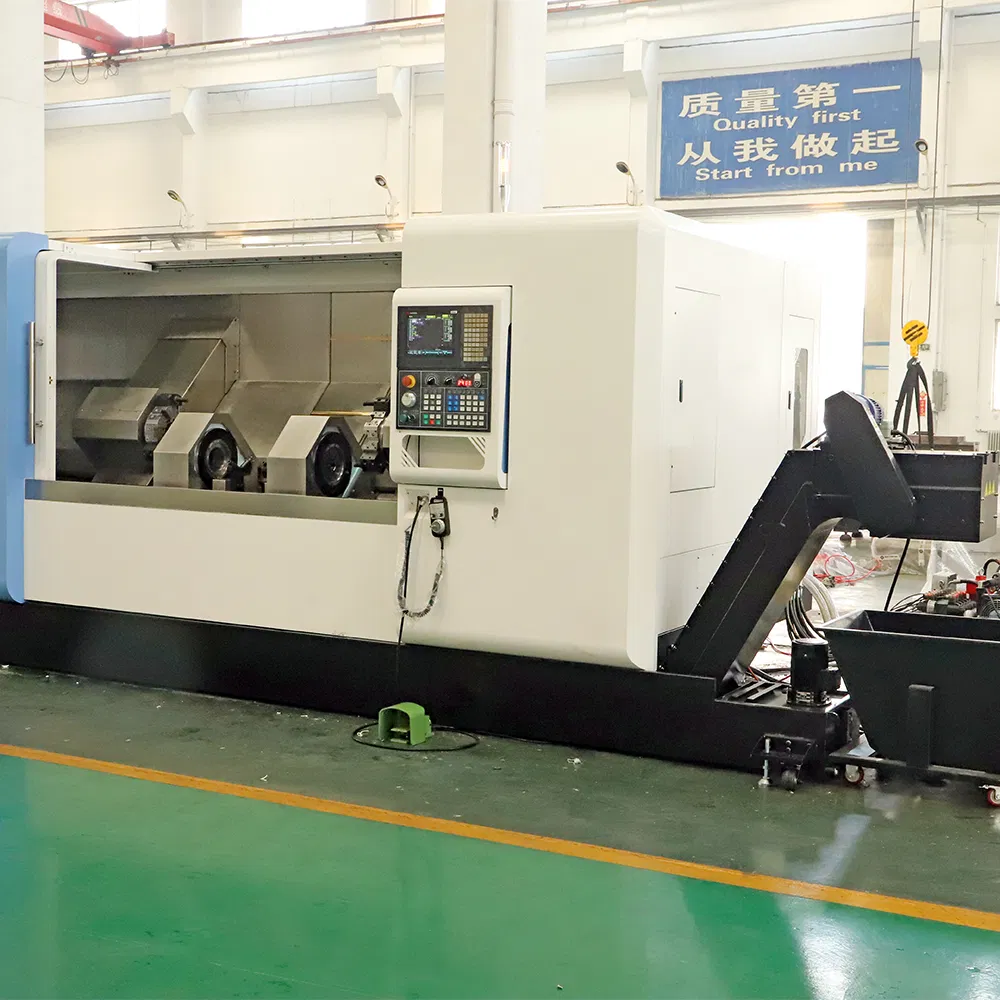

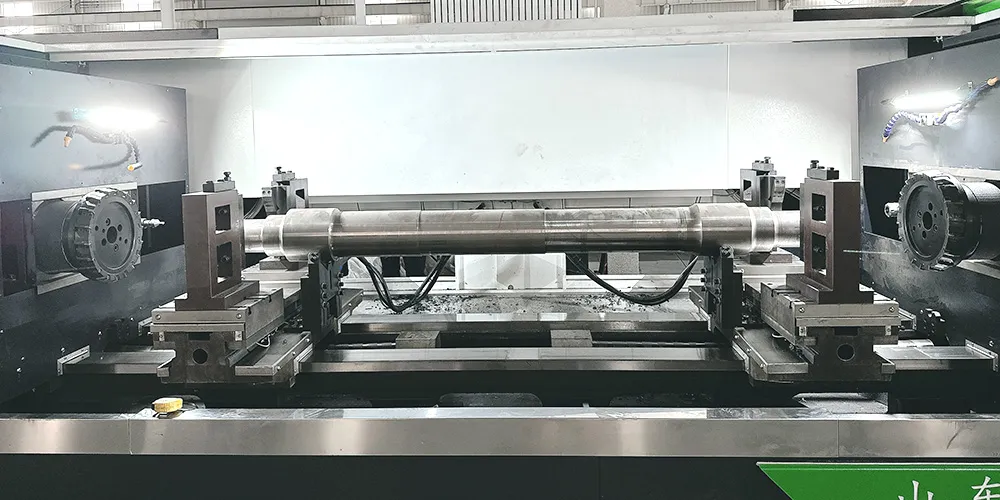

Center drive dual-tooling turret series: Achieve impeccable coaxiality at both ends with precision reaching up to 0.01 mm. Our fully automatic production process is augmented by an upgradable multifunctional power turret, ensuring cutting-edge versatility.
Our manufacturing brand stands as a beacon of innovation and excellence in the high-tech industry, seamlessly integrating research, production, sales, and service. As a trailblazer in the realm of high-end and efficient special CNC machinery, our brand has firmly established itself as a leader.
Specializing in the pioneering research, development, and manufacturing of bespoke machine tools and integrated machine tool solutions, we are dedicated to advancing the boundaries of technology. Founded in 1998, the brand has written a significant milestone in the industry's history.

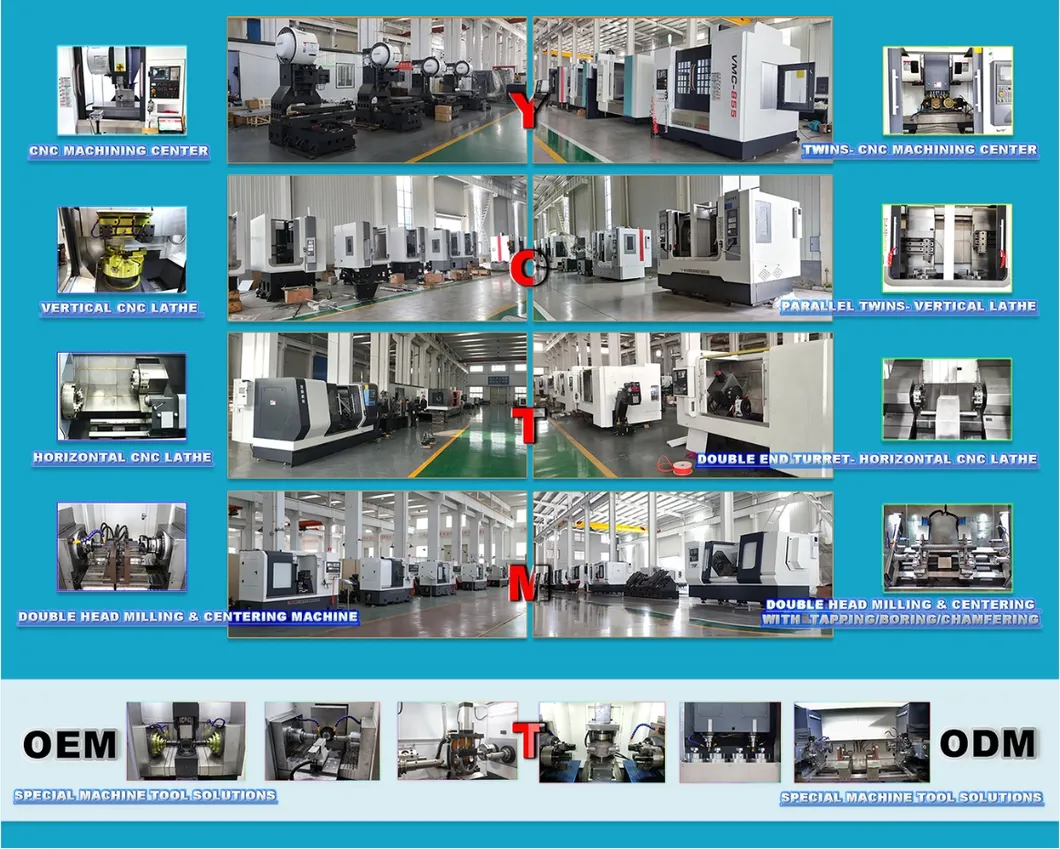

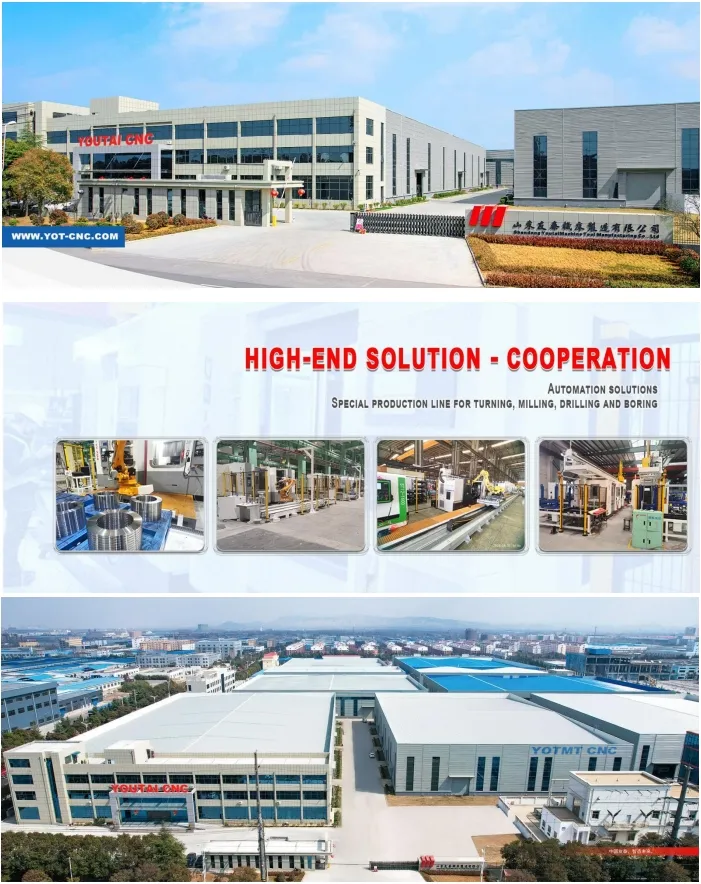

With an impressive registered capital of 220 million yuan, our facilities sprawl over 30,000 square meters and boast cutting-edge setups including advanced processing, welding, sandblasting, and powder coating production lines, alongside two state-of-the-art automated heat treatment production lines.

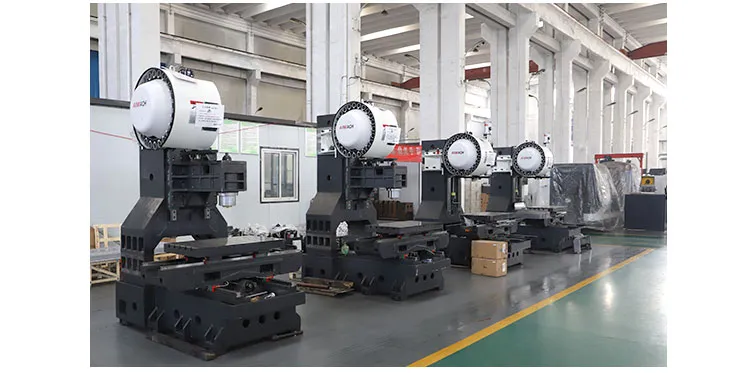

Our esteemed product lineup features multifunctional CNC milling machines, single-spindle, multi-spindle, and double-sided CNC lathes, tailored integrated special machine tools, and precision universal CNC lathes and machining centers, all crafted to meet the intricate processing demands of diverse complex parts.
Renowned for its versatility, our products find applications across aerospace, automotive, energy, and engineering machinery sectors, reaching over 70 countries and regions through an extensive network of agents and trade channels.
Guided by the business philosophy of "scientific innovation and quality first," we uphold a service tenet rooted in "honesty-based and customer-oriented" principles. Certified by the ISO9001 quality management system, we have garnered numerous accolades and patents, including the prestigious Quality Trustworthy Product Certificate, Famous Brand Product Certificate, and the High-tech Enterprise Certificate.
Endowed with a top-tier research and development and management team, we consistently pioneer new products and technologies tailored to market demand, ensuring high-quality offerings coupled with impeccable after-sales service. We proudly hold over 70 national patents, encompassing inventions in structural design, control systems, and CNC machine tool intelligence.
Honored with numerous industry awards by the Machinery Industry Federation, such as the "Machinery Industry Science and Technology Award", "Excellent Brand", and the "Quality Award", we stand out as a leader in mechanical innovation. We foster strong collaborations with numerous universities and research institutions, actively participating in key scientific and technological projects, achieving significant breakthroughs and commendable social benefits.
| Certifications & Activities
With cutting-edge equipment R&D technology and an impressive collection of numerous patents, our brand stands as the preferred partner for modern factories. With numerous partnerships with large-scale cooperative enterprises and extensive experience in designing professional automated production lines, the company has carved out a prestigious reputation. Its products enjoy robust success and are highly sought after in the international market.
