Lathe Milling Centre Machine

The core of a milling centre machine is an automatic tool changer integrated into a CNC milling machine. This system enables continuous multi-process machining, specializing in high-precision and efficient processing of complex flat and three-dimensional parts. It is a key piece of equipment for flexible manufacturing in machining.

I. Core Product Features:

• Highly Integrated Configuration: Standard automatic tool changer (typically with a tool magazine capacity of 16-60 tools) automatically switches between milling cutters, drills, taps, and other tools without manual intervention.
• Multi-Axis Mobility: Mainstream models offer 3 axes (X/Y/Z), while mid-range and high-end models support 4 axes (with additional A/C axis indexing) or 5 axes (fully linked), enabling machining of complex curved and inclined surfaces.

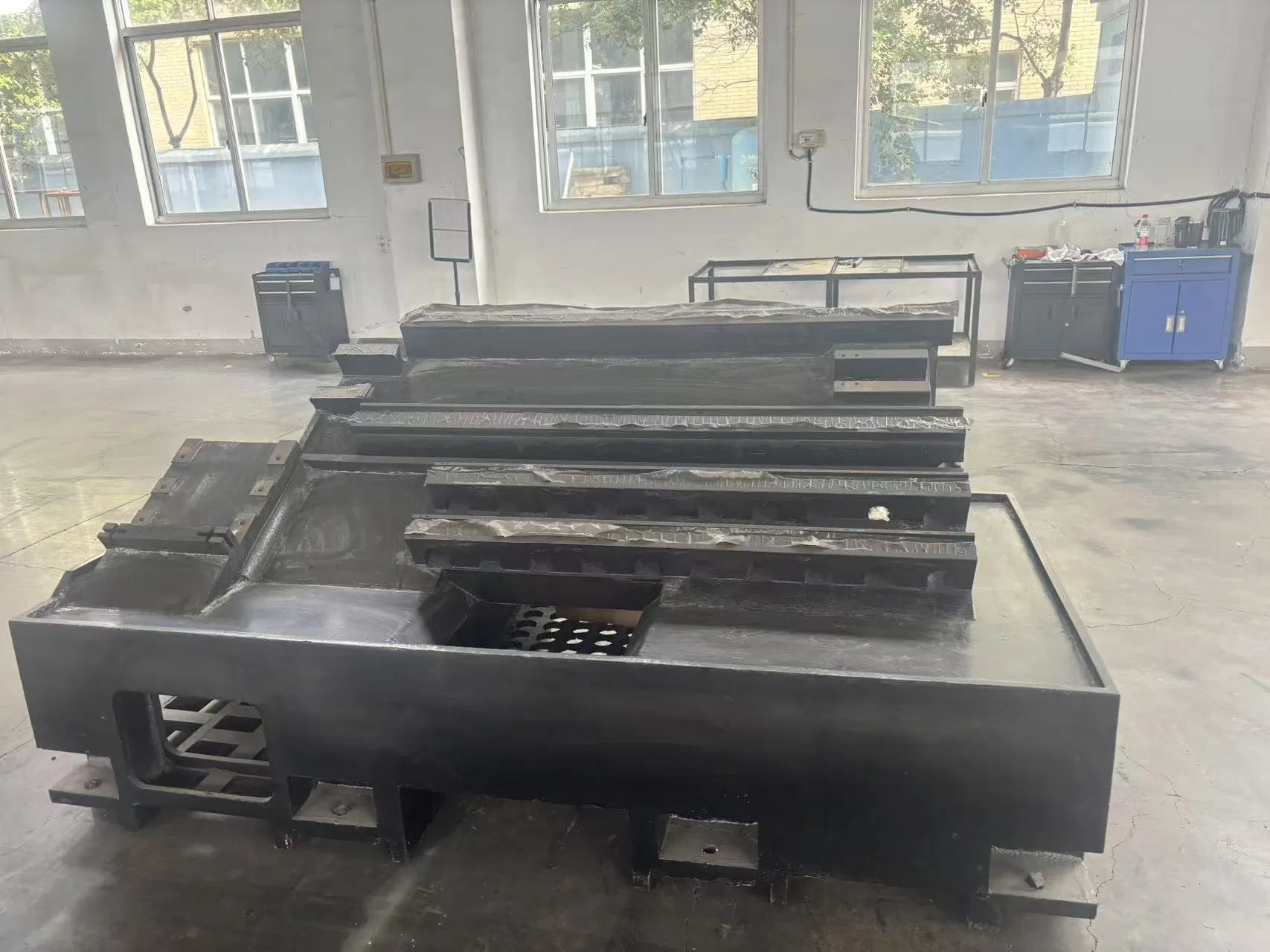

• High-Precision Structural Design: Utilizing a rigid bed, high-precision ball screws and linear guides, driven by servo motors, achieves positioning accuracy of up to 0.001mm, meeting precision machining requirements.
• Intelligent Adaptation: Equipped with mainstream CNC systems (such as FANUC, Siemens, and Mitsubishi), it supports program pre-reading, tool life management, and machining error compensation. Some models can be integrated with MES systems for intelligent production.

II. Main Functions:

• Basic Milling: Performs core operations such as plane milling (rough and fine milling), contour milling (external and internal contours), groove milling (right-angle slots, T-slots, dovetail slots), and step milling.
• Holemaking: Through automatic tool change, it performs various hole types, including drilling, reaming, tapping (internal and external threads), and countersinking, without changing equipment.
• Complex Feature Machining: 4/5-axis models can machine curved surfaces (such as mold cavities and impeller blades), inclined surfaces, and spatial hole systems, meeting the machining needs of irregular parts.

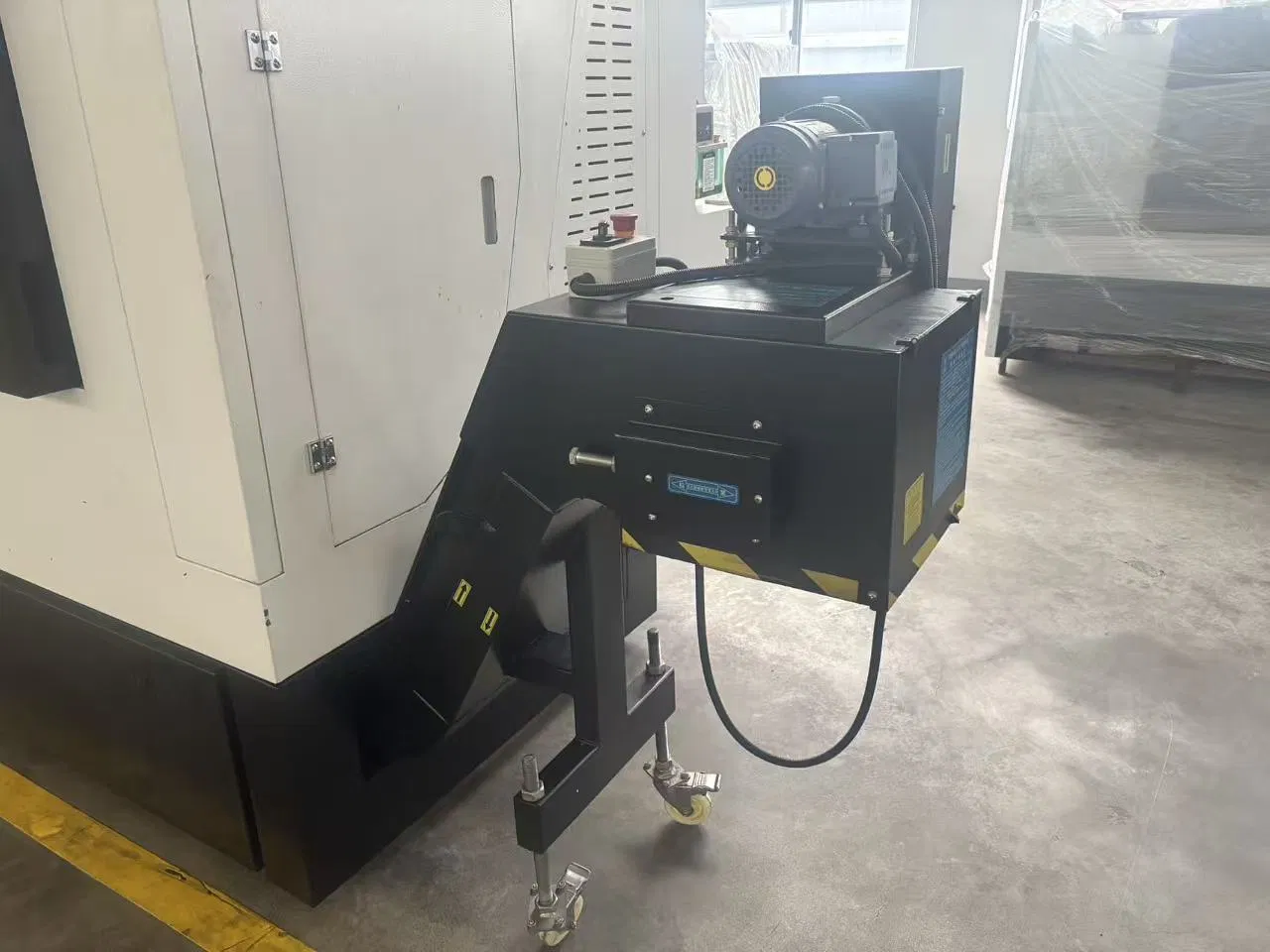

• Auxiliary Features: Equipped with a coolant (cutting fluid) system for cooling and chip removal, some models feature a spindle center water outlet function; support for automatic workpiece coordinate setting (e.g., probe measurement), reducing manual tool setting time.

III. Typical Applications:

This machine is widely used in industries requiring multi-process, high-precision machining, particularly for complex structural parts:

• Mold Manufacturing: Machining precision components such as cavities, cores, and mold bases for plastic and stamping molds, as well as electrodes.
• Automotive Parts: Machining complex structural parts such as engine cylinder heads, transmission housings, chassis brackets, and steering knuckles.
• Aerospace: Machining parts made of difficult-to-machine materials such as aluminum and titanium alloys, such as aircraft frames, engine blades, and sensor housings.
• Electronics and Medical Devices: Machining small, high-precision parts such as precision connectors, mobile phone midframes, and surgical instruments.

IV. Core Advantages:

• Significantly Improved Production Efficiency: The automatic tool changer reduces tool change time. Multiple processes can be completed on the same machine, eliminating workpiece transfer between multiple machines. This reduces machining cycle times by 30%-50% compared to conventional milling machines.
• Ensure consistent machining accuracy: Reduce workpiece clamping times (typically, all steps are completed in a single clamping), minimize positioning errors, and minimize part precision fluctuations during mass production.
• Reduced labor reliance and costs: The CNC system enables automated machining, with operators only responsible for loading, unloading, and equipment monitoring, allowing one person to manage multiple machines.
• High machining flexibility: Quickly switch between machining part models by modifying the CNC program, eliminating the need for extensive fixture replacement or equipment configuration adjustments, accommodating high-variety, small-batch production needs.
