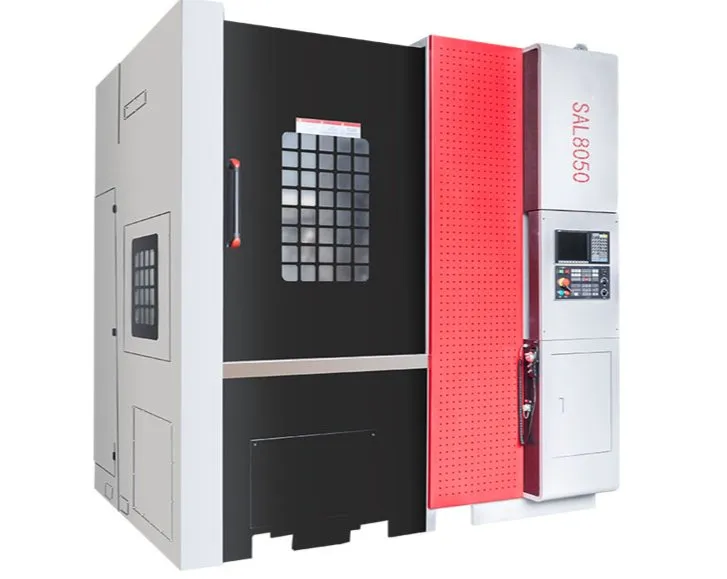

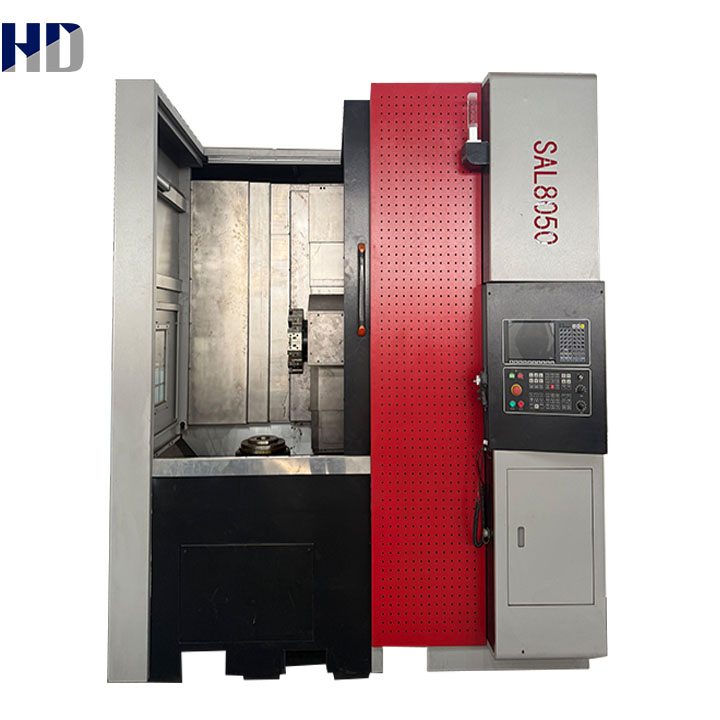

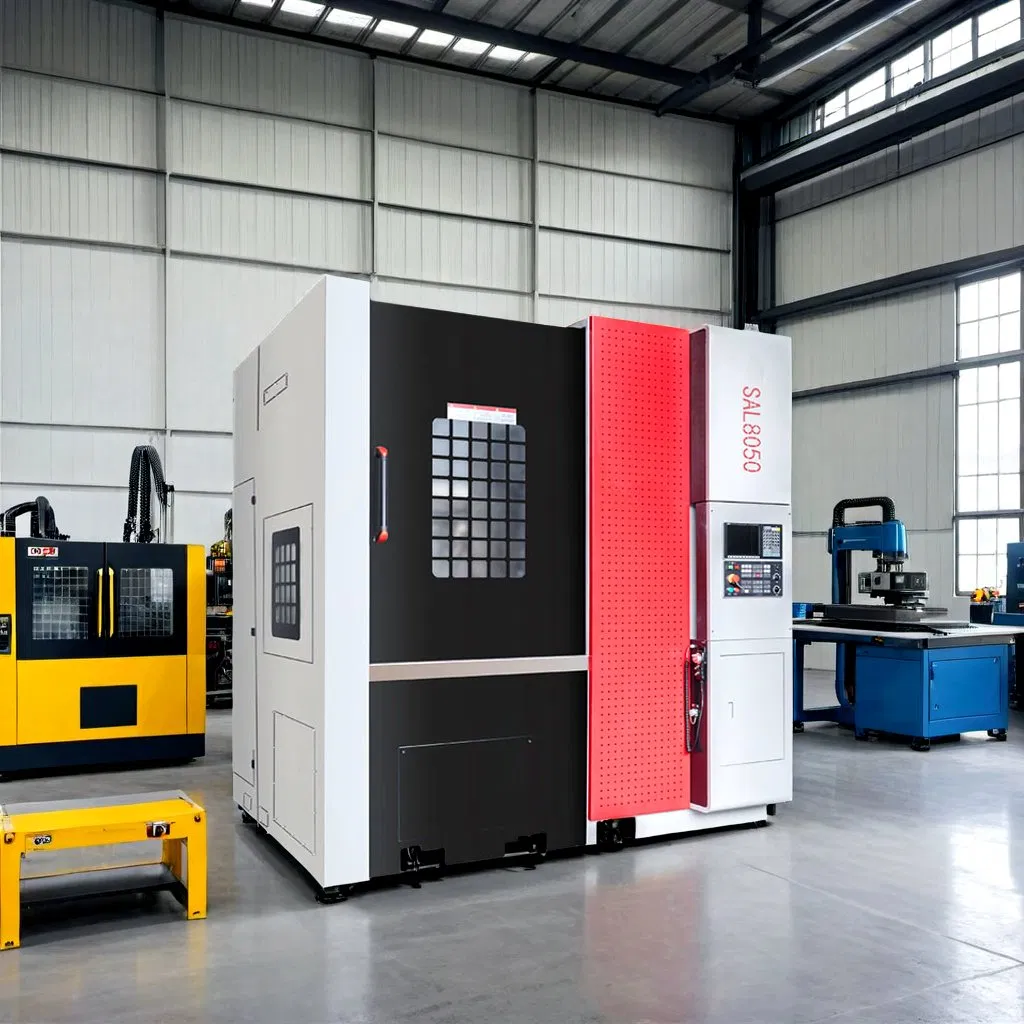

The SAL8050 vertical lathe is a high-speed, high-efficiency, high-rigidity machine, excelling in both rough and finish machining. It boasts a fully enclosed protective cover to safeguard components from dust. Main configurations use imported parts, complemented by renowned domestic components, enhancing machine stability and longevity. Its design targets automotive brake drums, wheel hubs, motor housings, and valves, with an elegant and stable build.
Fixtures: Features hydraulic chucks designed for vertical lathes with waterproof and dustproof capabilities.
Drive: Powered by high-end precision ball screws, achieving a rapid traverse speed of 12m/min. It offers excellent motion accuracy and dynamic performance, significantly boosting machining efficiency.
Machine Control System: Utilizes the Huazhong 808D CNC system, known for its reliability, stability, and environmental adaptability.

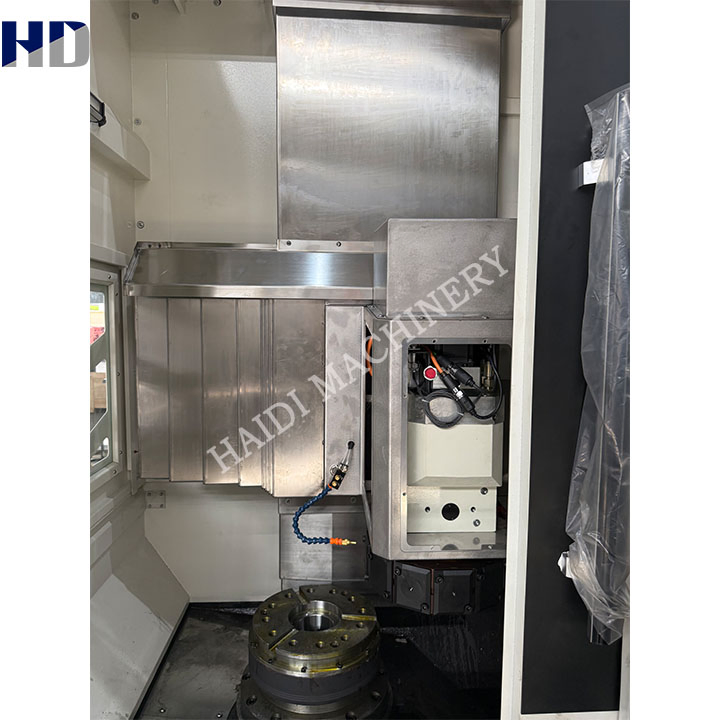

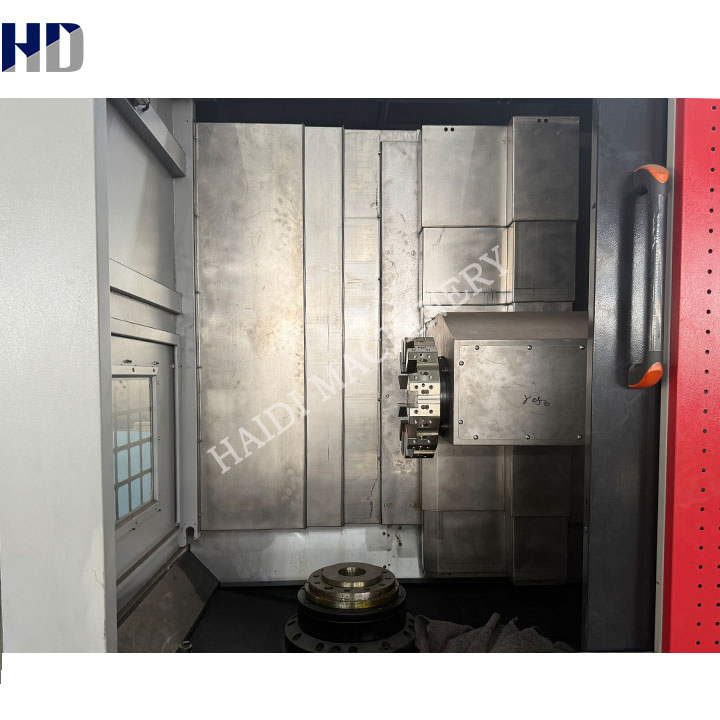

Tool Turret: Features a Sanhe servo power turret with high-speed indexing and precision positioning of gear plates, complemented by a hydraulic locking structure.
Machine Tool: The X-axis and Z-axis feature linear guideway structures, specifically Taiwan HIWIN's RGW45 roller linear guideways, offering high precision and rigidity for dimensional accuracy.
| Machine Category | Item Description | Specification Details |
|---|---|---|
| Machine Structure | Guideway Structure | X, Z linear guideways |
| Feed Type | Fixed beam | |
| Machining Capacity | Max. Swing Diameter | Φ1000 mm |
| Max. Turning Diameter | Φ900 mm | |
| Max. Turning Height | 500 mm | |
| Max. Boring Height | 350 mm | |
| Travel | X-axis Travel | 710 mm |
| Z-axis Travel | 510 mm | |
| Rapid Traverse | X-axis Rapid Traverse | 16 m/min |
| Z-axis Rapid Traverse | 8 m/min | |
| Spindle | Spindle Speed Range | 60–700 r/min |
| Spindle Nose | A2-11 | |
| Accuracy | Repeatability | ±0.005 mm |
| Positioning Accuracy | ±0.004 mm | |
| Minimum Incremental Unit | 0.001 mm | |
| Chuck & Turret | Hydraulic Chuck | 24-inch, 3-jaw waterproof |
| Turret Stations | 8 | |
| Servo Tool Positions | 25 | |
| Control System | X-axis Servo Motor | 27 Nm / 2000 rpm |
| Z-axis Servo Motor (with brake) | 27 Nm / 2000 rpm | |
| Main Servo Motor | 15 kW / 1500 rpm | |
| Data Transfer | USB | |
| Cooling & Chip Removal | Coolant Pump Motor | 180 W |
| Pump Flow Rate | 50 L/min | |
| Coolant Tank Capacity | 220 L | |
| Chip Conveyor | Equipped | |
| Power Requirement | Power Supply | 380 V |
| Power Consumption | 15 kW | |
| Operating Conditions | Temp. 5–38 °C, Humidity <85% | |
| Hydraulic Station | 1.5 kW / 50 Hz – 50 L | |
| General Specifications | Machine Weight | Approx. 9 tons |
| Floor Space (L × W × H) | 2500 × 2245 × 2885 mm |
