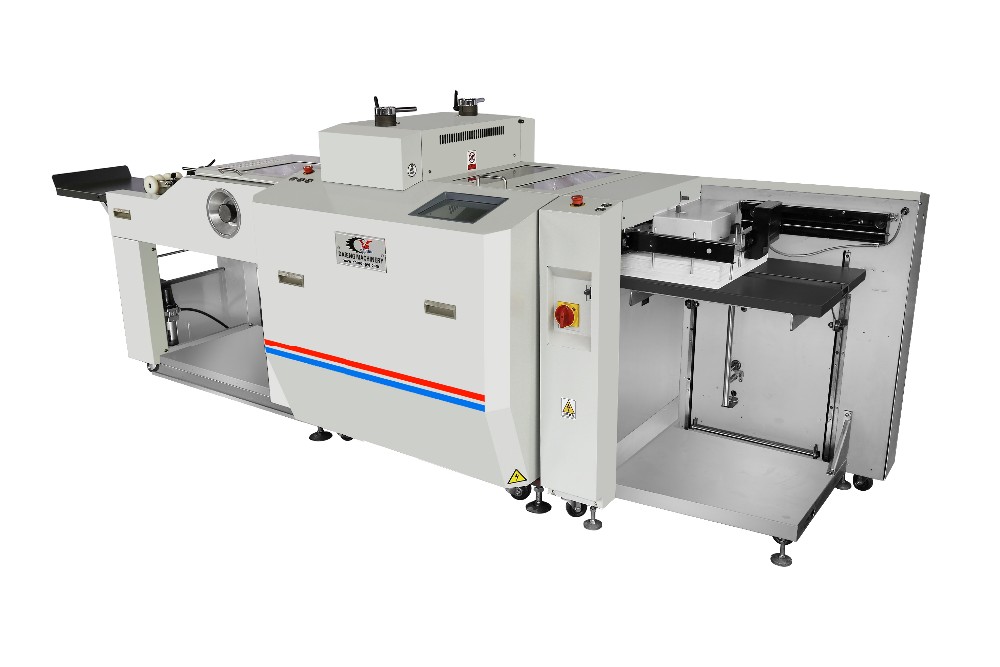

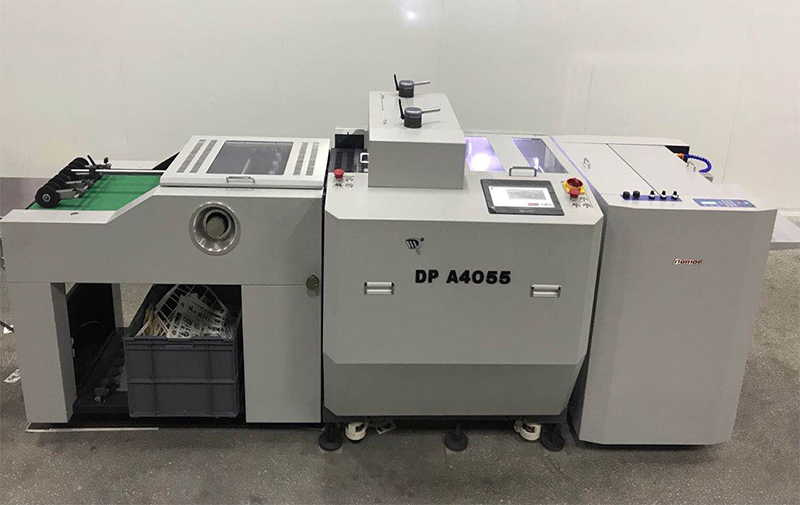

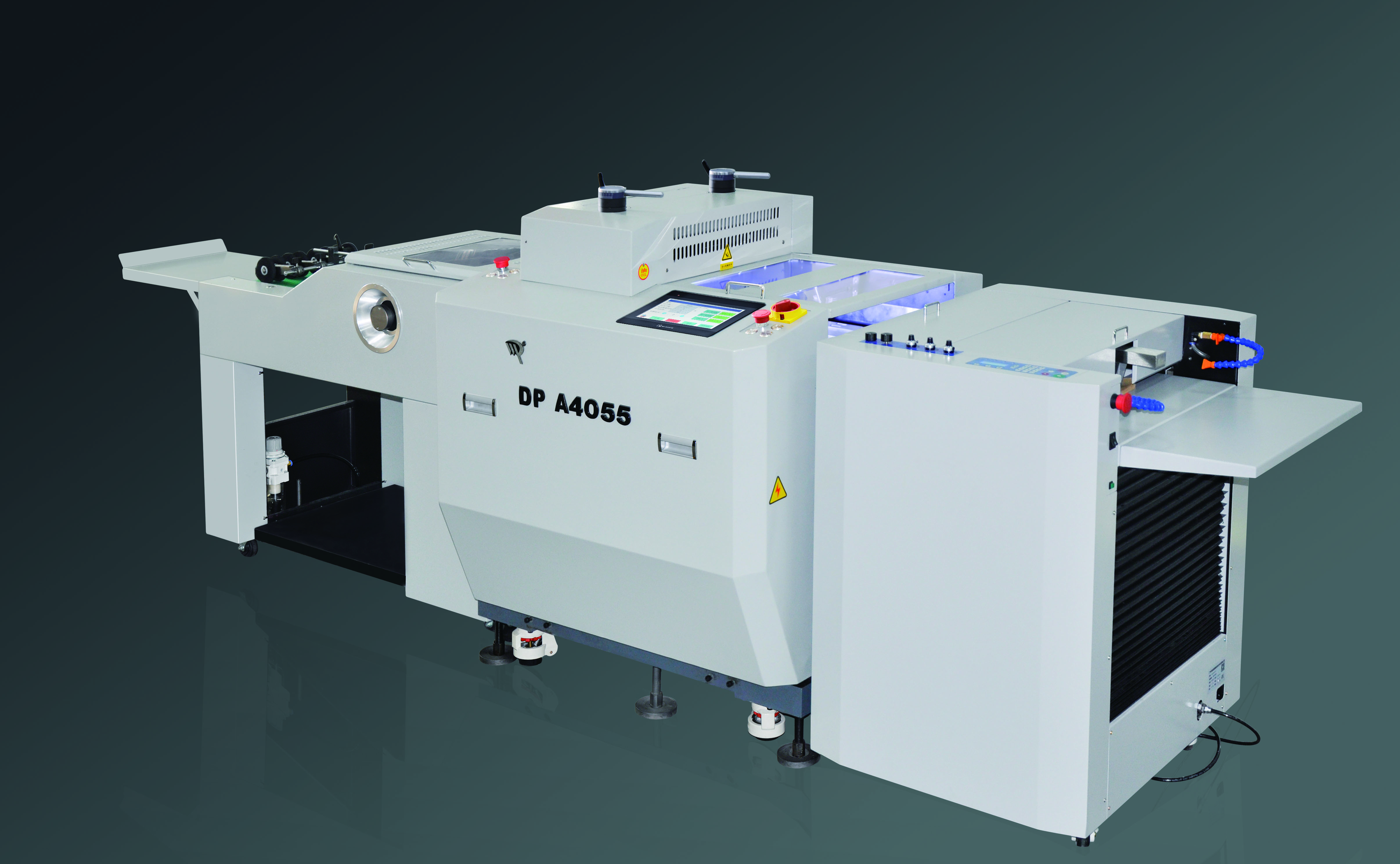

DP-A4055-The Rotary Die-cut System with High Convenience
DP-A4055-The Rotary Die-cut System with High Convenience
DP-A4055-The Rotary Die-cut System with High Convenience
DP-A4055-The Rotary Die-cut System with High Convenience
DP-A4055-The Rotary Die-cut System with High Convenience
1 / 5
DP-A4055-The Rotary Die-cut System with High Convenience
DP-A4055-The Rotary Die-cut System with High Convenience
DP-A4055-The Rotary Die-cut System with High Convenience
DP-A4055-The Rotary Die-cut System with High Convenience
DP-A4055-The Rotary Die-cut System with High Convenience

DP-A4055-The Rotary Die-cut System with High Convenience

Send Inquiry

Product Description

Product Highlights - DP-A4055

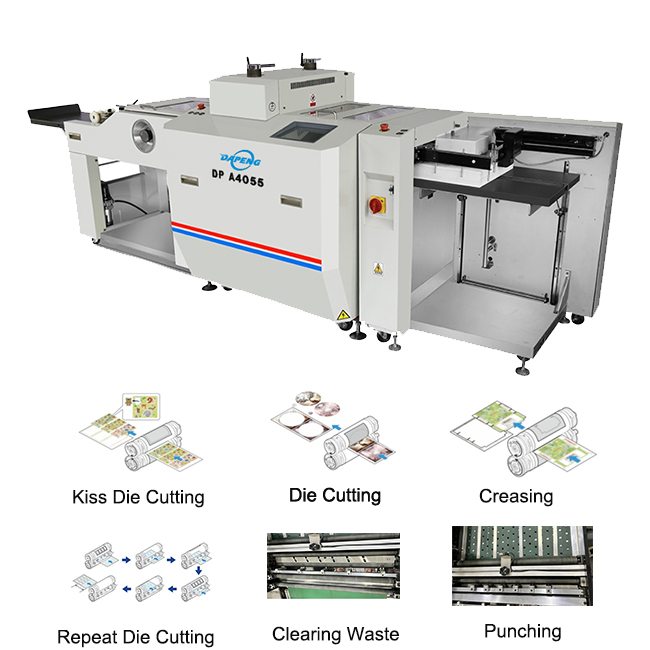

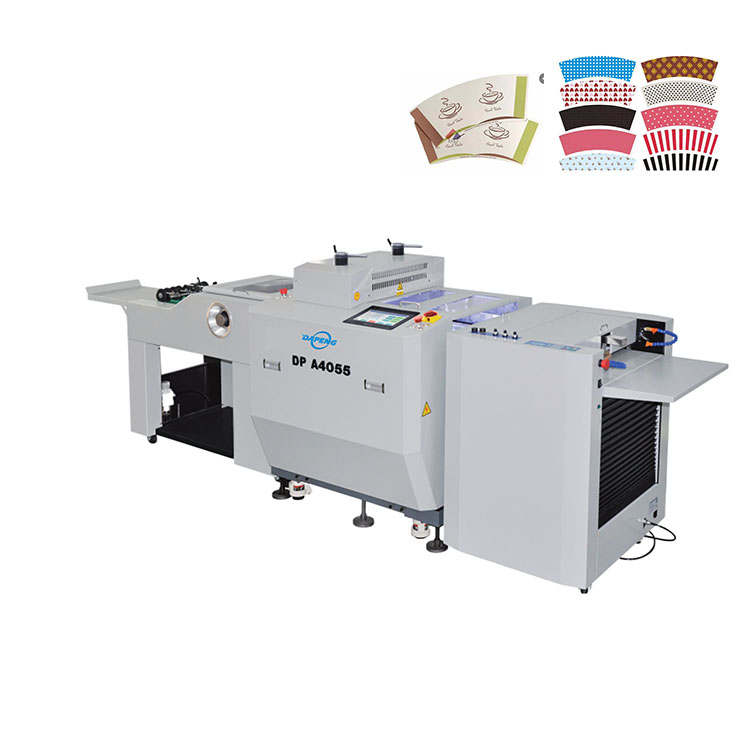

Roller Die Cutting machine is to cut the paper with the mould. It can be applied to normal paper, coated paper and cardboard, (the following paper cannot be processed: composite paper (covered with polypropylene) or plastic film). Speed can reach 6000 cycles per hour. It can remove the waste automatically, easy to operate and save time with the efficient work.
  • 1
    Operation Console
    Both setup and control can be done though the intuitive touch screen. After setting upper and lower die, the system can be set up by simply inputting sheet size and product size. The graphical illustrations on the screen are simple and easy to understand.
  • 2
    Feed Section
    Vacuum belt feeding enables superior feeding with easy setup and operation. An ultrasonic sensor is used for double feed detection on a wide range of substrates.
  • 3
    Transport Section
    Sheets are registered by vacuum belt and position is firmly secured with gripper rollers for high quality finish. Servo motor driven gripper rollers ensure the die cut position without effecting processing speed.
  • 4
    Die Cutting
    Rigid magnetic upper roller and solid lower anvil roller ensure high quality die cutting. Uniquely designed die cutting section enables easy and quick die setting. 0.8mm flexible die plates can be used.
  • 5
    Separator
    The separator removes the waste from the finished product and delivers it to the waste bin. Air cylinder driven separator pins and sir jets can be used depending on size of the waste.
  • 6
    Delivery Section
    Finished products are delivered on the motorized conveyor. Intermittent conveyor movement maximizes the continuous operation in a small space. Gap can be adjusted depending on the size of the product for easy handling.
Scene Image

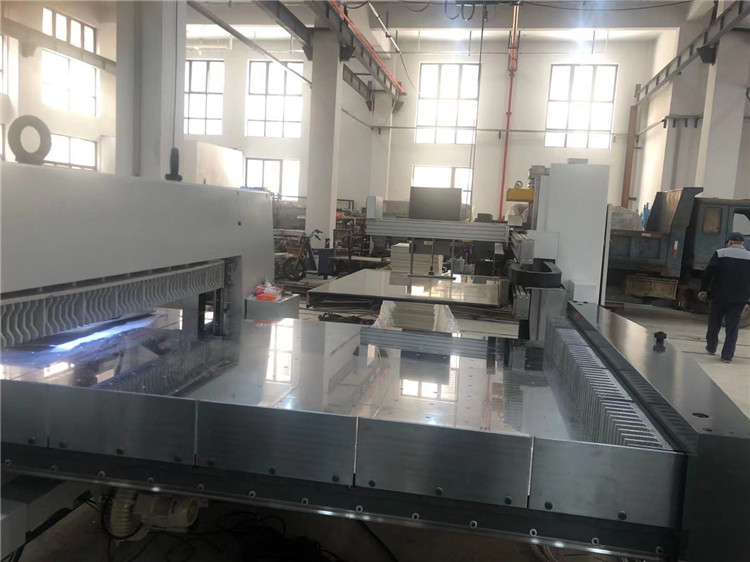

DP-A4055 Scene Image 1

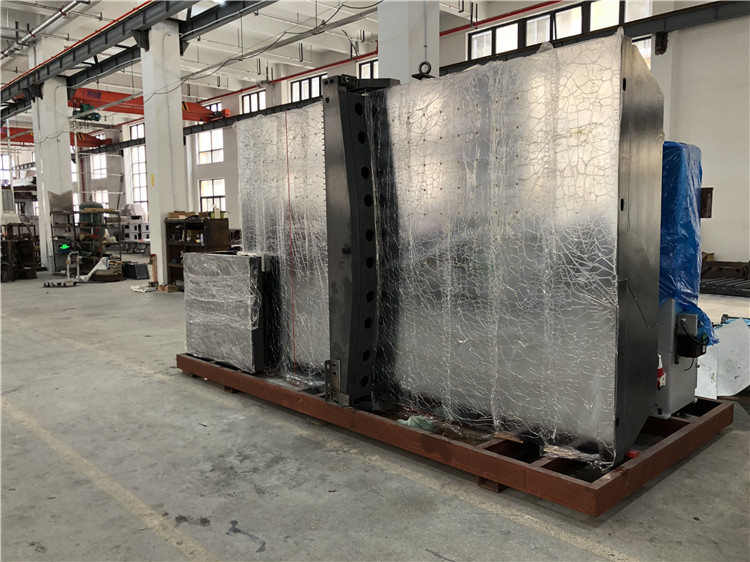

DP-A4055 Scene Image 2

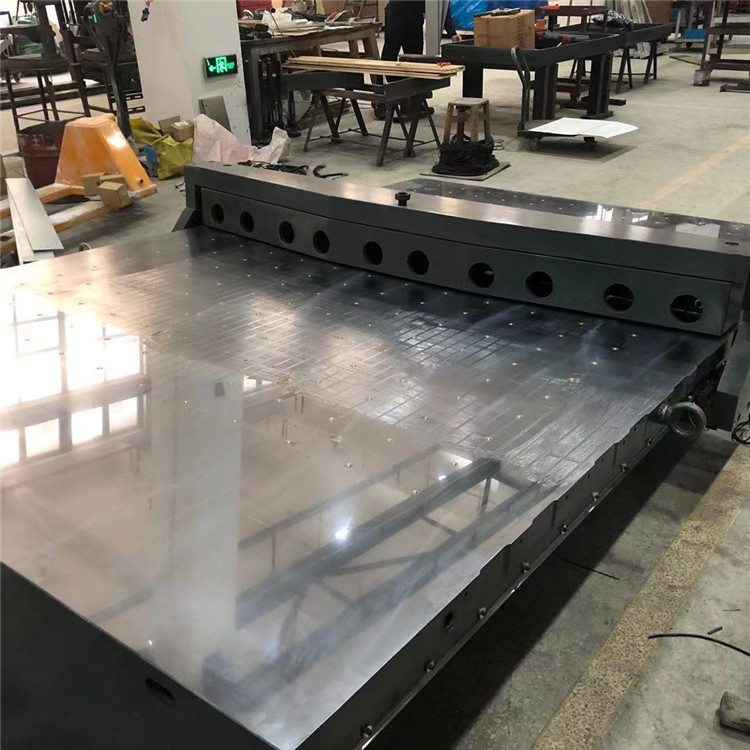

DP-A4055 Scene Image 3
Detail Shot

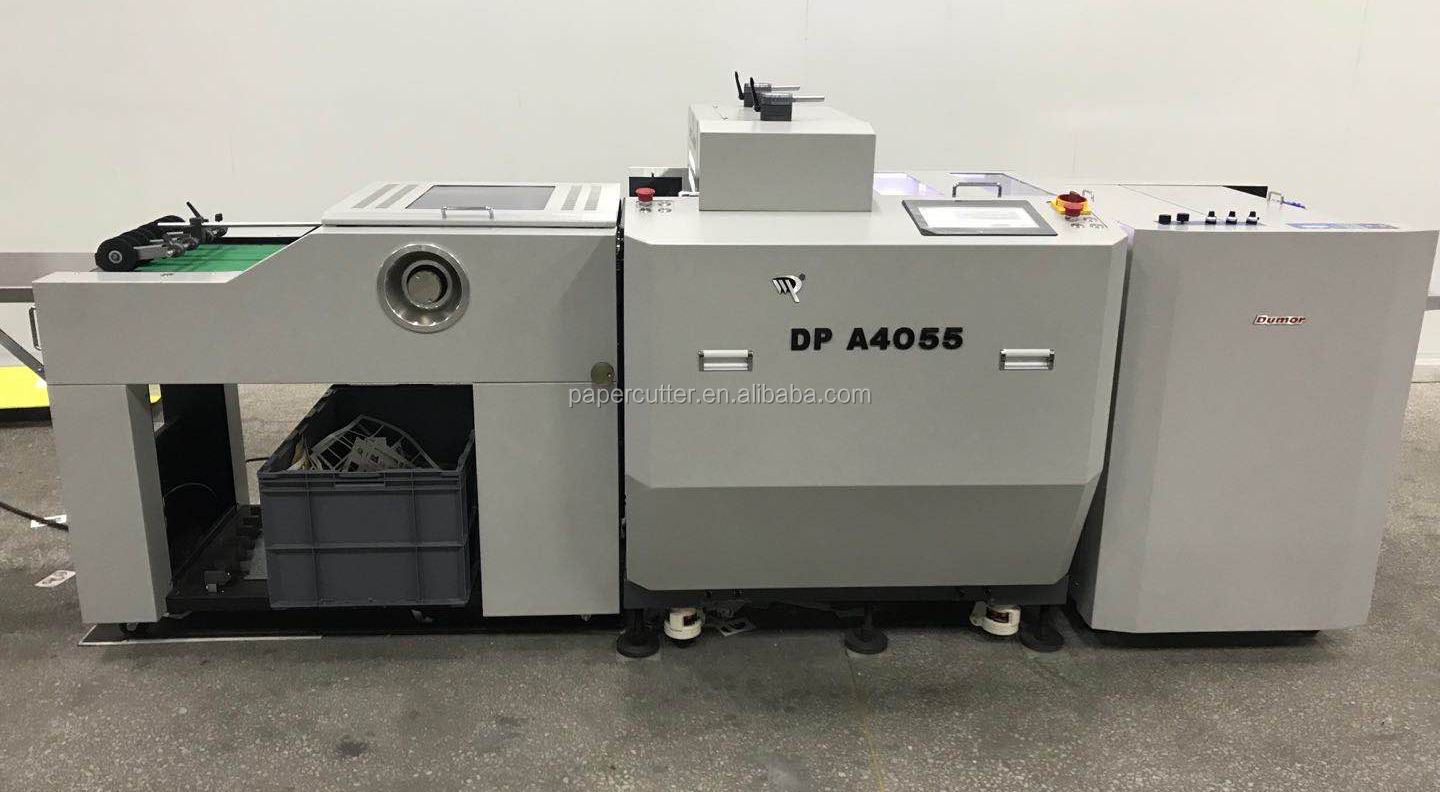

DP-A4055 Detail Shot
Specifications
Model DP-A4055
Max sheet size before processing(WxL) 400x500 mm
Min sheet size before processing(WxL) 240x280 mm
Die cutting thickness 0.13-0.5 mm
Max creasing thickness 0.4 mm
Max final product size 3796x530 mm
Min final product size 50x80 mm
Min discharge width 5 mm
Feeder stack height 500 mm
Max production speed 6000 sheets/h
Voltage 220v 50hz 1P
Main motor power 2.5 kw
Net weight 1800 kg
Machine size 3680x980x1250 mm
DP-A4055 Additional View 1

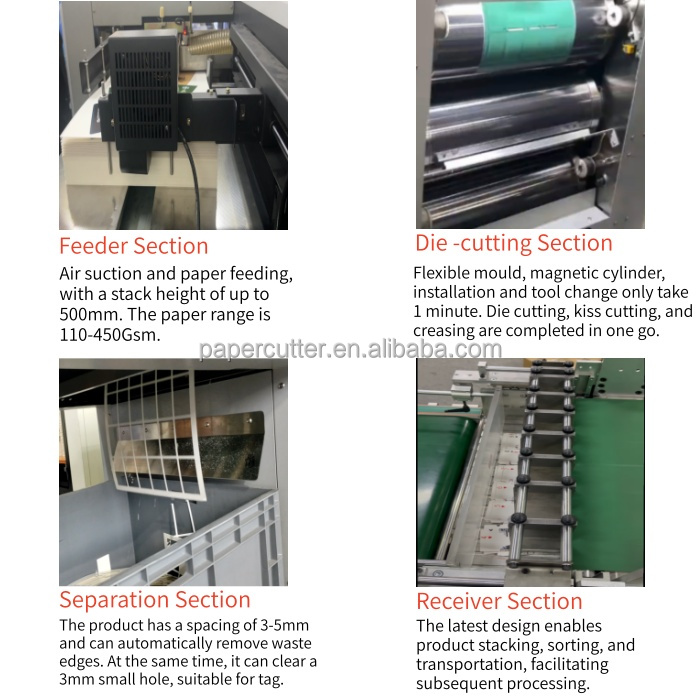

DP-A4055 Additional View 2
DP-A4055 Additional View 3
About the Supplier
Established in 1986, the factory specializes in paper cutting machines with ISO9001 and CE certifications. Operating in a 15,000 sqm facility, the company employs over 200 staff, producing touch screen, program control, digital display, and mechanical system machines. It serves global markets including North and South America, Europe, Africa, and Southeast Asia.
Company Overview

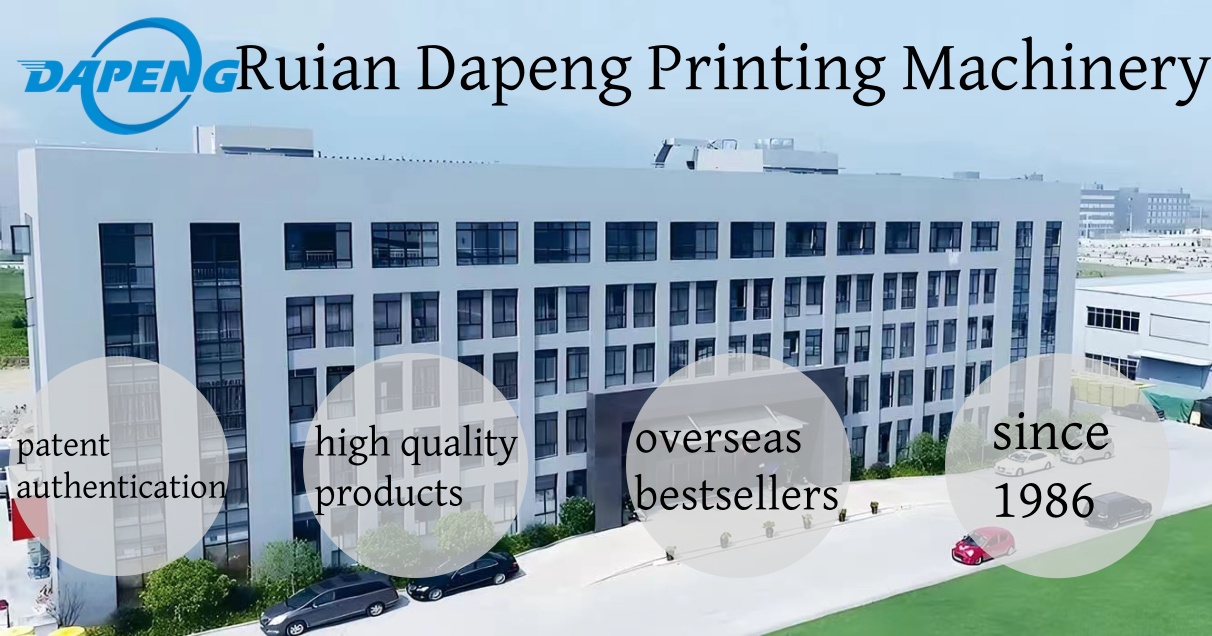

Company Overview Image 1
Company Overview Image 2
Company Overview Image 3
Factory Profile

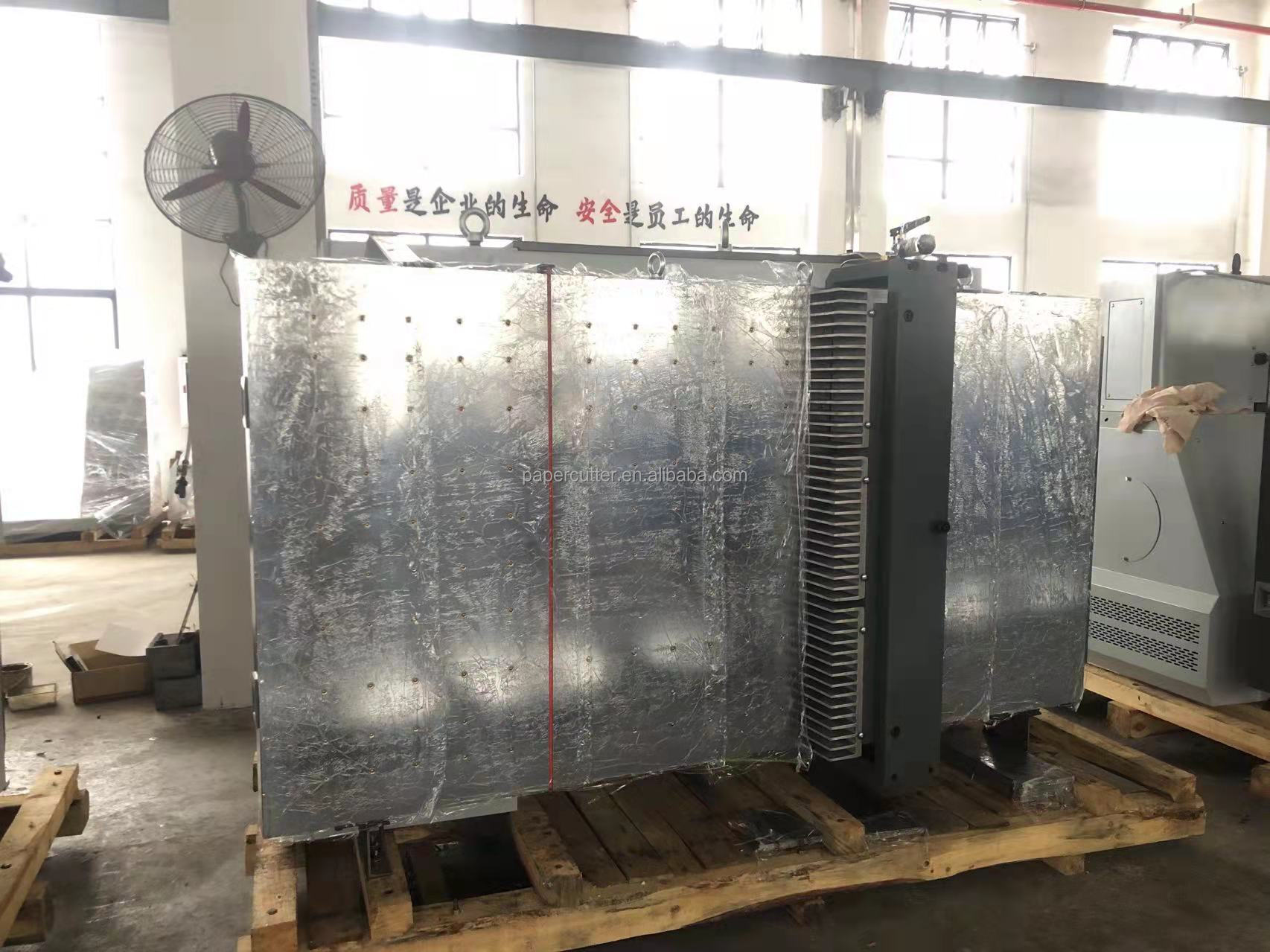

Factory Facility

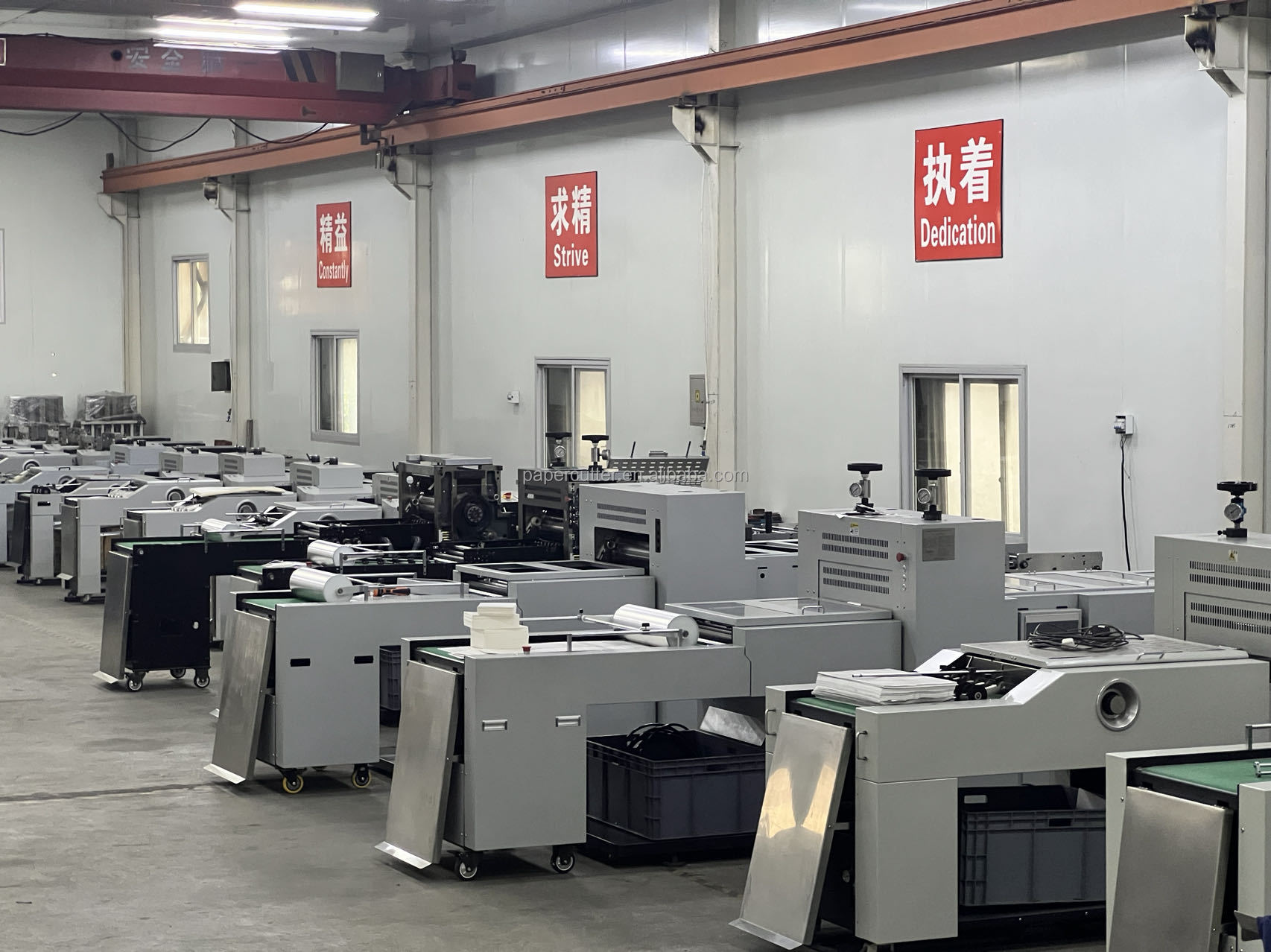

Factory Production Line 1

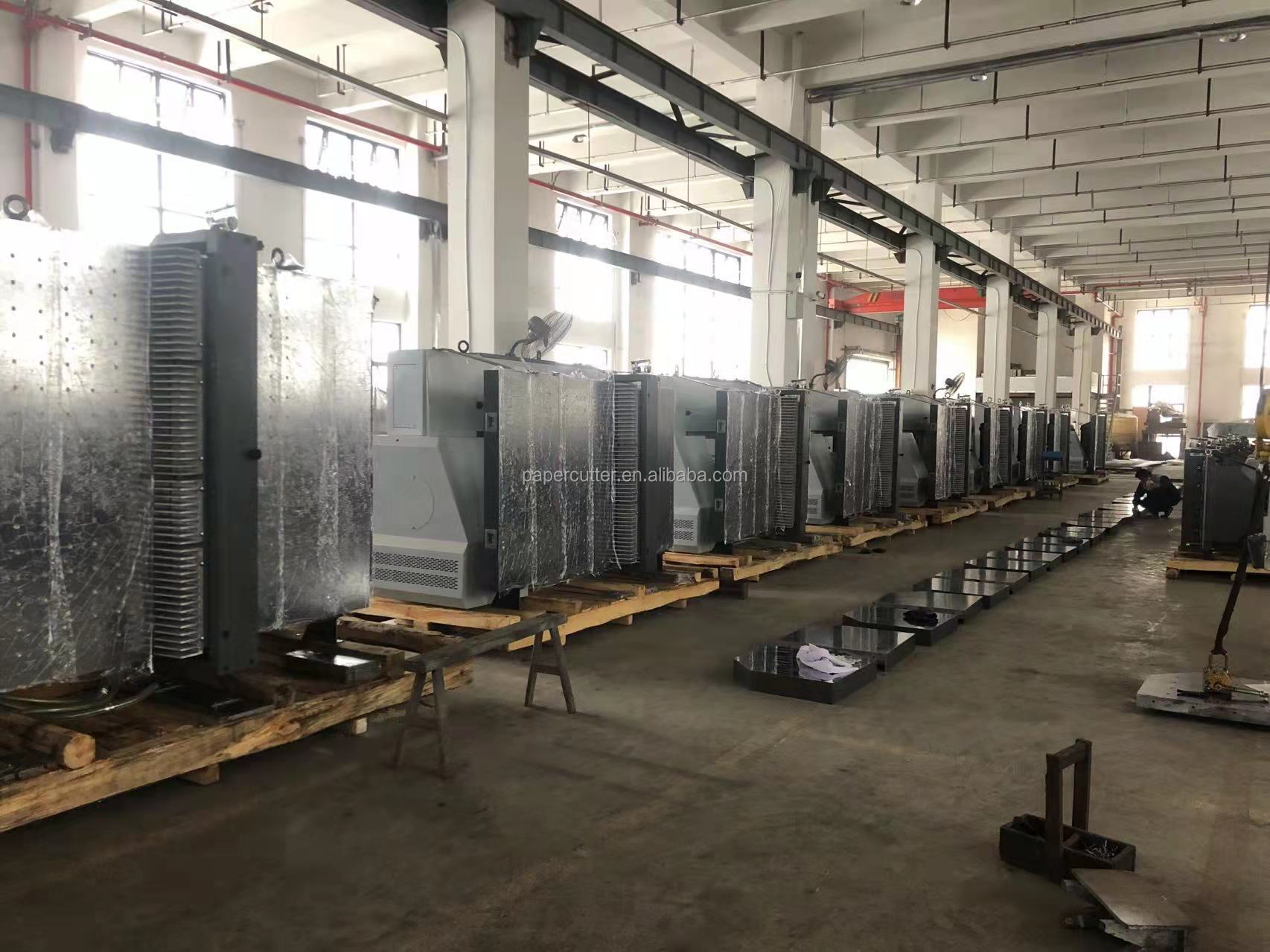

Factory Production Line 2
Trade Show Participation
Trade Show Stand

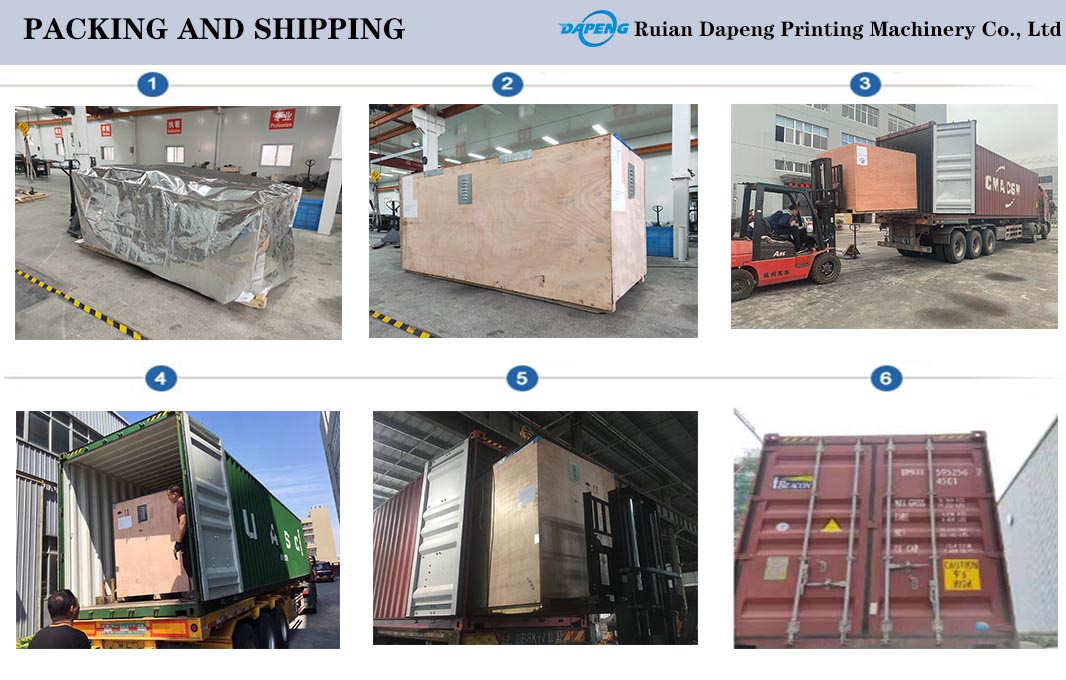

Packaging & Shipping Specifications
Packaging Detail 1
Packaging Detail 2
Certification
Product Certifications
Our Service
Service Flow
FAQs
Who are we?
We are a professional manufacturer of paper cutting machines established in 1986.
How can we guarantee quality?
We have implemented a strict quality control system in accordance with ISO9001 and CE standards.
Are you a trading company or a manufacturer?
We are a manufacturer.
Why should you buy from us not from other suppliers?
We have won local, national and international recognitions for our high quality products and excellent services, and our machinery has been well received in dozens of markets worldwide.
What services can we provide?
We provide touch screen system, program control/computer control system, digital display system, and mechanical system paper cutting machines.
