New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
1 / 5
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min
New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min

New Manually Die Cutting and Punching Machine for Carton Box 5KW 18-25 PCS/Min

Send Inquiry

Product Description

Die-cutting machine top view
Die-cutting machine overview
The Whole Machine Introduction
Die-cutting & creasing machines are special equipment for die cutting and creasing a wide range of material, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packing, decoration and other industry, and it is acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Characteristics and Technical Parameters
It adopts steel castings and copper sleeves inside.
Steel arc ring, absolutely no use ductile eccentric tile holster.
After the connecting rod blinks, the copper sleeve is installed, and then it is processed in the numerical control boring machine with high precision, low noise and durability.
Herringbone teeth, Harbin Bearing, Chint electric appliance.
Adjustable electronic oil pump.
The thickness of the stainless steel lining is 3mm, which improves the wear resistance of the equipment and increases the life of the equipment.
The heavy-duty fuselage, pressure frame and connecting rod all weigh more than 1 ton, and even the belt wheels and gears are thickened.
Both the fuselage, pressure frame are 8cm thick, much thicker than the ordinary 6cm thickness.
No. Model Max size Speed Creasing length Power Weight Overall size (L*W*H)
1 ML-750 750*520mm 25±2 <25 2.2Kw 1700Kg 1500*1300*1400mm
2 ML-930 930*670mm 24±1 <25 4.0Kw 2700Kg 1780*1590*1550mm
3 ML-1100 1100*800mm 22±1 <32 5.5Kw 3700Kg 1800*1900*1600mm
4 ML-1200 1200*820mm 22±1 <35 5.5Kw 4000Kg 2000*2000*1600mm
5 ML-1300 1300*920mm 18±1 <40 7.5Kw 5300Kg 2150*2000*1700mm
6 ML-1400 1400*1000mm 18±1 <40 7.5Kw 5800Kg 2250*2000*1700mm
7 ML-1500 1500*1050mm 18±1 <45 7.5Kw 6000Kg 2350*2000*1700mm
8 ML-1600 1600*1250mm 15±1 <50 11Kw 10000Kg 2600*2100*1900mm
9 ML-1800 1800*1300mm 15±1 <60 11Kw 12000Kg 2800*2100*1900mm
10 ML-2200 2200*1450mm 13±1 <70 15Kw 15000Kg 3300*2250*2300mm

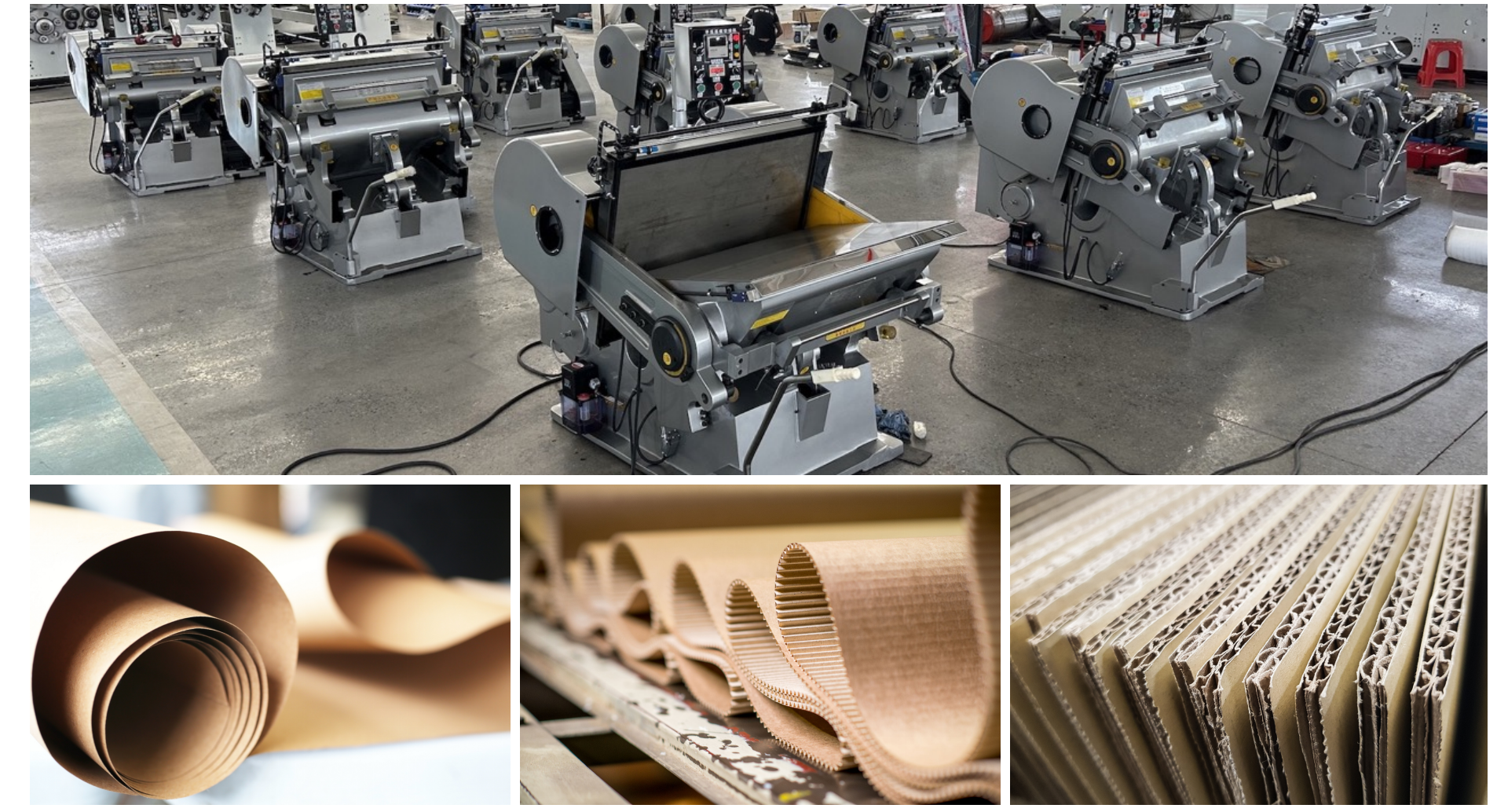

Die-cutting frame detail

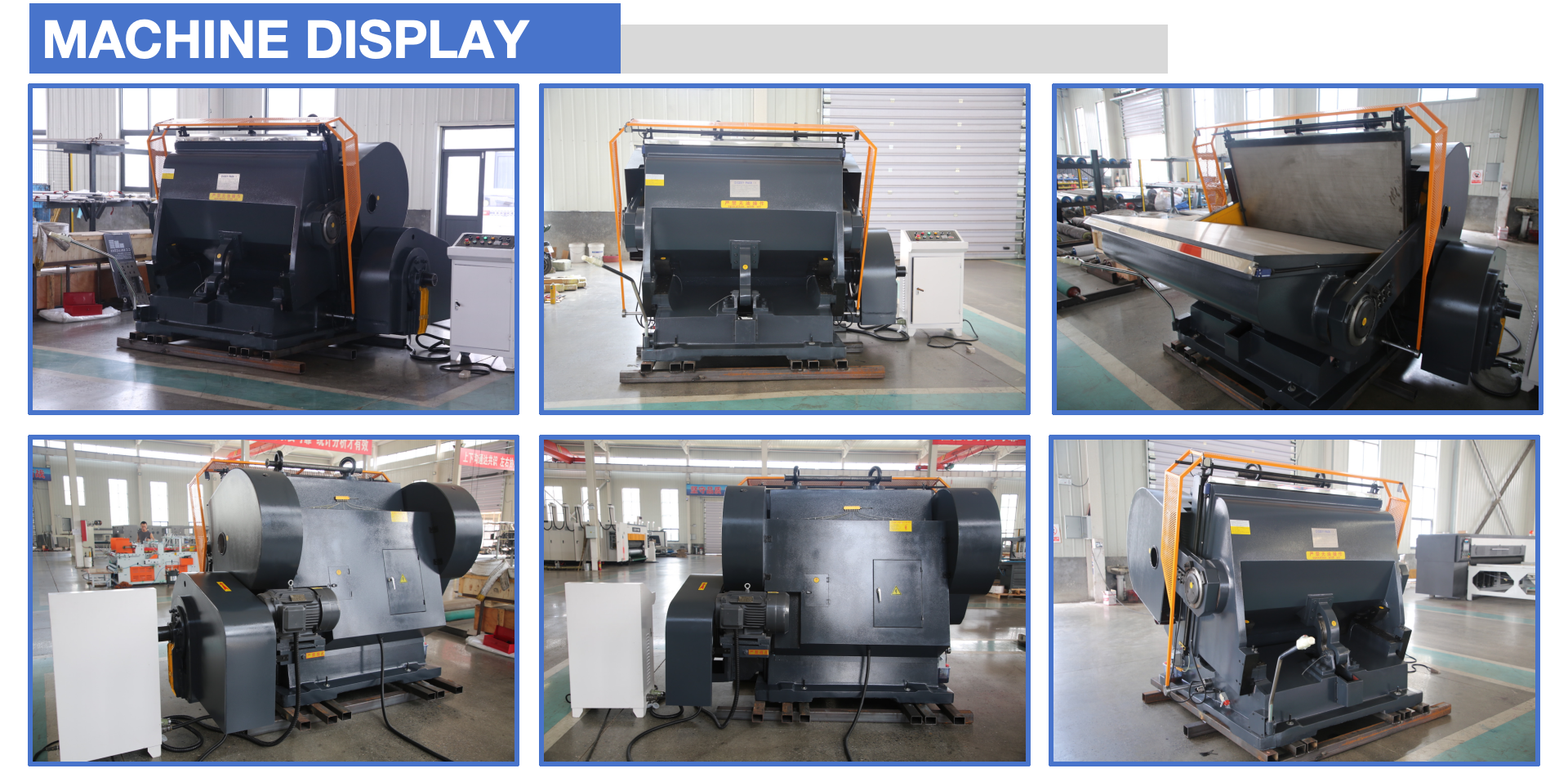

Machine gears detail

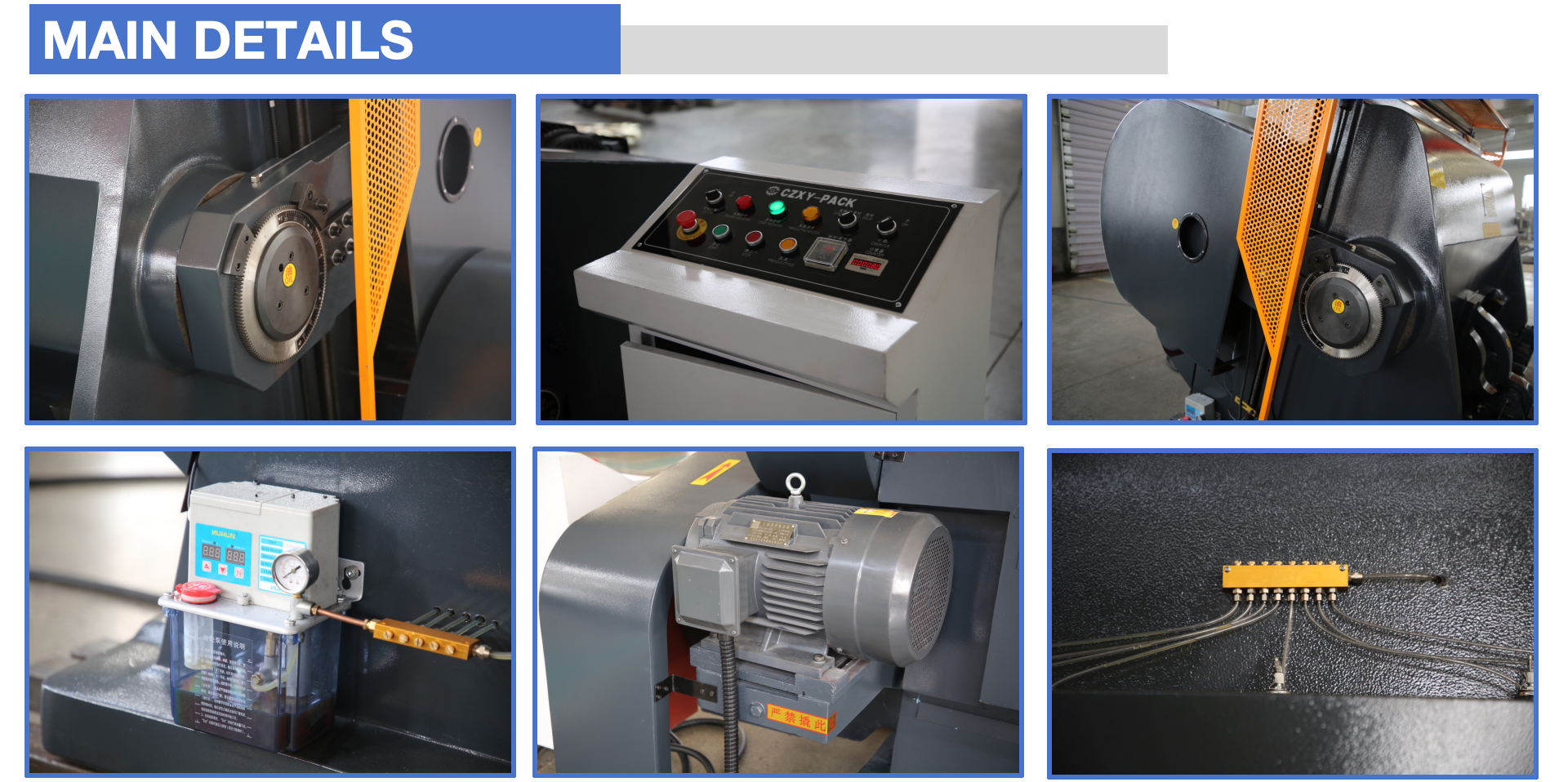

Electronic control box
Machine body structure
Stainless steel lining
Pneumatic clutch detail
Lubrication pump detail
Processing & Components Details
Component 1
Component 2
Component 3
Component 4
Component 5
Component 6
Component 7
Component 8
Component 9
Component 10
Manufacturing workshop 1
Manufacturing workshop 2
Heavy equipment manufacturing
Precise manufacturing process
Casting details
Finished machine storage
Machine inspection
Packaging and shipping preparation
Frequently Asked Questions
What materials can the die-cutting and creasing machine process?
The machine is specifically designed to handle a wide range of materials, including cardboard, corrugated board, plastic sheets, and leather, making it highly versatile for different production requirements.
What are the primary industries that use these machines?
These machines are widely applicable in the printing, packaging, product decoration, and various other industrial manufacturing fields where precise die cutting and creasing are required.
How does the heavy-duty structure improve the performance of the machine?
The machine features an 8cm thick fuselage and pressure frame (compared to the standard 6cm) weighing over 1 ton. This heavy-duty design, paired with thickened belt wheels and gears, provides superior stability, low noise, and a longer operational lifespan under high-pressure conditions.
What electrical components and bearings are integrated into the machine?
To ensure reliability and high precision, the machine is equipped with premium components, including Harbin Bearings and Chint electric appliances, which are renowned for durability.
How is the lubrication system managed?
The machine utilizes an adjustable electronic oil pump. This system ensures consistent and automated lubrication to critical moving parts, reducing wear and minimizing manual maintenance.
How do I choose the correct model for my production line?
Models range from ML-750 to ML-2200. You should choose based on your maximum sheet size requirement (ranging from 750*520mm to 2200*1450mm), speed needs, and the layout footprint of your workshop.
