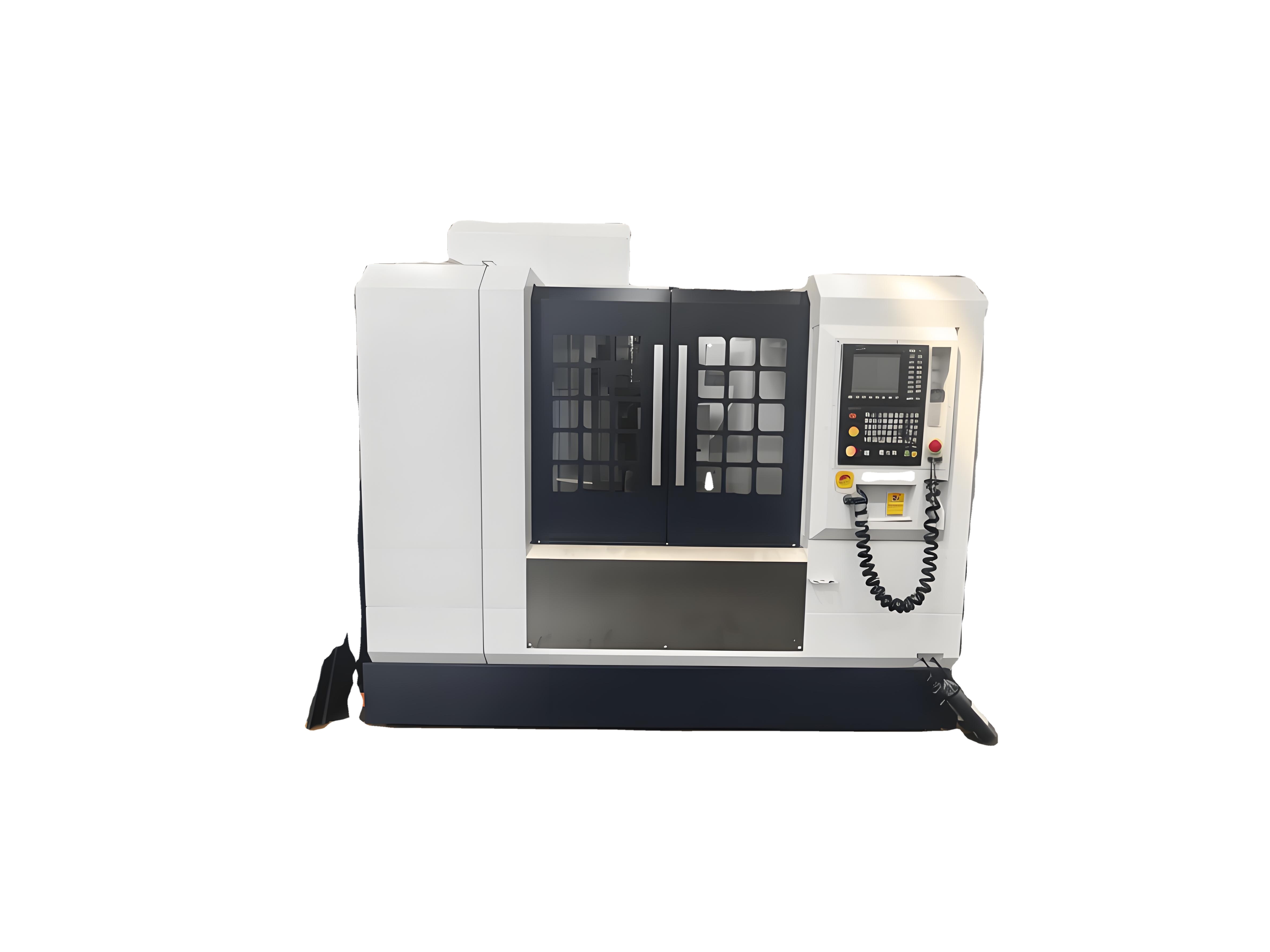

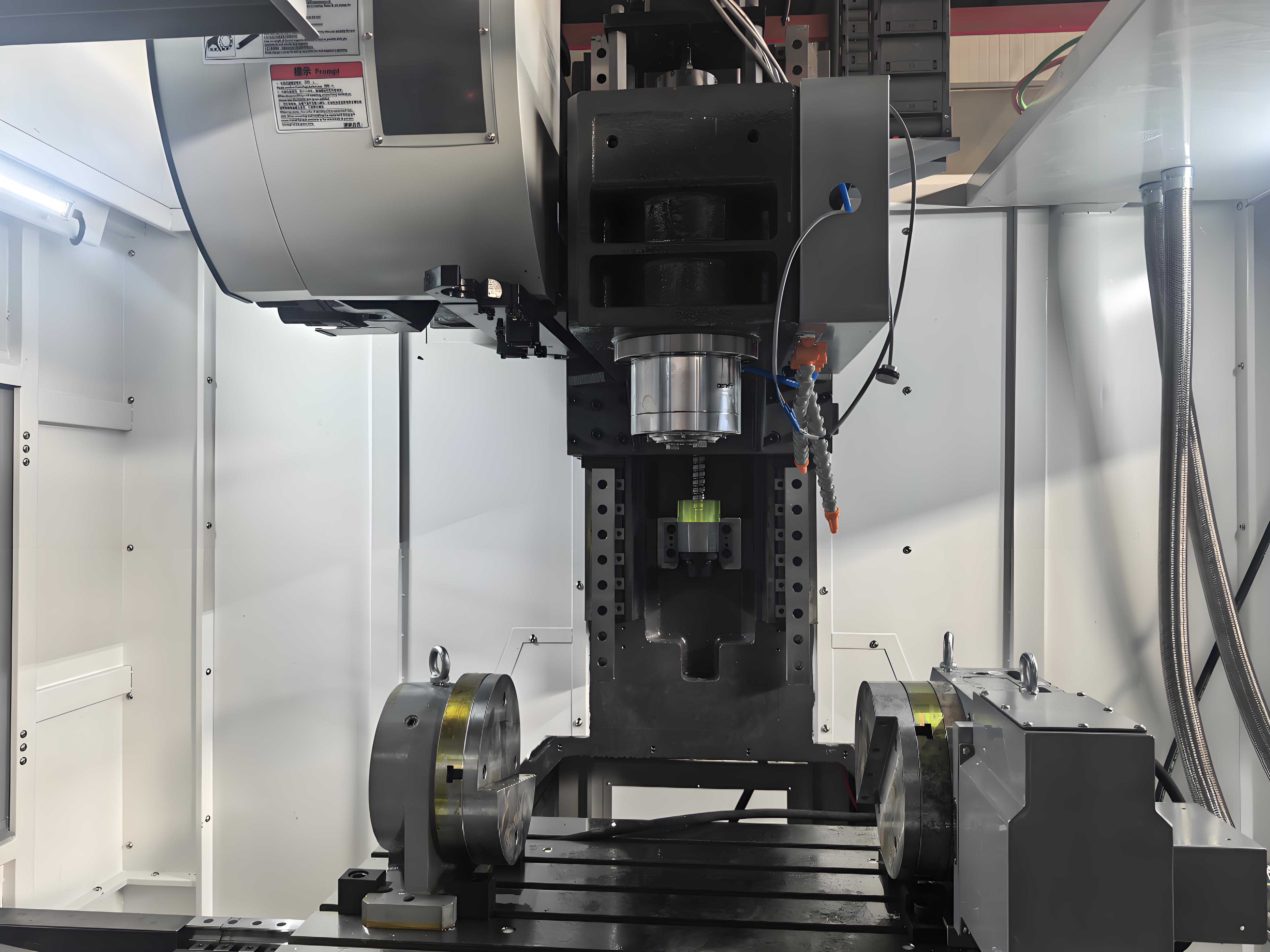

Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
1 / 5
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV

Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV

Send Inquiry

Product Description

Product Highlights
1
High Precision, Stable and Reliable
Our machining center adopts an ultra-high rigidity machine structure with Hiwin and PMI precision components for exceptional positioning accuracy. Optional full-closed loop control meets strict mold-making and high-accuracy needs. Core transmission parts from leading brands ensure long-term operational stability and consistent performance for your manufacturing business.
2
Automation and Efficiency
A standard tool magazine from renowned brands supports rapid tool changes and chip evacuation with optional 4th or 5th-axis linkage for automated lines. Optional automatic doors and robotic loading systems enable unattended production for maximum industrial output and labor cost reduction.
3
Versatile and Multifunctional
The system handles milling, drilling, boring, reaming, and tapping in a single setup, meeting complex needs for automotive, mold-making, 3C electronics, and medical industries. Its large working envelope is designed for diverse and flexible manufacturing requirements.
4
Easy Operation
Optional CNC systems from GSK, FANUC, Mitsubishi, and Siemens cover everything from cost-effective to high-end standards. Graphical programming and simulation reduce trial-cutting risks and significantly lower the skill barrier for new operators.
5
High Productivity
Equipped with high-speed spindles and rapid feed systems to shorten cycle times and increase hourly output. Stable batch processing capabilities help customers achieve fast delivery and a higher return on investment for global markets.
6
Premium Branded Components
We use only 100% genuine parts to ensure total quality. This includes premium spindles, high-quality drive systems, and control systems from FANUC, Mitsubishi, and Siemens, integrated with trusted electric components to ensure a service life comparable to top international models.

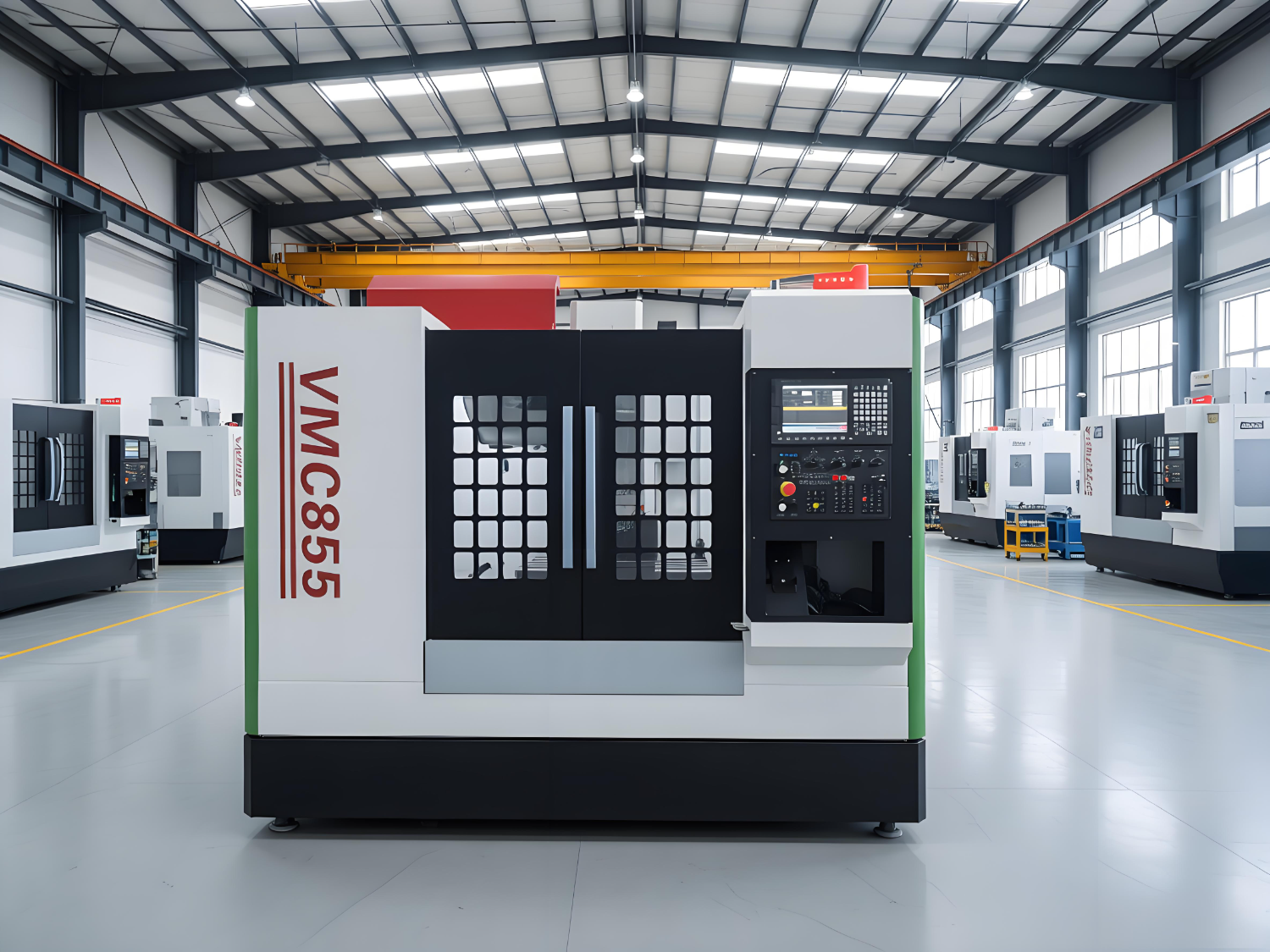

Scene Image

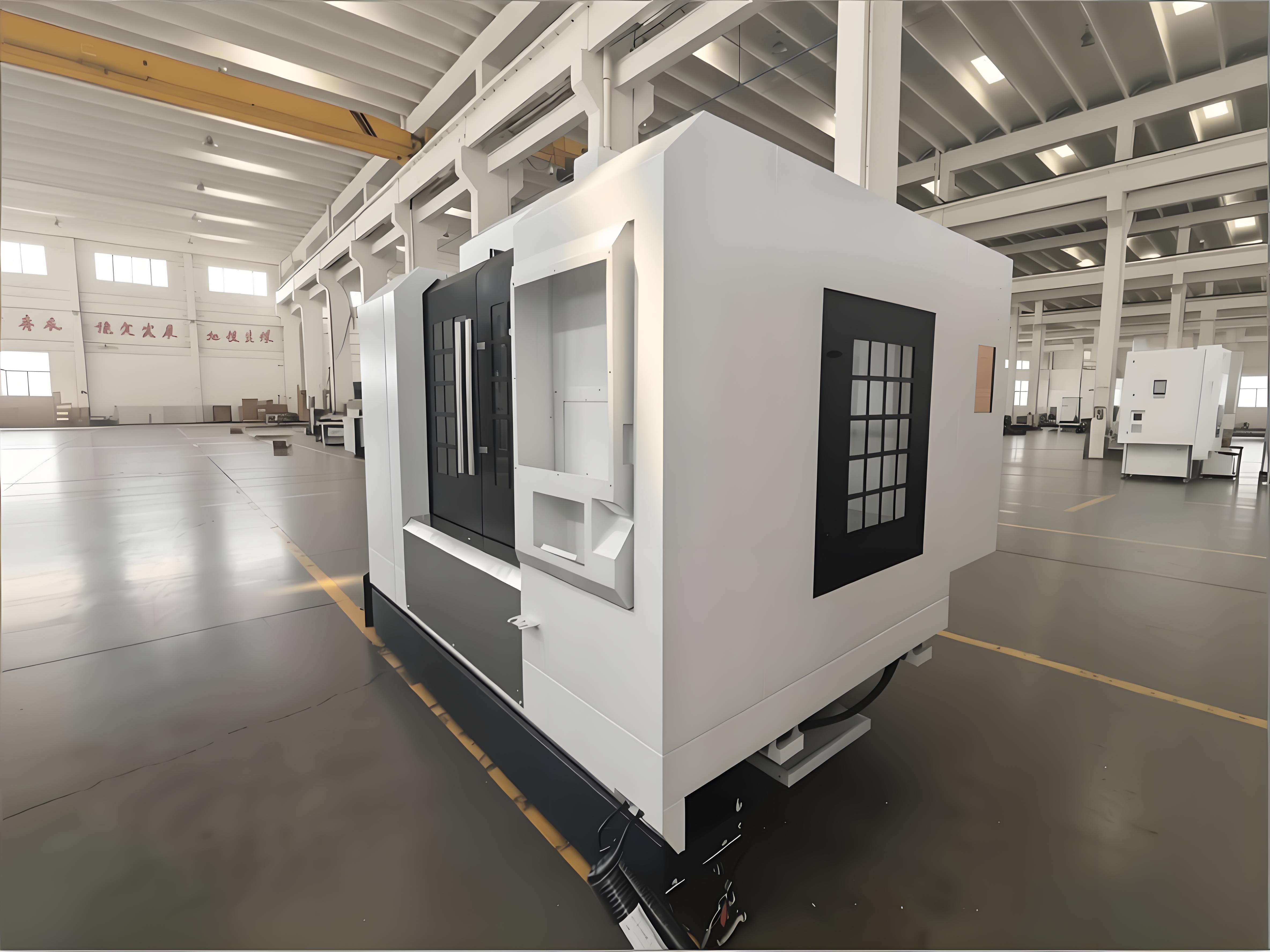

Reliable VMC855 Vertical Machining Center High Precision CNC Milling Machine for Die Manufacturing Customizable TUV
Technical Specifications
Model Unit VMC855
Workbench dimensions mm 1000*550
X-axis travel mm 850
Y-axis stroke mm 550
Z-axis stroke mm 550
Maximum workbench load kg 550
Maximum spindle speed rmp 12000
Main shaft Castanopsis chinensis degree mm BT40
Main motor power kw 11
X/Y/Z rapid traverse speed m/min 24/24/20
Guide rail type - Linear guide
Distance from spindle center to column guide rail slider mm 590
Distance from spindle end face to worktable surface mm 130-660
Positioning accuracy mm 0.075
Repeat positioning accuracy mm 0.005
Machine weight kg 5500
Overall dimensions (length * width * height) mm 2800*2400*2650
Detail Shot

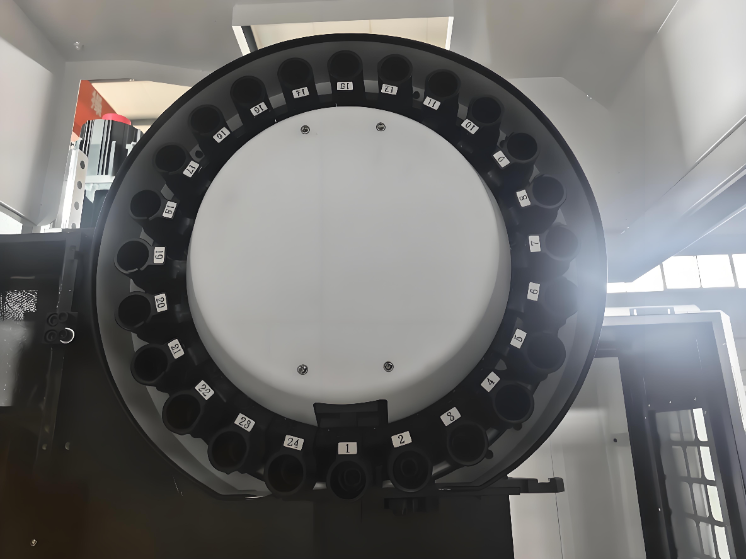

Tool Magazine
Precision Tool Magazine
1. High-efficiency tool magazine arm with 24 tools.
2. Rapid tool change time of only 2-3 seconds.

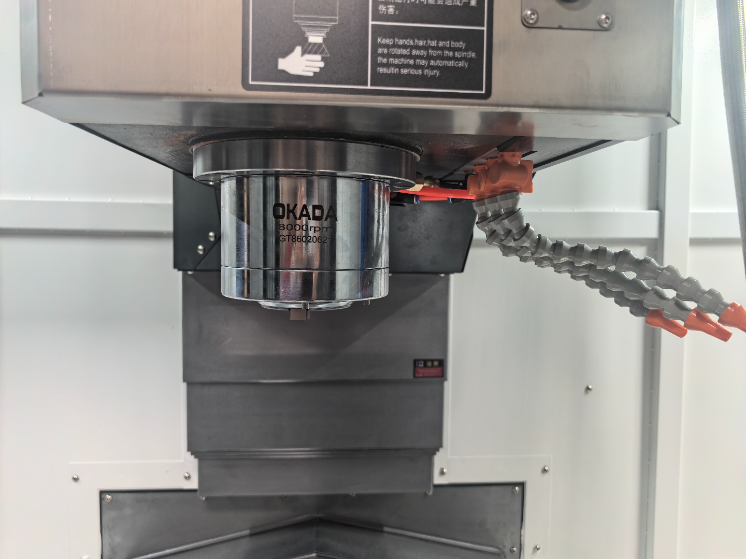

Precision Spindle
Precision Spindle
1. Premium Spindle BT40 8000 RPM with Annular Cooling Function.
2. Fully passed the Dynamic Balance ISO Grade Test.

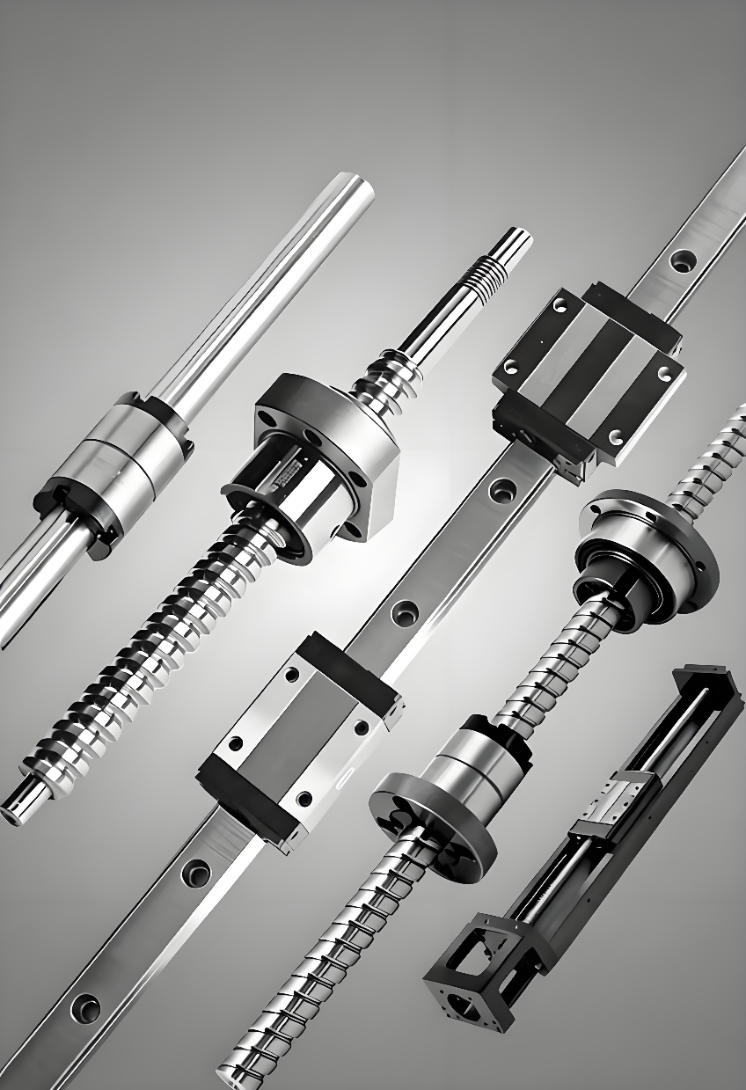

Ball Screw
Brand Ball Screw
1. The lead screw bearings use premium brand bearings.
2. Direct coupling connection for high transmission efficiency.

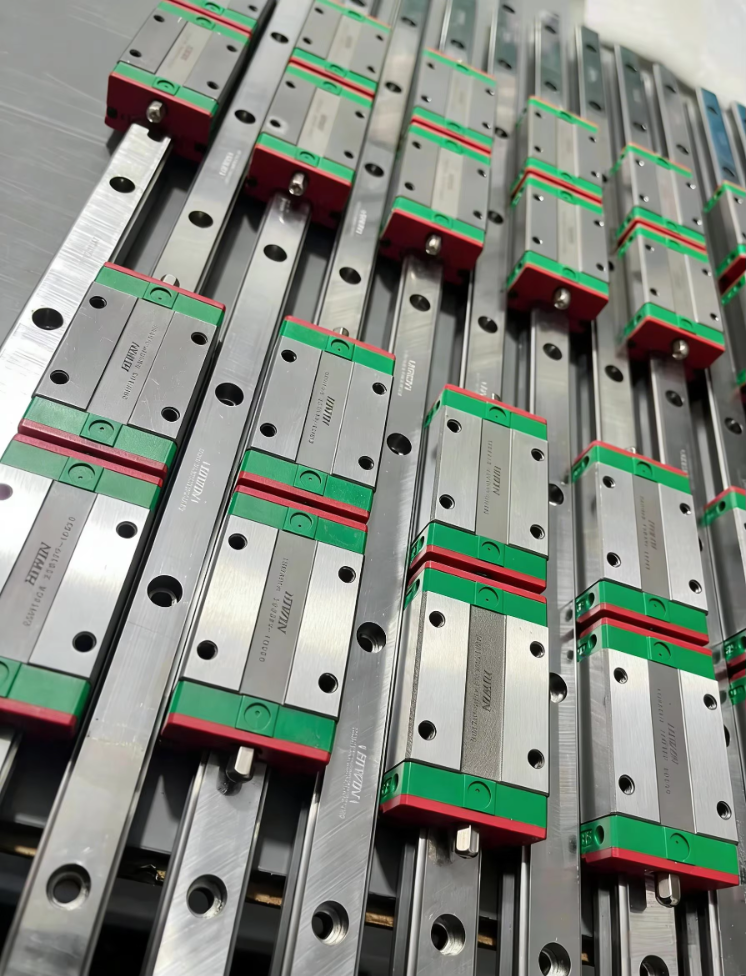

Linear Guide
Precision Linear Guide
1. High-speed roller linear guide.
2. Positioning accuracy can reach micro level.

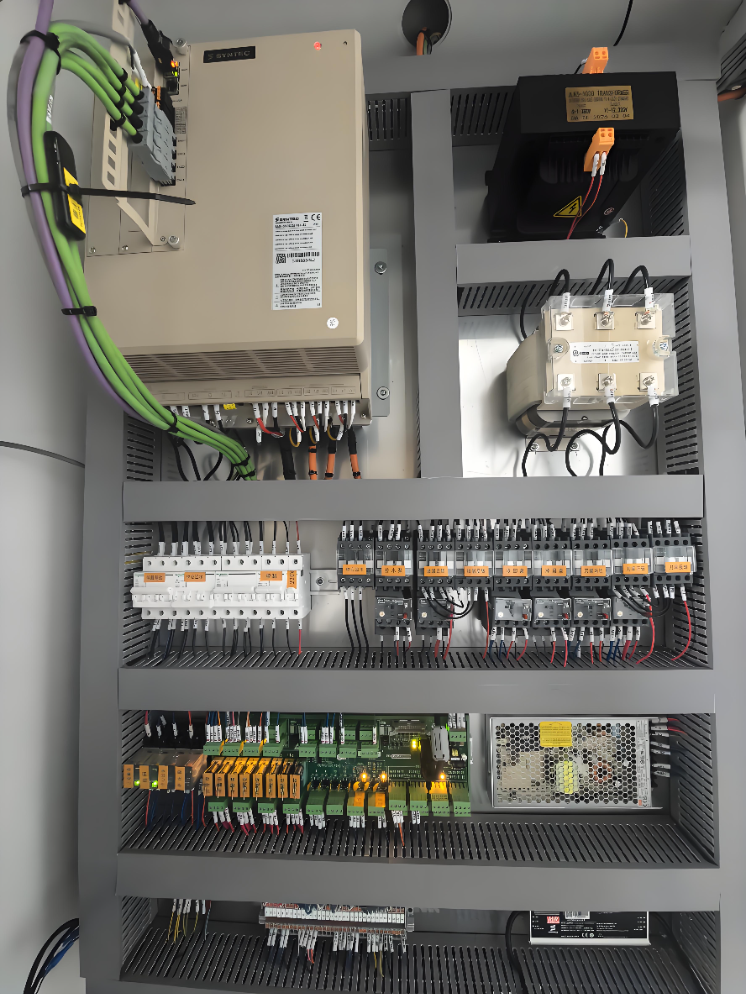

Electric Components
Schneider Electric Components
1. Integrated safety electrical components.
2. Quick plug configuration as standard.

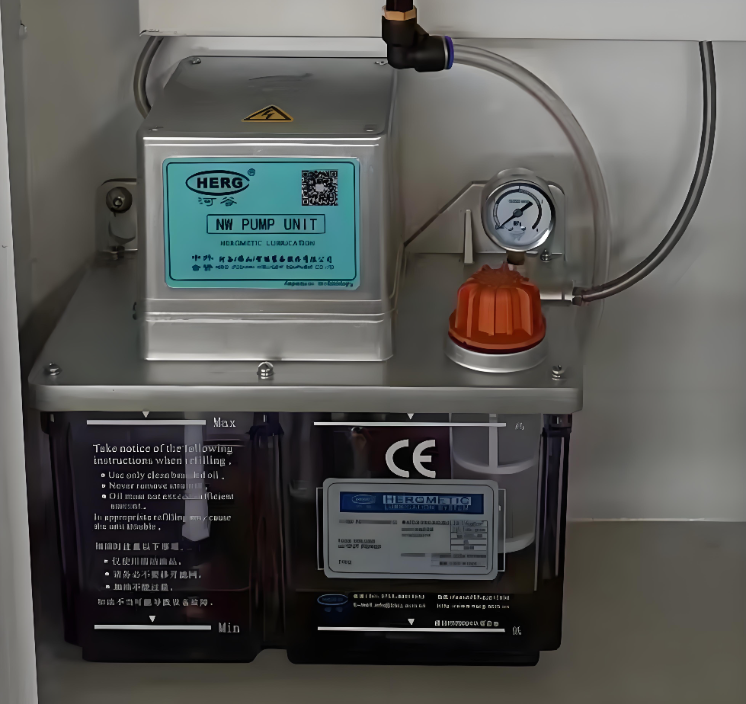

Lubrication System
Lubrication System
Equipped with the HERG automatic centralized lubrication device for smooth long-term operation.

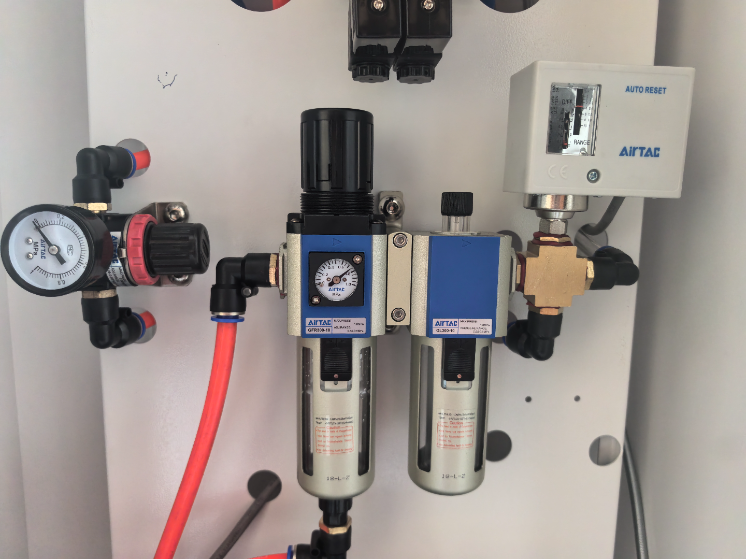

Pneumatic Components
Pneumatic Components
Standards and AirTAC Pneumatic Components integrated for reliable pressure control.
About the Supplier
We are a National High Tech Enterprise and global leader in CNC equipment manufacturing. We leverage 20 years of expertise to provide world-class metal processing solutions. Every machine is a masterpiece of modern engineering.
Core Product Portfolio
Our high-performance line is engineered to exceed international standards, specializing in Vertical VMC and Horizontal HMC Machining Centers, Large Scale CNC Gantry Milling Machines, and Precision Engraving Milling Machines built for high-speed, intricate processing.
Why Global Industrial Leaders Choose Us
  • Authoritative Certification: We are certified with ISO9001, CE, and TUV credentials, ensuring every machine complies with safety and quality benchmarks in Europe, the Americas, and the global market.
  • Extreme Precision: Our equipment achieves industry-leading repeat positioning accuracy of 0.005mm, making us the preferred partner for Automotive Components, Aerospace, and Precision Mold Making.
  • Elite R&D Structural Optimization: We have partnerships with 6 national research platforms. Utilizing Finite Element Analysis (FEA), we ensure maximum rigidity under heavy-duty conditions.
  • Global Supply Chain Advantage: We integrate premium components. With an 80% local parts supporting rate, we deliver high performance with cost efficiency.
  • 24/7 Service: Our team offers 24-hour online support, providing Turnkey Solutions that maximize your ROI.
Manufacturing Power
20 years of experience with a 20,000 square meter facility. Full process control from R&D to assembly and precision testing. We are your reliable partner in Intelligent Manufacturing. Contact us for factory direct quotes and customized solutions.
Company Overview
Company Overview

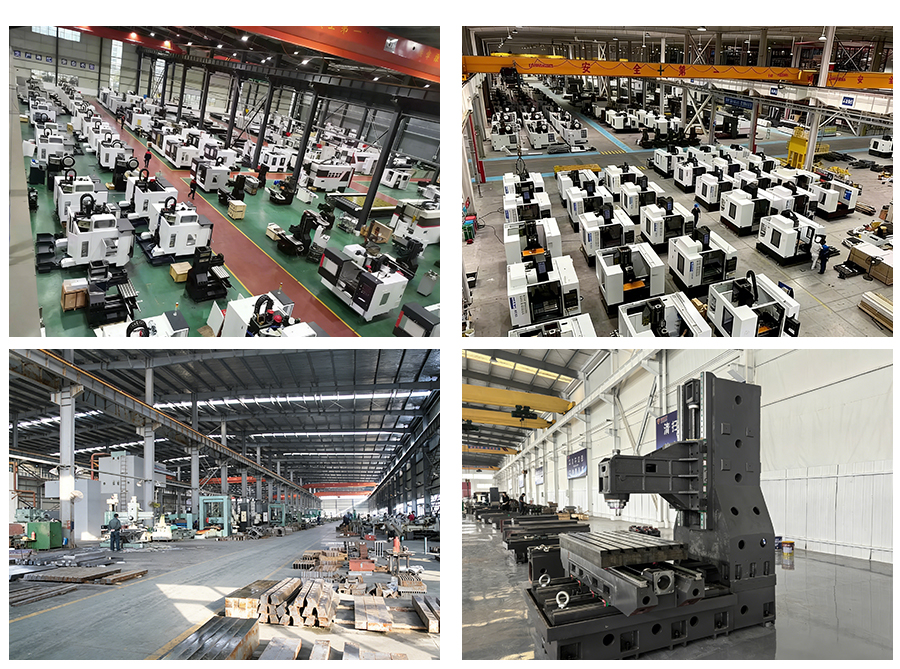

Factory Profile
Factory Profile
Competitive Advantages
Competitive Advantages
Trade Show Participation
Trade Show Participation
Packaging & Shipping Specifications
Packaging & Shipping Specifications
Frequently Asked Questions
How to choose the most suitable machine?
Please provide your specifications, and we can select the best model for you, or you may choose the exact model directly. You may also send us the product drawings, and we will select the most suitable machine for you.
Where is your factory located? How can I visit there?
Our factory is open for visits. You are warmly welcome to visit our production facilities. Please contact our service team beforehand to arrange your itinerary.
What are your trade terms?
FOB, CFR, and CIF are all acceptable.
What are the payment terms?
T/T, with 30% deposit upon order and 70% balance payment before shipment; irrevocable letter of credit at sight.
What is the minimum order quantity?
1 set.
What is the standard delivery cycle for orders?
The standard lead time depends on the specific machine configuration and model, typically ranging from 30 to 45 days.
