Professional Woodworking Dowel Jig - Auto-Align Drilling Guide System

1 / 5

Professional Woodworking Dowel Jig - Auto-Align Drilling Guide System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Certification CE, RoHS, GS, ISO9001

Standard DIN, ASTM, GOST, GB, JIS, ANSI, BS

Customized Customized Support Available

Material Titanium

Tolerance +- 0.002

Surface Treatment Polishing

Produced by CNC Machining Center

Delivery Date 7-15 Days

Transport Package Carton Box

Specification 10x25mm

Origin China

HS Code 7616991090

Production Capacity 500000PCS/Year

Application Metal Recycling/Cutting/Straightening/Spinning/Processing Machinery Parts, Metal Forging, Engraving, Drawing, Coating, and Casting Machinery

Packaging & Delivery

Package Size 18.00cm * 17.00cm * 8.00cm

Package Gross Weight 1.000kg

Product Description

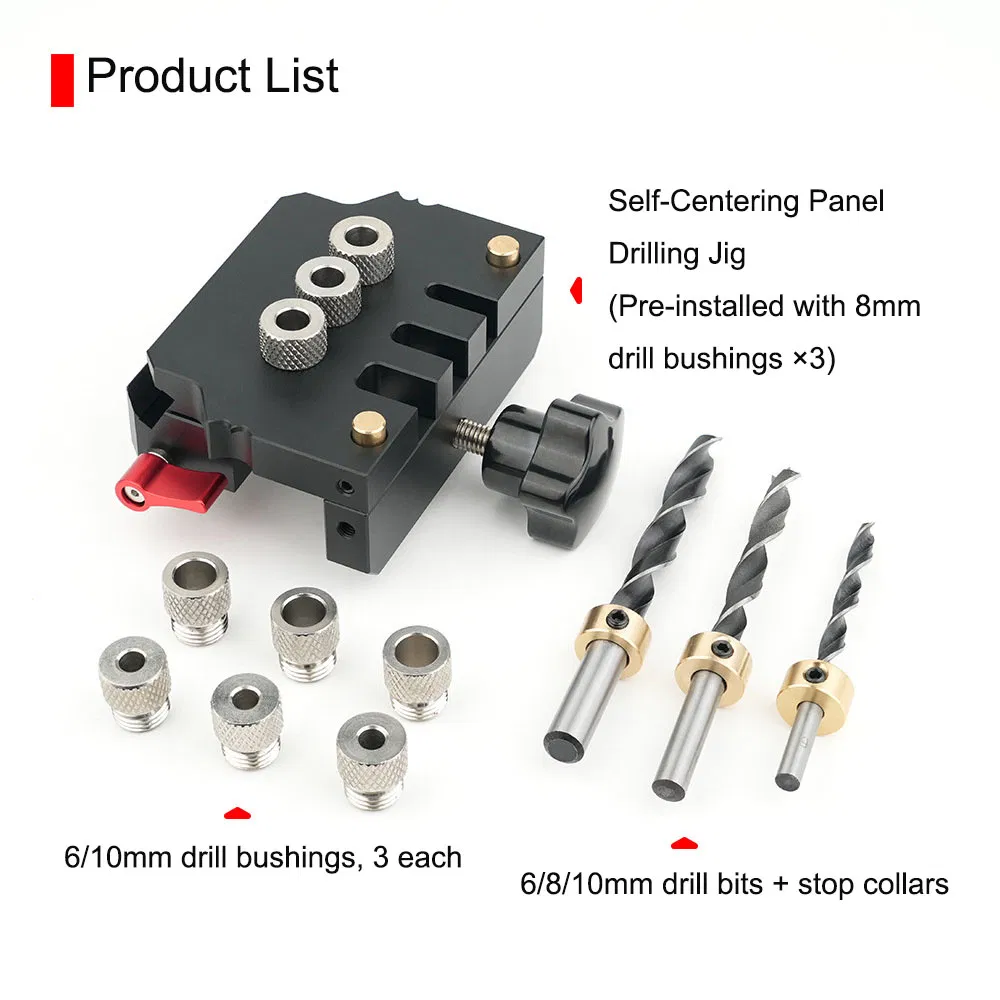

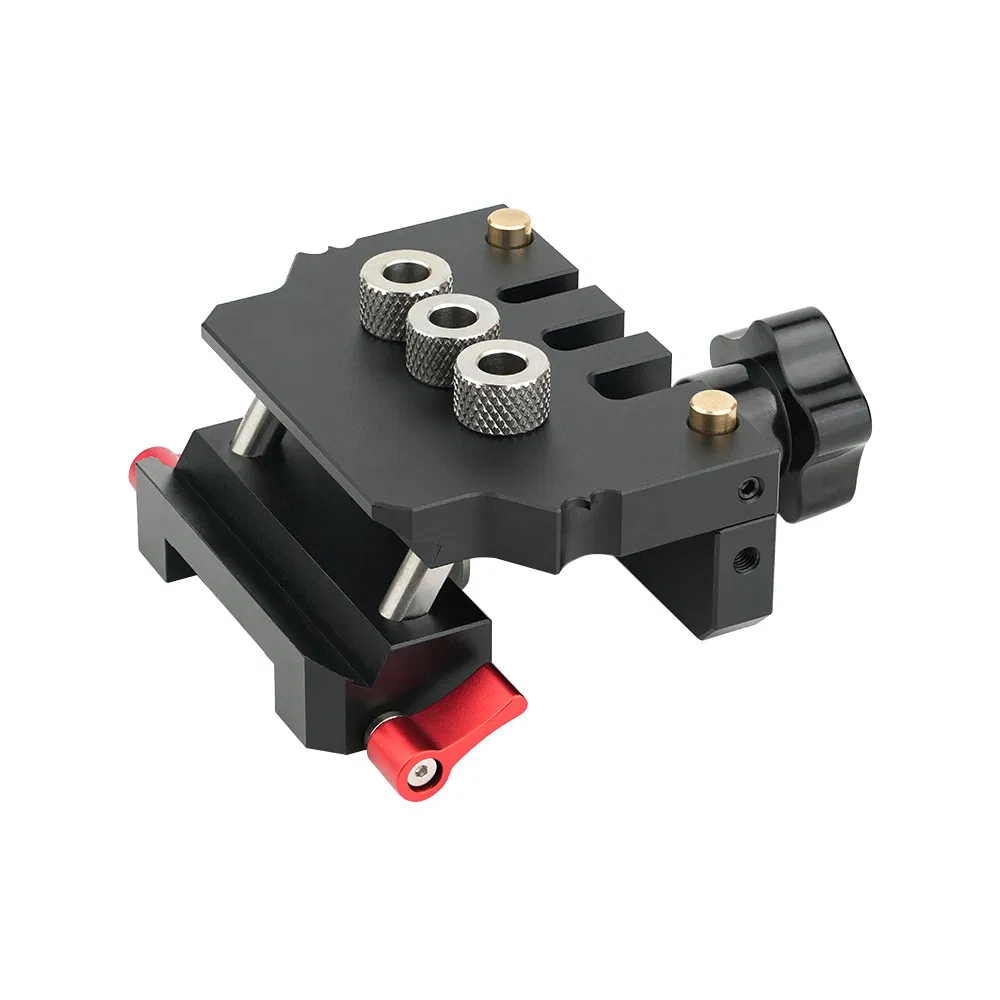

New Aluminum Alloy Doweling Jig - High-Precision Self-Centering Tool for Woodworking & Panel Joinery

Product Specifications

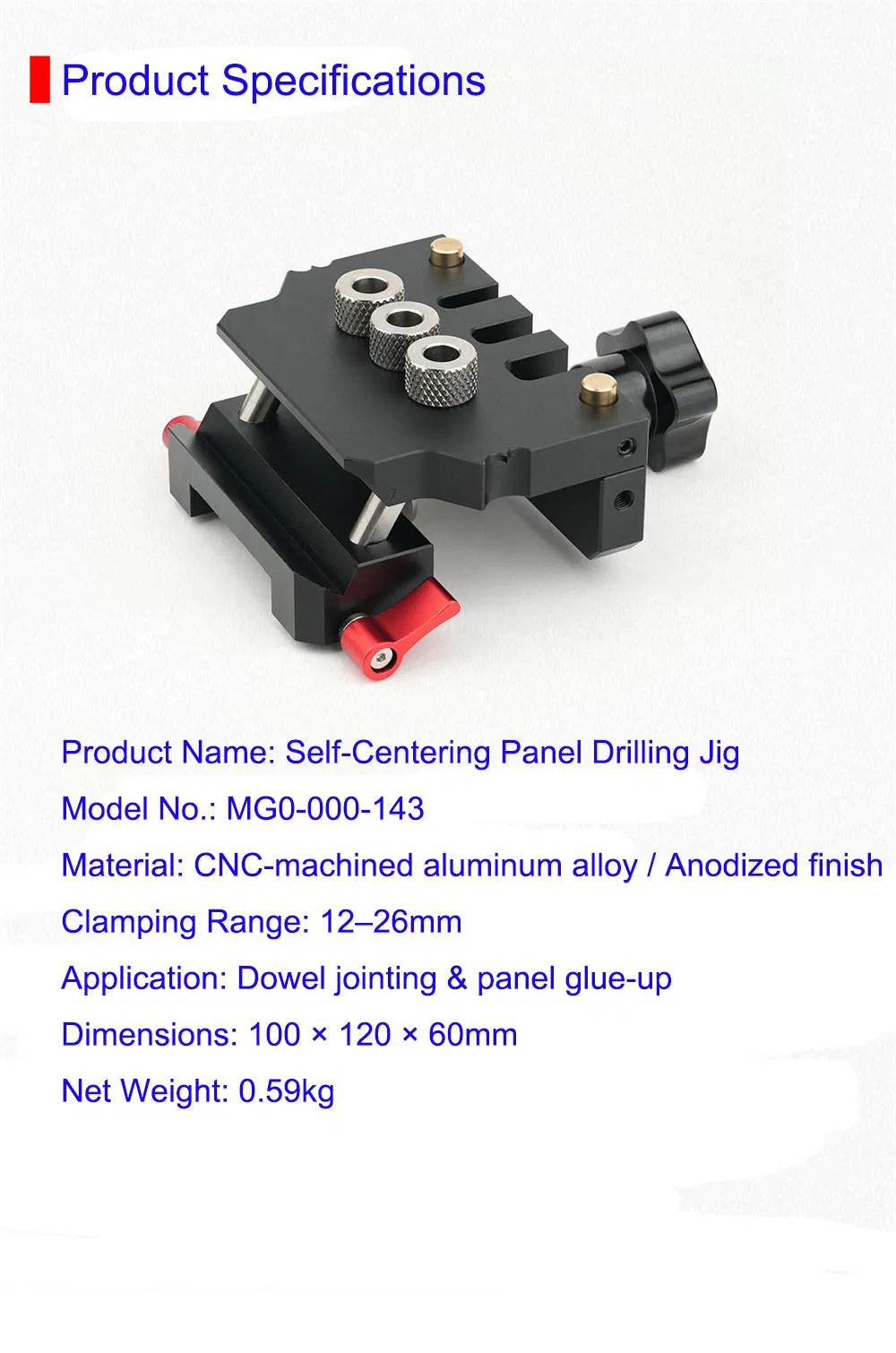

Product Name	Self-Centering Panel Drilling Jig
Model No.	MG0-000-143
Material	CNC-machined aluminum alloy / Anodized finish
Clamping Range	12-26mm
Application	Dowel jointing & panel glue-up
Dimensions	100 × 120 × 60mm
Net Weight	0.59kg

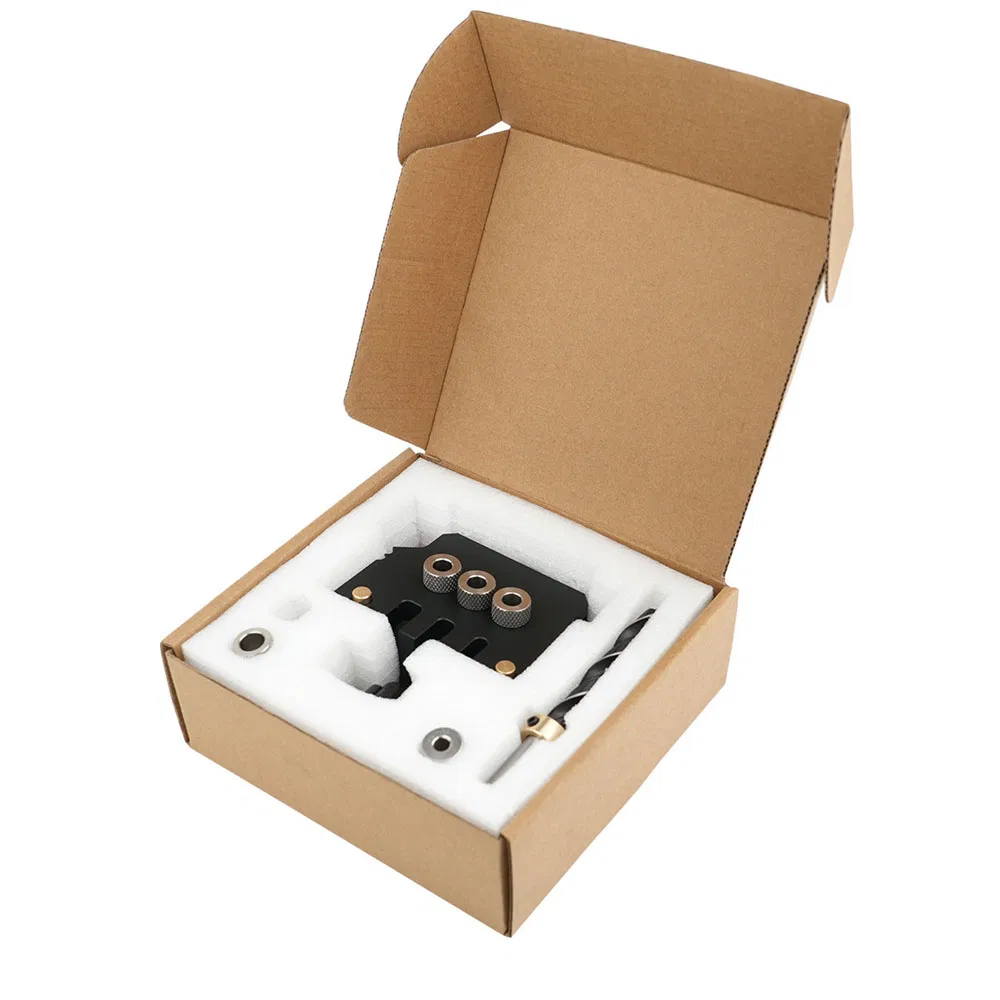

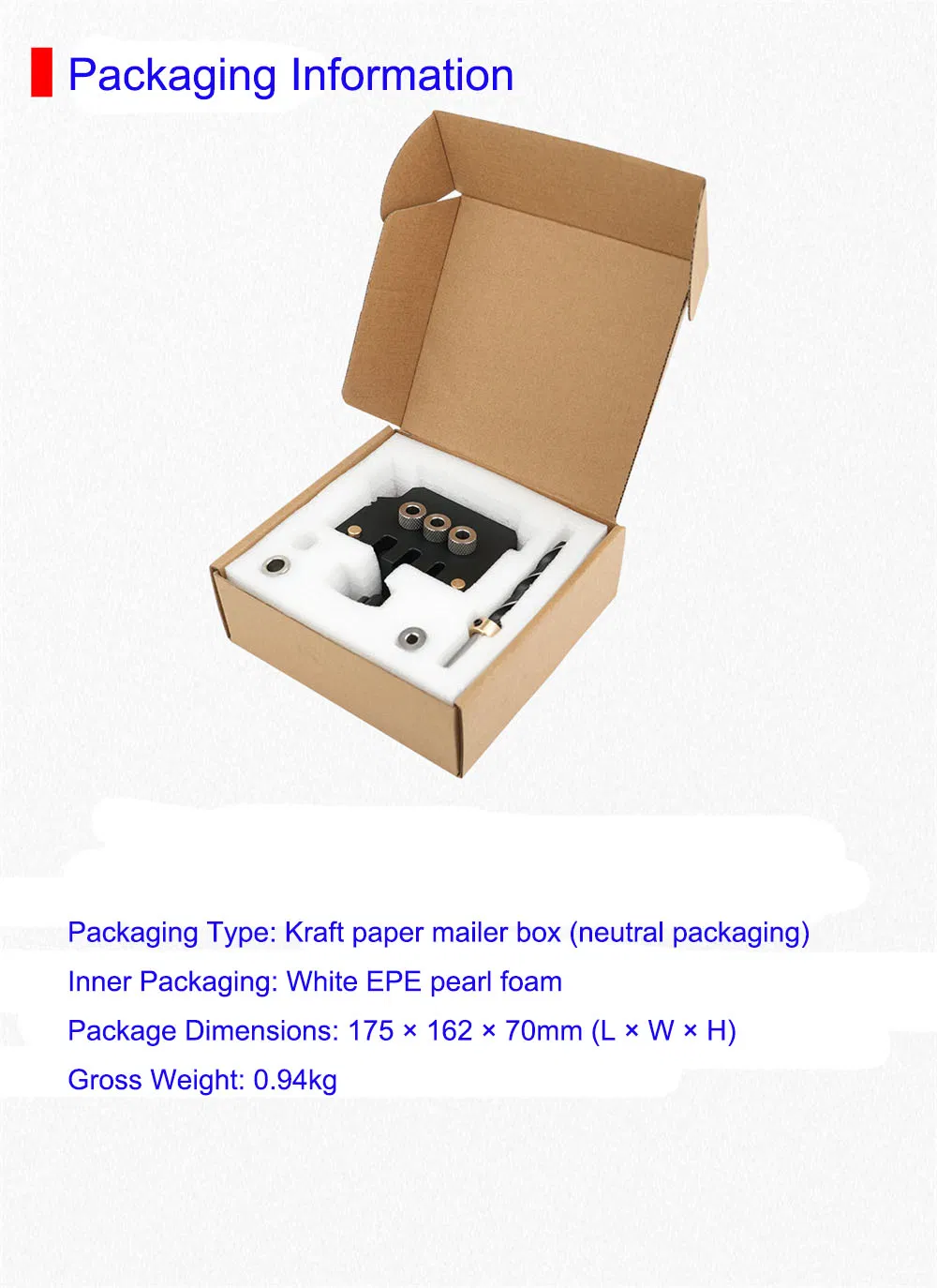

Packaging Information
Packaging Type	Kraft paper mailer box (neutral packaging)
Inner Packaging	White EPE pearl foam
Package Dimensions	175 × 162 × 70mm (L × W × H)
Gross Weight	0.94kg

High-Quality Performance & Manufacturing standards

High precision CNC parts strictly conforming to drawing, packaging, and quality demands.
Tolerance precision up to +/-0.005mm.
100% inspection during production and final verification to guarantee maximum quality.
Supported by engineers and technicians with over 10 years of manufacturing experience.
Fast and timely delivery backed by speedy and professional customer service.
Professional consulting offered during the design phase of new parts to help reduce production costs.
Strict quality assurance processes in accordance with ISO9001.

Capabilities & Technical Specifications
Materials Available	Stainless Steel: SUS201, SUS303, SUS304, SUS316, SUS416, SUS420, 17-4PH, SUS440C Steel: Q235, C20, C45(K1045), 1214, 1215 Copper: C36000(C26800), C37700(HPb59), C38500(HPb58), C27200(CuZn37), C28000(CuZn40/H62), C3604, C51000, C52100, C54400, CuSn8 Alumina (Aluminum): AL2024, AL5754(Almg3), AL5083, AL6061, AL6063, AL5052, AL7075 Alloy Steel: SCM435, 10B21 Plastic: PA6, PA66, PP, PC, POM, FR4, ABS, Acrylic
Machining Processes	CNC 3-axis, 4-axis machining, CNC milling, CNC turning, CNC Lathe, high precision 5-axis turning-milling combined machining, drilling, grinding, stamping, tapping, bending.
Finishes Available	Heat treatment, powder coating, electroplating, spraying, painting, polishing, deburring, wire drawing/brushed, anodizing, chrome plating, nickel plating, tin plating, silver plating, gold plating, galvanizing, blackening, etc.
Dimensions	Customized based on client requirements.
Tolerance	±0.005mm
Drawing Formats	PDF / JPEG / AI / PSD / CAD / Dwg / Step / LGS
MOQ	Negotiable
QC Policy	100% inspection and random inspection before shipment, featuring a QC passed label.
Standards Compliance	Materials and surface treatments comply fully with RoHS / Reach Directives.
Testing Equipment	CMM, Projector, Pull Tester, Automatic Optical Inspector, Salt Spray Tester, Durometer, Tensile Machine, height gauge, micrometer, plug gauge, thread Gauges, digital caliper, etc.
Applications	Automotive, optical instruments, medical devices, industrial machinery, electric appliances, robotics, computers, telecommunications, UAVs, aerospace, bicycle, pneumatic and hydraulic tools.
Packaging Options	PE bags, bubble bags, boxes, cartons, pallets, standard cartons, plastic trays, sponge trays, cardboard trays, or custom packaging based on requirements.
Trade & Payments	Terms: EXW, FOB, CIF. Payment via PayPal or Western Union for sample orders; larger amounts via T/T (30% deposit, 70% before shipment).
Delivery Lead Time	Within 15-20 working days after receipt of payment/deposit.
Shipping Ports	FOB, CIF, as per customer requests.
