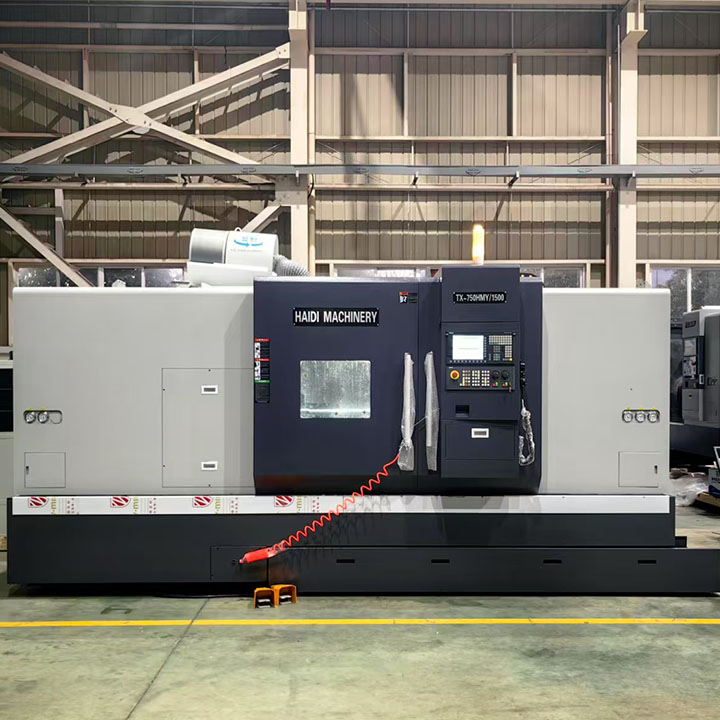

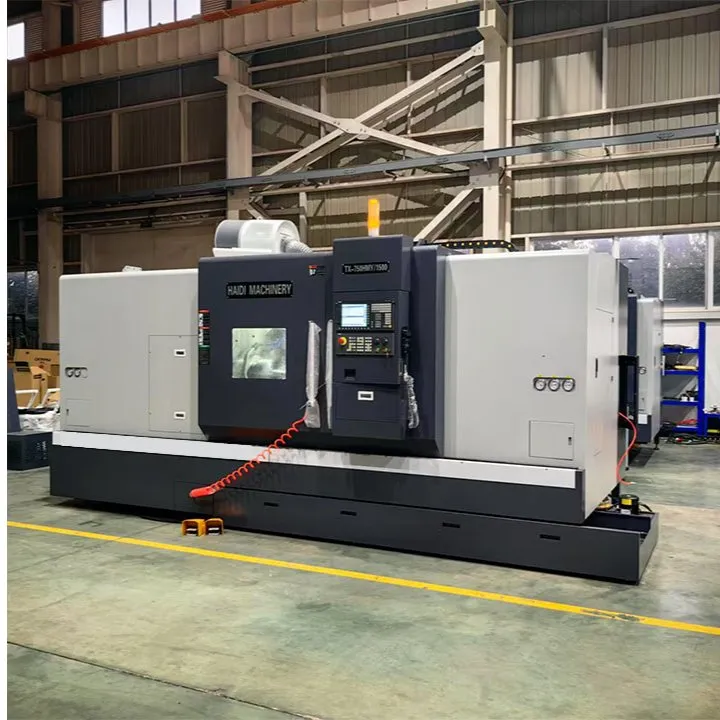

TX-750HMY/1500 CNC lathe features an integral HT300 cast iron bed with a 30° inclined box-type rail design. This build, combined with double-layer casting and reinforcing ribs, greatly boosts dynamic rigidity for stable heavy cutting.
Equipped with a 17KW high-torque motor, the spindle reaches 4000rpm max speed. The C-axis offers 0.001°/min indexing accuracy, allowing precision cutting and complex part processing. The BMT65-12T turret with a 7.5KW power tool motor supports bidirectional tool selection, enabling multi-process continuous machining for enhanced efficiency.

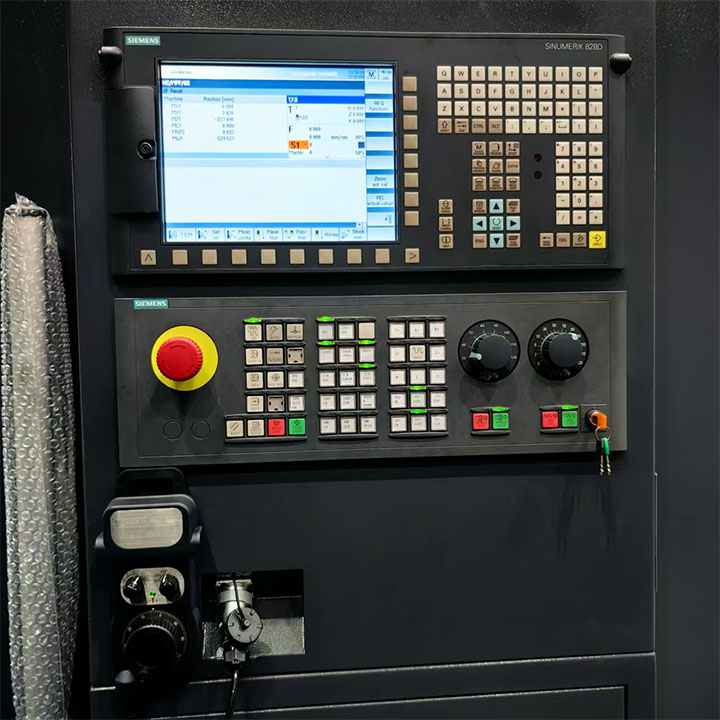

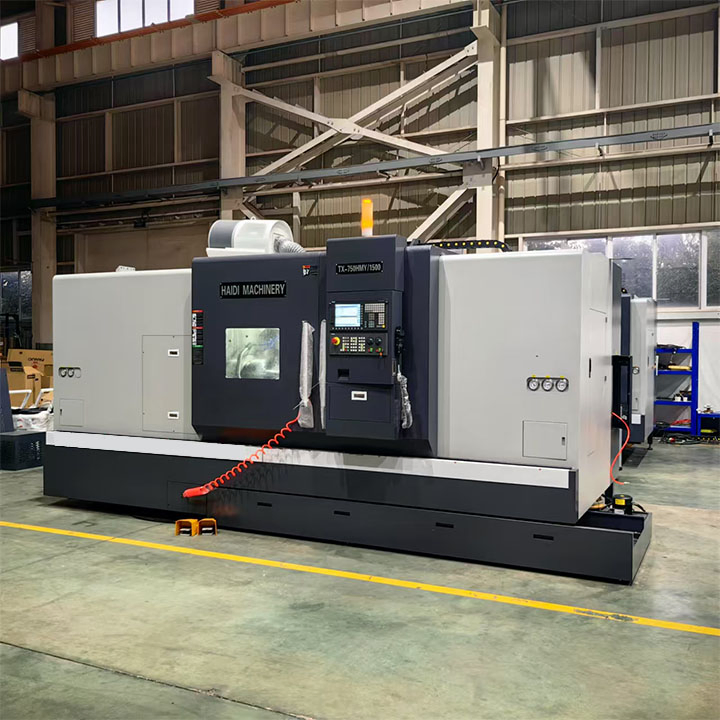

The X/Y/Z axes feature high-precision screws (4008/5010), with repeat positioning accuracy up to 0.003mm/0.007mm and machining accuracy at IT6 level. Standard Siemens 828D system, hydraulic center frame, chip conveyor included. Optional Renishaw HPMA tool setter and servo-controlled center frame make it ideal for high-precision, high-rigidity mass production in mechanical manufacturing.

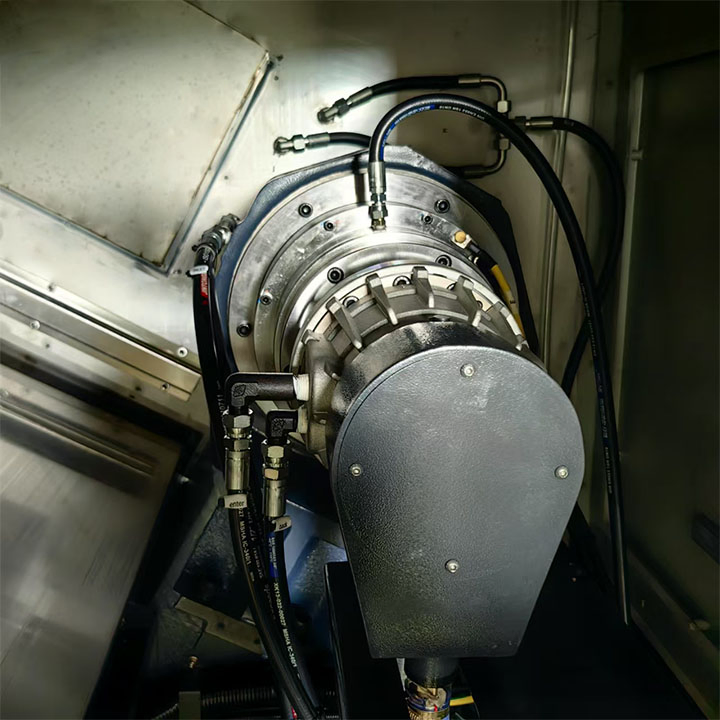

Designed for heavy cutting, the spindle features double cylindrical roller and angular contact ball bearings, ensuring top-tier performance. Multi-groove belts reduce noise and slip. A labyrinth design shields bearings from coolant, enhancing stability. The 4000 r/min spindle allows high-speed precision cutting, perfect for mass production of complex, rigid, high-precision, finely finished products.

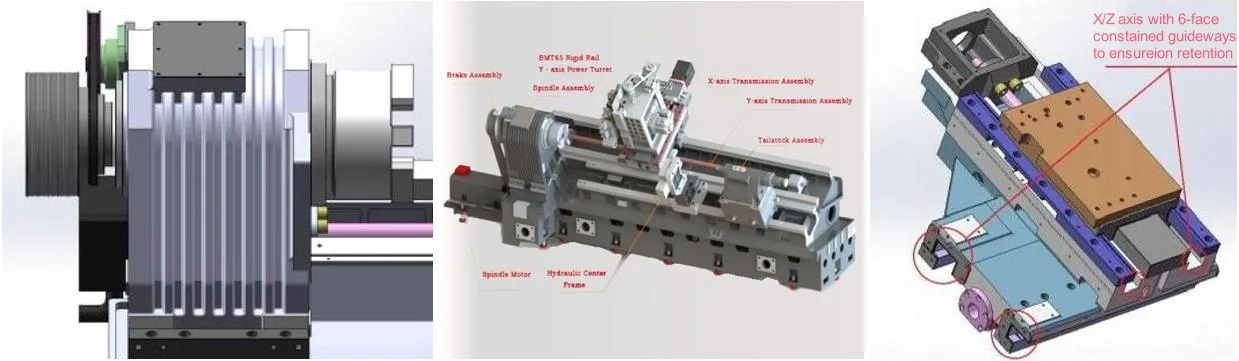

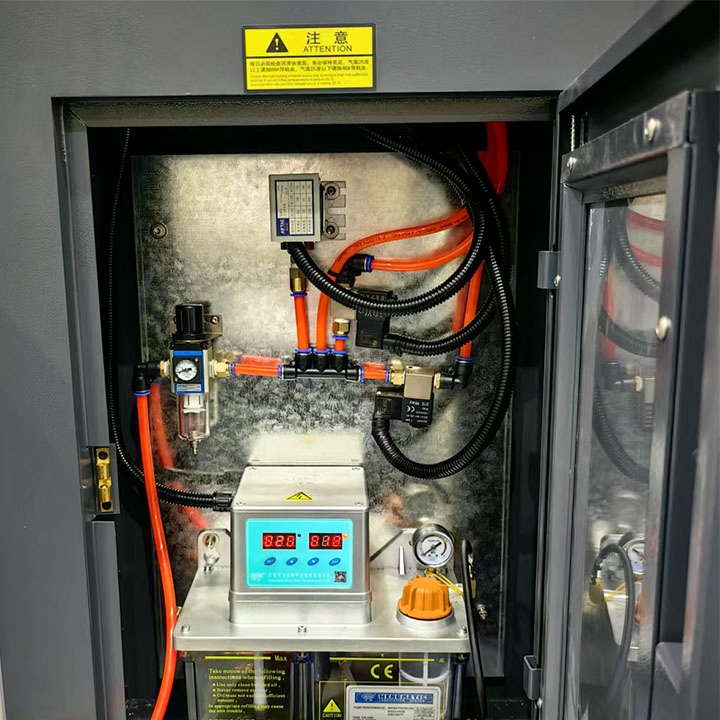

With an integral bed structure, this tool offers powerful cutting. Its robust design ensures stability, supporting diverse workpiece machining. The one-piece bed, cast from high-strength HT300 iron, features rectangular guideways, quenched (52 - 54°HRC) and precision ground in a single clamping. Slide plates with wear-resistant strips are precision-matched via hand scraping. Bearings and motor mounts are assembled with scraped and inlaid precision.
The 750H series uses box-type guideways for all axes, ensuring superior mobility. These guideways counteract cutting vibrations, reduce tool wear, and boost stability. The sealed X-axis design minimizes turret damage from chips, securing durability and precision.
| Category | Item | Parameter |
|---|---|---|
| Main Specifications | Maximum Swing Over Bed | Φ900mm |
| Maximum Turning Diameter | Φ560mm | |
| Maximum Turning Diameter Over Carriage | Φ560mm | |
| Maximum Turning Length | 1500mm | |
| Spindle & Chuck | Spindle Nose Type (Chuck) | A2-11 (12") |
| Spindle Motor Power | 17KW High-Torque Motor | |
| Maximum Spindle Speed | 4000rpm | |
| C-Axis Indexing | 0.001 °/min | |
| Spindle Bore Diameter | Φ102mm | |
| Bar Feeding Capacity | Φ88mm | |
| Feed System | X/Y/Z Axis Lead Screw | 4008/5010 |
| X Axis Travel | 325mm | |
| X Axis Motor Torque | 30N·M | |
| Y Axis Travel | 70mm | |
| Y Axis Motor Torque | ±70mm | |
| Z Axis Travel | 1680mm | |
| Z Axis Motor Torque | 12N·M | |
| X/Z Axis Connection | Direct Coupling | |
| Accuracy | Machining Accuracy | IT6 |
| Repeatability (X/Y) | 0.003mm/0.007mm | |
| Servo Turret | Servo Turret | BMT65-12T |
| Turret Center Height | 215mm | |
| Tool Shank Size | 25×25 | |
| Boring Bar Holder Size | 40mm | |
| Live Tool Holder | ER40 | |
| Live Tool Motor Power | 7.5KW | |
| Live Tool Speed | 4000rpm | |
| Tailstock | Quill Diameter | 130mm |
| Quill Travel | 120mm | |
| Tailstock Travel | 1600mm | |
| Tailstock Quill Taper | Morse No.5 (Live Center) | |
| Dimensions | Bed Type & Slant Angle | Integral / 30° |
| Overall Dimensions (L×W×H) | 5300×2200×2000mm | |
| Weight | Approximate Weight | 10T |
| Standard System | Standard System | Siemens 828D |
