Raw Material
Imported premium steel is utilized as the raw material to guarantee higher precision.
A perfect rule starts from a superior material. Every cutting rule uses imported steel as material, which offers the rules higher precision, helping users reduce the adjusting time for machines, and also reducing machine wear.
Frequently Asked Questions
What kind of raw materials are used for these cutting rules?
Imported premium steel is used to ensure higher precision, which helps reduce machine adjustment times and minimizes machine wear.

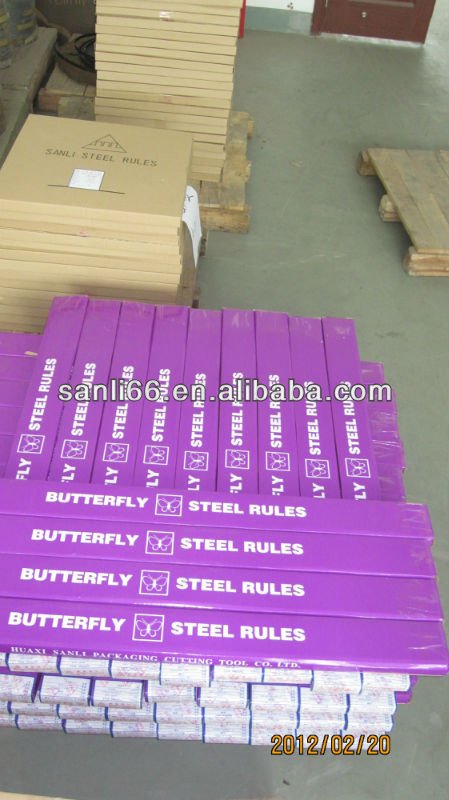

What size and packing specifications do you offer?
We offer thicknesses of 2pt (0.71mm), 3pt (1.05mm), and 4pt (1.42mm). These are packed as either strips or coils, except for 4pt which is not available in coils.

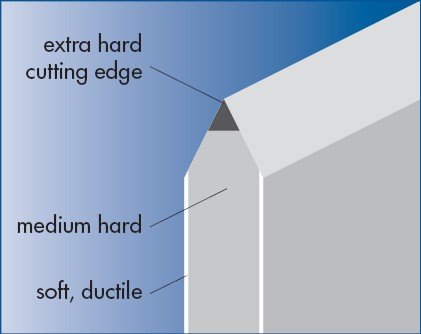

What is the hardness level of the body and tip?
The body hardness is available in HRC 34~36 (soft), HRC 37~39 (medium hard - standard), and HRC 40~42 (hard). The tip hardness is specified at HRC 52~56.
Which tip hardening method is applied?

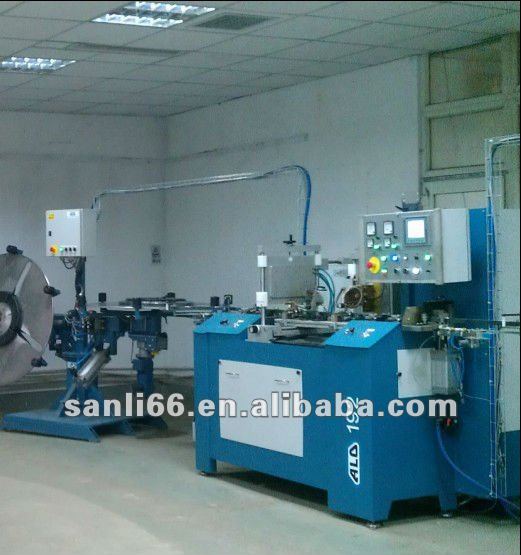

We utilize High Frequency Induction hardening, processed by the advanced ALO 192 hardening machine imported from Sweden.
What tip forms and edge types are available?
Tip forms include Center Bevel (CB), Long Center Bevel (LCB), Side Bevel (SB), and Long Side Bevel (LSB). The edge types are available as shaved edge or grinding edge.
What are the primary applications of these cutting rules?
They are widely used in die cutting paperboard, corrugated paper, boxes, cartons, circuit boards, and other similar materials. OEM customization is also supported.
