1. CNC VERTICAL CHUCK TURNING MACHINE SERIES

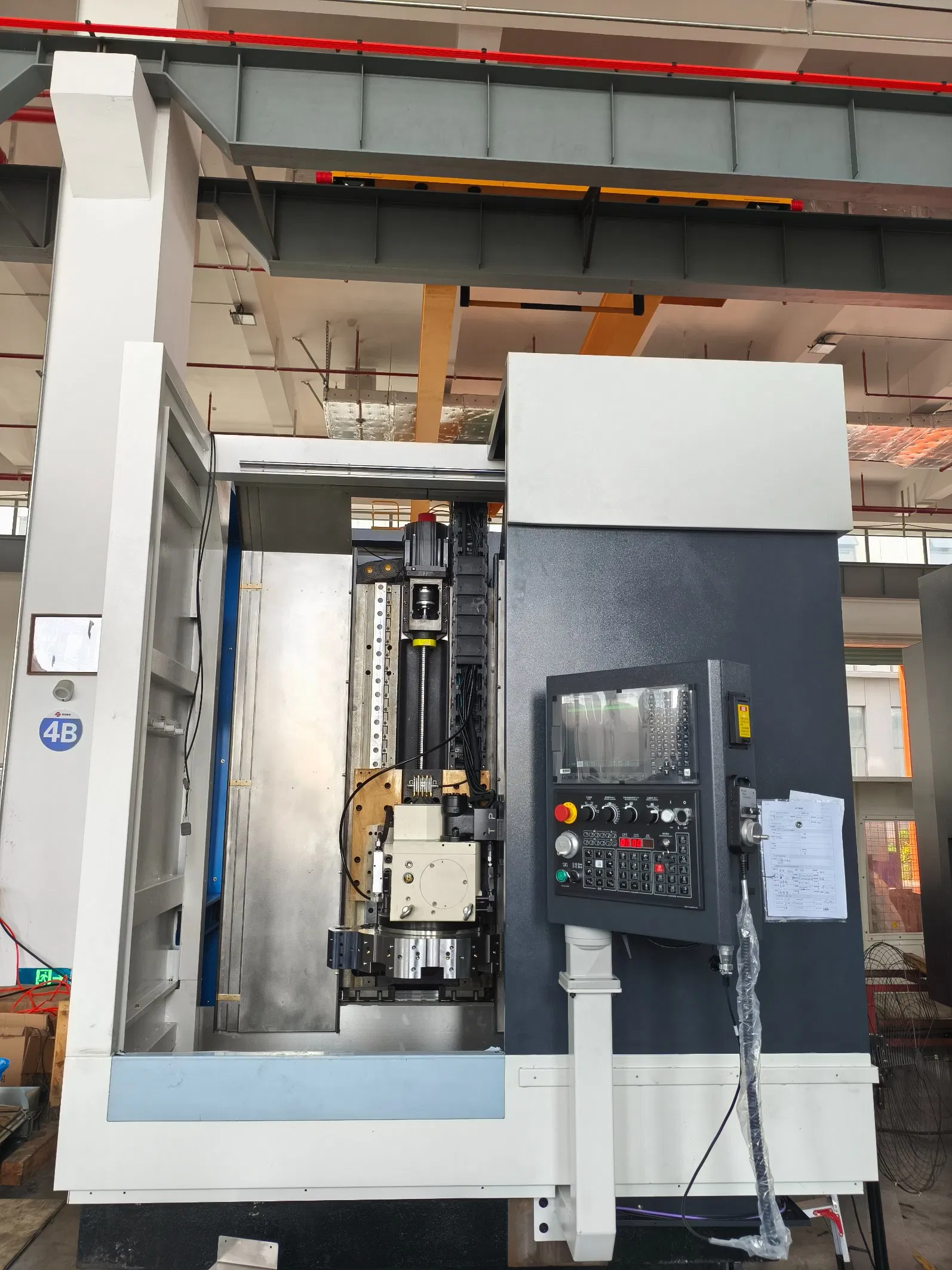

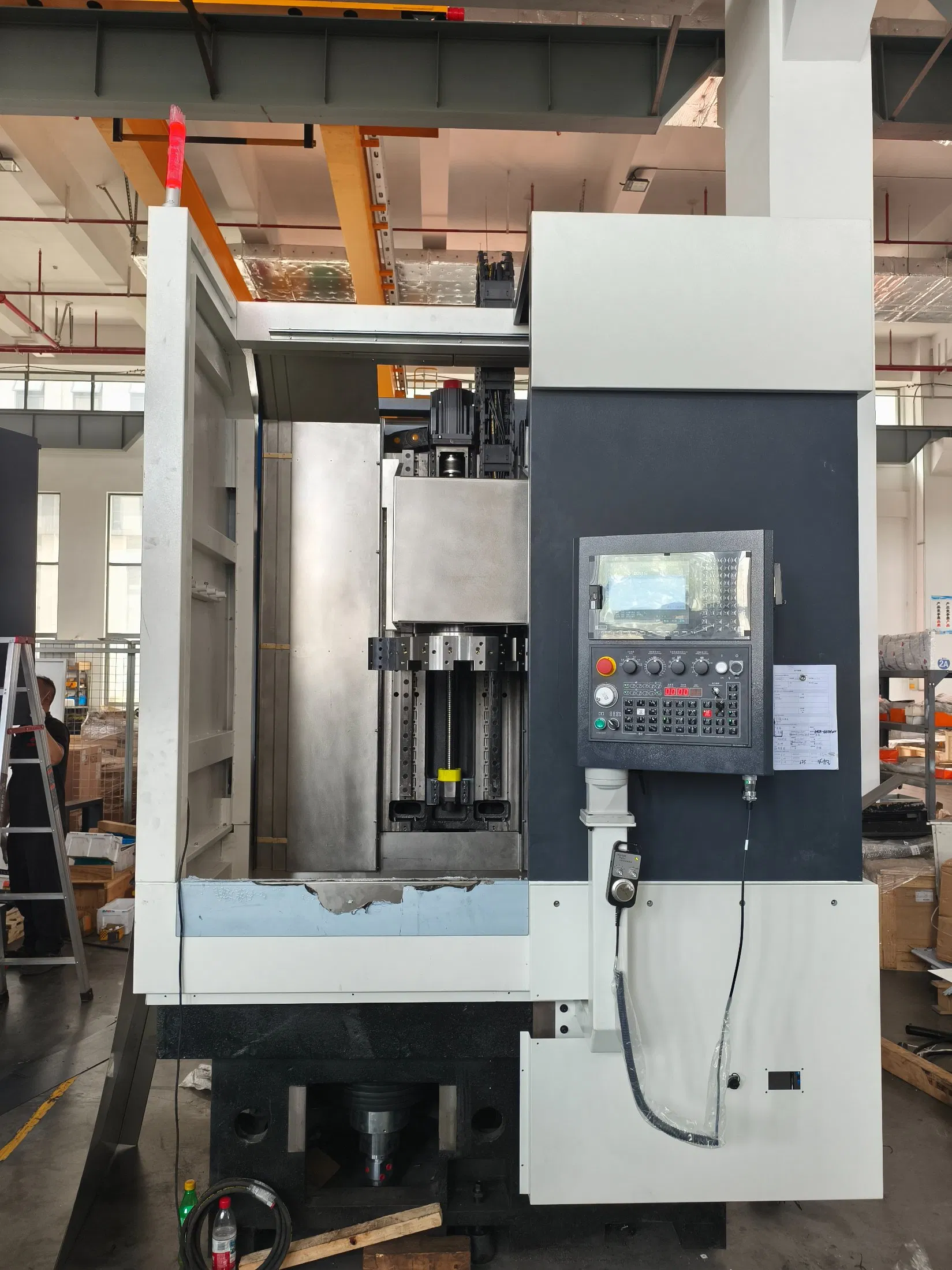

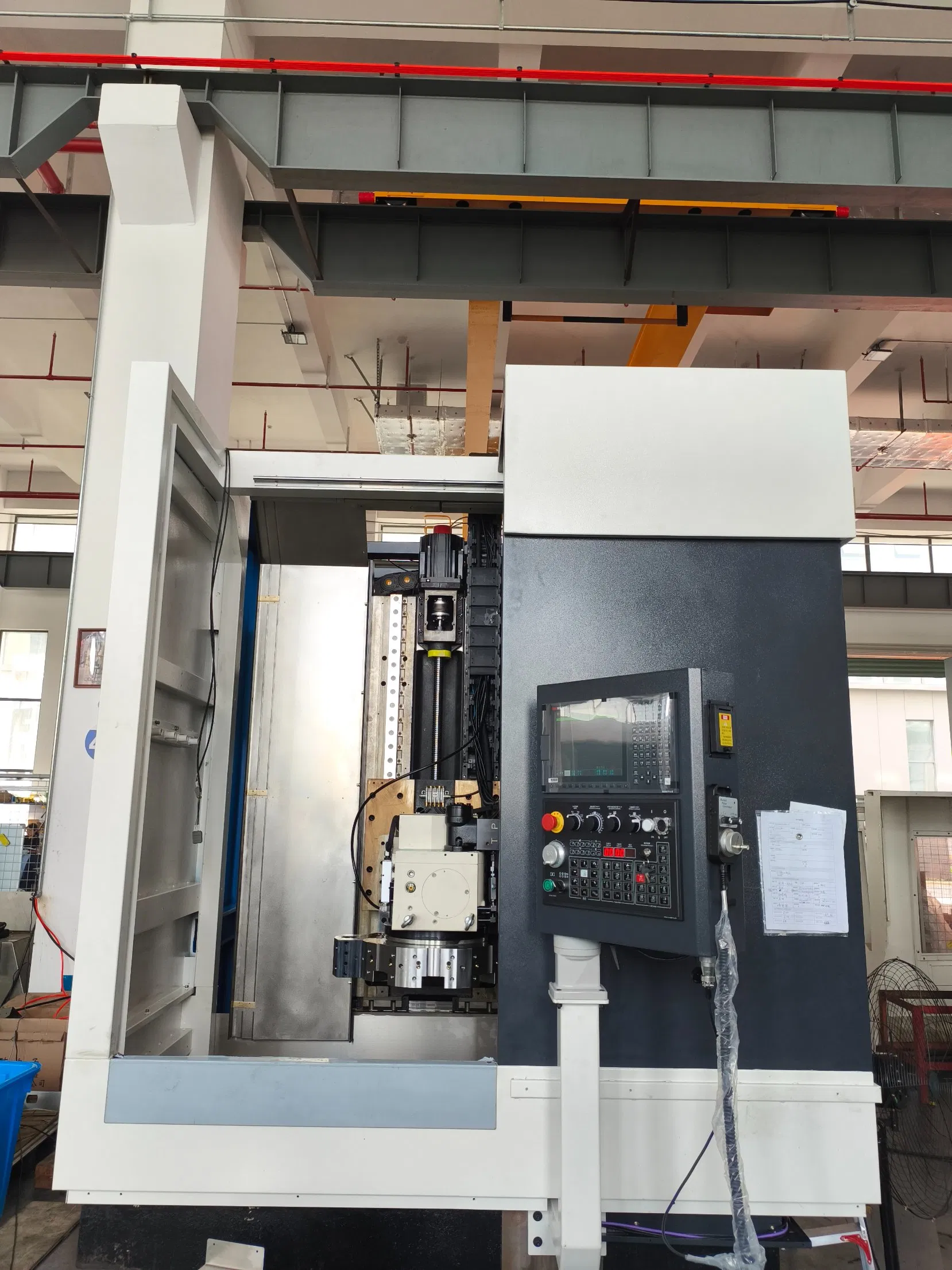

High-efficiency CNC vertical lathe, suitable for processing small and medium-sized discs and cover parts. High-strength cast iron base and column provide good stability and shock resistance. Vertical structure ensures convenient clamping of workpieces, small footprint, and oil-water separation structure. The cooling water is clean and environmentally friendly, with a separated cooling water tank that is easy to clean. The precise, high-rigidity cartridge-type spindle structure is easy to maintain. The spindle sleeve is fully symmetrical and suspended, which better eliminates the impact of thermal deformation on machining accuracy. A high-power AC spindle motor enhances the stability of the machine tool operation. The main shaft is lubricated with imported high-grade grease, fully enclosed, and maintenance-free. High rigidity tool holder ensures fast tool change and reliable centralized operation. The X/Z axis adopts high-precision ball screws and special bearings to preserve accuracy. Features integral fully enclosed protection for environmental protection.

Key Features

• The unique wall panel + moving column structure, plus the X-direction three-rail design, provides powerful cutting capabilities, exceeding your expectations.
• Verified by many customers, it is superior to the traditional fixed column structure in terms of rigidity, precision, speed, and stability.

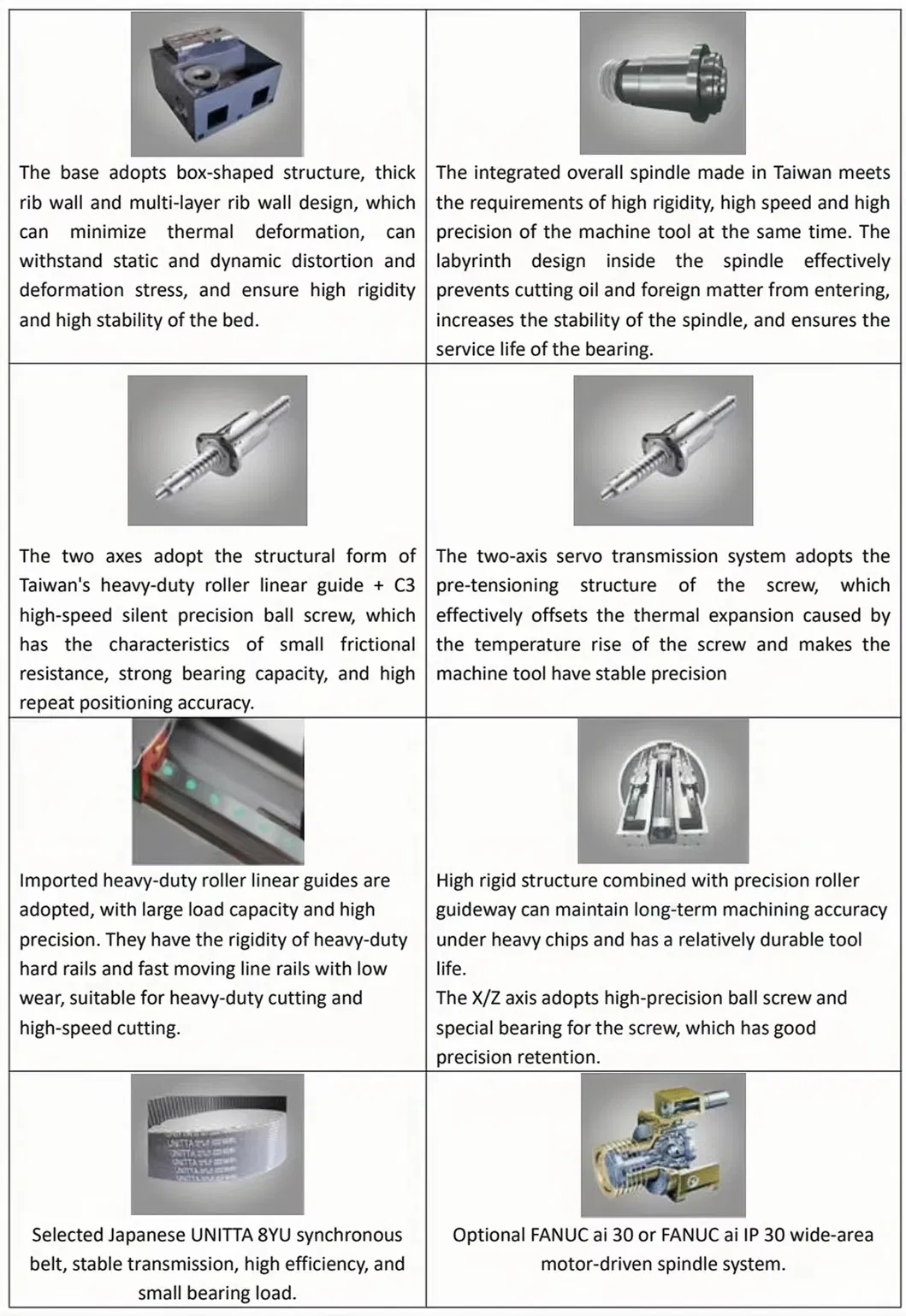

• All structural parts are analyzed by finite element to optimize the structure to ensure the stability of the precision of the machine tool in the cutting state, and the mechanical rigidity is increased by 30% compared with the traditional design.

Schematic Diagram of Screw Pre-tensioning Mechanism

• A wide-area motor is used to drive the spindle system, providing a high torque value twice that of ordinary motors, ensuring heavy-duty cutting capabilities in the lower-speed operation range.
• Low center of gravity structure design and 90° rotatable system control panel provide excellent convenience and a humanized operation interface for loading and unloading workpieces.
• Fully protective sheet metal isolates turning chips and coolant in the machine tool, providing a safe and clean working environment.
• Ultra-simplified footprint, combined with a rear-exit chip conveyor, not only improves the space utilization rate of the plant but also facilitates iron chip conveying system planning.

Technical Parameters

2. WORKING CONDITION AND SERVICE

Machine Tool Environment

Power supply: 3-AC 380V±10% 50Hz±1Hz
Altitude: ≤1500m
Ambient temperature: 5~45°C
Relative humidity: ≤85%
Environment: No harmful and corrosive gas, liquid, or dust; no strong vibration, strong magnetic field, or strong radiation.

Machine Tool Acceptance Criteria and Procedures

• Precision of machining center: Check and accept according to relevant national standards GB/T18400-2010 (for checking geometric accuracy, working accuracy, standard cutting test pieces, etc.).
• Check and accept according to the relevant technical agreement, factory documents, and configuration list signed by both parties.
• For machine tools with special configuration, the acceptance is divided into two parts: pre-acceptance and final acceptance. Pre-acceptance occurs at the manufacturer's facility, while final acceptance is conducted on-site after installation.

Training and Installation

The factory supplies installation documentation. Easy training can be conducted via video meeting for free. If on-site installation and training are required, the factory will arrange engineers to visit the user's facility. The cost of round-trip airfare, board, lodging, and a daily salary of 100.00 USD per engineer will be borne by the user.

After Sales Service

1. From the Bill of Lading (BL) date, the manufacturer implements a "three guarantees" service for the product for one year (excluding damage caused by improper operation, for which cost fees will apply).
2. When a breakdown occurs, the manufacturer will diagnose the cause and act immediately. A reply will be provided within 24 hours. If on-site handling is required, a technician will be sent within one week, depending on travel distance, until the fault is resolved.

3. Factory Workshop & Customer Factory

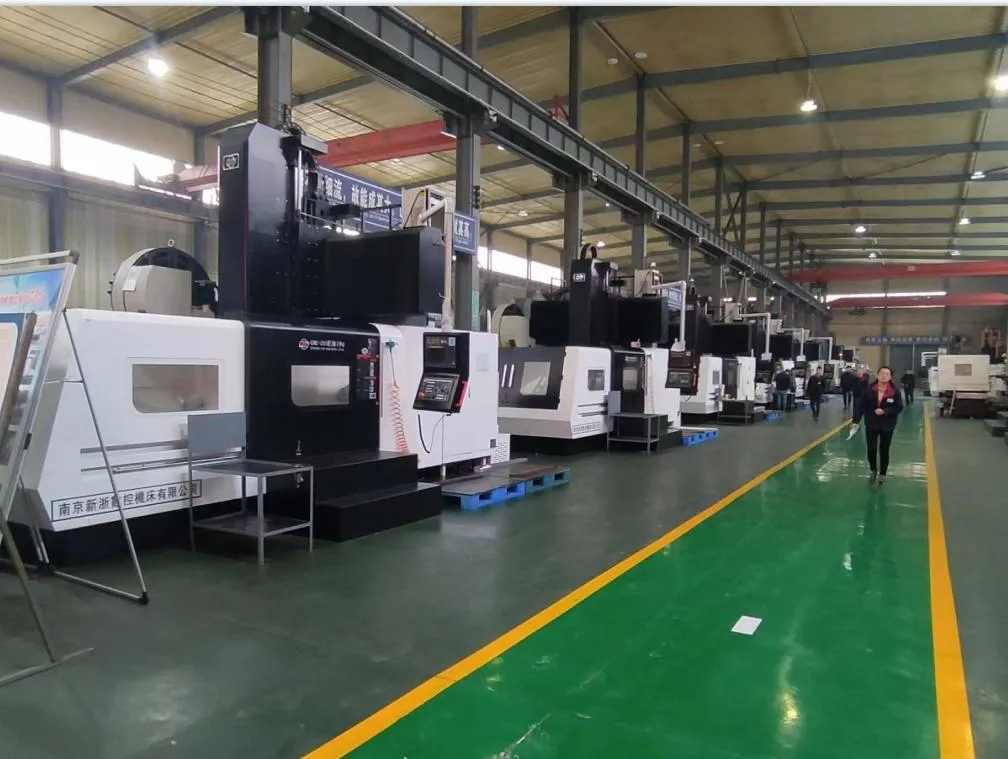

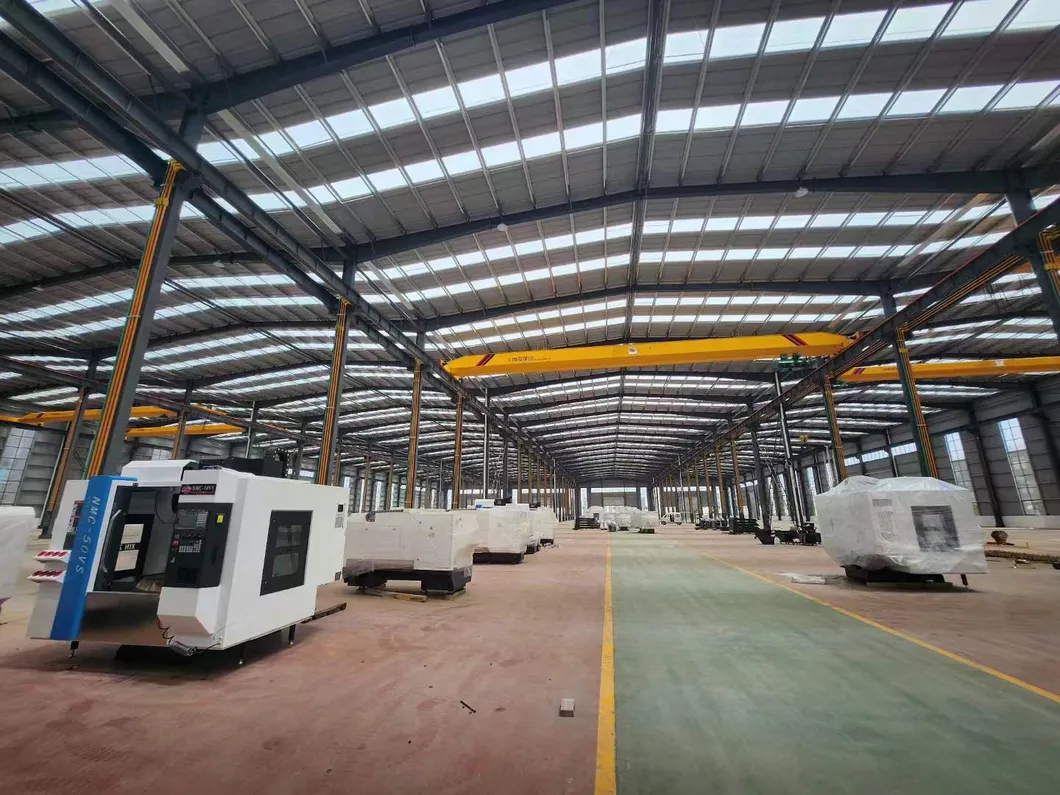

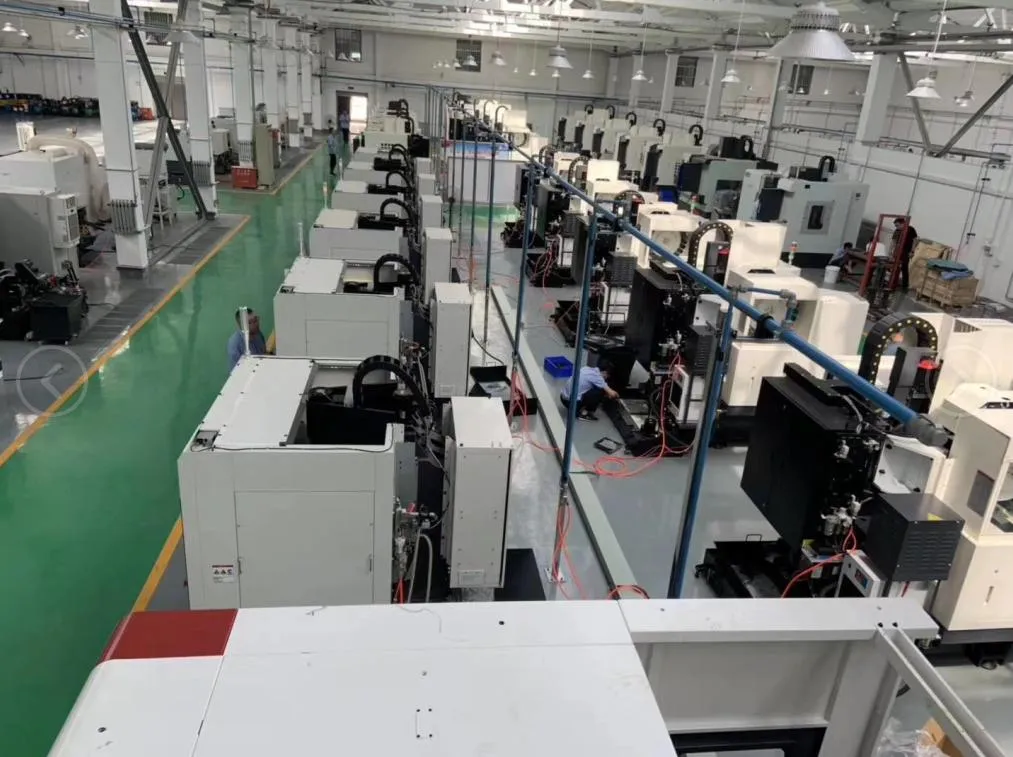

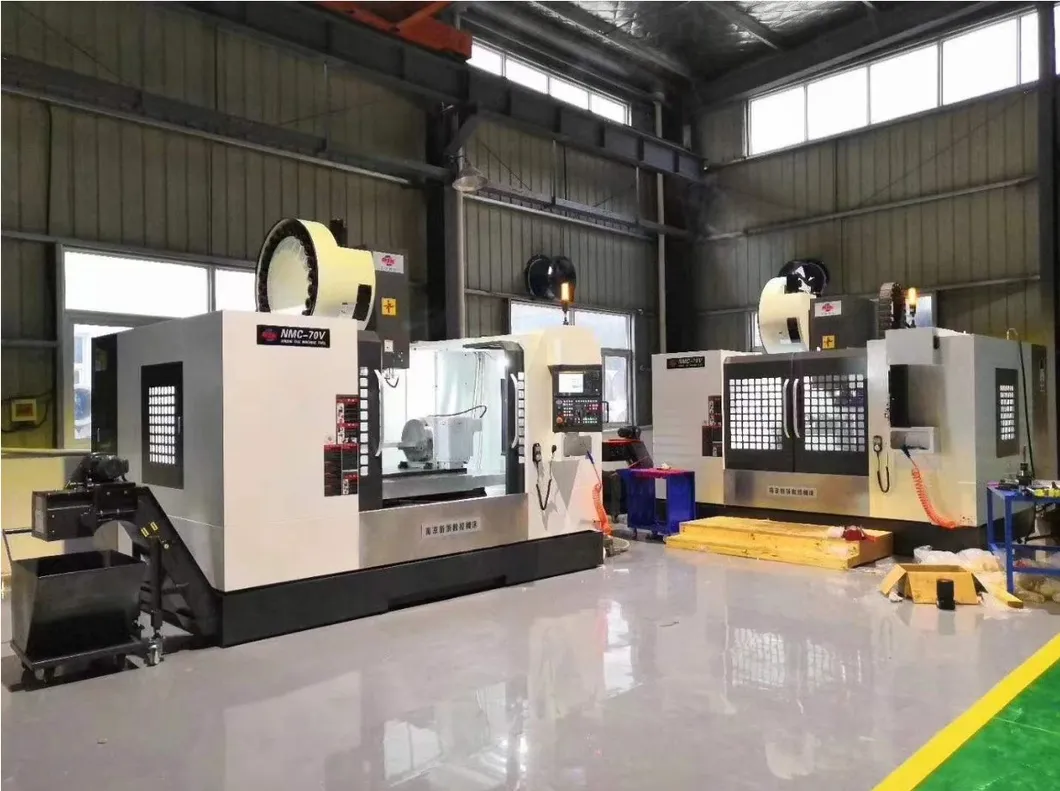

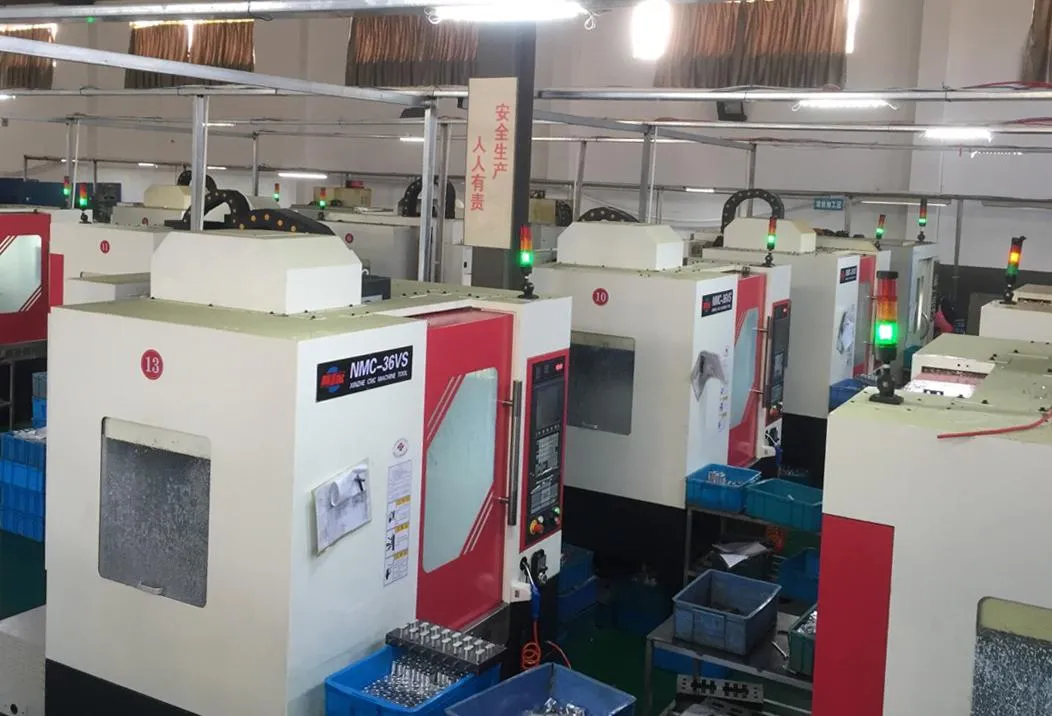

Workshop Facilities

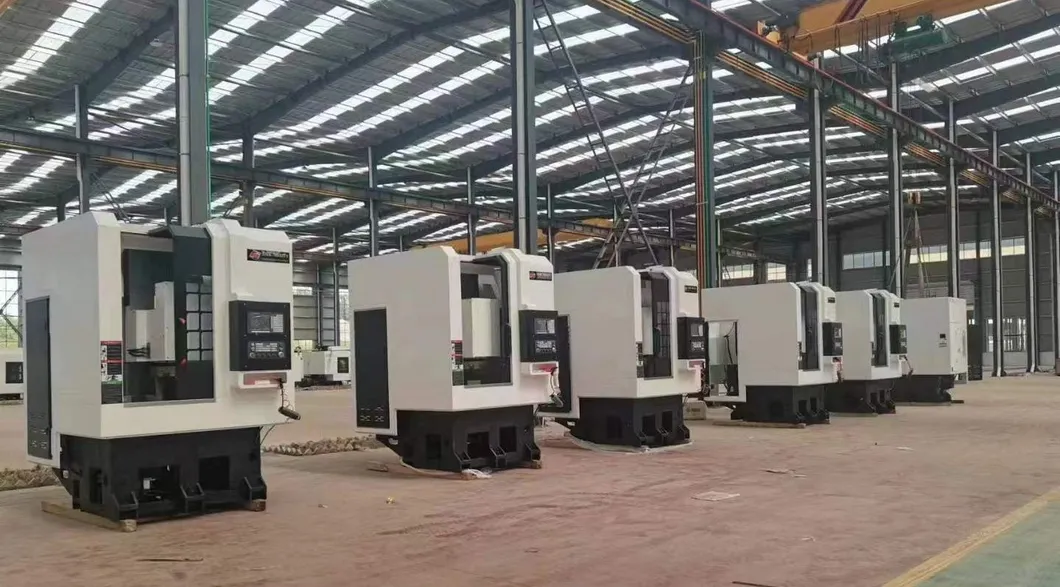

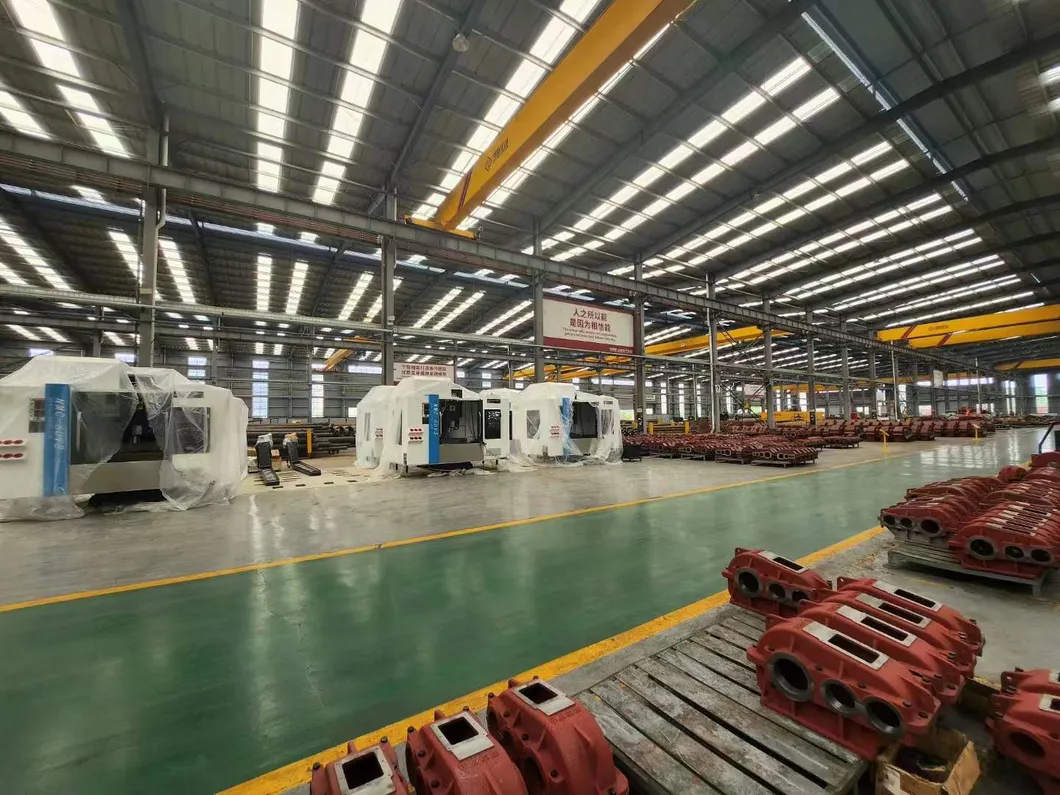

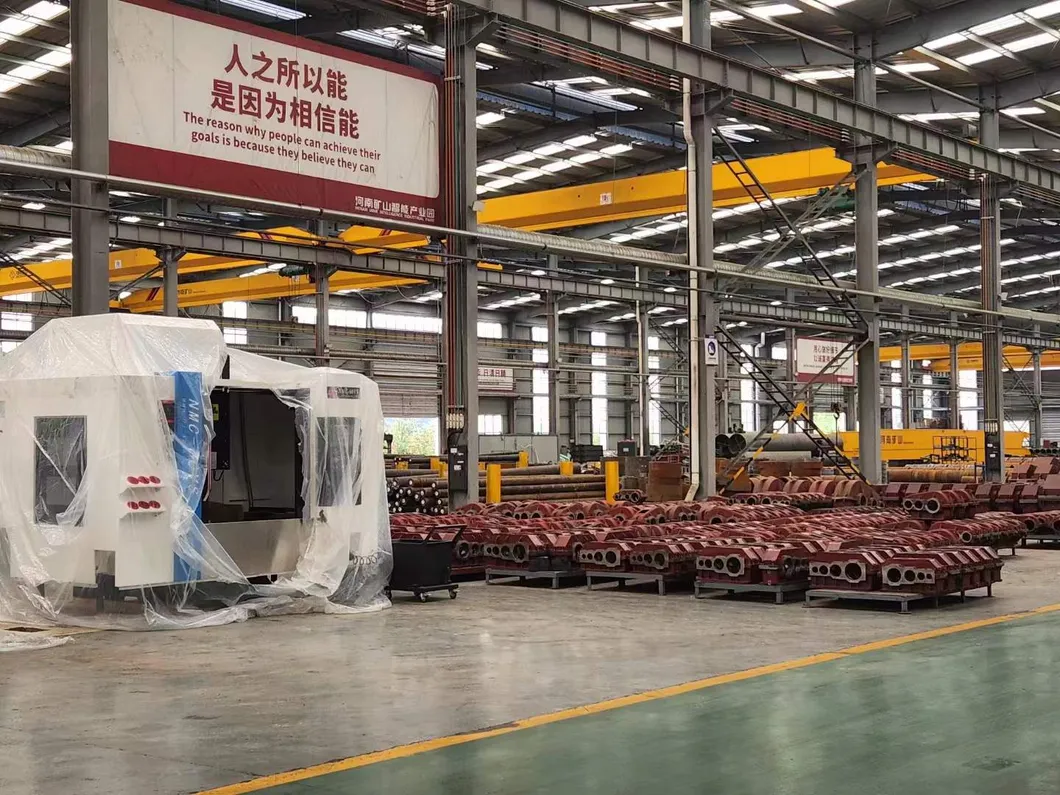

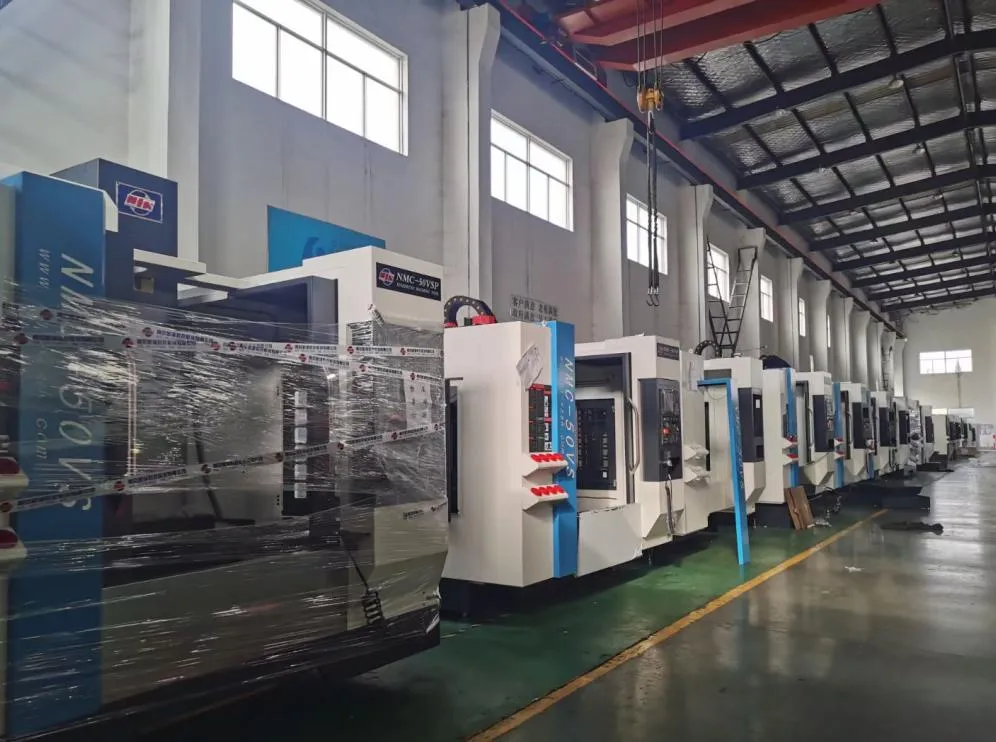

Customer Factory Installations

4. Company Strength

Established in 2007, the company is mainly engaged in the research, development, manufacturing, technical consulting, sales, and service of CNC machine tools, intelligent equipment, and intelligent manufacturing systems.

The main products include vertical machining centers, horizontal machining centers, gantry machining centers, five-axis machining centers, vertical lathes, and various special machine tools, intelligent manufacturing production lines, and workshop planning solutions. In addition to the main production base, branches have been established in Chongqing and Guangdong to provide comprehensive localized support.

CNC Solution for Metal Cutting Industry

Insisting on being customer-centered and constantly innovating, the company has developed high-efficiency, labor-saving automatic special machine tools and production lines. Major breakthroughs have been achieved in partnership with leading industrial companies such as SINOSTEEL, SINOTRUK, and Fuhua Heavy Industries.

Adhering to the tenet of "attitude determines everything, quality makes the future," the company focuses on building dedicated teams and producing high-quality products to serve customers with heart and soul.

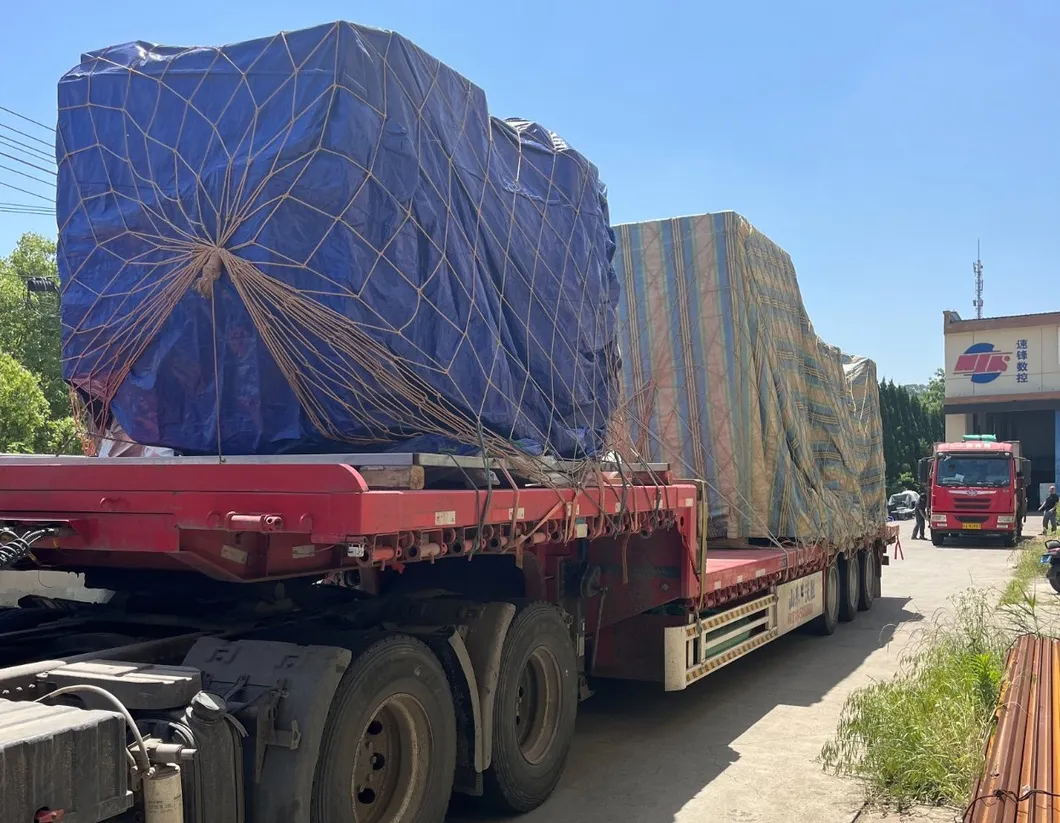

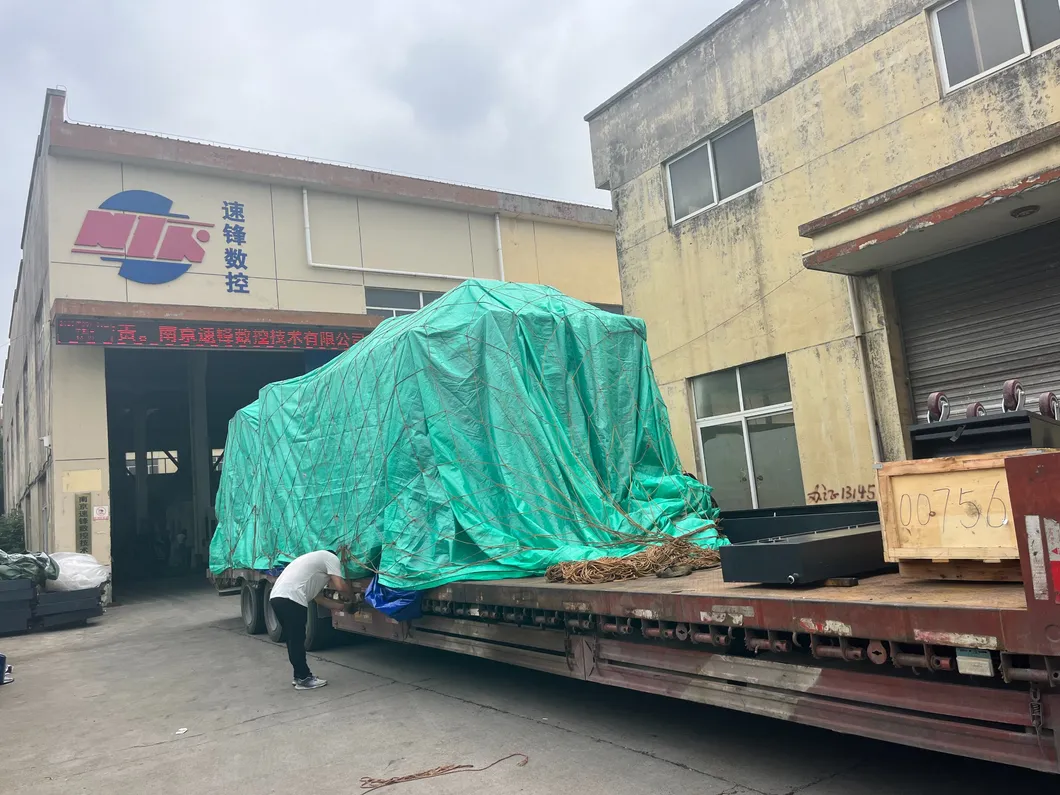

Professional Export Packaging
