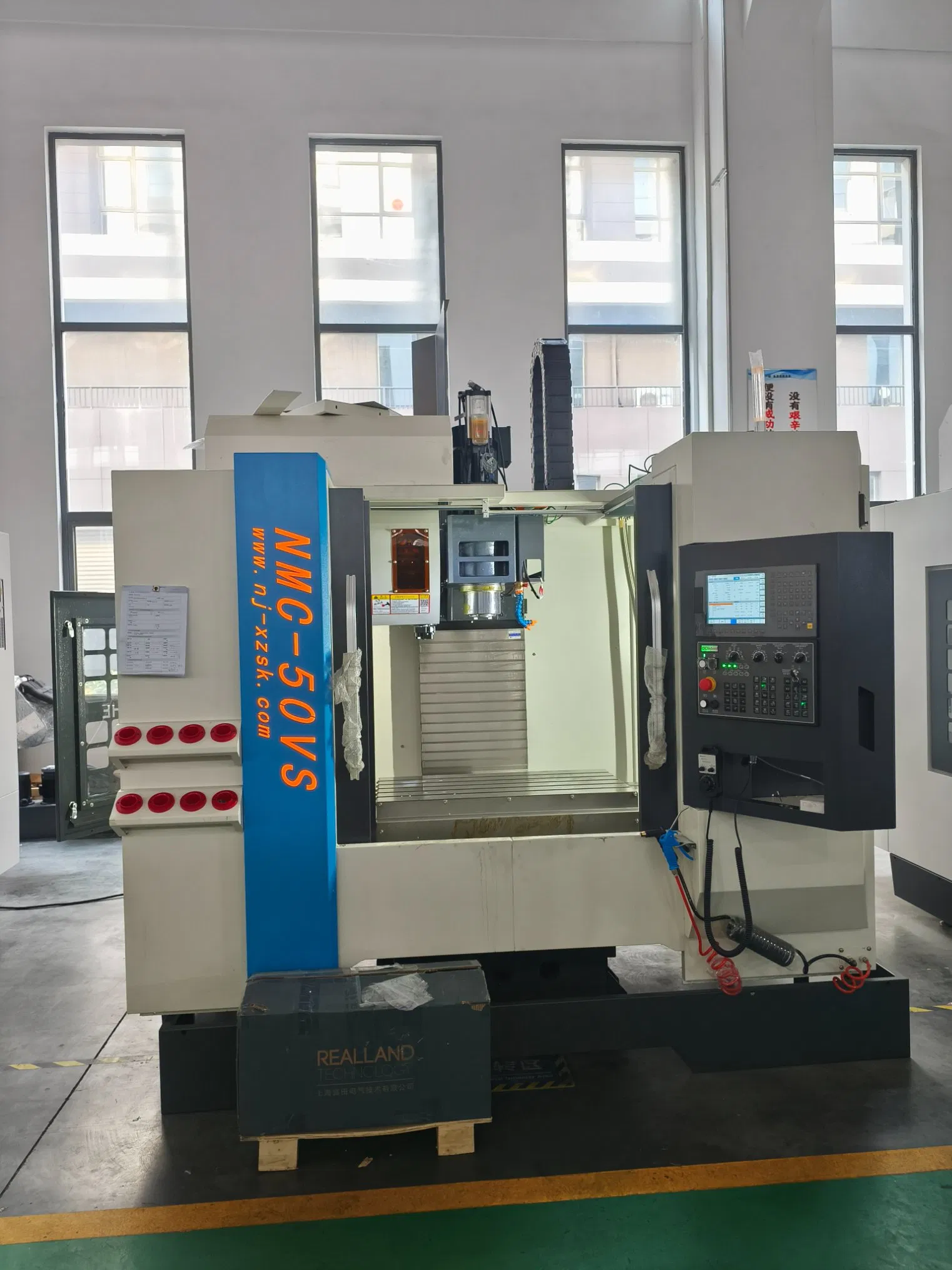

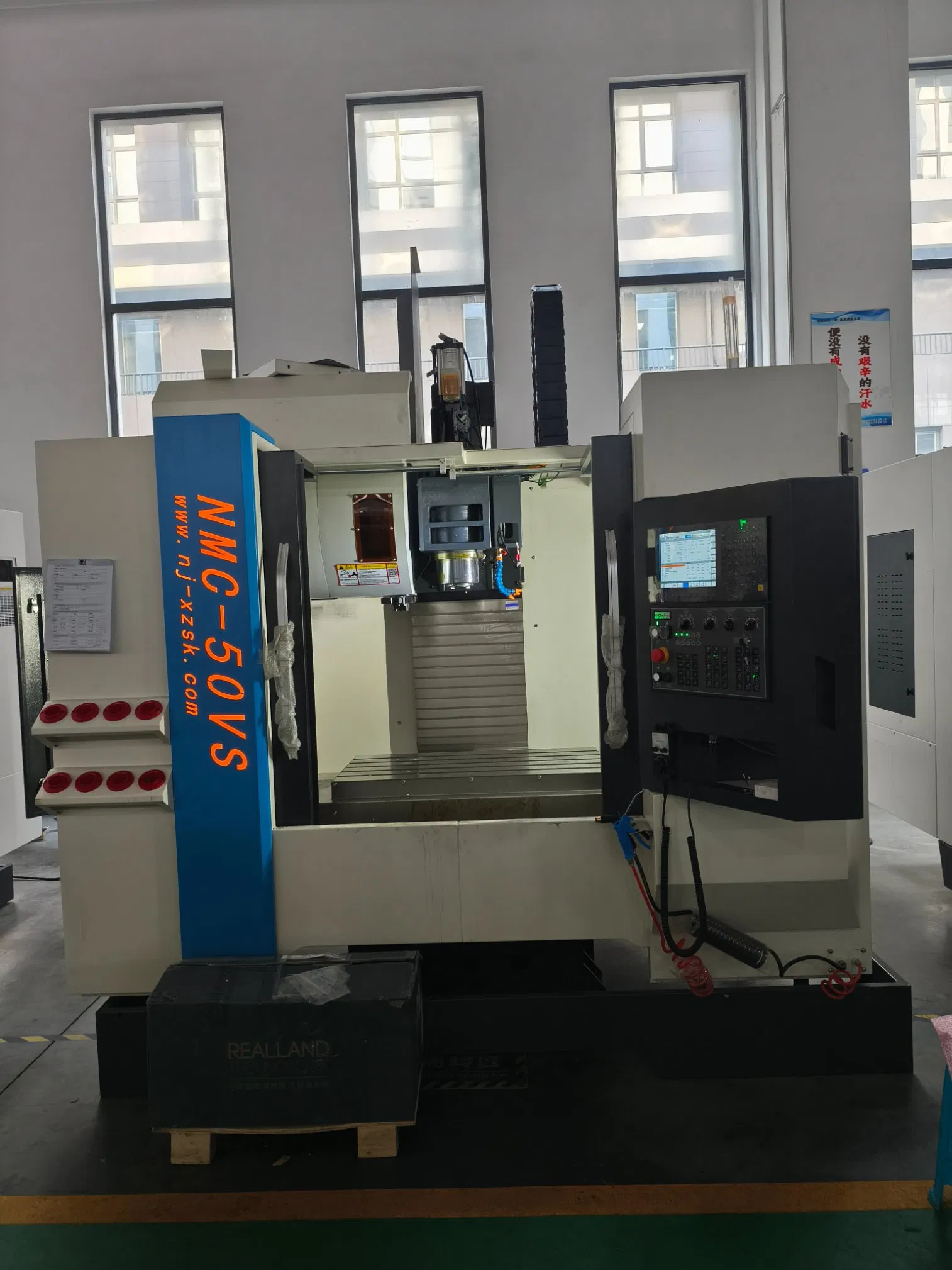

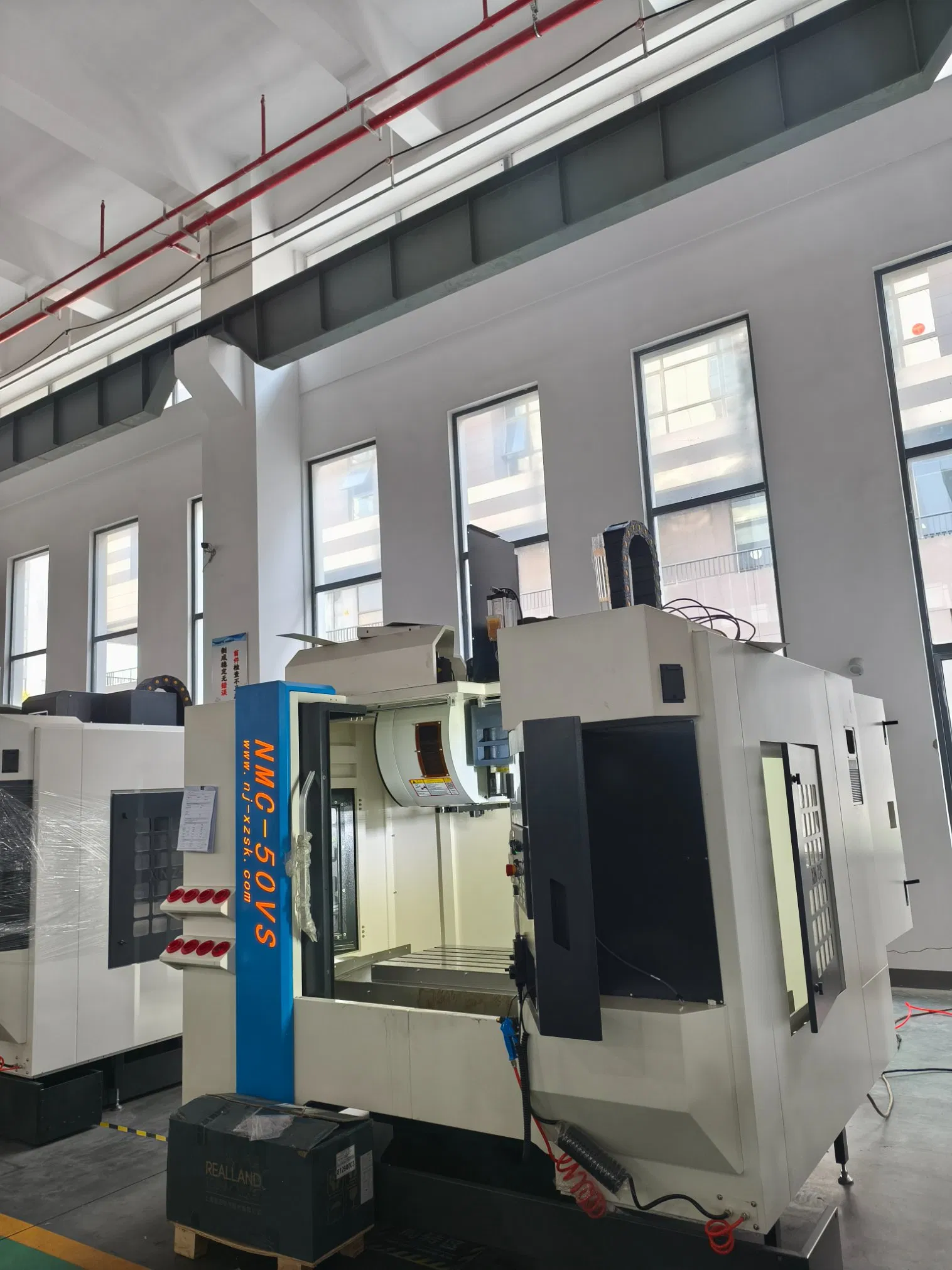

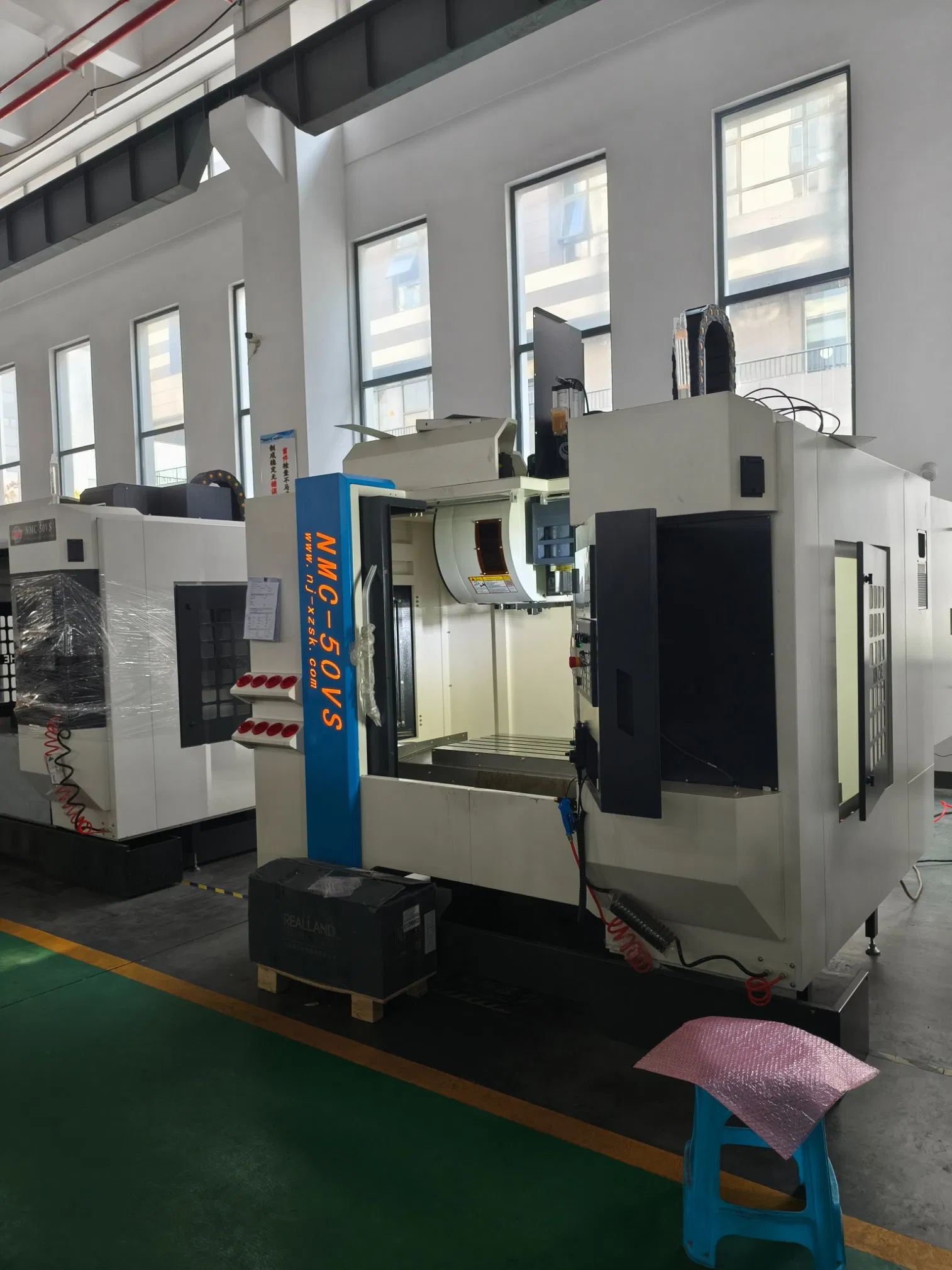

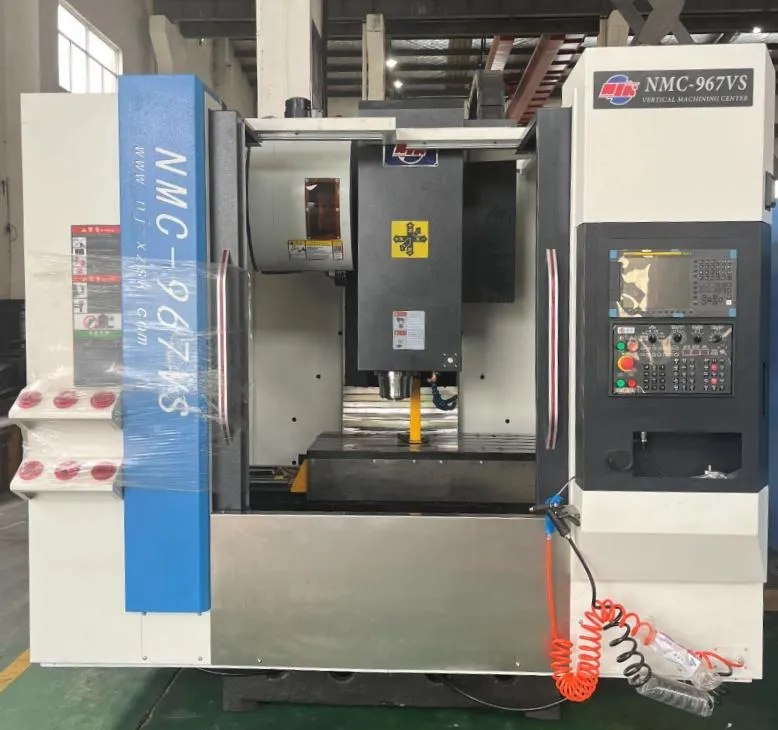

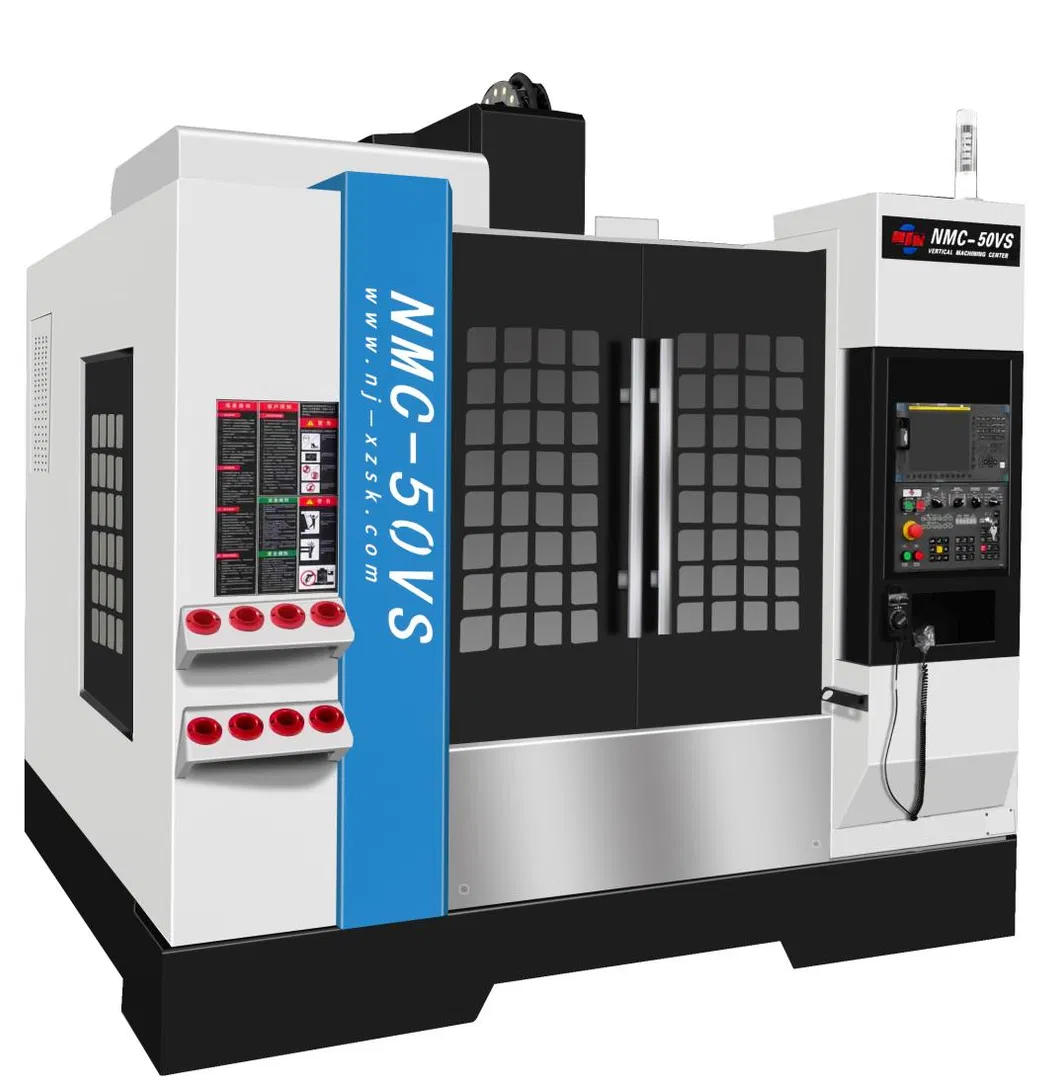

Machine tool features: The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate.
Cooperating with the high-rigidity integrated spindle unit, the heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models.
The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.

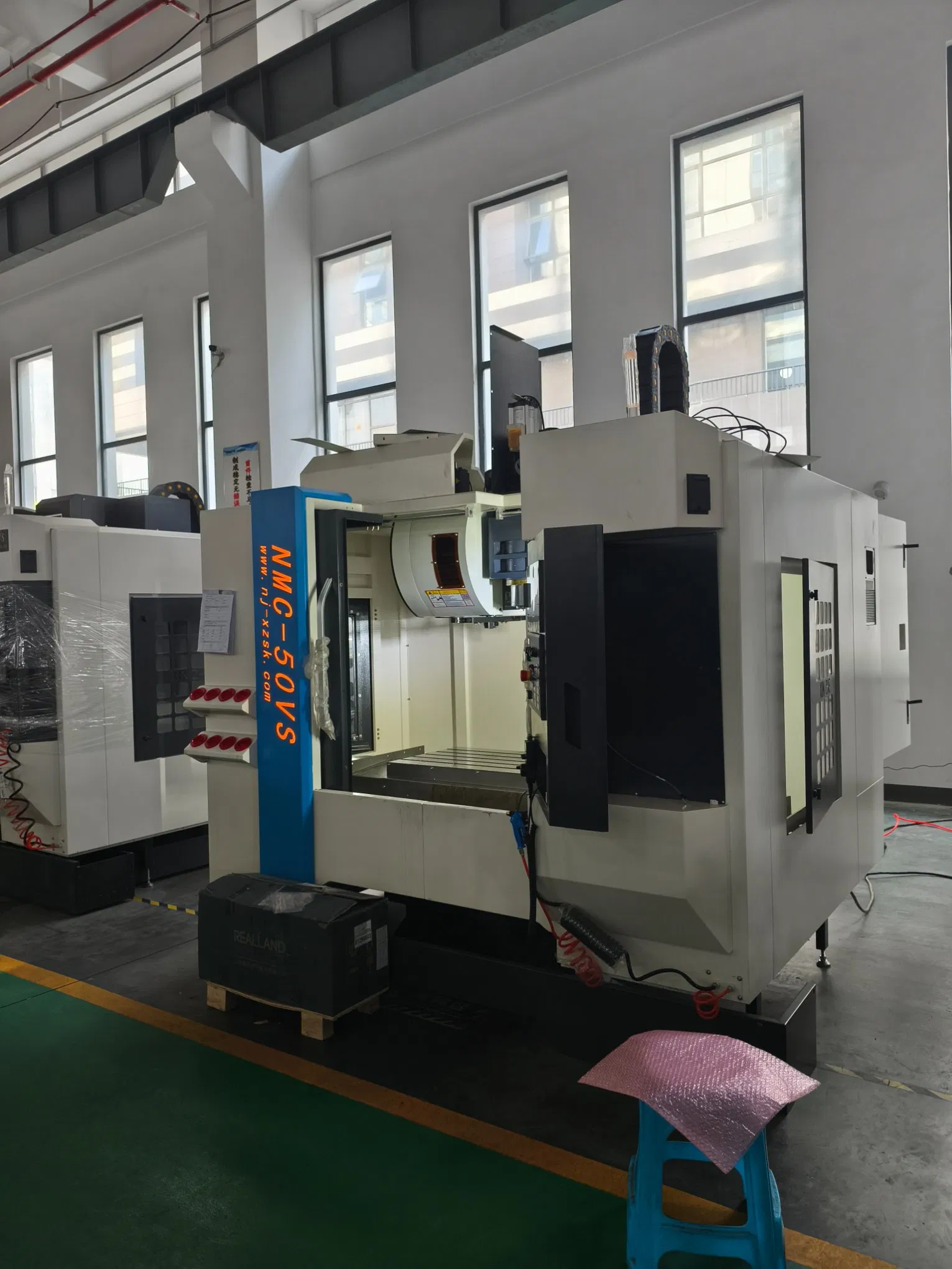

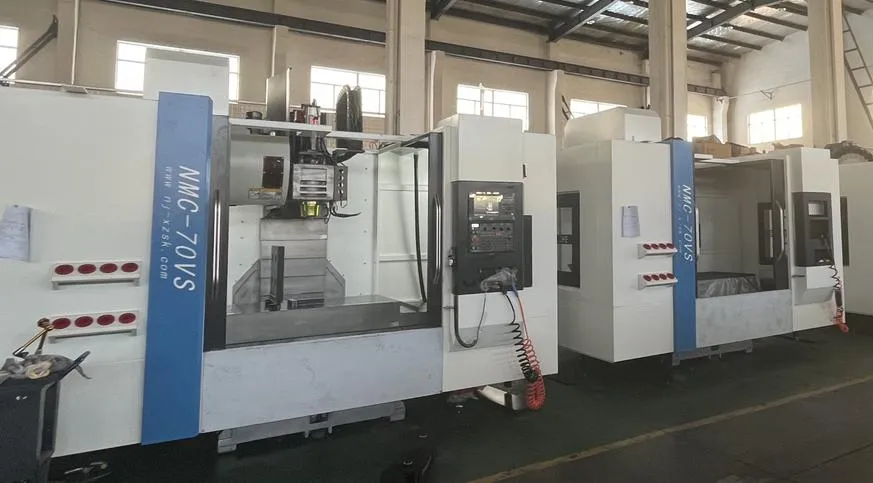

| Item | Specification | Unit | NMC-50VS | NMC-70VS |
|---|---|---|---|---|
| Travelling | X/Y/Z axis | mm | 800/550/550 | 1300/700/730 |
| Distance between spindle end to worktable | mm | 120-670 | 180-910 | |
| Distance between spindle center to vertical column guideway | mm | 590 | 795 | |
| Guideway type | - | Roller guide rail | Roller guide rail | |
| Worktable | Worktable size(L*W) | mm | 1000*550 | 1400*700 |
| Max worktable loading | kg | 800 | 1200 | |
| T slot | No/mm | 5-18×90 | 5-18×150 | |
| Spindle | Spindle taper(Model/install size) | mm | BT40 | BT40 |
| Spindle speed | rpm | 10000 | 10000 | |
| Spindle drive type | - | belt | belt | |
| Feed | X/Y/Z axis fast feed | m/min | 36/36/36 | 24/24/24 |
| Max cutting feeding | mm/min | 10000 | 10000 | |

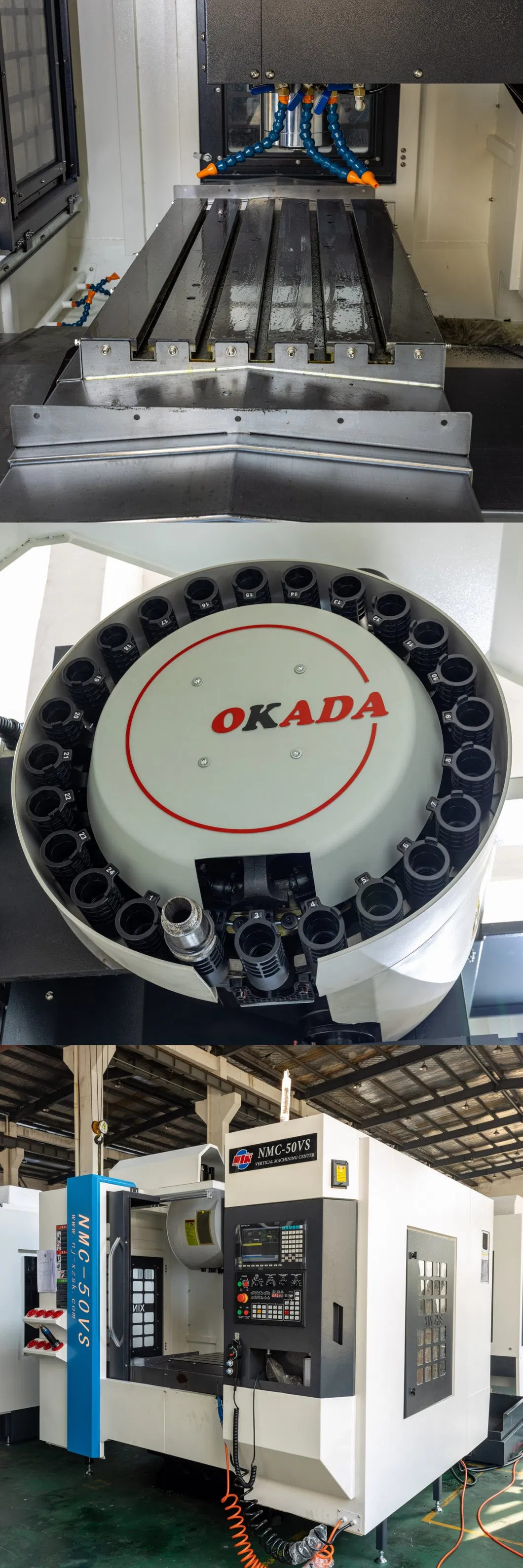

| Tool magazine | Tool change way | - | Side-mounted mechanical arm | Side-mounted |
| Handle Specifications | type | BT40 | BT40 | |
| Tool capacity | tools | 24 | 24 | |
| Max.tool diameter (adjacent tool) | mm | 80 | 80 | |
| Max. tool diameter (without adjacent tool) | mm | 120 | 120 | |
| Max.tool length | mm | 300 | 250 | |
| Max.tool weight | kg | 7 | 8 | |
| Fastest tool change time(T-T) | sec | 2 | 2 | |
| Motor | Spindle motor | kw | 7.5/11 | 11/15 |
| Three axis servo motor | kw | 1.8/1.8/3 | 3.0/3.0/3 | |
| Accuracy | Positioning accuracy | mm | ±0.005 | ±0.006 |
| Repeat positioning accuracy | mm | ±0.003 | ±0.003 | |
| Power | Power requirements | kva | 20 | 30 |
| Air source requirements | Kg/cm | 6~8 | 6~8 | |
| Machine | L*W*H | mm | 2600*2400*2550 | 3729*2435*3020 |
| Weight | t | 5.5 | 9.0 |
| No. | Name | Qty. | Manufacturer | Remark |
|---|---|---|---|---|
| 1 | CNC Control System | One set | FANUC | FANUC-OI-MF plus |
| 2 | Spindle servo motor | One set | FANUC | Β iI12/10000 |
| 3 | X,Y,Z servo motor | Each for one set | FANUC | - |
| 4 | Spindle front bearing | One group | - | - |
| 5 | Spindle rear bearing | One group | - | - |
| 6 | X,Y,Z axis bearing | Each for one set | NSK | - |
| 7 | X,Y,Z axis ball screw | Each for one set | HIWIN/PMI | - |
| 8 | X axis liner guideway | Two pcs | HIWIN/PMI | 45 |
| 9 | Y axis liner guideway | Two pcs | HIWIN/PMI | 45 |
| 10 | Z axis liner guideway | Two pcs | HIWIN/PMI | 45 |
| 11 | Spindle Unit | One set | Taiwan | BT40 |
| 12 | Tool magazine | One set | Taiwan | 24 |
| 13 | Cutting fluid pump | One set | Shanghai | 4-60-750W |
| 14 | Automatic lubrication system | One set | Japan | 2L |
| 15 | Knife cylinder assembly | One group | Taiwan | - |
| 16 | Main pneumatic components | One set | AirTAG | - |
| 17 | main electrical components | One set | - | - |
| 18 | Spindle belt | One group | GATES | - |
| 19 | X,Y,Z shaft coupling | Each for one set | NBK | - |
| 20 | Heat exchanger | One set | Chinese | - |
| No. | Name | No. | Name |
|---|---|---|---|

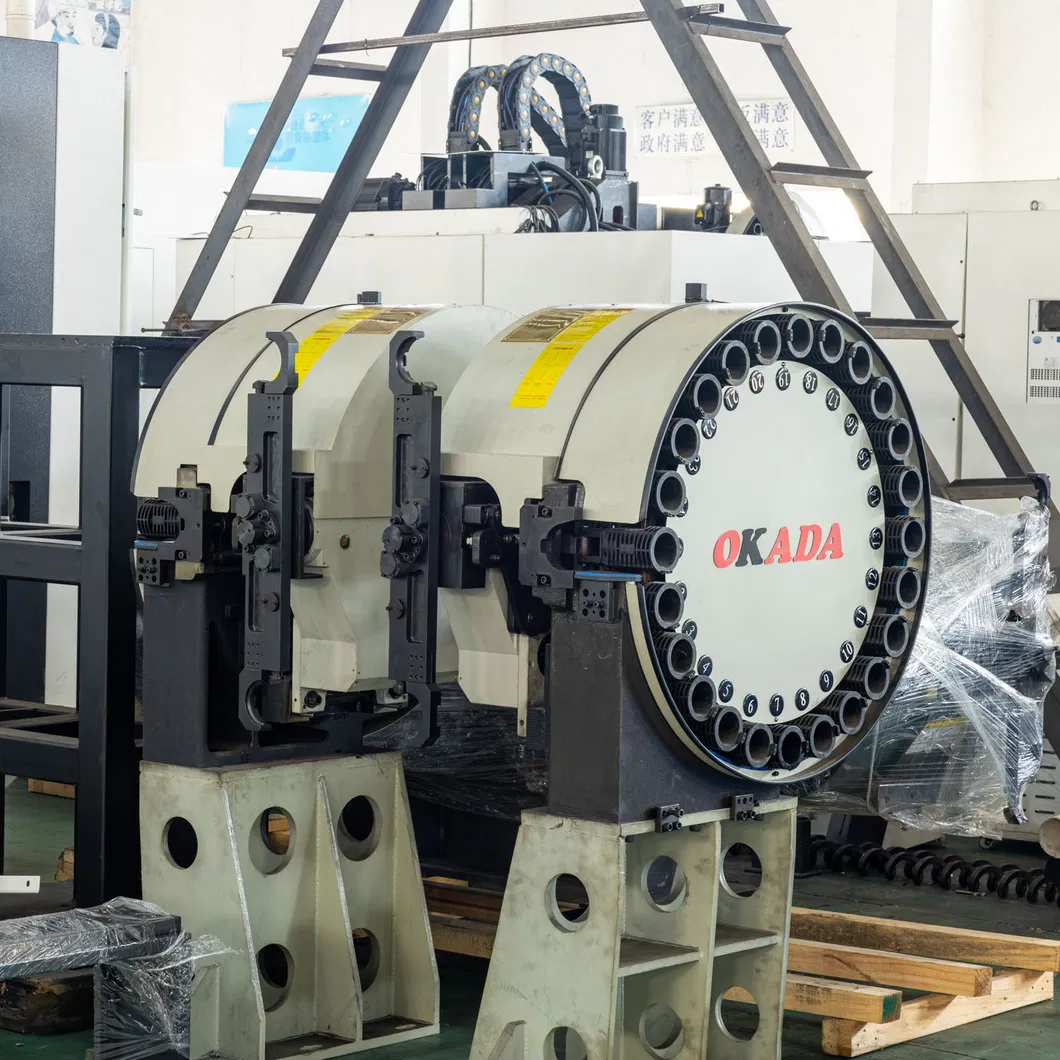

| 1 | 24 disc tool magazines | 9 | Electric cabinet heat exchanger |
| 2 | Workpiece Cooling System | 10 | Network transmission and CF card function |
| 3 | Automatic lubrication system | 11 | Rigid tapping |
| 4 | Spindle blowing device | 12 | Fully enclosed protective cover |
| 5 | Working light | 13 | Foundation screws and pads |
| 6 | Tri-color warning light | 14 | Tools and Toolboxes |
| 7 | cleaning air gun | 15 | Iron chipping disc and chip storage box |
| 8 | Spindle output water | 16 | Portable chip blowing air gun |
| No. | Name | Qty. | Specification and Remark |
|---|---|---|---|
| 1 | Packing list | 1 | - |
| 2 | Certificate of Inspection | 1 | - |
| 3 | Machine Tool Mechanical Manual | 2 | - |
| 4 | Machine Tool Electrical Manual | 2 | With electrical schematic |
| 5 | CNC System Certificate/Guarantee | 1 | - |
| 6 | System factory parameter table | 1 | - |
| 7 | CNC system data | 2 | Operation/programming/maintenance/parameters |
| 8 | Tool Magazine User Manual | 1 | - |
| 9 | Automatic Lubricating Device Manual | 1 | - |
Power supply: 3-AC 380V±10% 50Hz±1Hz | Altitude: ≤1500m
Ambient temperature: 5~45° | Relative humidity: ≤85%
Environment: no harmful and corrosive gas, liquid, dust; no strong vibration, strong magnetic field, strong radiation
1. Precision of machining center: check and accept according to relevant national standards GB/T18400-2010 or Q/XZ03-2015 (for checking geometric accuracy, working accuracy, standard cutting test pieces, etc.).
2. Check and accept according to the relevant technical agreement, factory documents and configuration list signed by both parties.
3. For the machine tool with special configuration, the acceptance is divided into two parts: pre-acceptance and final acceptance.
Pre-acceptance: In accordance with the relevant content of the technical agreement and the manufacturer's factory inspection documents, the manufacturer and the user will jointly conduct an acceptance check at the manufacturer's factory. Both parties will sign and approve the acceptance, and the equipment will be ready for delivery. If the user cannot come for acceptance, it can be regarded as approved pre-acceptance.
Final acceptance: At the site of use by the user, after installation and commissioning by the manufacturer's personnel. The user provides the necessary general tools for installation and commissioning. The main content of acceptance is to check the goods according to the factory documents, packing list, and accuracy test report, geometric accuracy testing, machine tool run-in verification, etc., and sign the final acceptance report after passing the test.
The factory supplies the installation documents. If basic training is needed, video meetings are available free of charge. If on-site installation and training are required at the customer's factory, engineers will be arranged to visit the user's facility. The cost of round-trip air tickets, board, lodging, and a salary of 100.00 USD/day per engineer will be covered by the user.
1. From the BL date, the manufacturer will implement the "three guarantees" service for the product for one year (if the user causes damage due to their own reasons, an appropriate cost fee will be charged).
2. When the machine tool breaks down, the manufacturer can accurately judge the cause of the failure and deal with it immediately after receiving the feedback information from the user. If the cause cannot be determined at that time, a reply will be given within 24 hours. For issues requiring on-site handling, a technician will be sent within a week, depending on travel distance, until the fault is resolved.

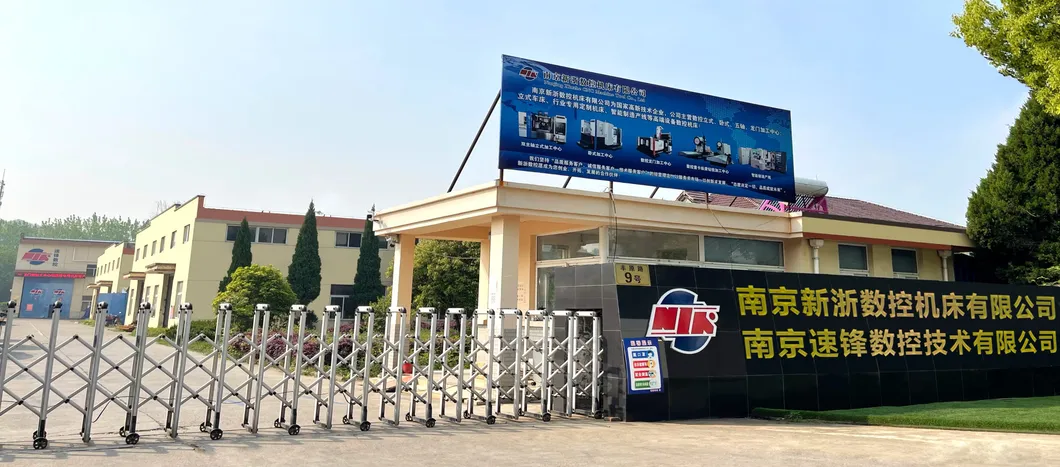

Established in 2007, the company is mainly engaged in the research and development, manufacturing, technical consulting, sales and service of CNC machine tools, intelligent equipment and intelligent manufacturing systems.
The company's main products include vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, vertical lathes and various special machine tools, intelligent manufacturing production lines, and intelligent manufacturing workshop planning and construction, and many other kinds of CNC products.

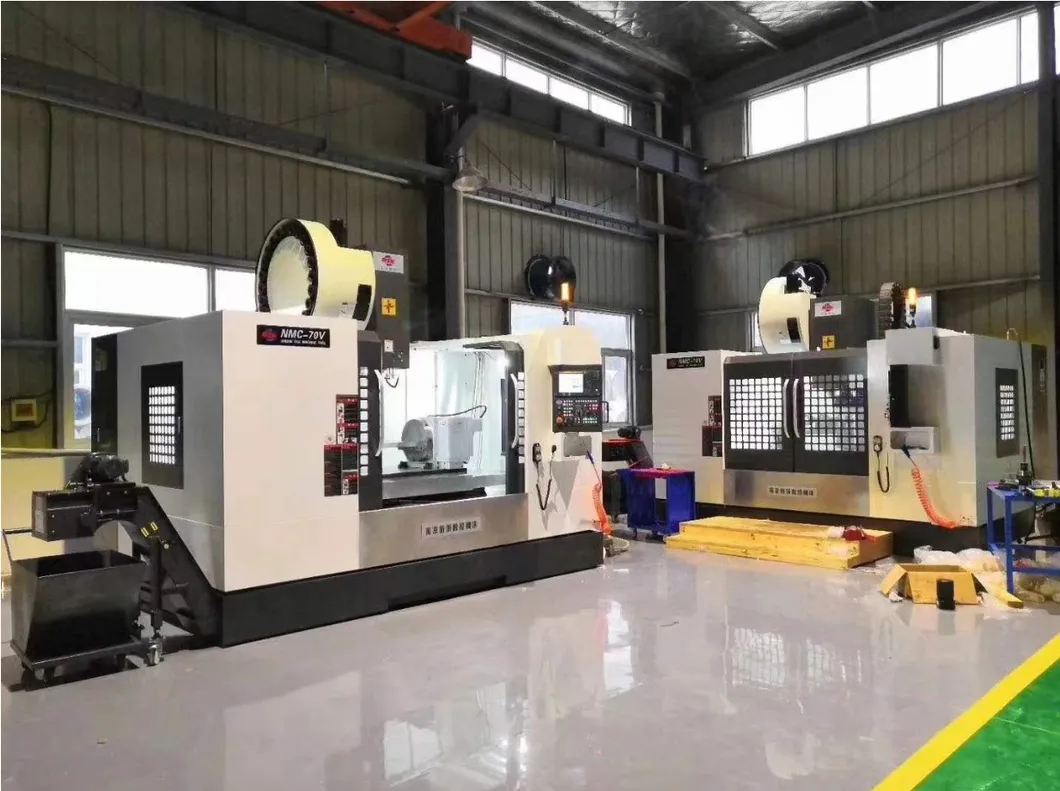

In addition to the main production base, the company has established branches in Chongqing and Guangdong.
