M6-M30 Electric Tapping System for Metal Threading and Hole Processing in Workshop

After-sales Service:	1 Year
Warranty:	1 Year
Structure:	Tapping Machine

Send Inquiry

Product Description

Basic Info.

Layout	Vertical
Controlling Mode	CNC
Number of Shaft	1
Hole Diameter	<50mm
Automatic Grade	Semiautomatic
Precision	High Precision
Certification	CE
Condition	New
Product Name	Electric Tapping Machine
Applicable Industries	Steel Processing
Keyword	Arm Tapping Machine
Application	Tapping Nut Screw
Usage	Screw Thread
Function	Tapping Holes
Tapping Range	M6-M30
Motor	Servo Motor Option
Input Voltage	220V/50Hz
Rated Power	2000W
Transport Package	Wooden
Specification	M6-M30
Trademark	thorpmct
Origin	China
HS Code	8479819000
Production Capacity	2000

Packaging & Delivery

Package Size	92.00cm * 82.00cm * 22.00cm
Package Gross Weight	54.000kg
Lead Time	7 days (1 - 1 Sets) 10 days (2 - 10 Sets) To be negotiated ( > 10 Sets)

Product Description

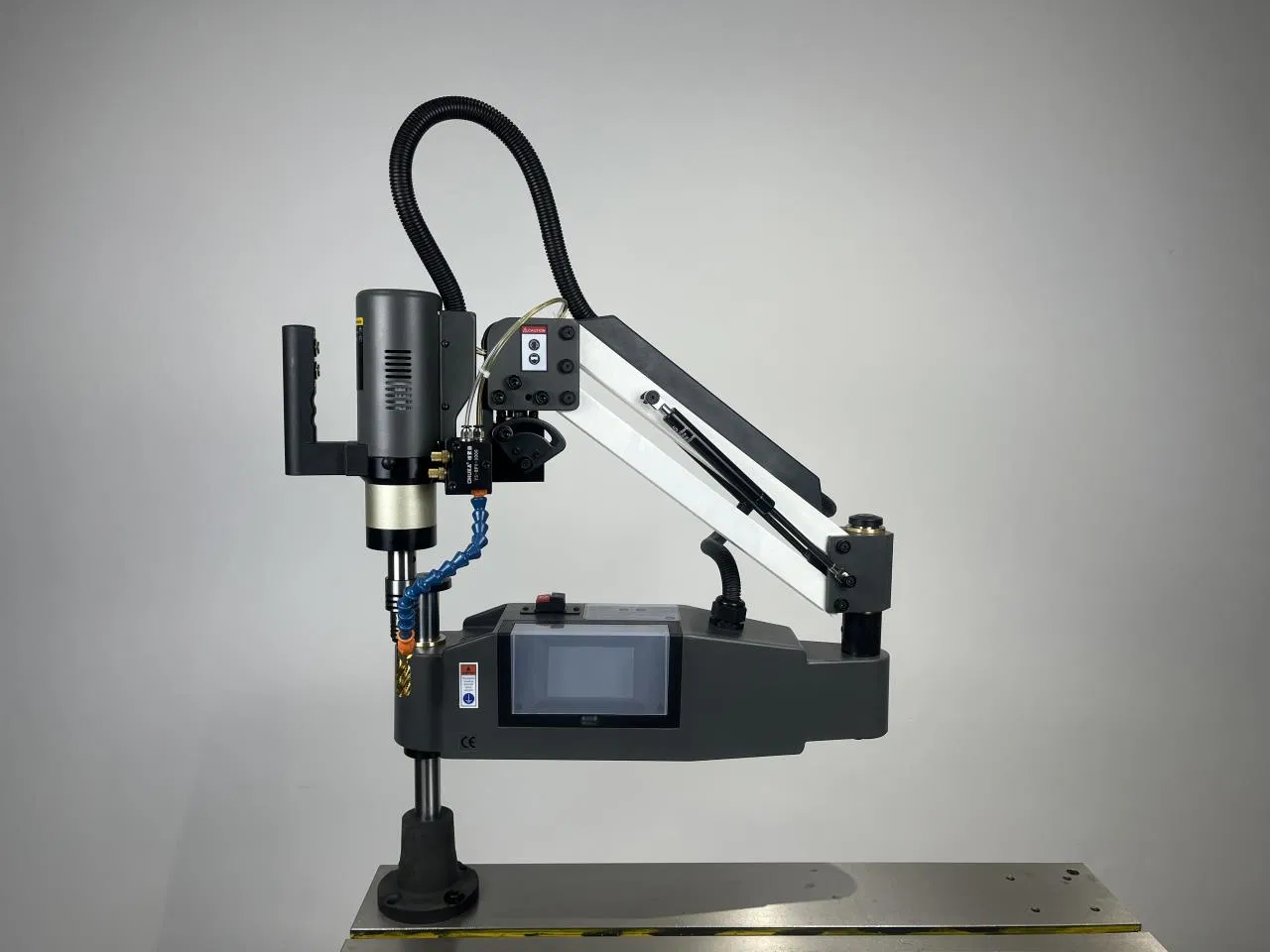

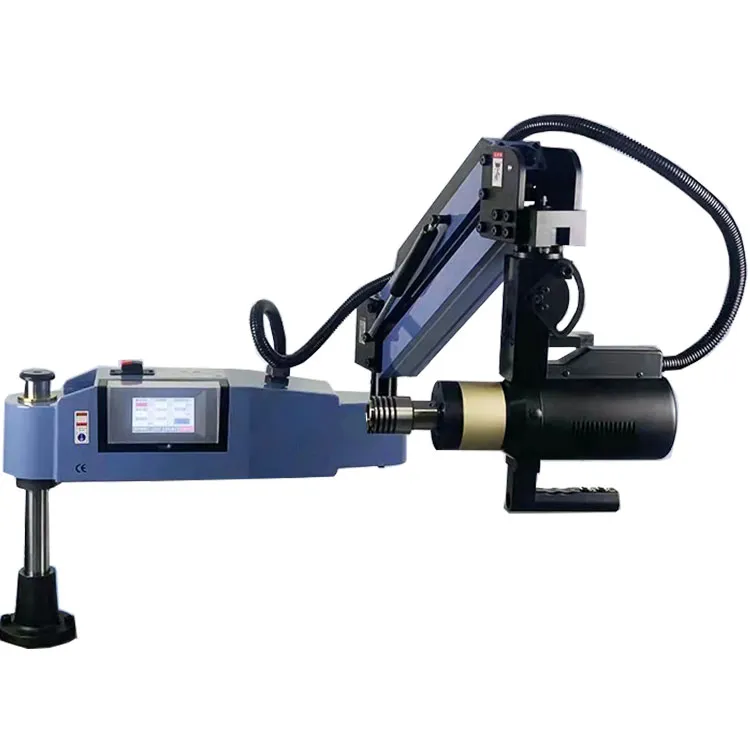

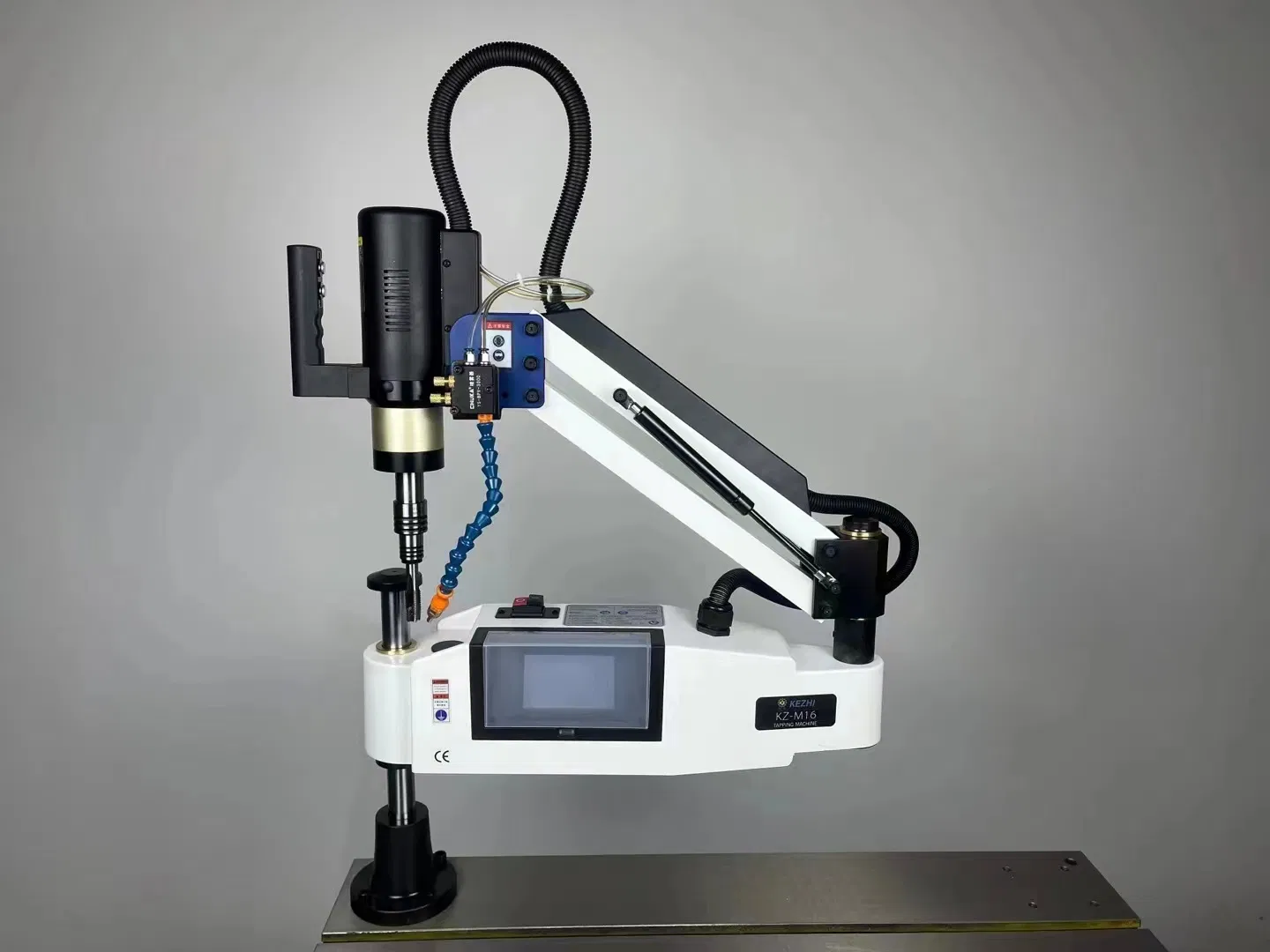

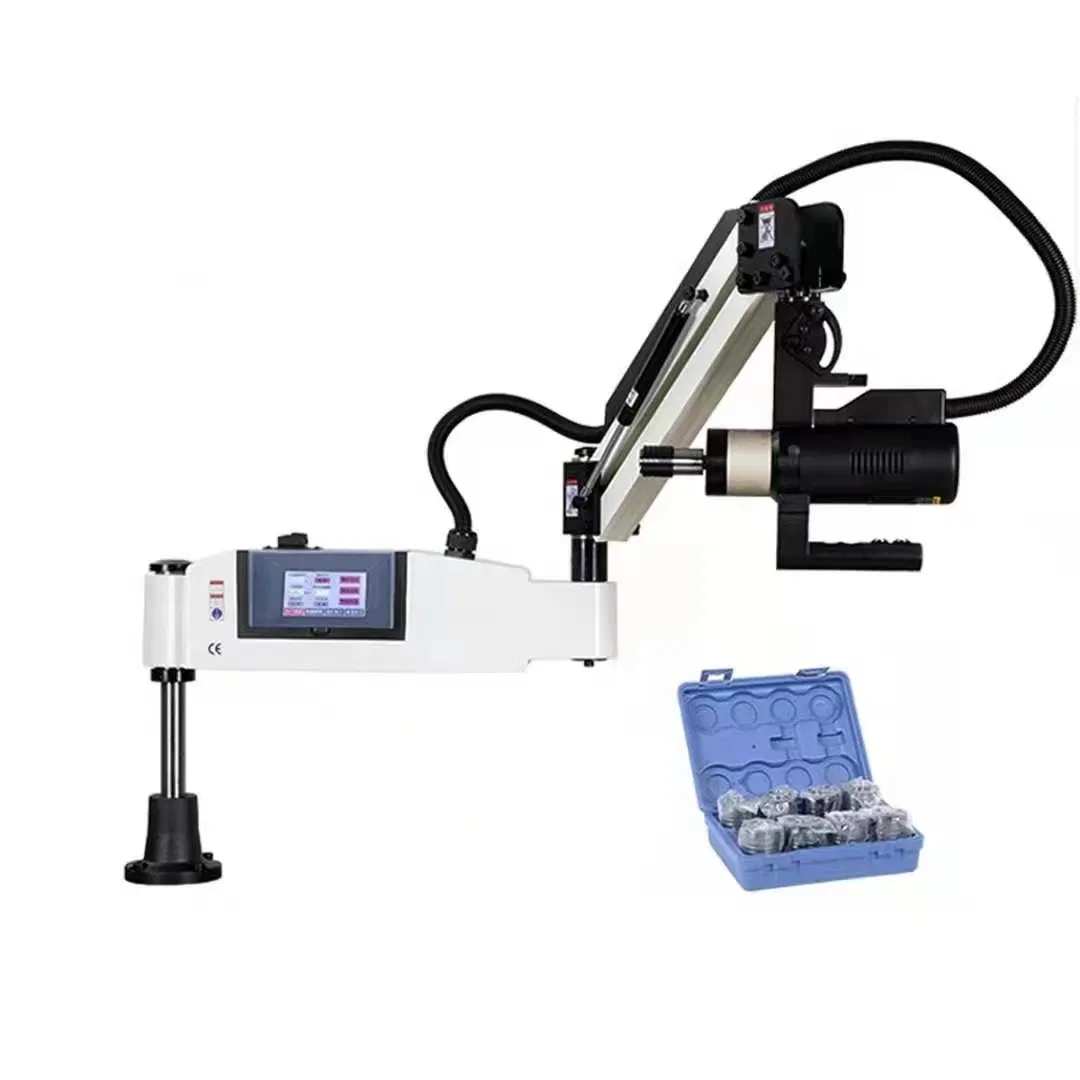

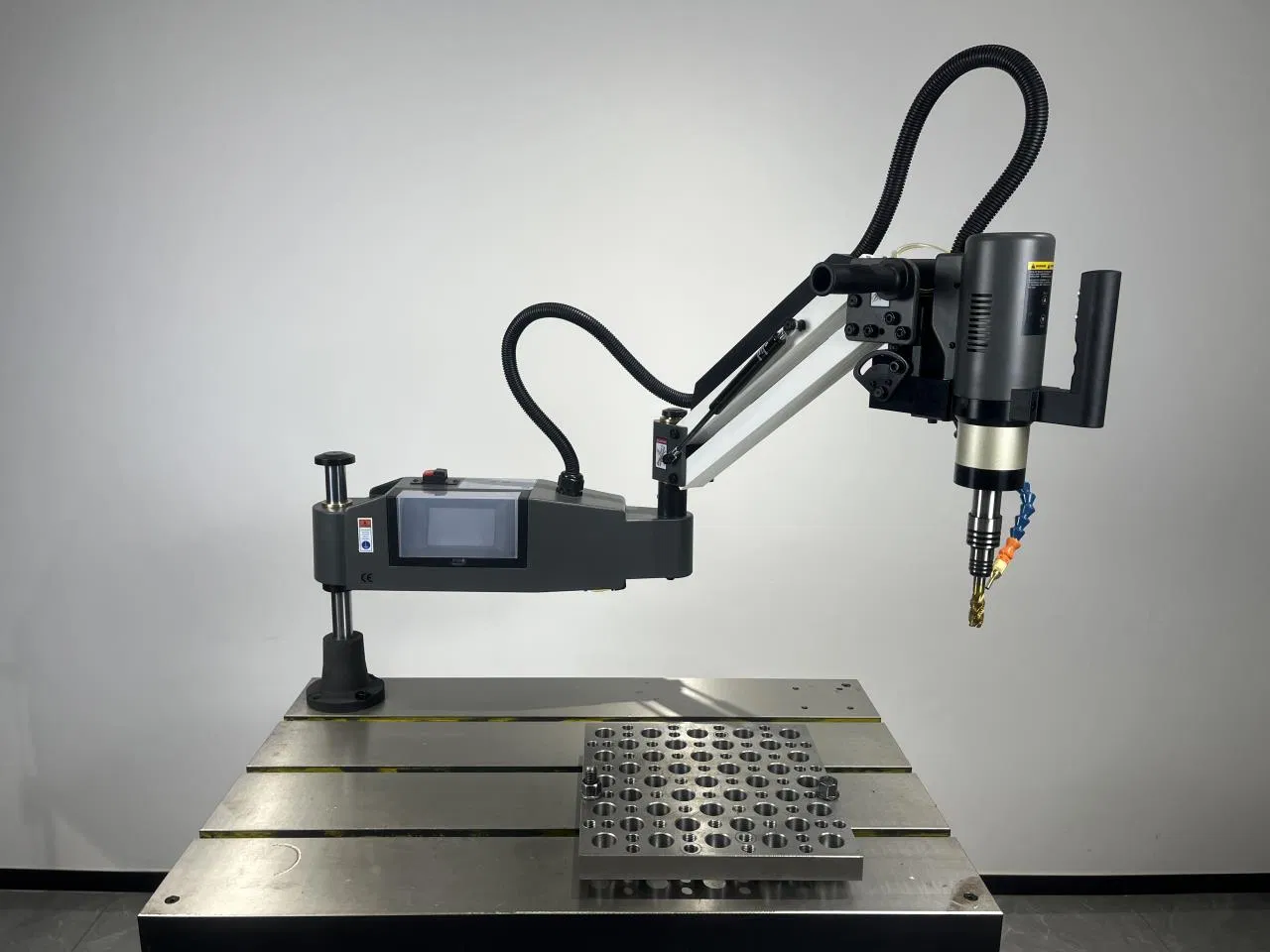

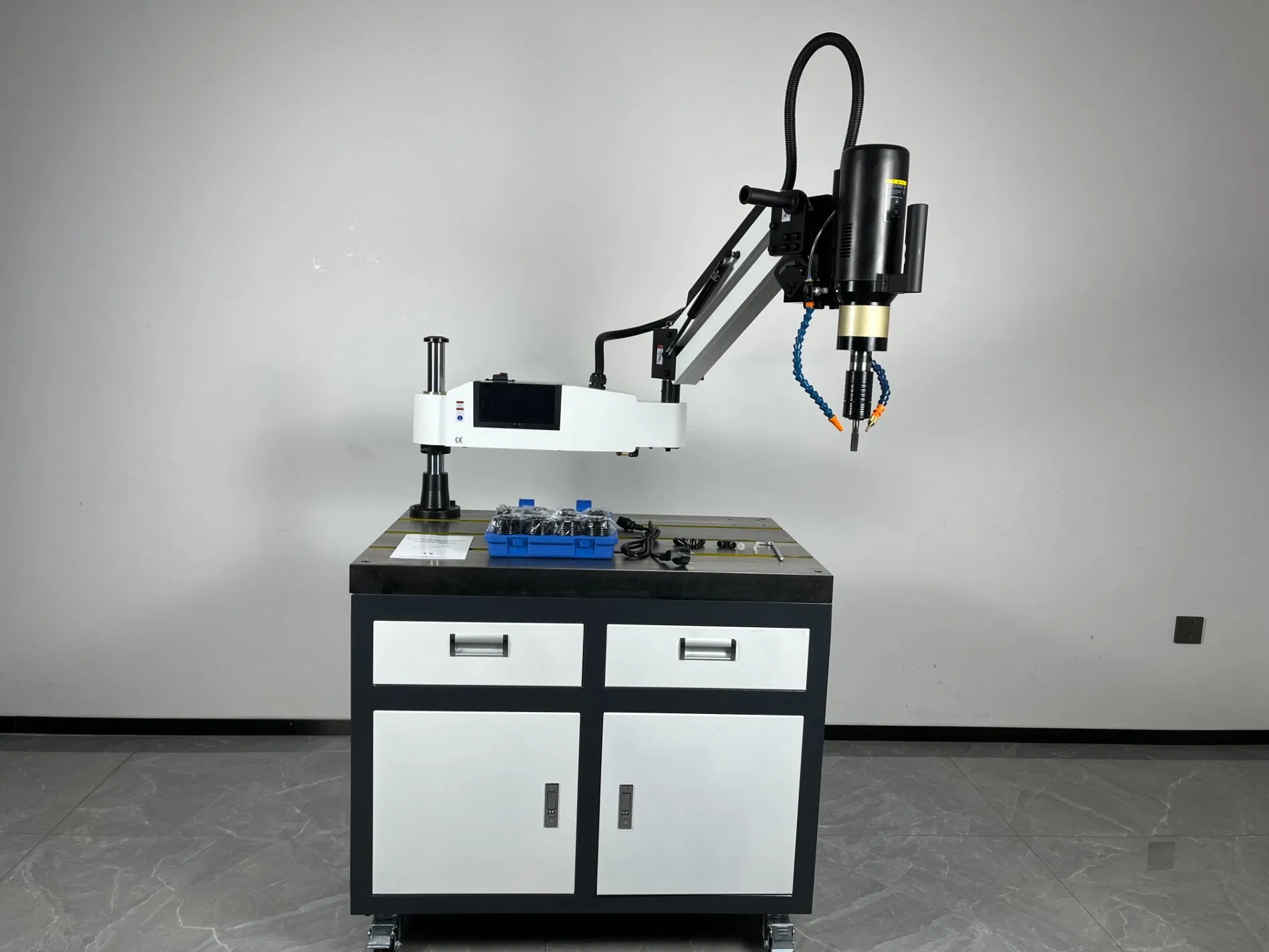

M30 Flexible arm electric tapping machine

✔ The machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.

✔ Advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non-deformation, and beautiful appearance.

✔ The high-definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpieces, locate quickly, and process accurately.

✔ Stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.

✔ Automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.

✔ Repeated positioning fast, tapping speed, high production efficiency.

Specification Table

Modle	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M12-M48
Tap size	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M12-M48
Voltage	220v	220V	220V	220V	220V	220V
Speed	0-1200rpm	0-375rpm	0-200rpm	0-200rpm	0-156rpm	50-200rpm
power	600W	600w	1200W	1200w	1200W	1200W
arm	1100MM/1500MM	1100MM/1500MM	1200MM/1500MM	1200MM/1500MM	1200MM/1500MM	1200MM/1500MM
Standard accessory	ISO M3-M12 collet	ISO M3-M16 collet	ISO M6-M24 collet	ISO M6-M30 collet	ISO M6-M36 collet	ISO M12-M48 collet
Optional accessory	600KG magnetic base 1000KG magnetic base
	500800 working table 900600 working table
	JIS or Din standard collet		universal head

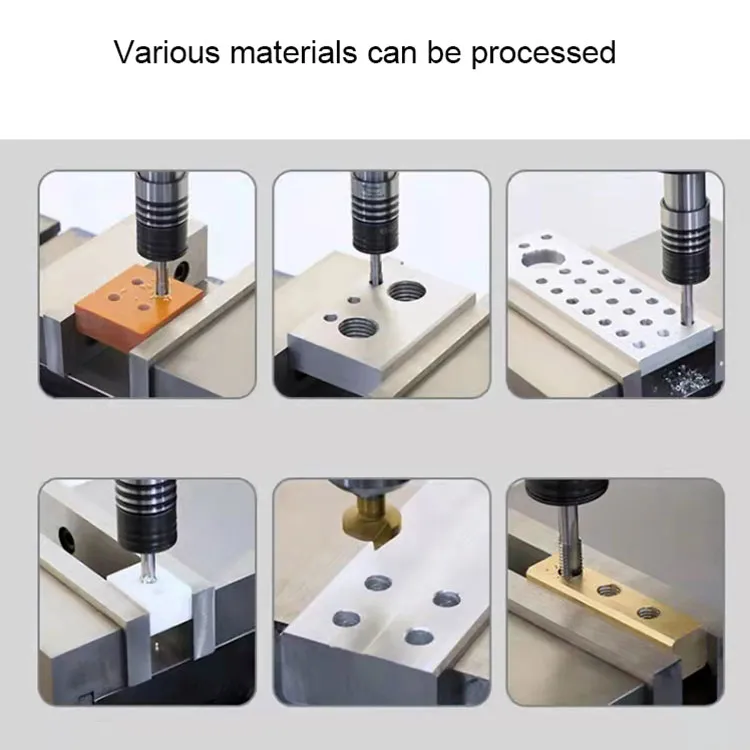

Various materials can be tapping

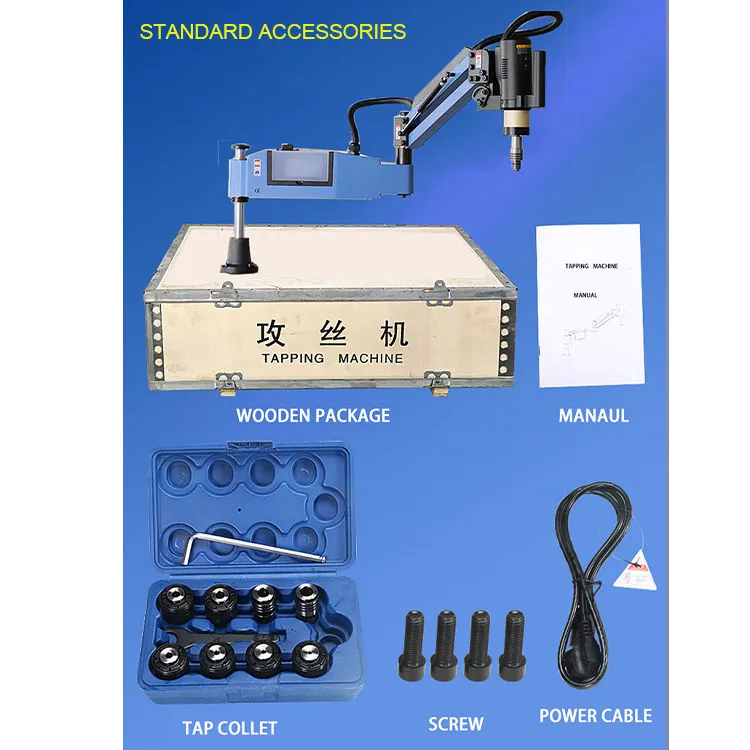

Tapping machine Standard accessories:

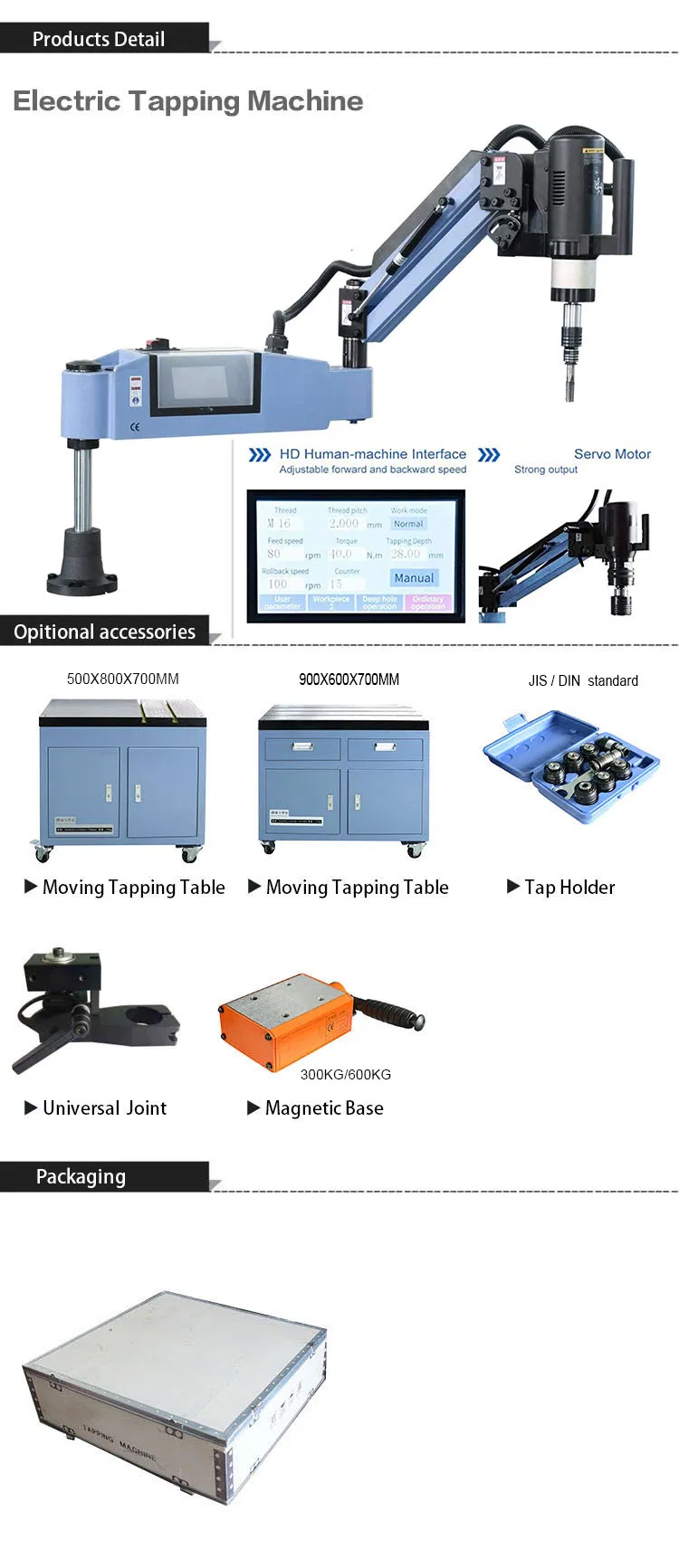

Optional accessories:

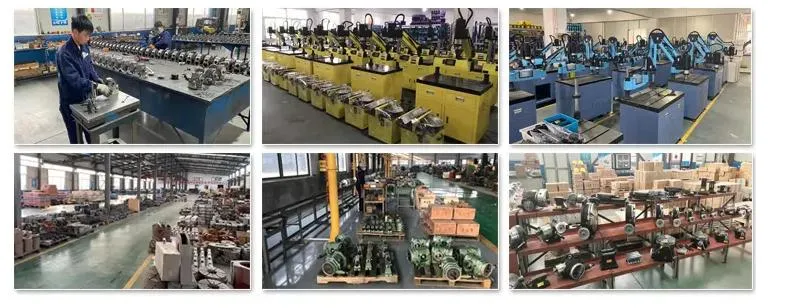

Production & Quality Showcase:

Frequently Asked Questions (FAQ)

What are the main advantages of this electric tapping machine?

The machine features servo drive control with intelligent torque protection. It overcomes the limitations of traditional lathes, drilling machines, or manual tapping. Its advanced mold castings offer strong rigidity, durability, and prevent deformation.

How does the automatic mode work?

The automatic mode controls the depth of the tapping process without requiring an operation button. Tapping depth is precisely managed by an integrated depth controller, optimizing repetition and speed.

Which working modes can I select on the machine?

Users can choose between three flexible working modes: manual, automatic, and linkage. It also supports stepless speed change for varied operations.

What standard accessories are provided with the machine?

Standard accessories include matching ISO collets specific to the model purchased (e.g., ISO M6-M30 collets for the M6-M30 model).

Are there optional accessories available for the system?

Yes, optional accessories include 600KG or 1000KG magnetic bases, 500*800 or 900*600 working tables, JIS or DIN standard collets, and universal heads.

What types of materials can this machine process?

This system can tap a wide range of materials, making it highly suitable for metal threading, steel processing, and workshop tapping of nuts and screws.
