Efficient Water Faucet Rotary Transfer System for High Precision Manufacturing

Customization:	Available
After-sales Service:	Available
Warranty:	One Year

Send Inquiry

Product Description

Basic Info.

Model NO. MW8G12Z

Type Metal Cutting

Application Machining

Processing Method Metal Cutting and Removal

Automatic Grade Automatic

Precision Precision

Certification GS, CE

Condition New

Accuracy High Precision

Spindles Customized According to Work Piece

Stations Multiple Stations Customized

Capacity Mass Production

Transport Package Sea Worthy Packaging

Specification 3.5x2.4x2.85meter

Trademark MW

Origin China

HS Code 8457300000

Packaging & Delivery

Package Size 400.00cm * 250.00cm * 250.00cm

Package Gross Weight 8000.000kg

Product Description

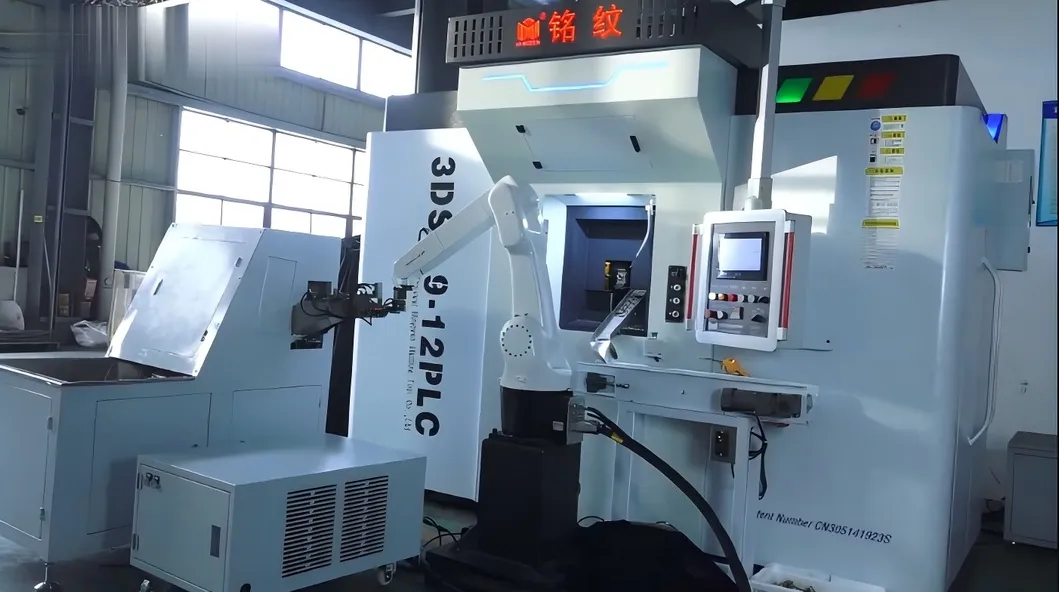

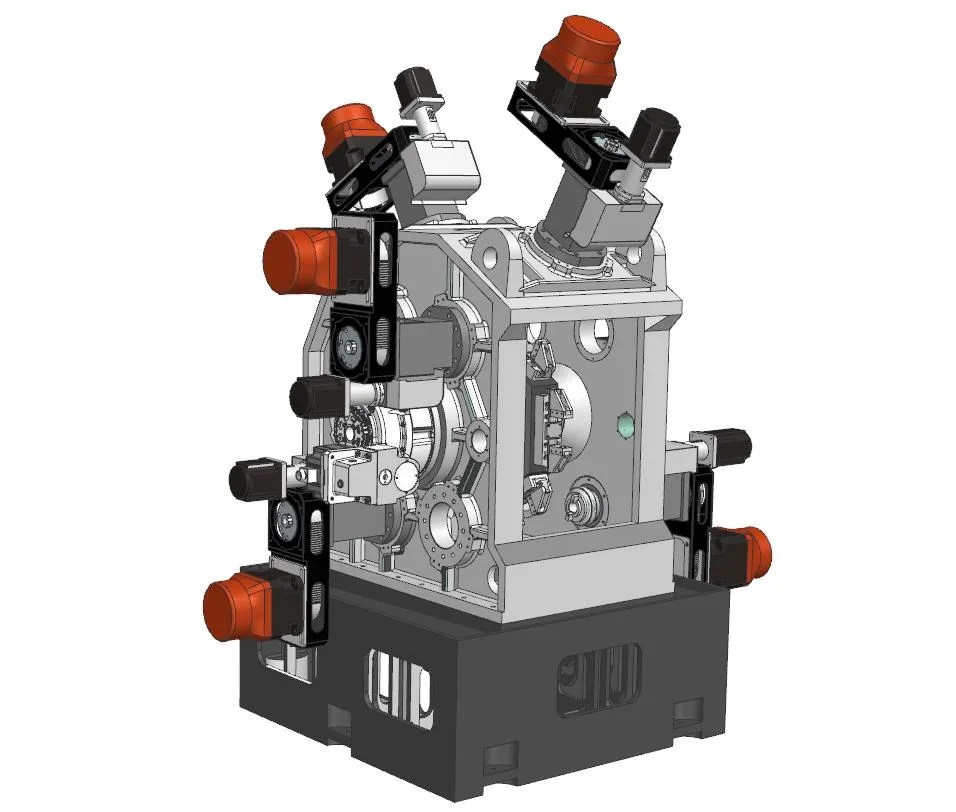

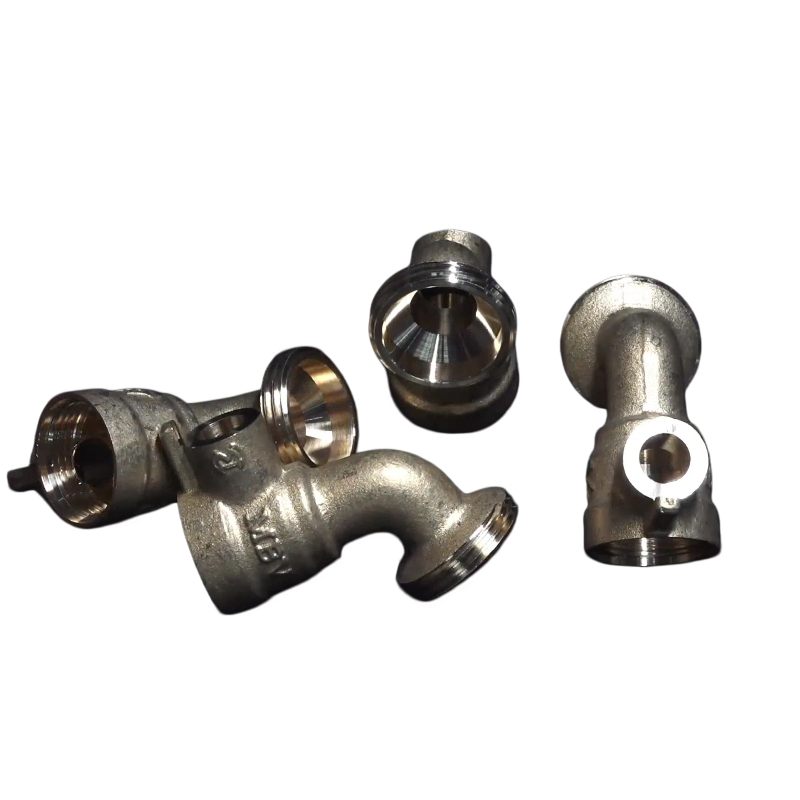

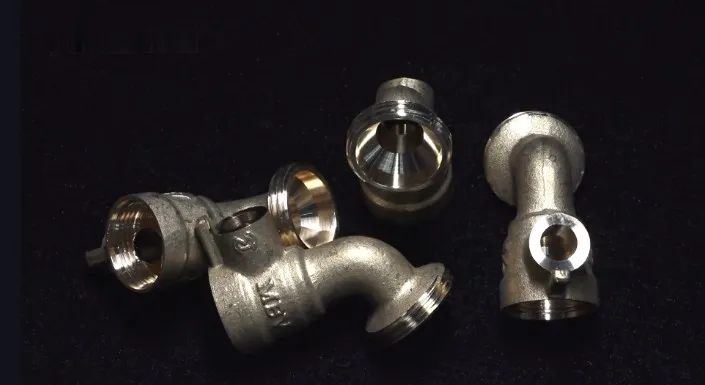

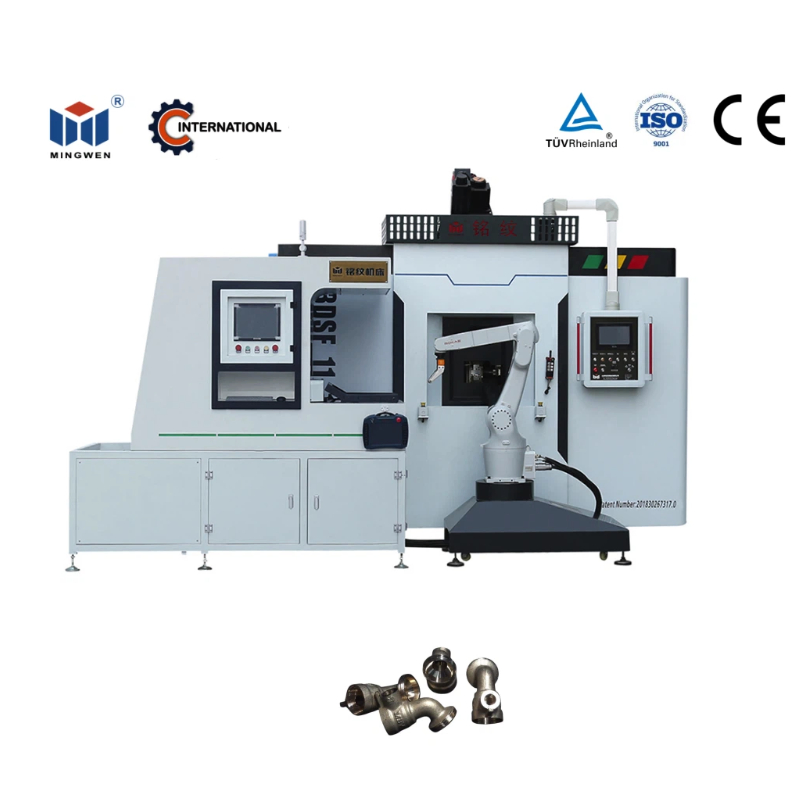

Rotary Transfer Machine for Machining Water Faucet

This is a multi-station transfer machine. It can meet multi-spot processing needs and complete the machining within very short cycle time by multi-spindle linkage. It can achieve automatic cutting of aluminum bar and continuous processing.

Owing to its high cost performance and efficiency, it is widely used in mass-production tasks. And it fits compact workshop condition.

Its compact structure and amazing cycle time have huge advantages over normal single CNC turning machines or other boring machines.

It's very easy to customize machine according to user's specific requirements about processing, and power head can be set flexibly according to process conversion.

Left layout			Middle layout			Right layout
			Station #1 Load/Unload
Roughly drilling						Roughly drilling



Spindle#1,110mm,Taiwan made, Drilling		Station #2				Spindle#2,110mm,Taiwan made, Drilling		Station #2

Turning motor (servo) 4 KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW less than 2000RPM	Synchronized clamp. Code:CP-40, China made				Turning motor (servo) 4 KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW less than 2000RPM	Synchronized clamp. Code:CP-40, China made



Fine boring			Drilling			Fine boring



Spindle#3,110mm,Taiwan made, Boring		Station #3	Spindle#4,110mm,Taiwan made, Drilling		Station #3	Spindle#5,110mm,Taiwan made, Boring		Station #3

Turning motor (servo) 4KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 4 KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 4KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made



Leath						Threading



Spindle#6,110mm,Taiwan made,Leath		Station #4				Spindle #7, 110mm.Taiwan made, Threading (Ext)		Station #4

Turning motor (servo) 4 KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW less than 2000RPM	Synchronized clamp. Code:CP-40, China made				Turning motor (servo) 5KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW (Xinjie" China less than 1200RPM)	Synchronized clamp. Code:CP-40, China made



Grooving



Spindle#8,110mm,Taiwan made,drilling		Station #5

Turning motor (servo) 4 KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW (Xinjie " China less than 2000RPM)	Synchronized clamp. Code:CP-40, China made



			Drilling



			Spindle#9,110mm,Taiwan made, Drilling		Station #6

			Turning motor (servo) 4 KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW less than 2000RPM	Synchronized clamp. Code:CP-40, China made



Fine boring			Leath



Spindle#10,110mm,Taiwan made, Boring		Station #7	Spindle#11,110mm,Taiwan made,Leath		Station #7

Turning motor (servo) 4KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 4 KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW less than 2000RPM	Synchronized clamp. Code:CP-40, China made



			Drilling			Threading



			Spindle#12,110mm,Taiwan made, Drilling		Station #8	Spindle #13, 110mm.Taiwan made, Threading (Ext)		Station #8

			Turning motor (servo) 4 KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 5KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW (Xinjie" China less than 1200RPM)	Synchronized clamp. Code:CP-40, China made

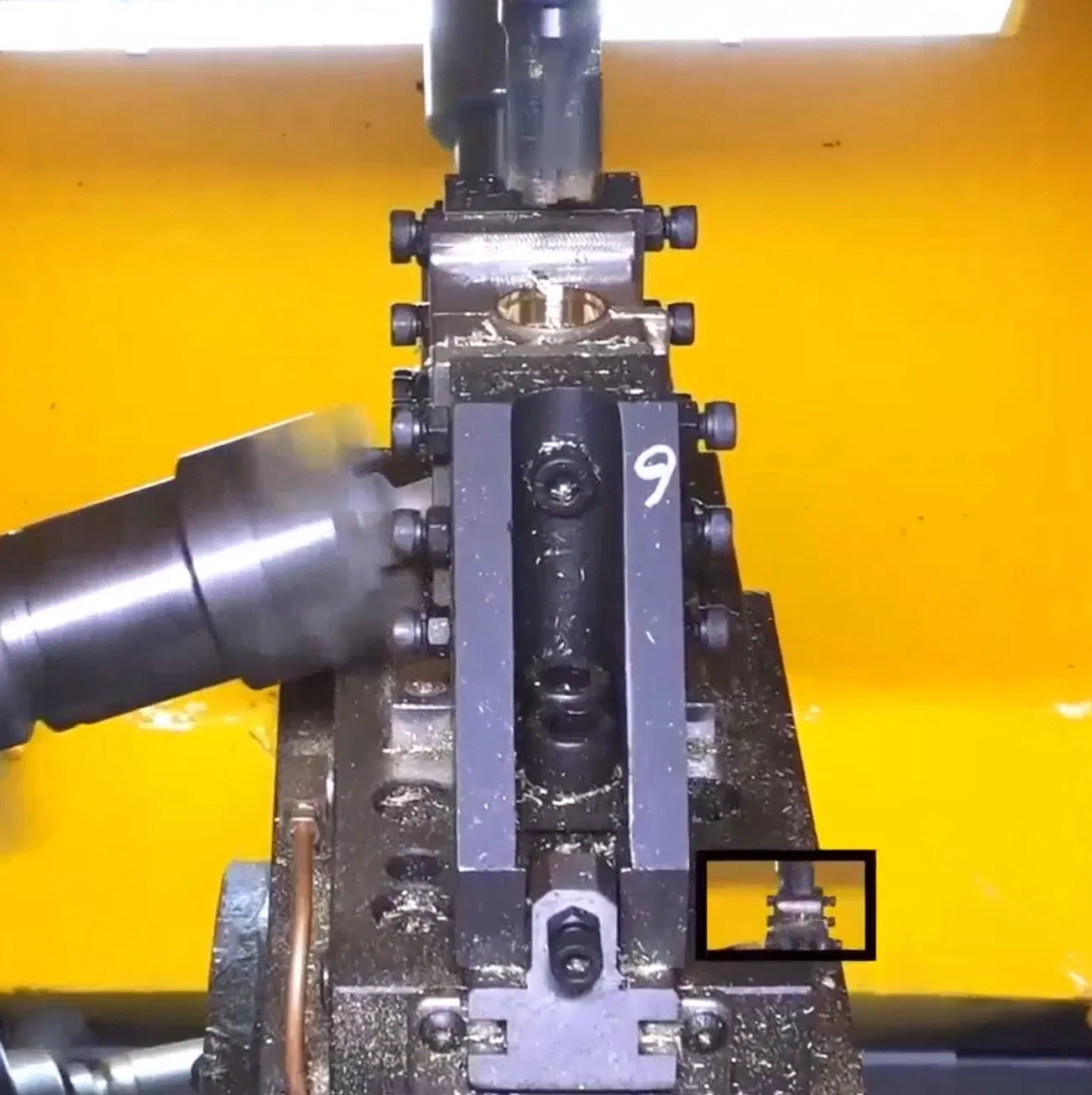

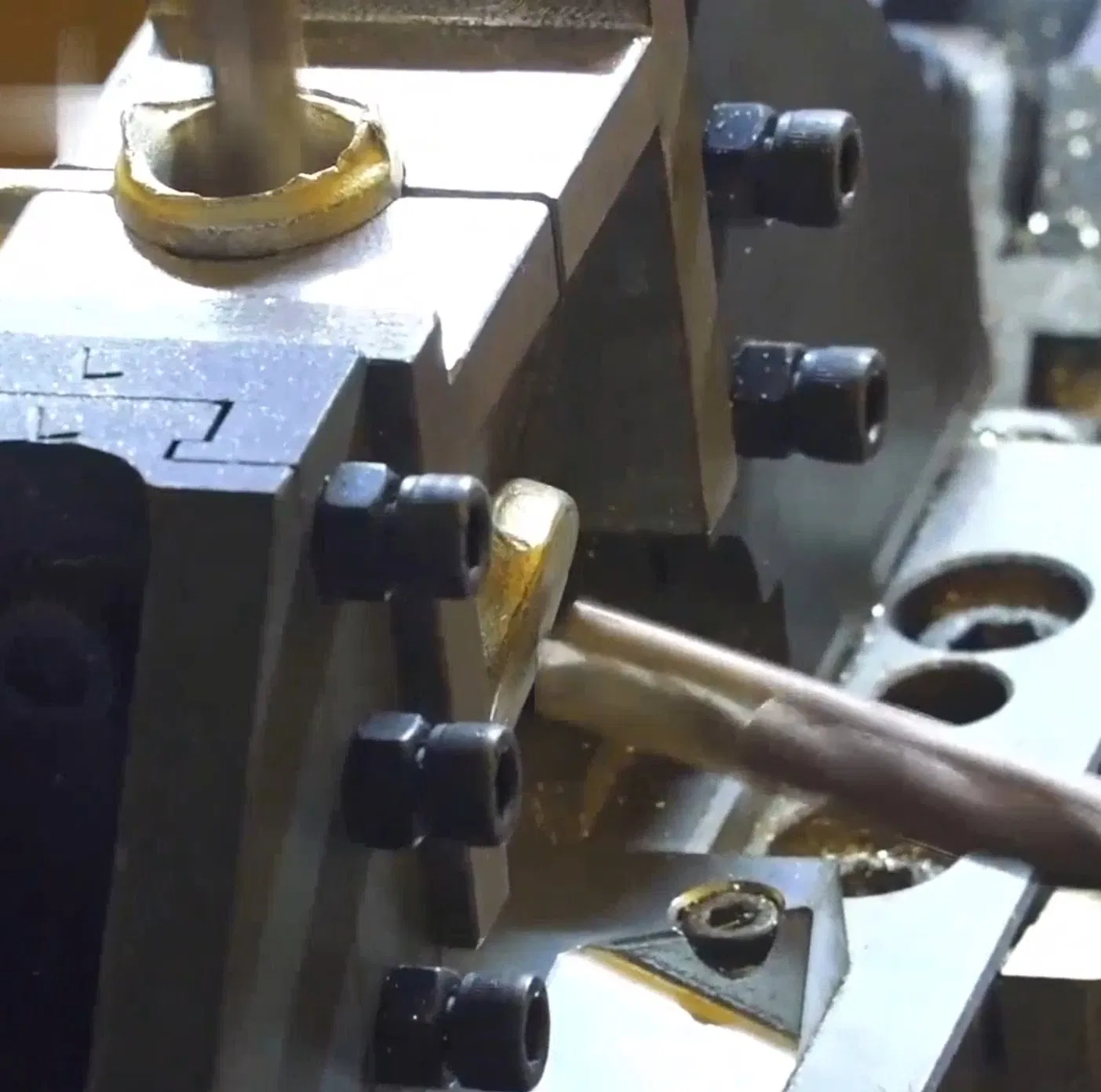

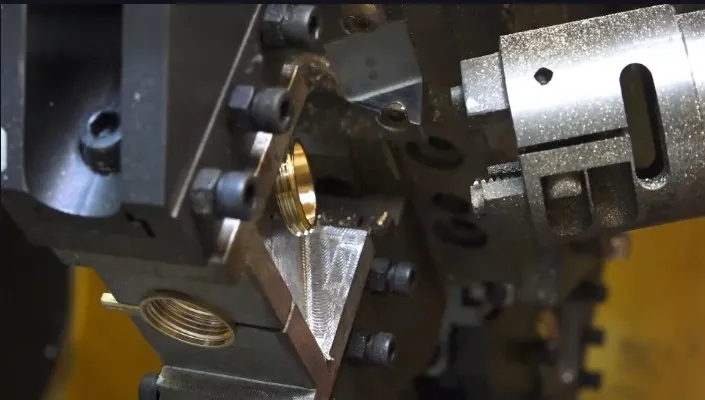

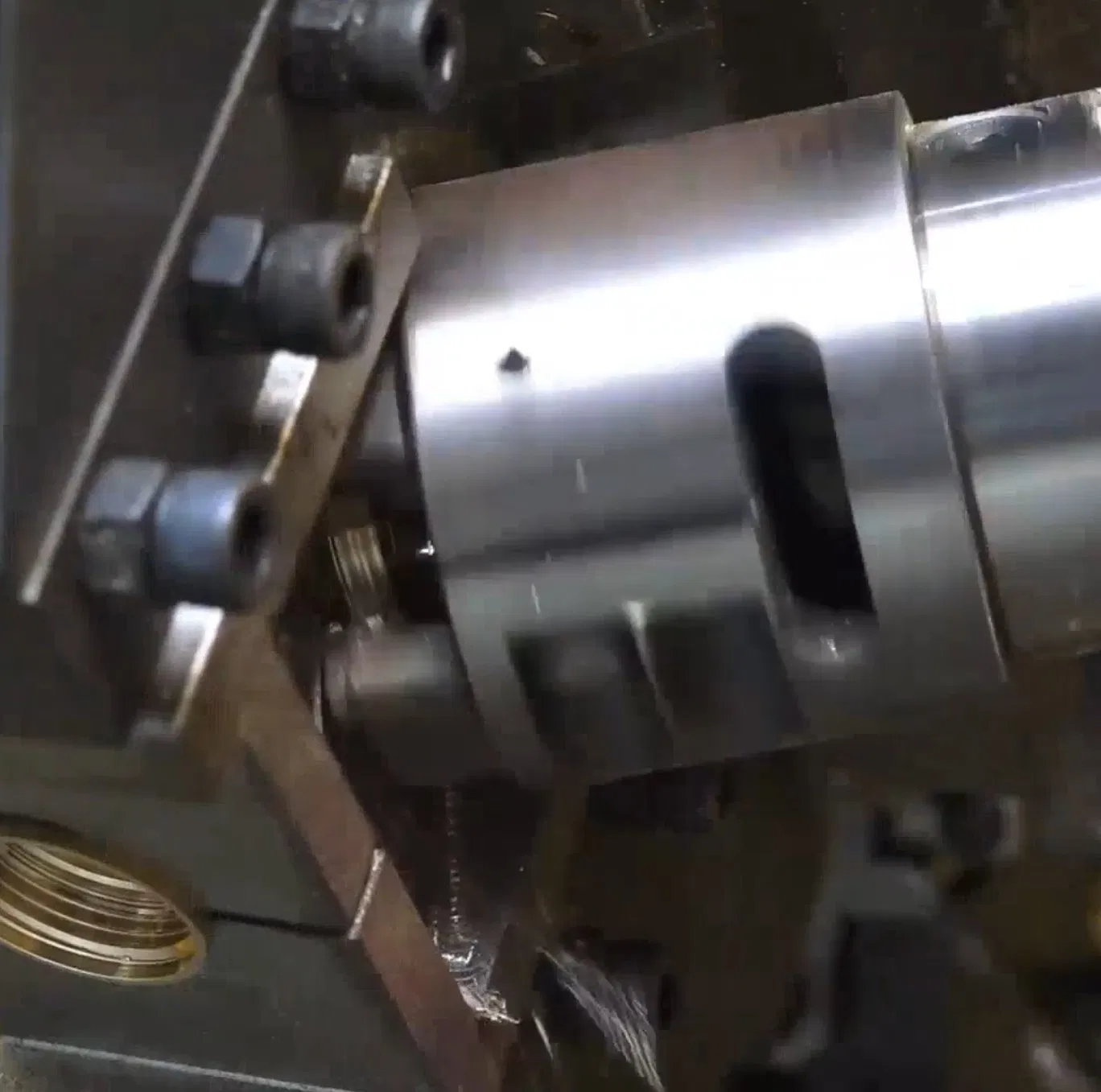

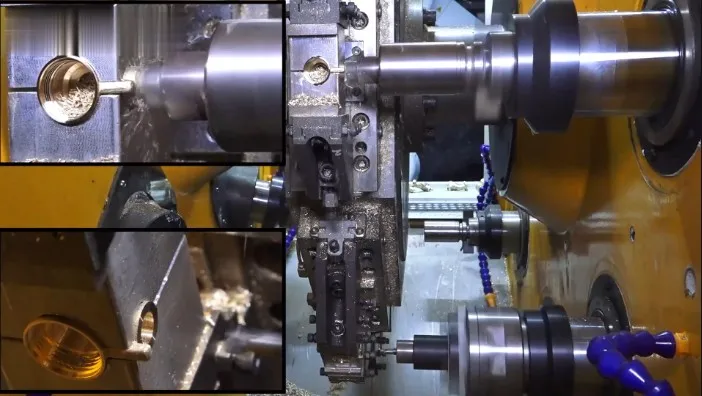

Example of the rotary transfer machine process

Roughly drilling			Smaller positioning hole
Spindle#1, 110mm, Taiwan made, Drilling		Station #2	Spindle #2, 110mm.Taiwan made, Drilling		Station #2
Turning motor (servo) 4 KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 4 KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made
Smaller hole drilling			Bigger Hole drilling
Spindle#3, 110mm, Taiwan made, drilling(int)		Station #3	Spindle #4, 110mm.Taiwan made, Threading (Ext)		Station #3
Turning motor (servo) 3KW, " Xinjie ", China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 5KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW (Xinjie" China less than 1200RPM)	Synchronized clamp. Code:CP-40, China made

Smaller hole drilling			Smaller hole threading
Spindle#5, 110mm, Taiwan made, Boring or milling		Station #4	Spindle #6, 110mm.Taiwan made, Groov milling		Station #4
Turning motor (servo) 4KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 3 KW, German threading head, 800RPM	Feeding motor (servo) Y-axis 1 KW, X-axis 0.75KW " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made
One side surface milling, with slidable power head			Another side surface milling with slidable power head
Spindle#7, 110mm, Taiwan made, Threading		Station #5	Spindle #8, 110mm.Taiwan made, Grooving		Station #5
Turning motor (servo) 4KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 1200RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 4KW, " Gtake ", China, 2800RPM	Feeding motor (servo) 1 KW (Xinjie " China less than 2000RPM)	Synchronized clamp. Code:CP-40, China made

Bigger hole grooving ( boring)			Edge milling
Spindle#9, 110mm, Taiwan made, drilling		Station #6	Spindle #10, 110mm.Taiwan made, Threading (int)		Station #7
Turning motor (servo) 4KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 3 KW, " Xinjie " China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 1200RPM	Synchronized clamp. Code:CP-40, China made

Another bigger hole grooving (boring)			Smaller hole threading
Spindle#11, 110mm, Taiwan made, drilling		Station #6	Spindle #12, 110mm.Taiwan made, Threading (int)		Station #7
Turning motor (servo) 4KW, " Gtake " China, 2800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 2000RPM	Synchronized clamp. Code:CP-40, China made	Turning motor (servo) 3 KW, " Xinjie " China, 800RPM	Feeding motor (servo) 1 KW, " Xinjie " China, less than 1200RPM	Synchronized clamp. Code:CP-40, China made

Machine Basic Parameters

Station Numbers	8 stations
Spindle Numbers	12 spindles
Syntronized Clamp Model	CP-40
Driving Head Motor	Full servo
PLC mode	Bus motion Controller
Indexing Table	421-8D
HMI	10"
Spindle Size	D110mm
Total Power	62KW
Machine Foot print area(overall size) CM	350x240x310cm
Weight (KG)	9100

Frequently Asked Questions (FAQ)

Q1: What is the primary function of this Rotary Transfer Machine?

This is an automatic multi-station transfer machine built for processing tasks such as metal cutting and removal. It is specifically designed to meet multi-spot machining requirements, such as machining water faucets, with a very short cycle time through multi-spindle linkage.

Q2: How many spindles and stations does the machine configure?

The machine features a configuration of 8 stations and 12 spindles. However, the spindles can be customized according to the specific work piece, and the stations can also be customized to match different process setups.

Q3: What are the motor configurations for the processing spindles?

The machine uses full servo driving head motors. For example, it incorporates 4 KW and 5 KW turning motors (servo) with Gtake drives running at 2800 RPM, and 1 KW feeding motors (servo) from Xinjie operating below 2000 RPM.

Q4: What is the total power requirement and weight of this machine?

The total power requirement of the machine is 62KW. The net weight of the machine is 9100 KG. For transport packaging, the gross weight reaches approximately 8000.000kg.

Q5: What are the physical dimensions and footprint of the equipment?

The overall size of the machine footprint is 350x240x310 cm. The standard shipping package size is 400.00cm * 250.00cm * 250.00cm, packaged with sea-worthy packaging.

Q6: What kind of controller system does this machine utilize?

This rotary transfer system utilizes a Bus Motion Controller PLC mode and is equipped with a 10-inch Human-Machine Interface (HMI) for smooth industrial operations.
