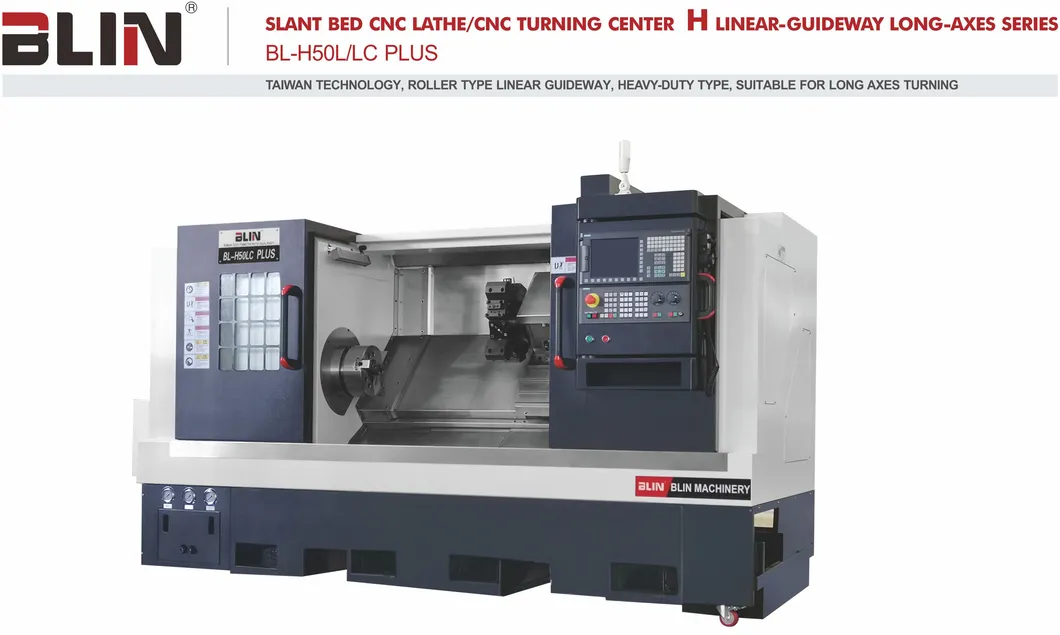

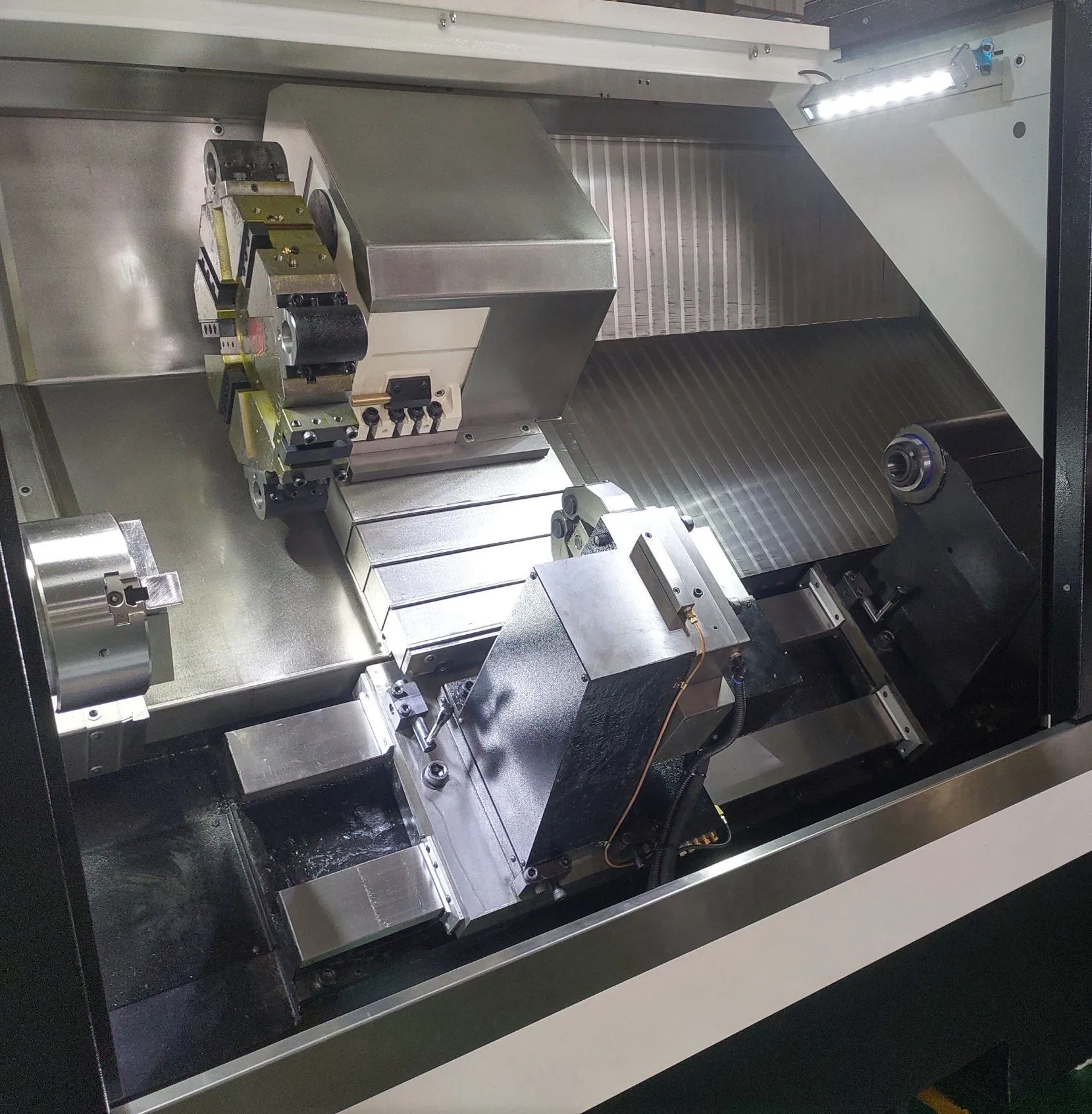

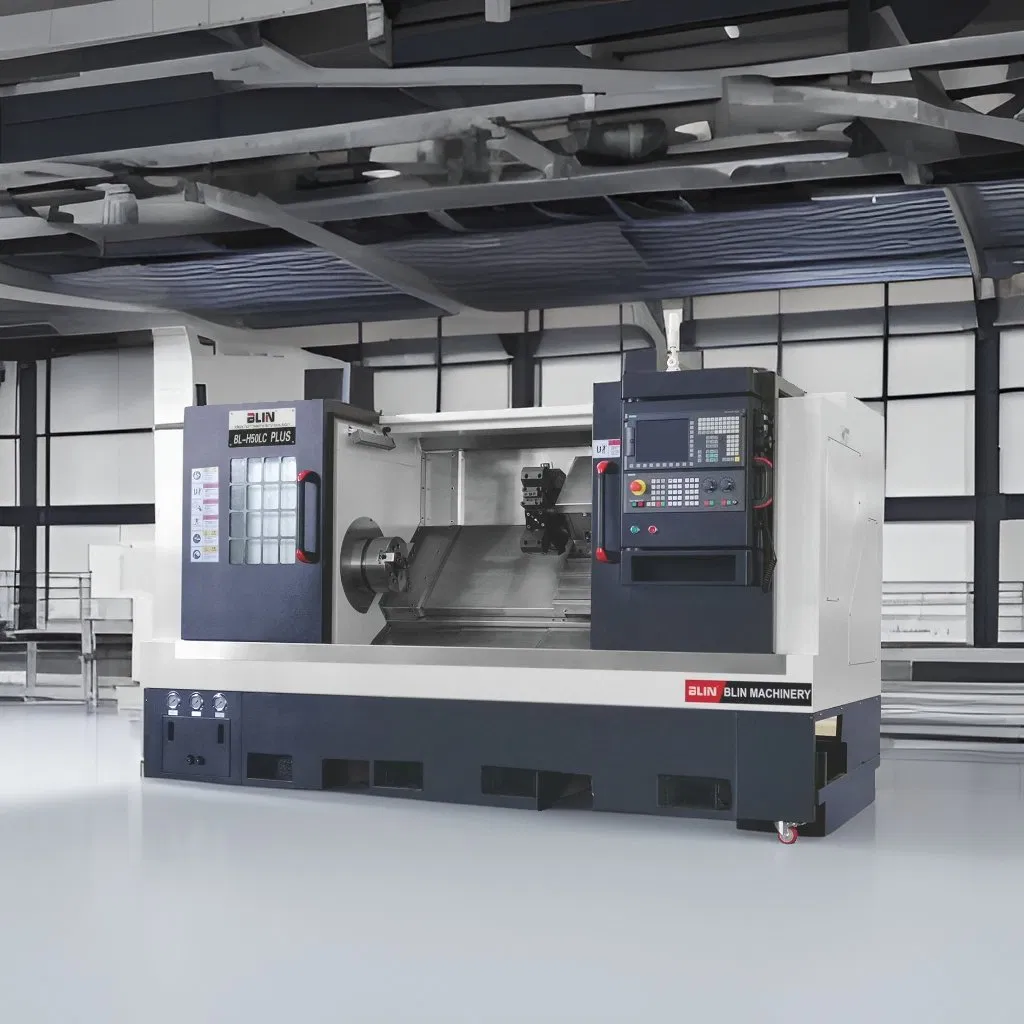

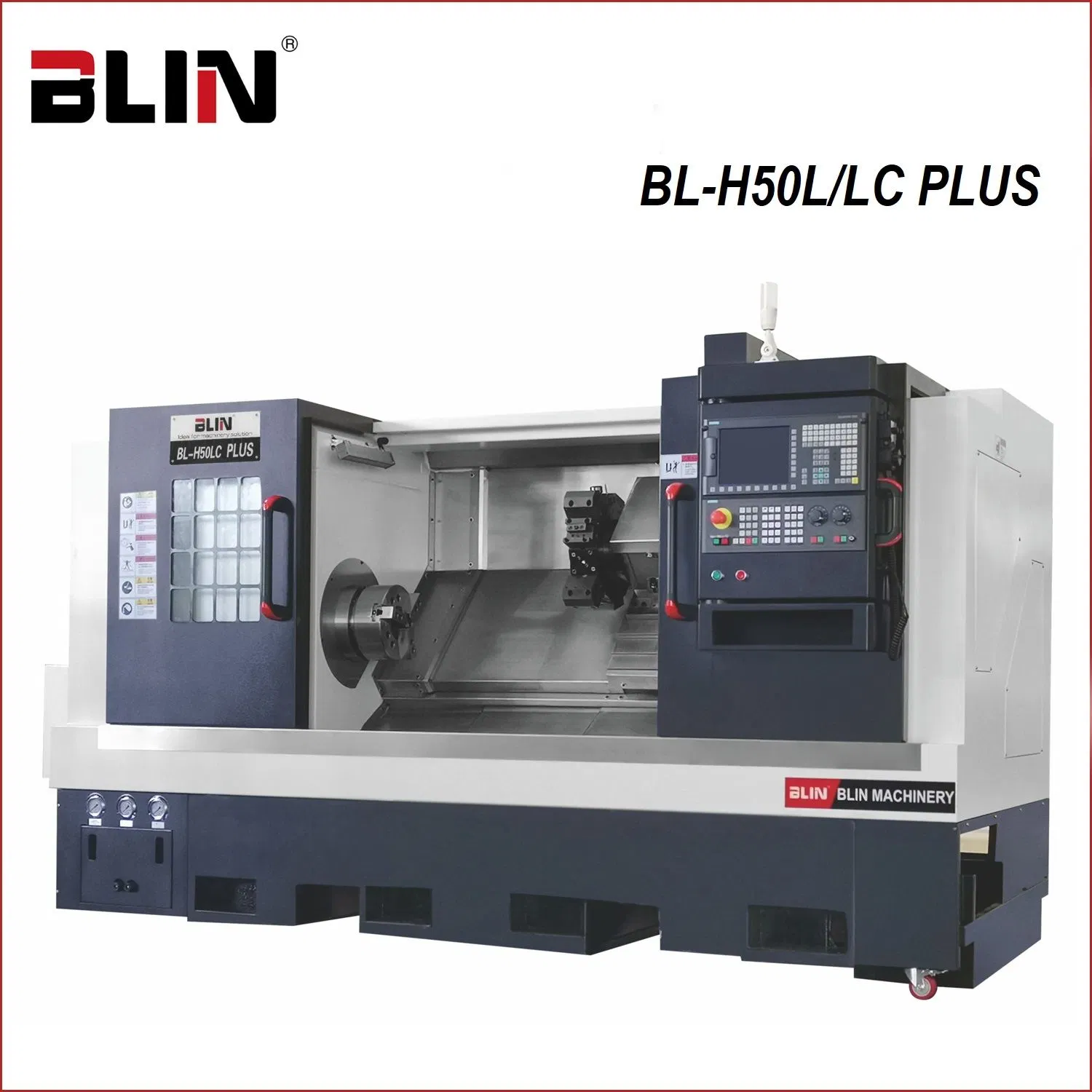

| Item | Specification | Unit | BL-H50L PLUS | BL-H50LC PLUS |
|---|---|---|---|---|
| Capacity | Max. swing dia. over bed | mm | Φ520 | |
| Max. swing dia. over slide | mm | Φ300 | ||
| Max. turning dia. | mm | Φ400 | Φ350 | |
| Max. turning length | mm | 1000/1500/2000/3000 | ||
| Spindle | Spindle bore | mm | Φ79(Φ92*) | |
| Spindle type | / | A2-6(A2-8*) | ||
| Spindle speed | rpm | 4000(2500*) | ||
| Chuck size | / | 8''(10''*,12''*) | ||
| Max. bar through dia. | mm | Φ51(Φ74*,Φ79*) | ||
| Spindle motor power | kw | 11(15*) | ||
| Spindle dividing accuracy | ° | / | 0.001° | |
| X/Z axes | X axes travel | mm | 220 | 210 |
| Z axes travel | mm | 1000/1500/2000/3000 | ||
| X axes ball screw dia./pitch | mm | Φ32/10 | ||
| Z axes ball screw dia./pitch | mm | Φ40/12 | ||
| X/Z axes linear guideway width | mm | 35/45(ROLL type) | ||
| X/Z axes rapid moving speed | m/min | 24/20 | ||

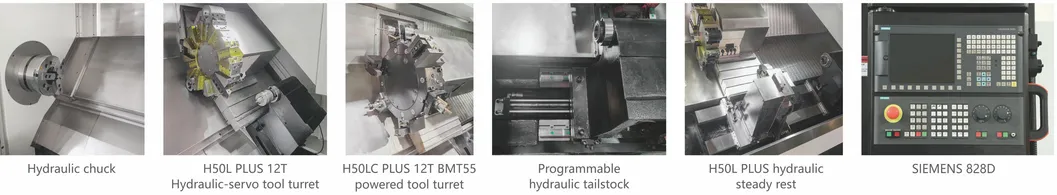

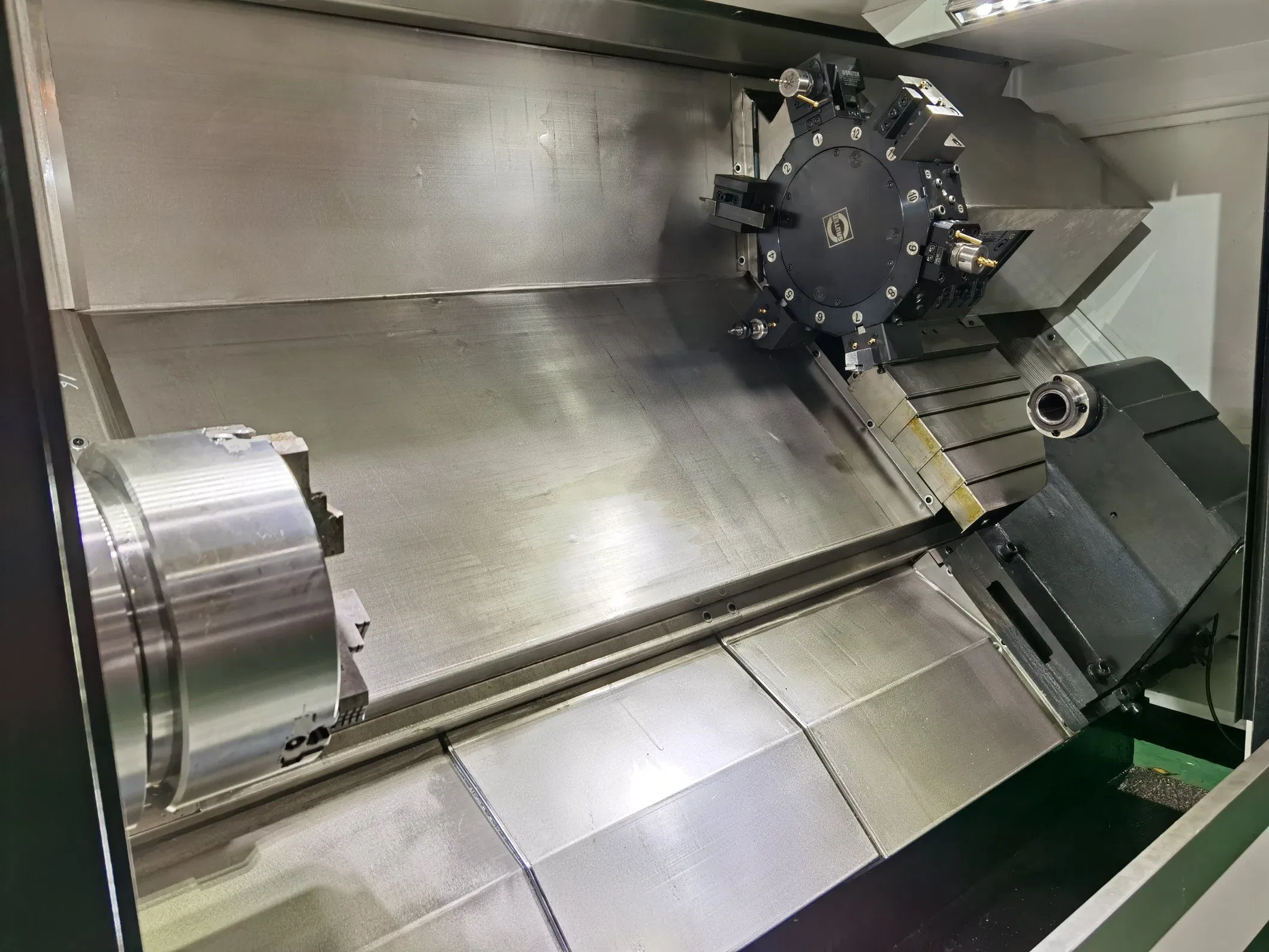

| Tool turret | Tool post type | / | 12 station hydraulic-servo tool turret | 12 station servo powered tool turret BMT55 |
| Live tool speed | rpm | / | 4500 | |
| Toolshank size | mm | 25×25, Φ40 | ||
| Tailstock | Tailstock quill travel | mm | / | / |
| Taisltock quill dia. | mm | / | / | |
| Tailstock quill taper | / | MT5# | ||
| Tailstock body travel | mm | 900/1400/1900/2900 | ||
| Others | X/Z axes positioning accuracy | mm | ±0.005 | |
| X/Z axes repeated positioning accuracy | mm | ±0.003 | ||
| Overall size | mm | 3300/3800/4300/5300×1700×1800 | ||
| N.W. | kg | 6000(for 1000mm) | 6500(for 1000mm) | |
| Item | BL-H50L PLUS | BL-H50LC PLUS |
|---|---|---|
| CNC controller | GERMANY-SIEMENS | GERMANY-SIEMENS |
| X,Z axes servo motor & driver | GERMANY-SIEMENS | GERMANY-SIEMENS |
| Spindle servo motor & driver | CHINA Top(opt.:SIEMENS) | GERMANY-SIEMENS |
| Tool turret index motor & driver | TAIWAN-DELTA | GERMANY-SIEMENS |
| Live tool motor & driver | / | GERMANY-SIEMENS |
| Spindle | TAIWAN-KENTURN | |
| Spindle encoder | CHINA brand | GERMANY-HEIDENHAIN |
| Bearing | JAPAN NSK/GERMANY FAG | |
| Ball screw | TAIWAN HIWIN/PMI | |
| Linear guideway | TAIWAN HIWIN/PMI | |
| Tool turret | INDIA-PARAGATI/TAIWAN MYKUN/GERMANY-SAUTER | GERMANY-SAUTER |
| Chuck & cylinder | TAIWAN-AUTOGRIP | |
| Hydraulic parts | TAIWAN/JAPAN | |
| Lubrication pump | JAPAN-HERG | |
| Nuts | TAIWAN-YINSH | |

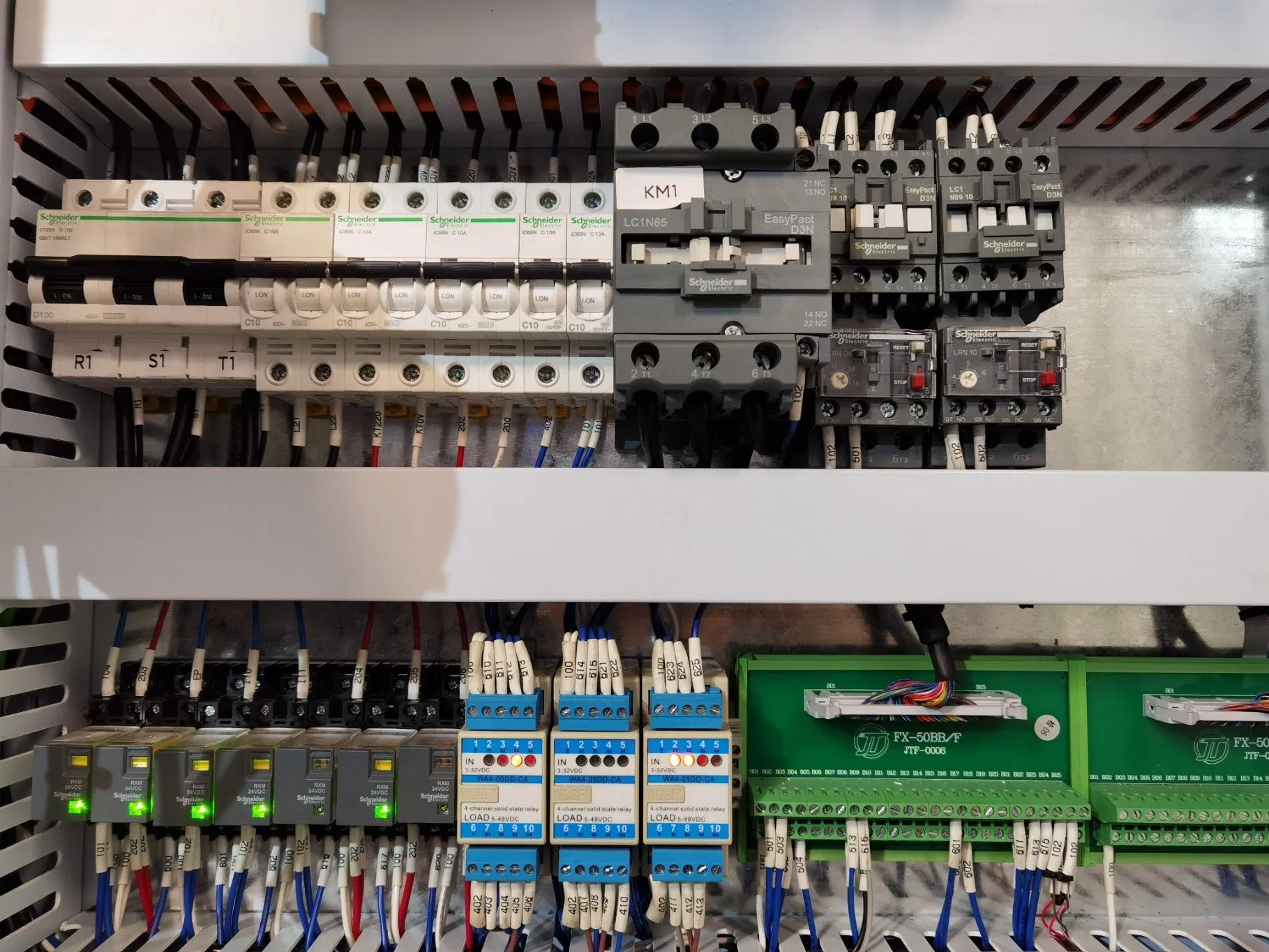

| Main electric parts | FRANCE-SCHNEIDER | |
Q1: What are the main differences between the BL-H50L PLUS and BL-H50LC PLUS models?
A1: The BL-H50L PLUS standardly mounts a 12T Hydraulic-servo tool turret. The BL-H50LC PLUS is equipped with a C-axis and a high-performance 12T GERMAN SAUTER Powered tool turret, designed for more complex metal turning and milling applications.
Q2: What type of guide ways and structural design are used in these machines?
A2: The series adopts a high-stability 45° integral slant bed design built with China top-class HT300 cast iron. It utilizes premium ROLLER type linear guideways to ensure optimal torsional strength, thermal stability, and low distortion under heavy loads.
Q3: Which CNC controllers can be integrated with the system?
A3: The standard setup comes with a SIEMENS 808D ADVANCED CNC controller. Optional controllers include SYNTEC, SIEMENS 828D, or FANUC system interfaces to fit your workshop requirements.
Q4: Are the component parts of high international standards?
A4: Yes. These machines incorporate leading global technology, utilizing parts from premier brands like SIEMENS (Germany), NSK (Japan), FAG (Germany), HIWIN/PMI (Taiwan), and SAUTER (Germany) for critical movements and precision control.
Q5: What options are available to customize this lathe for automation?
A5: We offer various automation and utility options, including Y-axis capability, an automatic chip conveyor system, tool setting probes, and different chuck and spindle size expansions.
