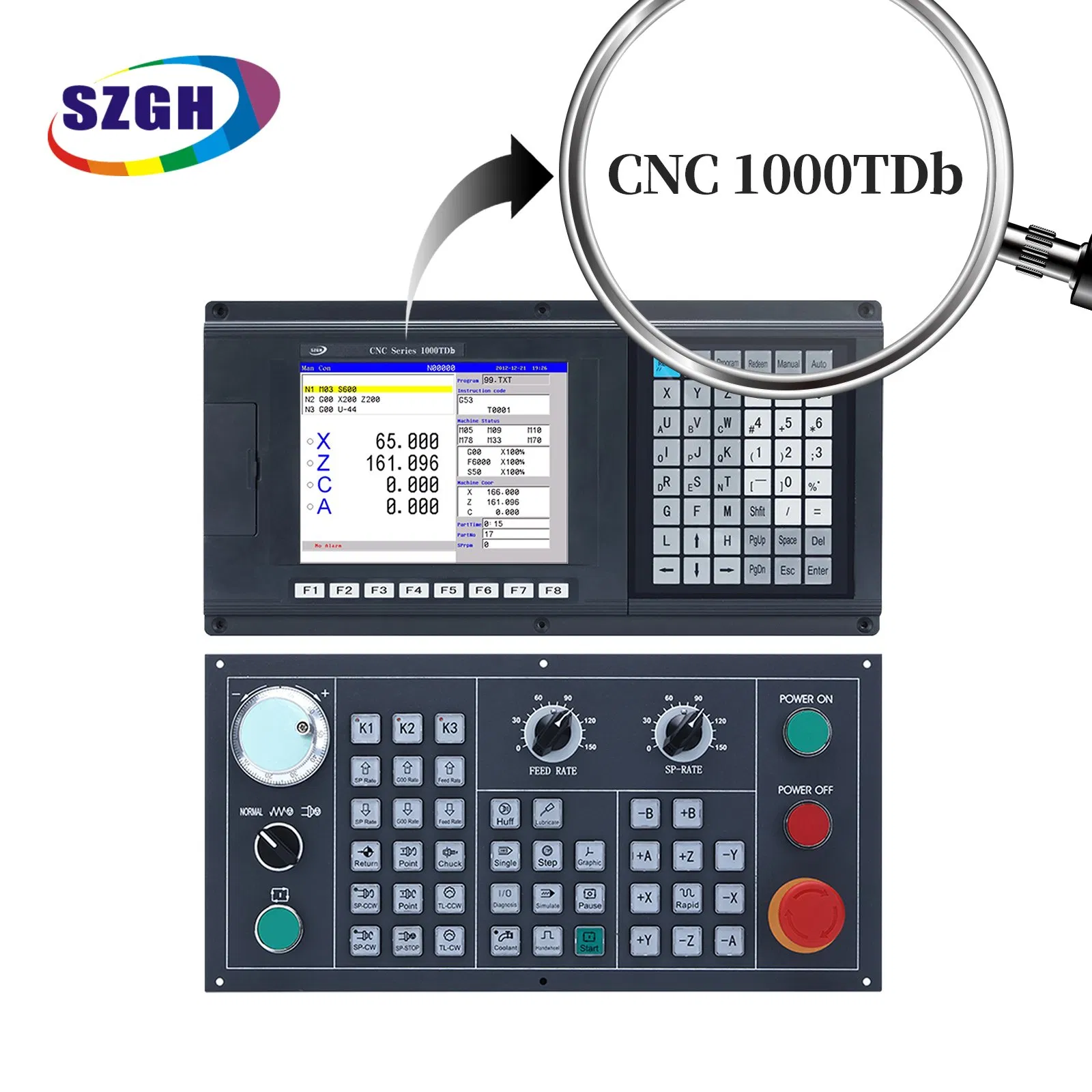

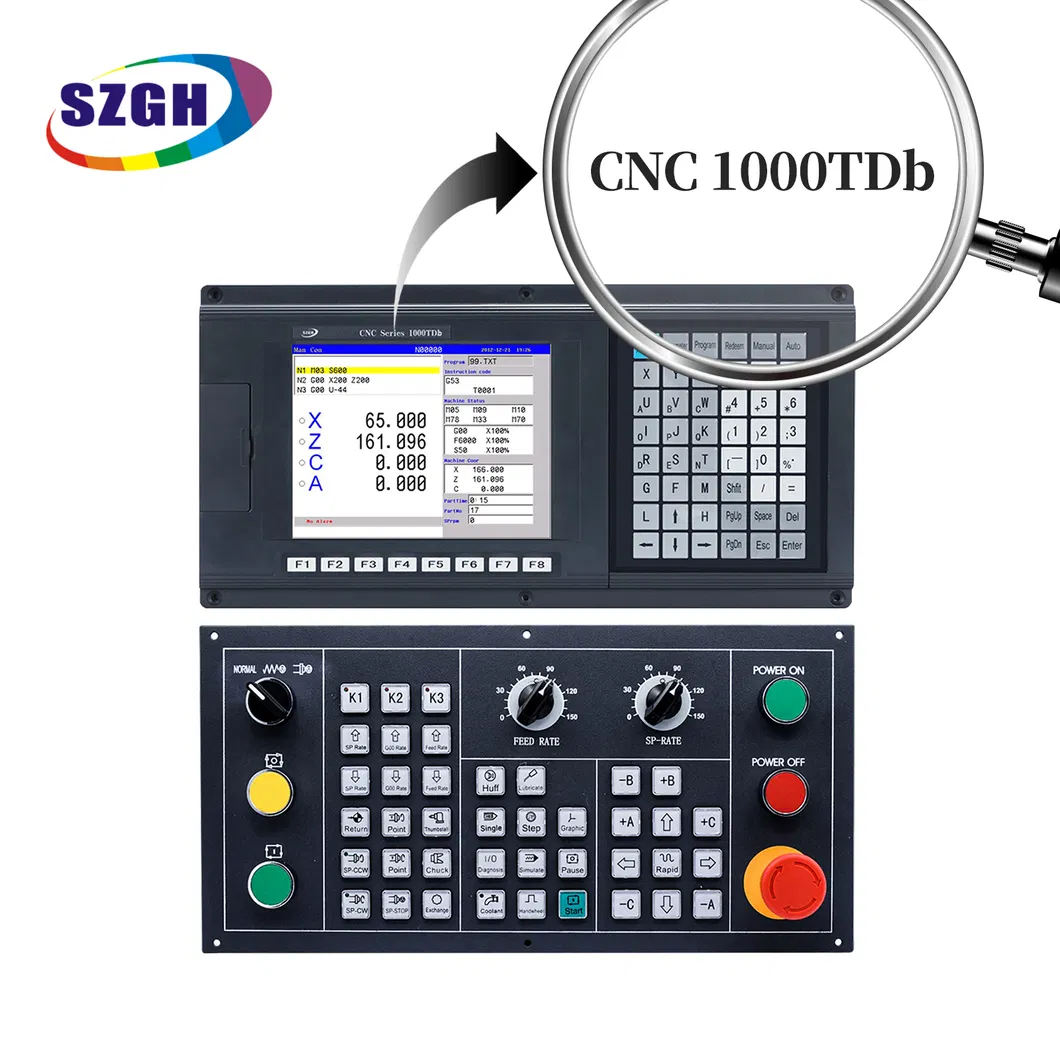

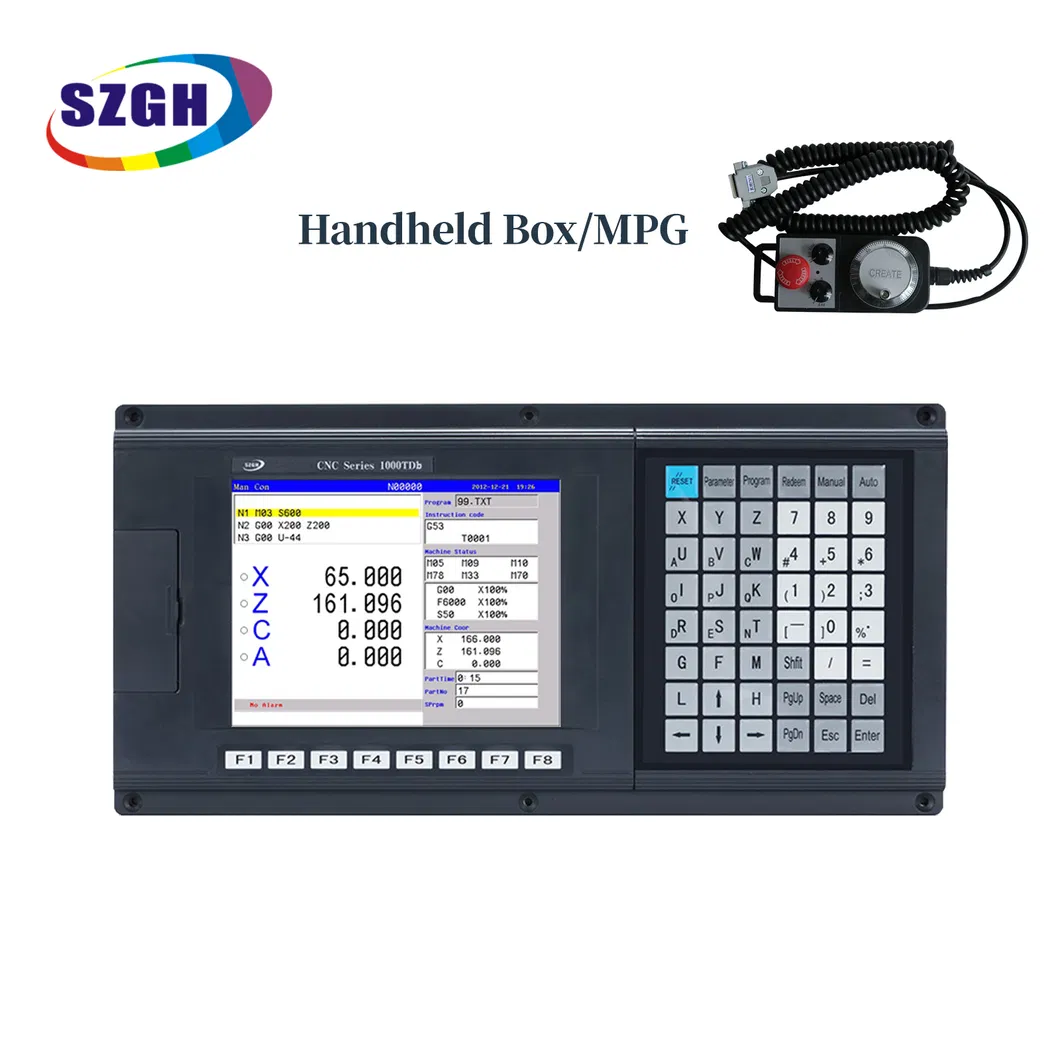

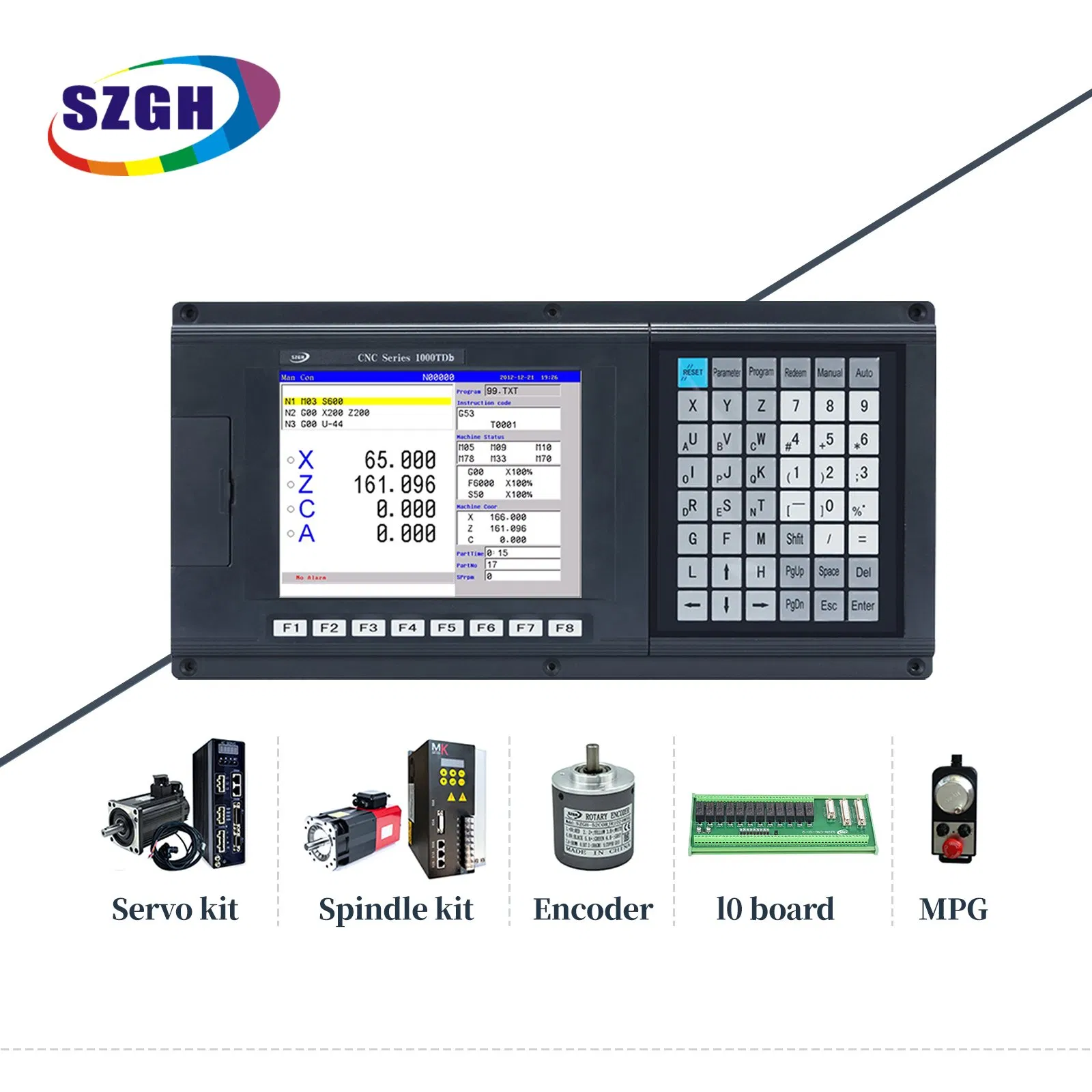

The CNC1000TDb-2 is a 2 Axis standard type Lathe CNC Controller, equipped with an 8.4-inch display (800x600), 2 analog spindles, and 2ms high-speed interpolation. It supports ATC, PLC, and macro functions, significantly improving the efficiency, precision, and surface quality of parts processing. Featuring a new USB interface, it supports file operations and direct program execution from a flash disk.
| Feature | Specifications |
|---|---|

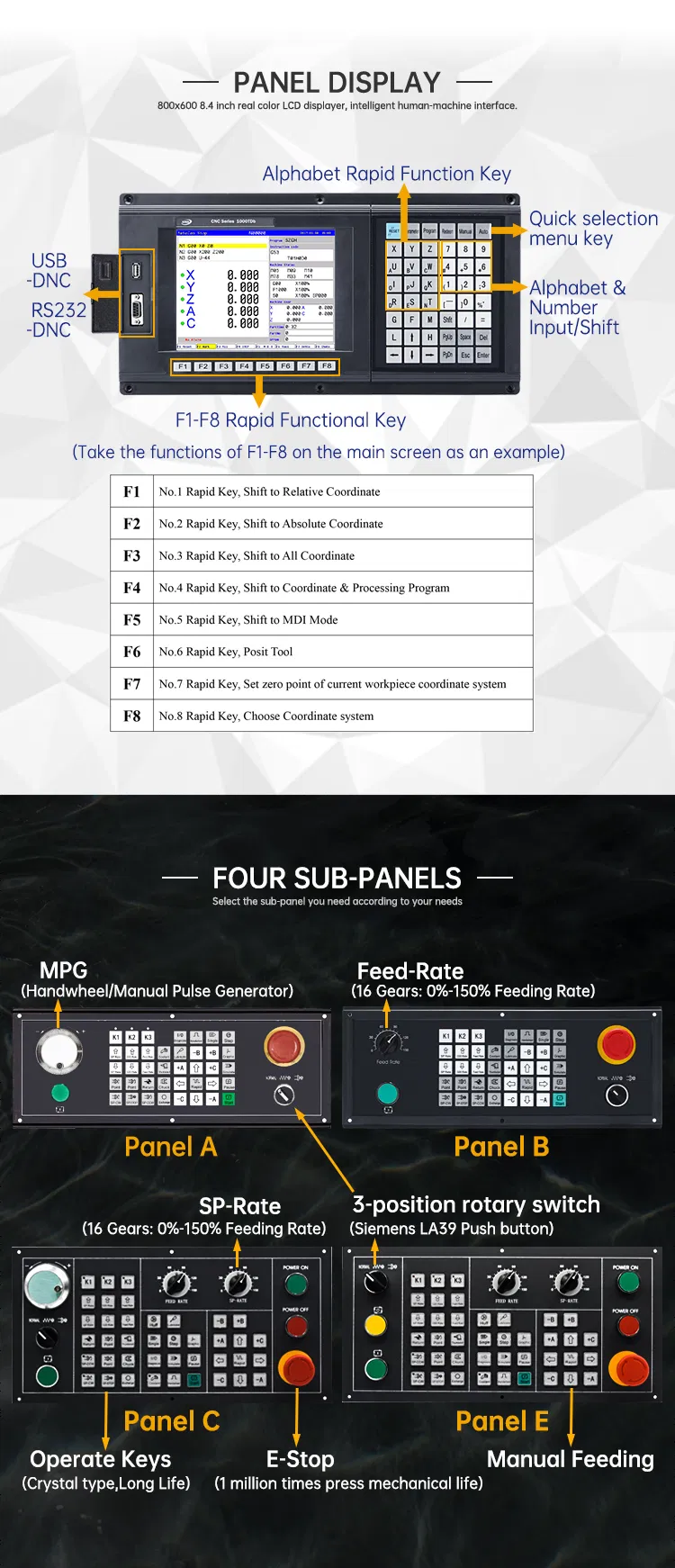

| Display | 8.4 inch color screen |
| Interface | USB + RS232 Communication Port |
| Support | Built-in standard PLC Program, customized edits available on customer request |
| Basic I/O | 56 * 32 |
| Function | Supports Macro functions, PLC ladder functions, and all types of turrets (max 99 tools) |
| After Warranty Support | Video technical support, Online support |

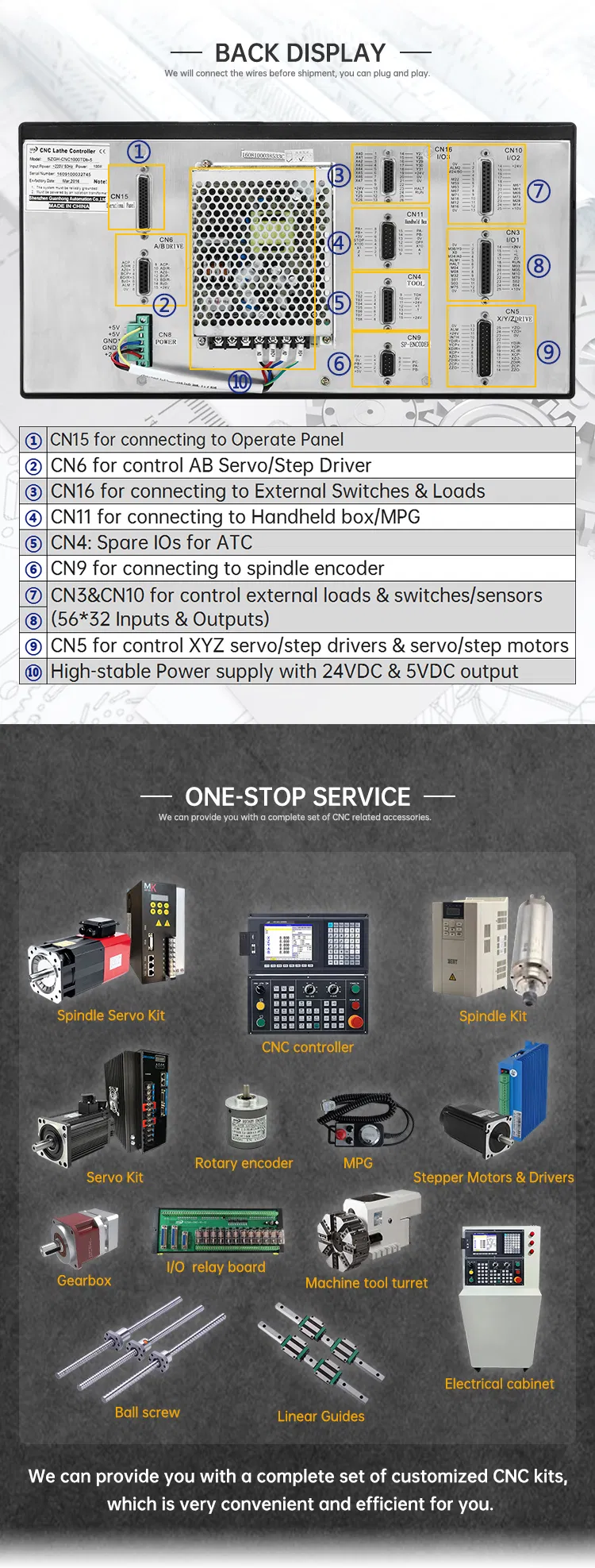

We offer complete sets of customized CNC kits tailored to your operational requirements for maximum convenience and efficiency.
1) Power Supply: AC 220V (+10%/-15%), Frequency 50Hz±2%. Power consumption: ≤ 200W. (Note: Must use isolation transformer for power supply, first input: 380V).
2) Climate Conditions: Operating temperature: 0~45°C, Relative humidity: 40-80%. Storage & transportation: -40~55°C, Relative humidity: <93% (40°C). Atmospheric pressure: 86-106kpa.
3) Operating Environment: No excessive flour dust, acid, alkaline, or explosive gases. Keep free from strong electromagnetic interference.

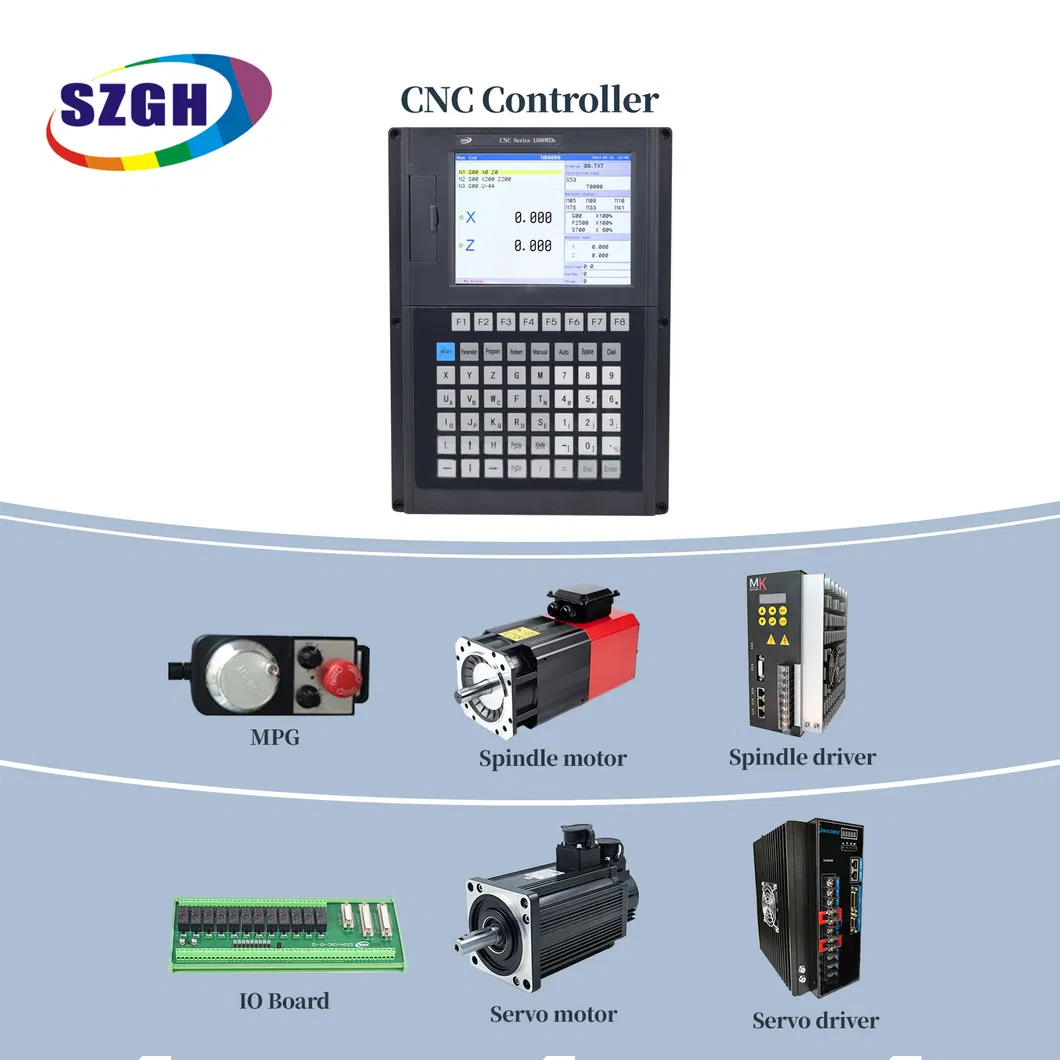

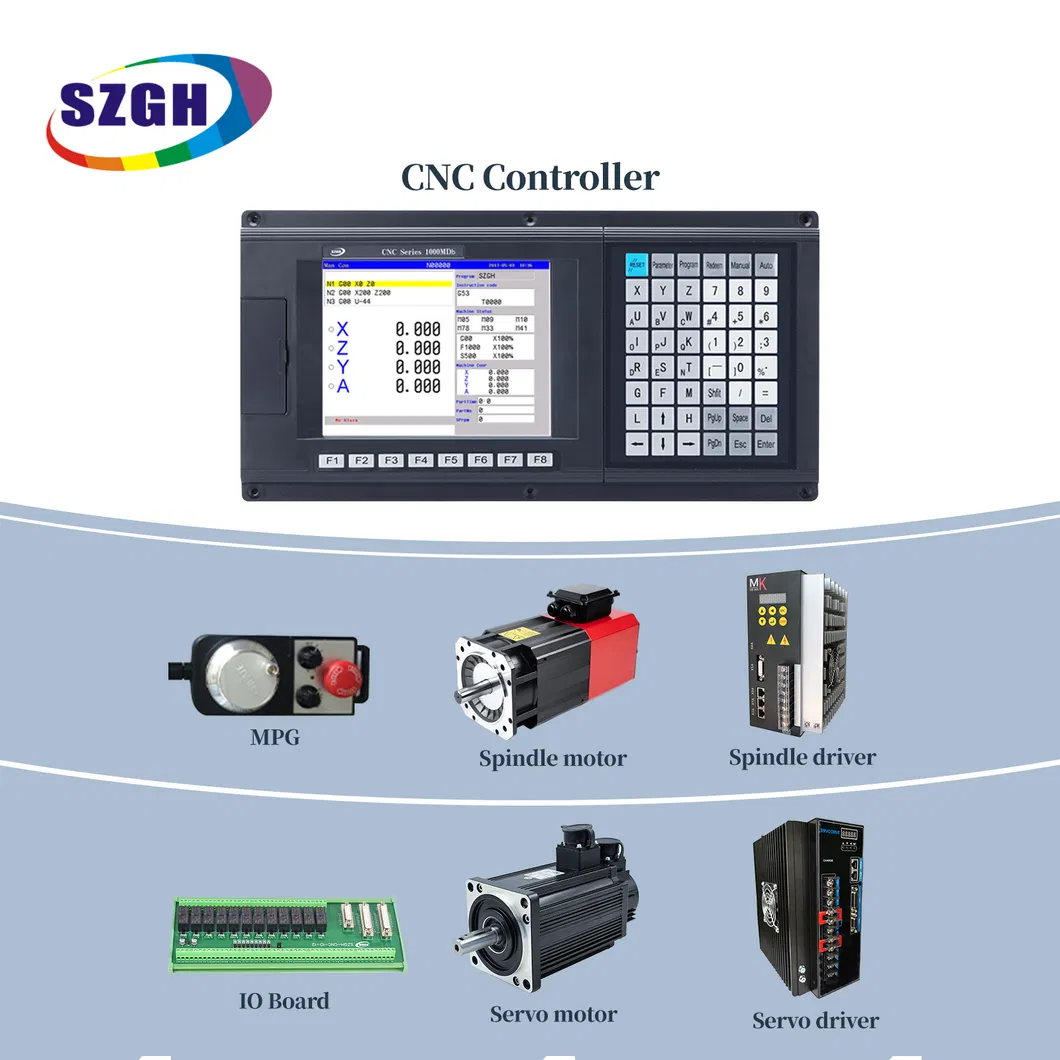

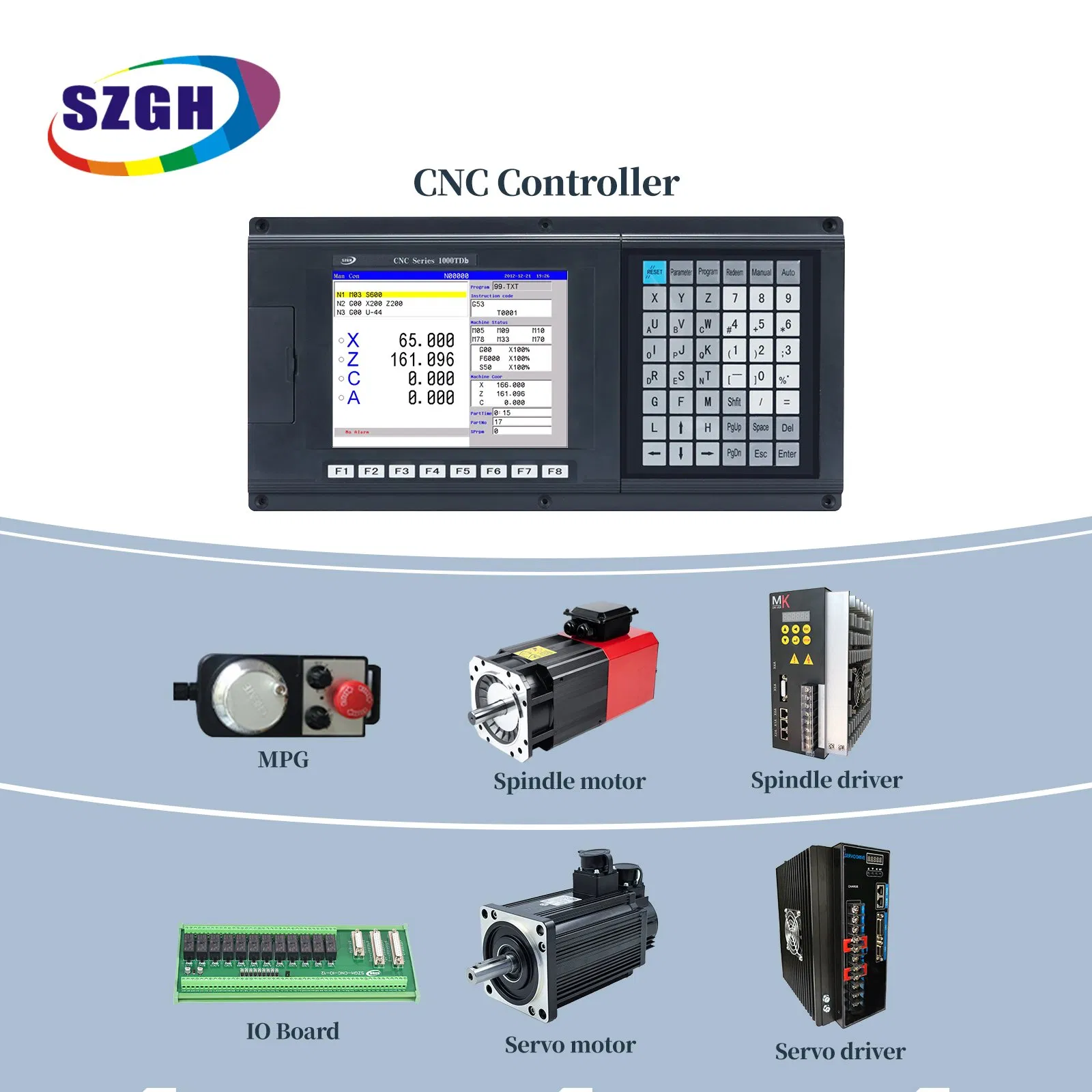

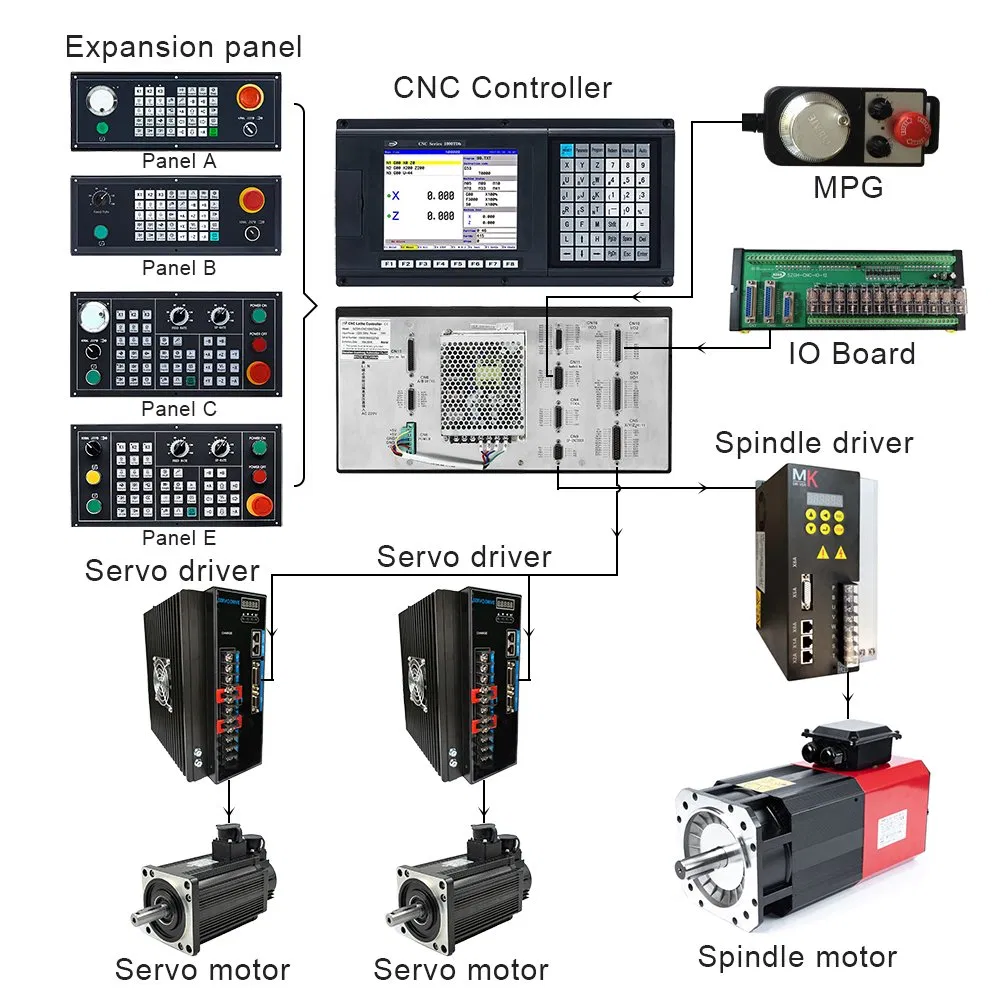

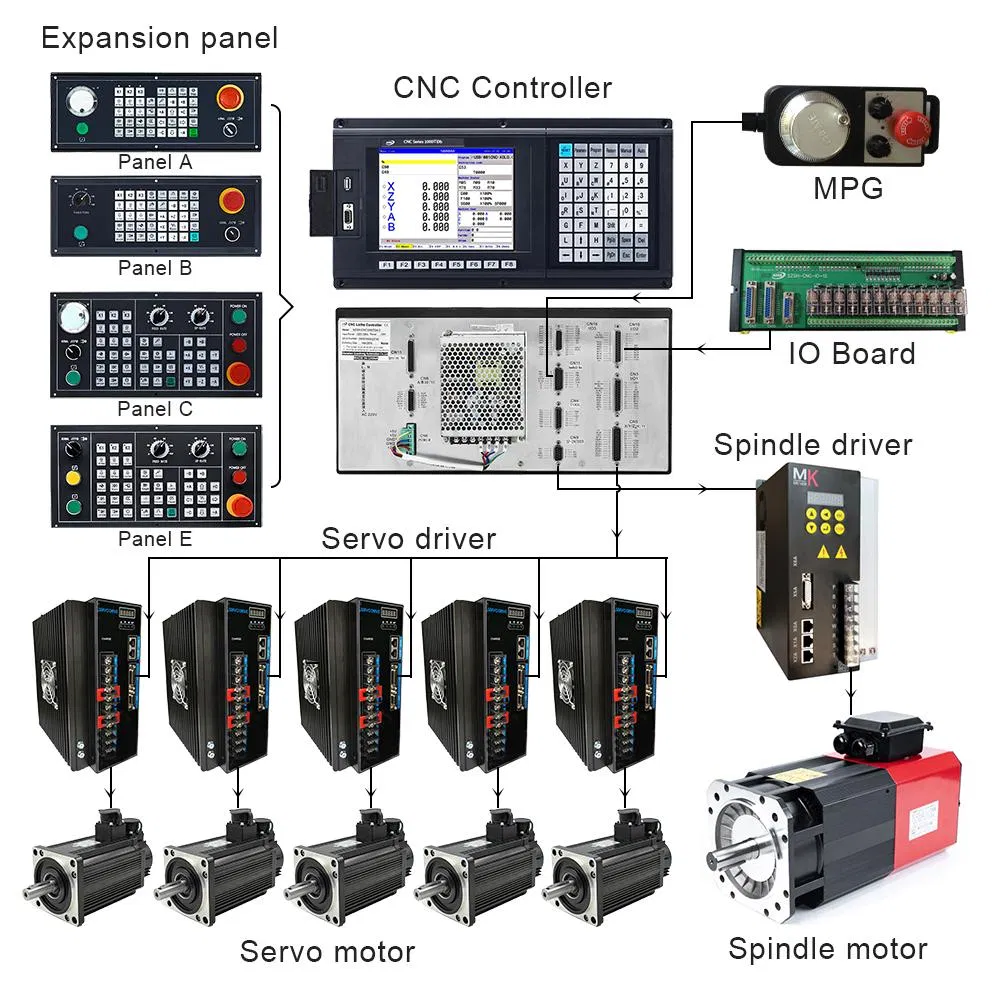

CNC Controller options: Economic, Standard & Modbus type, Absolute type, Dual channel type (Max 8+8 axes).
AC Servo Motors: Equipped with 2500PPR encoders or 23-bit encoders.
Servo Drivers: Incremental, Absolute, EtherCAT, and Modbus systems.
Spindle Systems: AC spindle servo motors & drivers, along with essential spare parts (MPG, I/O boards, rotary encoders).

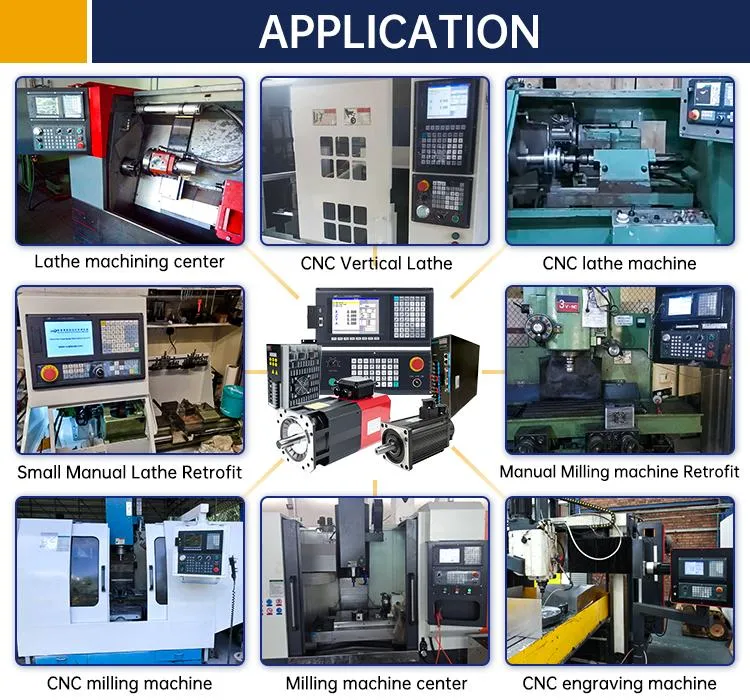

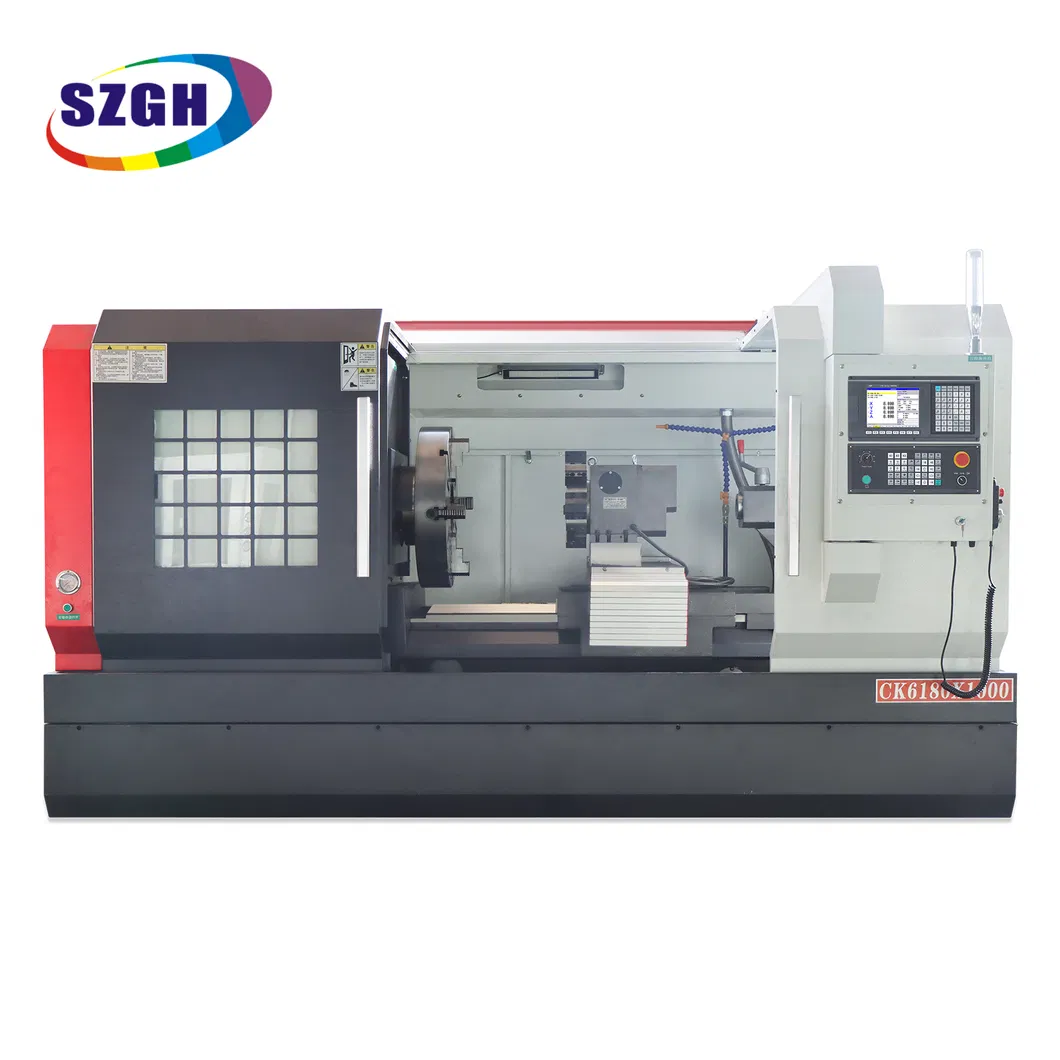

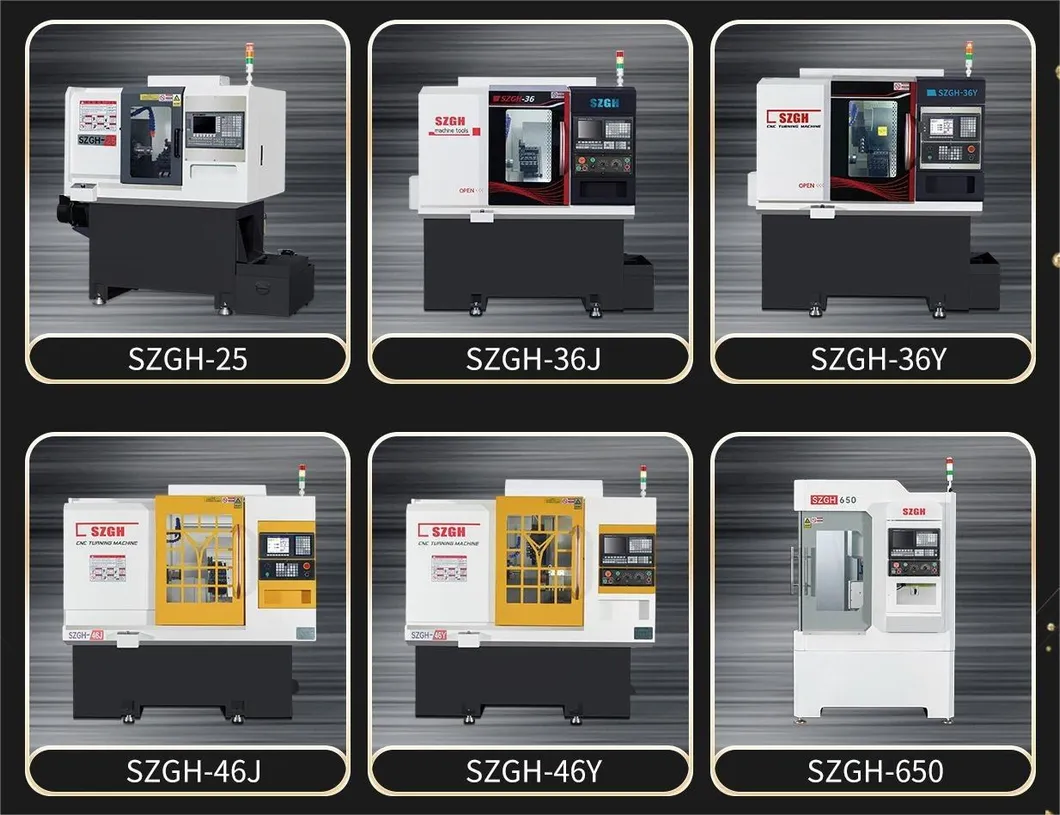

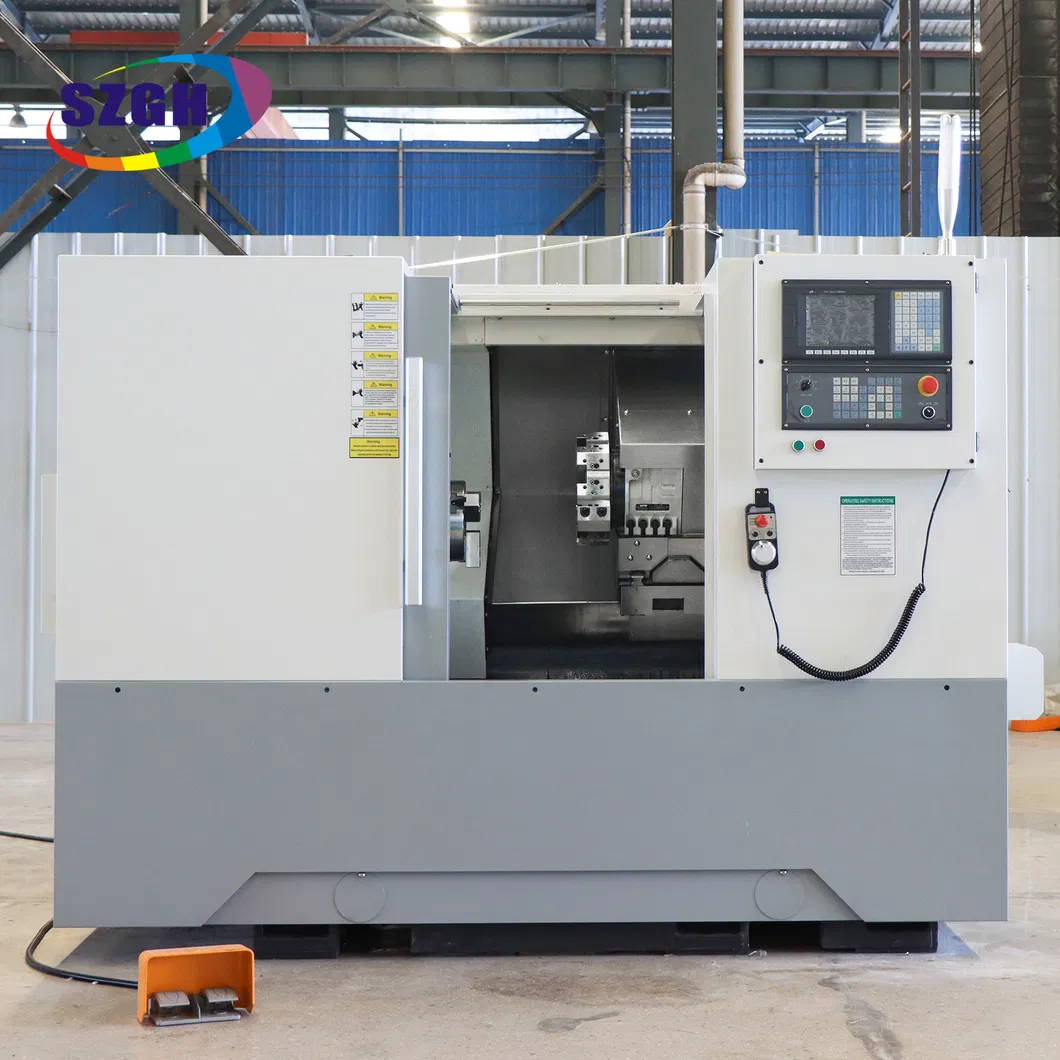

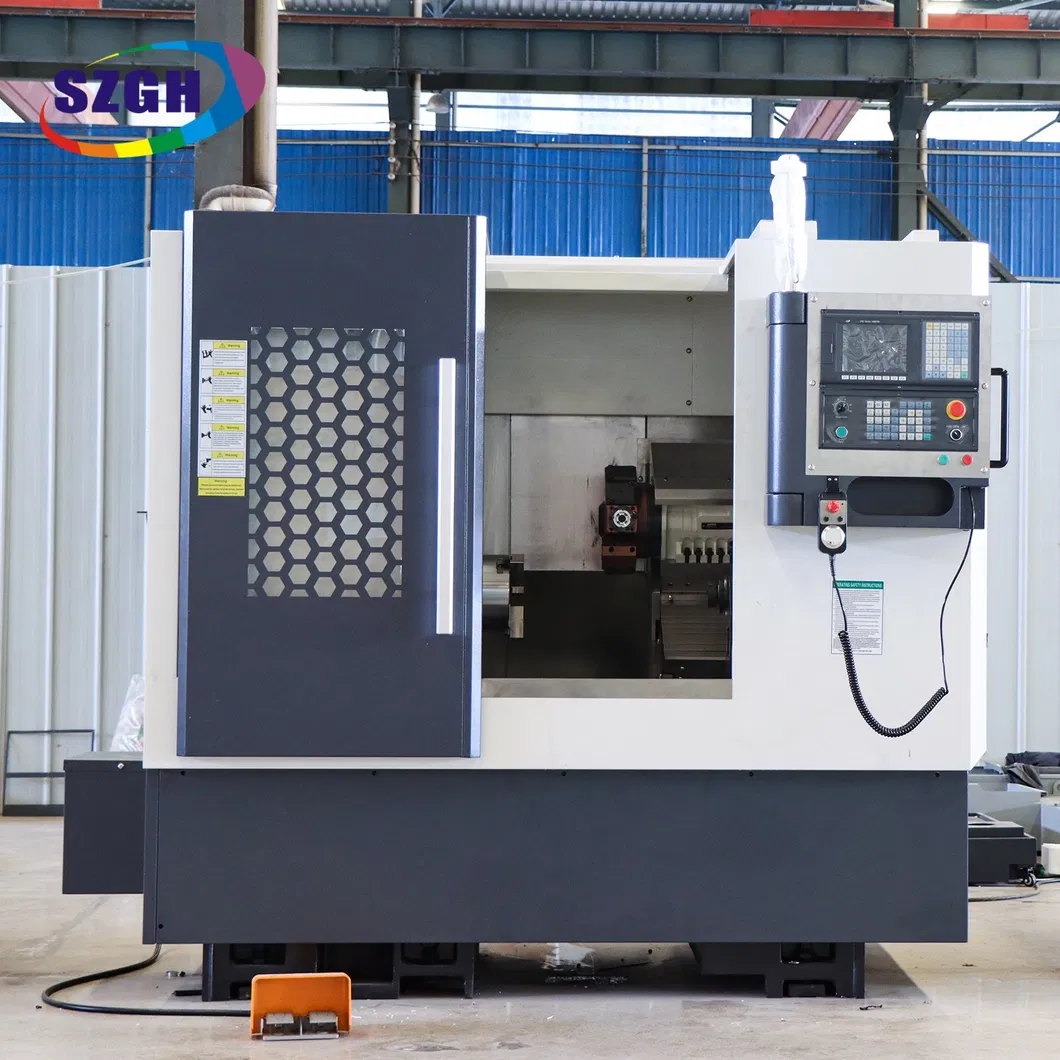

Suitable for mini-type special lathe machinery, CNC lathe machinery, hardware processing industries, automatic equipment, and more.
We are one of the leading CNC Automation specialists, active in the industry for over 8 years. Our expertise lies in providing total CNC solutions for milling machines, routers, turning, lathes, and grinding operations. We have also developed and mass-produced over 25 distinct robotic arm models.
Recognized as a high-tech enterprise since 2018, we rely on a robust technical center, a strict quality management system, advanced software & hardware integration, and first-class customer service. We maintain active representation through agents globally, including in the USA, Turkey, Morocco, Pakistan, South Africa, and Moldova. Our core operational principal is Customer First!
