Advanced CNC Glass Edge Grinding and Polishing System

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	One Year

Basic Info.

Model NO. Zxx-C2010

Application Glass Cabinet Table, Glass Sinks, Shower Doorglass

Process Usage CNC Machine Tools, Non-Conventional CNC, Metal-Forming CNC

Movement Method Linear Control

Control Method Semi-Closed Loop Control

Numerical Control CNC/MNC

Processing Precision 0.01mm, 0.05-0.1(mm)

Performance Classification High-End CNC Machine Tools

Certification CE, ISO 9001, CE, ISO

Condition New

Structure Horizontal

Control System PLC

Type Glass Process Center

Glass Washing Machine Type Waterjet

Glass Edging Machine Type Drilling, Milling Edging Polishing Together

Grinding Head Number 2

Drawing CAD Drawing

Heads Number 2

Max.Motion Range 2700*1650mm

Power 13kw

Glass Thickness 3-25mm

Speed 0-20m/Min

Volt. 380V/50Hz

Min Process Size 75X15mm

Function Drilling Milling Grinding Polishin Engraving

Transport Package Standard Export Package

Specification 2300*3300*2200MM

Origin China

HS Code 8464901900

Production Capacity 50 Sets Per Month

Packaging & Delivery

Package Size 560.00cm * 320.00cm * 230.00cm

Package Gross Weight 4600.000kg

Lead Time 10 days (1 - 1 Pieces)
45 days (2 - 3 Pieces)
60 days (4 - 5 Pieces)
To be negotiated ( > 5 Pieces)

Product Description

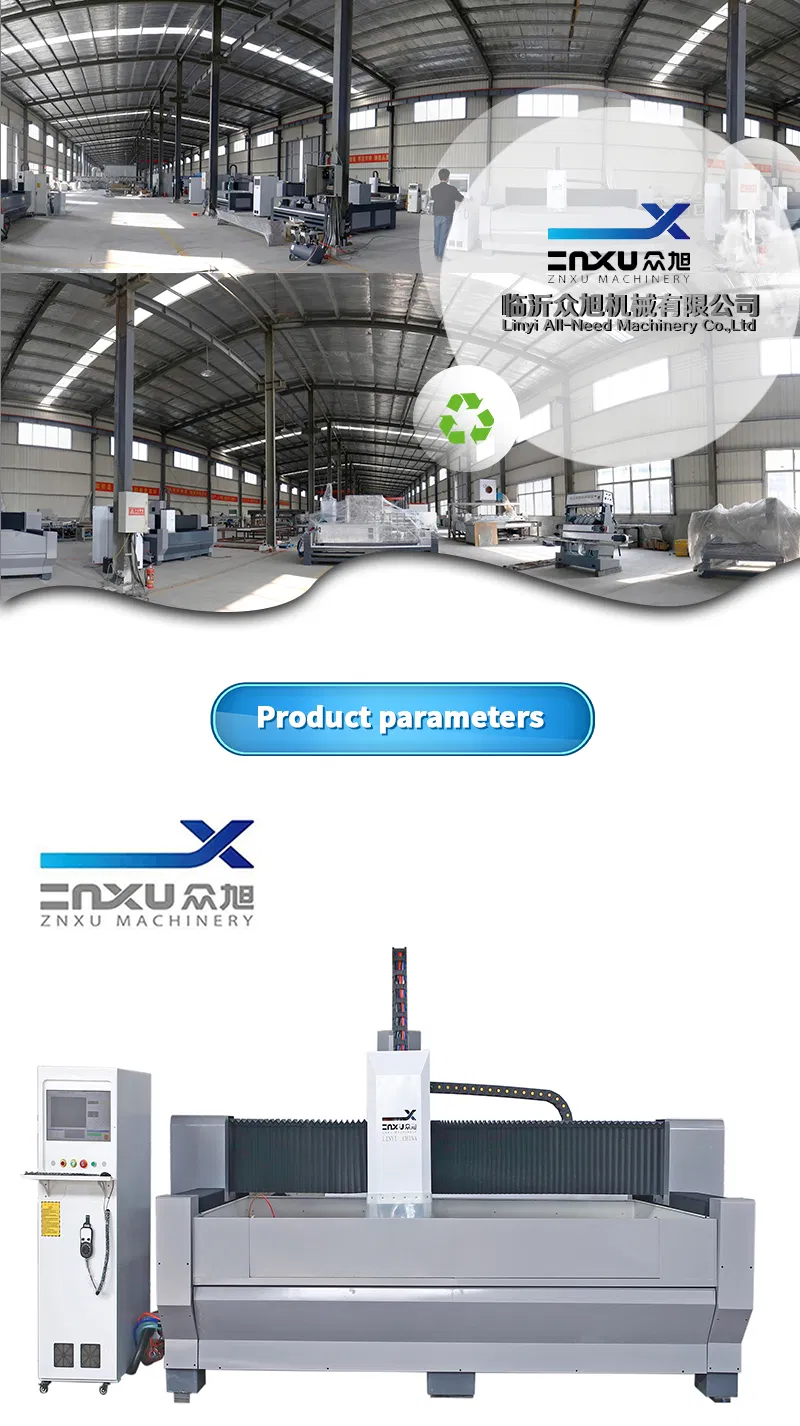

Advanced CNC Glass Edge Grinding and Polishing System

Description	Unit	Parameter
Model No.	1	ZXX-C2010 ZXX-C2515 ZXX-C3015 ZXX-C4020 (customizable)
Column	Set	Heavy iron
Control System	Set	LEETRO
Axis	PC	Cutter change: by hand
		Diam: ¢125
		Cooler: cool water
		RPM: 24000
		POWER: 7.5KW
Drive	Set	YMPC
Inverter	KW	BEST: 11KW
Max Glass Size Put	MM	3000*1800mm (Length unlimited with table extension)
Max Grinding Size	MM	*25001450mm**
Max Router (Milling) Size	MM	*27001650mm**
Z-axis Space Height-open	MM	380
Motor	Set	CHINT
Internal Structure	Set	Half cover / waterproof design
Work Table Load	KG	120
Positioning Accuracy	MM	0.01
Repeated Positioning Accuracy	MM	0.01
Max Speed (empty)	M/MIN	15
Max Process Speed	M/MIN	3M/MIN
Stroke Protection	PC	Omron, Japan
GEAR	PC	GERMAN DMJ-1.5M High precision
Guide Screw Bearing	PC	HIWIN
Guide Screw Bearing	PC	Model: Z axis with diagonal contact
Lubrication System	Set	Origin: TAIRUN
Lubrication System	Set	Automatic lubrication
Cooling Type	Set	Water pump
Main Axis Cooling	Set	Automatic thermostat cooler
Main Electric	Set	CHINT / SCHNEIDER
Volt./Frequency	KW	AC 380V/10KW/50HZ (as per request)
Machine Size	MM	*225040002200mm*
Weight	KG	2200
Power	KW.H	11.1

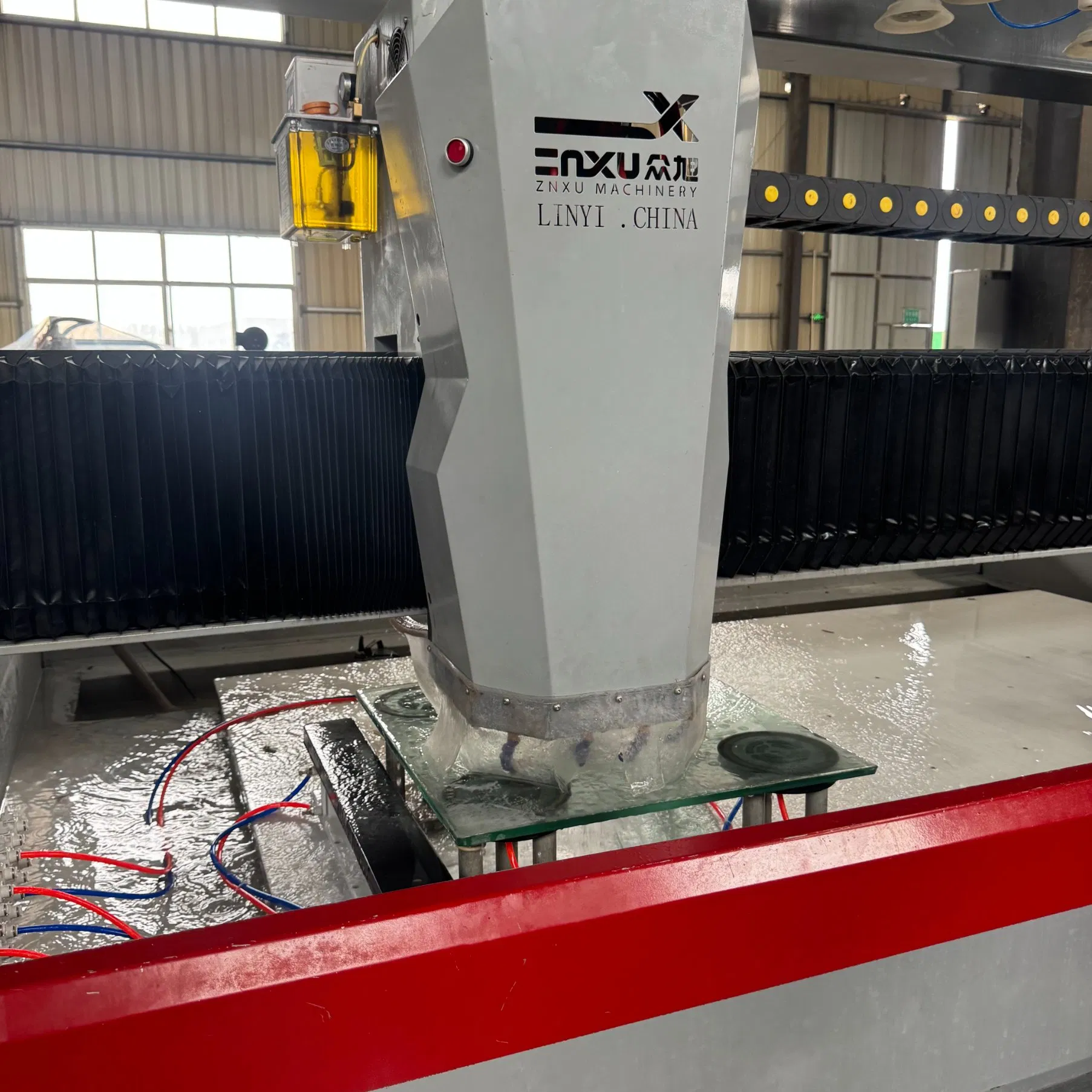

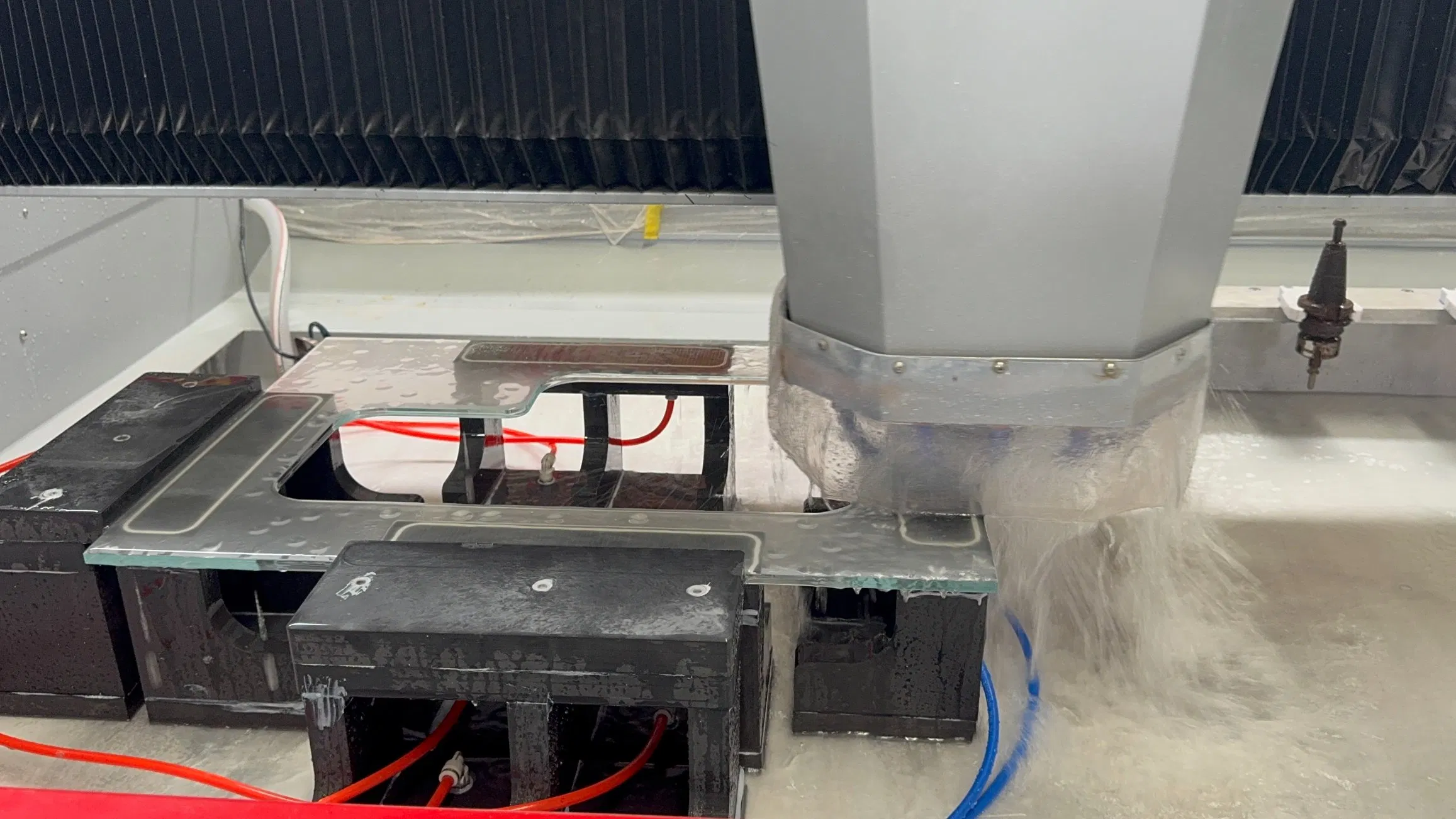

Machine Processing:

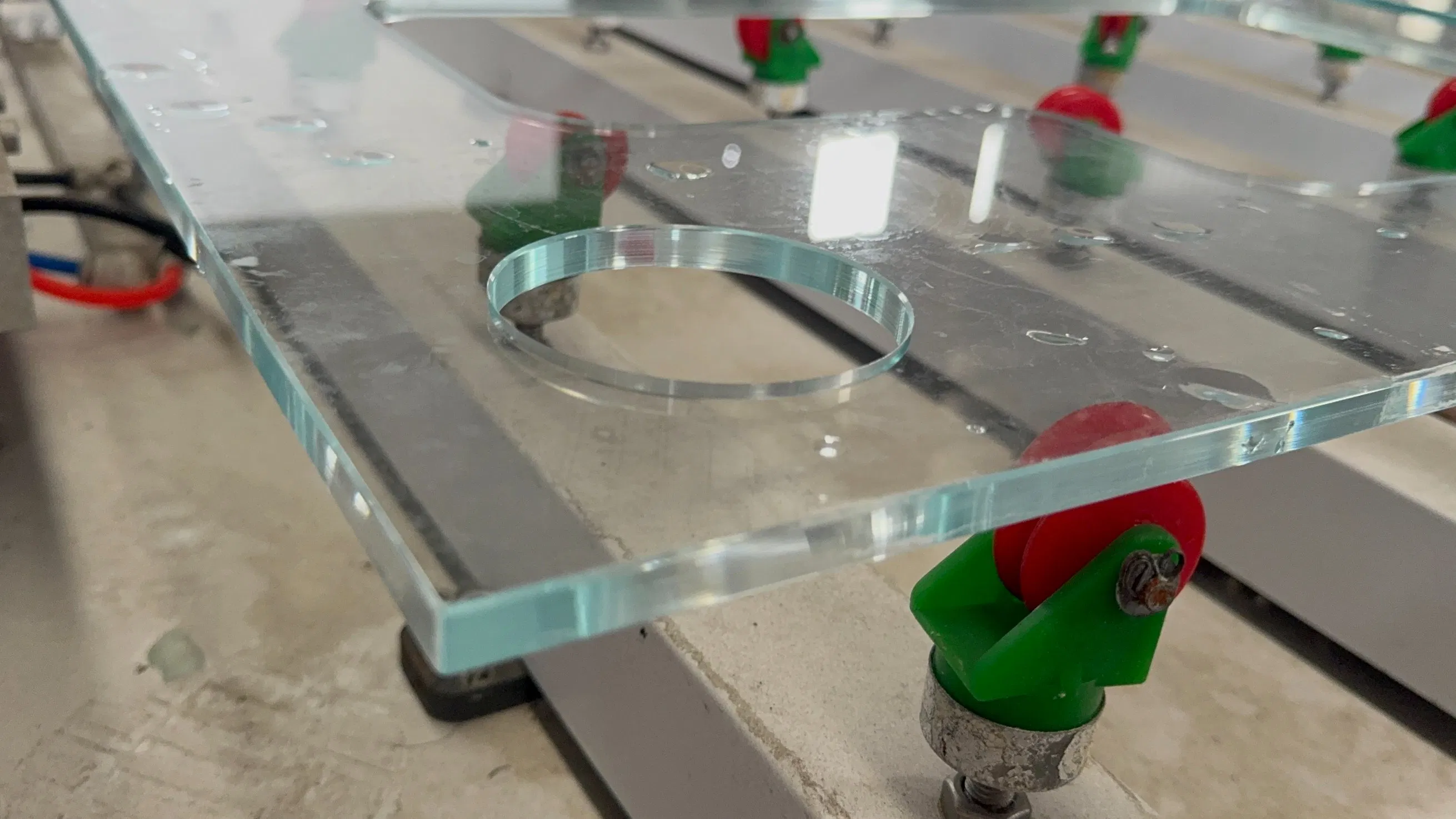

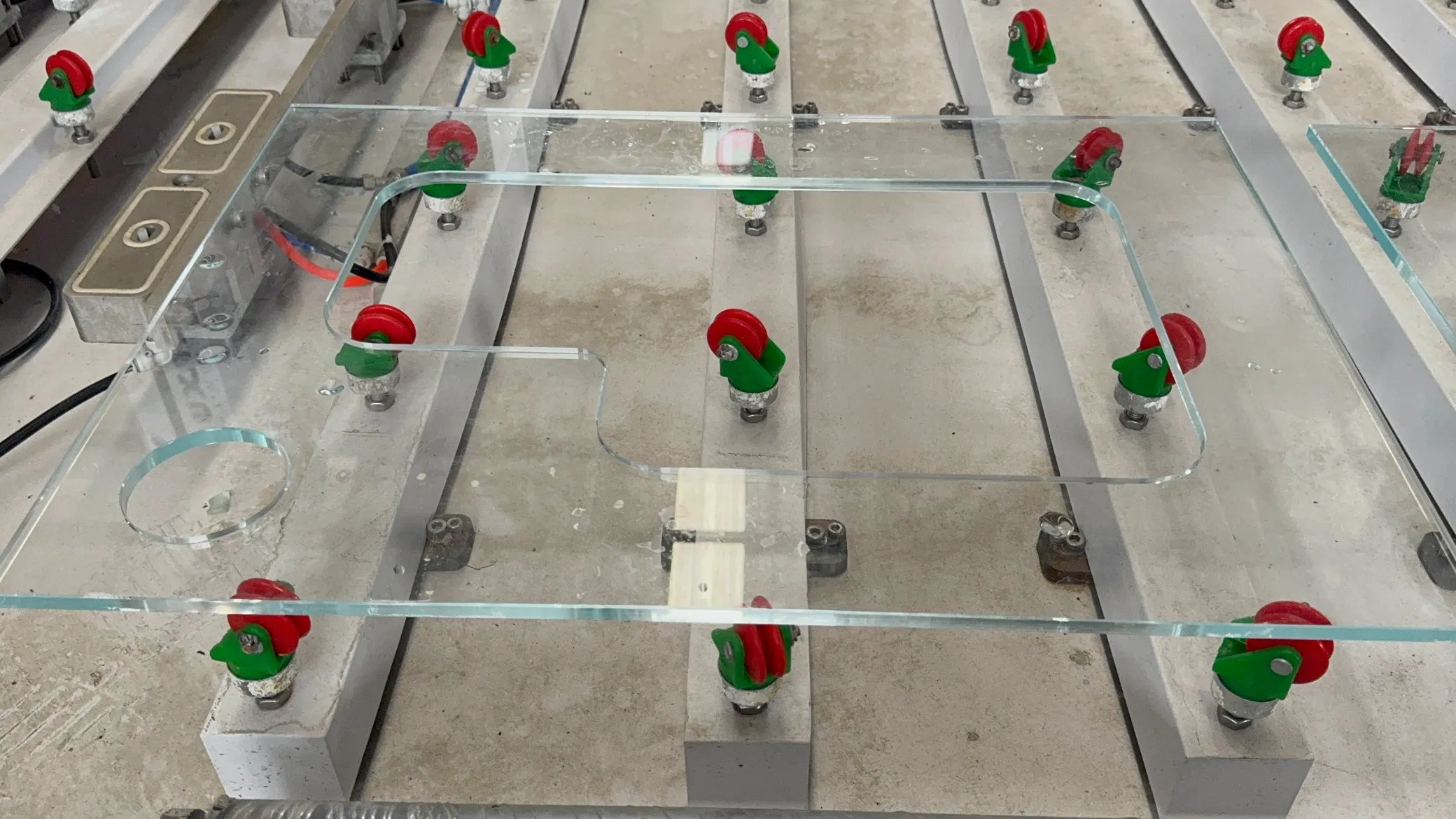

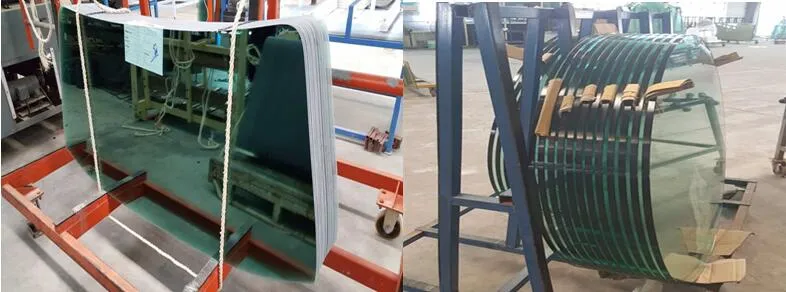

Samples:

Provide on-site installation and after-sales support. (Associated freight, hotel, and meal costs are on the buyer's account, with a technician fee of USD100/day/person.)
The machine is shipped as one single integrated unit. Operation manual and CD are included.
We welcome you or your representatives to undergo free training in installation and operation at our facility. Accommodation is provided free of charge during training.
One-year warranty period with lifelong maintenance support. Core components (excluding consumables) are replaceable free of charge during warranty under normal guidelines.
24-hour technical support is accessible via online messaging, email, or video tools.

Frequently Asked Questions

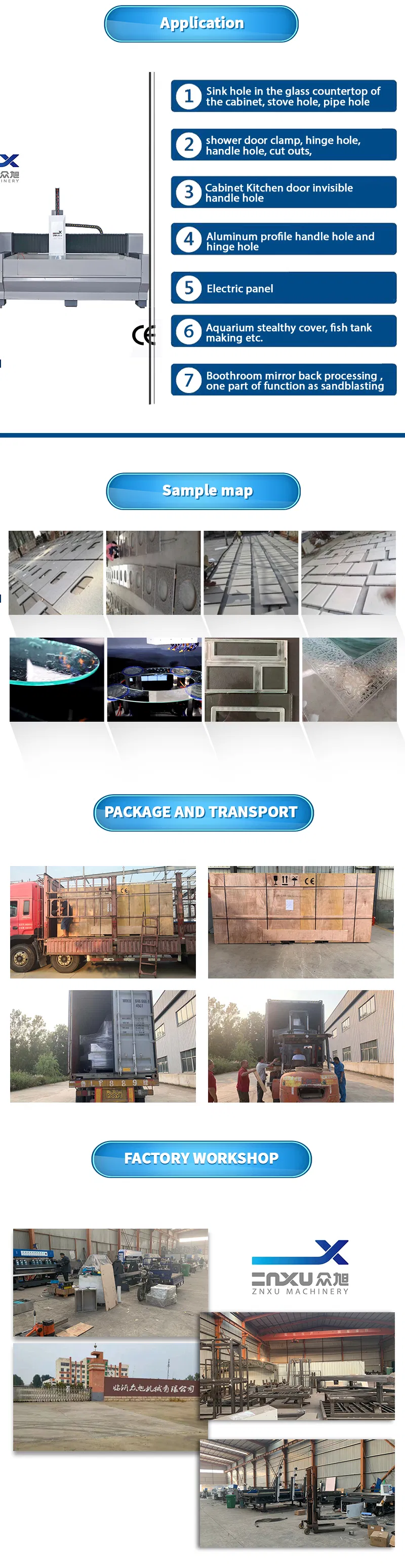

What types of glass applications is this CNC machine suited for?

This system is designed specifically for processing glass products such as glass cabinet tables, sinks, and shower door glass. It can accommodate glass thicknesses ranging from 3mm to 25mm.

What functions can the Zxx-C2010 processing center perform?

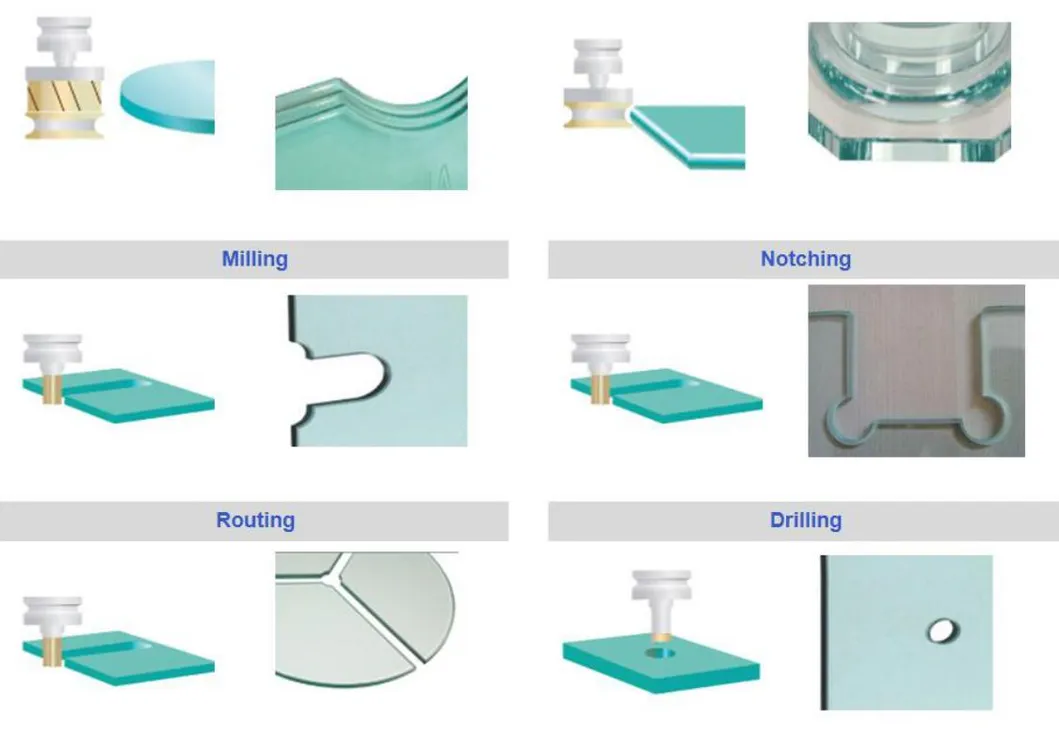

It is an all-in-one workstation supporting comprehensive processing methods: drilling, milling, edge grinding, polishing, and precise engraving.

How is the machine delivered, and does it require on-site assembly?

The machine is shipped as one complete, pre-assembled unit. There is no complex structural assembly required upon delivery. You can immediately reference the included operation manual and tutorial media to begin.

Do you offer operator training for customers?

Yes, we provide free operational and installation training at our factory facility. All associated training fees and accommodation for your operators during the training program are fully covered.

What is covered under the machine's warranty?

We offer a one-year warranty period alongside lifelong maintenance. During the warranty period, any non-consumable main components that malfunction under standard usage will be replaced free of charge.

Can the machine's power and voltage specifications be customized?

Yes. While our standard specification is set to AC 380V/50Hz, power parameters can be customized according to your local region's electrical grid requirements upon request.
