Advanced Manual Lathe, Lathe, Horizontal Lathe, Turning Tool System

Customization:	Available
After-sales Service:	1 Year Since Running
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.CS6250

TypeHorizontal Lathe

Processing AccessoryCentre CNC Lathe

Guide RailHorizontal Guide Rail

Tool HolderDouble-tool Holder CNC Lathe

Power SourceElectric

Controlling ModeArtificial

Automatic GradeSemiautomatic

Setting ModeFloor-type

PrecisionHigh Precision

CertificationCE, ISO 9001

ConditionNew

Weight (Kg)2300 Kg

Max. Turned Length (mm)1450 mm

Width of Bed (mm)390

Spindle Bore(mm)52

Machining CapacityMedium Duty

Warranty of Core Components1 Year

NameManual Lathe Machine

Key Selling PointsCompetitive Price

Spindle Motor Power(Kw)7.5

KeywordTurning Machine

Range of Spindle Speed(r.p.m)9 - 1600 r.p.m

Max. Length of Workpiece (mm)1500

Motor Power7.5kw

ApplicationMaterial Processing

Transport PackagePlywood Packaging

TrademarkANTISHICNC

OriginShanghai, China

HS Code8458190000

Production Capacity300 Piece/Pieces Per Month

Product Description

Product Parameters

Item / Specification	Unit	Parameter (CS6250B)
Capacity
Max swing over bed	mm	Φ500
Max swing in gap	mm	Φ710
Effective length in gap	mm	240
Max swing over slide	mm	Φ300
Max workpiece length	mm	1000/1500/2000/3000
Spindle
Spindle thru-hole	mm	Φ82
Spindle nose	-	ISO 702/II No.8 cam-lock type
Spindle speed	r/min	24 step 9-1600
Spindle motor	kW	7.5
Tailstock
Quill dia./travel	mm	φ75/150
Taper of center	MT	5
Tool Post
Number of station / Tool section	-	4/25X25
Feed System
Max X-axis travel	mm	145
Max Z-axis travel	m/min	320
X-axis feed	mm/r	93 sorts 0.012-2.73
Z-axis feed	mm/r	93 sorts 0.028-6.43
Metric thread	mm	48 sorts 0.5-224
Inch thread	t.p.i	46 sorts 72-1/8
Module thread	πmm	42 sorts 0.5-112
DP thread	t.p.i. π	45 sorts 56-1/4
Others
Coolant pump motor	kW	0.12
Machine length	mm	2632/3132/3632/4632
Machine width	mm	975
Machine height	mm	1270
Machine weight	kg	2050/2200/2600/2900

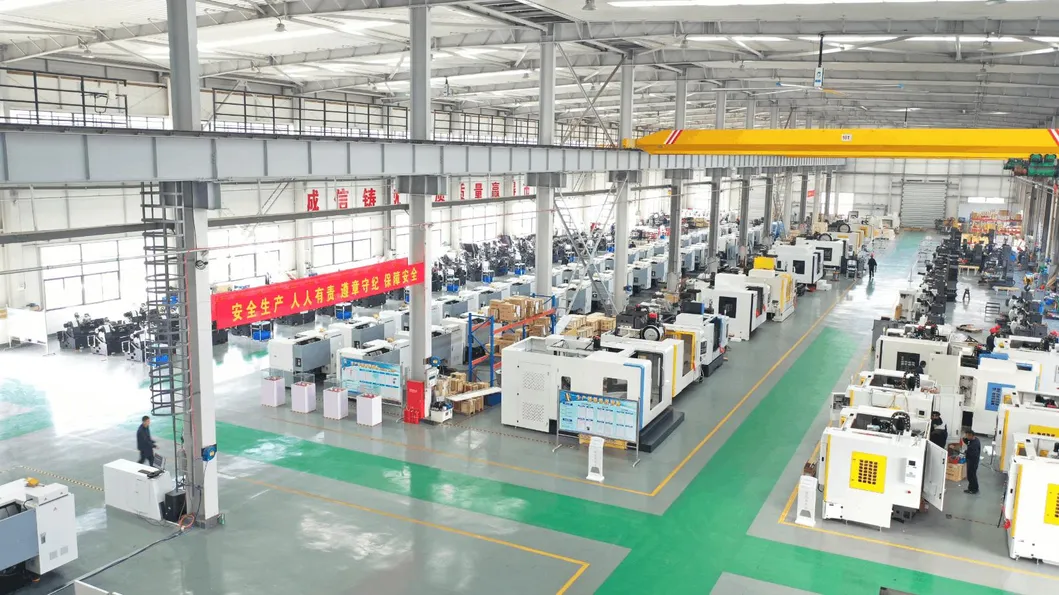

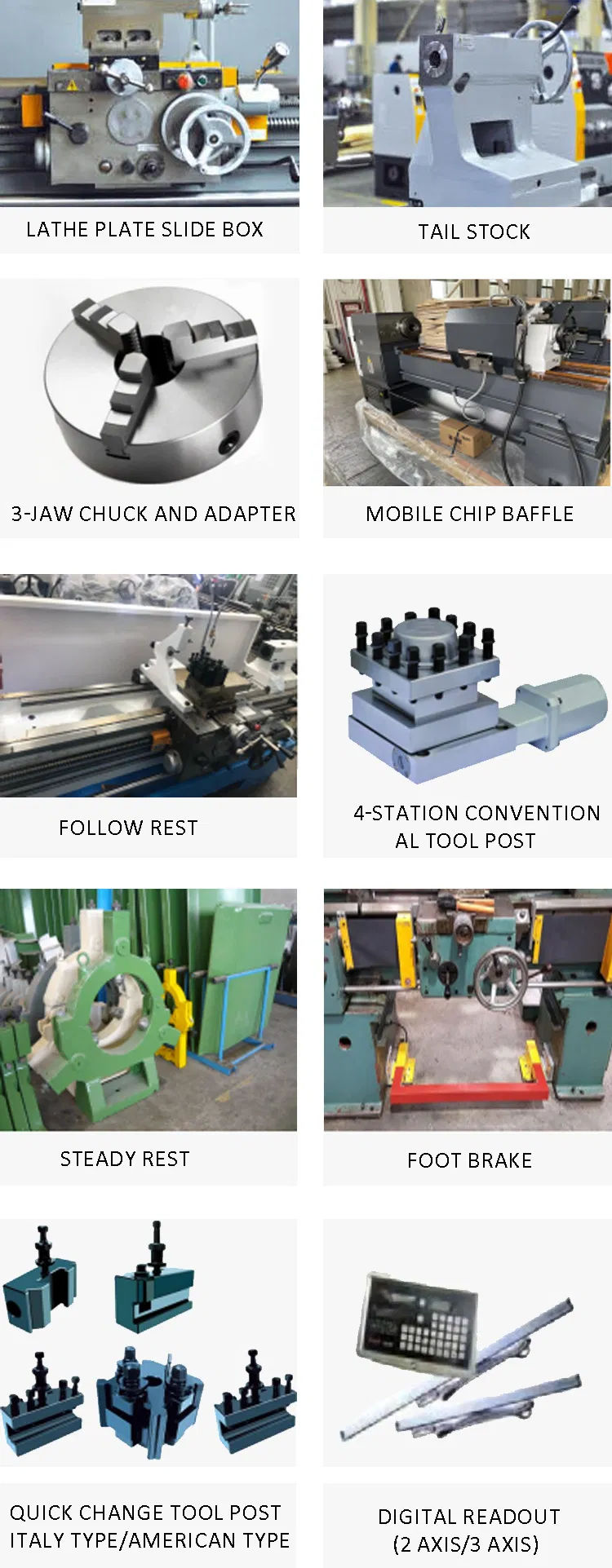

Technical Specifications & Workshop Showcase

Frequently Asked Questions

1. What is the maximum swing over bed of the CS6250B manual lathe?

The CS6250B manual lathe features a maximum swing over bed of Φ500 mm. The maximum swing in the gap is Φ710 mm, with an effective gap length of 240 mm.

2. What are the key spindle options and speed ranges?

This model is designed with a spindle thru-hole diameter of Φ82 mm and features an ISO 702/II No.8 cam-lock type spindle nose. The spindle speed range spans from 9 to 1600 r.p.m across 24 speed steps, powered by a 7.5 kW spindle motor.

3. What processing capacities and weights does this lathe support?

The lathe is built for medium-duty machining. The machine weight ranges from 2050 kg to 2900 kg depending on the selected bed length, supporting workpiece lengths of 1000 mm, 1500 mm, 2000 mm, and 3000 mm.

4. What is the warranty policy for core components?

The manual lathe machine comes with a standard 1-year warranty covering all core components to ensure smooth operation and reliable performance.

5. What packaging is standard for shipment?

All machines are packaged using secure, durable plywood packaging. This packaging conforms to international export standards and ensures protection against damage during transit.
