Product Description

Basic Info.

Model NO. BCNC-650J

Certification CE

Condition New

Control Automatic

Application Metal, Ceramic, Glass, Stone, Plastic

Power Source Electric

Style Gantry

Type Five-Axis

Usage Ceramics, Granite, Marble, Quartz

Source Voltage 380V

Automation Automatic

Cutting Ability High Speed

Overall Weight 10000

Work Bench Specifications 3500*2100

Control System Esa CNC

Transport Package Plastic Packing

Specification 6200*3900*3930 mm

HS Code 8464109000

Production Capacity 50 Pieces/Month

Packaging & Delivery

Package Size 620.00cm * 390.00cm * 340.00cm

Package Gross Weight 10000.000kg

Product Description

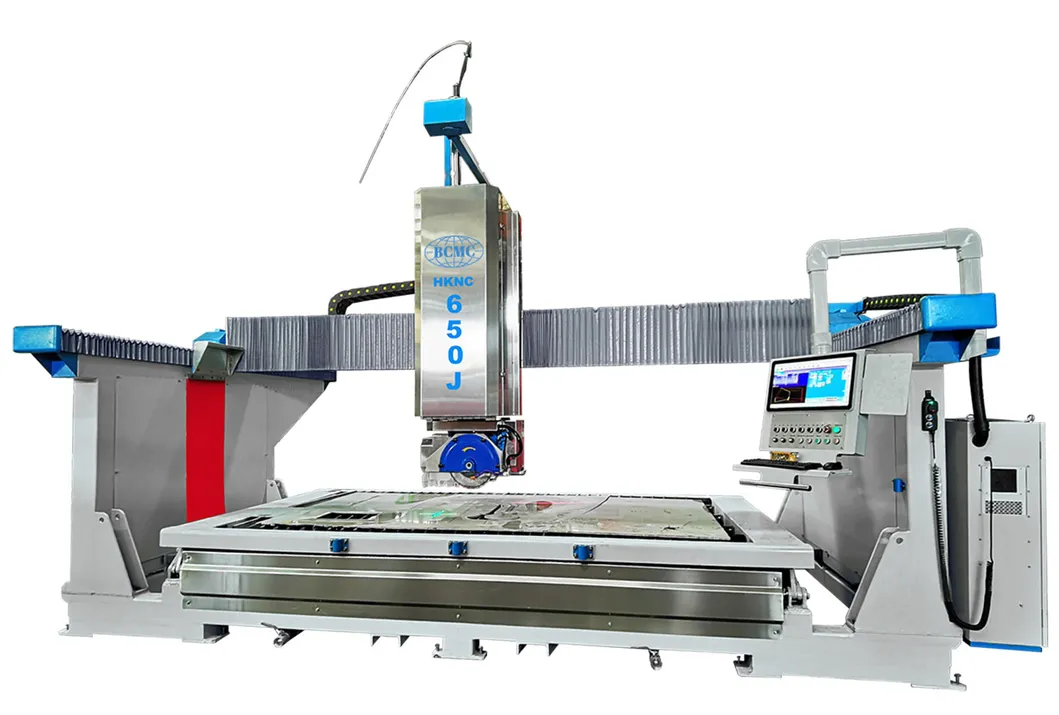

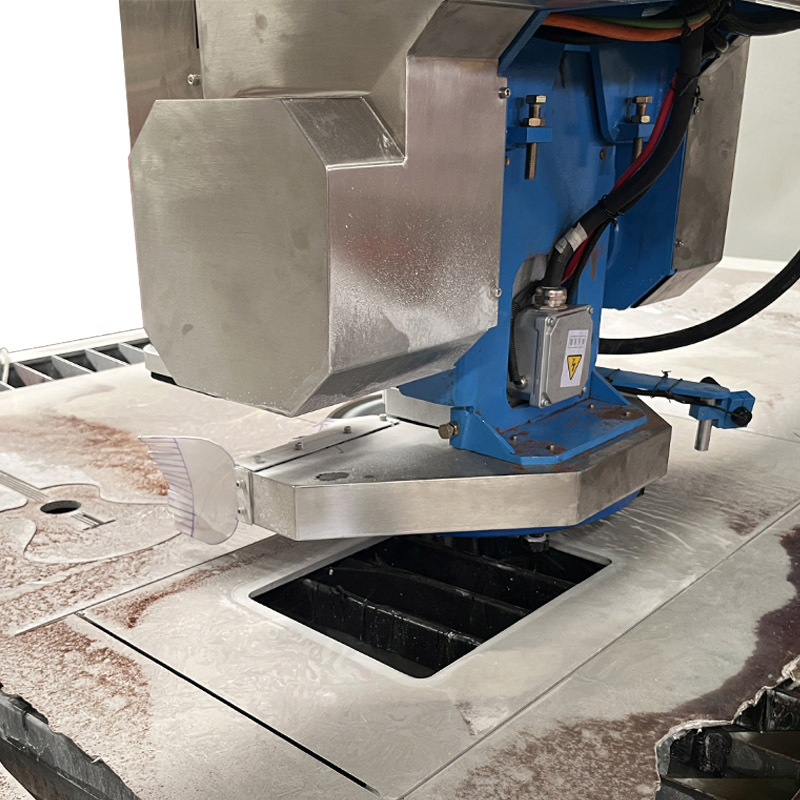

CNC Waterjet Combine Saw Blade Italy CNC Control System for Kitchen Countertop Cutting

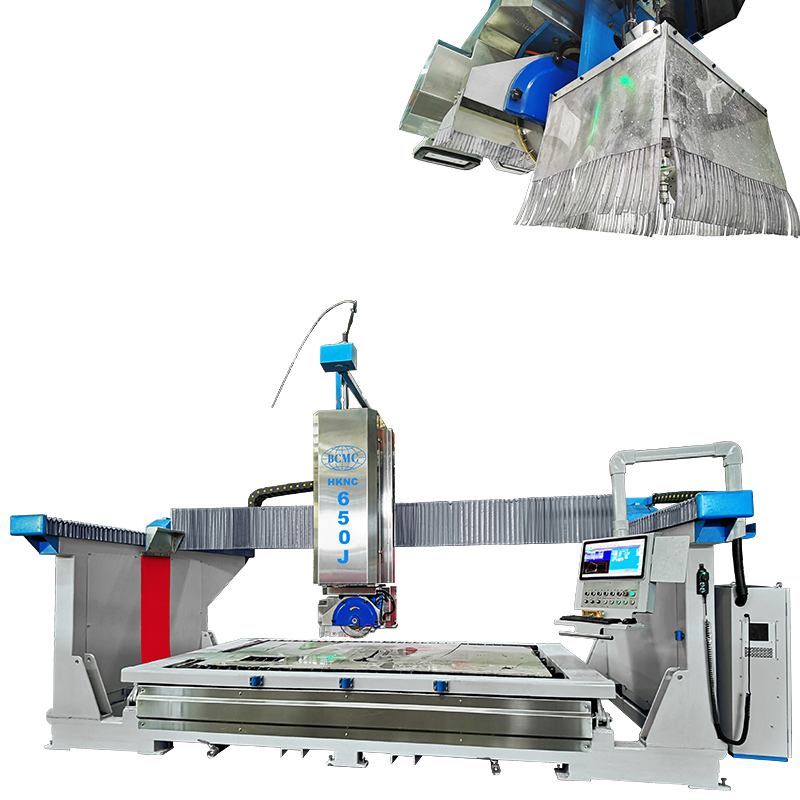

BCNC-650J is a kind of multifunctional manufacturing machine for slab cutting, milling, drill, carving. Can handling different kind of difficult work in one machine. Equipped with CNC touch screen system, USB port, WIFI connect, photographing camera and vacuum lifter. Ideal for kitchen top, cooking bench, marble, granite and artificial stone processing. It's your good partner for slab processing.

Main Features:

Equipped with 5 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation in one time.
Vacuum lifter to move the slab easily.

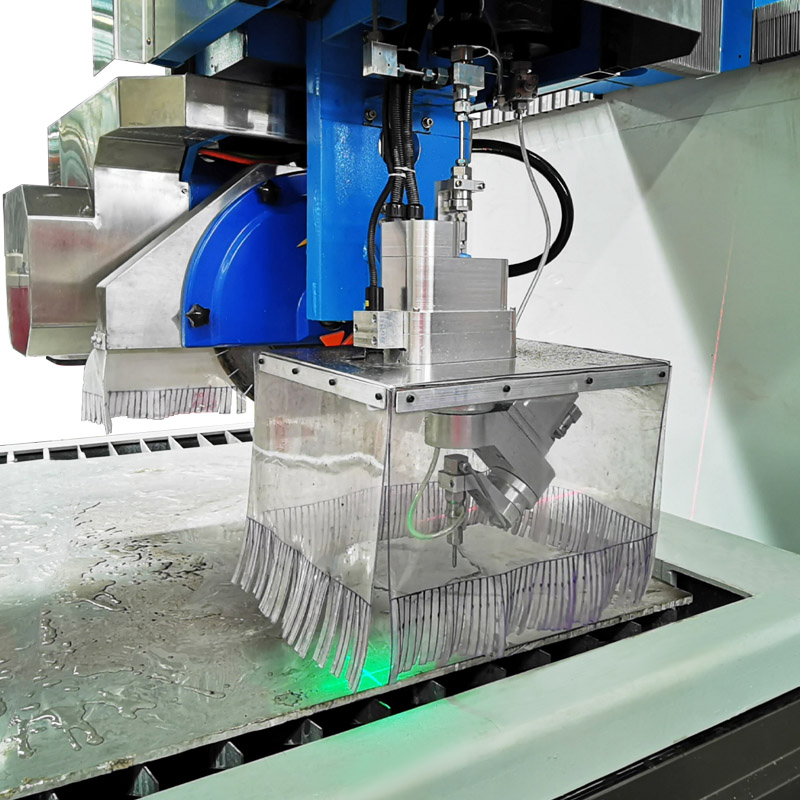

Updating with 5 axes waterjet tilting from 0 to 60 degrees and rotate in 360 degrees. Helps cutting easily in small curves cutting.
ESA CNC touch screen control system. Easy control and easy interactivity.
Photographing camera equipped. Helps for slab positioning and typesetting. Save time and reduce the waste of processing.
Multifunctional processing function which can doing the complex work of cutting, milling, drilling and carving and even the curved surface processing.
Cutter head can moves in 90 degrees up and down. Rotate in 360 degrees horizontal. Handling chamfering cutting at any angles in automatic.
USB and WIFI connection. Easy to connect and upload your CAD/CAM files to the machine.

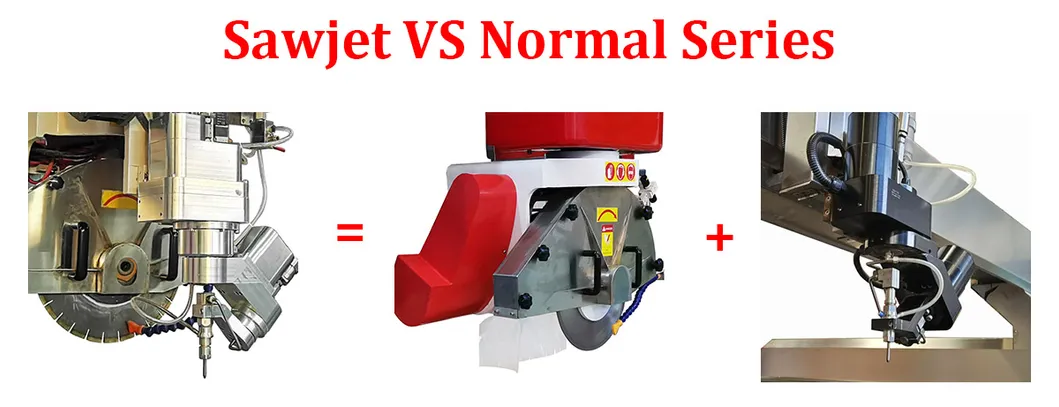

CNC Waterjet Combine Saw Blade Machine Features

Parameters

Parameter Item	Value	Unit
Diameter of saw blade	ø350-ø650	mm
Dimension of working platform	410x220	cm
X axis stroke	3500	mm
Y axis stroke	2000	mm
Z axis stroke	500	mm
Max. cutting thickness	190	mm
Power of saw blade motor	15	kw
Power for abrasive waterjet	37	kw
Max. operating water pressure	60000	psi
Water pressure required	35	psi
Water consumption	11.4-16.7	l/min
Gross weight	10000	kg
Dimensions (L x W x H)	620x390x340	cm

Detailed Information For Spare Parts

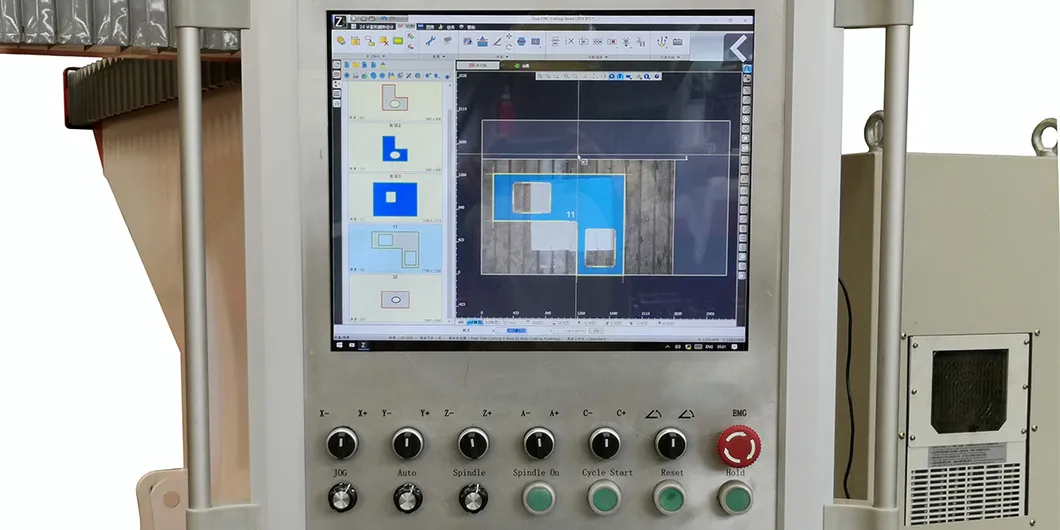

Control System

Italian ESA operation system and Italian Zeus/Pegasus cad-cam drawing software to fulfill full automatic cutting from beginning to end without manual intervention.

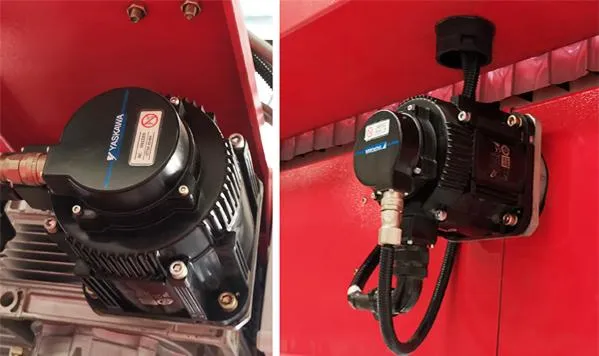

Digital Servo Motor

A permanent magnet servomotor with integrated drives, well matching with Esa's CNCs, creates a reliable controlling power for X, Y, Z, C and A axes.

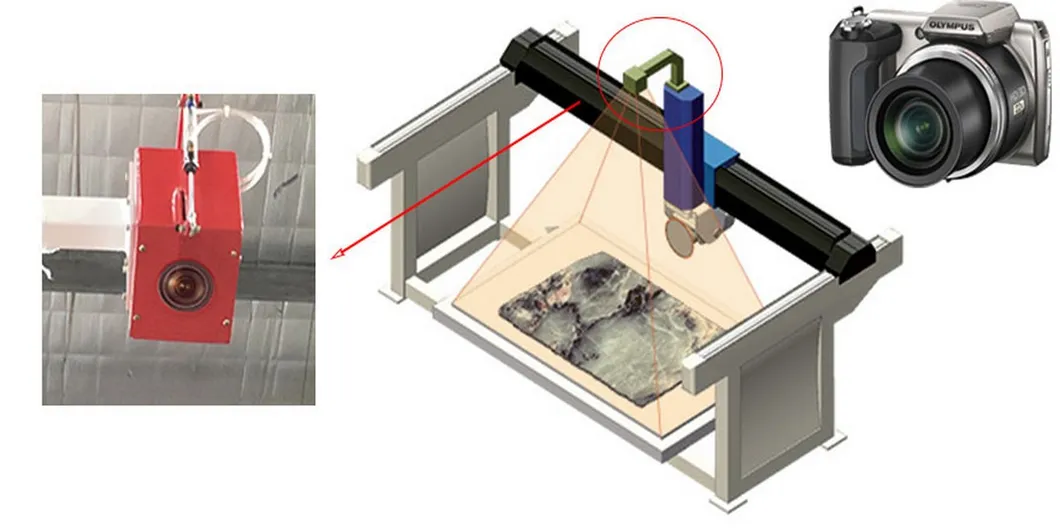

Photo Slab System

Detecting slab with camera positioned above the machine and image acquisition software to catch the slab dimensions to be exploited in the best way possible and carry on the cutting avoiding any defects or any veins in the material.

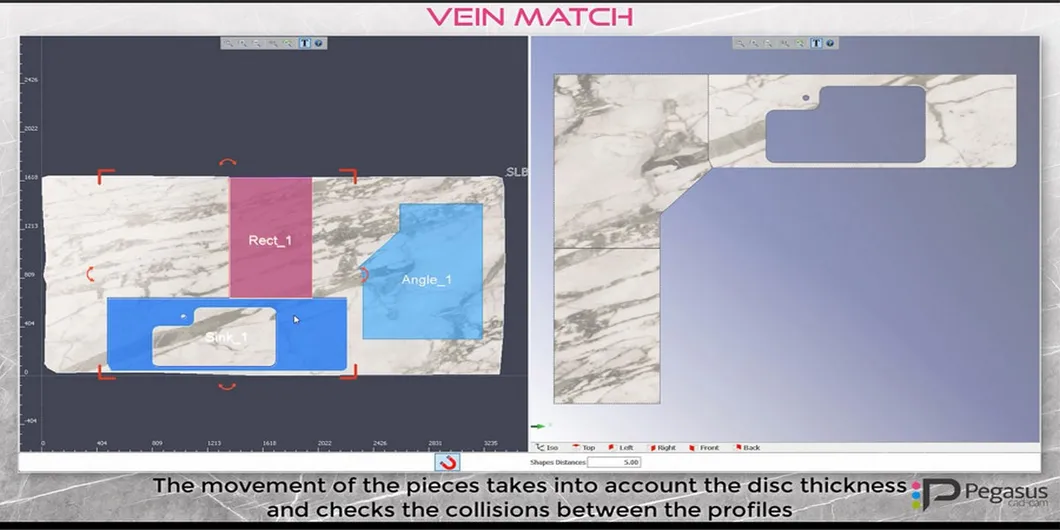

Vein Matching Function (Optional)

Easily match up each vein and seam of your project.

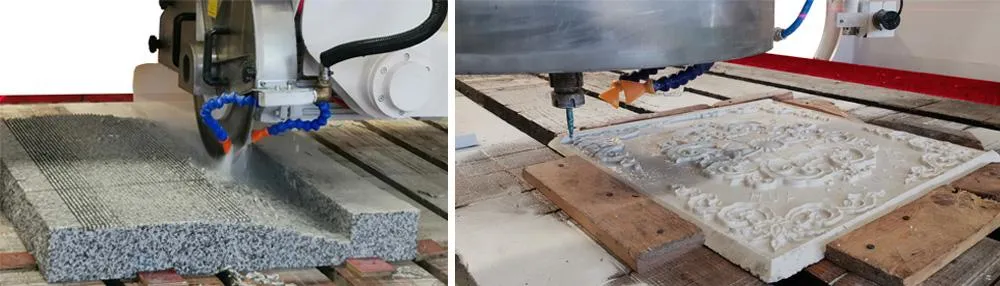

Working of Our Machine

Working of CNC Waterjet Combine Saw Machine

Application

3D decorative wall panels
Countertops
Doorsteps, staircases and thresholds
Fireplaces
Flooring
Funerary art/tombstone
Street furniture
Ventilated facades

Frequently Asked Questions

What materials can the BCNC-650J machine process?

The machine is versatile and can handle a wide variety of hard and soft materials, including metal, ceramic, glass, stone (granite, marble, quartz), and plastic.

What control system does this machine operate on?

It features the Italian ESA CNC touch screen operation system combined with Italian Zeus/Pegasus CAD-CAM drawing software for automated processing.

How does the 5-axis waterjet configuration work?

The updated 5-axis waterjet can tilt from 0 to 60 degrees and rotate 360 degrees, which allows it to handle complex small curves and intricate chamfering cuts with ease.

What is the purpose of the Photo Slab System?

An overhead camera captures precise slab dimensions. The image acquisition software layout prevents cutting into natural defects or ruining key veins, maximizing material yield.

Can I upload design files directly via wireless network?

Yes, the machine comes equipped with USB ports and WIFI connectivity, enabling you to transfer CAD/CAM project files remotely and seamlessly.

What are the maximum blade cutting depth and motor capacities?

The machine supports a maximum cutting thickness of 190 mm. It is powered by a 15 kW saw blade motor and a 37 kW abrasive waterjet system.
