Product Description

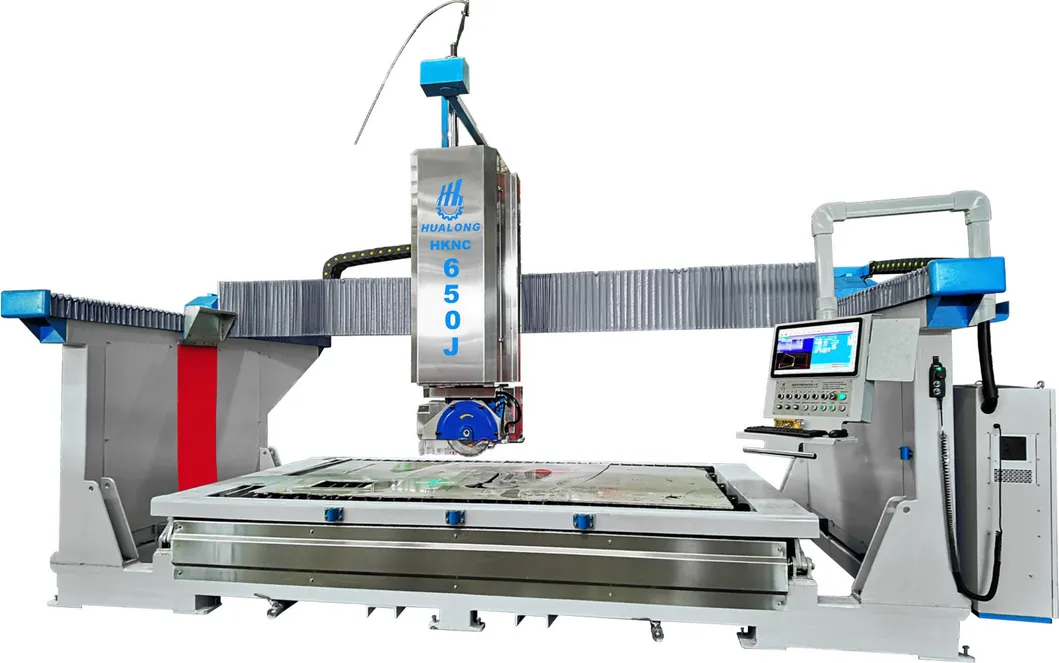

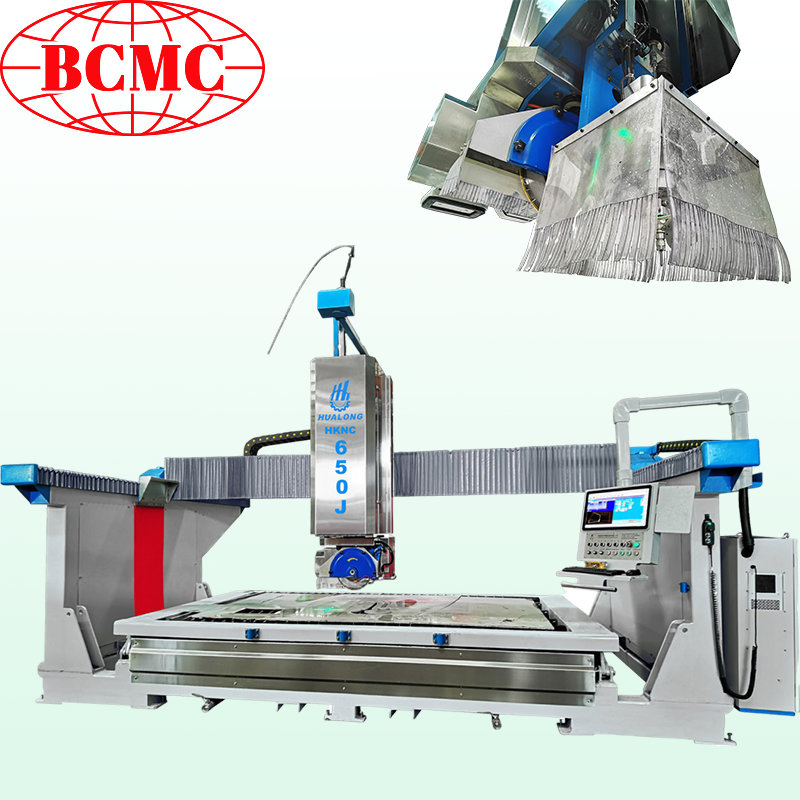

BCNC-650J is a kind of multifunctional manufacturing machine for slab cutting, milling, drill, carving. Can handling different kind of difficult work in one machine. Equipped with CNC touch screen system, USB port, WIFI connect, photographing camera and vacuum lifter. Ideal for kitchen top, cooking bench, marble, granite and artificial stone processing. It's your good partner for slab processing.
Main Features
- Equipped with 5 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation in one time.
- Vacuum lifter to move the slab easily.

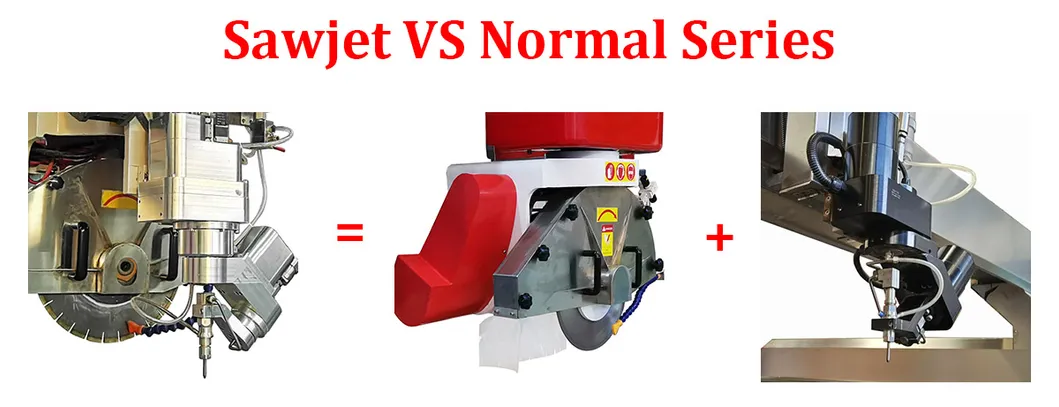

- Updating with 5 axes waterjet tilting from 0 to 60 degrees and rotate in 360 degrees. Helps cutting easily in small curves cutting.
- ESA CNC touch screen control system. Easy control and easy interactivity.
- Photographing camera equipped. Helps for slab positioning and typesetting. Save time and reduce the waste of processing.
- Multifunctional processing function which can doing the complex work of cutting, milling, drilling and carving and even the curved surface processing.
- Cutter head can moves in 90 degrees up and down. Rotate in 360 degrees horizontal. Handling chamfering cutting at any angles in automatic.
- USB and WIFI connection. Easy to connect and upload your CAD/CAM files to the machine.
Parameters Table
| Parameter Name |
Value Range |
Unit |
| Diameter of saw blade |
ø350-ø650 |
mm |
| Dimension of working platform |
410 x 220 |
cm |
| X axis stroke |
3500 |
mm |
| Y axis stroke |
2000 |
mm |
| Z axis stroke |
500 |
mm |
| Max. cutting thickness |
190 |
mm |
| Power of saw blade motor |
15 |
kw |
| Power for abrasive waterjet |
37 |
kw |
| Max. operating water pressure |
60000 |
psi |
| Water pressure required |
35 |
psi |
| Water consumption |
11.4-16.7 |
l/min |
| Gross weight |
10000 |
kg |
| Dimensions (L x W x H) |
620 x 390 x 340 |
cm |
Detailed Information For Spare Parts

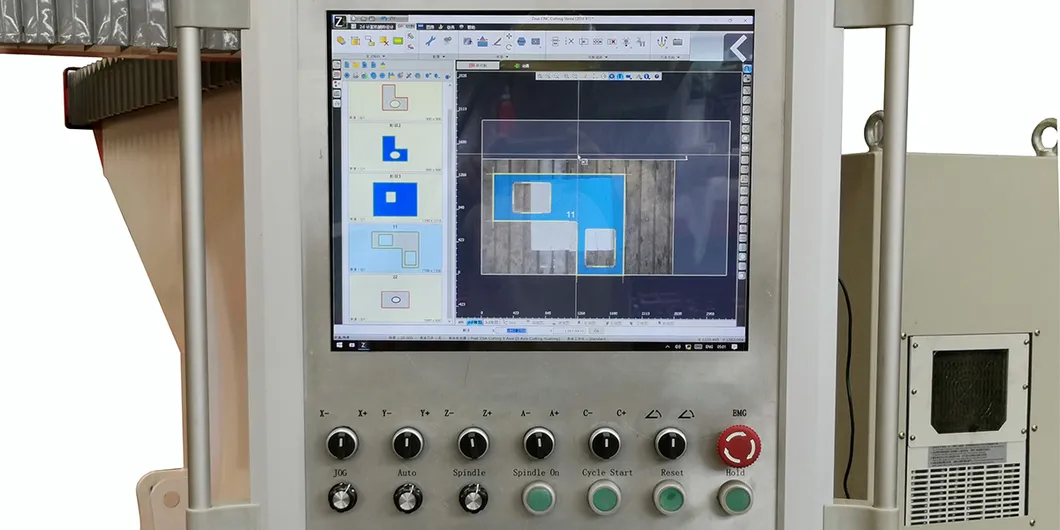

Control System
Italian ESA operation system and Italian Zeus/Pegasus cad-cam drawing software to fulfill full automatic cutting from beginning to end without manual intervention.

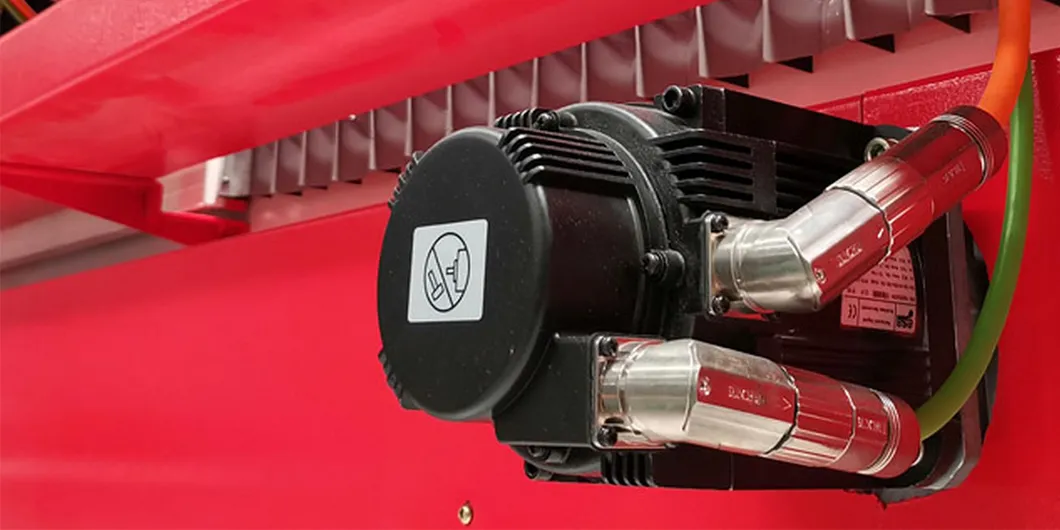

Digital Servo Motor
Italian Original ESA Servo motor to guarantee accurate positioning and cutting.

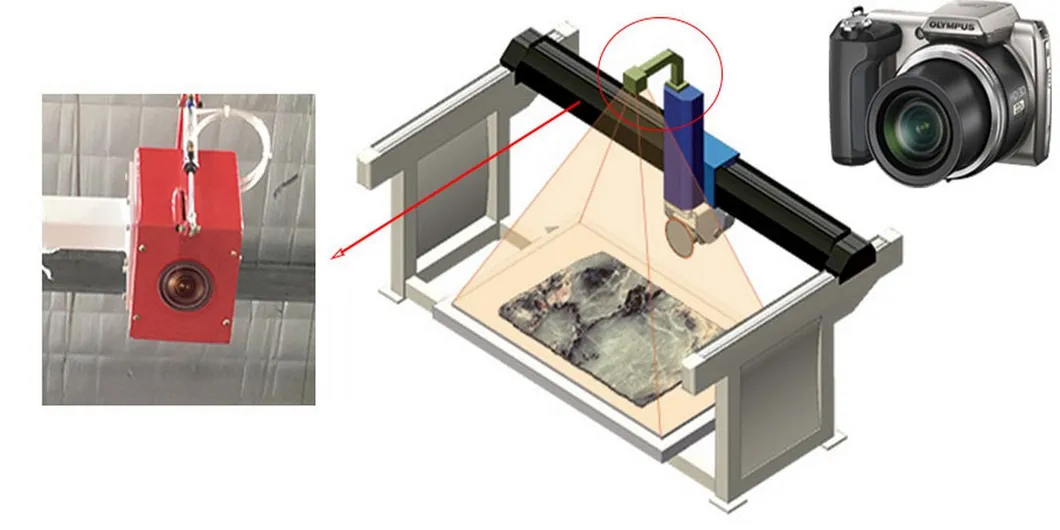

Photo Slab System
Detecting slab with camera positioned above the machine and image acquisition software to catch the slab dimensions to be exploited in the best way possible and carry on the cutting avoiding any defects or any veins in the material.

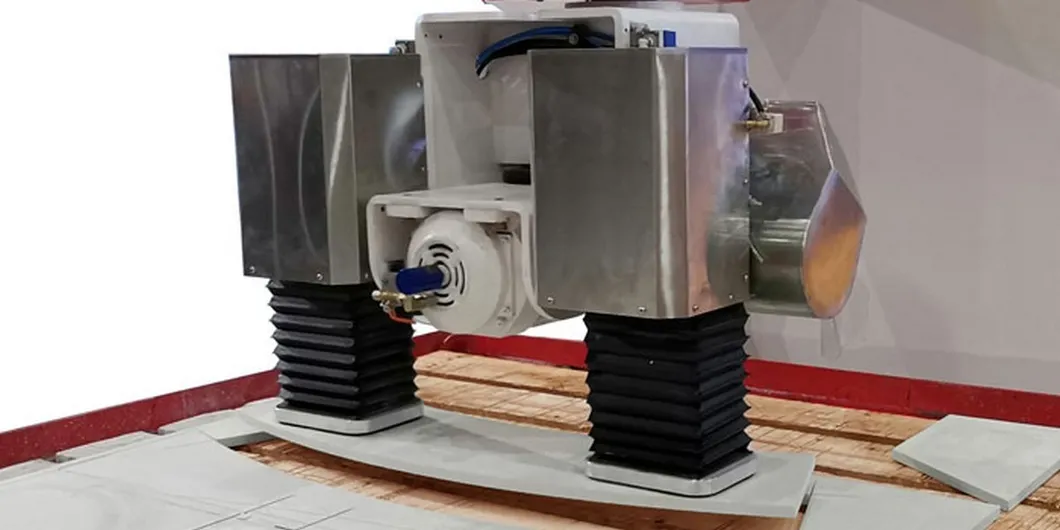

Vacuum Lifter
Suctions cups for lifting and moving cutting pieces in order to exploit the slabs as much as possible.

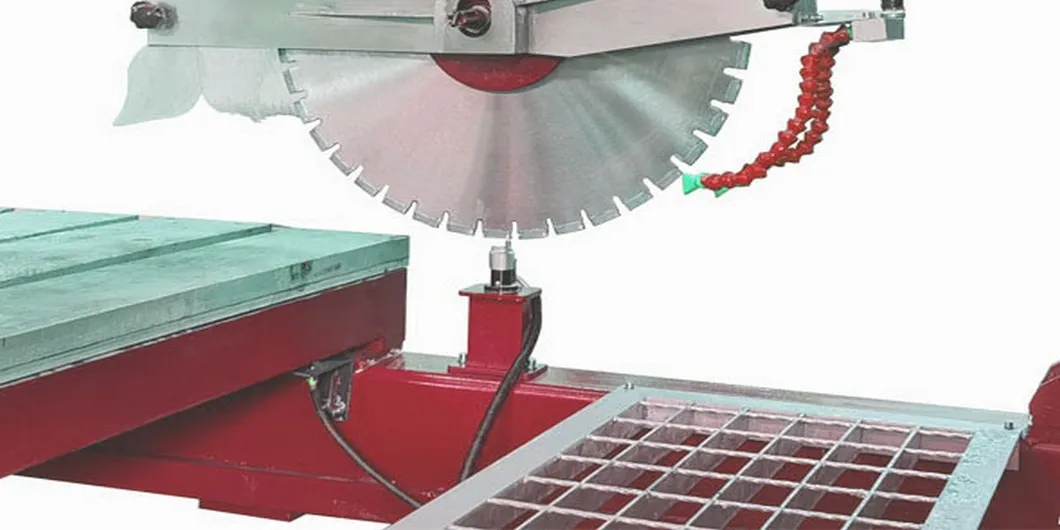

Blade Presetting Unit (Optional)
Automatically measuring blade diameter and diamond tool.

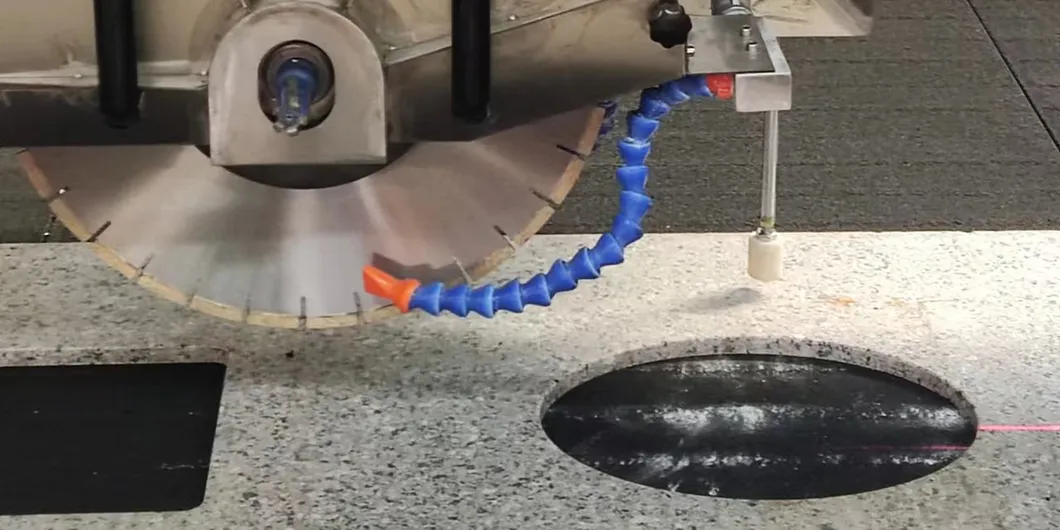

Slab Thickness Detector (Optional)
System to automatically detect the thickness of the slab.

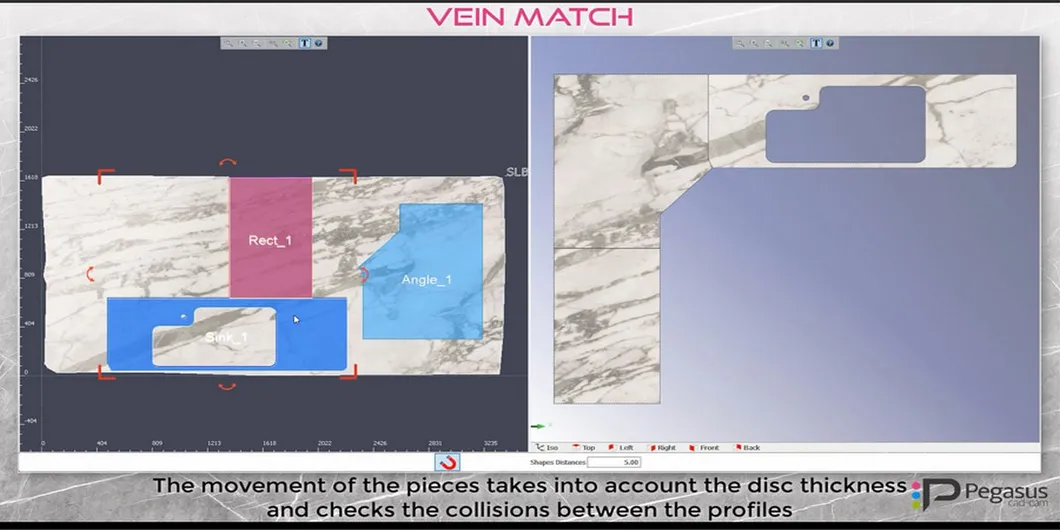

Vein Matching Function (Optional)
Easily match up each vein and seam of your project.

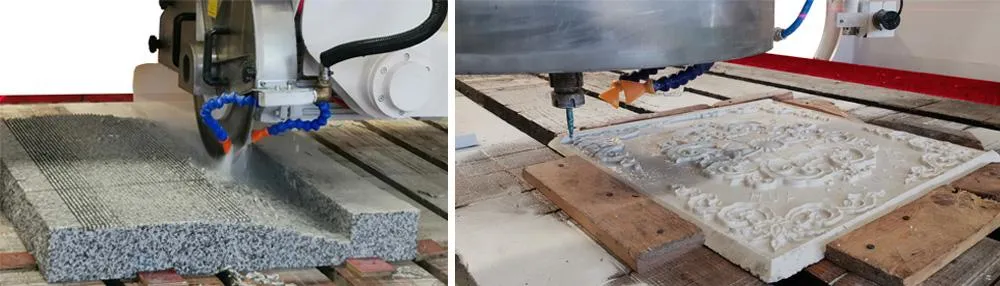

Working of Our Machine
Applications
- 3D decorative wall panels
- Countertops
- Doorsteps, staircases and thresholds
- Fireplaces
- Flooring
- Funerary art / tombstone
- Street furniture
- Ventilated facades
Frequently Asked Questions
What types of stone materials can the BCNC-650J process?
The BCNC-650J is highly versatile and ideal for processing kitchen tops, cooking benches, marble, granite, quartz, ceramics, and various artificial stones.
What are the benefits of the 5-axis interpolated control system?
The 5-axis system allows the cutter head to move, turn, and rotate simultaneously across the X, Y, and Z axes. This enables the machine to handle complex 3D cuts, curved surfaces, milling, drilling, and carving in a single setup.
How does the integrated photographing camera system optimize production?
The camera is mounted above the machine to automatically capture the slab's dimensions. Integrated software assists with slab positioning and typesetting, allowing operators to plan cuts around defects and veins to maximize yield and minimize waste.
What is the purpose of the built-in vacuum lifter?
The vacuum lifter utilizes robust suction cups to automatically lift and reposition cut pieces during the processing cycle. This feature minimizes manual handling and maximizes slab utilization.
Can the machine perform chamfering and mitre cutting?
Yes, the cutter head can move 90 degrees vertically and rotate 360 degrees horizontally, enabling it to perform automatic chamfering and mitre cuts at any angle.
How are design files transferred to the machine control system?
The machine features built-in USB and Wi-Fi connectivity, allowing for easy transfer of CAD/CAM files directly to the Italian ESA touch screen control system.
