HRC45/55/65 2/3/4 flutes indexable micro Custom Tungsten carbide end mill CNC cutting tools CNC milling cutters for metal
Product Parameters
| Product Name |
Custom Tungsten carbide end mill CNC cutting tools CNC milling cutters for metal |
| Material |
100% raw material |
| Coating |
AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, DLC or your requirements |
| Flutes |
2F/3F/4F/Customized |
| Type |
Carbide end mill |
| HRC |
HRC45/55/60/65 |
| Tolerance |
±0.01mm |
| Machine Type |
CNC Milling Machine, Engraving machine, High speed machine |
| Specification |
D12*45*d12*100L-4F |
All the specs can be customized. For more information, please contact us at any time.

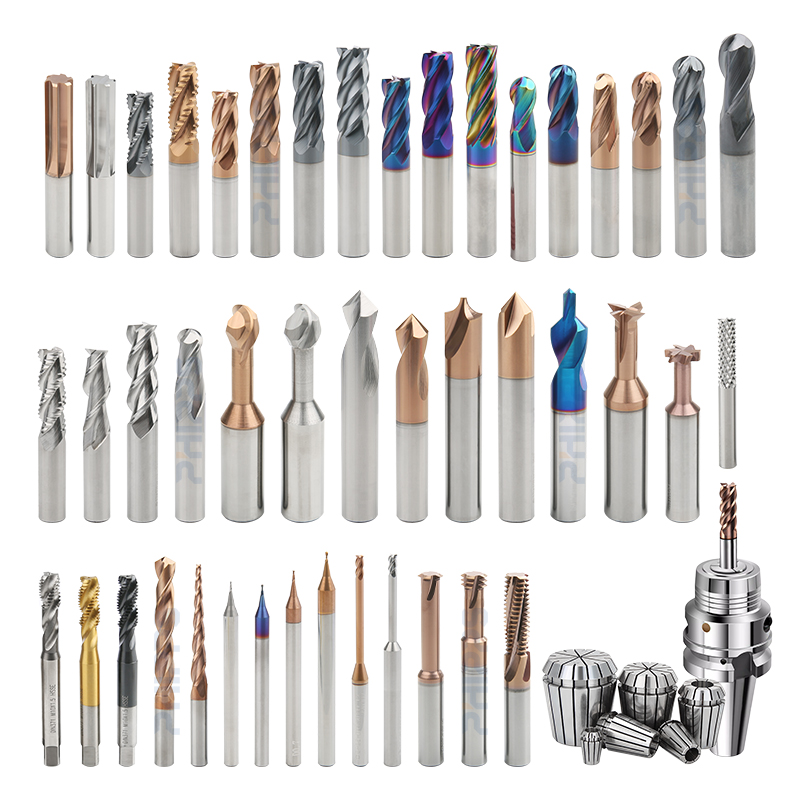

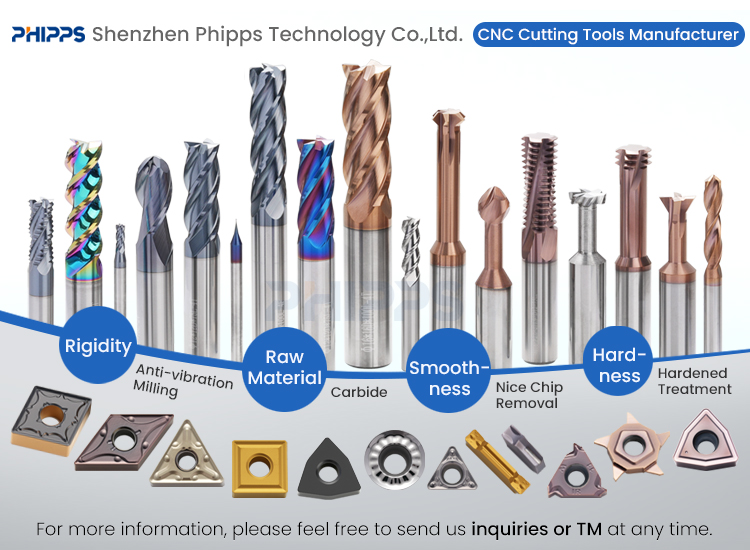

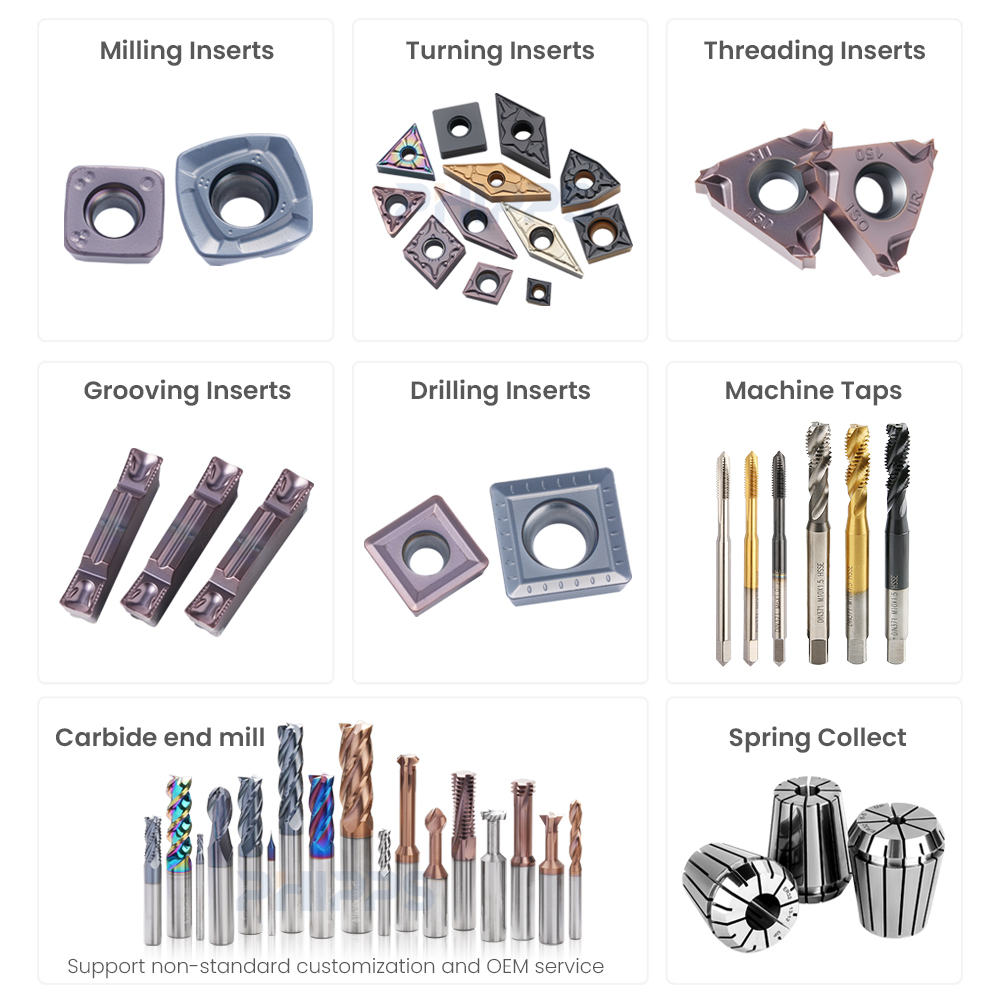

The key cutting products we selling as below:
Carbide Insert
Solid Carbide End Mills
CNC Turning Tool
Face Milling Tool
Drills Bits
Tool Holder
CNC Chuck & Adapter
Taps and Dies
Grinding Tools
1. Super Raw Material
All cutting materials are from international famous brands, high hardness, long tool life.
| HRC |
Grade |
Helix Angle |
Co Content (%) |
Grain Size (UM) |
Bending Strength (N/mm²) |
Application |
| HRC45 |
YG10X |
35° |
10% |
0.8 |
3800 |
General steel, cast iron. |
| HRC55 |
ZK30UF |
35° |
10% |
0.6 |
3800 |
Carbon steel, alloy steel, cast iron. |
| HRC60 |
GU25UF |
35°/45° |
12% |
0.4-0.5 |
4200 |
Carbon steel, alloy steel, stainless steel, cast iron. |
| HRC65 |
GU25UF |
45° |
12% |
0.4 |
4300 |
Carbon steel, alloy steel, stainless steel, cast iron. |

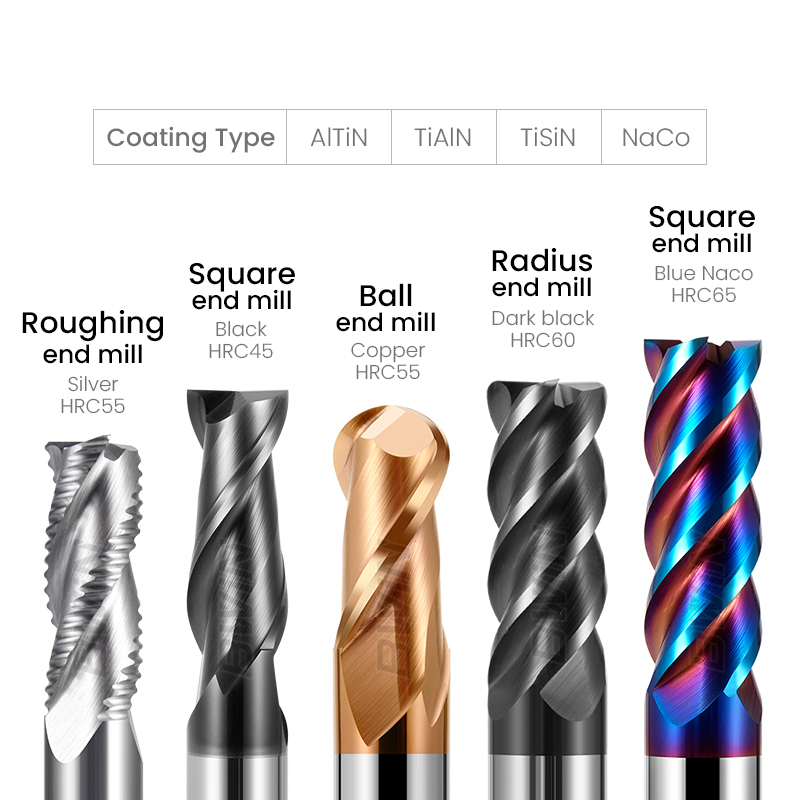

2. Super Coating
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
| Coating |
Hardness(HV) |
Thickness (UM) |
Friction Coefficient |
Oxidation Temp.(°C) |
Color |
| AlTiN |
3500 |
2.5-3 |
0.3 |
850°C |
Black |
| TiAlN |
2800 |
2.5-3 |
0.3 |
900°C |
Violet |
| TiSiN |
3600 |
3 |
0.45 |
1100°C |
Copper |
| AlTiSiN |
4000 |
4 |
0.4 |
1200°C |
Blue |
| TiN |
2500 |
2.5-3 |
0.5 |
600°C |
Gold |
Products Description

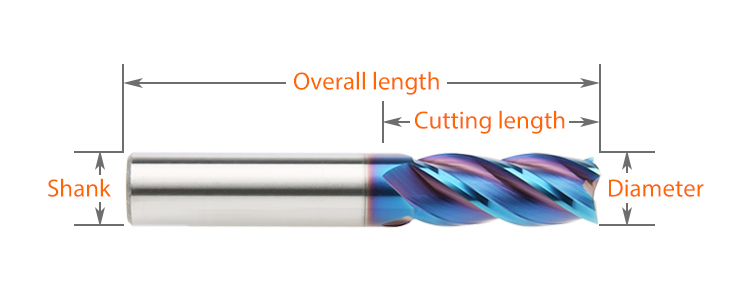

| Specification |
Diameter |
Cutting Length |
Shank |
Overall Length |
Flutes |
| 3*8*3*50 | 3 | 8 | 3 | 50 | 4 |
| 3*12*3*75 | 3 | 12 | 3 | 75 | 4 |
| 3*15*3*100 | 3 | 15 | 3 | 100 | 4 |
| 1*3*4*50 | 1 | 3 | 4 | 50 | 4 |
| 1.5*4*4*50 | 1.5 | 4 | 4 | 50 | 4 |
| 2*5*4*50 | 2 | 5 | 4 | 50 | 4 |
| 2.5*7*4*50 | 2.5 | 7 | 4 | 50 | 4 |
| 3*8*4*50 | 3 | 8 | 4 | 50 | 4 |
| 3.5*10*4*50 | 3.5 | 10 | 4 | 50 | 4 |
| 4*10*4*50 | 4 | 10 | 4 | 50 | 4 |
| 4*16*4*75 | 4 | 16 | 4 | 75 | 4 |
| 4*20*4*100 | 4 | 20 | 4 | 100 | 4 |
| 5*13*5*50 | 5 | 13 | 5 | 50 | 4 |
| 5*20*5*75 | 5 | 20 | 5 | 75 | 4 |
| 5*25*5*100 | 5 | 25 | 5 | 100 | 4 |
| 1*3*6*50 | 1 | 3 | 6 | 50 | 4 |
| 1.5*4*6*50 | 1.5 | 4 | 6 | 50 | 4 |
| 2*5*6*50 | 2 | 5 | 6 | 50 | 4 |
| 2.5*7*6*50 | 2.5 | 7 | 6 | 50 | 4 |
| 3*8*6*50 | 3 | 8 | 6 | 50 | 4 |
| 3.5*10*6*50 | 3.5 | 10 | 6 | 50 | 4 |
| 4*10*6*50 | 4 | 10 | 6 | 50 | 4 |
| 4.5*12*6*50 | 4.5 | 12 | 6 | 50 | 4 |
| 5*13*6*50 | 5 | 13 | 6 | 50 | 4 |
| 6*15*6*50 | 6 | 15 | 6 | 50 | 4 |
| 6*25*6*75 | 6 | 25 | 6 | 75 | 4 |
| 6*30*6*100 | 6 | 30 | 6 | 100 | 4 |
| 6*40*6*150 | 6 | 40 | 6 | 150 | 4 |
| 7*18*8*60 | 7 | 18 | 8 | 60 | 4 |
| 8*20*8*60 | 8 | 20 | 8 | 60 | 4 |
| 8*28*8*75 | 8 | 28 | 8 | 75 | 4 |
| 8*35*8*100 | 8 | 35 | 8 | 100 | 4 |
| 8*50*8*150 | 8 | 50 | 8 | 150 | 4 |
| 9*23*10*75 | 9 | 23 | 10 | 75 | 4 |
| 10*25*10*75 | 10 | 25 | 10 | 75 | 4 |
| 10*40*10*100 | 10 | 40 | 10 | 100 | 4 |
| 10*50*10*150 | 10 | 50 | 10 | 150 | 4 |
| 11*28*12*75 | 11 | 28 | 12 | 75 | 4 |
| 12*30*12*75 | 12 | 30 | 12 | 75 | 4 |
| 12*45*12*100 | 12 | 45 | 12 | 100 | 4 |
| 12*60*12*150 | 12 | 60 | 12 | 150 | 4 |
| 14*45*14*100 | 14 | 45 | 14 | 100 | 4 |
| 14*60*14*150 | 14 | 60 | 14 | 150 | 4 |
| 16*45*16*100 | 16 | 45 | 16 | 100 | 4 |
| 16*60*16*150 | 16 | 60 | 16 | 150 | 4 |
| 18*45*18*100 | 18 | 45 | 18 | 100 | 4 |
| 18*70*18*150 | 18 | 70 | 18 | 150 | 4 |
| 20*45*20*100 | 20 | 45 | 20 | 100 | 4 |
| 20*70*20*150 | 20 | 70 | 20 | 150 | 4 |
Remarks: The milling cutter model marked with color is a common model.
Product length unit: mm
Company Information
We are a leading professional manufacturer specializing in high-precision carbide cutting tools and CNC solutions. We focus on the R&D, production, and sale of premium tungsten carbide inserts, milling cutters, drill bits, and various non-standard customized tools.

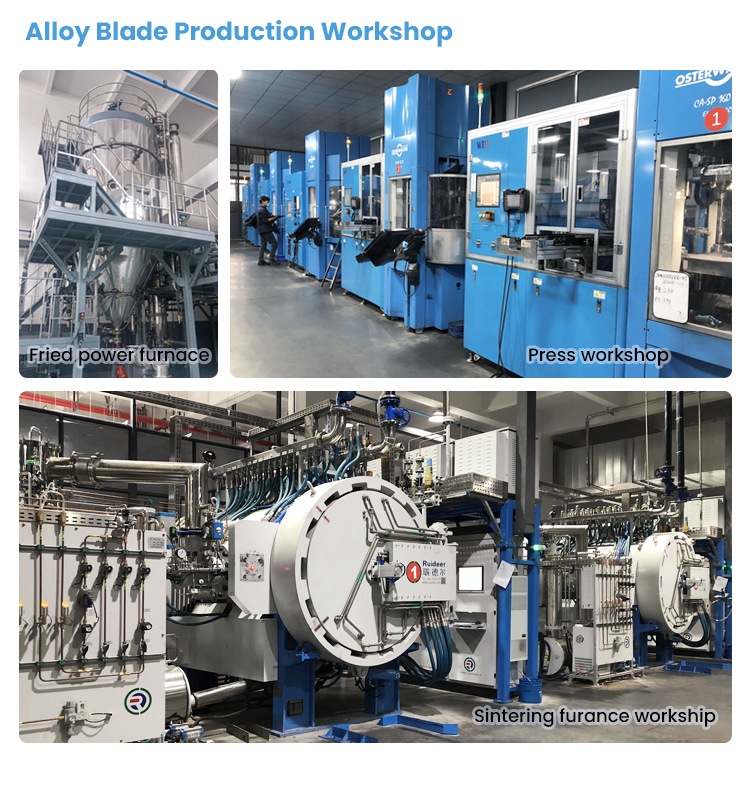

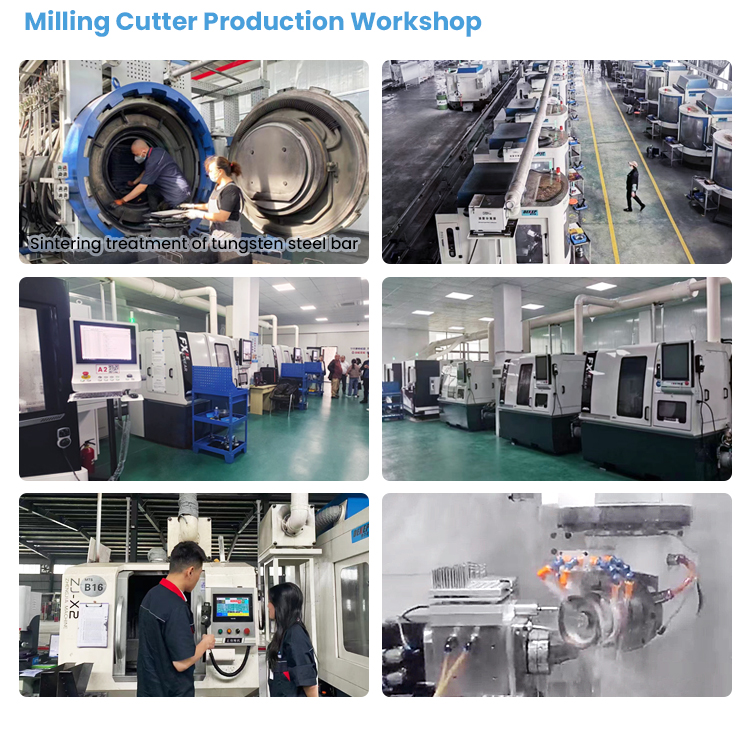

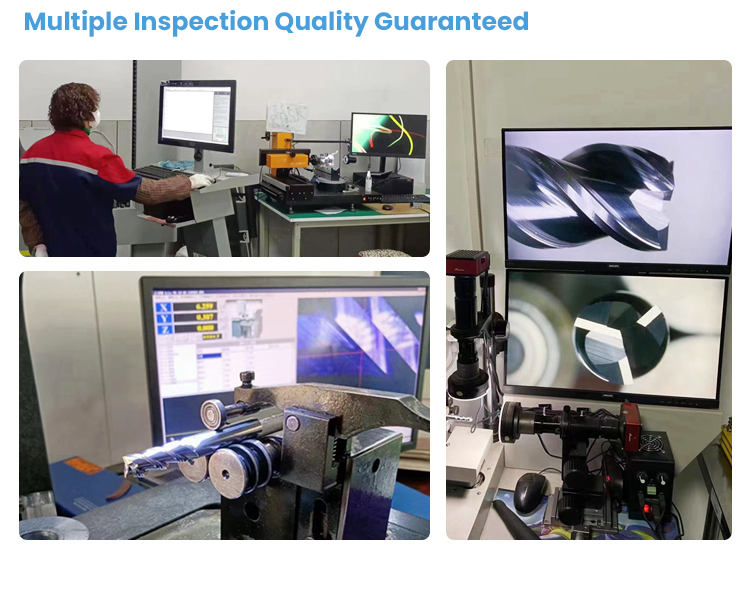

Manufacturing Excellence & Quality Assurance
To ensure world-class precision, we have introduced 20 advanced CNC grinders and high-end testing equipment from Germany, Australia, and Japan. By integrating top-tier manufacturing technology with rigorous quality control, our tools deliver the core advantages of extreme precision, extended service life, and maximum machining efficiency.
One-Stop CNC Tooling Solutions
We offer a comprehensive catalog of high-quality CNC spare parts and accessories to meet diverse industrial needs:
• Cutting Tools: Carbide end mills, carbide inserts, CNC turning tools, and face milling tools.
• Hole & Threading: High-efficiency drilling tools, thread tapping tools, and carbide burrs.
• Tooling Systems: Precision tool holders, machine vises, live centers, chucks, and CNC angle heads.
• Specialized Accessories: Carbide saw blades, clamping kits, and various CNC machine components.
Commitment to Your Success
We go beyond supplying products. We provide the industry's best parts support and technical services to ensure your machines operate at peak performance and your business runs smoothly.
Choose our tooling solutions - Where Precision Meets Productivity.
Package & Shipment
FAQ
Are you a manufacturer? Do you have a factory?
We are a professional manufacturer, with more than 10 years of experience in this field.
When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please contact us directly so that we will prioritize your inquiry.
Is free shipping possible?
We do not offer free shipping service, but we will provide discounts for large quantity orders. We partner with top express shipping companies to offer you the best delivery rates.
How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or 15-20 days if the goods are not in stock, depending on the quantity ordered.
How can I pay?
We accept secure online payment options for sample orders. For large orders, payments are accepted via telegraphic transfer (T/T) or other secure banking transfer options.
What is your MOQ?
We welcome sample orders to test our quality, so there is no MOQ constraint. We believe you will find us to be the right supplier for your needs.
