12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
1 / 5
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding

12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding

Send Inquiry

Product Description

12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
1.5mm-25mm Dia Tungsten Carbide Rotary Files Burrs YG6 / YG8 / YG10x
Recommended Grade YG8, YG10X for carbide head, steel for shank diameter.
Size Range Head dia 1.5-35mm;
Shank dia 2.35, 3, 6, 8mm
Increased lengths are available.
Tolerance Head diameter is +-0.3mm;
Shank diameter is -0.03 to -0.01mm;
Total length is +-0.5mm.

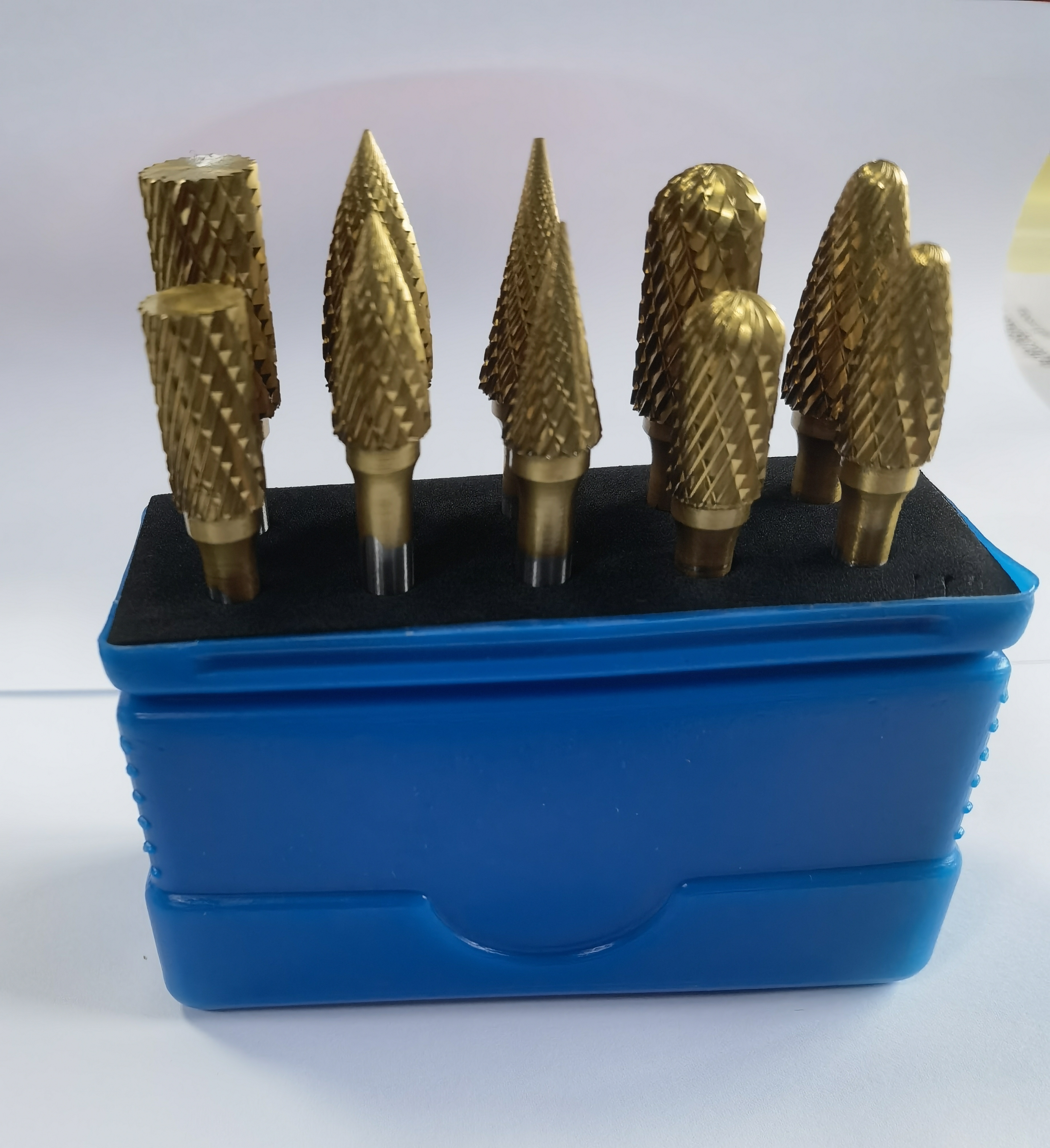

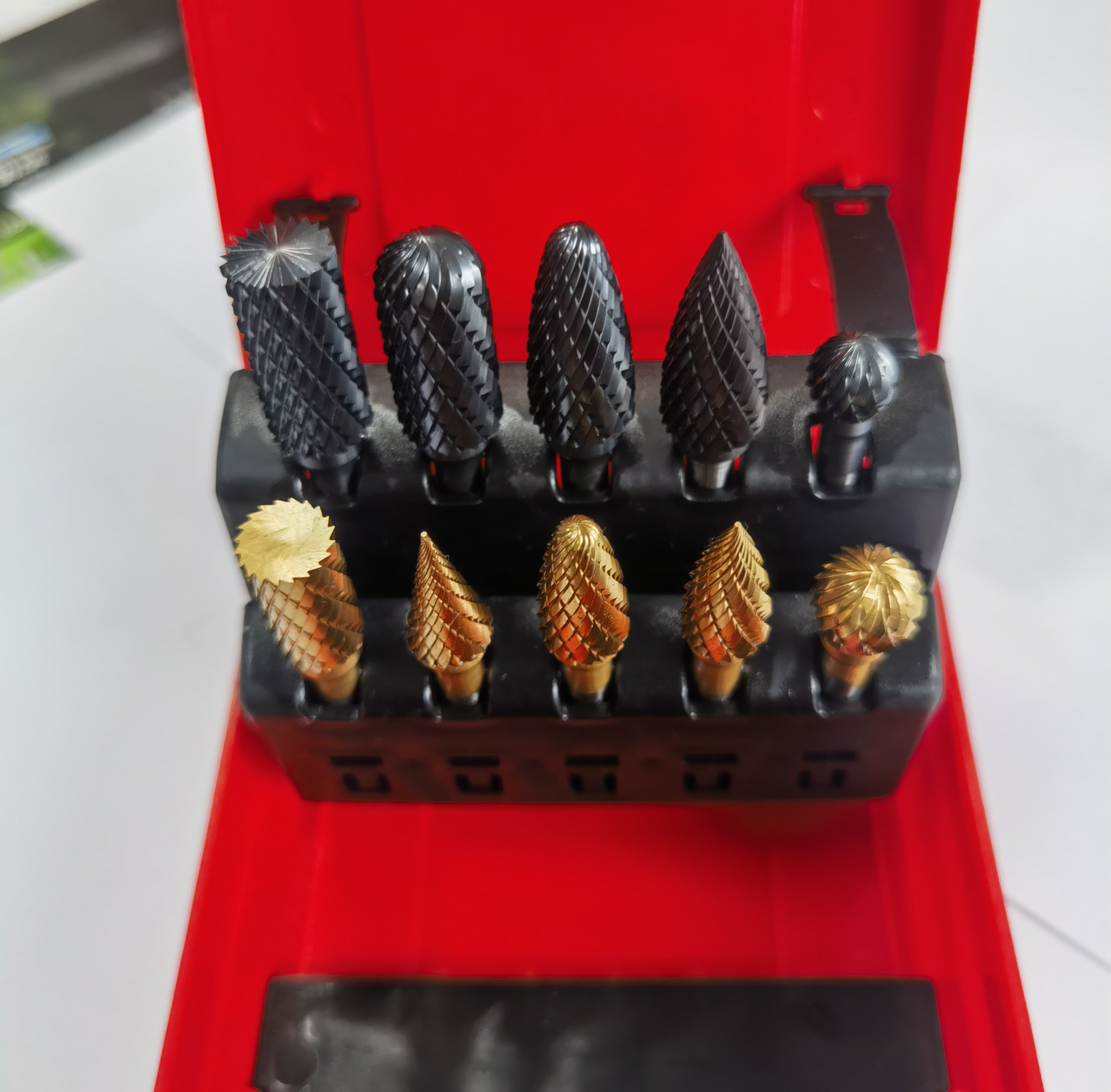

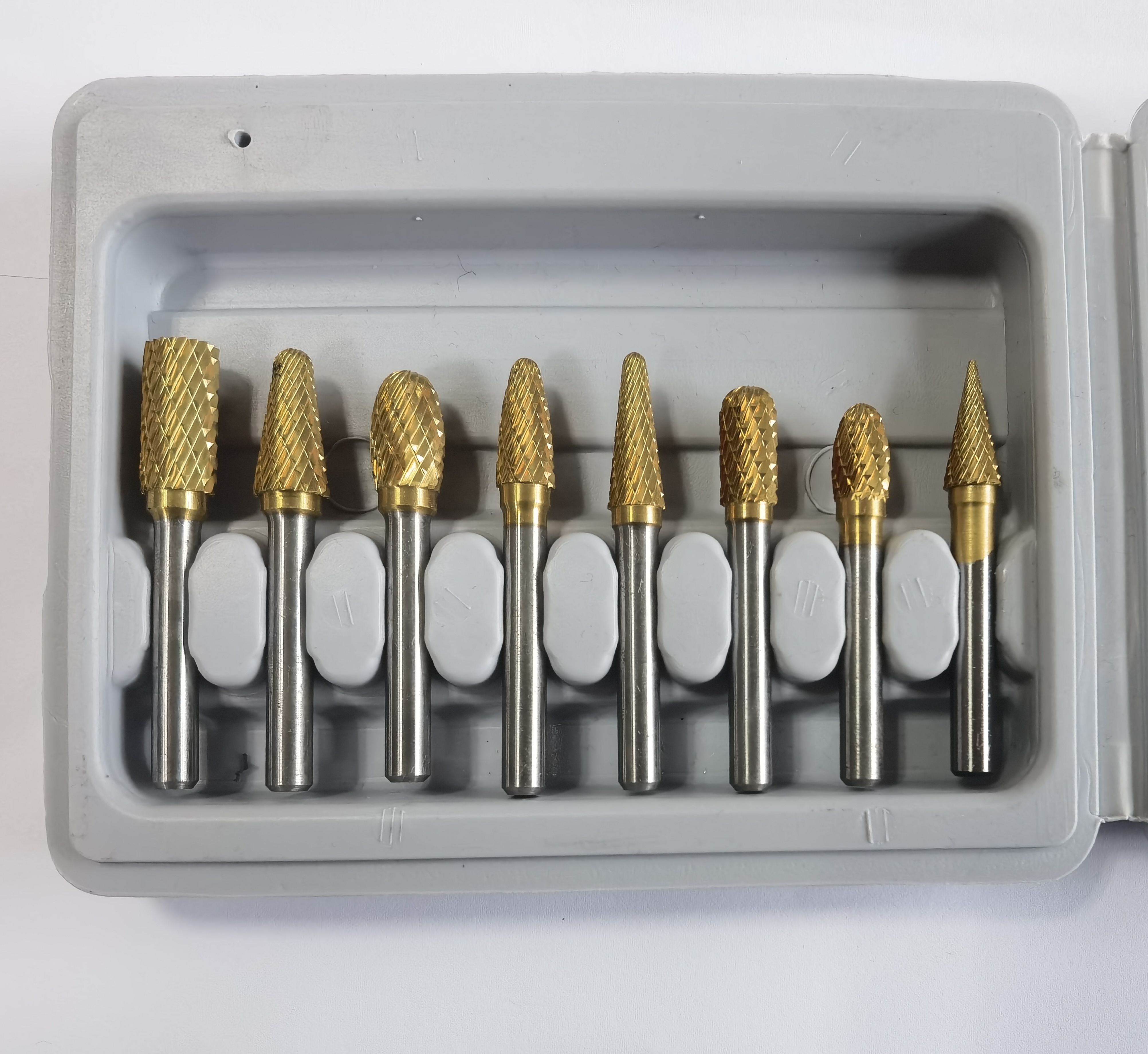

Sets for Carbide Cutters 5pcs / 8pcs / 10pcs in aluminum sets;

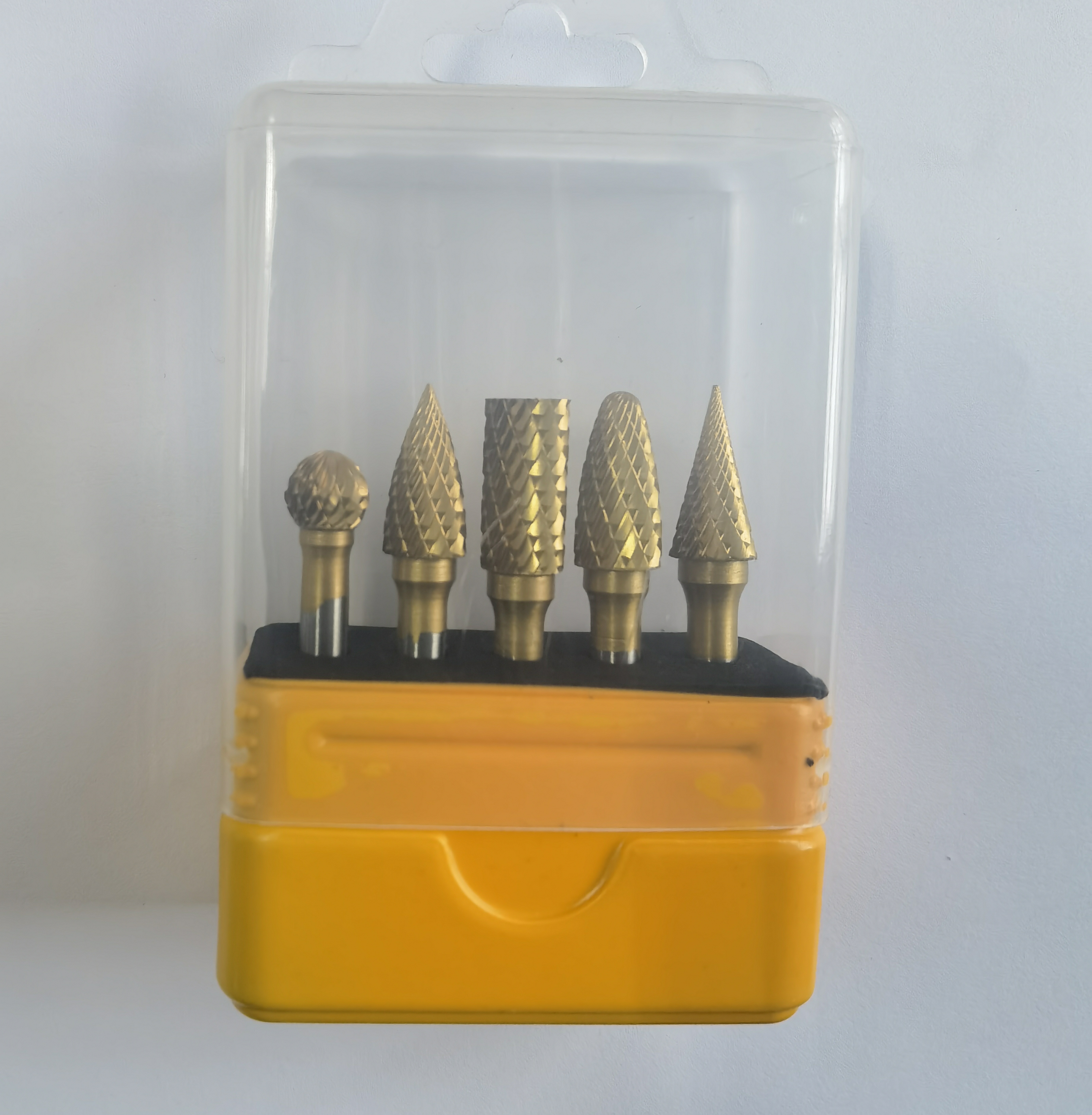

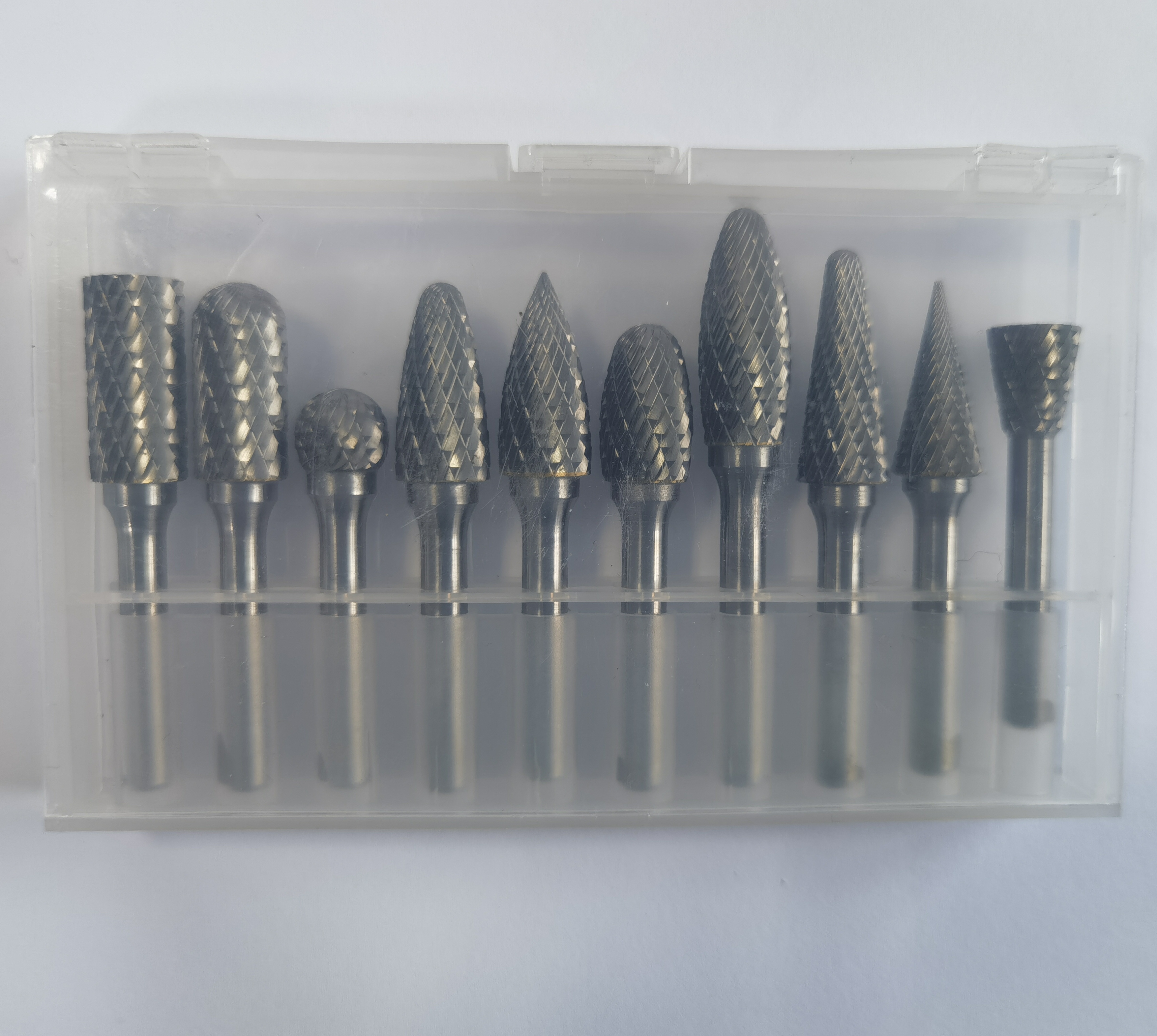

5pcs / 8pcs / 10pcs in plastic sets;
The items can be selectable according to client demand.

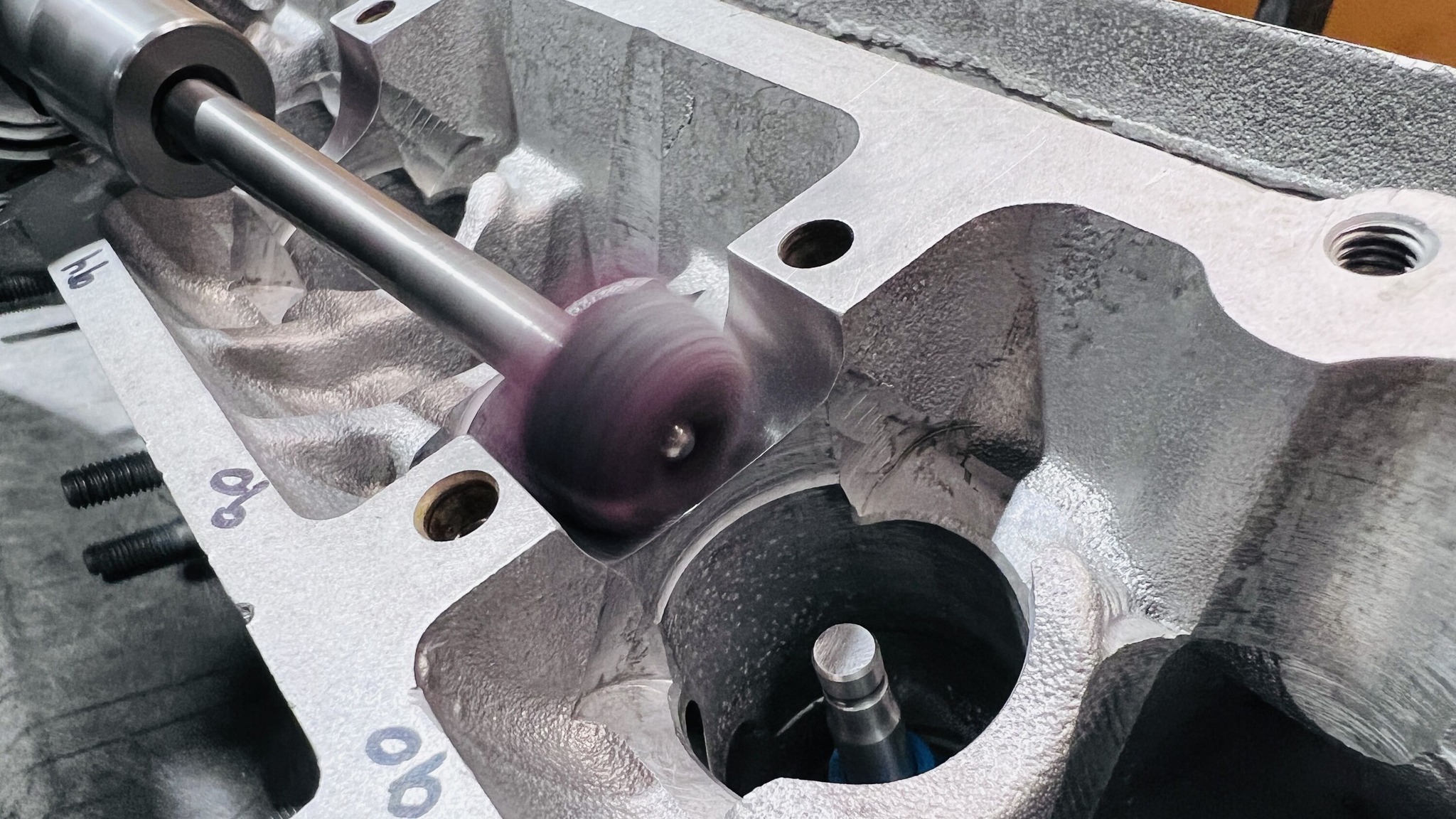

Applications Milling out, Weld dressing, Deburring, Cutting out holes, Surface work, Milling.

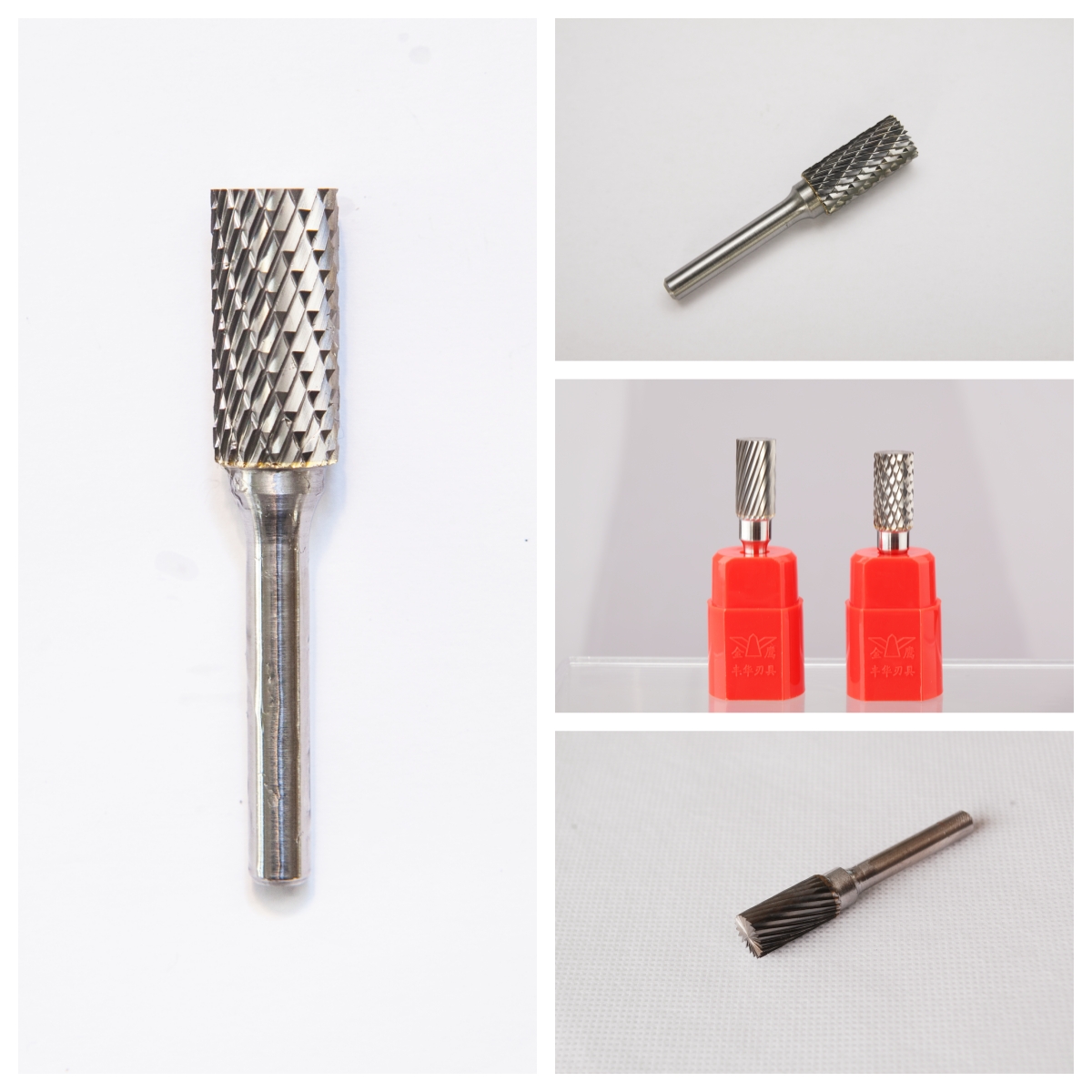

Products Real Shot
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding

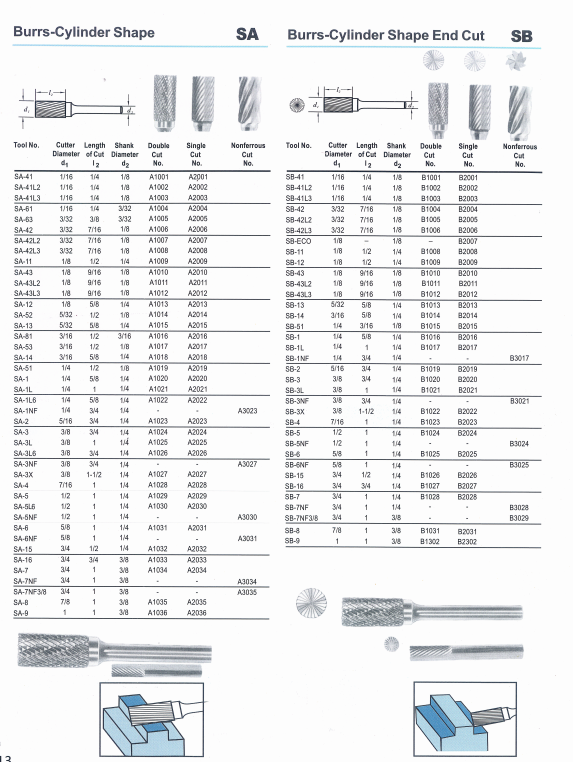

Code Order No. Tooth Cut Dia (mm) Cut Length (mm) Shank Dia (mm) Shank Length (mm) Overall Length (mm)
SA-1 AX0616M06-45 Double/Single/Aluma cut 6 16 6 45 61
SA-2 AX0820M06-40 Double/Single/Aluma cut 8 20 6 40 60
SA-3 AX1020M06-40 Double/Single/Aluma cut 10 20 6 40 60
SA-5 AX1225M06-40 Double/Single/Aluma cut 12 25 6 40 65
SA-6 AX1625M06-40 Double/Single/Aluma cut 16 25 6 40 65
SA-7 AX2025M06-40 Double/Single/Aluma cut 20 25 6 40 65
SA-9 AX2525M06-40 Double/Single/Aluma cut 25 25 6 40 65
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
12mm 5 Pcs Carbide Burr Set with TIN and TIALN Coated PVD Tungsten Carbide Burrs Silver Copper Welding
Frequently Asked Questions (FAQ)
What materials can these tungsten carbide rotary burrs cut?
These tungsten carbide burrs are highly versatile and ideal for working on various metals including copper, silver, aluminum, as well as cast iron, carbon steel, alloy steel, and stainless steel welding applications.
What is the difference between YG8 and YG10X grades?
YG8 grade provides excellent toughness and shock resistance, making it suitable for general steel and heavy deburring. YG10X features a sub-micron grain structure, offering higher hardness and wear resistance, which is preferred for precision machining and hard materials.
What are the advantages of TiN and TiALN PVD coatings?
Titanium Nitride (TiN) and Titanium Aluminum Nitride (TiALN) coatings significantly increase surface hardness, reduce friction, and improve heat resistance, extending the tool life up to several times compared to uncoated burrs.
How do I choose between Single Cut and Double Cut tooth patterns?
Single Cut (one spiral flute) is designed for rapid material removal on non-ferrous metals like copper and aluminum. Double Cut (two intersecting flutes) produces smaller chips, provides a smoother finish, and offers better operator control on steel, cast iron, and other hard materials.
Can I customize the shank length and sets for order?
Yes, increased shank lengths are available upon request. We also offer customization of 5pcs, 8pcs, and 10pcs sets packaged in aluminum or plastic boxes based on your project requirements.
What speeds (RPM) should I run these carbide burrs at?
Operating speed depends on the burr head diameter and the workpiece material. Generally, higher speeds are recommended for smaller diameters and softer metals, but you should always start with moderate speed and increase it gradually to prevent tooth wear.
