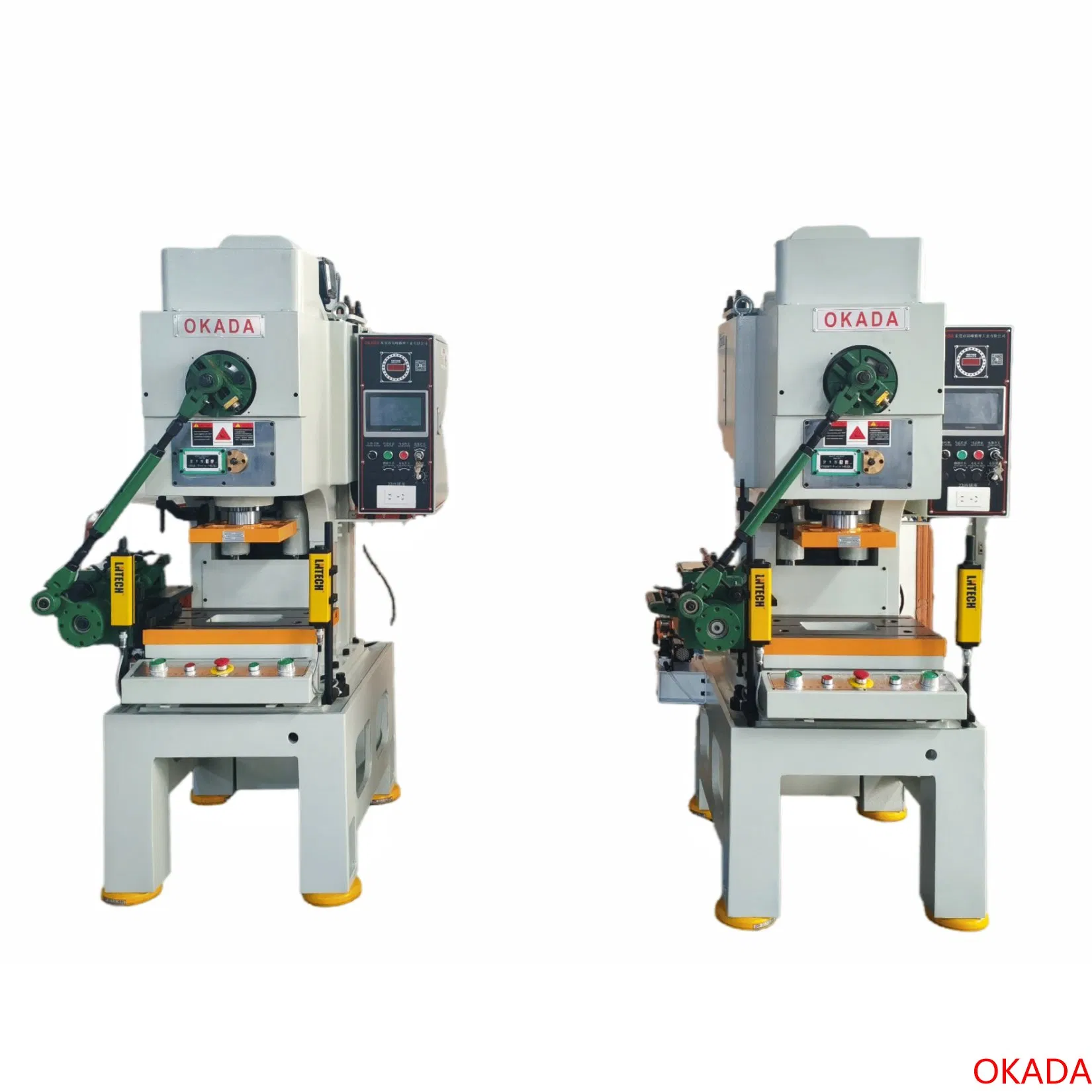

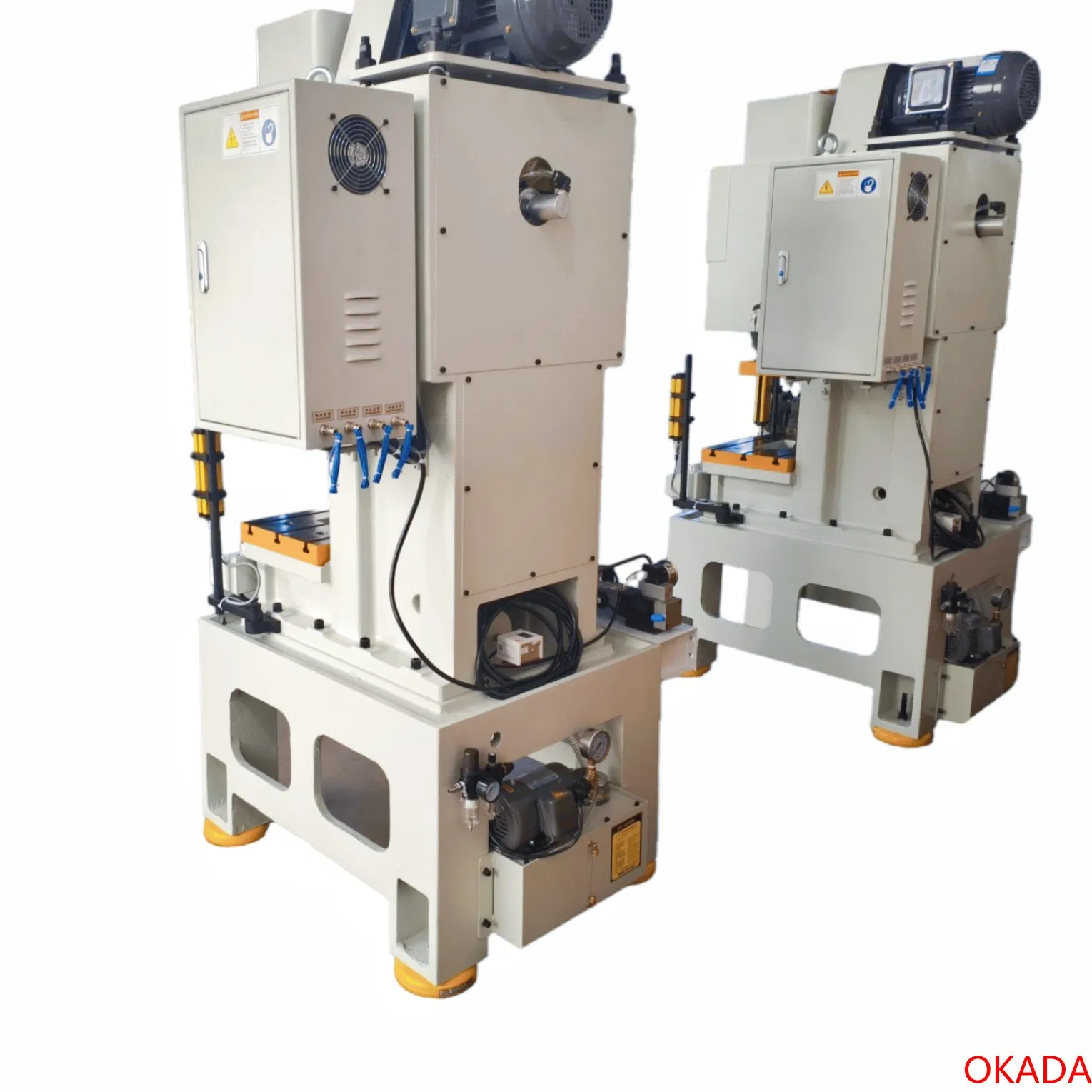

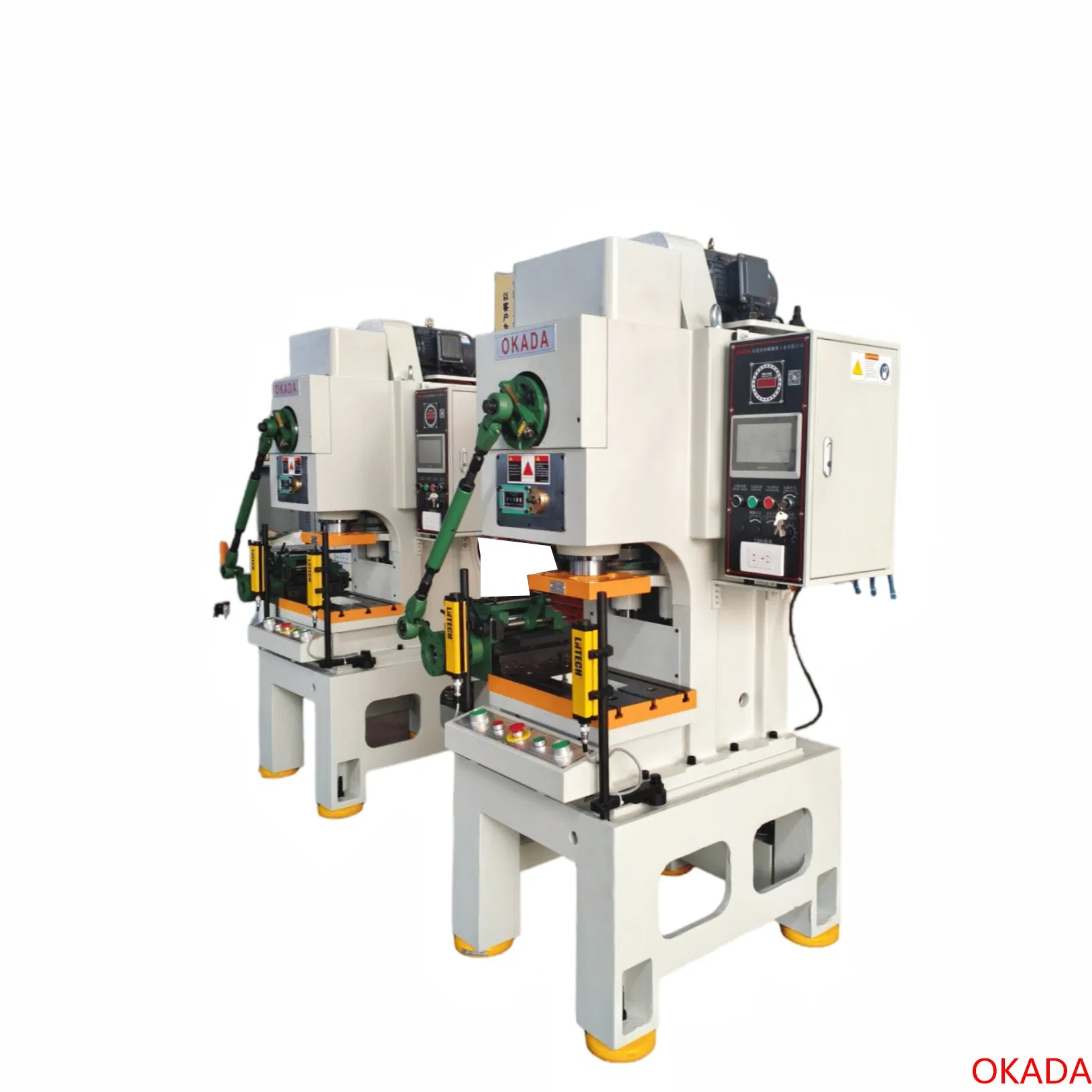

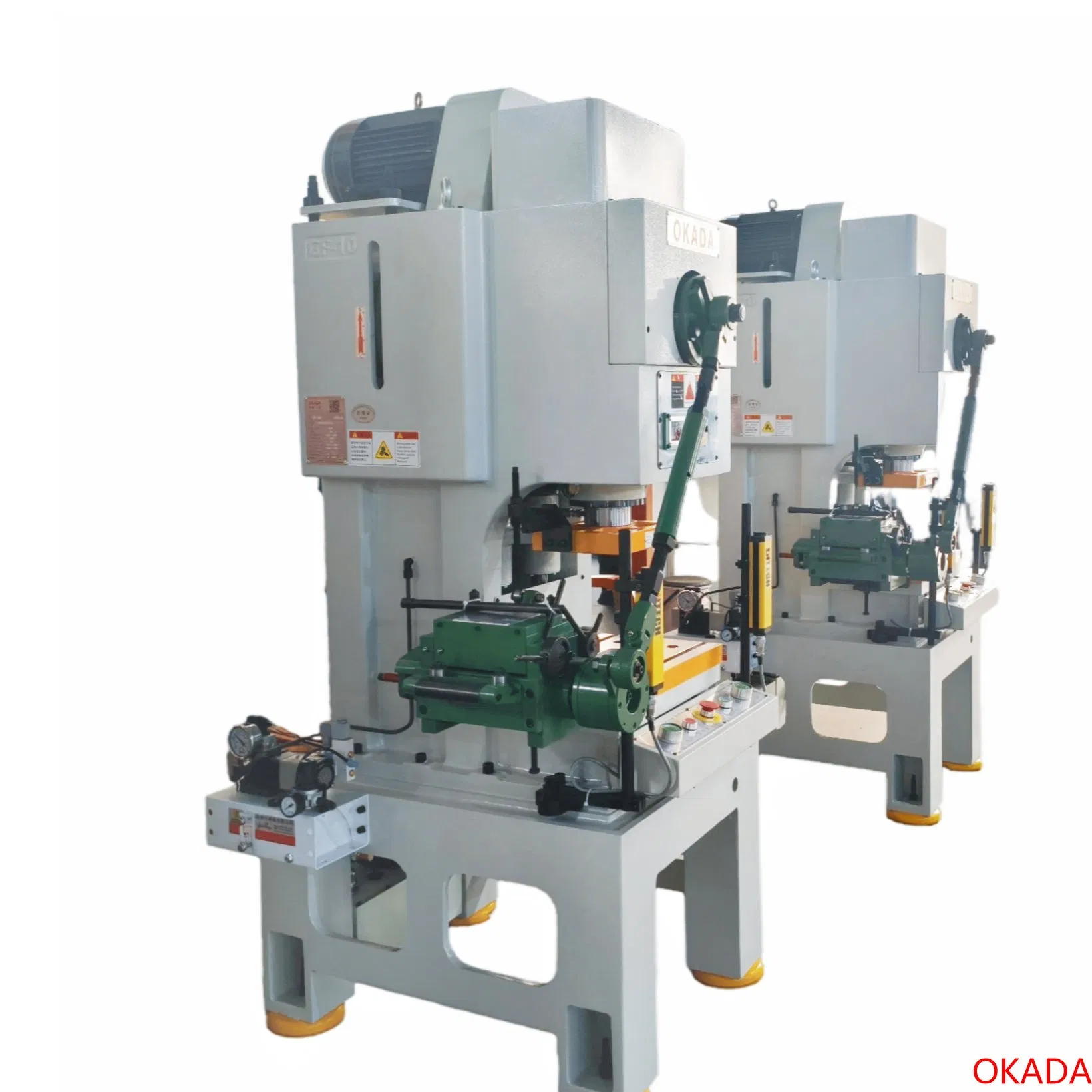

10e Roller & Punch Press: 10 Ton Product Driving System
10e Roller & Punch Press: 10 Ton Product Driving System
10e Roller & Punch Press: 10 Ton Product Driving System
10e Roller & Punch Press: 10 Ton Product Driving System
10e Roller & Punch Press: 10 Ton Product Driving System
1 / 5
10e Roller & Punch Press: 10 Ton Product Driving System
10e Roller & Punch Press: 10 Ton Product Driving System
10e Roller & Punch Press: 10 Ton Product Driving System
10e Roller & Punch Press: 10 Ton Product Driving System
10e Roller & Punch Press: 10 Ton Product Driving System

10e Roller & Punch Press: 10 Ton Product Driving System

Customization: Available
After-sales Service: Remote Instructions by Email
Warranty: Six Months
Send Inquiry

Product Description

Overview
Model NO. GF-10E
Type General Punching Machine
Punch Shape Semi-Open Punch
Slider Movement Triple Action
Slider Drive Mechanism Crank Press
Controlling Mode CNC
Automatic Grade Automatic
Power Source Joint Drive
Precision High Precision
Certification ISO 9001
Condition New
Color Customized
Material Metal Coils, Copper, Aluminum, Stainless Steel
Usage Pressing Metal Products
Transport Package Closed Wooden Crate
HS Code 84624621
Production Capacity One
Product Description

Product features (GF-10E)

  • High-strength cast-iron frame, stress-relieved for lasting precision and heavy-load capacity.
  • Pneumatic clutch/brake with premium solenoid valves for maximum safety and stability.
  • Forced-cycle lubrication keeps accuracy under high speed, extends machine life; electronic monitoring boosts efficiency and quality.

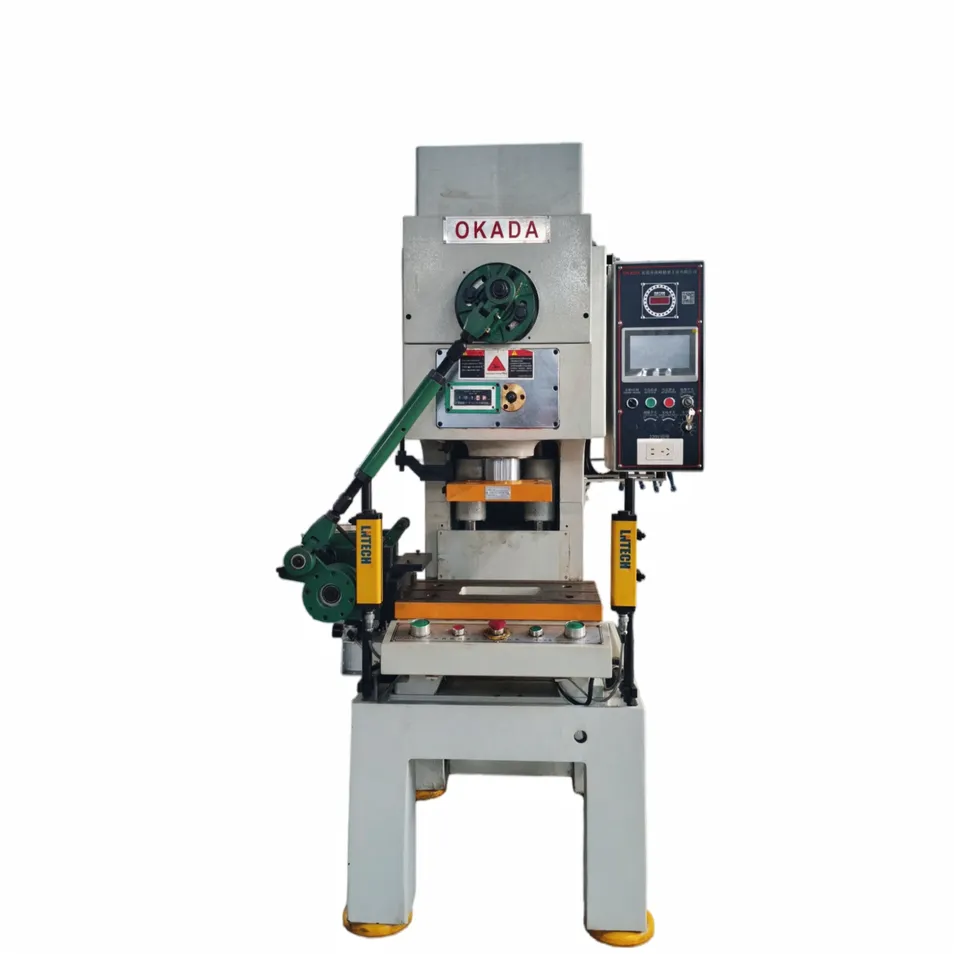

10e Roller & Punch Press: 10 Ton Product Driving System

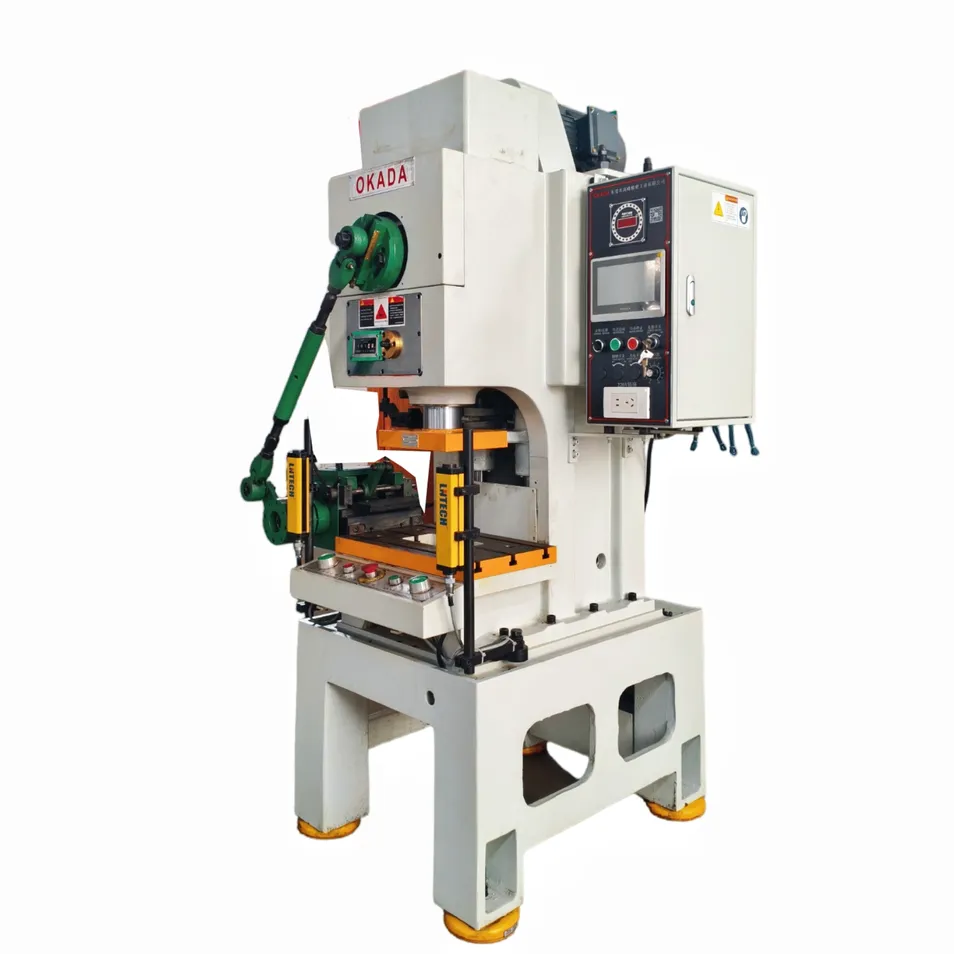

Right Elevation Profile
Right Elevation

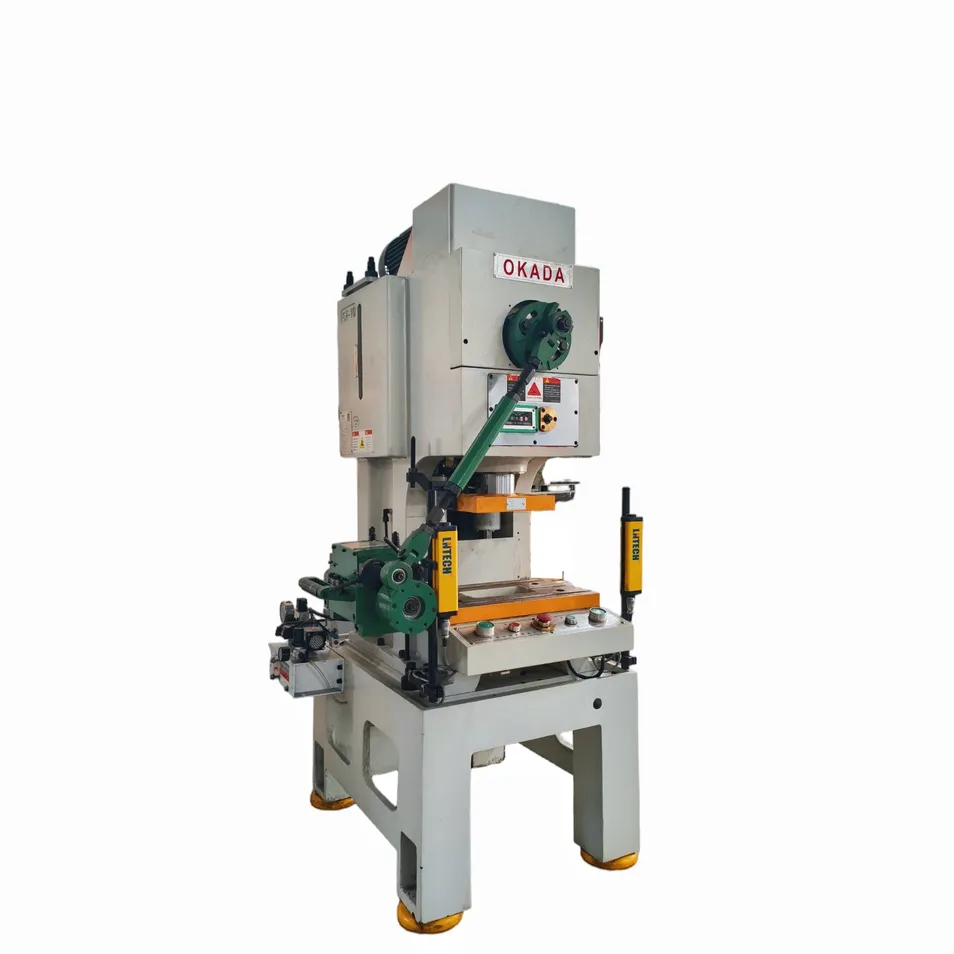

Left Elevation Profile
Left Elevation
Product Parameters

(Custom configurations available upon request.)

Specification Unit (GF-10E)
Trip mm 20 30 40
Number of trips times 150~400 150~350 150~300
Maximum mold height mm 190~220 185~215 180~210
Size of upper table mm 250x200
Dimension of lower table mm 480x300x45
Blanking hole size mm 100x300
Servo motor power KW 2.2
Slide adjustment mm 30
Working air pressure kg/cm² 5
After Sales Service
Standard Warranty 6 months or 2,000 operating hours (whichever comes first).
Extended Warranty Optional coverage up to 12 months.
Global Support 24/7 technical assistance and spare parts supply.
Training On-site or remote operation/maintenance training.
Company Profile

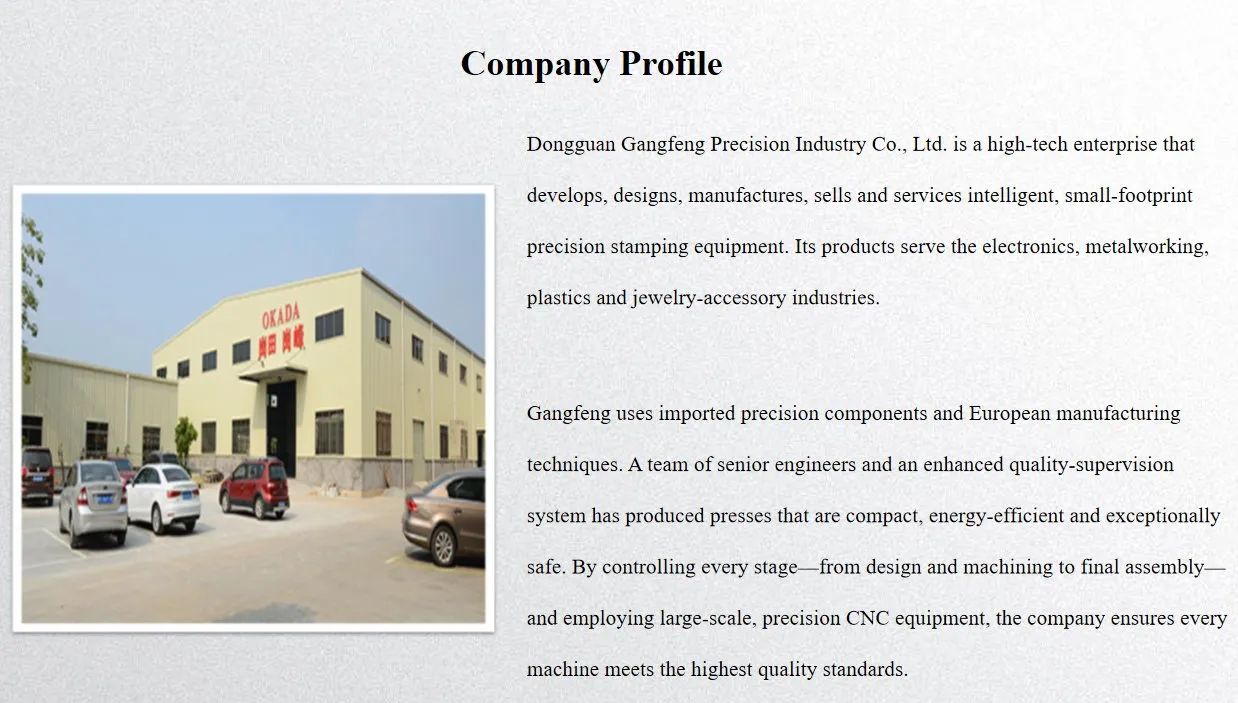

Company Facility and Production Lines
Exhibition Display
Trade Show Booth & Machines
Certifications
Factory Certifications
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Can I request a customized size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
Q: How do I place an order?
A: Please contact us via inquiry to request a quote, and then confirm with a PO.
Q: What materials can this machine process?
A: The machine is suitable for processing metal coils, copper, aluminum, and stainless steel.
Q: Does this punching machine hold any quality certifications?
A: Yes, the machine is manufactured under ISO 9001 certified standards.
