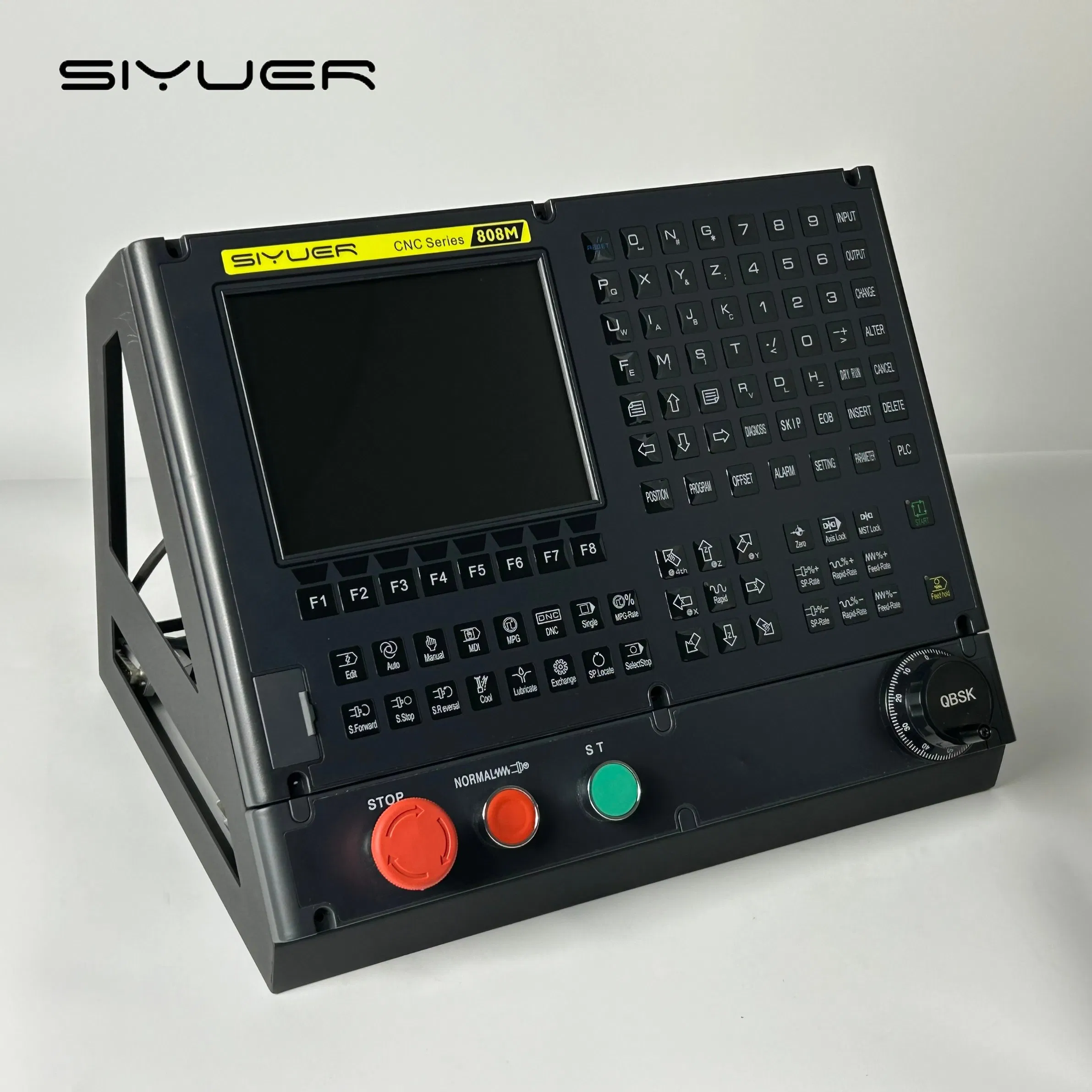

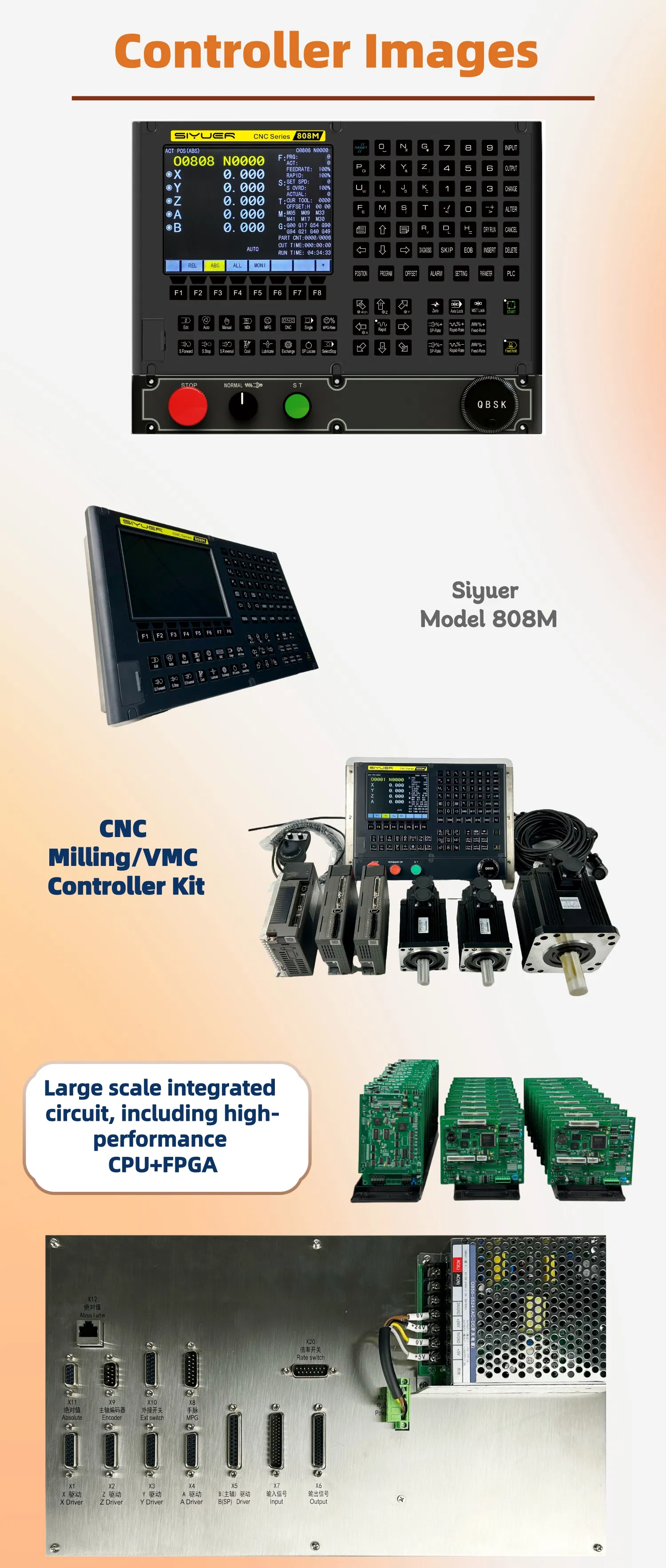

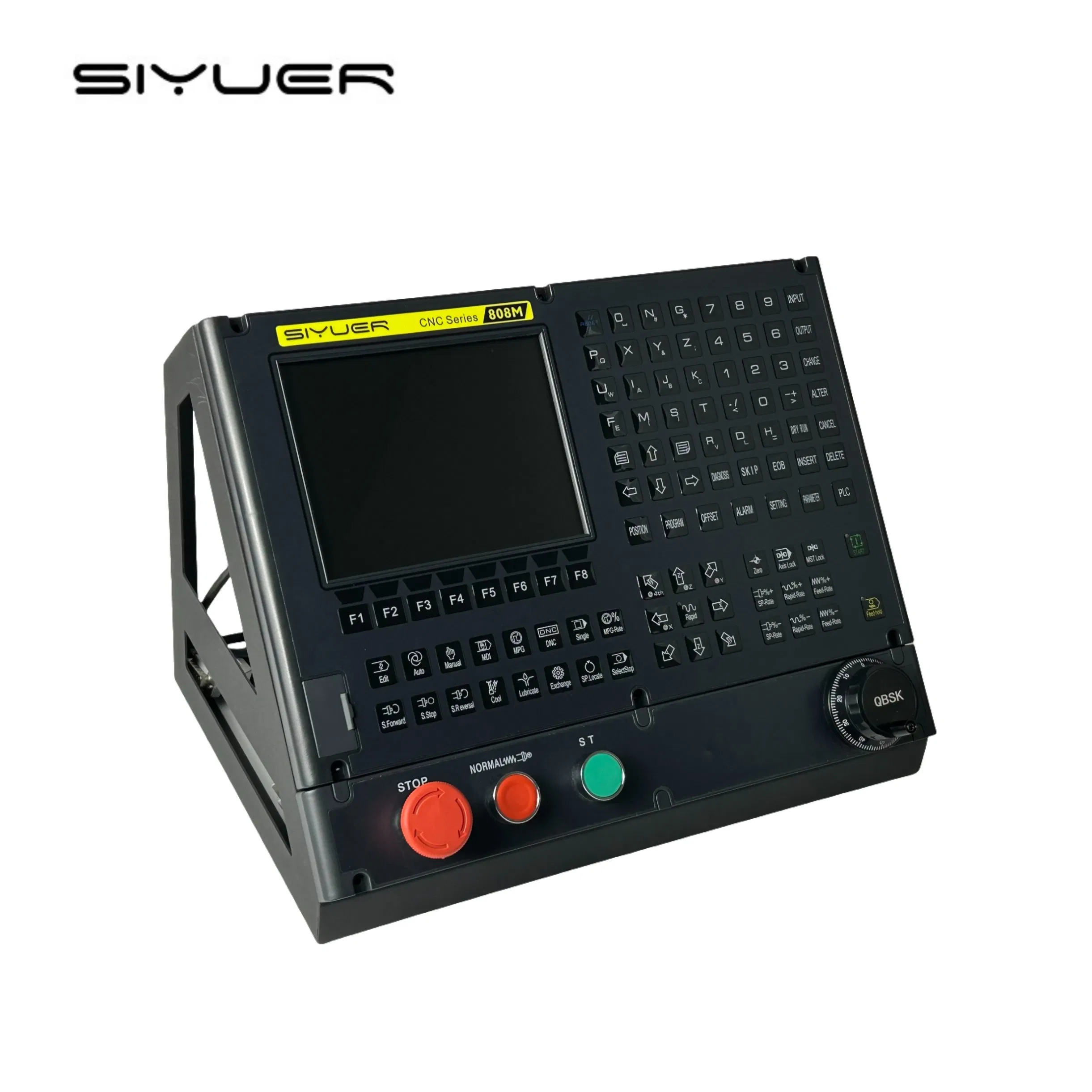

Basic Info.
Model NO.
808M
Size
Large
Customized
Customized
Type
CNC Controller
Material
Stainless Steel
Certification
GS, CE
Model No.
808m
Axis Num
3-5 Axis
CPU
32bits+Fpga
Displayer Screen
8.4 Inch
I\O Num
32/32
MOQ
1
Voltage Output
0-10V Analog
HS-Code
8537101101
Accuracy
0.1um
Cutter Offset
C Type
User Store Room
128MB
Panel Material
Aluminum Alloy
Interpolation Cycle
1ms
Power
220V
Speed
30m/Min
Transport Package
Carton Box
HS Code
8537101101
Production Capacity
50000 Sets/Years
Packaging & Delivery
Package Size
50.00cm * 40.00cm * 22.00cm
Package Gross Weight
9.000kg
Specification
| Parameter |
Details |
| Axis number |
5 feed axis (X, Y, Z, A, B), 3 axis linkage for arc, 5 axis for straight line, 1 analog spindle |
| Interpolation cycle |
1ms interpolation cycle, 0.1um control accuracy |
| Spindle |
1 path -10V ~ 10V analog voltage output, support servo spindle control |
| PLC |

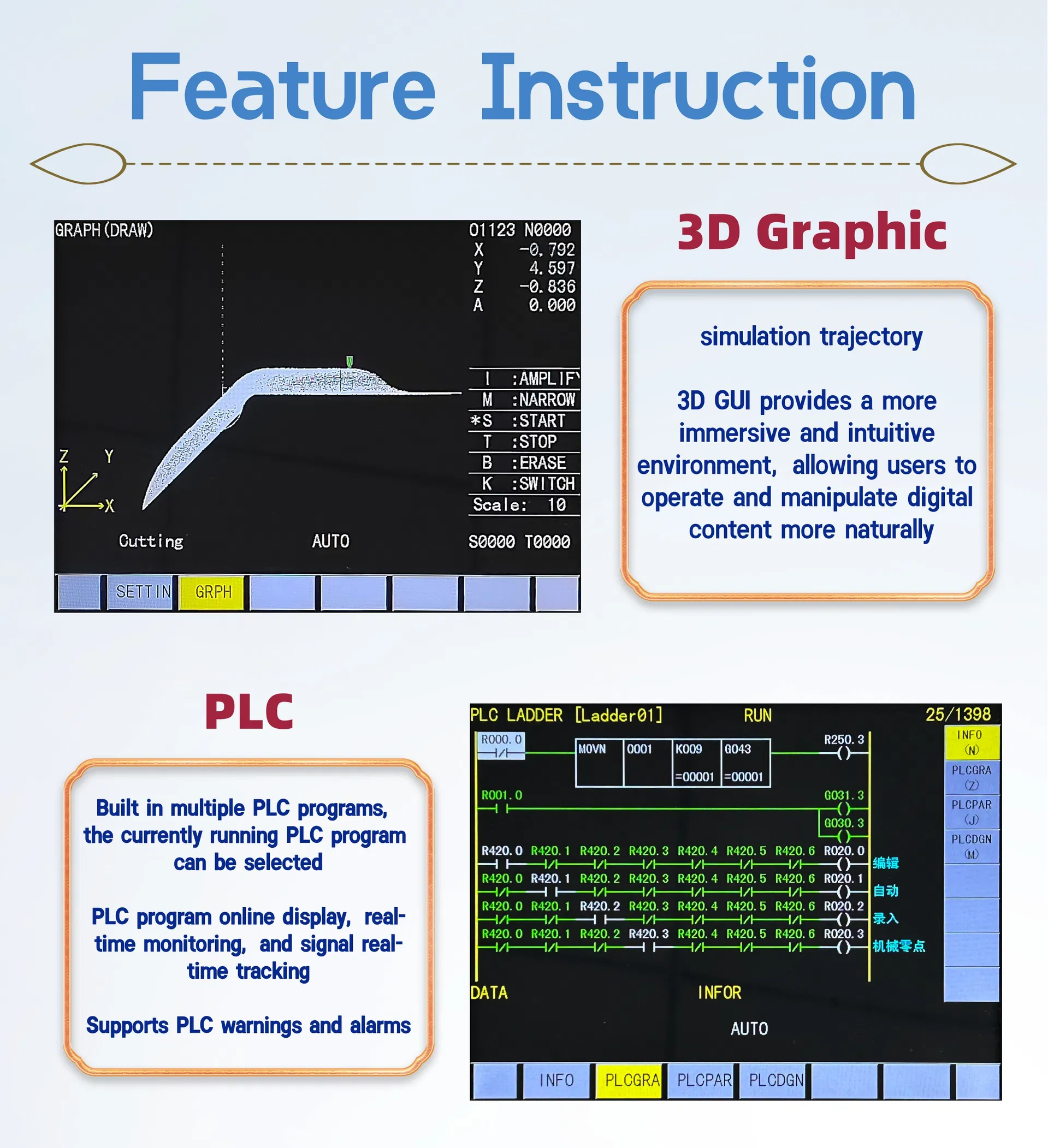

Built-in multiple PLC programs, the current running PLC program can be selected
PLC program is displayed online, real-time monitoring and real-time signal tracking |

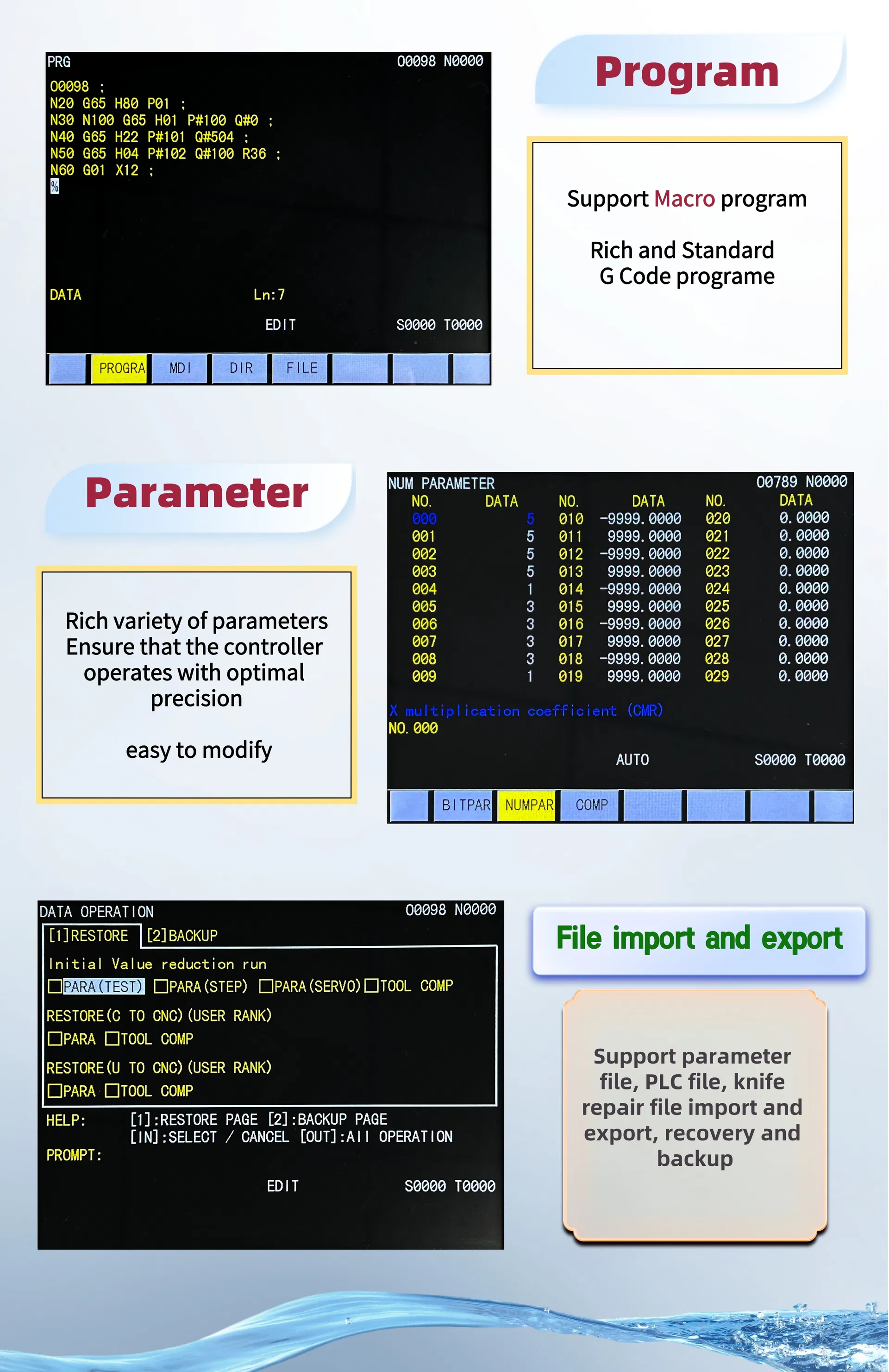

| Macro |
Supports statement macro code programming and parameterized macro program calls |
| Acceleration and deceleration |
There are many kinds of acceleration and deceleration modes such as linear, exponential and S type to choose from |
| Function |
Rigid and flexible tapping can be set by parameters |

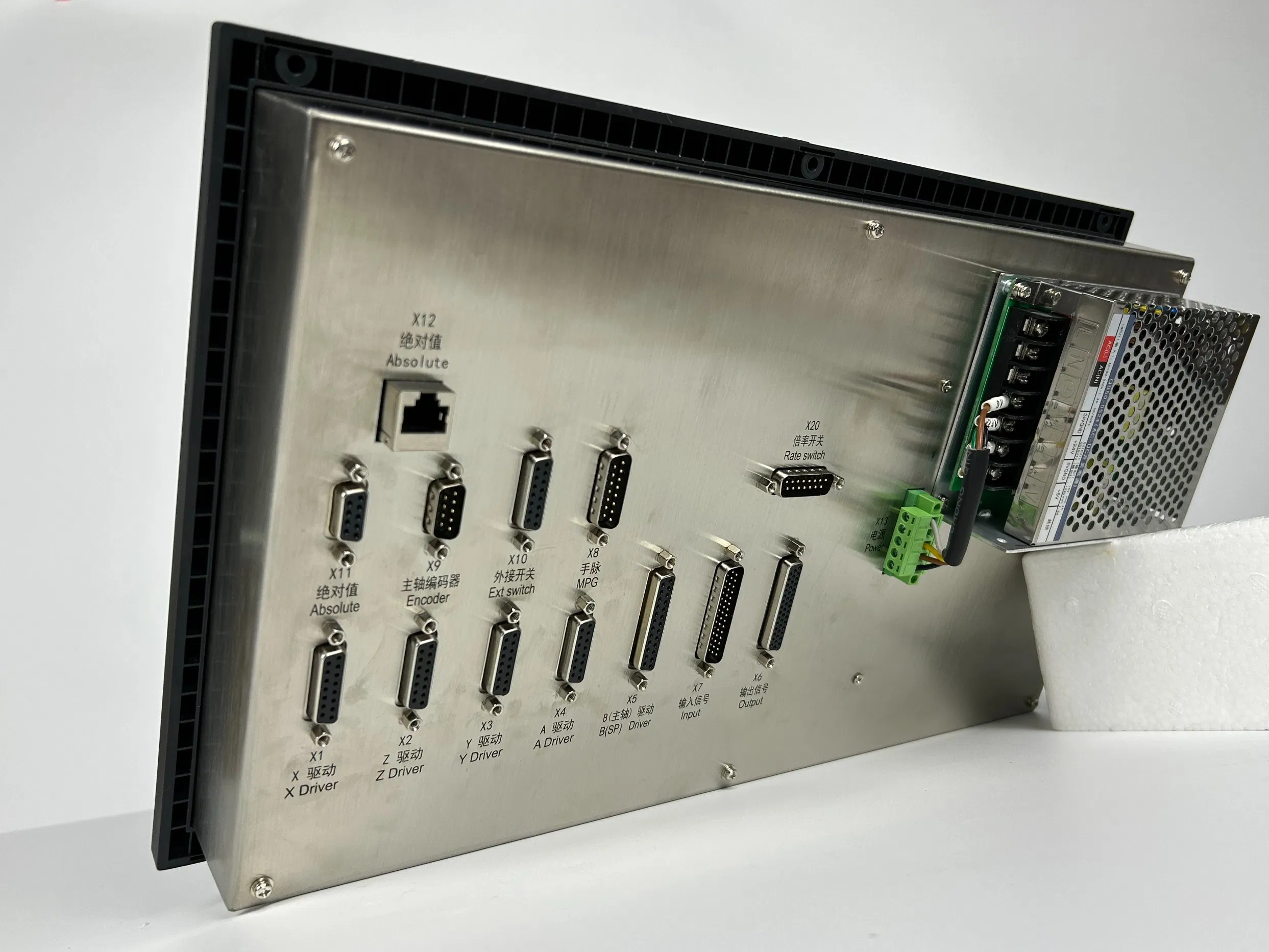

| IO |
32 universal inputs / 32 universal outputs |

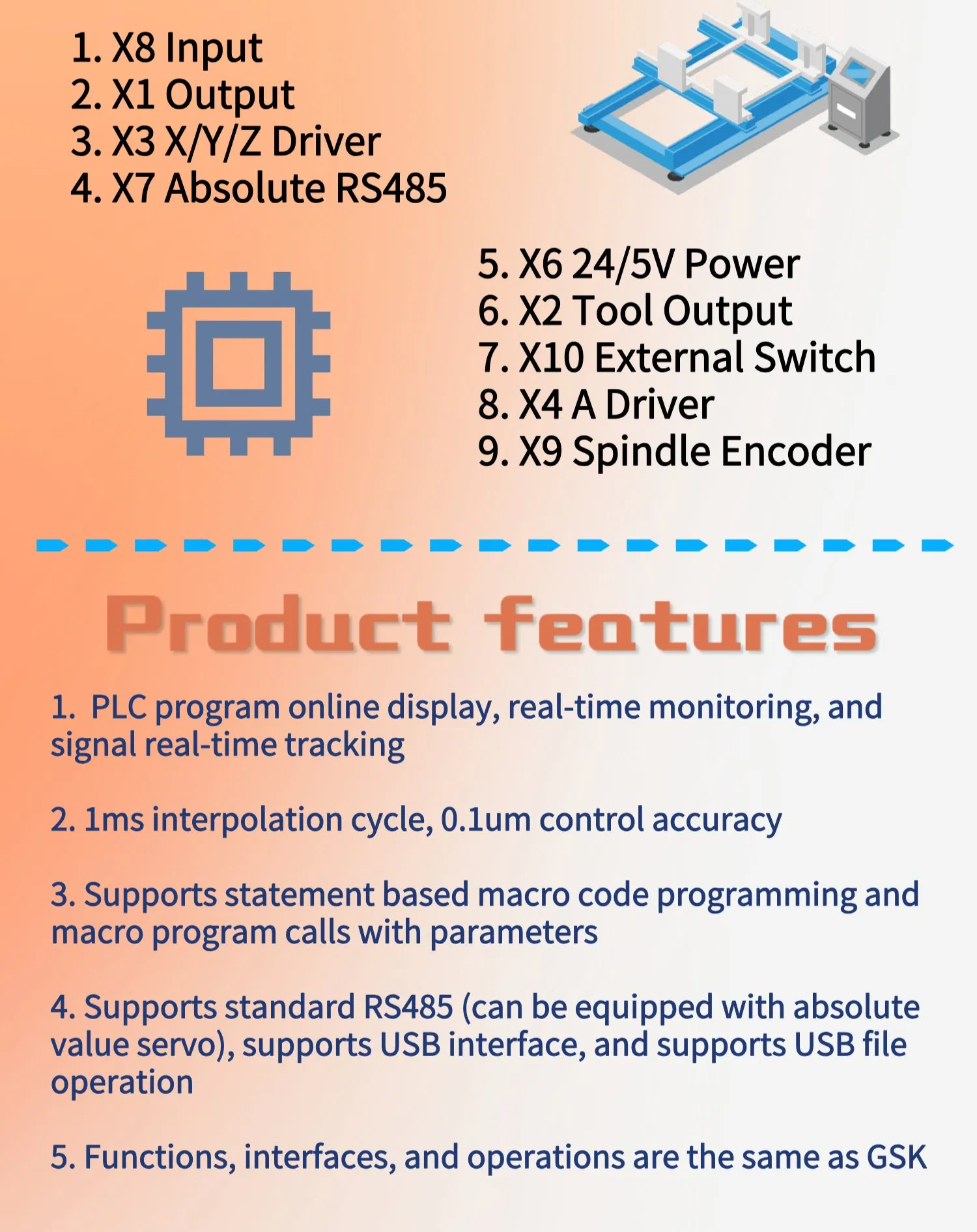

Product Features & Technical Specifications
- Control Axis Number: 5 axes (X, Y, Z, A, B)
- Linkage Axes: Arc 3 axis linkage, straight 5 axis feed function
- Position Command Range: Metric input (G21): -9999.9999mm ~ 9999.9999mm; British input (G20): -999.9999inch ~ 999.9999inch
- Electronic Gear: Instruction multiplier coefficient 1 ~ 65536, instruction divider coefficient 1 ~ 65536
- Fast Moving Speed: Up to 60m/min (Fast multiplier: F0, 25%, 50%, 100% real-time adjustment)
- Cutting Feed Speed: Up to 15m/min (G94) or 500.00mm/r (G95)
- Feed Rate / Manual Feed Rate: 0 ~ 150% sixteen levels of real-time adjustment
- Handwheel / Single Feed: 0.001mm, 0.01mm, 0.1mm four gears
- Interpolation Modes: Linear, arc, spiral interpolation, and rigid tapping
- System Features: Forward-looking function reading up to 15 segments of NC program for high-speed, smooth small line interpolation; suitable for part and mold processing
- Spindle Encoder: Encoder lines configurable (100 p/r ~ 5000 p/r) with transmission ratio (1 ~ 255):(1 ~ 255)
- Precision Compensation: Pitch error compensation (points, interval, and origin), reverse clearance compensation, and blade tip radius compensation (C type)
- PLC Processing: Two-level PLC program (up to 4700 steps, basic instruction speed 1.5μs/step, first-level cycle 8ms), support for up to 20 programs, 45 instruction set
- Human-Machine Interface: 8.0-inch LCD screen (800 x 600 resolution), multilingual support (Chinese, English, etc.), 2D tool path display, real-time clock
- Operation Modes: Edit, Automatic, Input, Machine return to zero, Handwheel/Single step, Manual, DNC
- Storage & Transfer: 56MB capacity (up to 400 programs), ISO code format, RS232 file transfer/system upgrades, USB operations (U disk direct processing & DNC)
- Safety Features: Emergency stop, hardware travel limit, software trip check, data backup and recovery
Packaging & Shipping
CNC Controller Package
CNC Lathe Package
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Export wooden crate packaging CNC Lathe.
FAQ
?

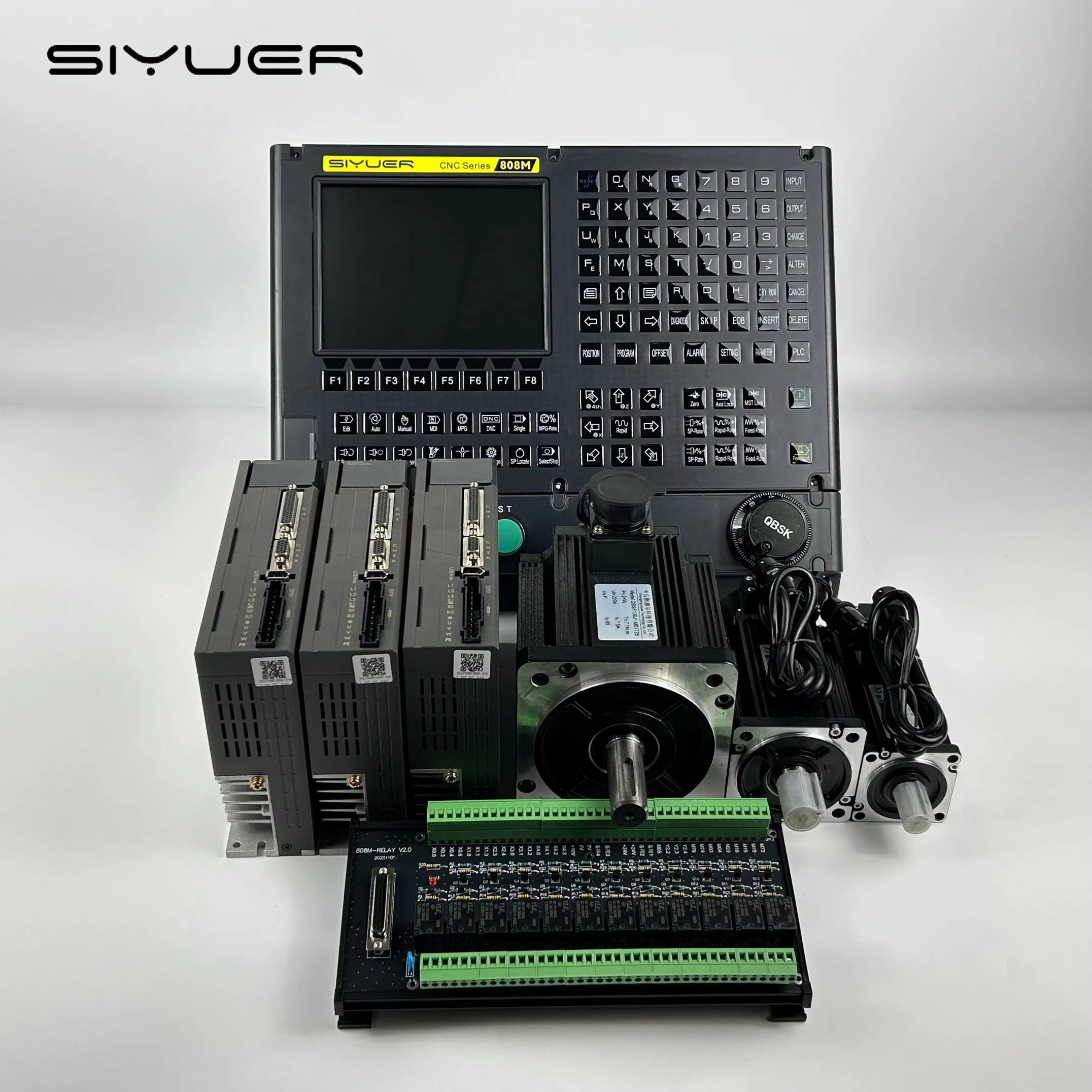

What is included in your total CNC system supply?

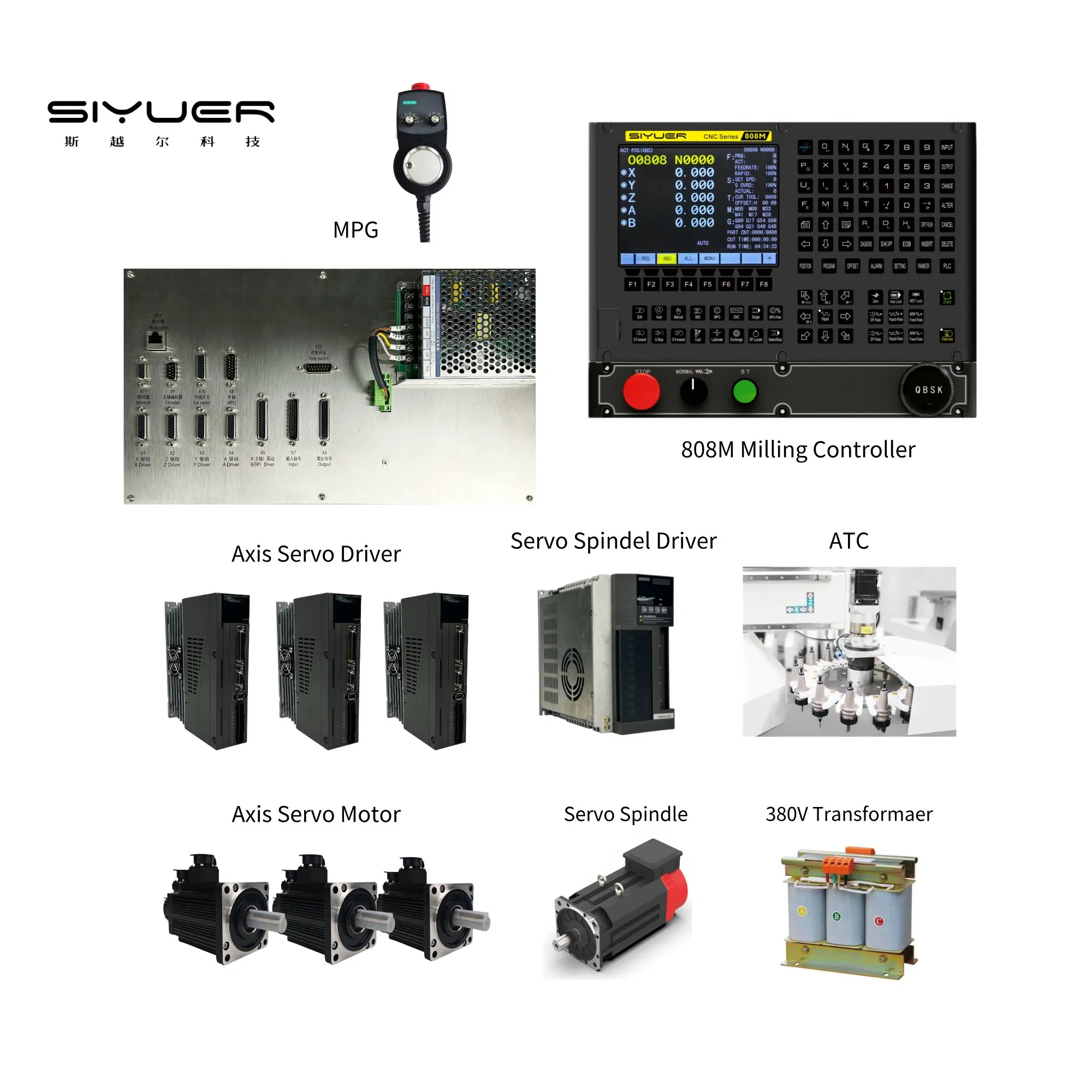

We provide complete plug-and-play CNC solutions including CNC controllers, spindle & axes drivers/motors, and all necessary cables & accessory kits.
?
What are the lead times for standard and customized orders?
Standard orders typically require 5–7 workdays. Delivery times for customized solutions are negotiable based on specific project requirements.
?
What control signals and spindle modes do the systems support?
The feeding axes are controlled via Pulse+Direction signals. The spindle uses an analog voltage (0–10V) for speed control.
?
Does the system support Automatic Tool Changers (ATC)?
Yes. We support electric, servo, and counting turrets with custom macros for CNC Lathes, as well as linear, umbrella, arm, and turret-type tool magazines for CNC Milling machines.
?
What payment and delivery terms are available?
We support various delivery terms including FOB, CIF, DDP, and EXW. Payment methods include T/T, L/C, Credit Card, PayPal, and more.
?
Do you offer custom branding on the controller?
Yes, we support custom boot logos to meet your specific branding requirements.
