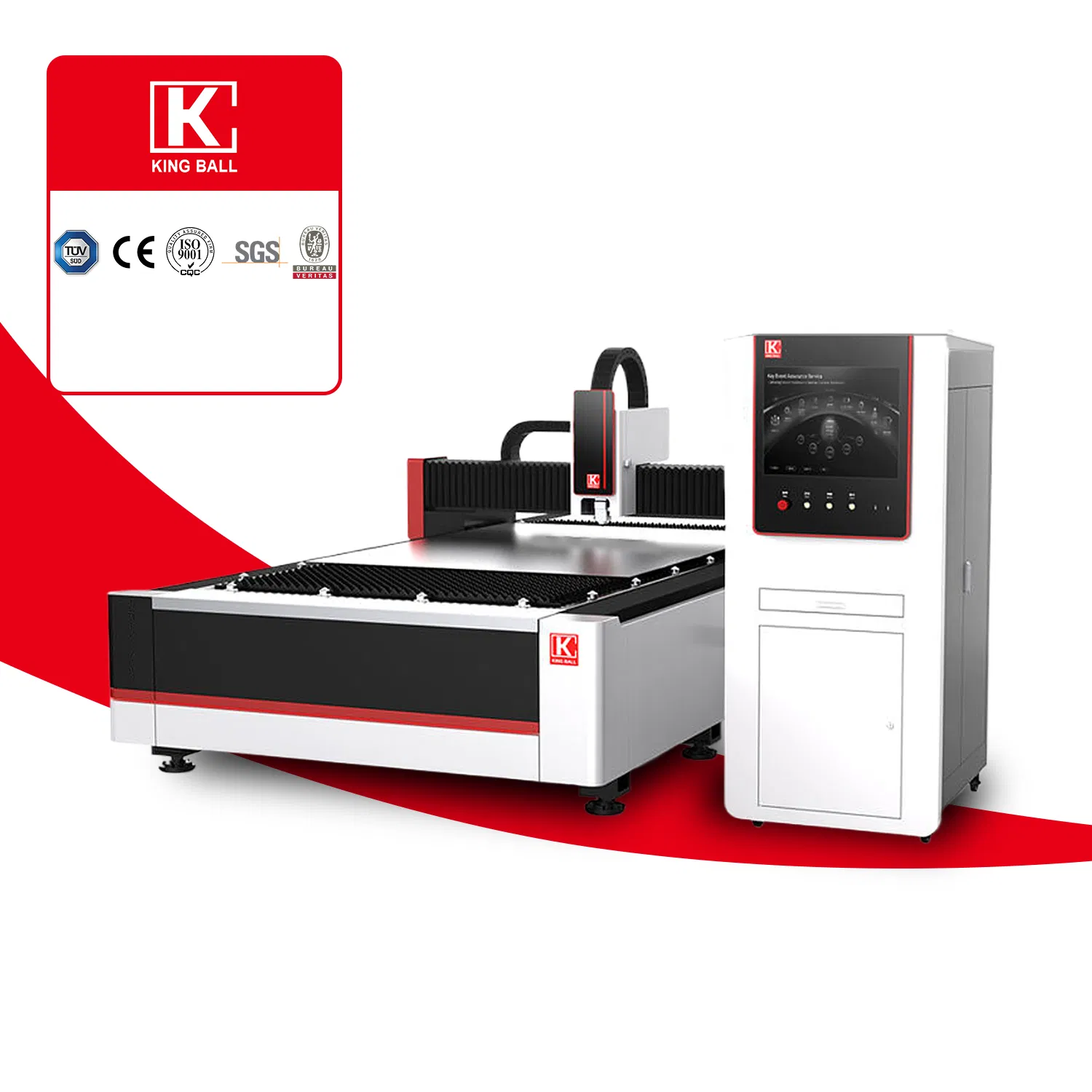

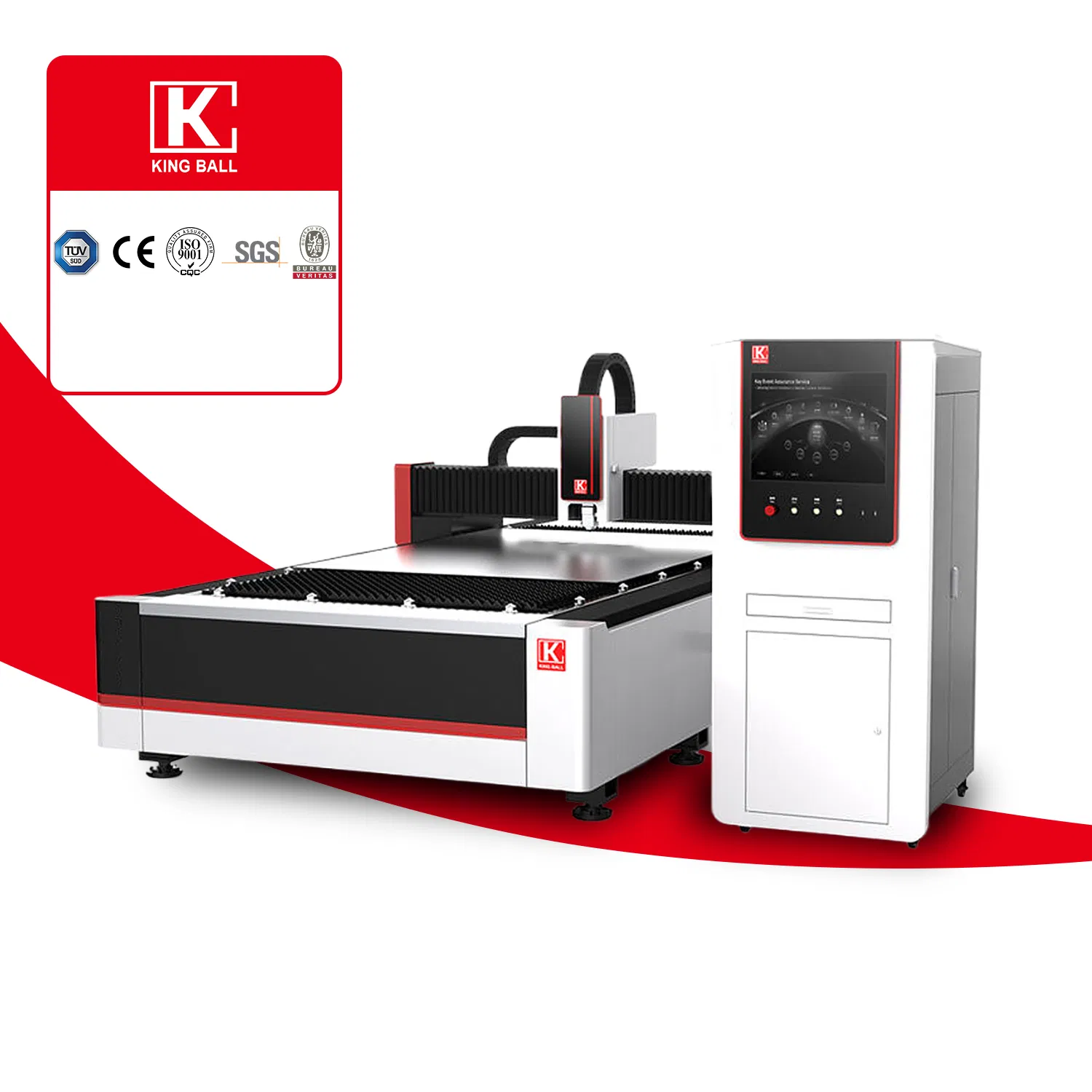

Industrial Grade Fiber Laser Cutting System

Customization:	Available
After-sales Service:	Training How to Install and Use The Machine
Warranty:	2 Years

Basic Info.

Model NO. KCL-4015

Application Food Machinery, Automotive Industry

Cooling System Water Cooling

Technical Class Continuous Wave Laser

Applicable Material Metal

Structure Type Desktop

Laser Classification Solid Laser

Laser Technology Laser Fusion Cutting

Laser Power 500W / 1000W / 2000W / 3000W

Control System Cypcut System

Motor Japan Yaskawa Servo Motor

Max Cutting Speed 15- 45mm/S (1mm Stainless Steel)

Tube Diameter 20mm-220mm Diameter

Transport Package Packaged by Plywood

Specification KCL-D

Origin China

HS Code 8456110090

Production Capacity 200sets/Month

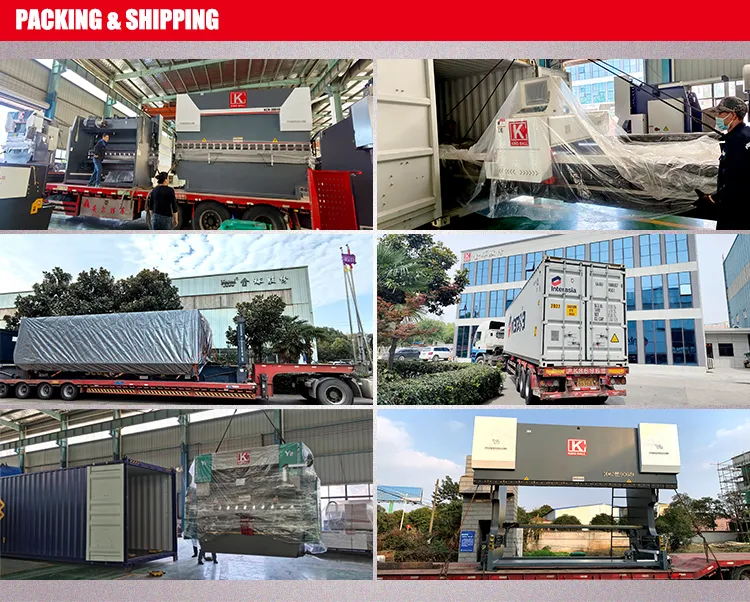

Packaging & Delivery

Package Size 300.00cm * 250.00cm * 250.00cm

Package Gross Weight 10.000kg

Product Description

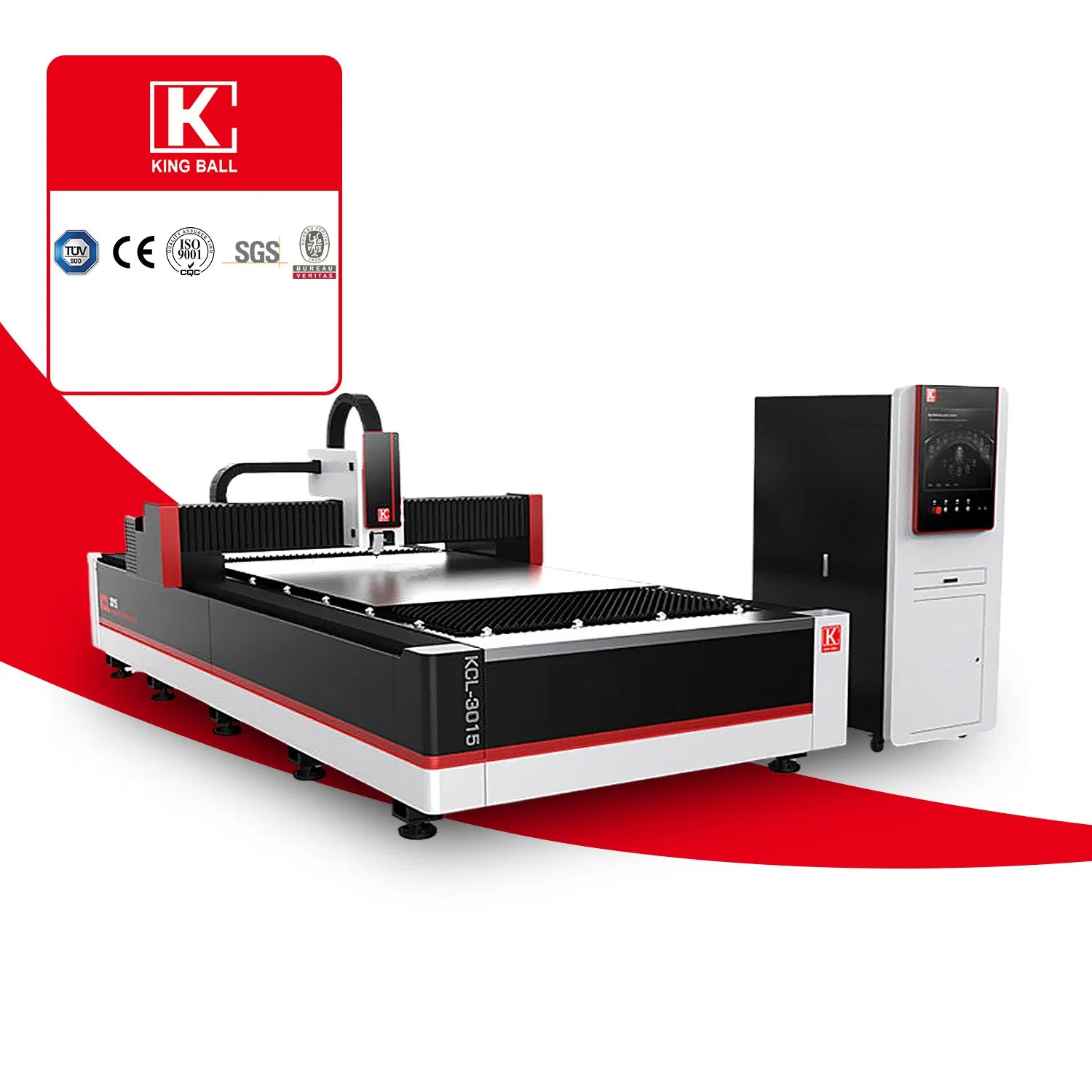

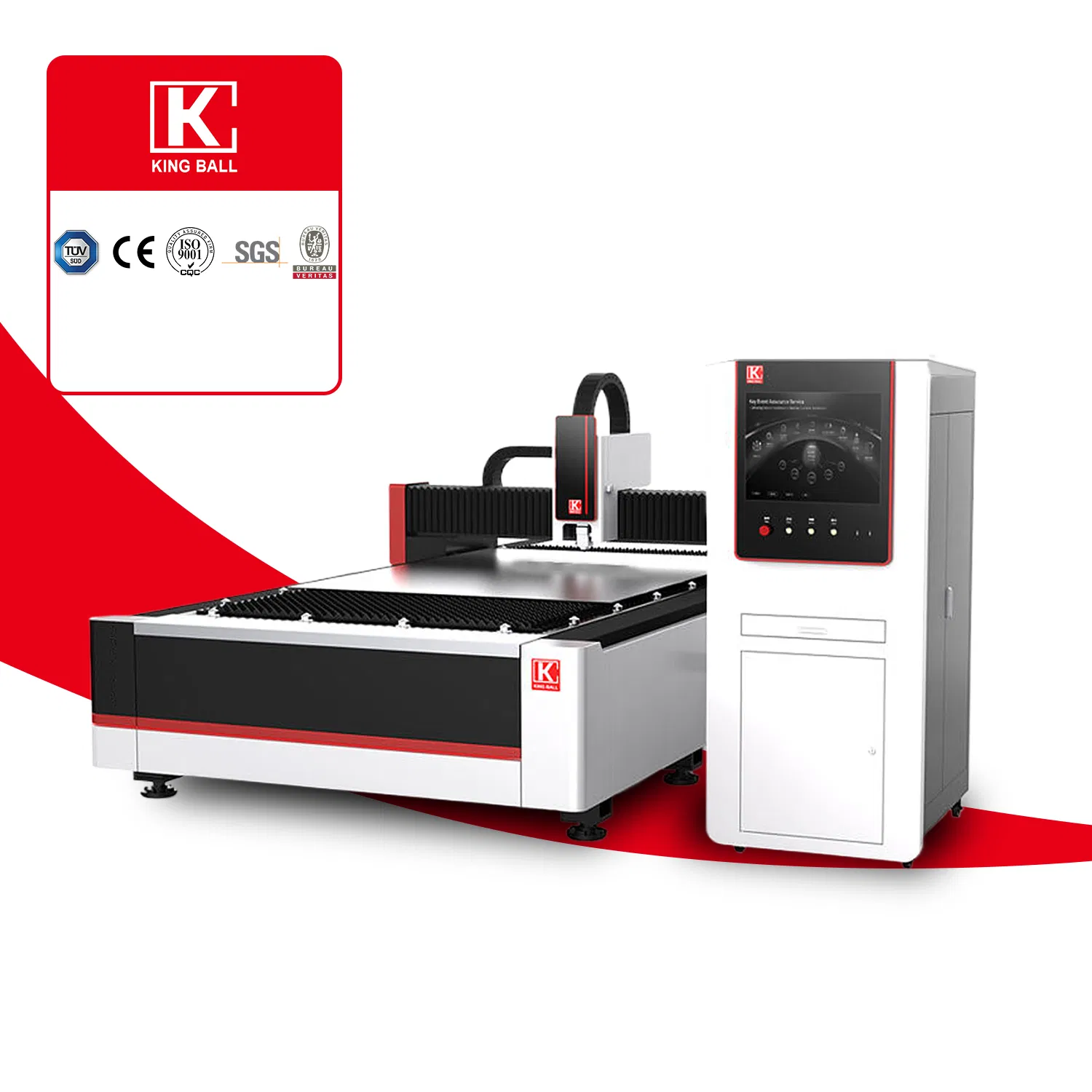

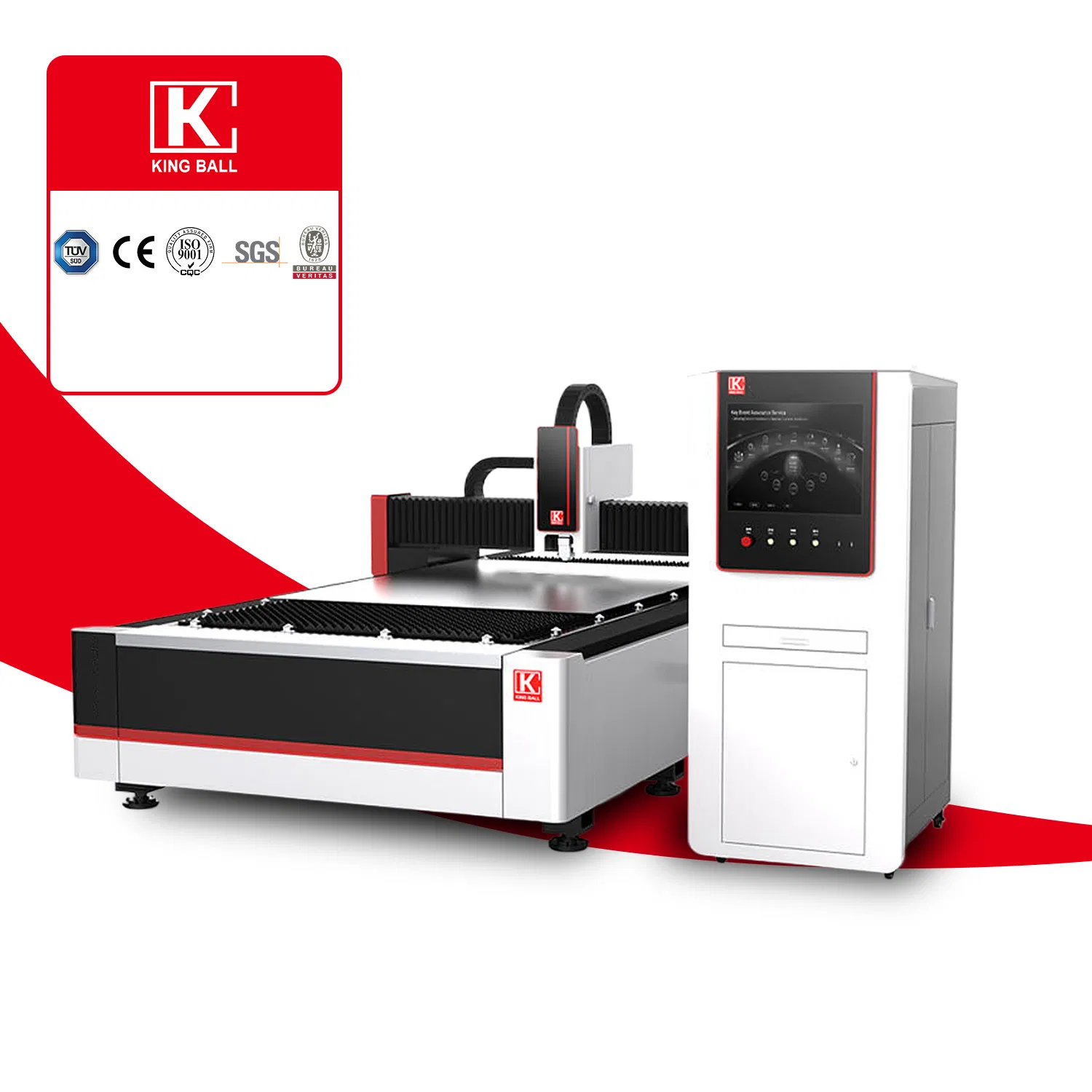

Industrial Grade Fiber Laser Cutting System

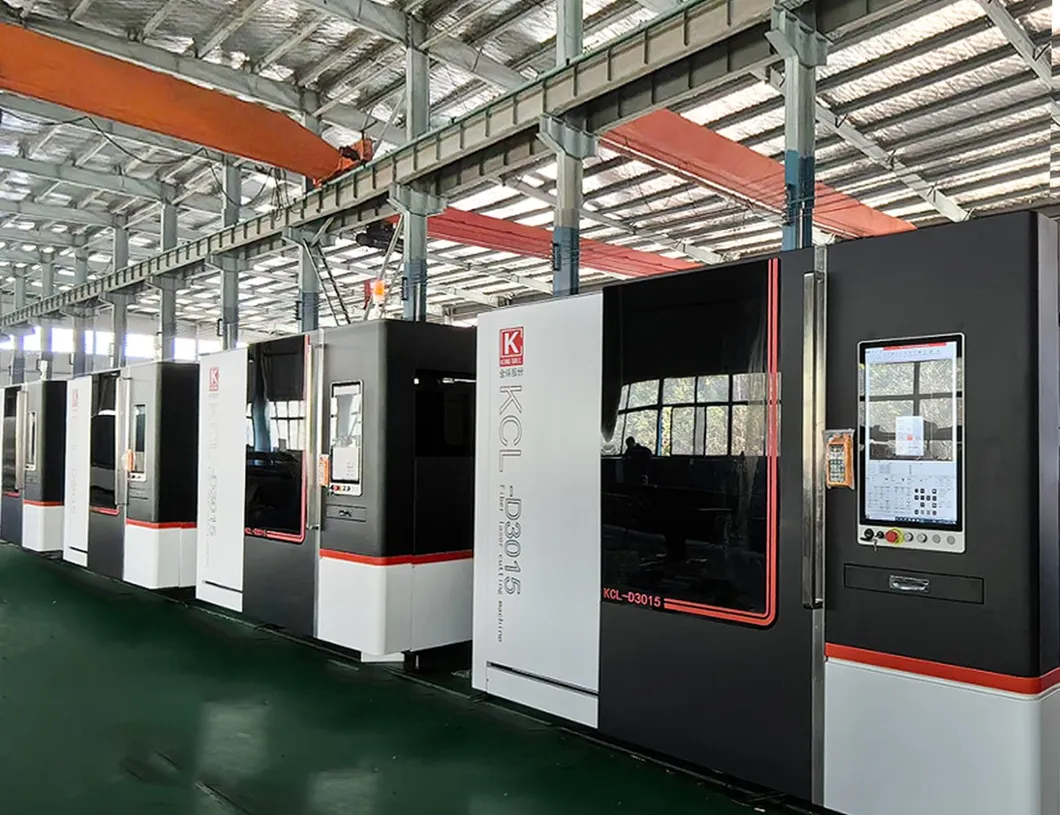

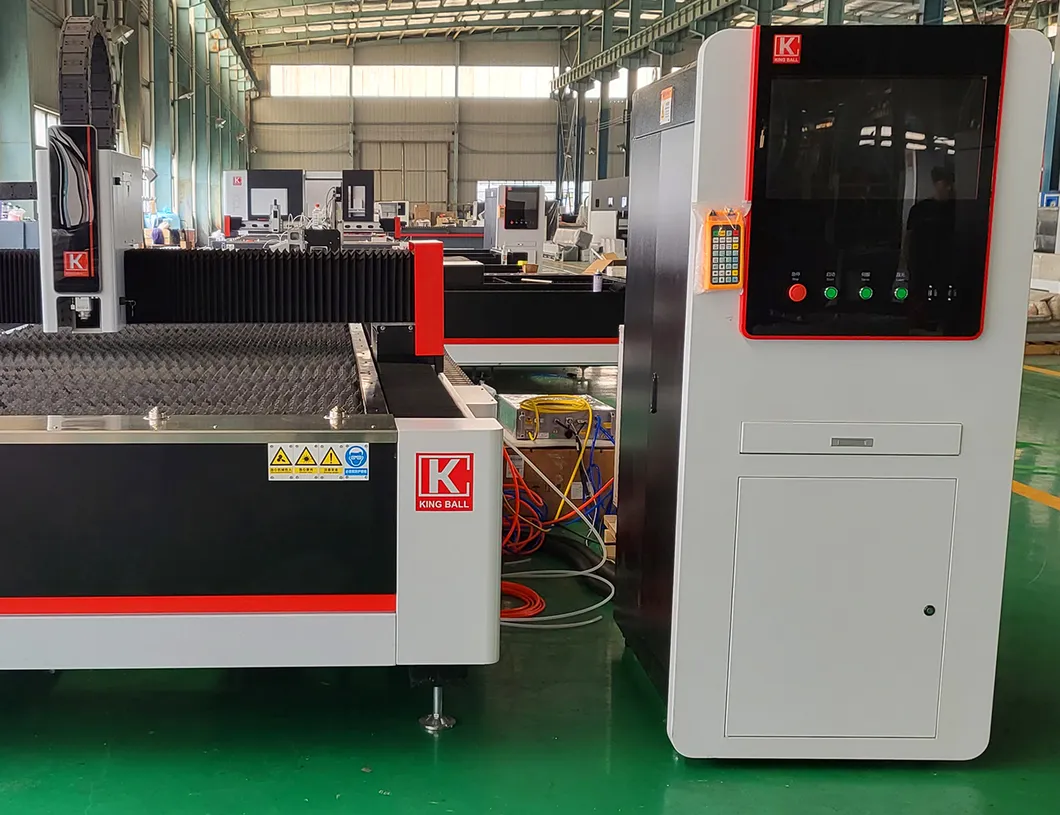

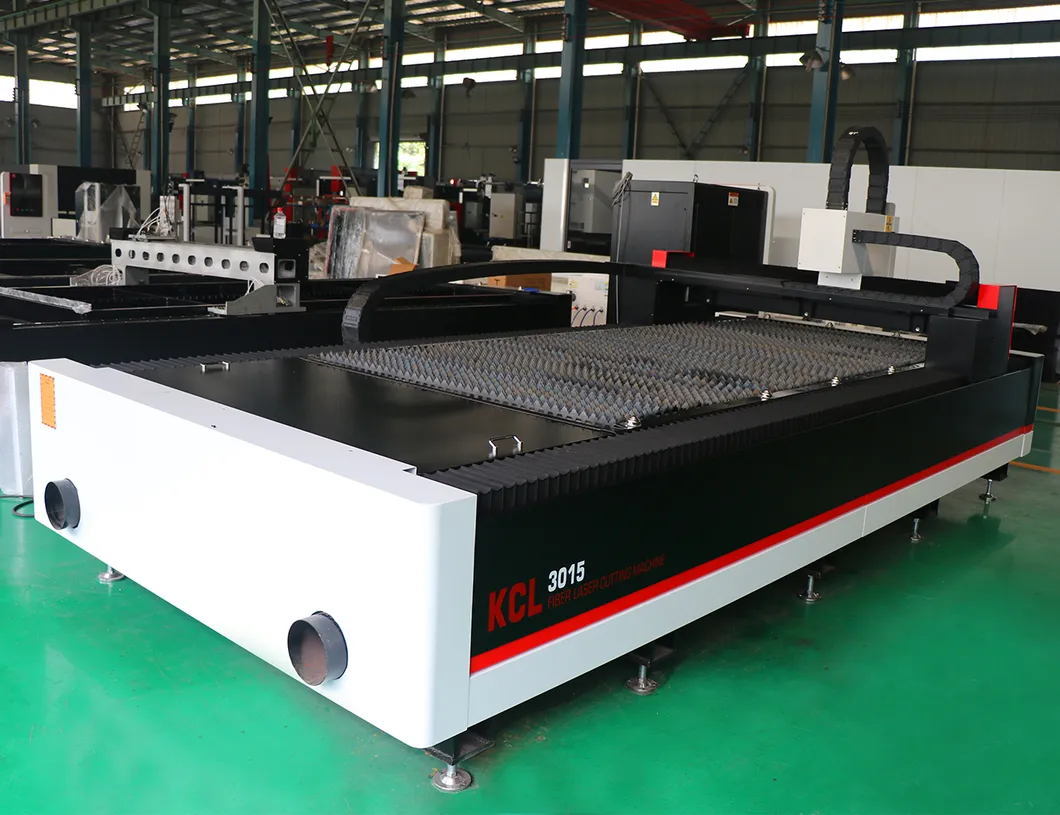

Detailed Images

Technical Specifications

Model	KCL-D3015	KCL-D4015	KCL-D4020	KCL-D6020	KCL-D6025	KCL-D8025	KCL-D10025	KCL-D12025
Cutting Range (mm)	3000*1500	4000*1500	4000*2000	6000*2000	6000*2500	8000*2500	10000*2500	12000*2500
Laser Power (w)	1000W & 1500W & 2000W & 3000W & 6000W & 8000W & 12000W
Maximum idle speed	160 m/min
Maximum cutting speed	35-80 m/min
Positioning Accuracy	0.03 mm
Reposition Accuracy	0.02 mm

Core Technology

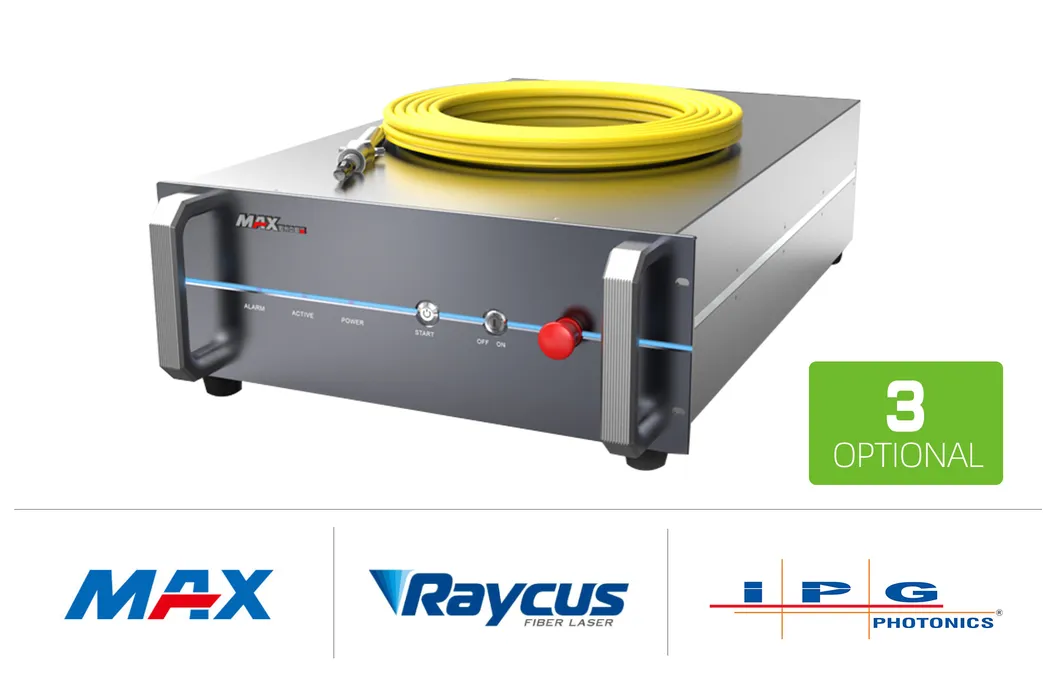

MAX, Raycus, and IPG Brand Laser Sources

Higher Electro-optic Conversion Efficiency, Superior Reliability & Modularity, Easy Maintenance with Low Downtime, Anti High Reflection Function.

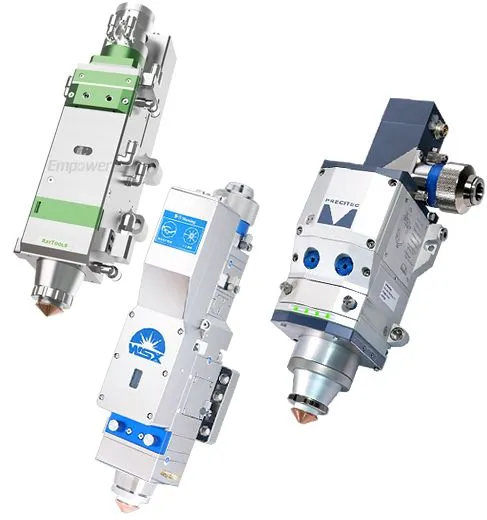

Laser Cutting Head

Three protective lenses ensure effective collimating focus lens protection. Dual optical water cooling enhances efficiency, extending continuous working time. Various brands of laser heads are available.

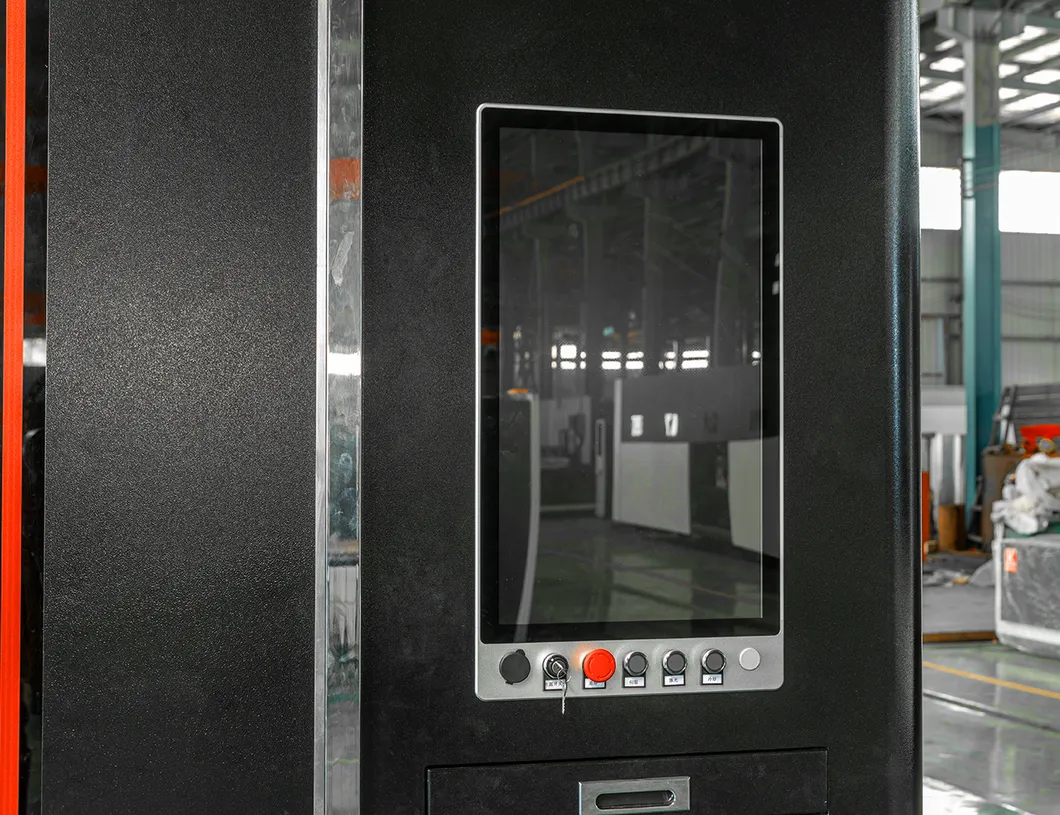

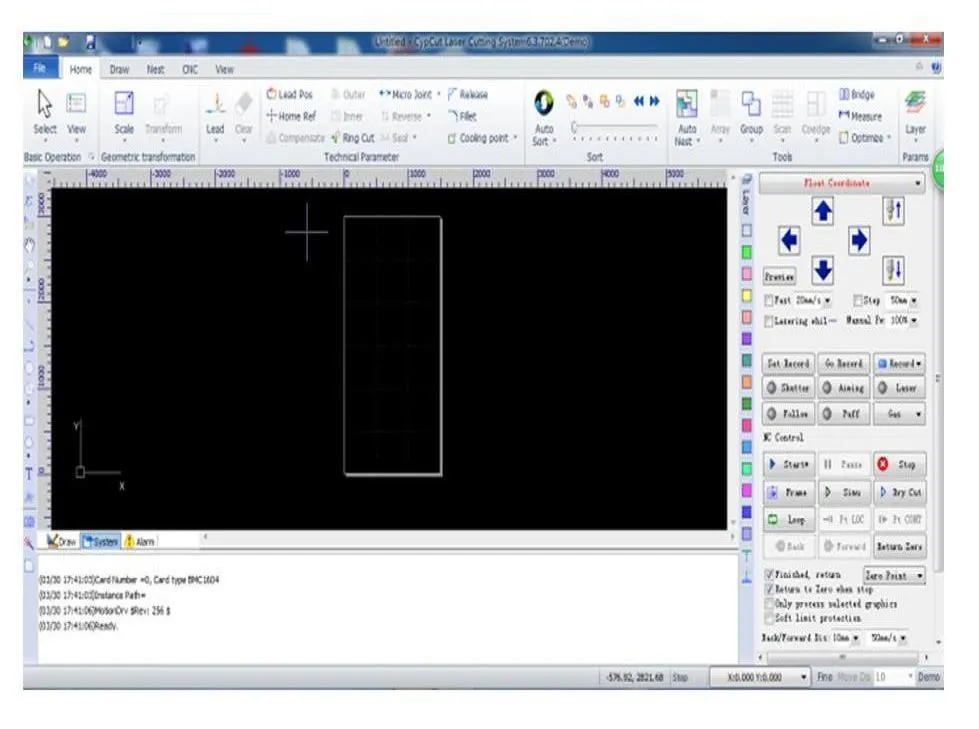

CYPCUT Control System

User-Friendly Interface, Comprehensive File Editing Functions, Supports Remote Control, Real-Time Alarm and Protection Features.

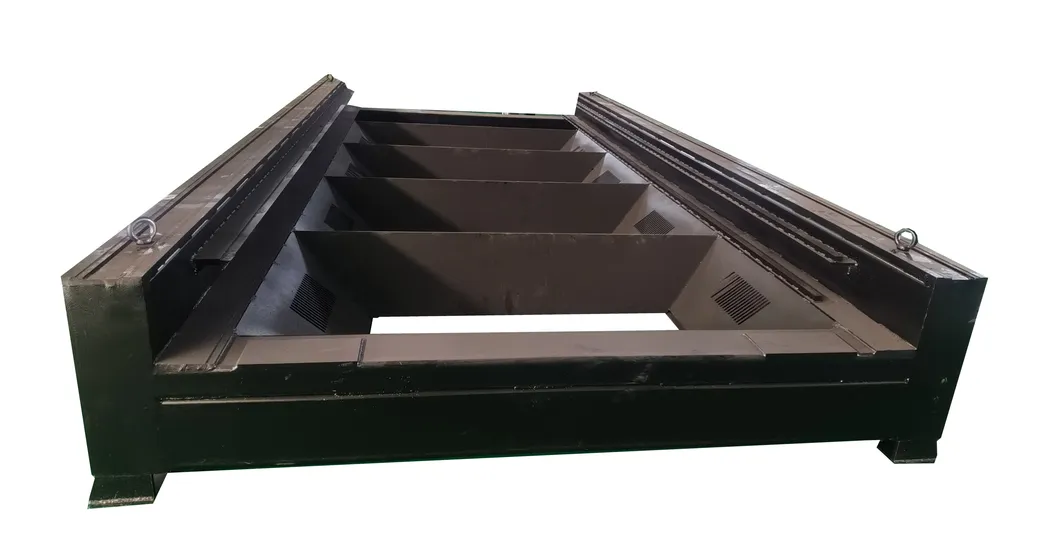

Steel Plate Welding Frame

Steel frames undergo annealing at over 600 degrees to relieve stress, ensuring years of heavy use without distortion. Automatic pallet changing system allows over 1800kg loading weight. A heavier frame minimizes vibration for superior accuracy. The machine frames are reinforced to minimize twists and deformation, with the robust frame joined to the chassis by steel bars.

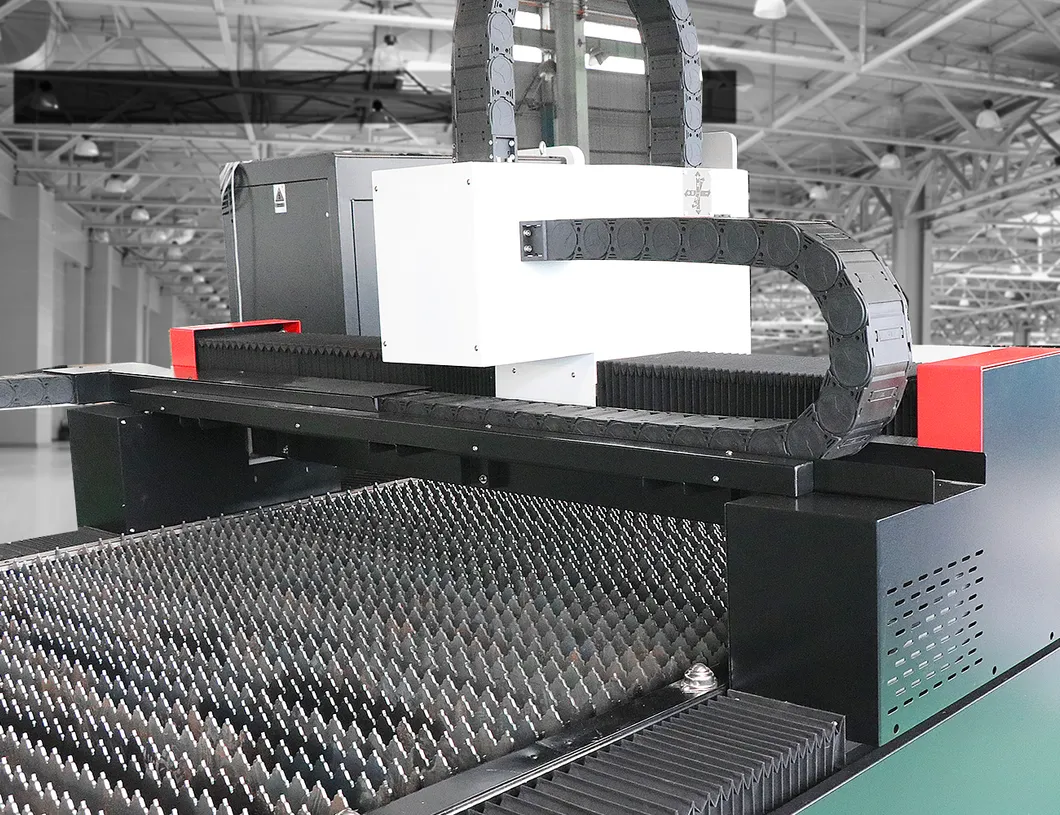

Aluminum Beam

The beam body adopts an overall aluminum casting method. Annealing eliminates internal stress, followed by rigorous processing: casting → annealing stress → rough machining → vibration aging → semifinishing → vibration aging → finish machining. Post-tempering, the beam ensures strength, rigidity, and stability, providing a reliable solution for high-speed cutting with high-power laser machines.

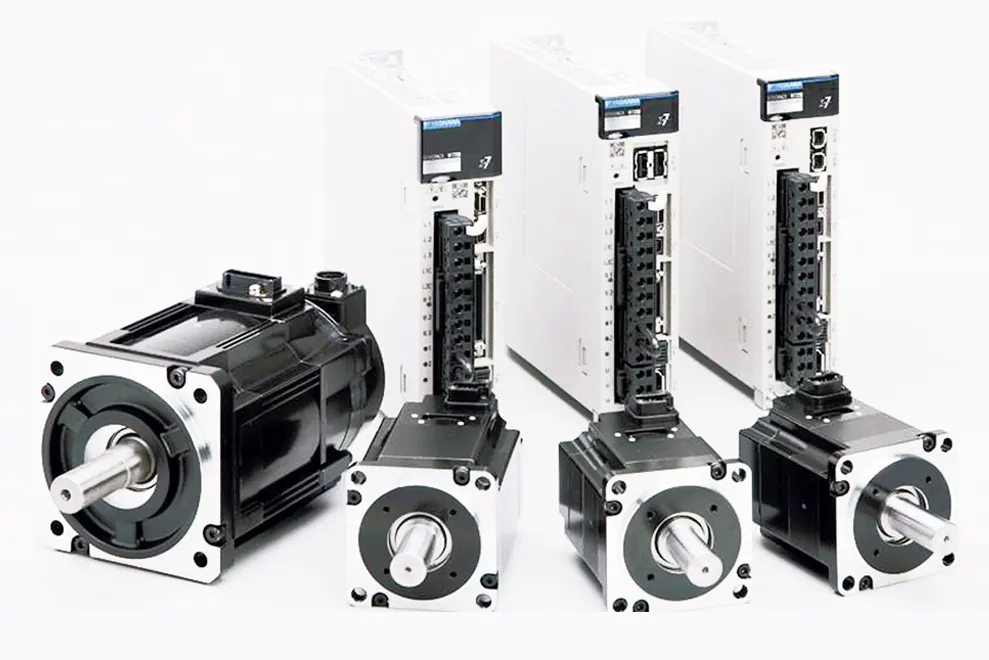

France MOTOREDUCER & Servo Motor - Japan FUJI

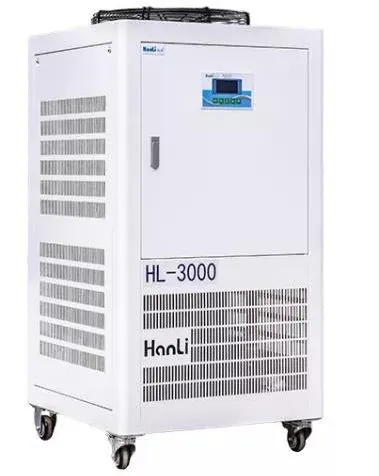

Hanli Brand Industrial Chiller Touchscreen Control

Optional System Options

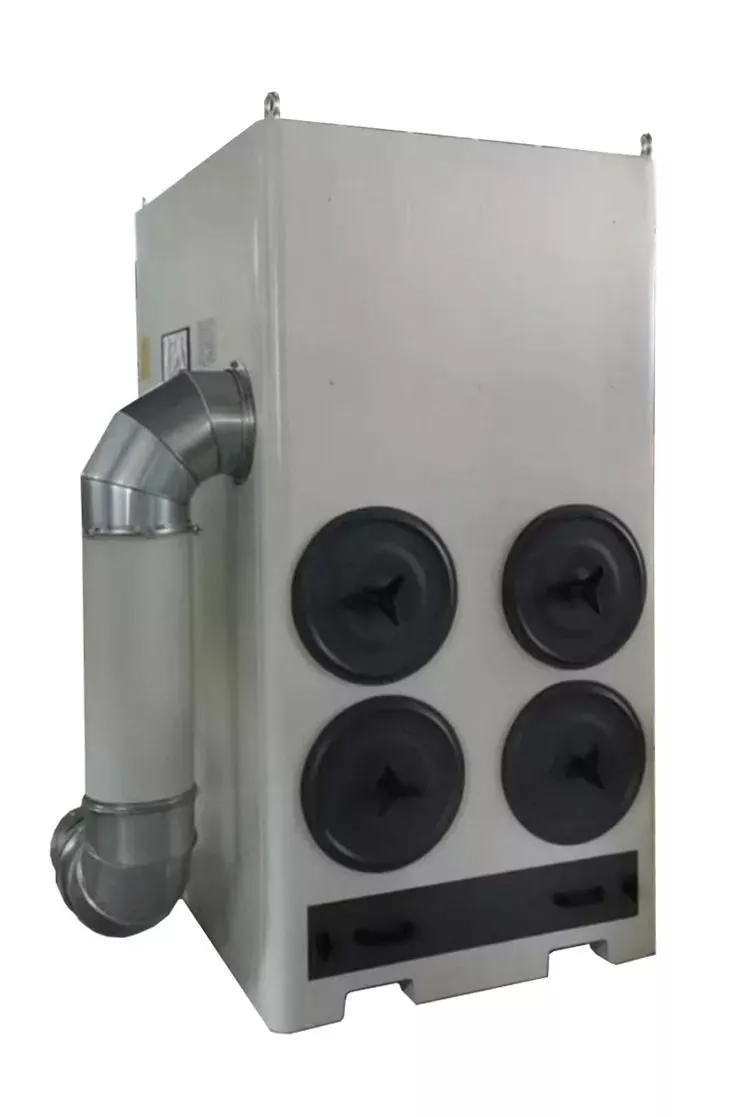

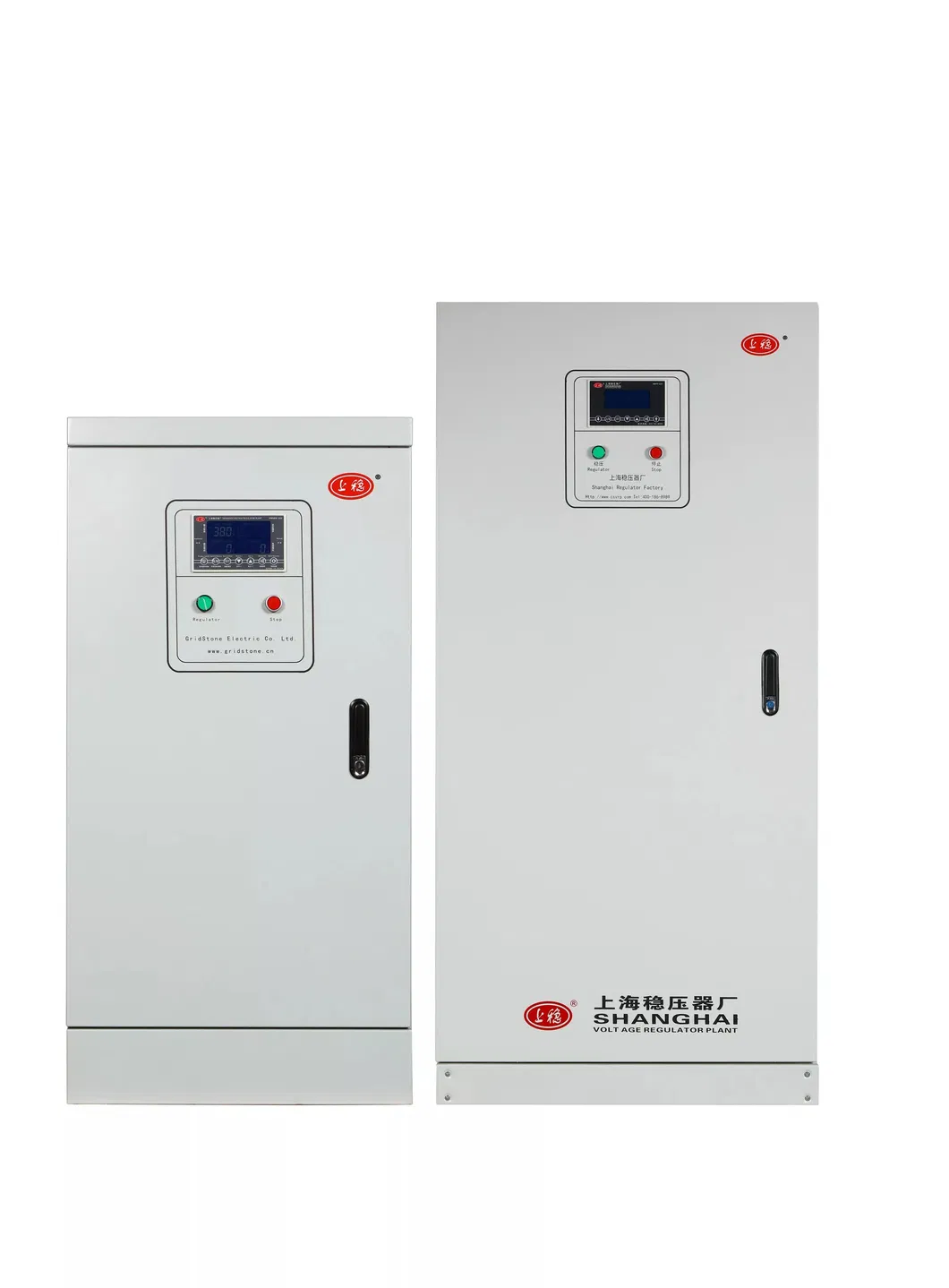

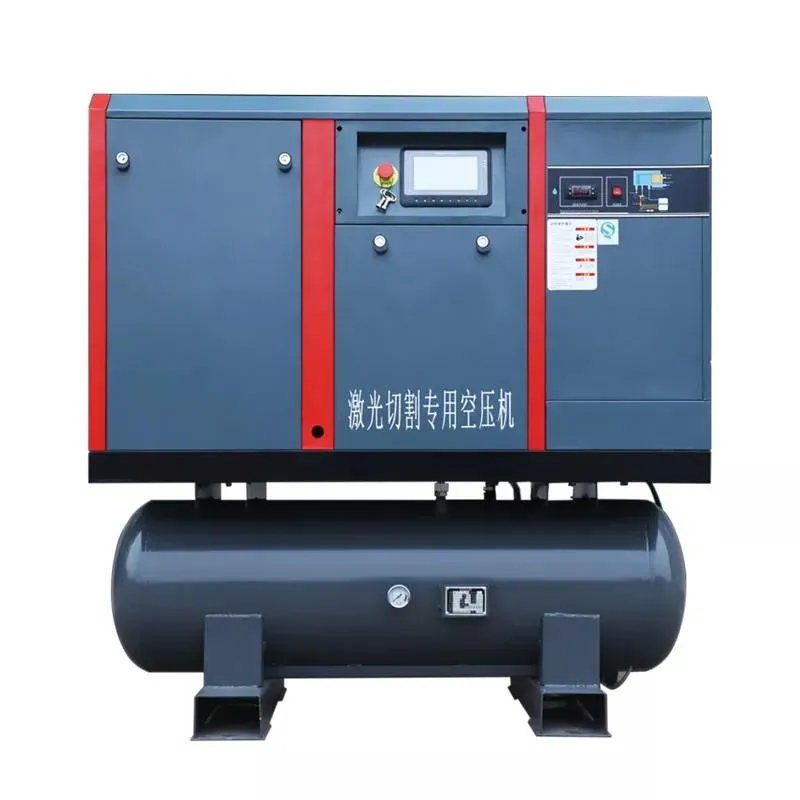

Air Compressor (Optional) | Voltage Regulator (Optional) | Dust Extraction System (Optional)

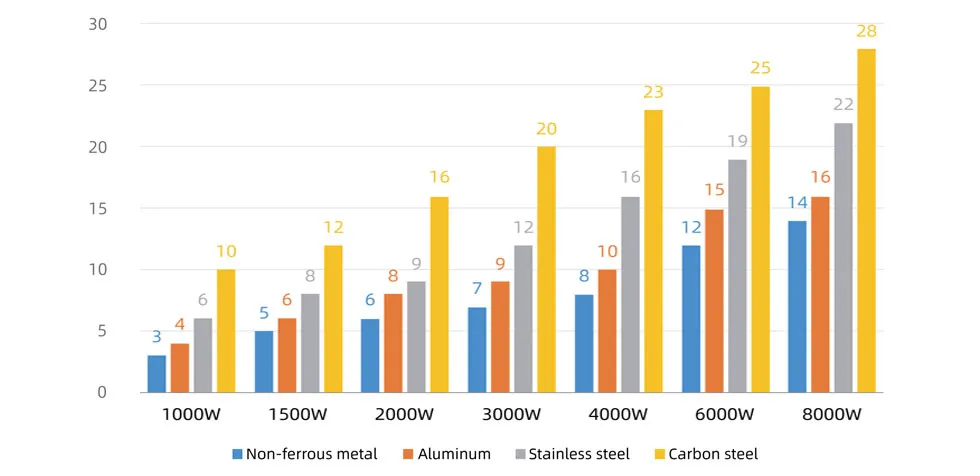

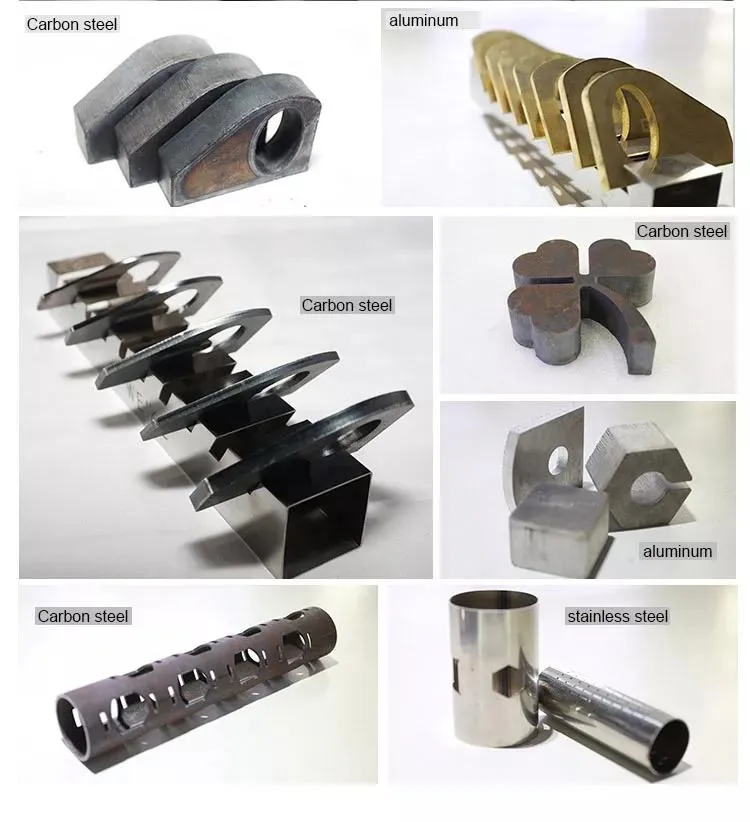

Cutting Thickness of Fiber Laser Cutting Machine & Samples

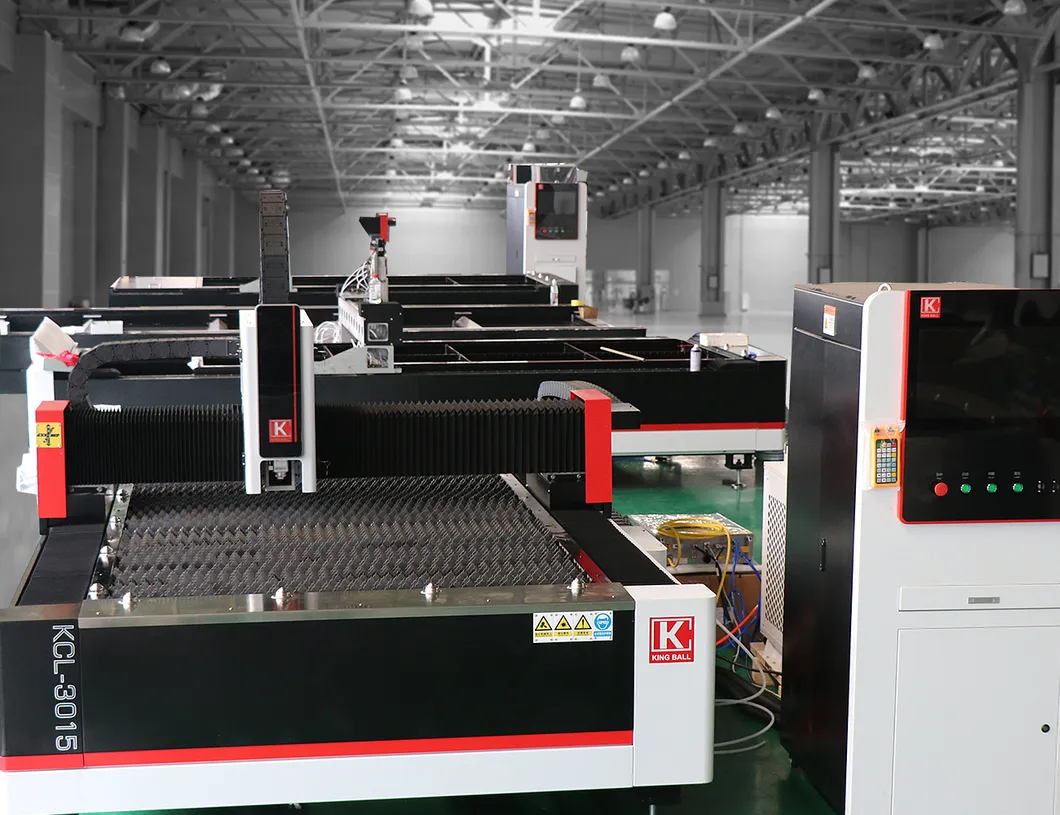

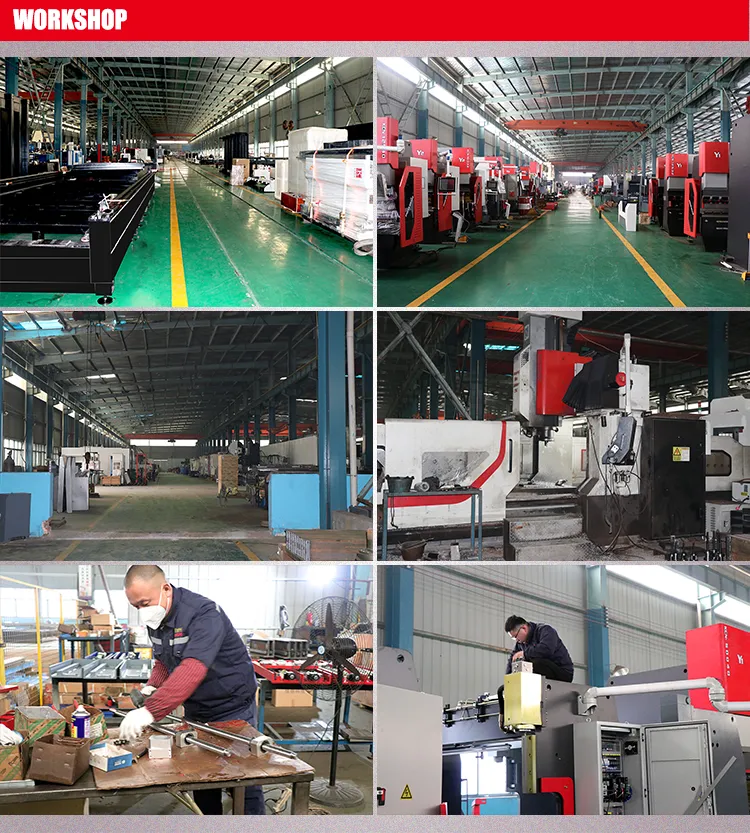

Factory Introduction

Our Services

Pre-Sales Services

Inquiry and Consulting Support
Sample Testing Support
Visit Our Factory

After-Sales Services

Two-Year Warranty Period
Training on Installation and Operation
Engineers Available for Overseas Service
