High Precision Automatic Guillotine Line Heavy Duty Advanced Paper Cutting System

1 / 5

High Precision Automatic Guillotine Line Heavy Duty Advanced Paper Cutting System

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Info.

Model NO. HPM-I

Classification Single-blade Cutter

Driven Type Hydraulic

Type Industrial Cutter

Blade Material HSS

Computerized Computerized

Cutting Height 16.5cm

Clour Gray

Language Eight Language Can Be Choose

Home Installation You Can Choose

Transport Package Export Standard Wooden Case

Specification HPM-I

Trademark HPM

Origin China

HS Code 8441100000

Production Capacity 1000 Unit/Year

Packaging & Delivery

Package Size 800.00cm * 700.00cm * 202.00cm

Package Gross Weight 10000.000kg

Product Description

HPM-I Heavy Duty Advanced Paper Cutting System

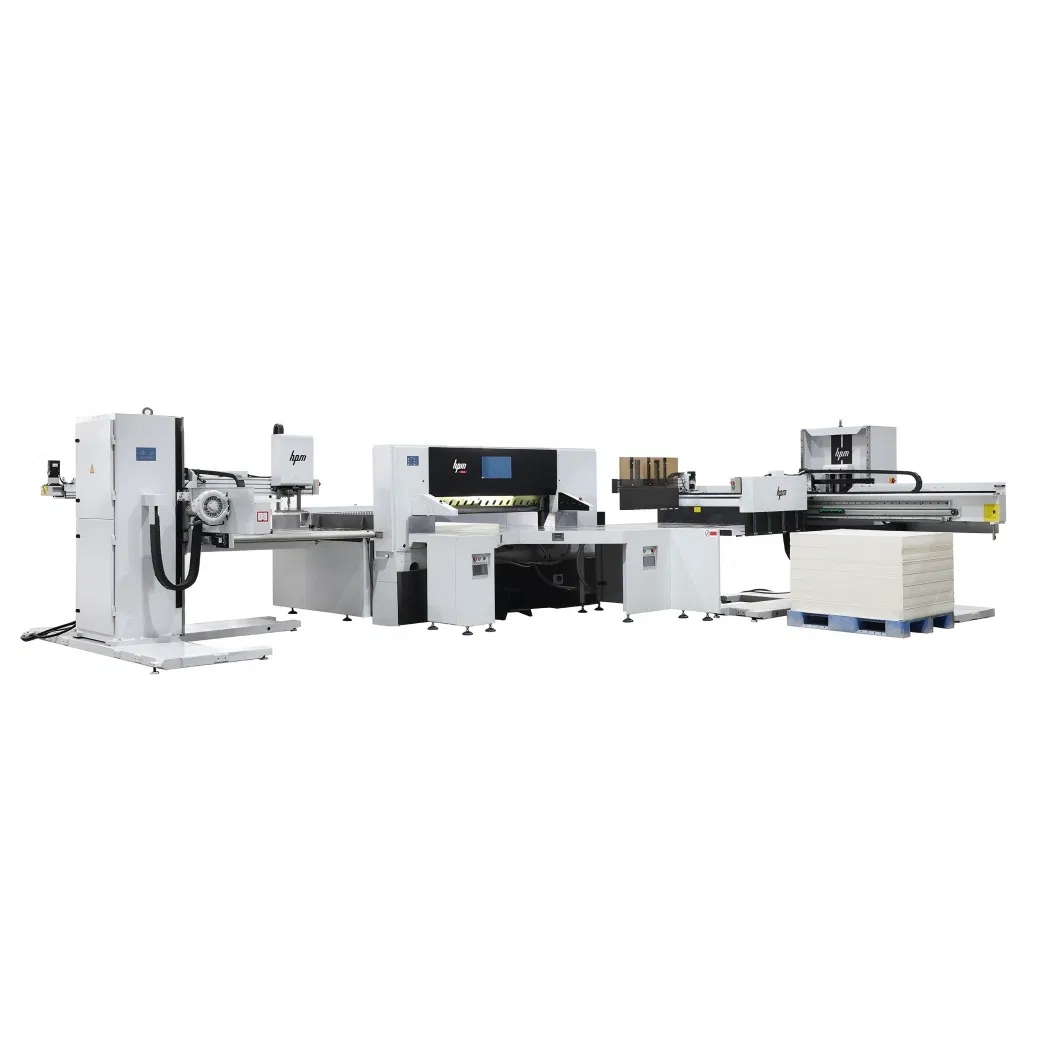

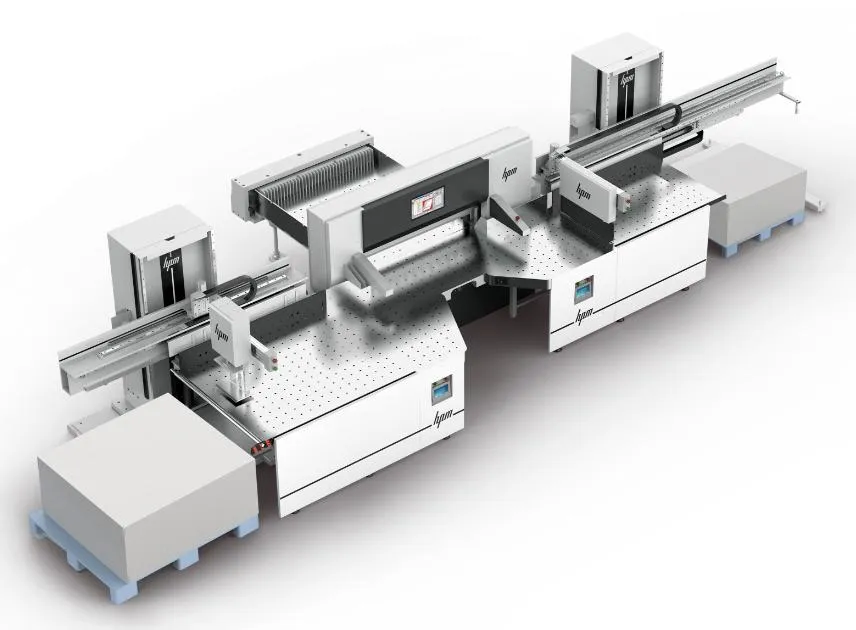

1. The cutting line, consisting of paper picker, paper cutter, paper unloader, etc. The whole set of cutting line is designed to be efficient and reasonable with smooth flow, applying many patented technologies to achieve automatic paper picking, efficient paper cutting and automatic paper unloading, and paper picking and unloading can be done simultaneously to maximise production efficiency and significantly reduce labour costs. With the latest industrial LCD touch screen, the efficiency of the cutting system reaches a whole new level.

2. The 137G cutting line, with a cutting height, pick-up height and unloading height of 210mm, is more productive than the normal 165mm height, giving it a significant advantage in terms of staff efficiency and high volume work.

3. The cutting lines can perform perfectly in terms of efficiency, speed and streamlining of personnel. The front loading cutting line can automatically transfer the paper stack to the working platform, and the finished unloading stack can go directly to the downstream printing machine, saving the printing machine pre-loading staff.

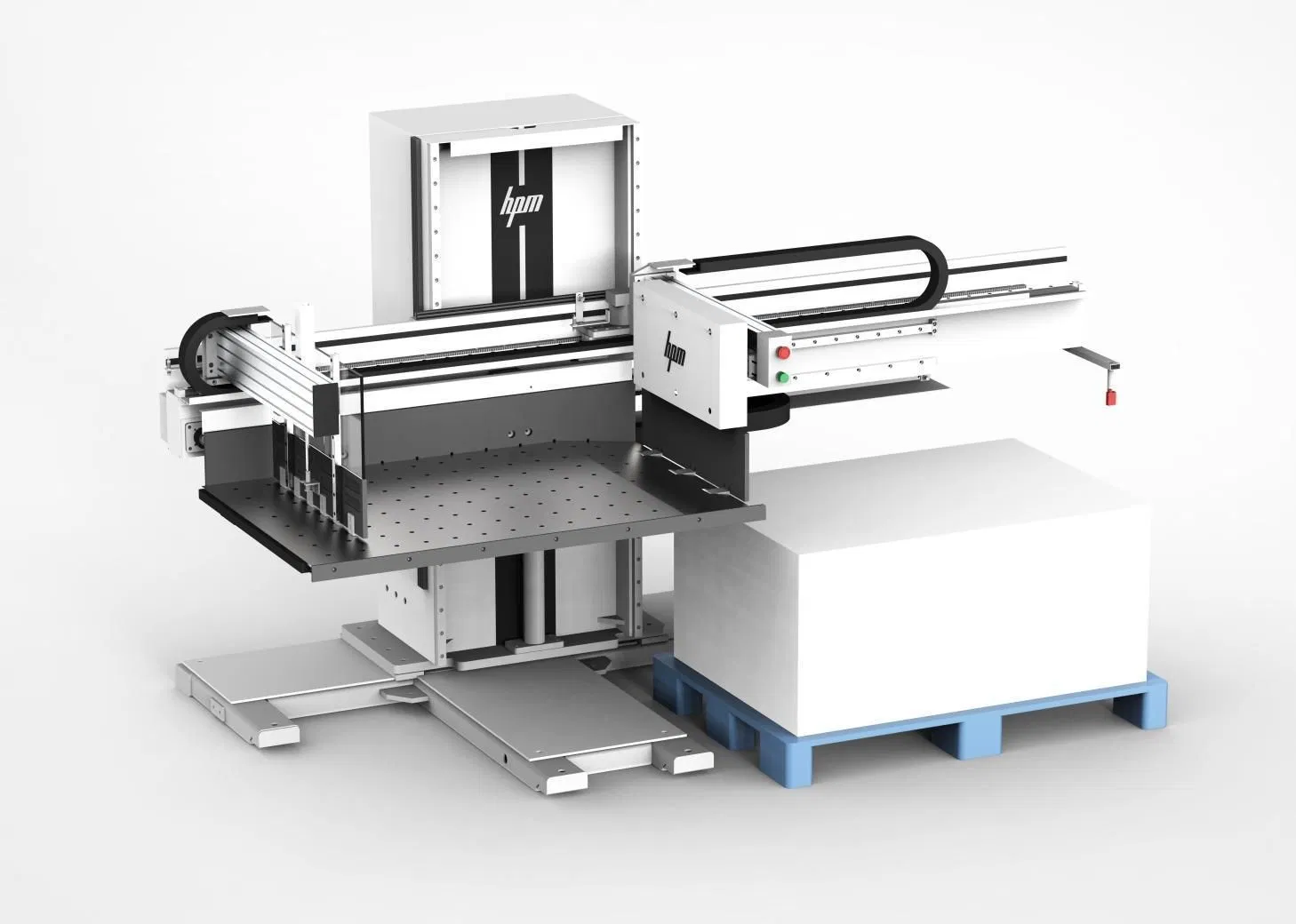

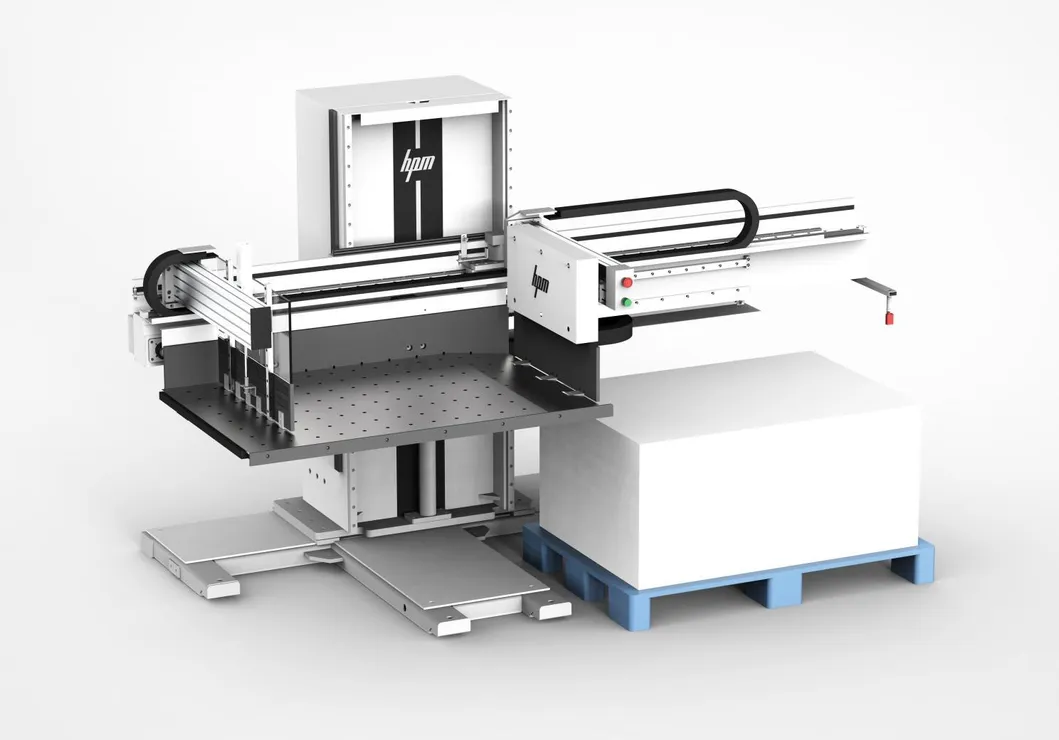

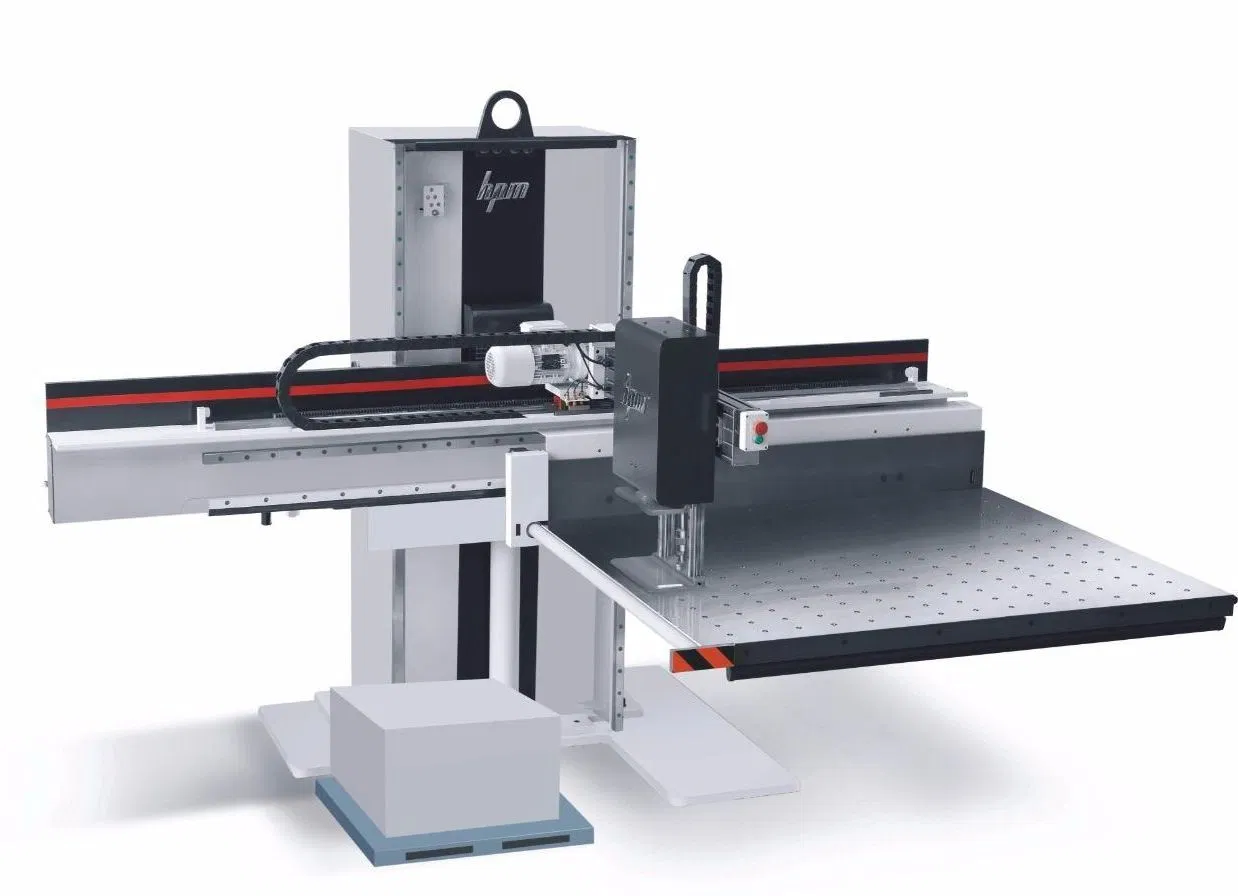

1. LOADER

CONFIGURATION LISTING (LOADER)

No.	Name	Brand, specification & model
1	Sensor	FOTEK
2	Air Switch	TE
3	AC Contactor	TE
4	Button	TE or Eton
5	Platform servo motors	Platform Walking(Inovance)
6	Servo Driver	Walking Control(Inovance)
7	Servo motor	Pick-up part(Inovance)
8	Photoelectric Sensor	Detecting the height of paper stacks(LEUZE)
9	Switch Power	TE
10	Power Switch	CANSEN
11	Miniature Relay	TE
12	Combination valves	Hydraulic Part(WAISN)
13	Air cylinder	Catch paper part(AirTAC)
15	Linear Guider	High accurate linear guides
16	Display screens	MCGS
1	Sensor	FOTEK
2	Air Switch	TE
3	AC Contactor	TE
4	Button	TE or Eton
5	Platform servo motors	Platform Walking(Inovance)

TECHNICAL PARAMETER (LOADER)

Model	QZ1450F
Loading Pattern	Front loading paper
Plate Size (W×L) mm	1300×1600
Max.loading size (W×L) mm	1100×1280
Min.loading size (W×L) mm	450×560
Max.loading height mm	165
Max.Stacking height (with plate) mm	1600
Min. table height from the floor mm	150
Max.loading weight Kg	350
Pressure setting MPa	0.6
Air Demand MPa	0.6
Air supply consumption L/min	3
Rated voltage V	380/220
Power supply mode	Three-phase five-wire system
Gross Power Kw	5
Min.grams of paper g	50
Loading Time S	25-40
Net Weight KG	1850
Gross Weight KG	1950
Machine Size (W×L×H) mm	2773×2323×2060
Packing Size (W×L×H) mm	2700×2280×2380

Note: The stacking angle should be adjusted for different paper types, which may result in slight variations in the maximum pick-up size.

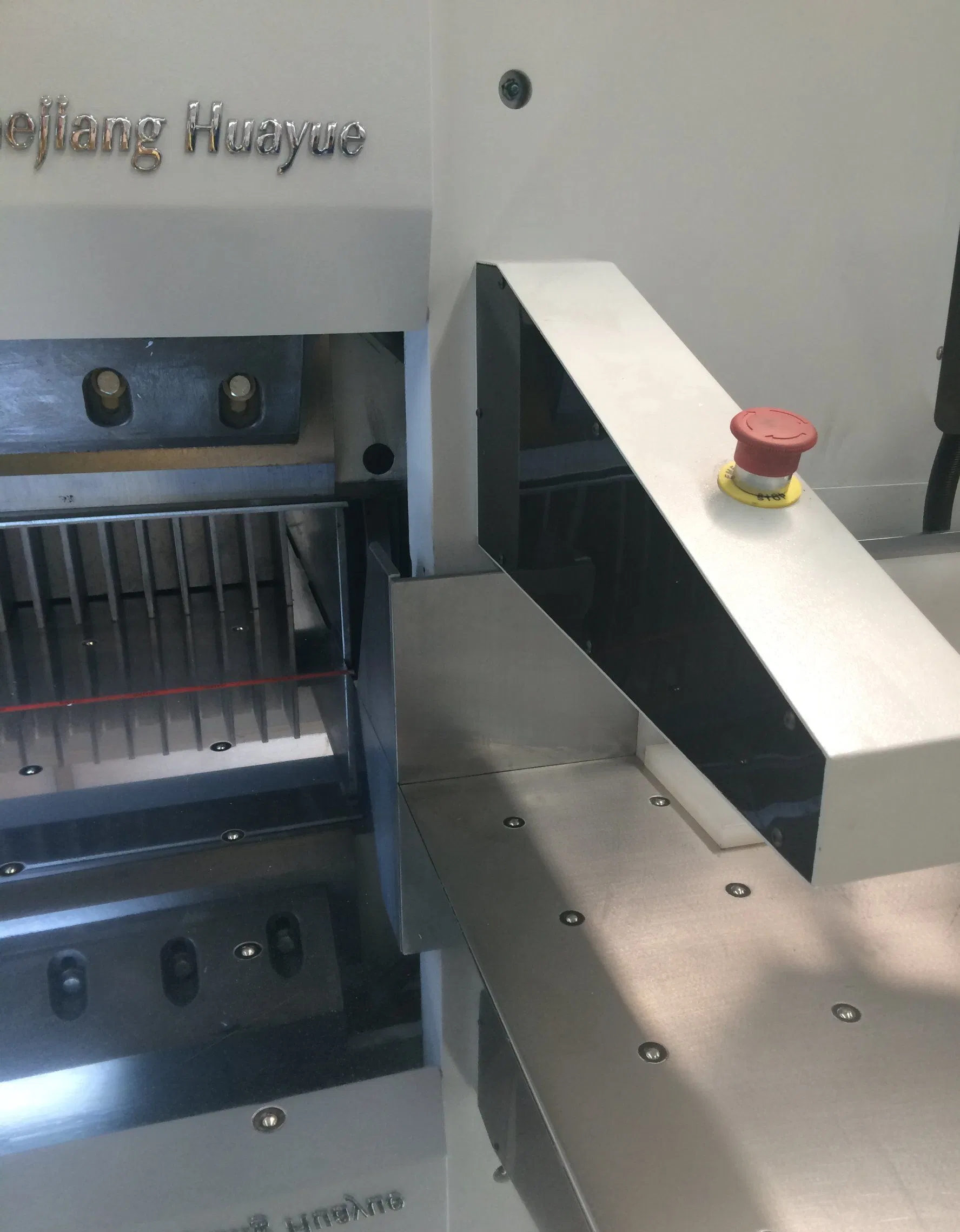

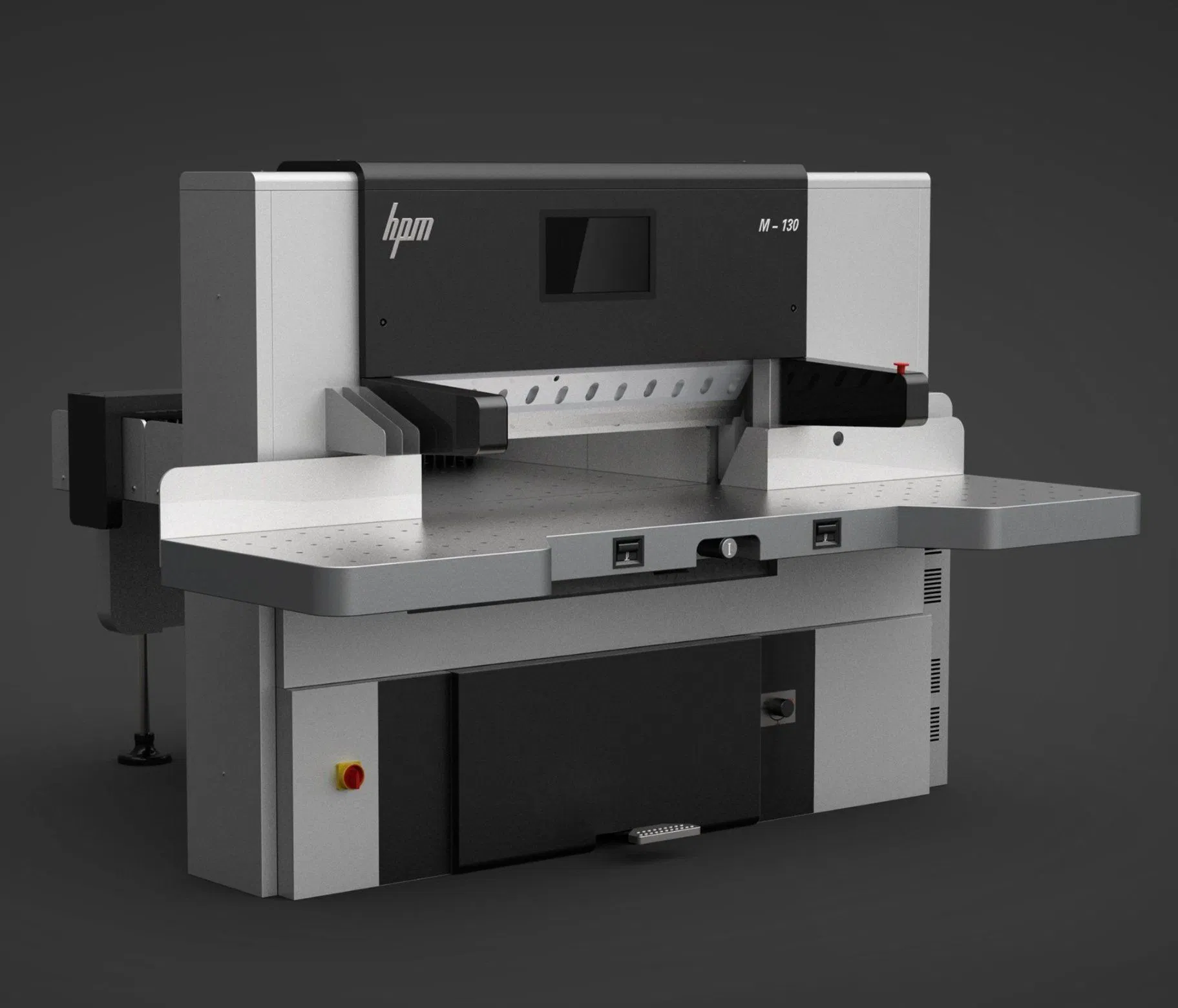

2. Paper Cutter

CONFIGURATION LISTING (CUTTER)

No.	Name	Brand, specification & model	Origin of brand
1	Background LCD	16''/19'/22'Color touch Interface	China
2	PLC	Inovance	China
3	Backgauge position motor	Inovance servo motor	China
4	Pick-up	Autonics	Korea
5	Limit switch	TE	France
6	Guarding motor	TE	France
7	Air switch	TE	France
8	AC Contactor	TE	France
9	Miniature relay	TE	France
10	Switching power supply	TE	France
11	Power switch	CANSEN	China
12	Press-button	TE	France
13	Ball screw	High accurate	China
14	Linear guider	High accurate double linear guides	Taiwan
15	Hydraulic system	Combination Valve	Germany
16	Oil Pump	HP	Italy
17	Bearing	NSK	Japan
18	Work Table	Slotless and plated chromium work table	China
19	Photocell	Allen-Bradley	China
20	knife	HSS	China

TECHNICAL PARAMETER (CUTTER)

Model	Unit	137
Max.Cutting Width	cm (inch)	137 (53.9)
Max.Cutting Length	cm (inch)	145 (57.1)
Max. Cutting Height	mm (inch)	165 (6.5)
Min. Cutting Size (without false clam plate)	mm (inch)	30 (1.2)
Min. Cutting Size (with false clamp plate)	mm (inch)	90 (3.5)
Front Table Length	cm (inch)	73 (28.7)
Max.Clamp Pressure	N	45000
Max. Cutting Speed	time/min	46
Main Motor	KW	4
Net Weight	Kg	4100
Gross Weight	Kg	4500
Packing Size (L×W×H)	cm	310×190×210

COMPUTER SYSTEM

16 inch full touch display screen, with program setting.
German operating system is equipped to meet the operating habits of domestic users and guarantee convenient operation;
Mainboard adopted industrial chip imported from Italy;
Highly sensitive of the touch screen has real-time responses;
Equipped with signal amplification function and excellent anti-interference to avoid dimension errors due to drive aging;
Dimension in front of knife will be displayed to facilitate sizes for cutting;
Program storage capacity is 300 programs, each program can store 200 items cutting size.
Computing with four operations, output programs in real time;
Equipment has relative positioning function relative to current position;
With minimal compensation, it can rapidly correct program errors due to paper distortions;
It can rapidly find out user-defined number of cutters;
Each air cushion program can be programmed;
The time of automatic cutting signals can be set up and cancelled; single automatic cutting can be started by inputting a password;
High and low speeds can be manually switched over rapidly;

Machine Performance

Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
Clamp press paper stack through hydraulic system, the spring re-position.
Worm gear drive mechanism, hydraulic clutch, mechanical brake.
Hydraulic system adopts advanced technology, the hydraulic units are ISO approved, Italy oil pump.
One-piece, slotless and chrome-plated cast iron work table is sturdy and easy to maintain.
Import ball screw with double linear guides to drive backgauge.
High safety infrared protection device according to CE standard.
Main electronic units are from famous international brands.

2. Unloader

Model	QZ1450F
Loading Pattern	Front loading paper
Plate Size (W×L) mm	1300×1600
Max.loading size (W×L) mm	1100×1280
Min.loading size (W×L) mm	450×560
Max.loading height mm	165
Max.Stacking height (with plate) mm	1600
Min. table height from the floor mm	150
Max.loading weight Kg	350
Pressure setting MPa	0.6
Air Demand MPa	0.6
Air supply consumption L/min	3
Rated voltage V	380/220
Power supply mode	Three-phase five-wire system
Gross Power Kw	5
Min.grams of paper g	50
Loading Time S	25-40
Net Weight KG	1850
Gross Weight KG	1950
Machine Size (W×L×H) mm	2773×2323×2060
Packing Size (W×L×H) mm	2700×2280×2380

Note: The stacking angle should be adjusted for different paper types, which may result in slight variations in the maximum pick-up size.

Workflow & Details Showcase

Frequently Asked Questions (FAQ)

What components are included in the advanced paper cutting system?

The complete cutting line consists of an automatic paper loader (picker), a high-precision paper cutter, and a paper unloader. It is designed to coordinate loading, cutting, and unloading operations simultaneously to maximize workflow efficiency.

What is the advantage of the 137G cutting line over standard models?

The 137G cutting line features a cutting, pick-up, and unloading height of 210mm. This is significantly taller than the standard 165mm height, which allows for processing larger volumes of paper and greatly improves staff operational efficiency.

What kind of control system does the computerized paper cutter use?

The cutter is equipped with a 16-inch full touch display screen running an advanced German operating system. It features an industrial motherboard chip imported from Italy, real-time signal amplification, and supports up to 300 programs with 200 cutting sizes each.

What safety mechanisms are built into the machine?

Safety is ensured through high-standard infrared photoelectric protection devices conforming to CE safety regulations, along with a mechanical brake and emergency stop functionalities.

Can the system handle different paper types and thicknesses?

Yes. The system is designed to handle paper with a minimum grammage of 50g. For optimal loading, stacking angles and configurations can be adjusted based on the specific qualities of the paper being processed.
