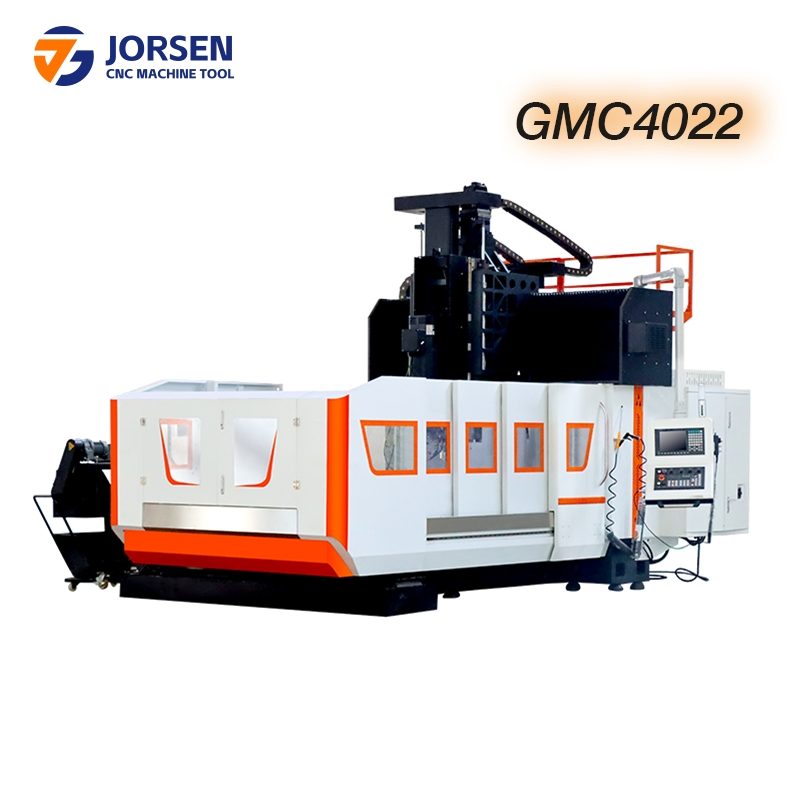

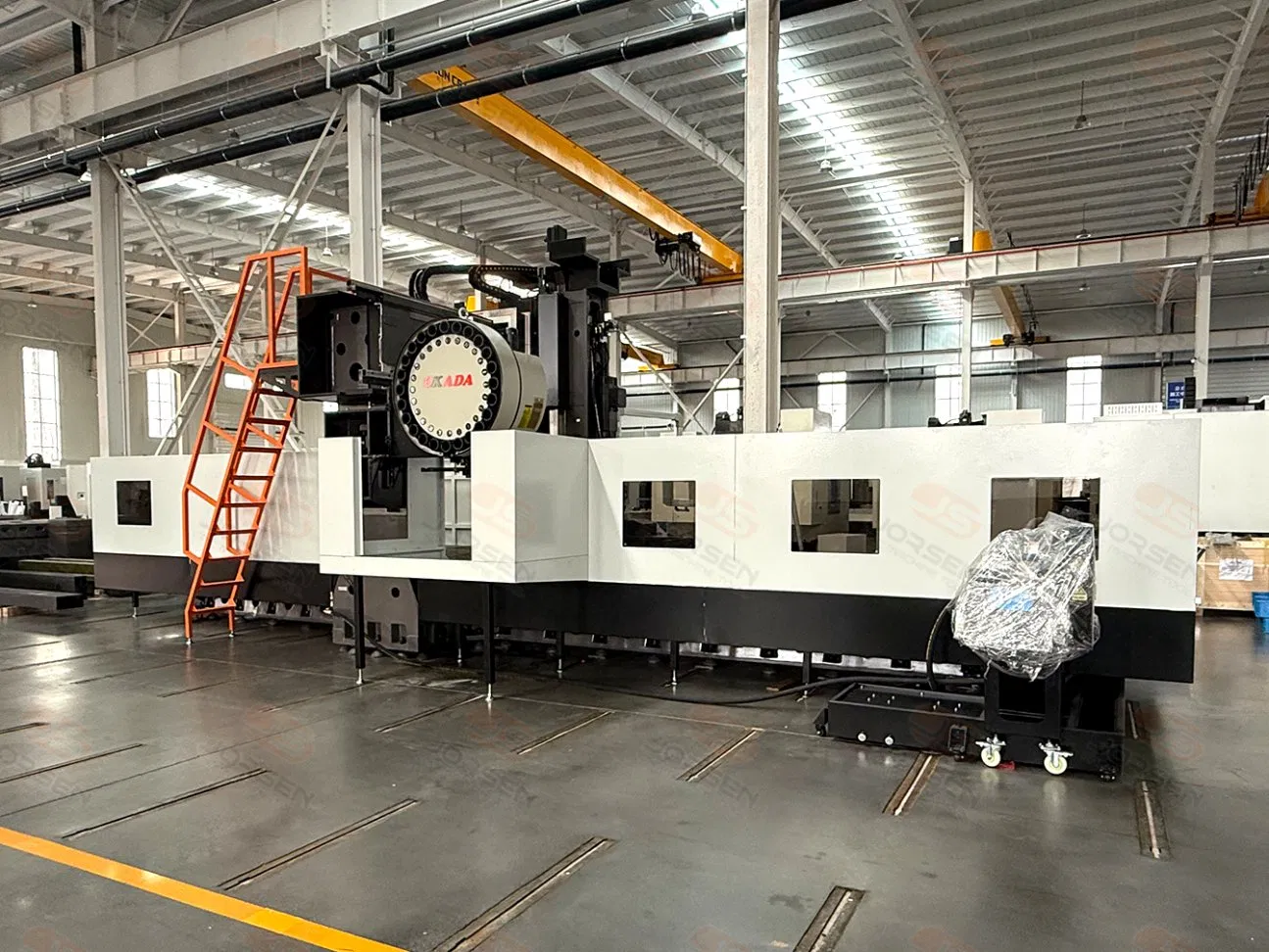

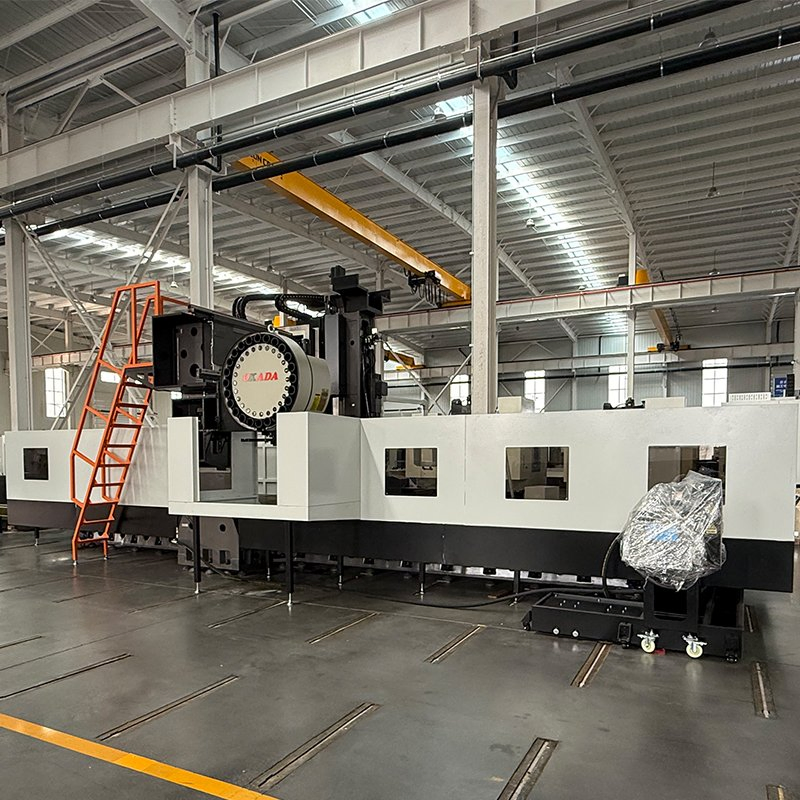

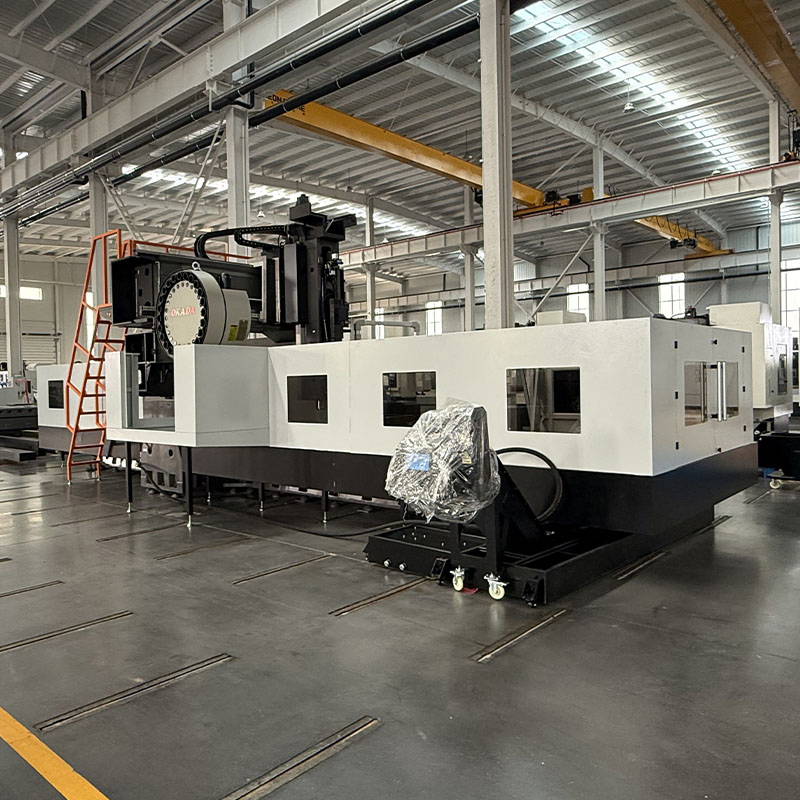

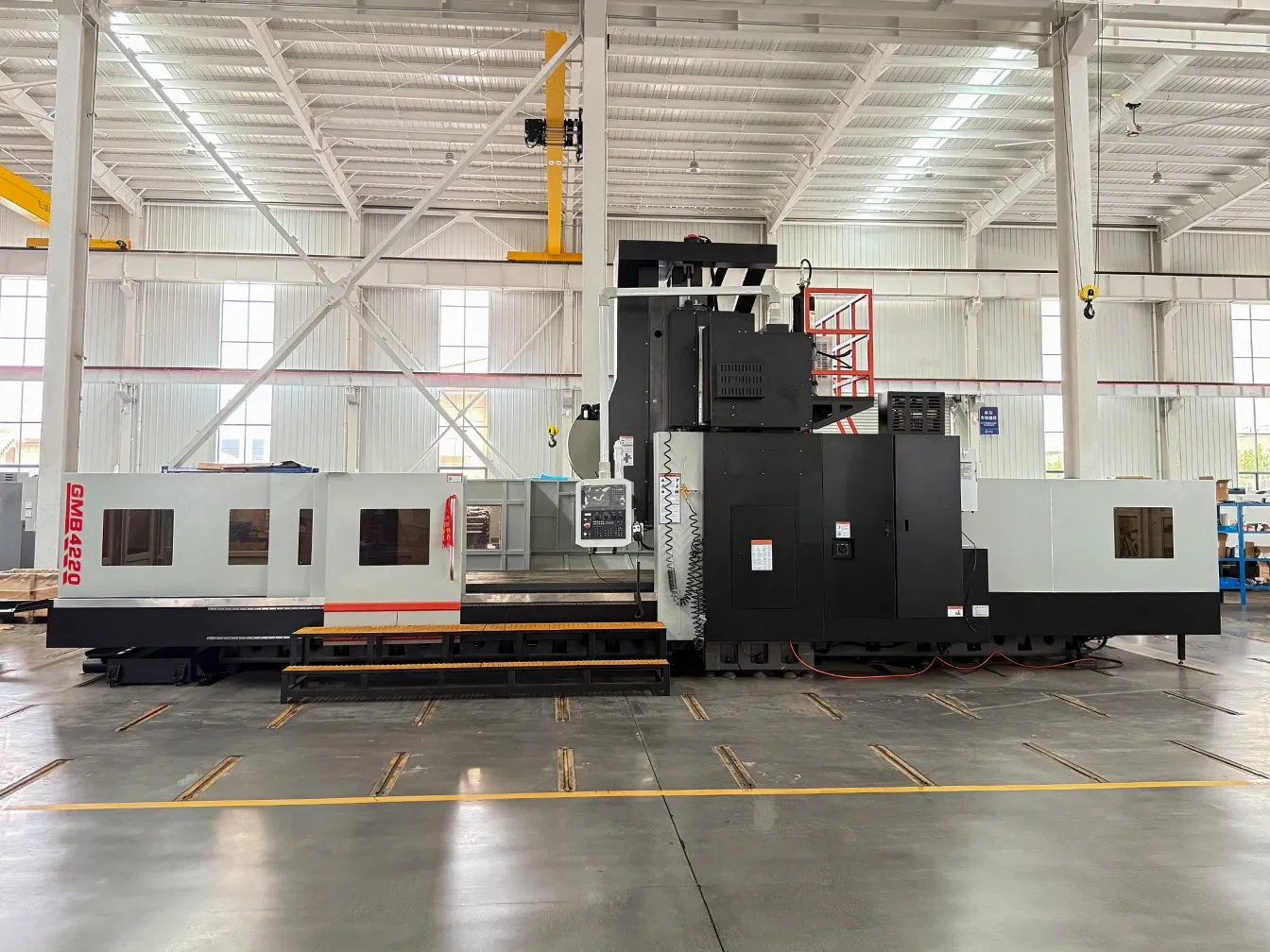

Industrial Grade Gmc4022 Gantry Machining Center Milling Machine with 24 Tools Magazine Taiwan Ball Screws Industry Applications Aerospace Parts Making

After-sales Service:	Support
Warranty:	24 Months
Type:	Gantry Machining Center

Overview

Application:
The GM series CNC gantry machining centers inherit the advantages of traditional gantry machine tools, such as a rigid, symmetrical structure, and stability. Reinforced ribs and a rational layout enhance overall rigidity. They offer a variety of machining functions, including chip milling, boring, drilling (reaming and reaming), and thread tapping. They are widely used in various machining applications, including automotive, mold, aerospace, packaging, and hardware.

Basic Info.

Model NO.

GMC4022

Object

Steel, Cast Iron, Non-Ferrous Metals

Structure

Gantry

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001, EAC

Condition

New

Application

Metal Working - Mold Manufacturing, Alloy Cutting

Customizable

System, Voltage, Spindle, Tool Magazine, Logo

Control System

GSK Knd Fanuc Siemens Mitsubishi Syntec

Table Size

2000*4000

Table Load

12000kg

T Slot(Number-Width*Pitch)

9-28*200

X/Y/Z Axis Travel

4000/2200/1000

Spindle Taper

Bt50

Max. Spindle Speed

6000rpm

Tool Magazine

24 Arm Type Tool Magazine

Positioning Accuracy (mm)

±0.015

Repeatability (X/Y/Z) (mm)

±0.005

Voltage

380V/220V

Main Motor Power

18.5kw

Machine Weight

43000kg

Transport Package

Plywood Case

Specification

12750*5940*5100

Origin

China

HS Code

8457103000

Production Capacity

100 Pieces/Year

Packaging & Delivery

Package Size

1275.00cm * 594.00cm * 510.00cm

Package Gross Weight

43000.000kg

Technical Specifications

Specifications	Units	GMC4022
Table size(W*L)	mm	2000*4000
X axis travel	mm	4000
Y axis travel	mm	2200(Secondary stroke2700)
Z axis travel	mm	1000
Gantry width	mm	2300
Gantry passing height	mm	1400
Table load	t	12
Distance between spindle nose and table surface	mm	280~1280
T slot(number-width*pitch)	-	9-28*200
Spindle taper	-	BT50/200
Spindle speed	r/min	6000
Rapid traverse speed	m/min	12
Cutting feed speed	m/min	8
Main motor power	kw	18.5
Tool magazine	-	Arm24
Positioning accuracy	mm	X/Y 0.0075 / Z 0.015
Repeat positioning accuracy	mm	0.005
Overall dimension(LWH)	mm	1275059405100
Machine weight(about)	t	43

Features:

High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Automatic lubrication system

Details

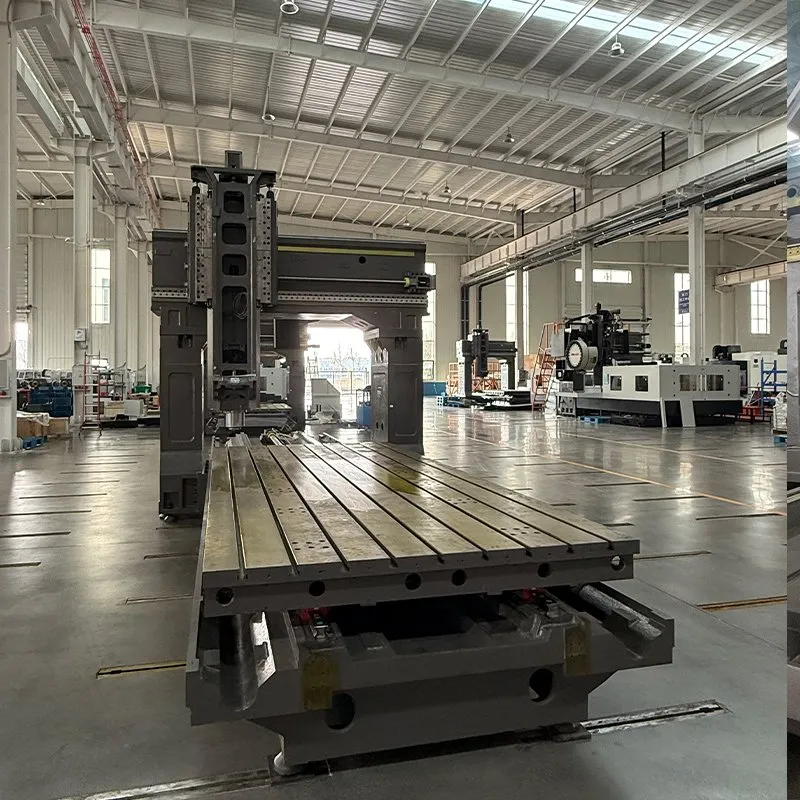

MACHINE CONSTRUCT

High strength high quality HT300 cast iron

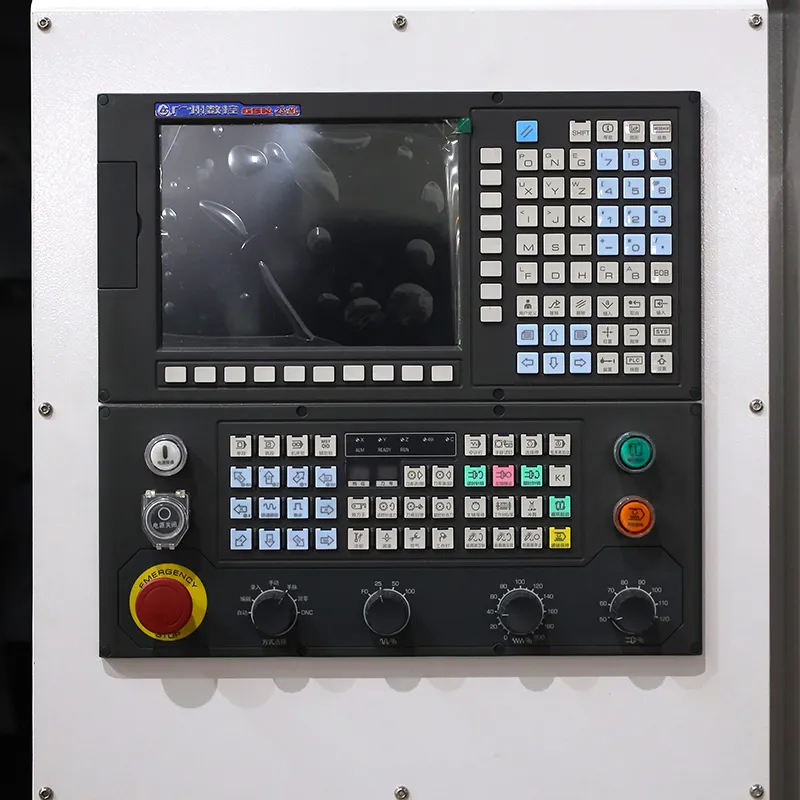

CONTROL SYSTEM

Standard: GSK
Optional: Siemens/ Fanuc/ Syntec/ Mitsubishi

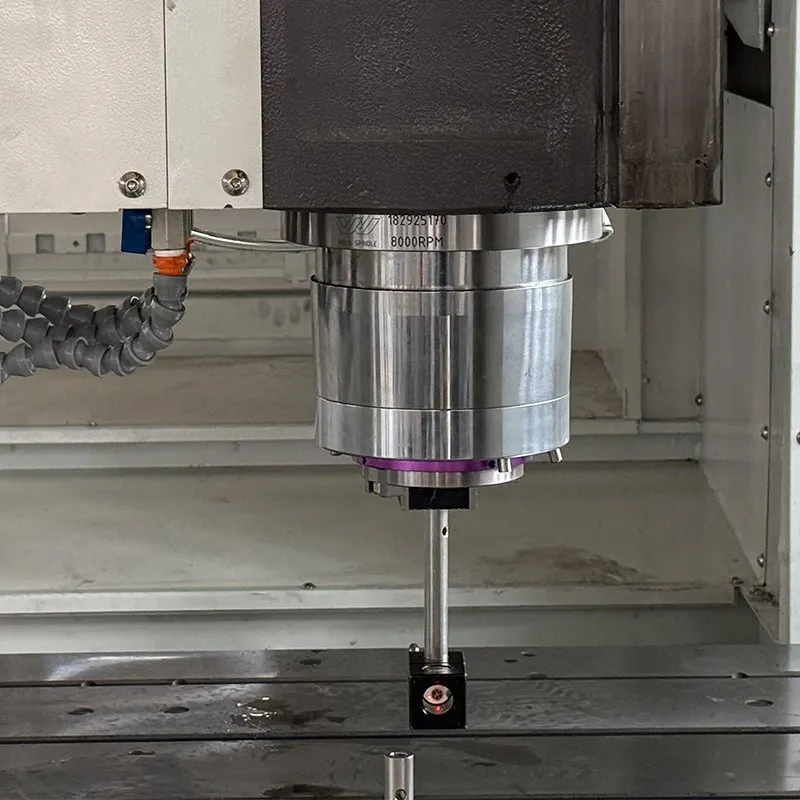

SPINDLE

1. TAIWAN precision spindle
2. BT50 spindle 6000rpm

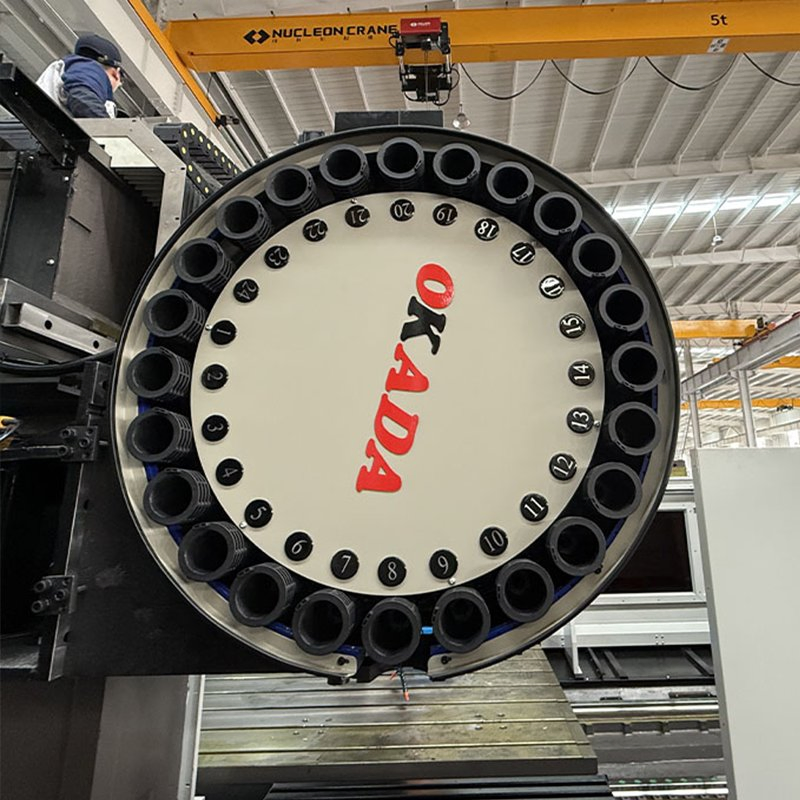

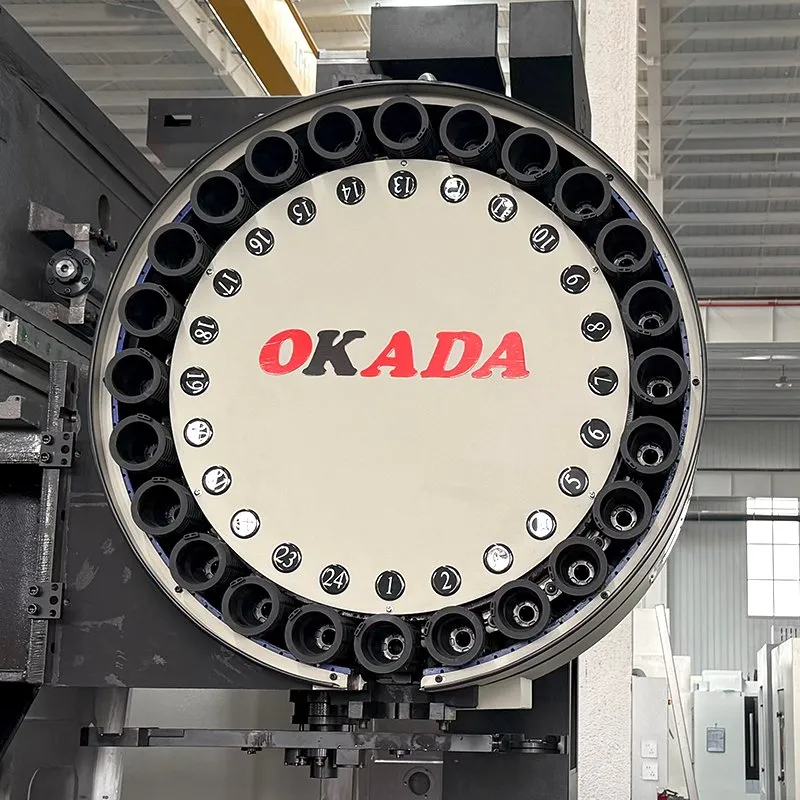

TAIWAN TOOL MAGAZINE

1. Taiwan OKADA arm type 24 tool magazine
2. Tool change time only 3 seconds

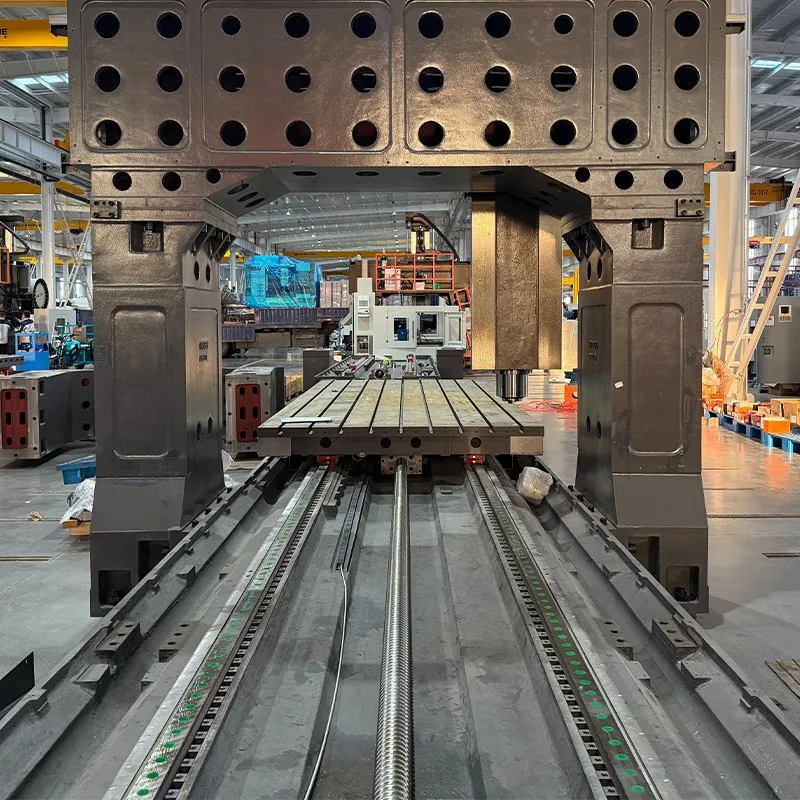

GUIDERAIL

2 axis linear rail and 1 axis hard rail

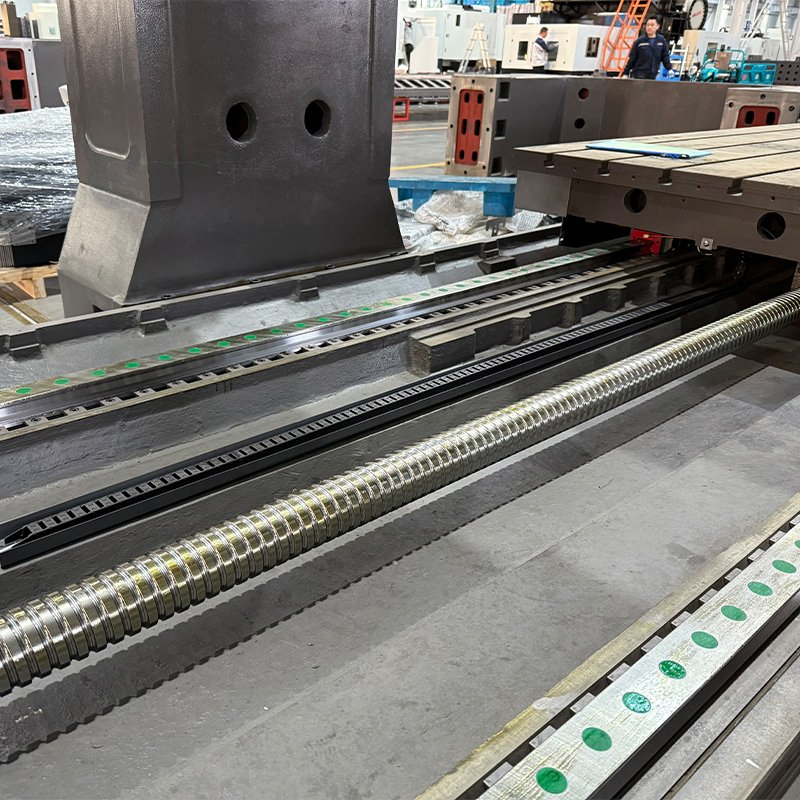

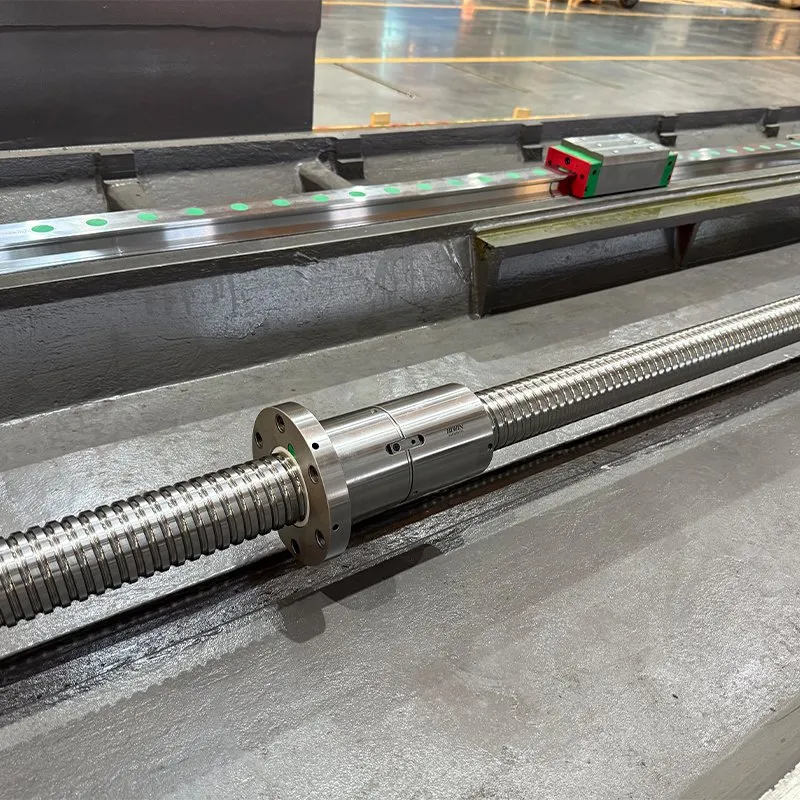

LEAD SCREW

1. Taiwan precision lead screw
2. Imported bearings

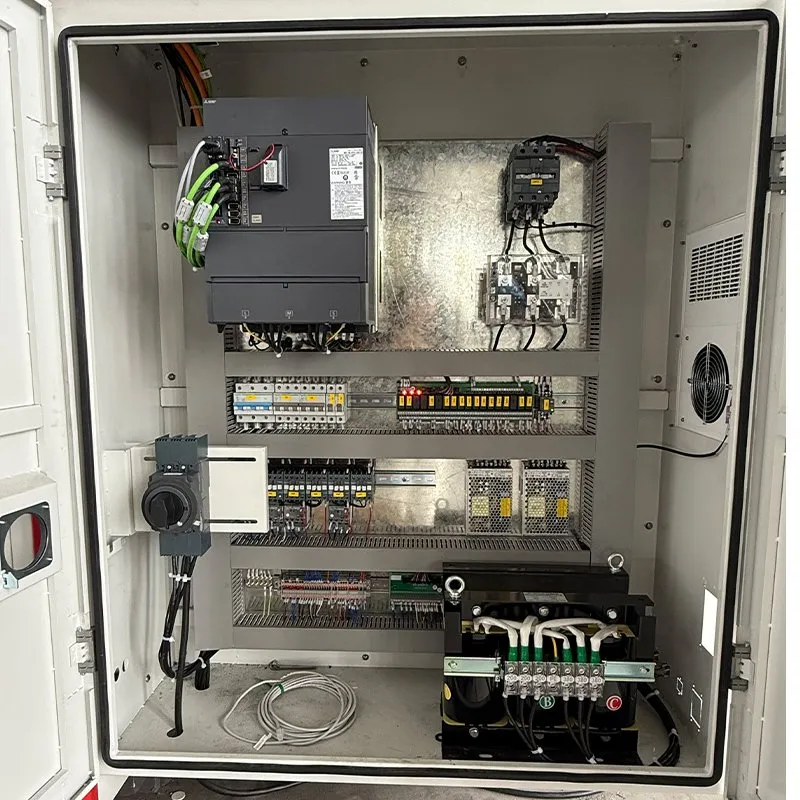

ELECTRICAL COMPONENTS

1. With safety electrical components
2. Quick plug as standard

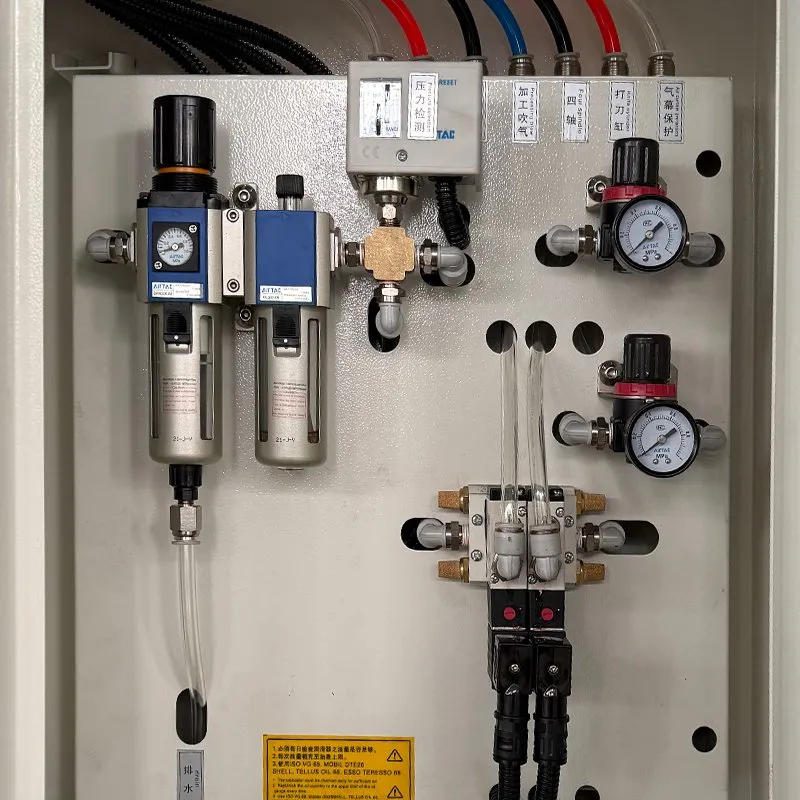

PNEUMATIC COMPONENTS

Standard with AirTAC pneumatic components

Profile & Capabilities

Key Advantages:

20+ years CNC machine manufacture experience factory.
More than 60,000m² of the factory with more than 200 workers.
Strict QC control with more than 24 steps testing processes.
Trade with customers in more than 150 countries around the world.
Cooperate with the famous brand, such as FANUC, SIEMENS, SYNTEC, etc.
24 hours online service at any time.
Support ODM & OEM.

Packaging & Shipping

After Sales Service

Services Provided:

The standard warranty period is 18 months. Some models can be extended to more than 24 months.
Technical support by phone, e-mail, whatsapp and skype. If you have any problems, we will solve it within 12 hours.
You will be get free training advice towards our machine in our factory.
If you need any component of the machine, we will provide the best price for you.
