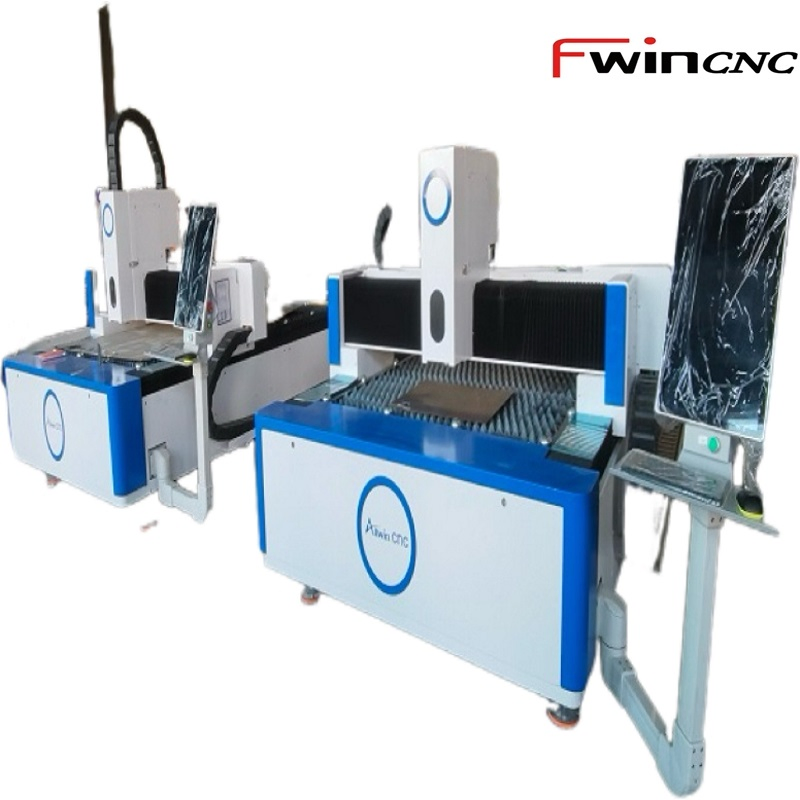

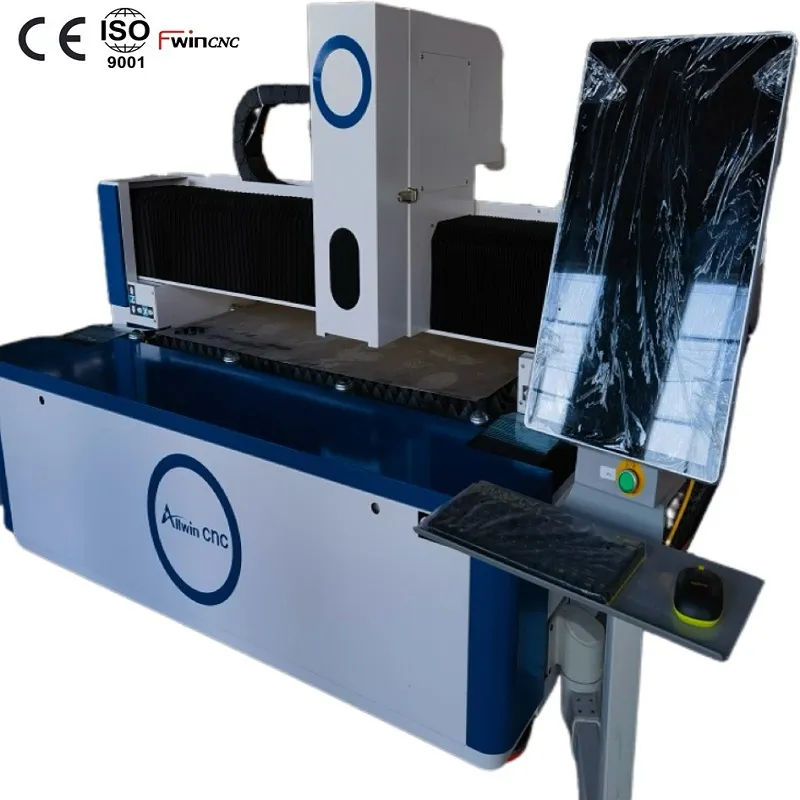

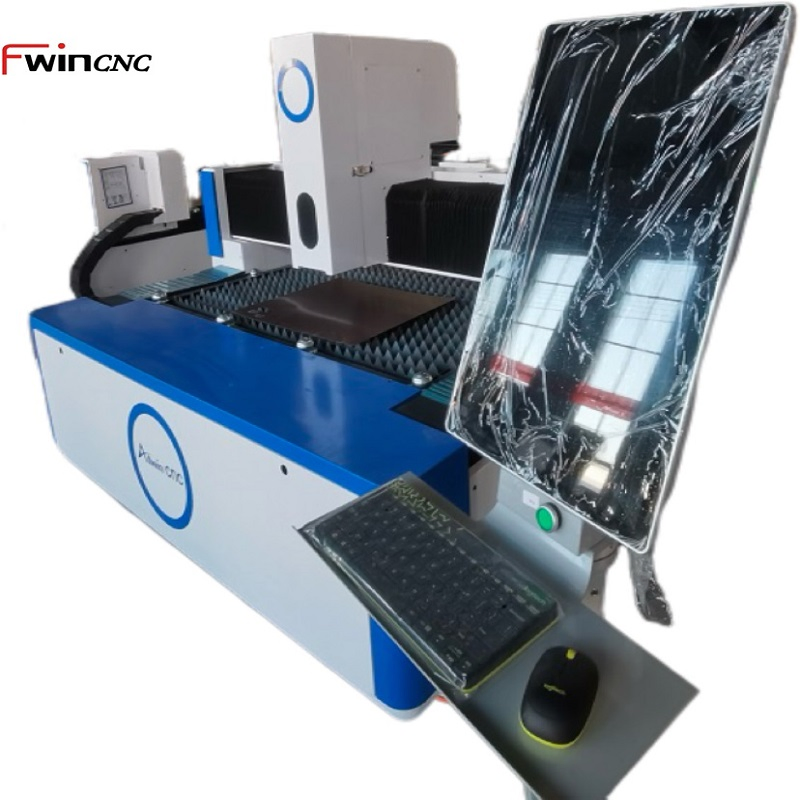

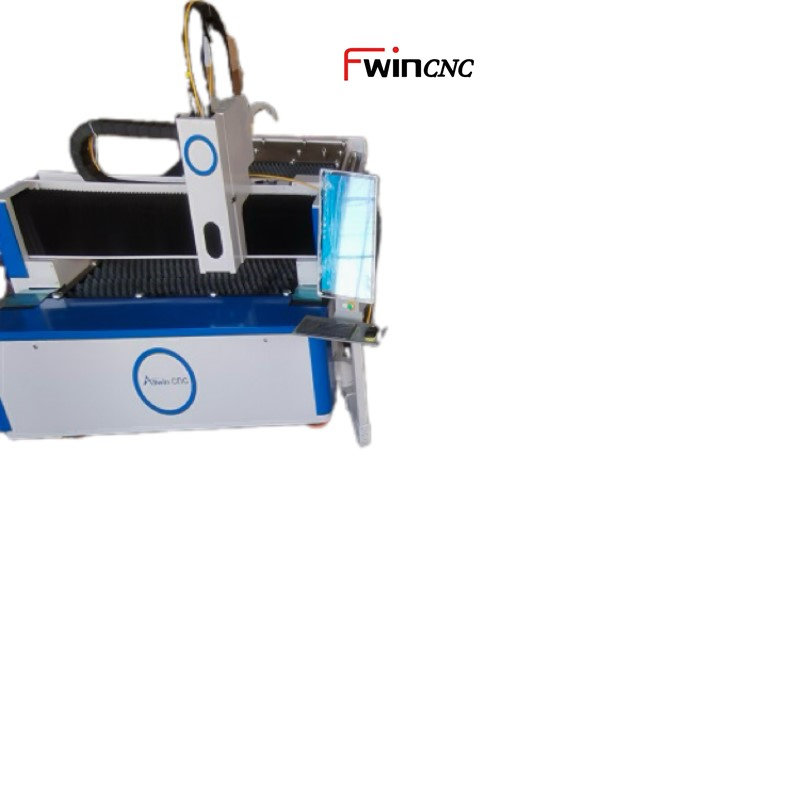

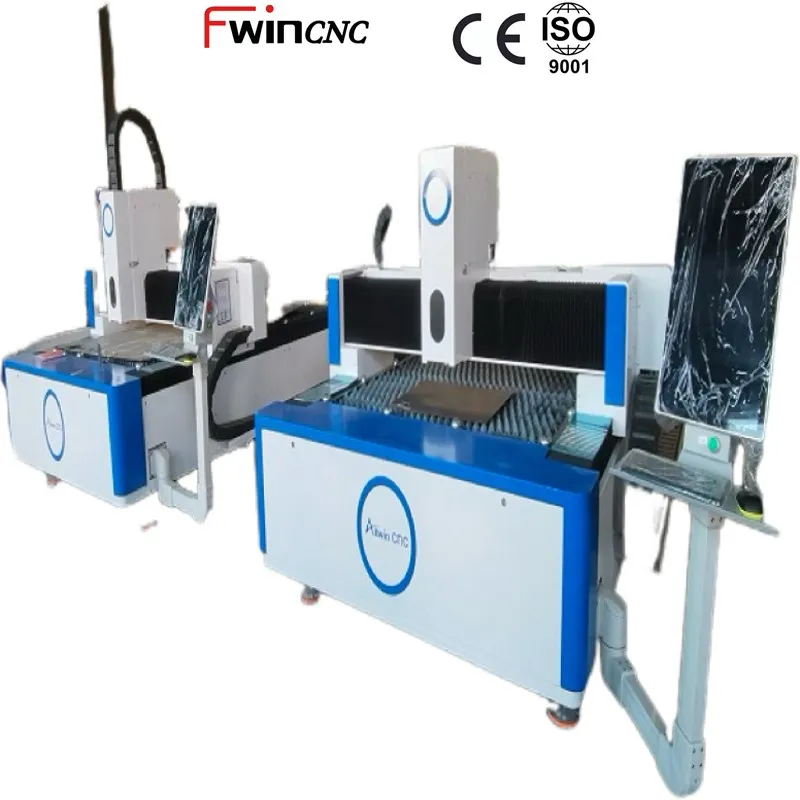

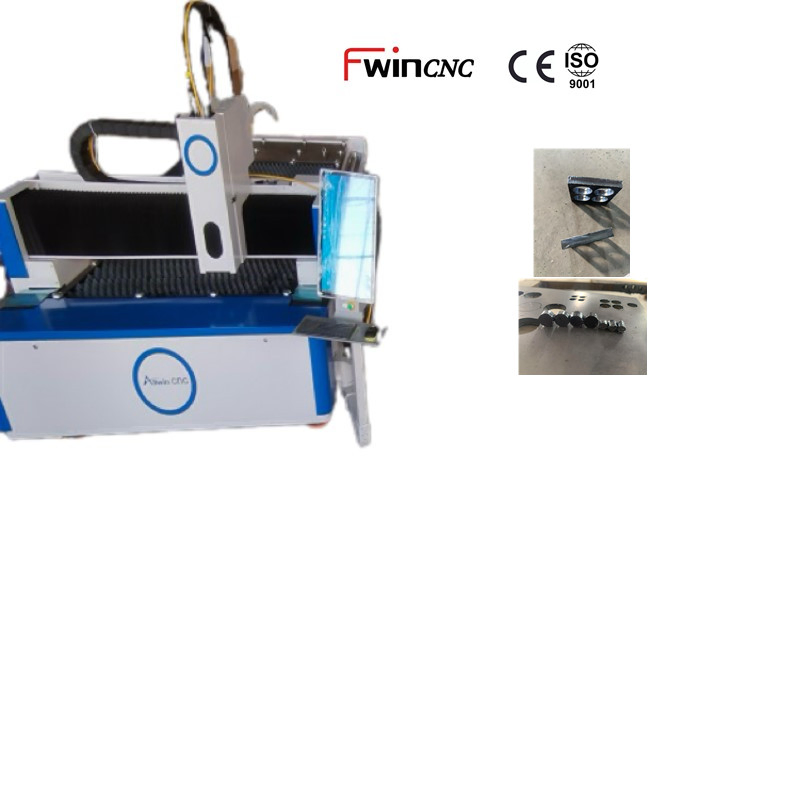

Fwincnc Prodigyx High Precision Industrial Laser Cutting System

Customization:	Available
After-sales Service:	Online and Factory Training
Warranty:	2 Years

Basic Info.

Model NO. 3015

Application Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry

Cooling System Water Cooling

Technical Class Continuous Wave Laser

Applicable Material Metal

Structure Type Desktop

Laser Classification Gaseous Laser

Laser Technology Laser Flame Cutting

Fiber Laser Portable Fiber Laser Cutting Machines

Machinery Heavy Duty 2000W CNC Laser Cutter

Mode of Operation Continuous Wave

Applicable Industries Metal Processing and Cutting

Laser Head Raytools Ipg Max

Software Cyput Software

Working Area Customized

Machinery Name CNC Stainless Sheet Metal Fiber Laser Cutting Mach

Metal Cutter Fiber Laser

Fiber Laser Source 1500W/2000W/3000W Raycus

Material Carbon Steel Stainless Steel

Metal Cutting Machine Fiber Laser Cutter

Motor and Driver Japan Yaskawa Servo Motor

Cooling Mode Water Cooler

Portable Fiber Laser Cutter

Transport Package Wooden Case

Specification 3015

Origin China

HS Code 8456100090

Packaging & Delivery

Package Size 361.00cm * 53.00cm * 53.00cm

Package Gross Weight 300.000kg

Product Description

Comparison between High-Precision Industrial Laser Cutting System and Traditional Cutting Methods

I. Comparison with Plasma Cutting

Precision and Heat-affected Zone: Compared to plasma cutting, the High-Precision Industrial Laser Cutting System offers significantly higher precision. Its heat-affected zone is minuscule, which is crucial for maintaining the material's integrity, especially for heat-sensitive materials. In contrast, plasma cutting has a relatively large heat-affected zone, often leading to distortion in thin plates.
Cutting Slit: The cutting slit is extremely narrow, typically ranging from 0.08 - 0.15mm. This is much smaller than that of plasma cutting, which usually results in wider slits. A narrower slit means less material waste and more precise cuts, ideal for intricate designs and high-precision manufacturing.
Cost-Efficiency: While the initial investment in the High-Precision Laser Cutting System may be higher compared to some plasma cutting machines, its long-term cost-efficiency is remarkable. It reduces the need for additional post-processing due to its smooth cuts and minimal material waste, ultimately saving on overall production costs.

II. Comparison with Traditional Stamping Forming

Mold-free Operation: Traditional stamping forming requires expensive molds, especially for large-scale products. The High-Precision Laser Cutting System eliminates this need entirely. It can directly process according to product drawings, greatly reducing mold-related costs and lead times.
Flexibility in Production: The High-Precision Laser Cutting System offers unparalleled flexibility. Whether it's a small-batch production of customized parts or large-scale manufacturing, it can adapt with ease. In contrast, traditional stamping forming is less flexible and may face challenges in handling frequent design changes.

III. Advantages of High-Precision Industrial Laser Cutting System

Ultra-Smooth Cutting Surface: The cutting surface produced by the High-Precision Laser Cutting System is incredibly smooth, free of burrs. It can handle plates of various thicknesses, from thin foils to thick industrial plates, without the need for secondary finishing processes.
High-Speed Performance: Equipped with advanced laser technology and intelligent motion control, the High-Precision Laser Cutting System achieves rapid cutting speeds. This significantly boosts production efficiency, allowing for faster turnaround times in manufacturing projects.
Versatile Material Compatibility: It can cut a wide range of materials, including metals (such as stainless steel, aluminum, and titanium), non-metals (like acrylic, wood, and plastics), and composites. Its adjustable power settings and optimized cutting algorithms ensure consistent and high-quality results across different materials.
Ideal for New Product Development: For new product development, the High-Precision Laser Cutting System is a game-changer. Designers can quickly translate their product drawings into physical prototypes in a short time, enabling rapid iteration and innovation in the product development process.

Specification Chart

Features for 1000W 1500W 2kw 3kw Fiber Laser Cutter Fiber Laser Cutting Machine for Stainless Steel Metal

Low cost, laser power consumption only 0.5-1.5kw per hour.
High performance, stability and service lifespan over 100,000 hours, free of maintenance. High speed, high efficiency, thin plate cutting can be over 10 meters per minute.
Automatic height sensor on laser head for uneven pieces.
Imported ball screw and linear guide rail driving system.
Easy and efficient CNC software for fast programming.

No.	Machine Model: Model-1530-2000W
1	Max Working Area	1500mm x 3000mm
2	Packing Dimension	2000mm x 3000mm x 1700mm
3	Laser Source	3000W 2000W 1500W RAYCUS LASER SOURCE
4	Laser Head	Swiss RAYTOOLS with Auto Focus
5	Software	Professional FSCUT2000 with Cypcut software
6	Motor and Driver	Japanese YASKAWA servo motors 850W
7	Reducer	Japan SHIMPO reducer
8	Water Chiller	S&A brand with Dual temperature, dual control
9	Rack and Pinion	Taiwan brand T-WIN rack and pinion
10	Guide Rails	HIWIN GUIDE RAIL
11	Exhaust Fan	Blower Exhaust fan
12	Motor and Driver	Japanese YASKAWA servo motors 850W
13	Air Compressor	YES
14	Voltage Stabilizer	YES

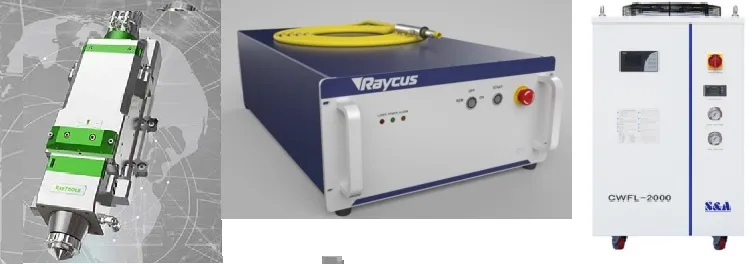

15	Accessories Included	1 SET RAYCUS FIBER LASER SOURCE 2000W
		1 SET RAYTOOLS LASER HEAD(AUTOMATIC FOCUS)
		1 SET WATER CHILLER
		CYPCUT SOFTWARE
		INDUSTRIAL COMPUTER
		FAN
		LASER PROTECTION GLASSES
		FIBER LASER CUTTING BED

Application

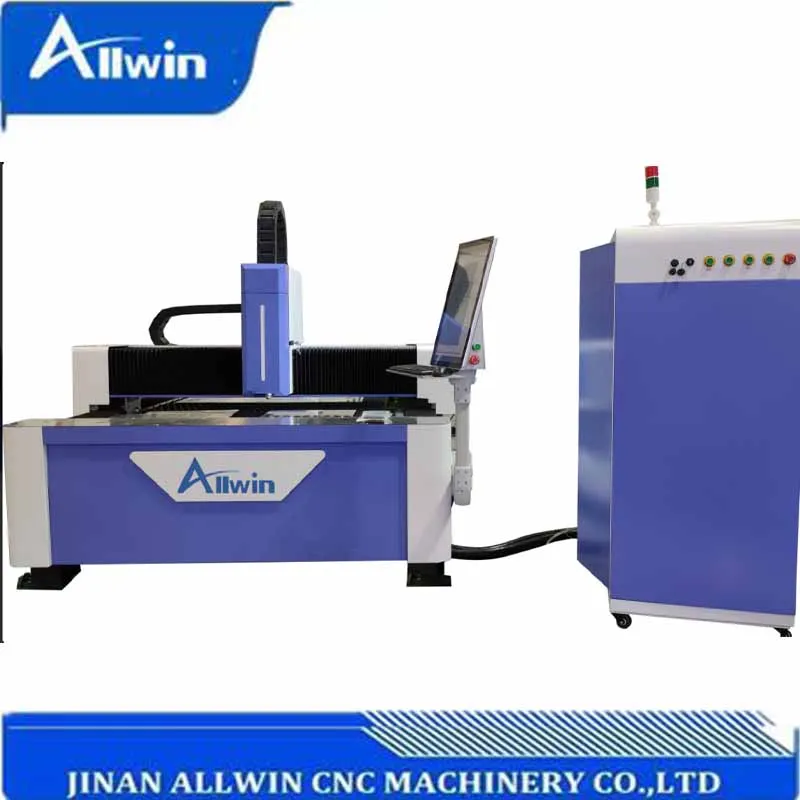

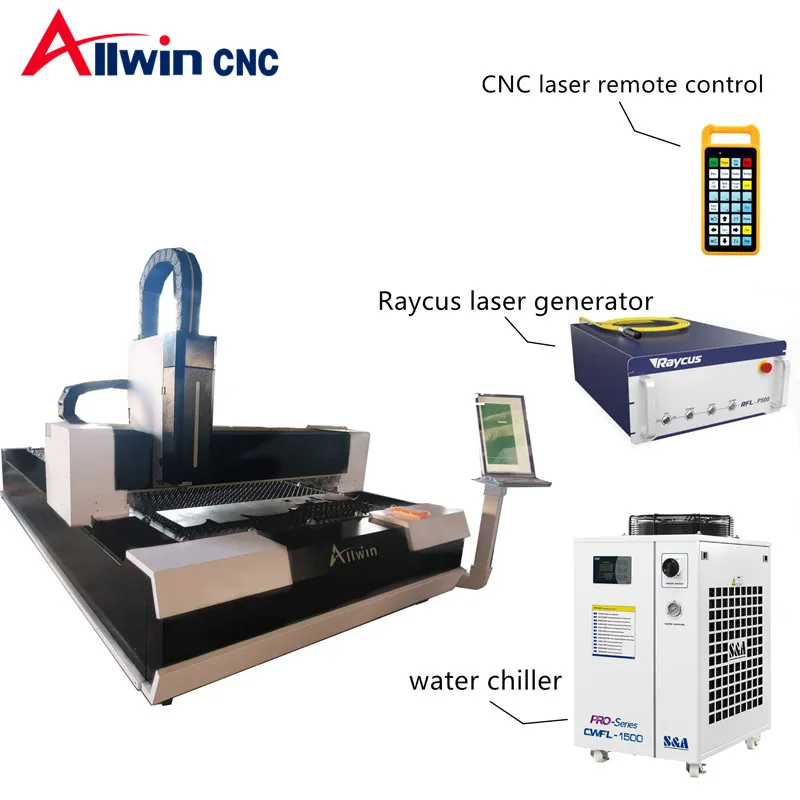

Other Laser Cutting Machines Recommended

Warranty for the machine

Quality Guarantee: Two years quality guarantee for the main parts of the machine, excluding consuming parts. Main parts shall be changed free of charge during the warranty time.
Maintenance Support: Lifelong maintenance for the machine, and lifelong technical support from a sophisticated English-speaking engineer team.
Training: Free training course at our plant.
Replacement Parts: We will provide the machine consuming parts with factory price when you need replacement.
Online Support: 12 hours online service each day, free technical support.

Packaging & Shipping

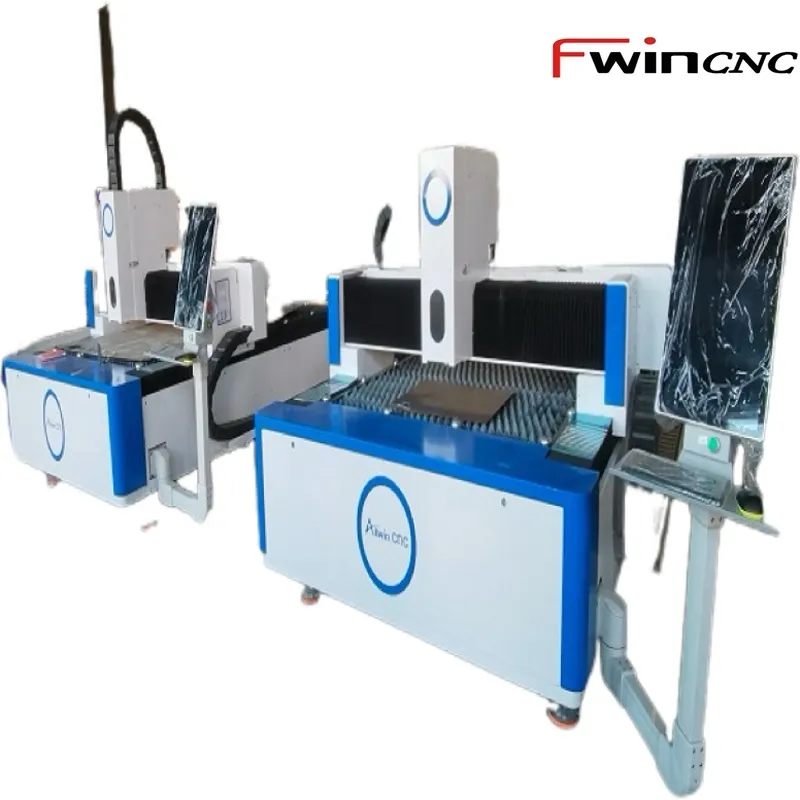

Package and delivery of the fiber laser cutting machine

Anti-collision package edge: All parts of the machine are covered with soft materials, mainly pearl wool.
Fumigation wooden box: Our wooden box is fumigated, saving transport and inspection time.
Whole film packaging machine: Avoids all damage that may occur during delivery. Plastic packaging ensures the soft material is covered intact, avoiding water and rust. The outermost is a wooden box with a fixed template.
Solid iron socket: Located at the bottom of the wooden box for easy handling.

Company Profile

1- Brands and variety of consumables: We produce replacements for major international and Chinese brands, including plasma electrodes, plasma nozzles, swirl rings, plasma shields, and retaining caps. We use high-quality hafnium wire to ensure long service life and good cutting effects. Our products are affordable and deliver excellent performance.
2- Machines: We have specialized in CNC and laser equipment for more than 10 years, providing high-quality products at competitive prices. Our range includes CNC plasma cutters, fiber laser cutters, laser welding machines, laser cleaning machines, and related consumables.
3- Business philosophy: We build long-term relationships with customers rather than developing one-off deals, providing products that help you succeed. Our core commitment is achieving mutual success for customers, stakeholders, and employees through collaboration.
4- Support & Visit: We are sure to have the product you are looking for. We also welcome you to visit our factory!

Frequently Asked Questions (FAQ)

What are the main advantages of this fiber laser cutter compared to plasma cutting?

The fiber laser cutter offers significantly higher precision with a minuscule heat-affected zone, minimizing material distortion. It also features a narrower cutting slit (0.08 - 0.15mm) and offers superior long-term cost-efficiency due to reduced post-processing needs.

Which materials can the High-Precision Industrial Laser Cutting System process?

It is highly compatible with a wide range of materials, including metals (stainless steel, carbon steel, aluminum, titanium), non-metals (acrylic, wood, plastics), and various composite materials.

What features make this machine cost-efficient?

The machine features low operating costs with a power consumption of only 0.5-1.5kW per hour. Additionally, it eliminates the need for expensive molds required by traditional stamping methods, enabling direct processing from drawings.

What is included in the machine's warranty?

The machine comes with a two-year quality guarantee for the main components (excluding consumables). It also includes lifelong maintenance and free technical support provided by an English-speaking engineer team.

How is the fiber laser cutting machine packaged for transport?

The machine is protected using anti-collision pearl wool edge packaging, wrapped entirely in water-resistant plastic film, and enclosed in a fumigated wooden box featuring a solid iron socket at the bottom for easy handling.

What CNC software does the machine use?

The system is equipped with professional, easy-to-use CNC software (FSCUT2000 with Cypcut software) designed for fast programming and efficient operation.
