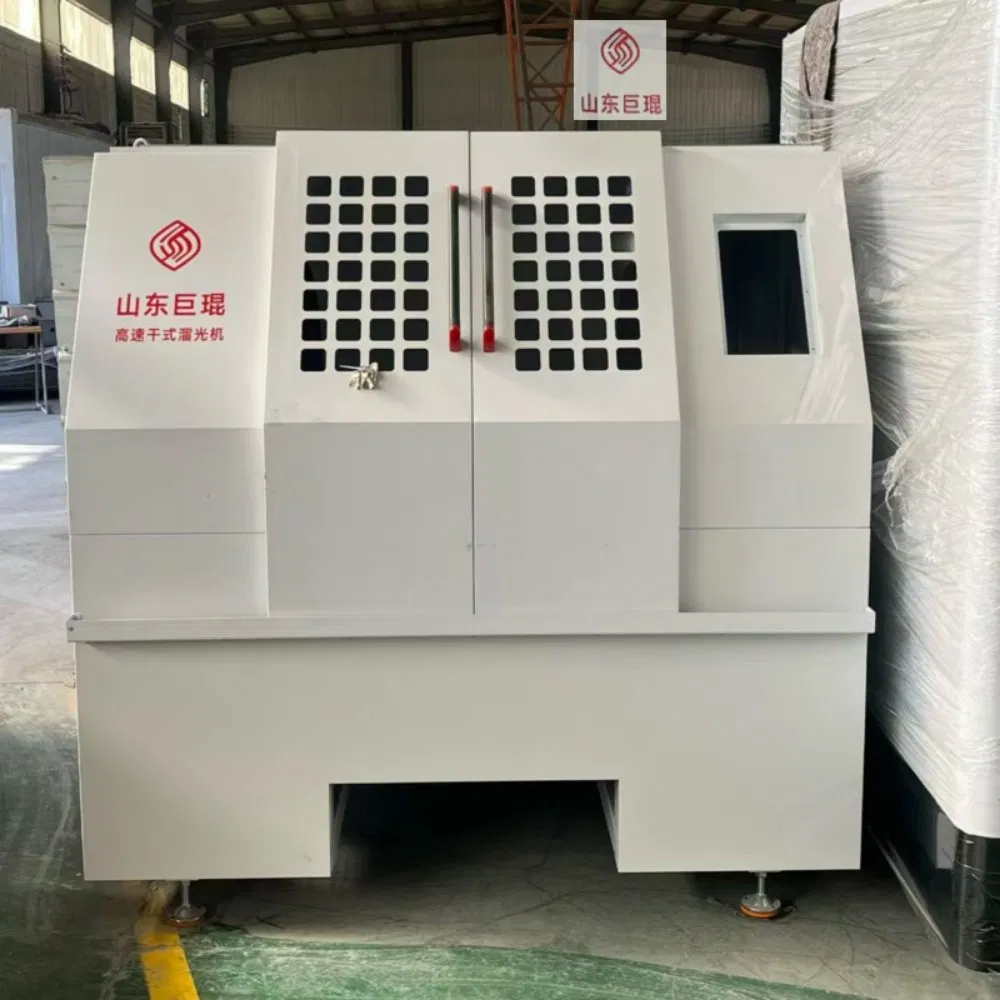

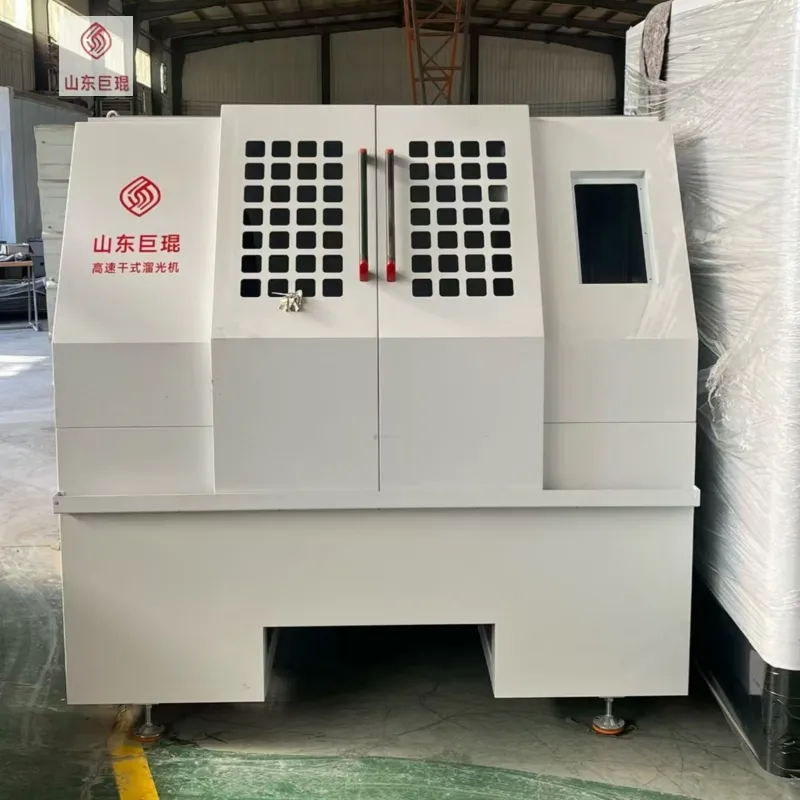

Compact Gt-100 Polishing System with 4 Kw Motor Power

1 / 5

Compact Gt-100 Polishing System with 4 Kw Motor Power

Customization:	Available
Certification:	ISO
Condition:	New

Send Inquiry

Product Description

Overview
Product Introduction
Main Product
Company Profile
Company Advantage
Our Certificate
Exhibition
Package and Shipping

Overview

Basic Info.

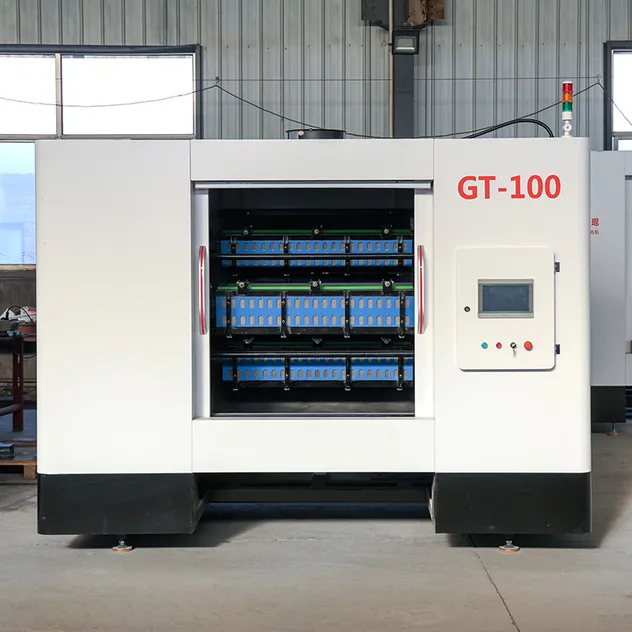

Model NO. Small GT-100

Application Zinc Alloy, Aluminum Alloy, Stainless Steel

Main Motor Power 4 Kw

Auxiliary Motor Power 2.2 Kw

Machine Power Consumption 1.3 Kwh

Spindle Speed 60-120 R/Min

Silo Rotation Speed 6-12 R/Min

Machine Weight 1600 Kg

Machine Dimensions (L×W×H) 1900*1800*1900mm

Minimum Compartments Per Silo 40

Compartment Size 85×45×200 mm

Silo Dimensions 990×180×200 mm

Number of Silos 4

Transport Package Standard Packing

Specification 1900*1800*1900mm

Origin China

Packaging & Delivery

Package Size 190.00cm * 180.00cm * 190.00cm

Package Gross Weight 1600.000kg

Product Description

Key Features

⚡ Multi-Material Compatibility: Suitable for processing zinc alloy, aluminum alloy, stainless steel, copper alloy, and other materials.

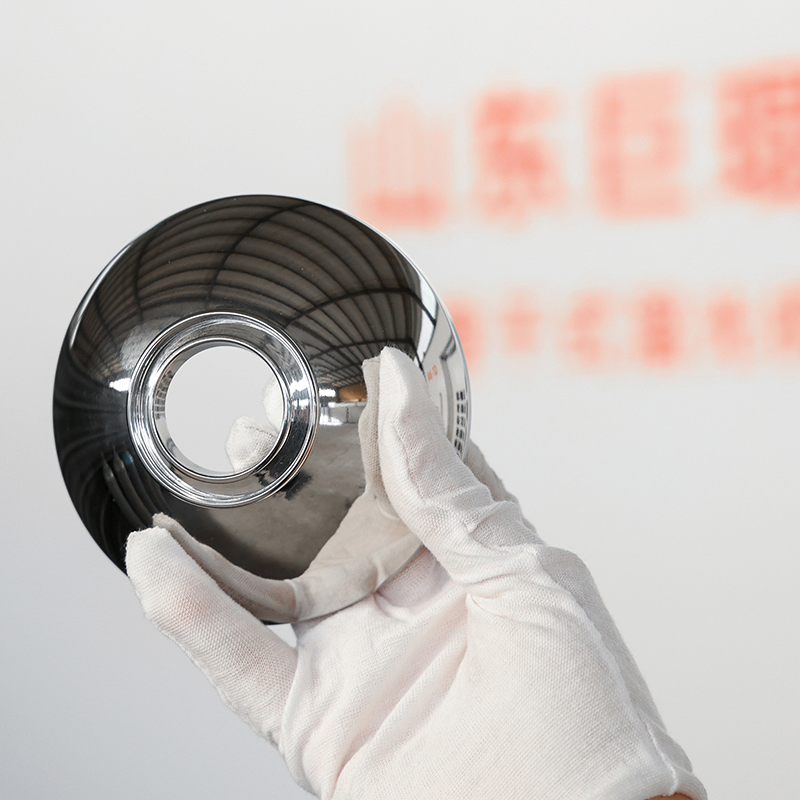

⚡ Comprehensive Polishing Capabilities: Supports deburring, rough polishing, fine polishing, mirror polishing, and other surface treatment processes.

⚡ Easy Operation: No specialized technical skills required; regular employees can start working after just 2–3 hours of training.

⚡ Enhanced Safety: Fully enclosed design with multi-sensor monitoring ensures no personnel contact during production, maximizing safety for both operators and equipment.

⚡ Eco-Friendly Performance: Produces no wastewater or exhaust gases, operates at noise levels below 75 dB, and generates minimal dust. Abrasive consumables are made from biological materials, meeting strict industrial environmental standards.

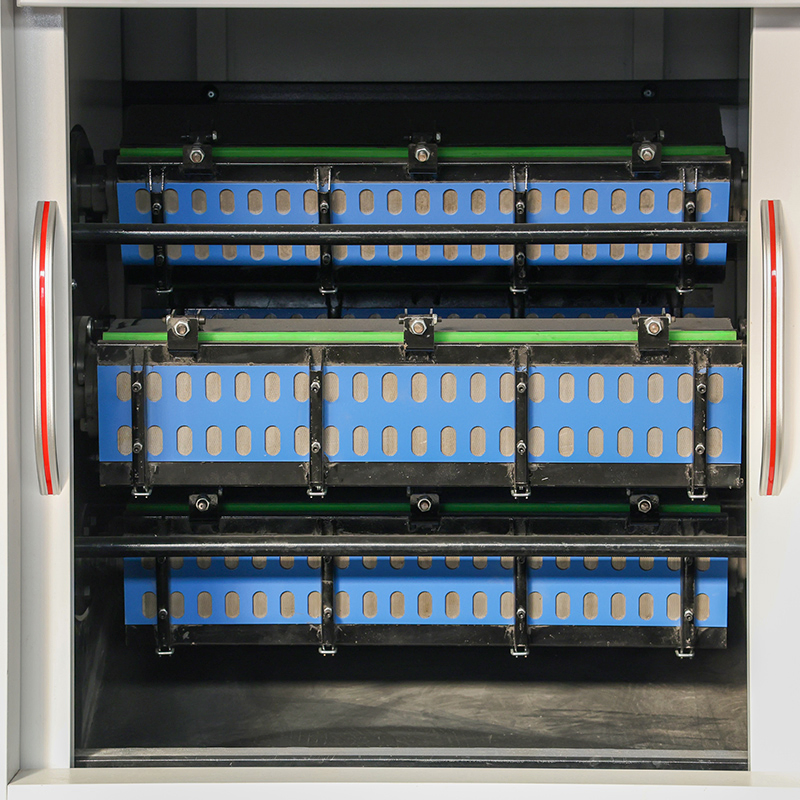

⚡ High Versatility: No need for workpiece clamping. The silo uses movable partition plates, allowing flexible adjustment of compartment sizes to accommodate different product dimensions.

Category	Specification
Main Motor Power	4 KW
Auxiliary Motor Power	2.2 KW
Machine Power Consumption	1.3 KWH
Spindle Speed	60–120 r/min
Silo Rotation Speed	6–12 r/min
Machine Weight	1600 Kg
Machine Dimensions (L×W×H)	1900×1800×1900mm

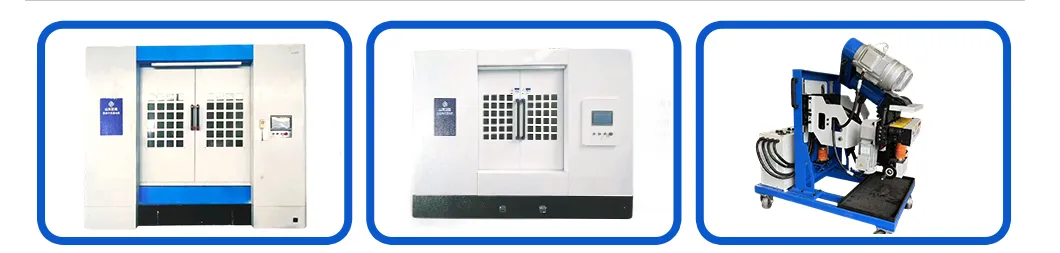

Main Product

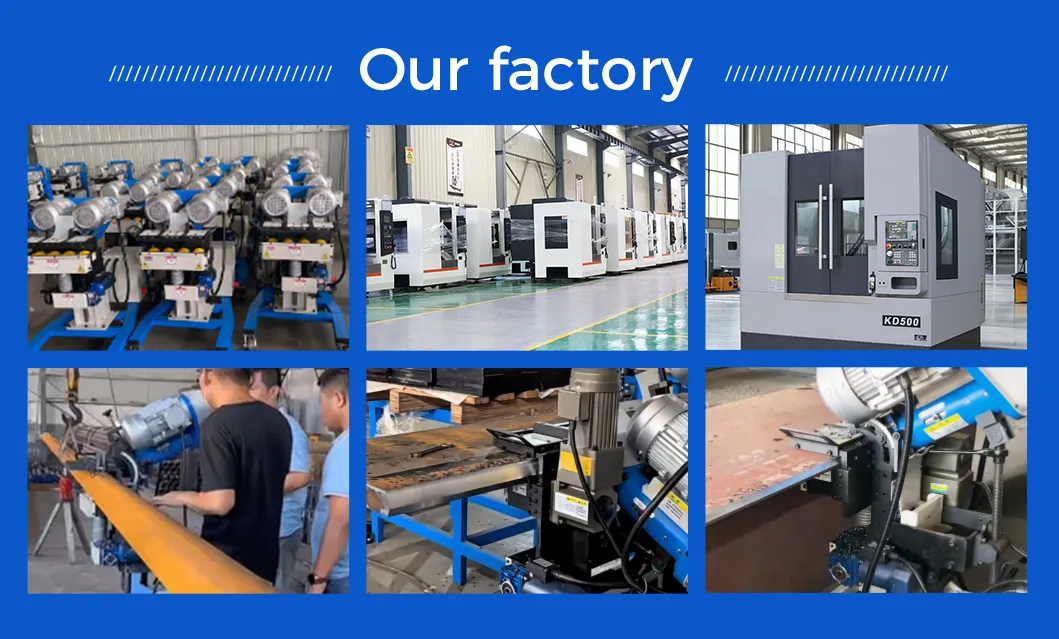

Company Profile

The company was established in 2012 and is located in China's Hardware Machinery Industry City. It is a technology-based entity enterprise dedicated to the research and development, manufacturing, sales and service of polishing equipment. It is a member unit of the Steel Structure Industry Association and has passed the ISO9001 international quality management system certification. The company has strong financial resources and rich experience in polishing machine production. It has also introduced various advanced manufacturing equipment and processing techniques from both domestic and international sources.

The company adheres to a rigorous, pragmatic, pioneering and innovative corporate spirit. Based on the principle of "quality first and customer priority", it upholds the business philosophy of professionalism, concentration and dedication. By following the high-quality and high-tech development path, it has won high praise and recognition from domestic and foreign customers. Our goal is to provide customers with reliable and satisfactory products and services. We sincerely welcome new and old customers to negotiate and cooperate, and jointly achieve a win-win situation.

Company Advantage

Our Certificate

Exhibition

Package and Shipping

Frequently Asked Questions (FAQ)

Q: What materials are compatible with the GT-100 polishing system?

A: The system is designed for multi-material compatibility, making it perfect for zinc alloy, aluminum alloy, stainless steel, copper alloy, and various other metal surfaces.

Q: Does the machine require specialized technical operators?

A: No, it features extremely easy operation. Regular employees can be trained and start operating the machine effectively after only 2–3 hours of basic instruction.

Q: What kind of polishing finishes can this machine deliver?

A: It supports comprehensive surface treatment processes, including deburring, rough polishing, fine polishing, and high-quality mirror polishing.

Q: How does the GT-100 ensure operator safety?

A: The system features a fully enclosed design with multi-sensor monitoring, which avoids any contact between personnel and moving components during production.

Q: Is the machine environmentally friendly?

A: Yes. It generates no wastewater or exhaust gases, maintains operating noise levels under 75 dB, and uses biological material for its abrasive consumables.

Q: Can I process workpieces of different sizes without changing parts?

A: Absolutely. It offers high versatility with no clamping needed. The silos contain movable partition plates, letting you adjust compartment sizes easily to fit different dimensions.
