Industrial Smtcl CNC Wire Cutting and Metal Shaping Equipment System

After-sales Service: 1 Year
Warranty: 1 Year
Type: Horizontal Lathe

Product Description

Overview
Industrial CNC Wire Cutting and Metal Shaping Equipment System
Basic Info.
Model NO.VMC1300H
Processing AccessoryMetal Parts
Guide RailInclined Guide Rail
Tool Holder8-Position Turret Hydraulic
Power SourceElectric
Controlling ModeCNC
Automatic GradeAutomatic
Setting ModeFloor-type
PrecisionHigh Precision
CertificationCE, ISO 9001
ConditionNew
Machine FrameIndustrial Reinforced Structure
Application MaterialIron / Metal Sheet / Industrial Parts
Machine FunctionWire Cutting / Metal Forming
Control SystemCNC Automatic Control
Structure DesignStable Heavy-Duty Body
Operation TypeFully Automatic
Cooling MethodWater Cooling System
Control ModeCNC Digital Control
Automation LevelFull Automatic Operation
Machine DesignStable Rigid Structure
Machine CategoryEDM Wire Cutting System
Production TypeContinuous Industrial Line
Application IndustryManufacturing Plants
Transport PackageSea-Worthy Packing
SpecificationStandard Specifications or Customized
TrademarkSMTCL
OriginChina
HS Code8458101000
Packaging & Delivery
Package Size4700.00cm * 3100.00cm * 3500.00cm
Package Gross Weight12000.000kg
Product Introduction

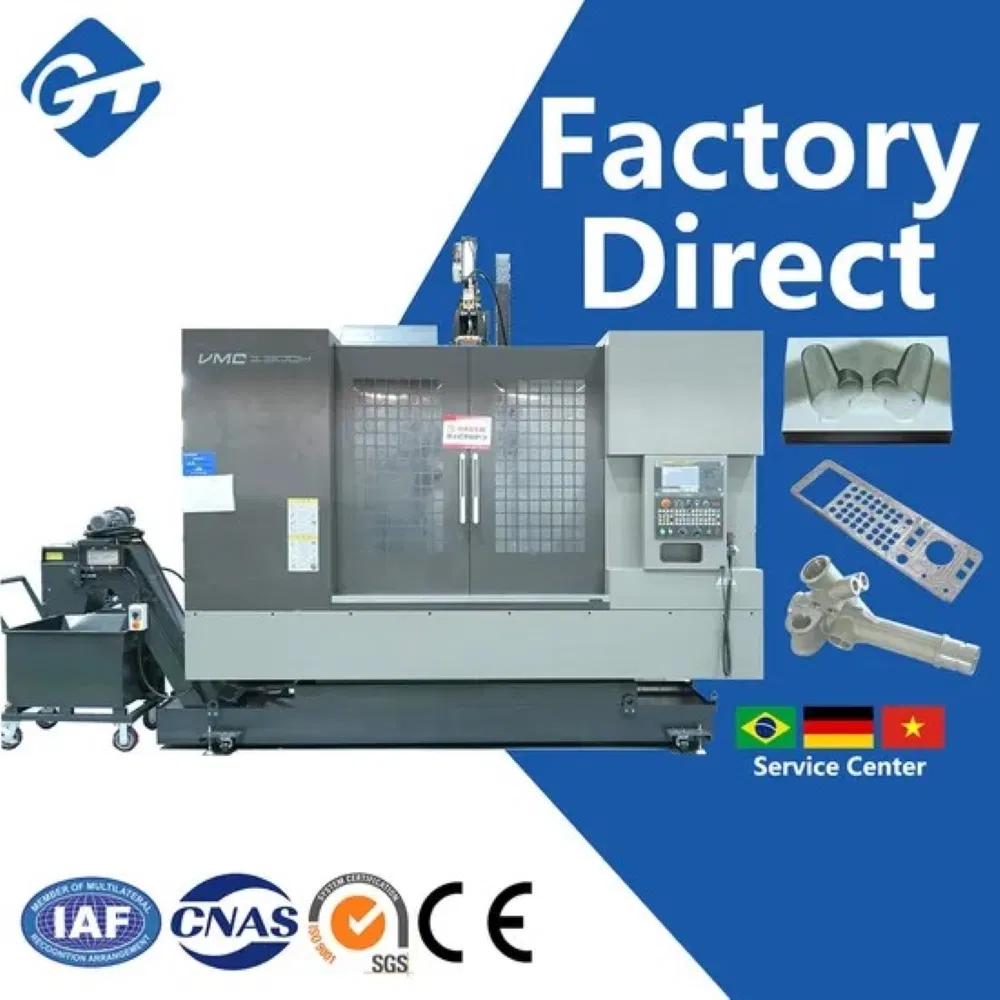

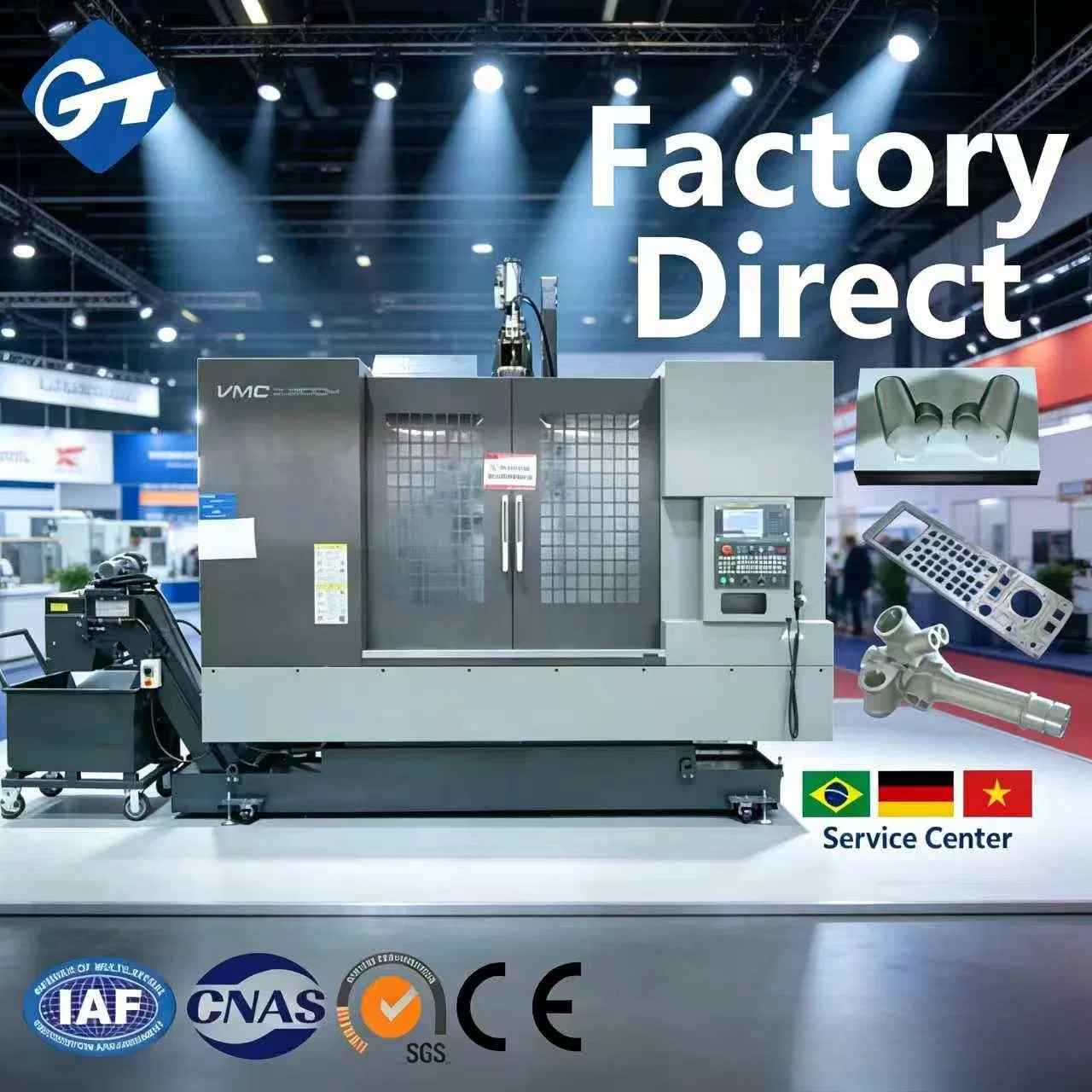

High-Precision CNC Vertical Machining Center

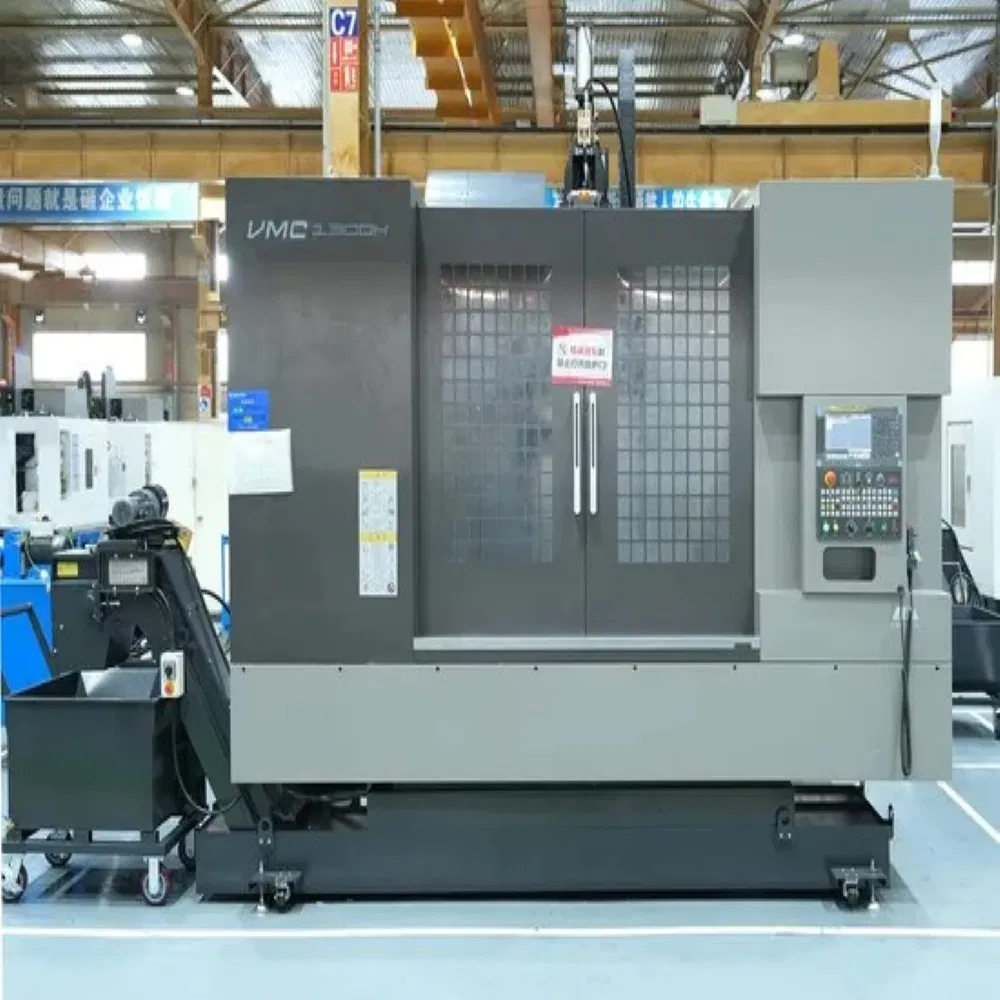

High-Precision CNC Vertical Machining Center VMC1300H
The FANUC Oi-MF PLUS TYPE(5) CNC system is a highly reliable and cost-effective numerical control system featuring an all-digital architecture and powerful processing capabilities. It can simultaneously control up to 4 axes and 1 serial spindle. When integrated with the latest digital servo drives and built-in PMC (Programmable Machine Controller), it forms a fully digital control system with outstanding dynamic performance and precision.
Item Unit VMC 1300H
Worktable Sizemm1400x700
Worktable Max allowed loadingkg1250
T slot sizemmxpcs18x5
Max travel of table-X axismm1300
Max travel of slide-Y axismm700
Max travel of spindle-Z axismm700
Distance between spindle nose to worktable surfaceMaxmm850
Minmm150
Distance between spindle center to guideway basemm820
Spindle Taper (7: 24)BT50
Max Spindle speedr/min6000
Spindle Output torqueN.m105/191
Motor powerkw11/15
Drive typeSynchronous toothed belt
Tool holder modelMAS 403 BT50
Pull stud modelMAS 403 P50T-1
Rapid traverseX axism/min36
Y axism/min36
Z axism/min24
3 axes motor power (X/Y/Z)kw3/3/3
3 axes motor torque (X/Y/Z)N.m20/20/36
Feed speedmm/min1-20000
Tool TypeATC
Tool ModeNearest tool selection in bi-direction
Tool CapacityPcs20
Max tool lengthmm300
Max tool weightkg15
Max tool disk dia.Fullmm133
Adjacentmm250
Tool change time (T-T)S3.5
The height between table to groundmm1055
Machine weightkg12000
Total power capacityKVA37
Overall dimensionmm4700*3100*3500
Production details 1

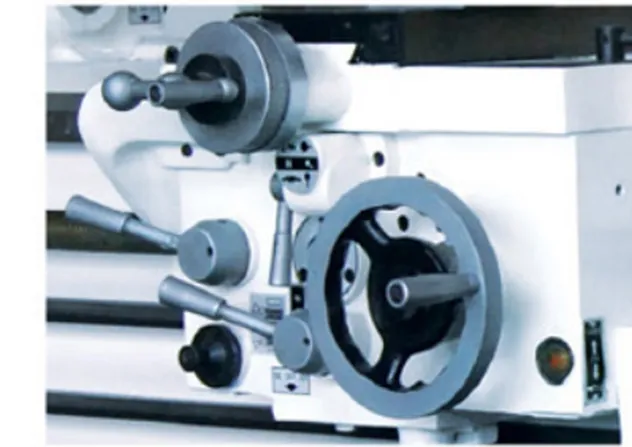

Production details 2

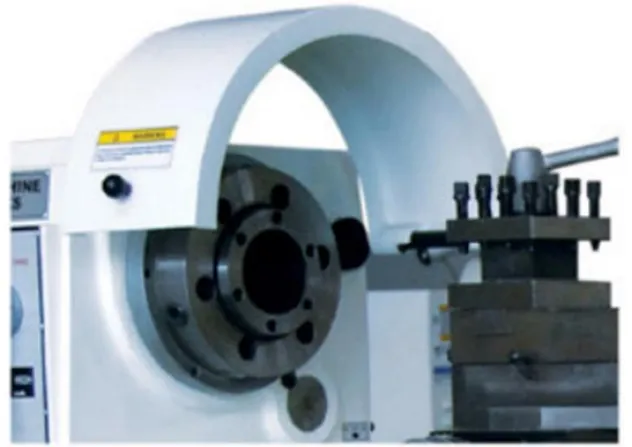

Production details 3

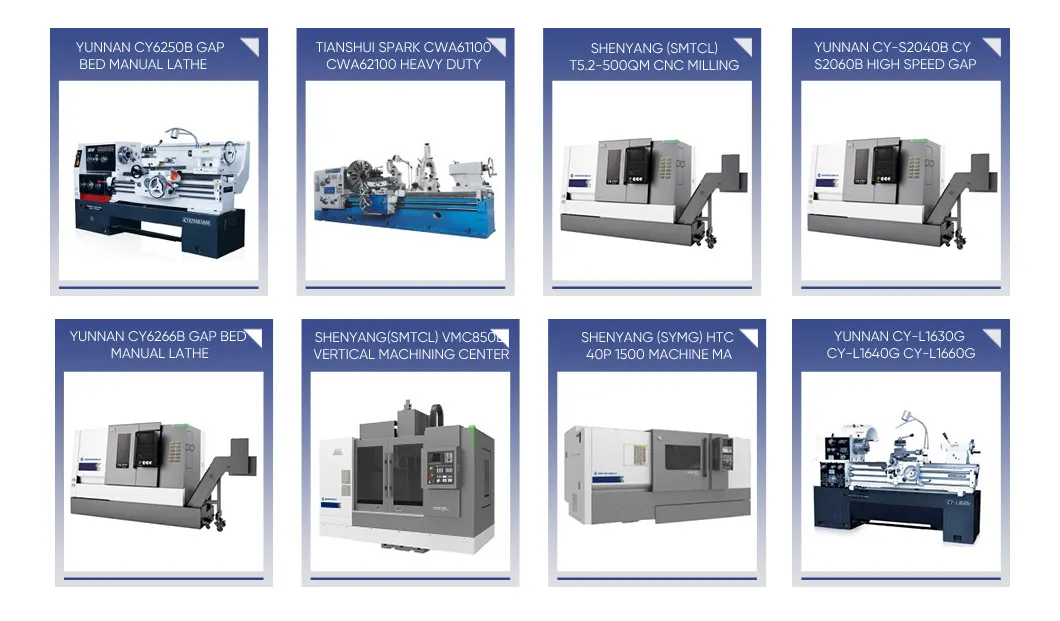

Main Products
Main Metalworking Machinery Line

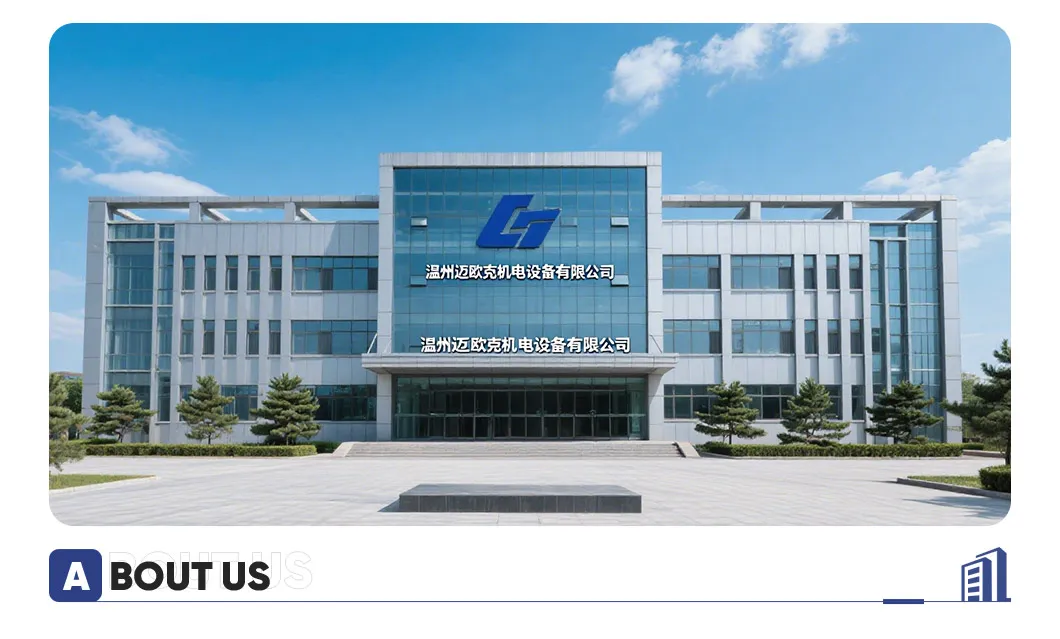

Company Profile
Professional Industrial Machining Systems Provider
Based on 20 years of experience in the supply of metalworking equipment, our foundation traces back to 2002 when we first started supplying European top brands of used machine tools. In 2022, a dedicated foreign trade division was established to recruit top talents and focus on developing overseas markets. In recent years, we have successfully fulfilled countless overseas orders, with a total trade volume reaching tens of millions of dollars. Currently, we are local official distributors for leading machine tool manufacturers such as SHENYANG (SYMG & SMTCL), YUNNAN CY, TIANSHUI SPARK, NEWAY, BOYU, and YISHUI.
Our product line covers most types of metalworking machinery, mainly including conventional horizontal lathes, CNC flat and slant bed lathes, mill-turning centers, VTLs, boring machines, and precision machining centers. We offer optimized delivery times thanks to our warehouse stocks of 2500 sq. m., allowing us to reduce supply intervals significantly.
In addition to supplying machinery, we provide support services including overhaul and modernization of machine tools, supply of spare parts, tool accessories, work piece fixing equipment, and professional training for CNC operators.
We assist customers in choosing the most reliable and suitable equipment for their specific technical operations, deliver the equipment directly, carry out commissioning, and provide comprehensive warranty service. Turnkey installations are also available. Our mission remains: "We don't sell products, we provide solutions."
Company Advantage
Manufacturing Advantages and Quality Controls
Packaging & Shipping
Industrial Grade Packaging & Global Shipping
Our Services
Client Technical Services and Machine Optimization
Exhibition
International Machine Tool Exhibitions and Shows
Frequently Asked Questions
1. What brands and machinery scales do you offer?
We serve as the local exclusive agent and distributor for top-tier Chinese machine tool brands, including YUNNAN lathes & VMCs, BOYU cold heading machines, NINGJIANG gear hobbing machines & HMCs, XINYUE shaft processing machinery, and YUHUAN double disc grinding systems.
2. How are your machinery prices determined?
Given the highly competitive nature of the industrial machinery market, all our machine tools are priced optimally to ensure that our global partners enjoy both premium machine quality and excellent cost affordability.
3. What is the scope of your after-sales service?
We maintain a professional technical support team available to assist you. Based on your operating requirements, we provide comprehensive technical services, troubleshooting, and support options via online guidance or physical site visits.
4. What modes of transport do you offer for shipment?
Depending on cargo specifications, dimensions, and destinations, we arrange optimal logistics options via sea, air, or land shipping. We can also coordinate transportation according to your specified forwarder requirements.
5. How can I receive an accurate pricing quote?
You can share your specific technical demands, parameters, and design/product pictures. Our engineering specialists will design a custom solution and provide a detailed commercial quotation tailored to your production goals.
6. Do you provide machinery installation and operator training?
Yes, we provide full support ranging from equipment delivery and setup to technical commissioning. Turnkey installation packages, CNC operator training, and ongoing technical modernization updates are available.
