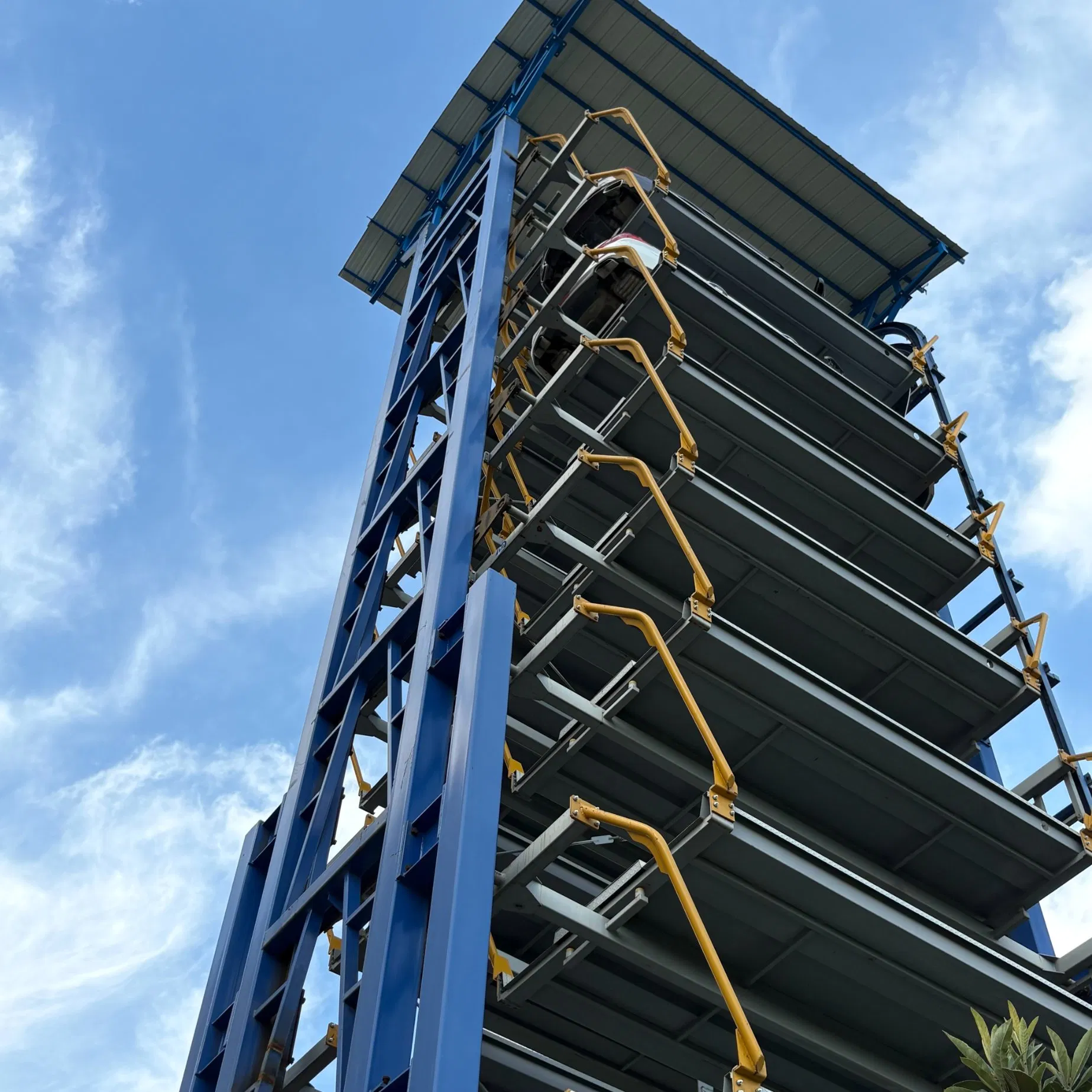

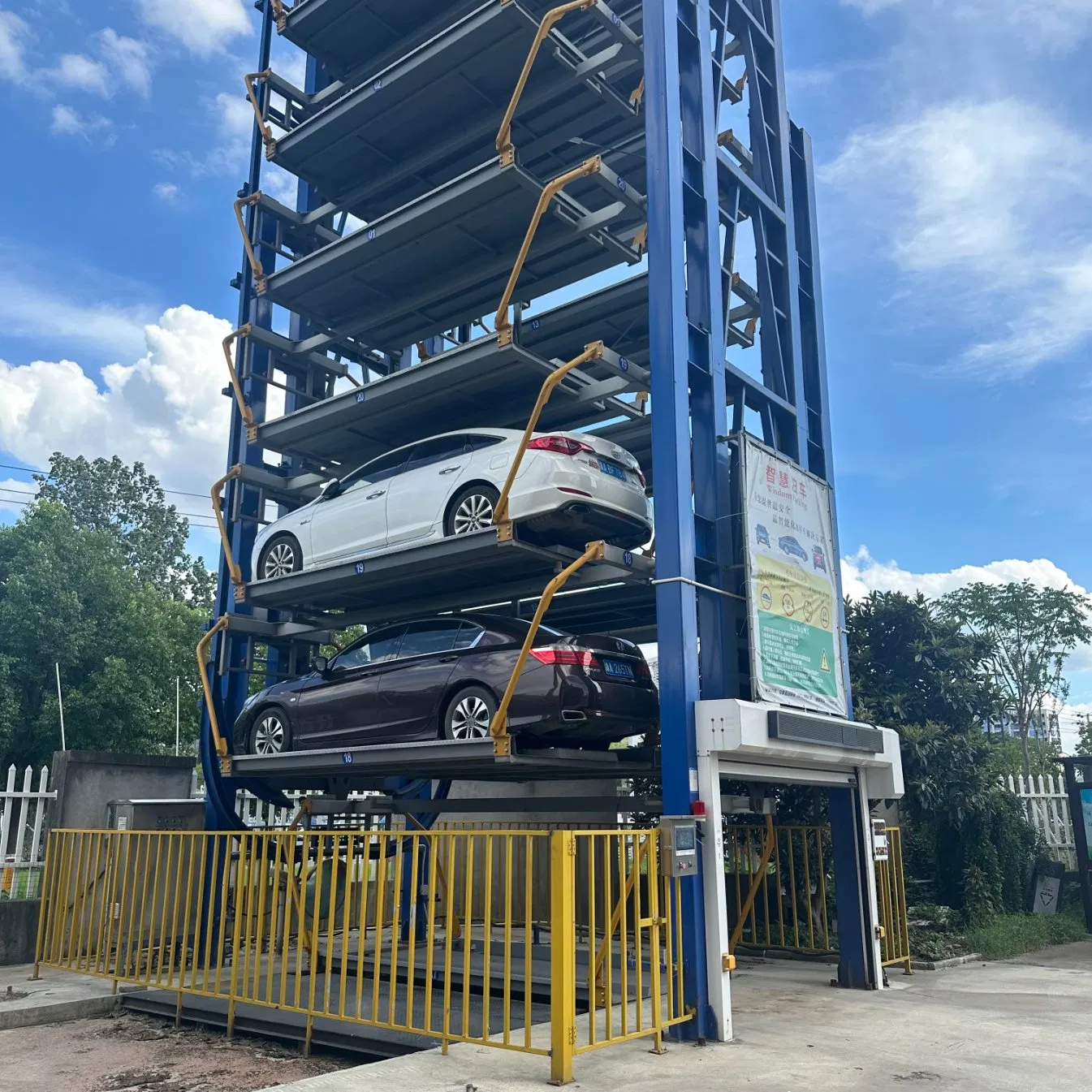

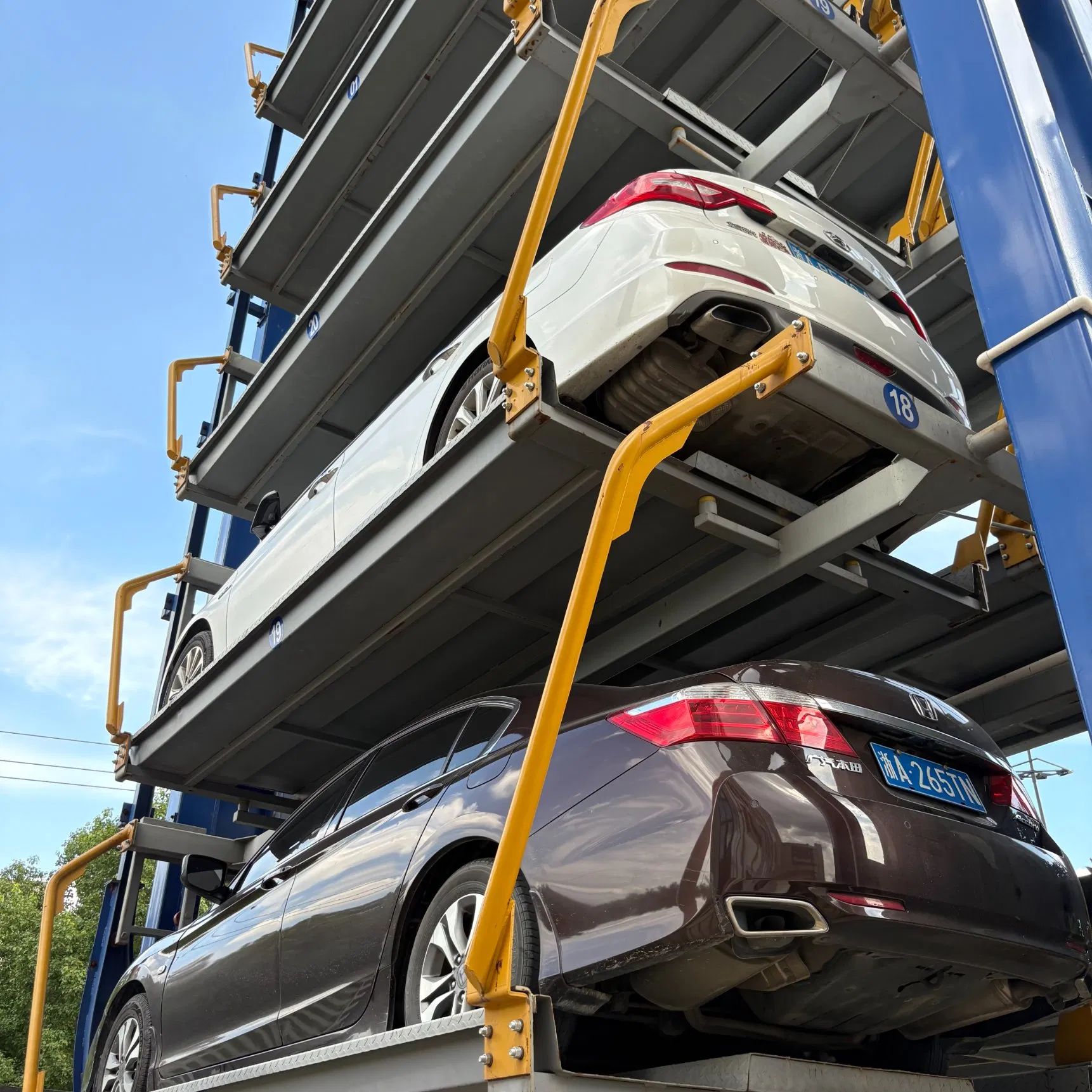

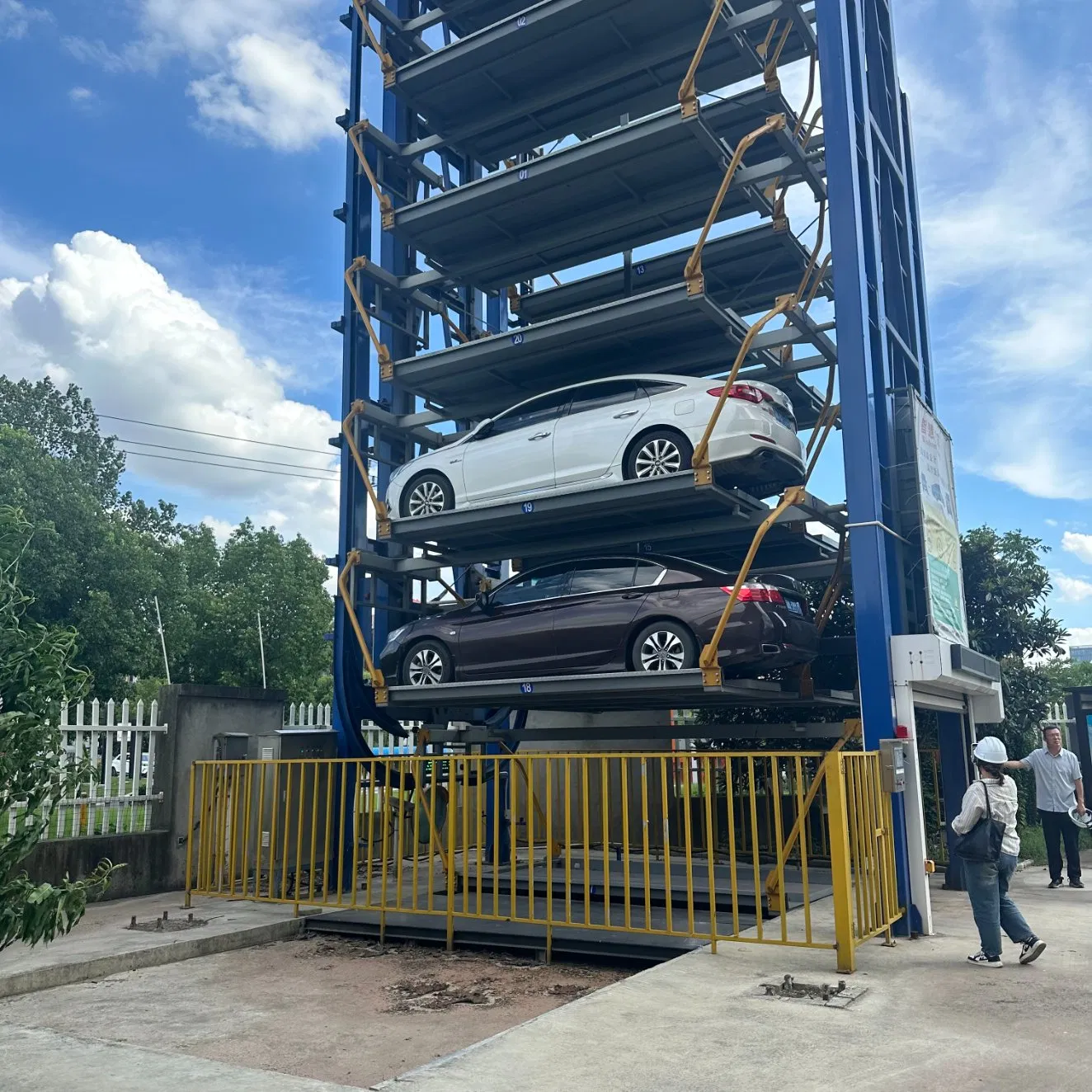

CE-Certified Smart Rotary Car Parking System – Heavy-Duty Vehicle SUV Elevating Parking System with Auto-Positioning for Garage Equipment

Customization: Available
Level: 5-9 Levels
Parking Post: 9-24 Posts

Product Description

Basic Info

Model NO. PCX
Compatibility Sedans
Control System PLC Control
Installation Outdoor
Lifting Mechanism Mechanical
Load Capacity 2500kg
Operation Mode Fully Automatic
Safety Features Anti-Collision Sensors, Emergency Stop Button
Type Automated Parking System
Falling Prevention Device Pull-Type
Design Four Post
Lift Mode Chain
The Vehicle Inlet and Outlet Down
Processing Method Laser Cutting & Robotic Welding
Operation Type Button/IC(ID) Card
Transport Package Standard Export Packing
Specification Steel
HS Code 84289020
Production Capacity 1000PCS/Year

Product Description

Specifications Sedan SUV
Lifting capacity 2000kg 2500kg
Vehicle size 5300x2100x1550mm 5300x2100x2000mm
Parking space 12 cars
Drive mode Motor+chain+sprocket
Motor capacity/speed 7.5kw*4P/4.4M/Min(2RPM)11kw-Motor 15kw/≤4.4M/Min
Operation mode IC card/press button
Platform materials 2.2mm galvanized wave plate
Total loading capacity 23.7 tons 29 tons
Warranty 2 years against manufacturing defects
Safety device Photo electric sensor
Power supply/Motor capacity 220V/380V,50Hz/60Hz,1Ph/3Ph,11kw

Product Display

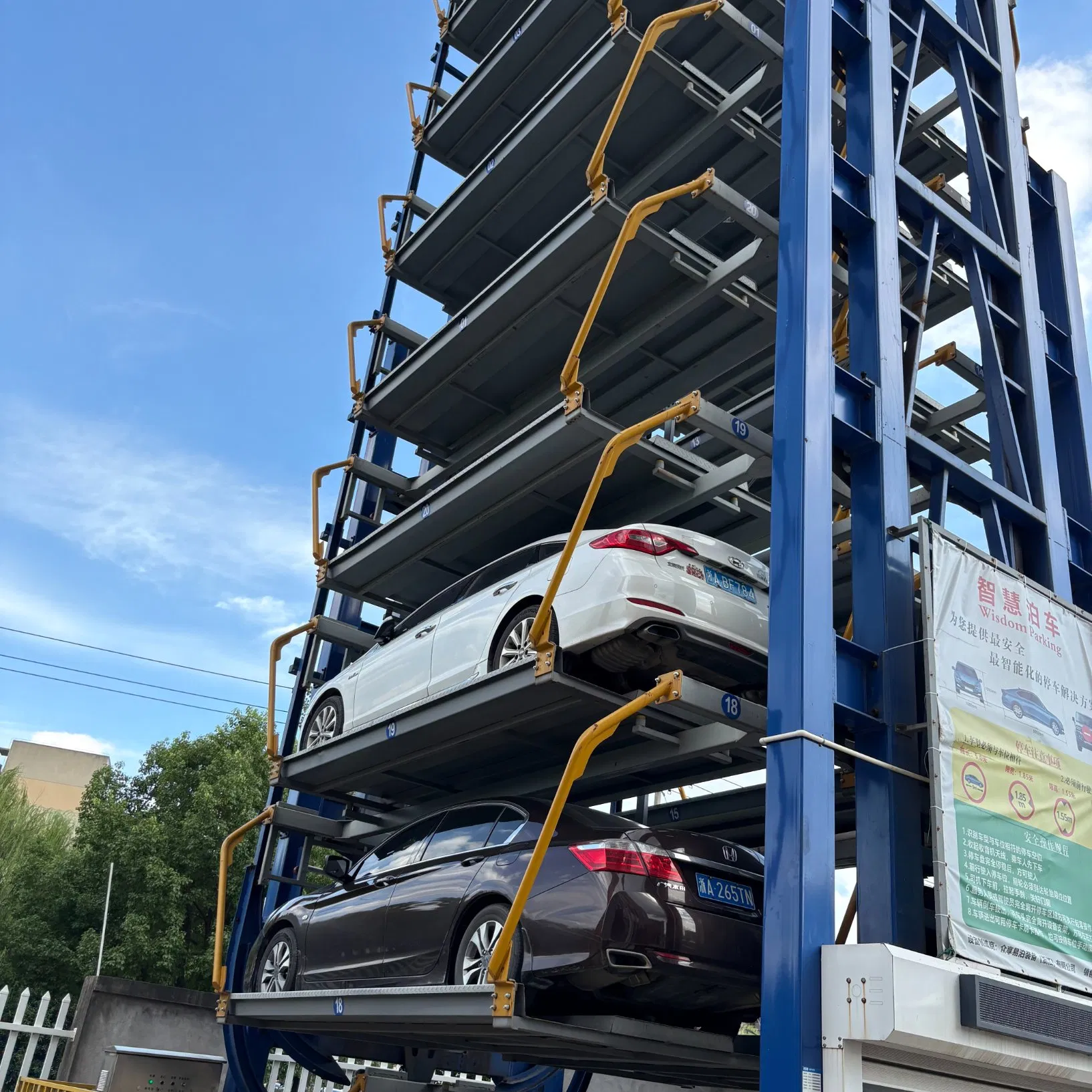

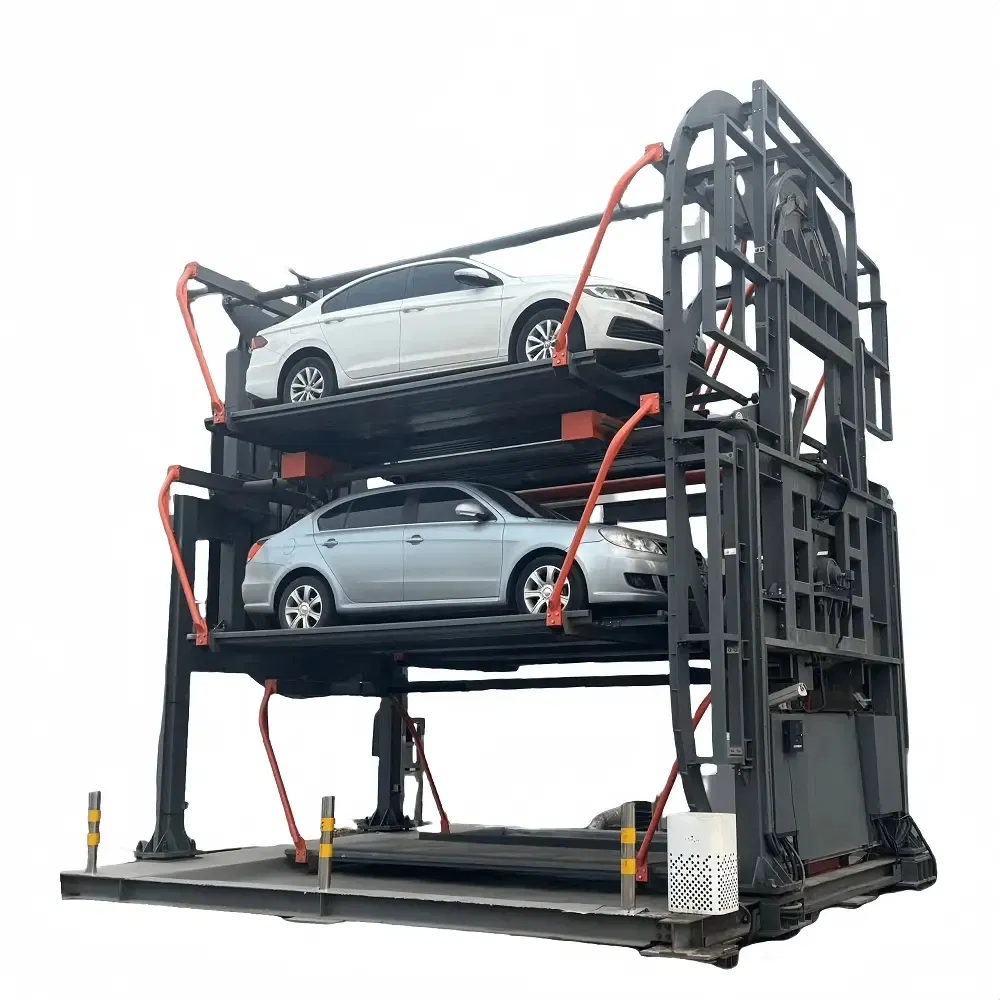

Smart Rotary Car Parking System

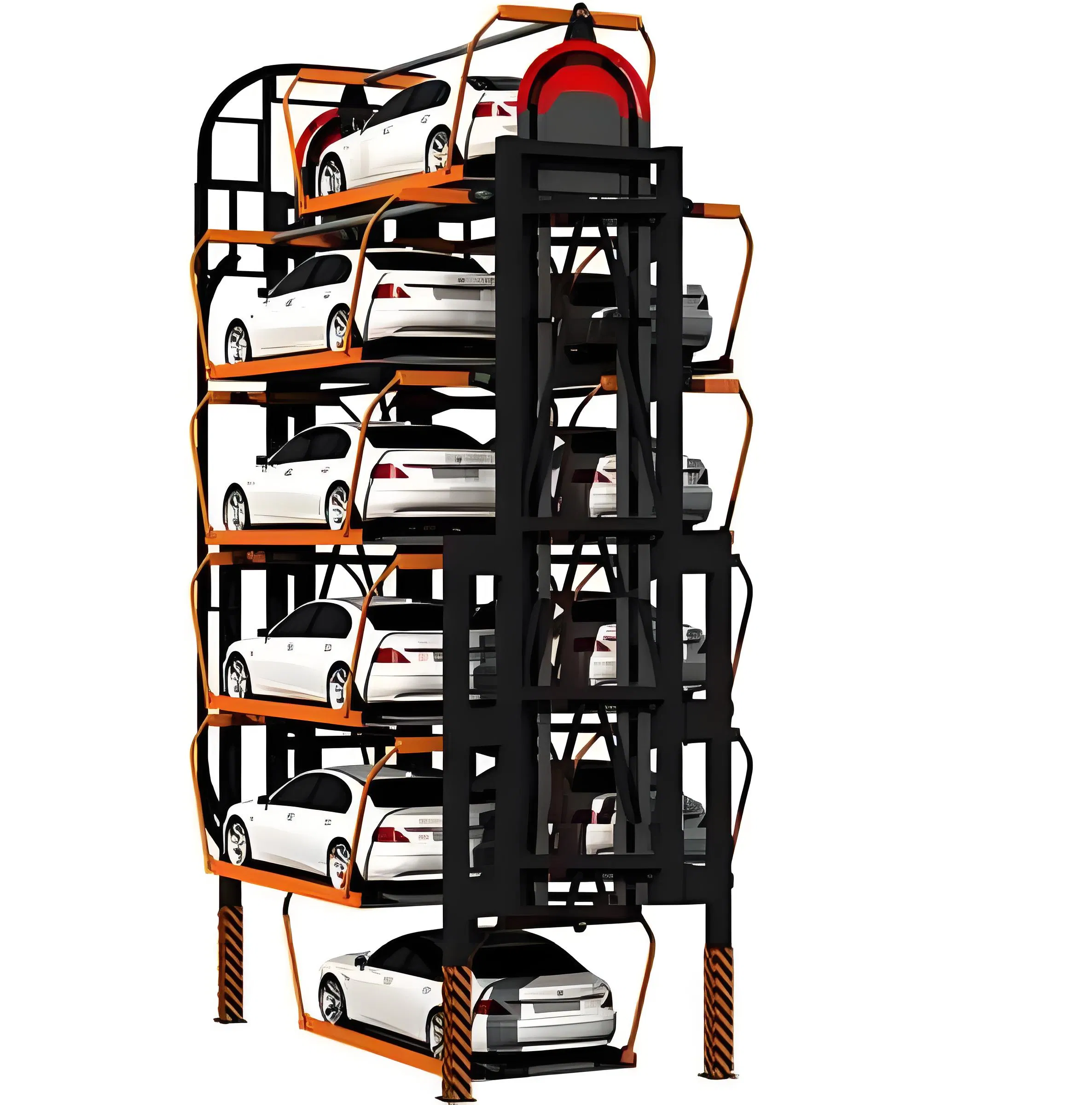

Heavy-Duty Vehicle SUV Elevating Parking System

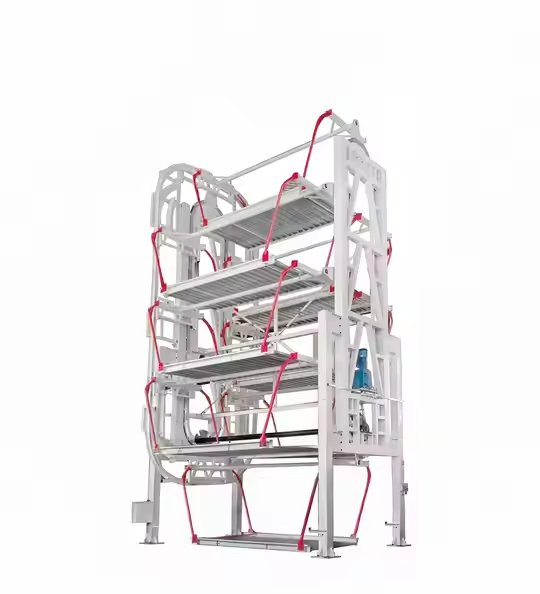

Garage Equipment Parking System

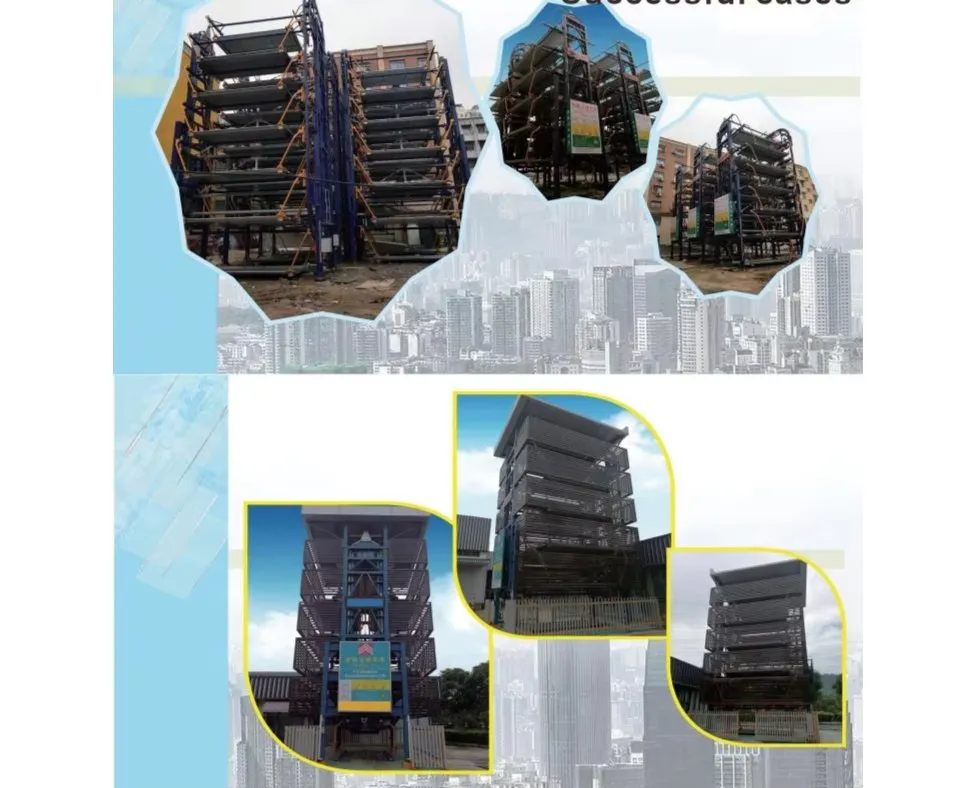

Rotary Car Parking System Equipment

Production Profile

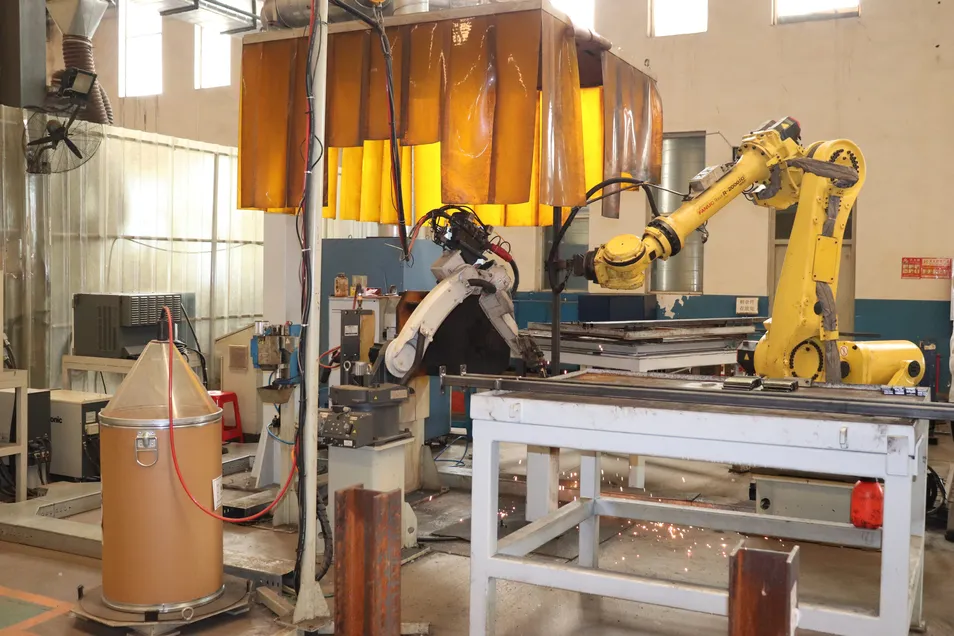

Manufacturing Factory Base

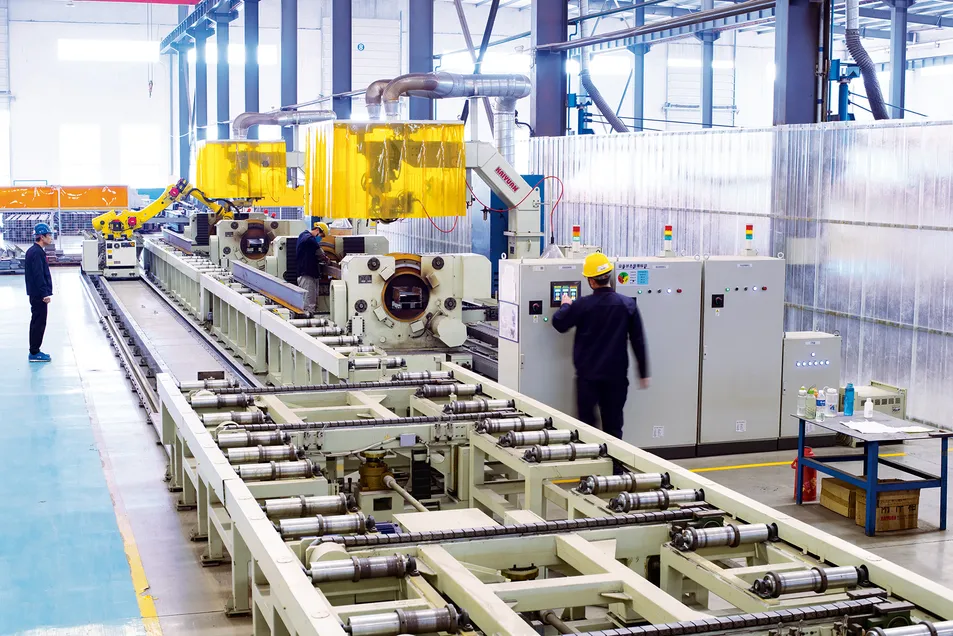

Warehouse and Assembly Facility
Our production base has a large manufacturing and storage facility. As a professional smart garage enterprise, we integrate mechanical intelligent garage research and development, design, production, manufacturing, engineering installation, and after-sales service. The facility covers an area of 45 mu and is equipped with a steel structure workshop covering 12,000 square meters including a 5,000 square meter production and assembly workshop, office buildings, warehouses, and other modern hardware installations.

With strong professional and technical strength, the facility currently employs 65 professional and technical talents, including 12 engineers and 5 senior engineers. The workshop is fully equipped with wave board production lines, multiple sets of side beam automatic production lines, automatic paint spraying assembly lines, shearing machines, bending machines, flame plasma cutting machines, rocker drilling machines, and shot blasting machines. The main product line includes lifting, horizontal movement, simple lifting, and vertical circulation systems, with an annual capacity of approximately 8,000 parking spaces.

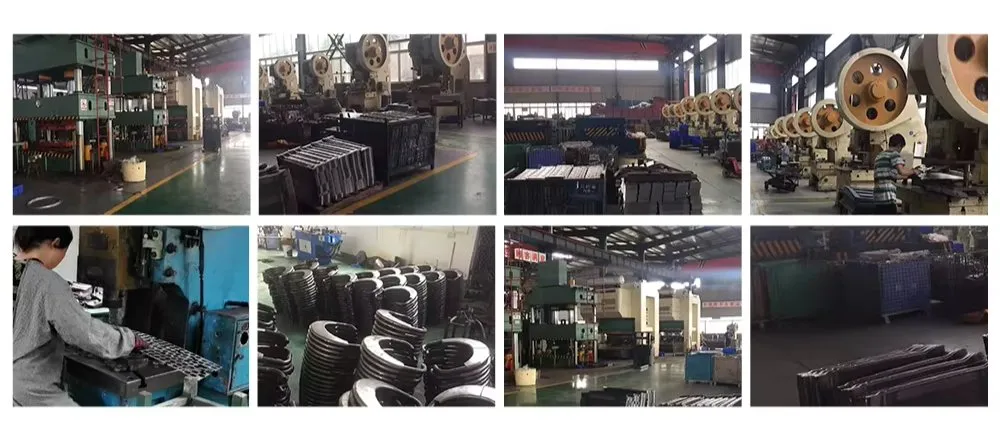

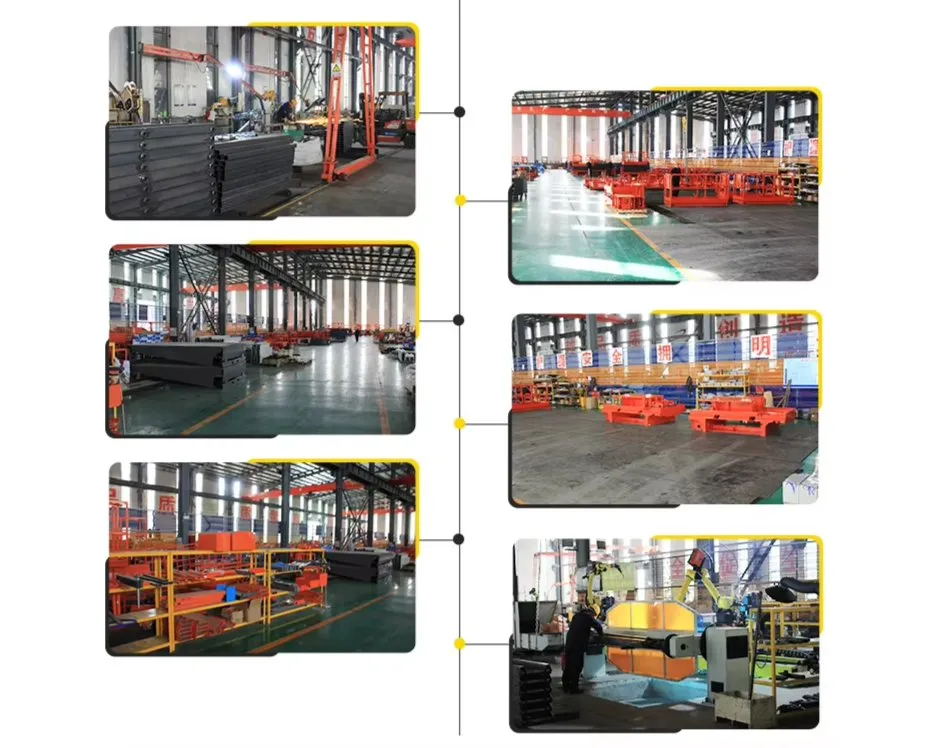

Production Workshop Equipment

Product Details

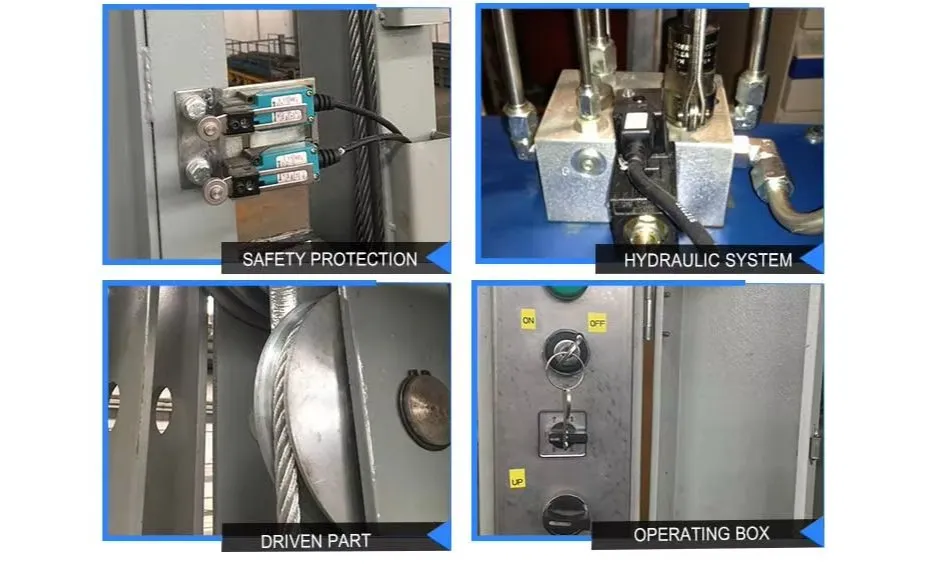

Parking System Mechanism Detail
Smart Control Board Detail
Safety Mechanism Specifications

Packing & Delivery

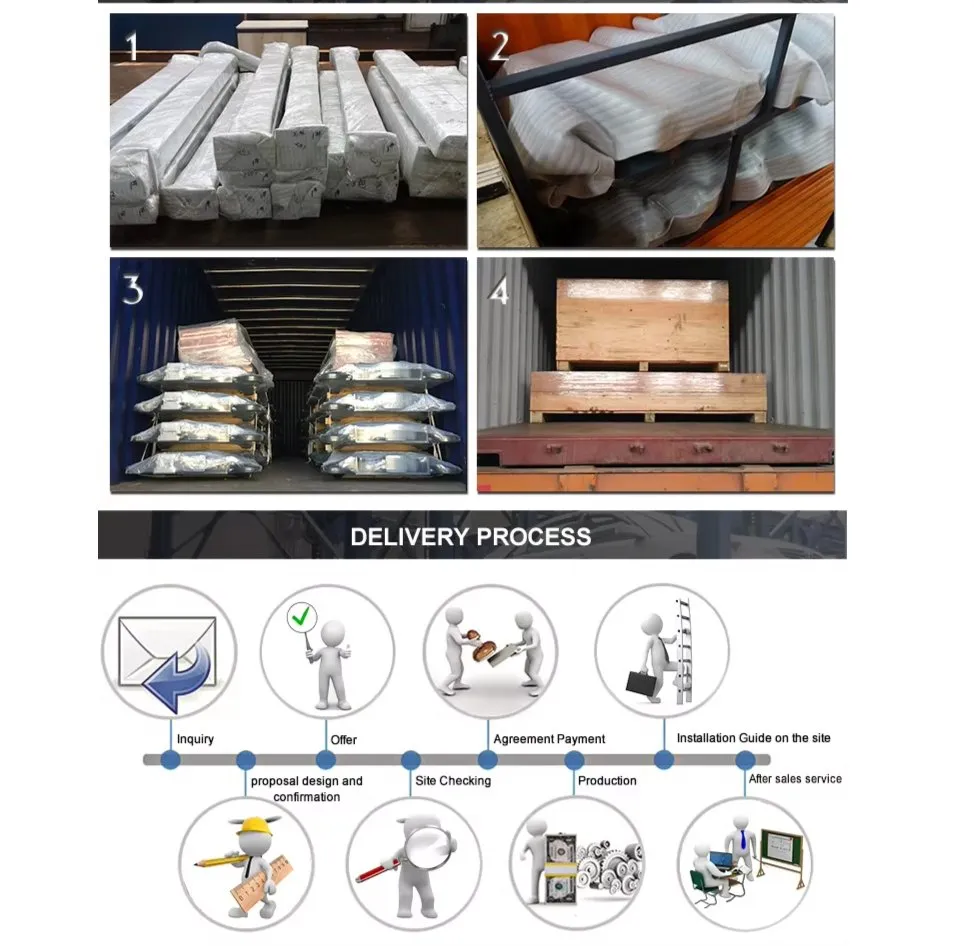

Standard Export Packing and Delivery

Frequently Asked Questions

Are you a manufacturer?
Yes, we have our own professional factory and specialized engineers to support custom designs.
What are your terms of delivery?
We support EXW, FOB, CFR, and CIF delivery terms to match your transport preferences.
Can you produce according to custom samples?
Yes, we can manufacture based on your samples or technical drawings. We can also construct customized molds and fixtures.
How do you control production quality?
We employ an independent QC team. Our QC team strictly monitors all production phases and cross-checks them against technical drawings to ensure complete compliance. In case of any non-conformity, immediate corrective actions are taken to replace or repair the parts.
What is the standard lead time for the system?
Commonly, the lead time for manufacturing our machinery spans from 35 to 60 days.
What are the accepted payment terms?
We accept online Trade Assurance, TT (Telegraphic Transfer), and LC (Letter of Credit) options.
