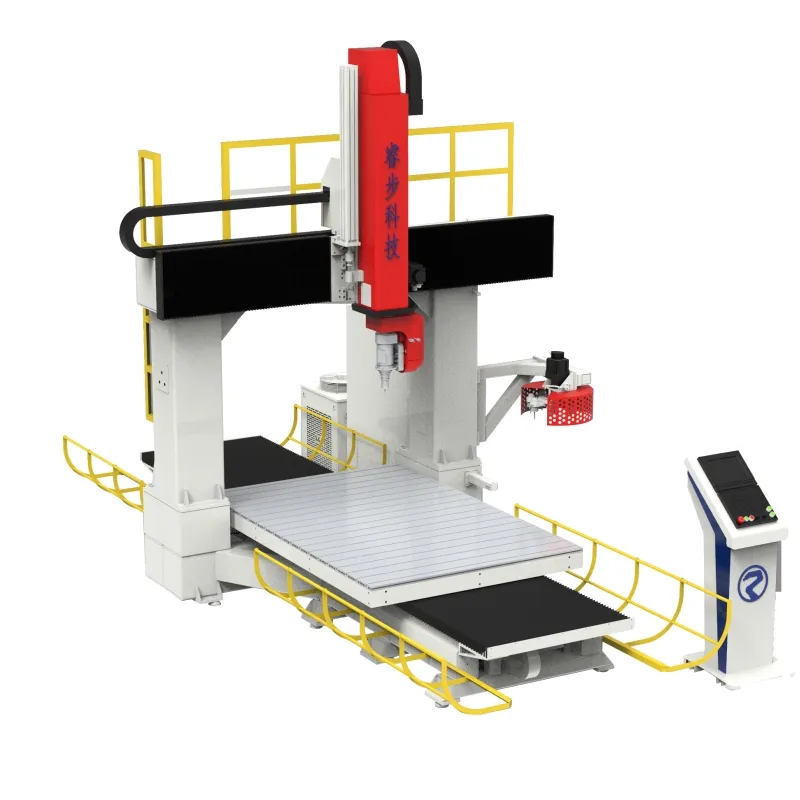

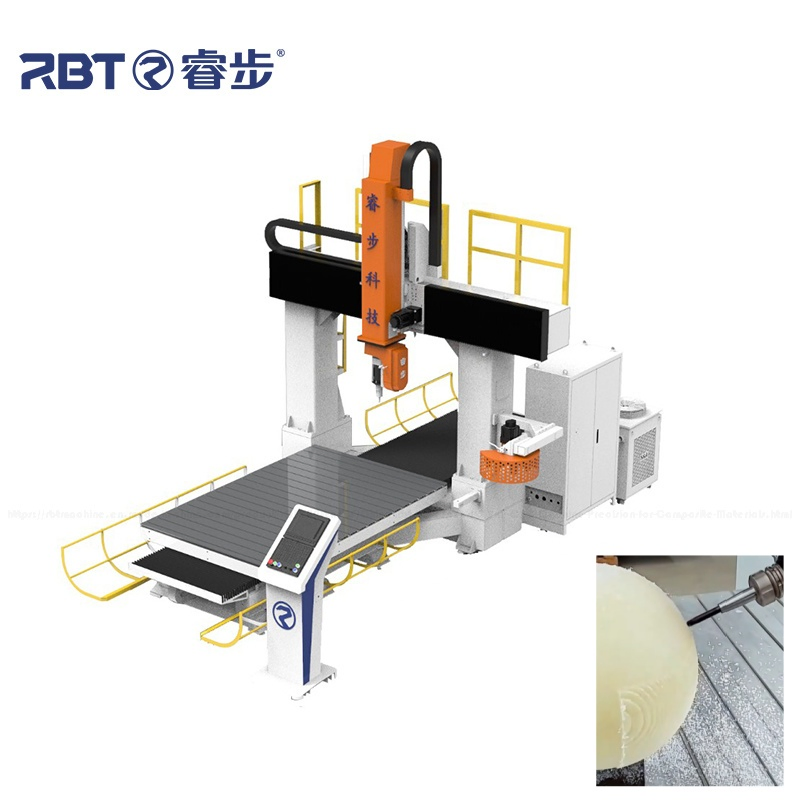

Aerospace Grade CNC Router: Equipped with 5-axis synchronization, engineered specifically for precision cutting of composites and non-metallic workpieces.
Basic Info & Specifications
Model NO.
RB-F5-2535-Z08
Application
Non-Metal
XYZ Travel
2500*3500*800mm
C\B Axis Travel
±540°/±120°
Automation
Automatic
Repeat Accuracy
+/-0.05mm
Voltage
380V
Total Power
9.9-29.1kw
Spindle Power
3-20kw (Customizable)

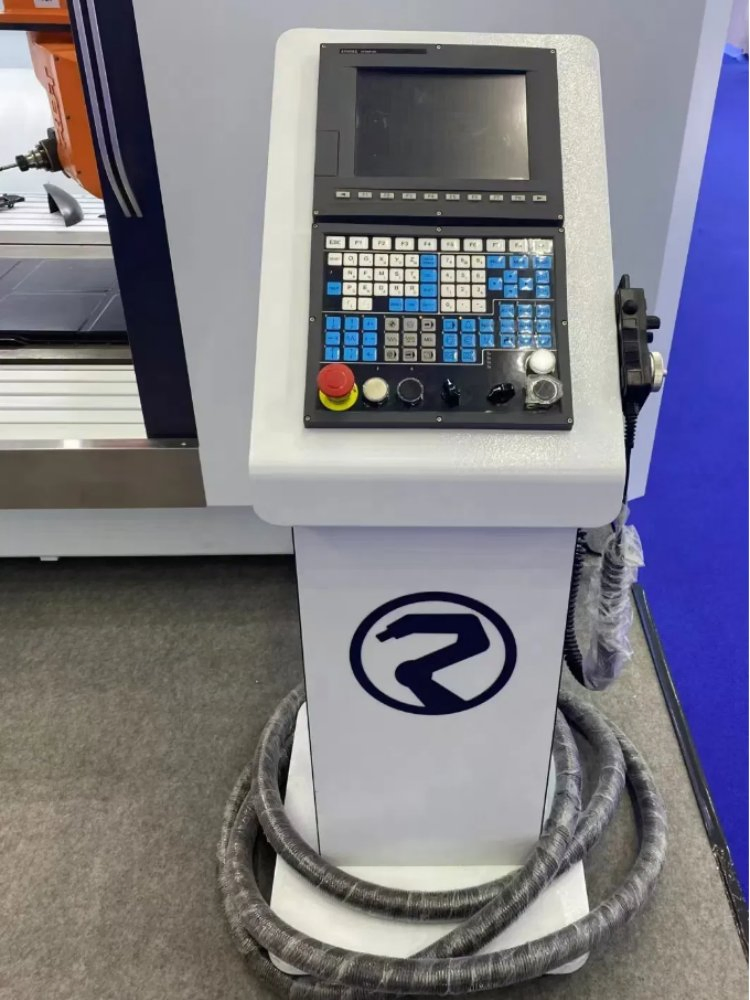

Control System
Taiwan Syntec
Plastic Material
ABS, PVC, PC, PP, PS, PE, Pet, HDPE, Acrylic
OEM Service
Customized Per Required
Product Parameter Detail
| Product Name |
Non-metal 5-axis machining center |
| Ball Screw |
Taiwan TBI |
| Linear Guide |
Taiwan CSK |
| Rack |
Liangchi |
| Servo Motor |
Inovance |
| Control System |
Taiwan SYNTEC |
| Electrical Components |
France Schneider |

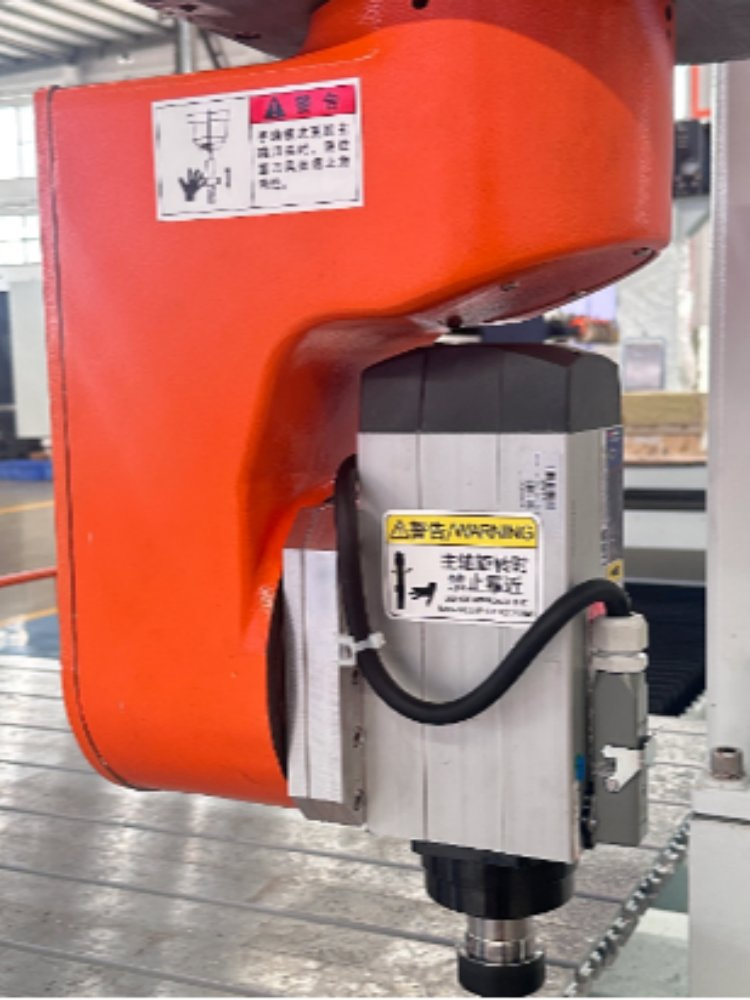

| Spindle Type |
High-Performance Precision Spindle |
| Spindle Power |
5.5KW / 24000rpm / Water Cooling |
| Frequency Converter |
Sinovo |
| Pneumatic Components |
Taiwan AirTAC |
| X-Axis Reducer |
Japan SHIMPO |
| B-Axis Rotation Angle |
±130° |
| C-Axis Rotation Angle |
±540° |
| Repeatability (within 300mm) |
±0.05mm |
| Total Weight |
3500 kg |
| Overall Dimensions |
L5100 * W2610 * H3982mm |
Product Features
Advanced Composite Processing: Specially developed for three-dimensional or multidimensional special-shaped cutting and drilling of carbon fiber and various composite material products.
High Efficiency Cutting: Carbon fiber composite materials possess a high elastic modulus and superior hardness, presenting a challenge to process. Our 5-axis machining center features a high-speed, fast-cutting imported spindle designed to easily overcome these material limits.
360° Drilling Capability: For complex procedures like side drilling, the spindle needs to adjust angles. Our machine utilizes an advanced double swing head design, achieving a full 360° swing angle for diverse multidimensional processing.
Product Applications

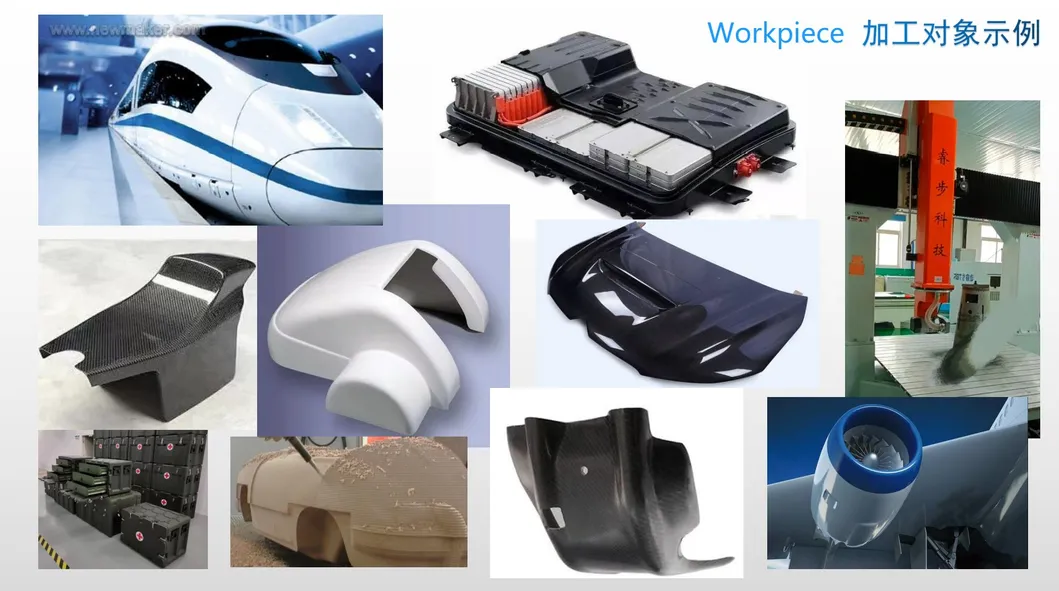

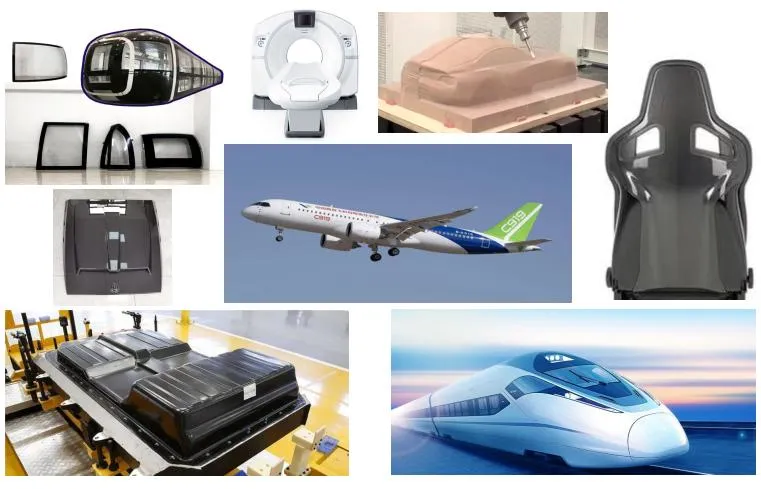

Widely utilized in mold manufacturing, composite material processing, and thick sheet thermoforming industries such as aerospace, rail transit, automotive interior/exterior parts, sporting goods, medical devices, white goods, handicrafts, and sanitary ware.

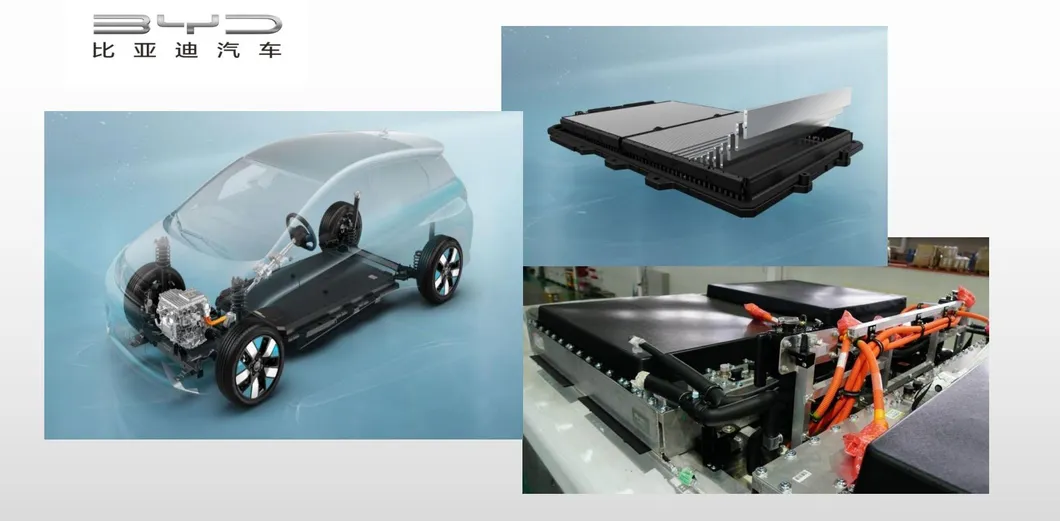

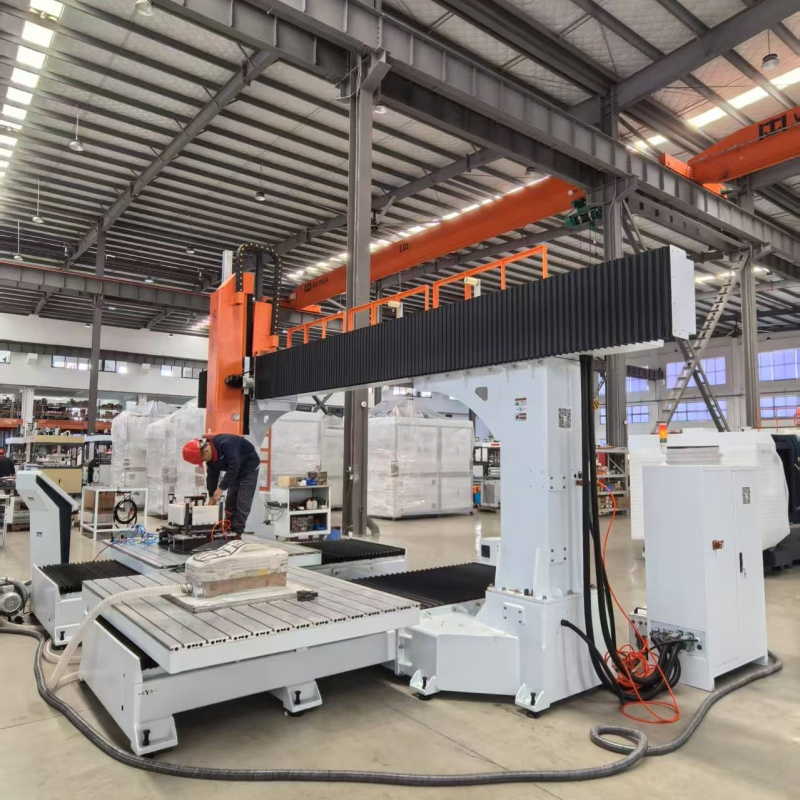

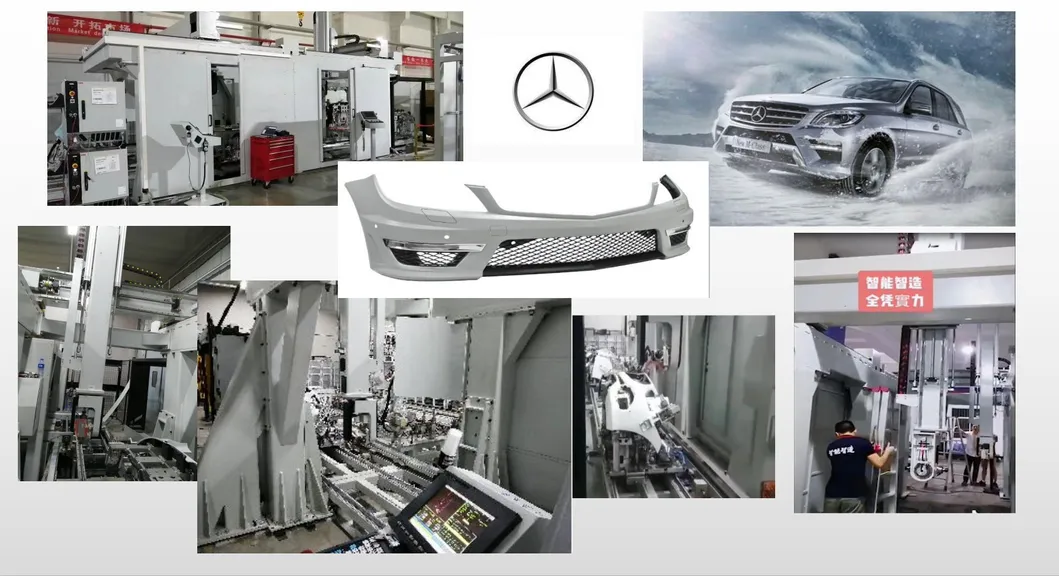

Successful Projects & Cases

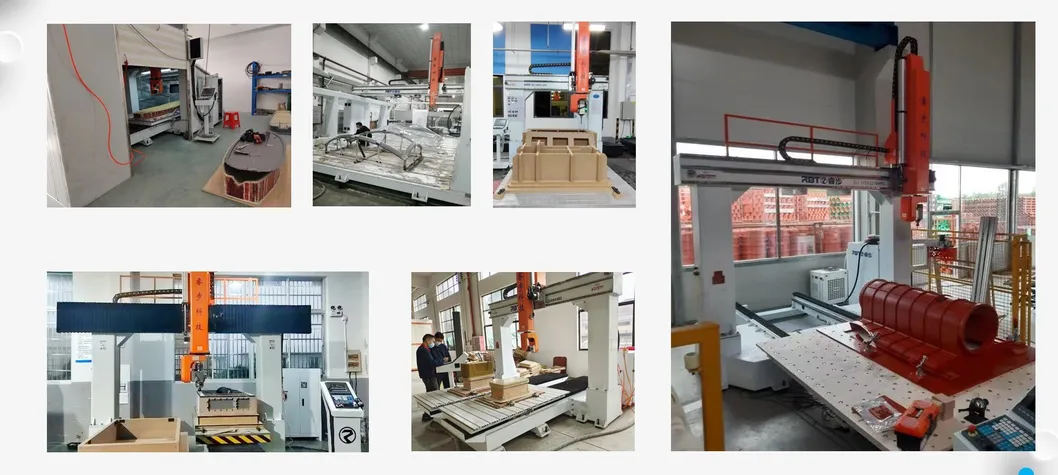

Product Gallery

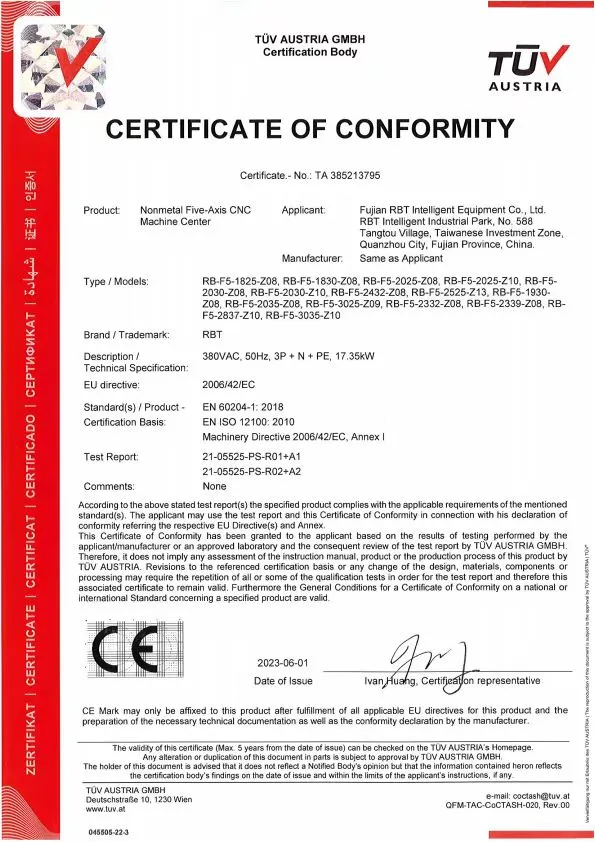

CE Certification

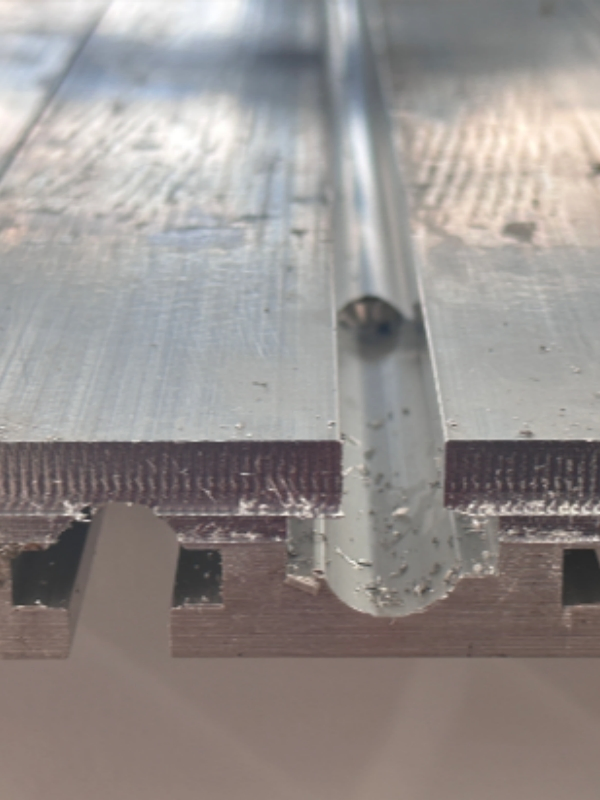

Precision Engineering

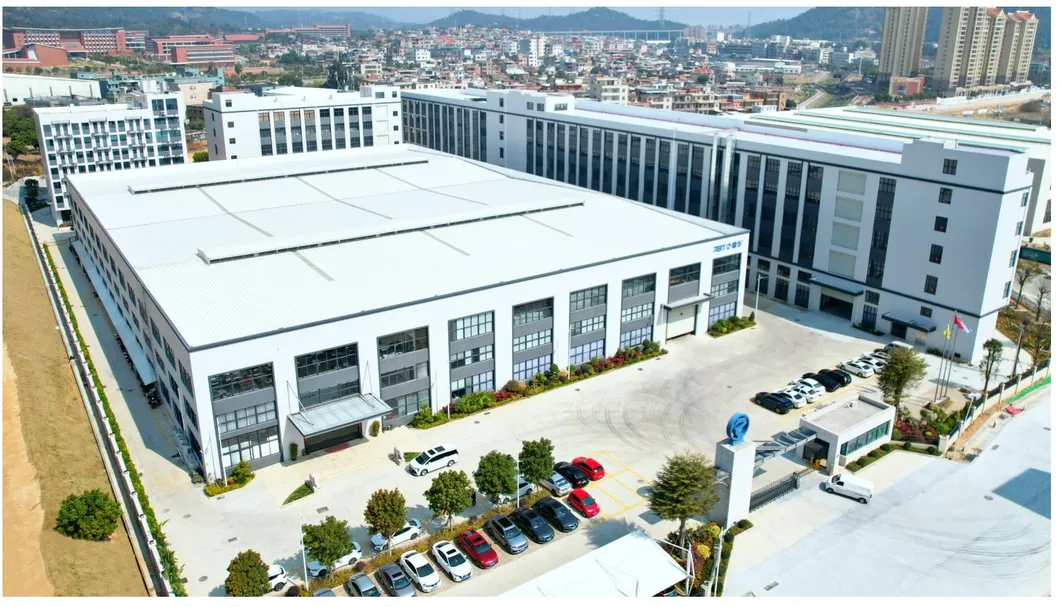

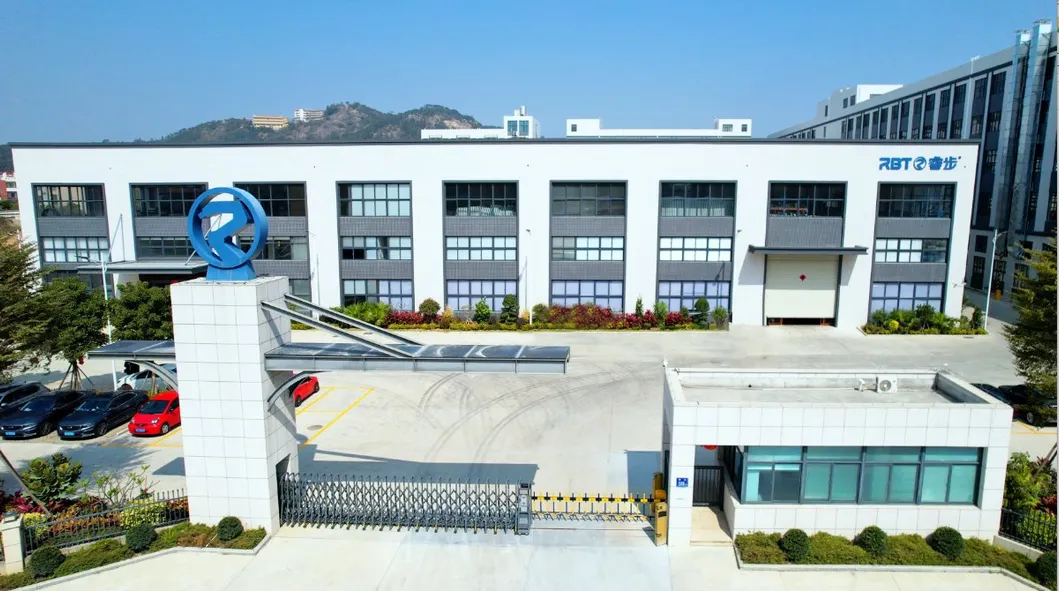

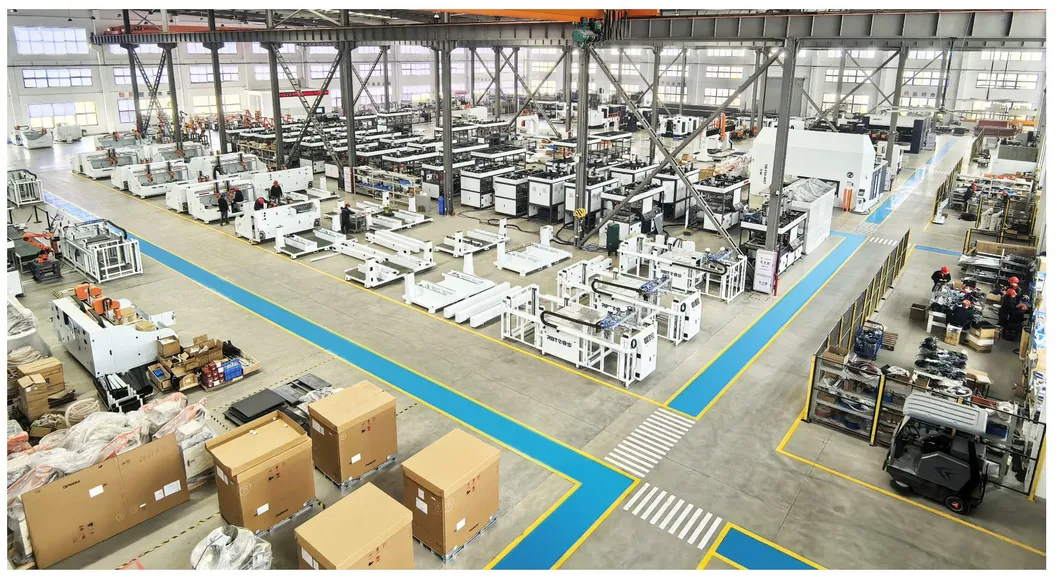

Manufacturing Strength
We are a dedicated developer and solution provider of multi-axis CNC machines specializing in plastic thermoforming, composite parts, patterns & molds, paper/aluminum honeycomb, and soft metals such as aluminum, brass, and zinc. Our services encompass R&D, customized design, production, and technical support.

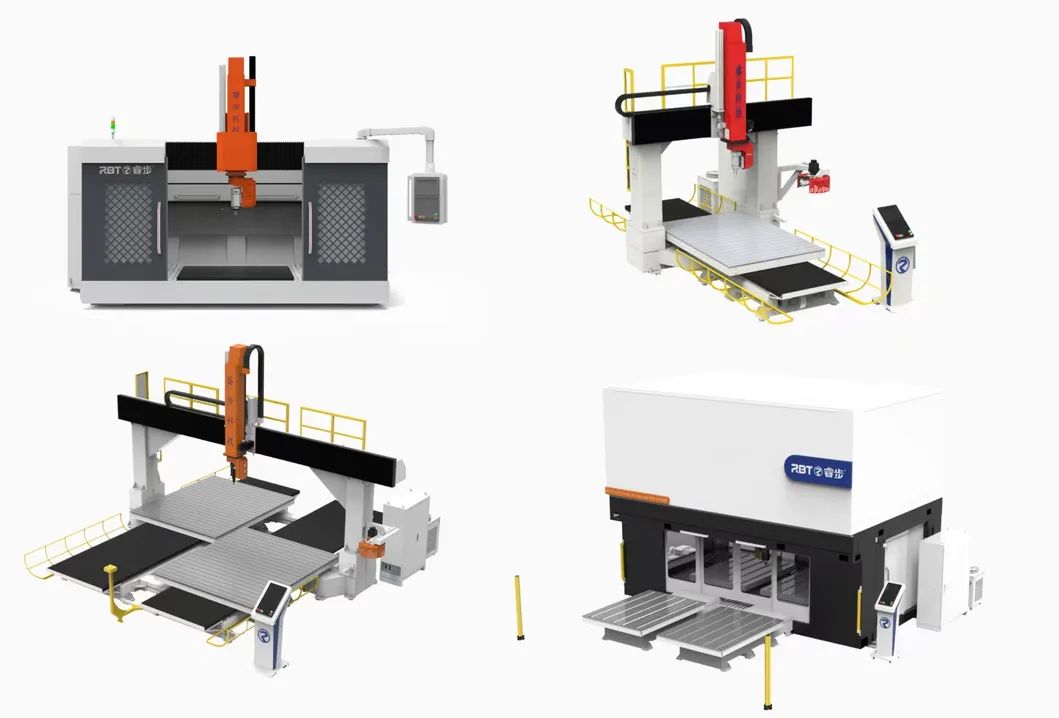

Main Product Categories:
✓High-speed and precision 5-axis CNC machining centers.
✓Gantry-type 5-axis CNC routers.
✓Truss-type 5-axis CNC machinery.
✓Fully enclosed 5-axis CNC milling machines.
✓Heavy-duty 5-axis CNC mills.
After-Sales Technical Support
Three Options for Installation and Training:
A
Digital Support: English training videos and detailed user manuals are provided, along with technical support via email, phone, WhatsApp, and messaging apps.
B
In-House Training: We invite operators to visit our manufacturing facilities for intensive hands-on training, providing comfortable local accommodation.
C
On-Site Dispatch: Technical engineers are available for global dispatch to execute installation, calibration, and training. (Travel costs, accommodation, and visas are covered by the buyer).
Global Exhibitions
Packaging & Shipping
✓Packaged securely with moisture-proof plastic film inside robust plywood wooden cases.
✓Arranged via standard safe container transport.
Frequently Asked Questions
?Q1. When was your manufacturing facility established?
We have specialized in the R&D and intelligent solutions of multi-axis CNC machines since 2000, focusing on composite material processing, thermoformed plastics, mold tooling, and soft metals.
?Q2. What is the standard warranty and maintenance policy?
The quality assurance period is 12 months starting from destination port arrival. Except for man-made damage, we supply replacement parts free of charge. Repairs and parts replacement beyond the warranty period are offered at cost price.
?Q3. How are installation and operation training conducted?
We provide comprehensive instruction guides and setup videos in English. Additionally, our support staff offers online step-by-step guidance. Customers can also choose either on-site engineering visits or training at our facilities.
?Q4. How do you resolve urgent technical issues?
Our experienced, English-fluent engineers are capable of debugging issues remotely. In urgent scenarios requiring on-site support, our engineers can fly out quickly to handle complex troubleshooting.
?Q5. Do you support wholesale, agency, and distribution pricing?
Yes. If you are an industry distributor, agent, or commercial dealer, please reach out to us directly for trade terms and wholesale price configurations.
?Q6. Can the equipment configuration be customized (OEM)?
Yes. All of our 5-axis machines support flexible configurations. Key parameters such as XYZ axis travel, spindle cooling type, spindle power, and control system software can be tailored specifically to your production needs.
