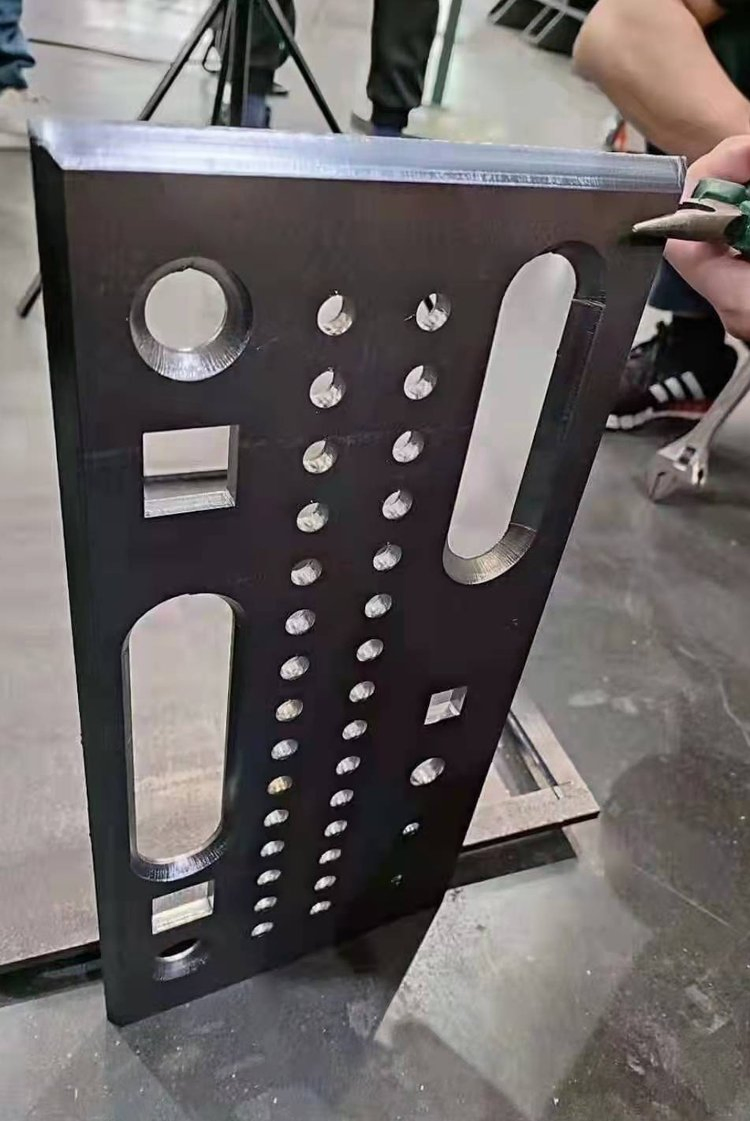

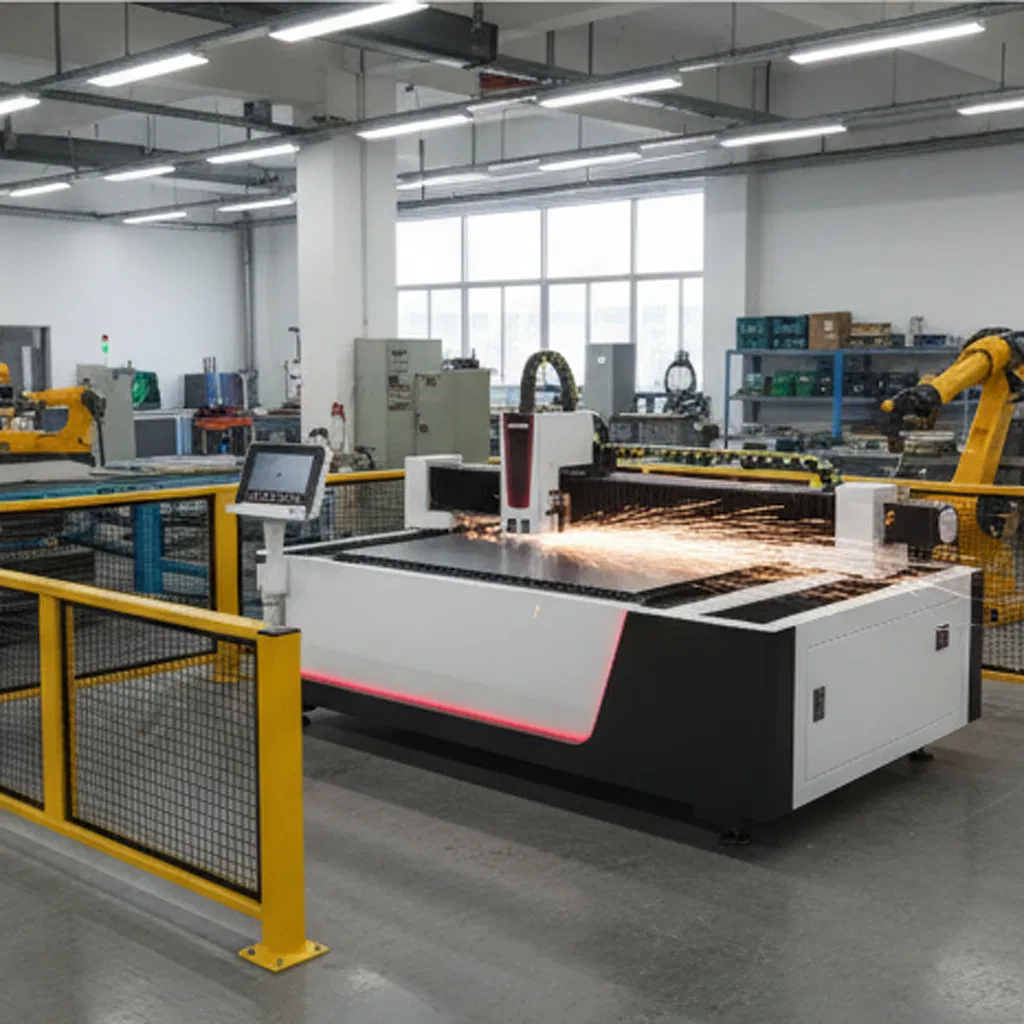

Modular, water-cooled system: compact, maintenance-free, highly reliable. Adjustable power, high efficiency, excellent beam quality. Ideal for thick cutting, welding, cladding, heat treatment. 6000W laser offers fiber-optic QBH output, compatible with laser heads, galvanometers, robots, and machine tools. Widely used in hardware, medical, automotive, marine, aviation, engineering sectors.

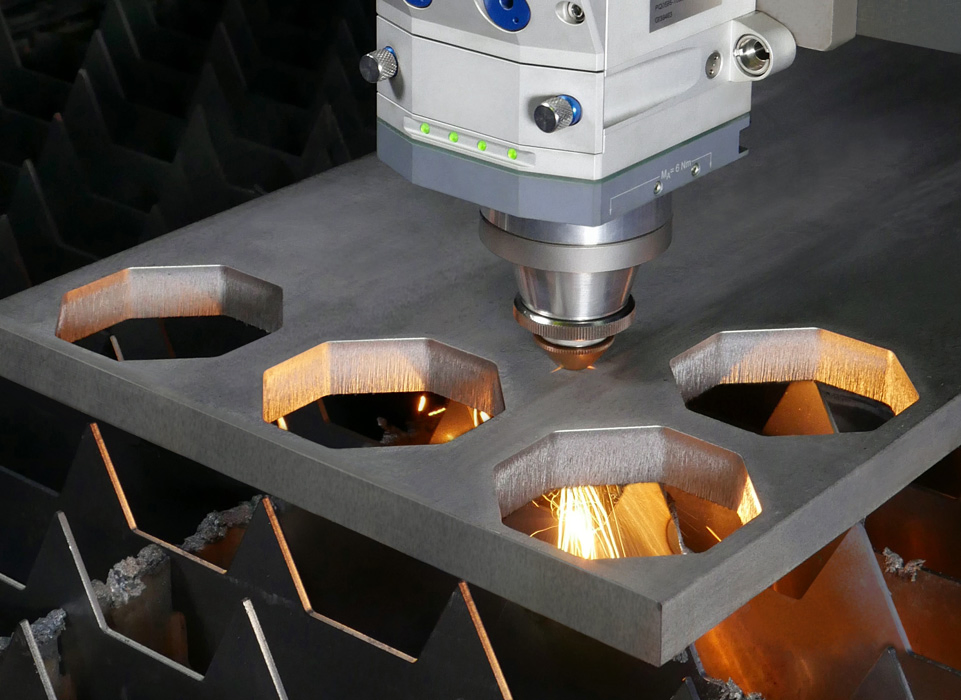

Precision focus and rapid servo control enhance perforation efficiency. Direct nozzle design reduces temperature, ensuring consistent cuts. Compatible with various lasers, water- and air-cooled chambers prevent temp errors. Sealed structure shields optical lens, prolonging life.

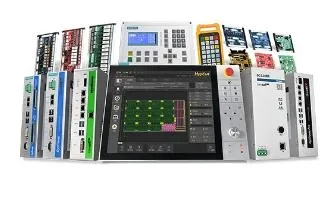

Effortless setup and outstanding performance with comprehensive solutions. One-touch cutting for swift material severing and waste recovery. Envelope line tracking enables efficient flycutting of irregular sheets. Free-cutting lines boost efficiency. Circular centering streamlines processing of circular sheets.
Features high-grade stainless steel cooling pump with high flow, low noise, longevity. Rust-free plastic tank, stainless piping. LCD controller shows real-time temperature. Maintains ±1°C. Fault diagnosis indicates fault location. Multiple protections and alarm included. Dual-temperature chiller stabilizes laser temperature.
(Custom configurations available upon request.)

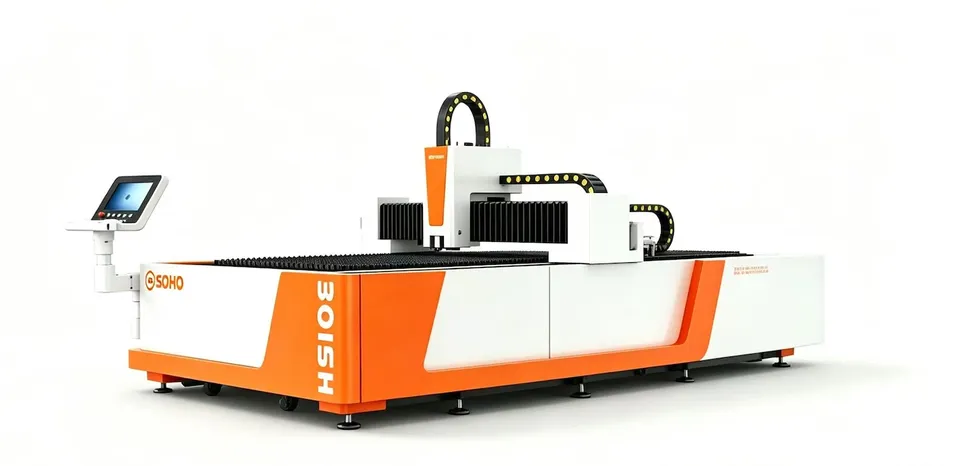

| Model | SH-3015H | |
|---|---|---|
| Machine tool processing area (length × width) | 3000mm×1500mm | |
| Accuracy | X and Y-axis positioning accuracy | ±0.03mm |
| X and Y-axis repeatability positioning accuracy | ±0.02mm | |
| Speed | X and Y-axis positioning speed | 60-90m/min |
| X-axis and Y-axis acceleration | 0.5-1.0G | |
| Maximum feed rate | 80m/min | |
| Machine tool travel | X-axis travel | 1500mm |
| Y-axis travel | 3000mm | |
| Z-axis travel | 120mm | |
| Dimensions | Approximate external dimensions (length × width × height) | 4500mm×2220mm×2000mm |
| Power supply parameters | 380V/50Hz | |

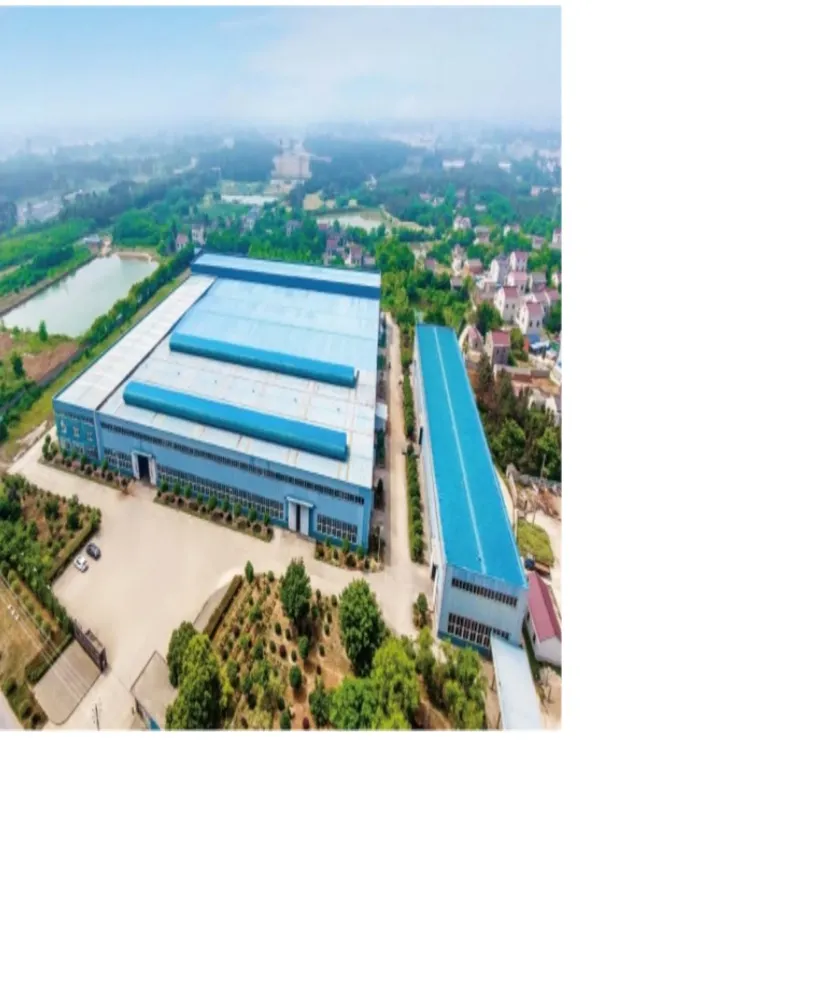

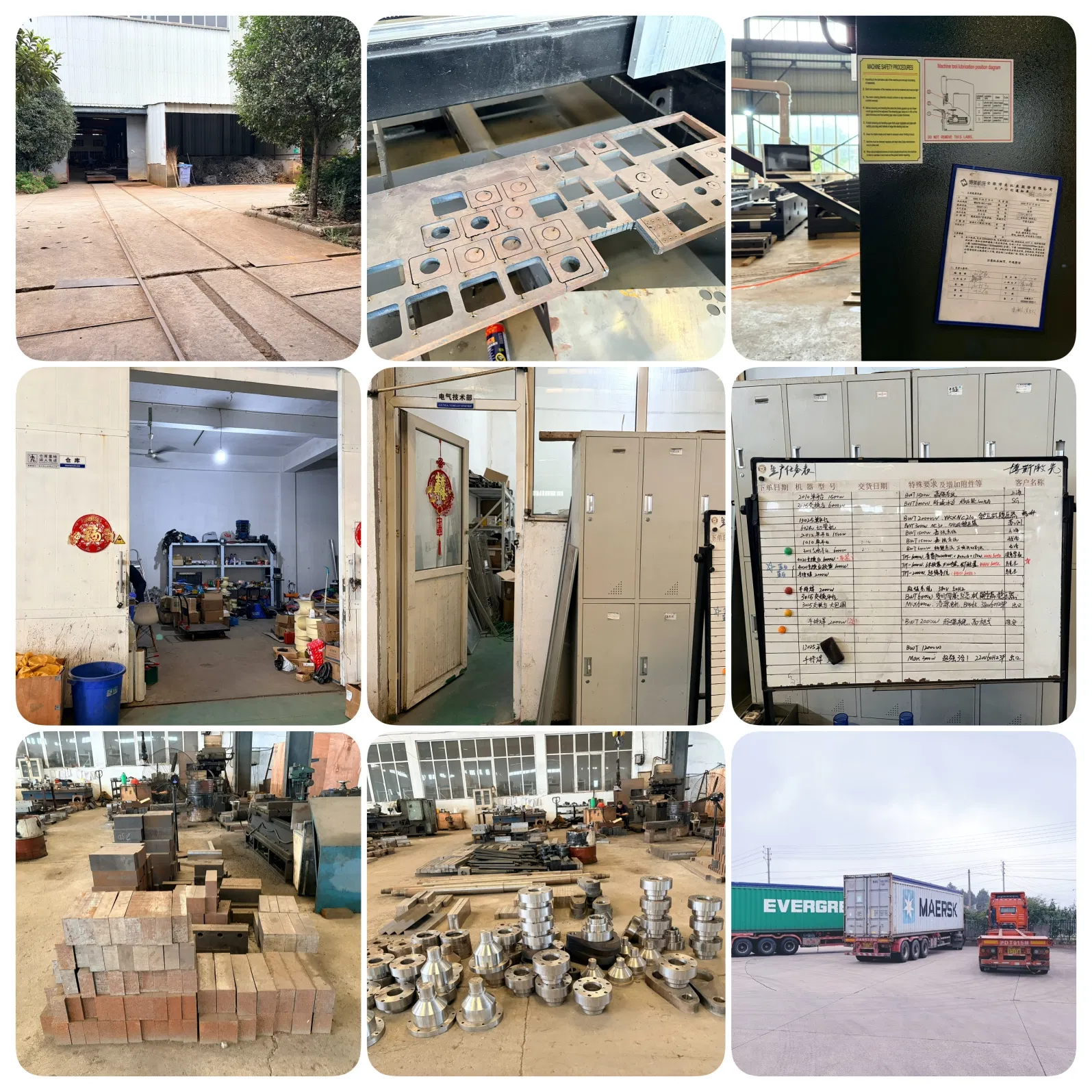

Experts in R&D, production, and sales of sheet metal equipment, including laser cutting, shearing machines, and press brakes. As a leader in high-end laser processing equipment, our modern facilities use advanced German and Spanish machining tools.

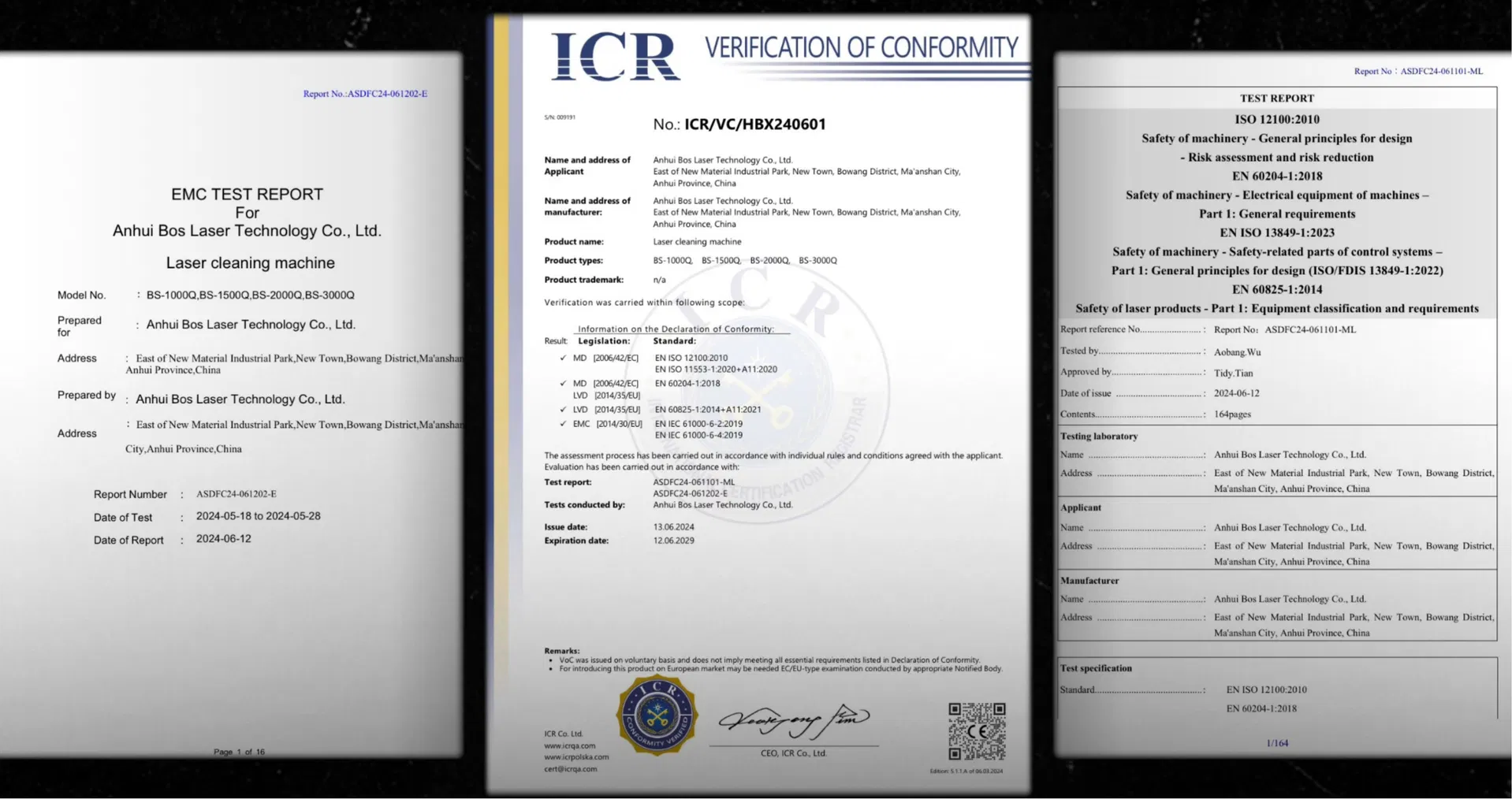

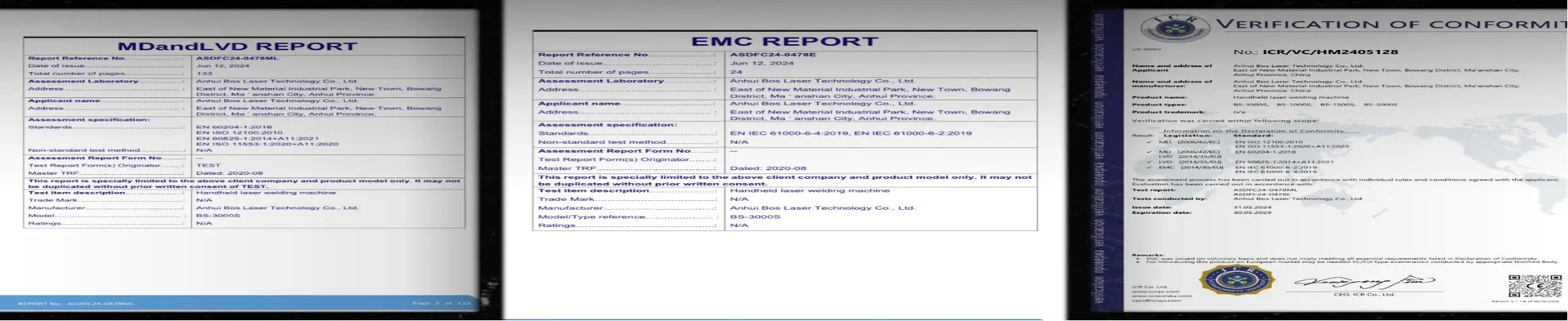

Backed by ISO9001 and EU CE certifications, our robust market service system delivers premium machines. Our products shine globally in Europe, North America, South America, the Middle East, and Asia, supported by over 50 years of independent import and export expertise.
We craft OEM machines for our European Agent, strictly following European standards for guaranteed satisfaction. Leveraging cutting-edge technologies, scientific management, superior products, and exceptional service, we pursue excellence.
